Project 2 - 2D meshing on the instrumental Panel

AIM

 To extract the fe with casting method and capture all features by using align manager

procedure

• import the model
• measuring thickness various features to identify the minimum thickness of the component
• geometry clean up
• extracting the fe using casting method
• capturing the features with align manger

BODY OF THE CONTENT

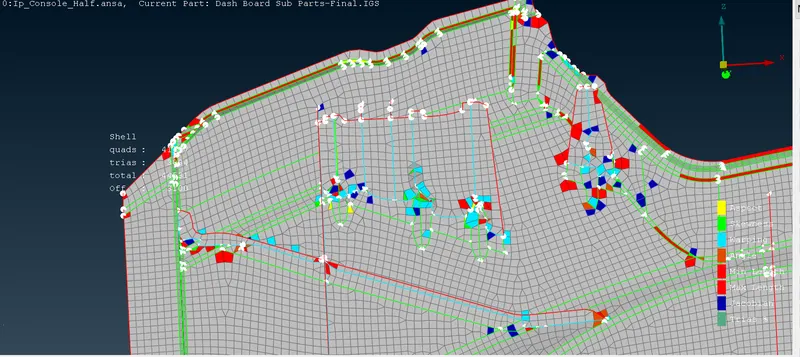

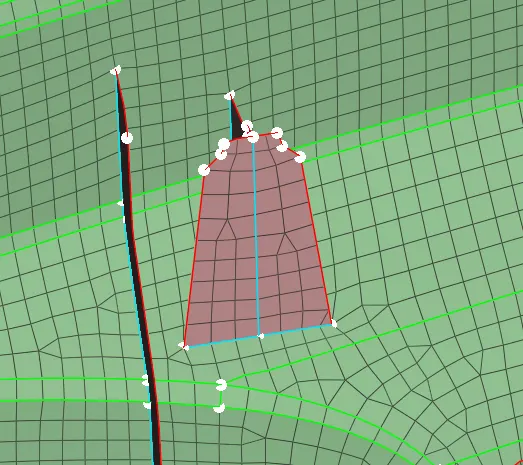

Dog house before captured

dog house after captured

in order to cpture this feature,go to align manager -select the perimeter which are getting wrong definition-to make it correct-edit-faces-select the correct faces to align

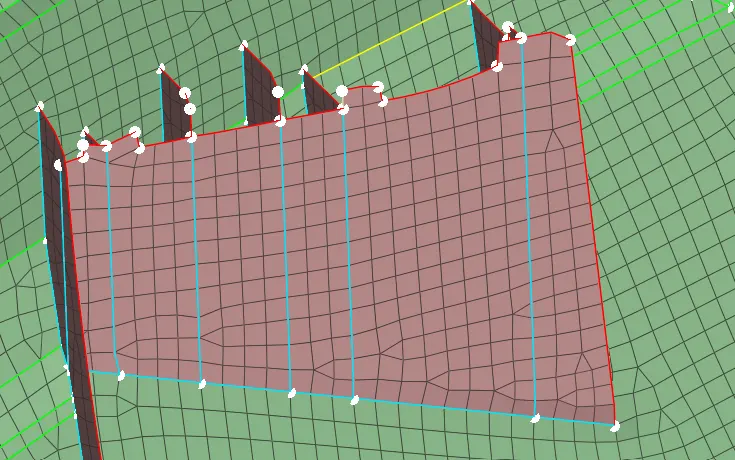

to do the macro definition,goto area in the align manager-select the macro to define-provide plane or middle defintion by selecting the-2 opposite faces

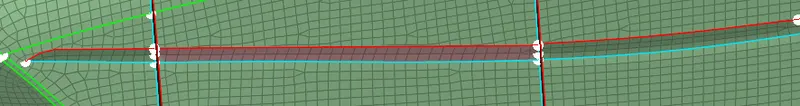

rib capturing

in order to capture this feature, make a curve over there and fill it with shell option

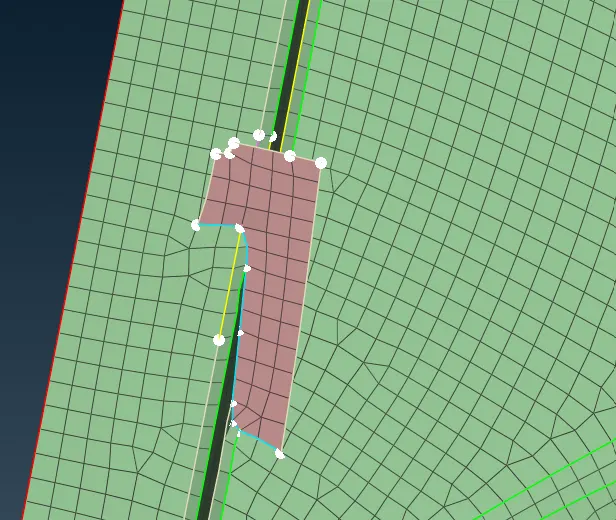

in order to capture the fillet areas,making imprint the cons from parrent geometry

conclusion

               while practing with fe we can get knowledge about align manager in additionally  macros defintion, perimeter definition,how to get

proper feature capturing by using align manager,imprint the cons to get a fillet region
