Project 2
For the given problem, Adjust-speed Permanent magnet synchronous motor is considered in RMxprt analysis.

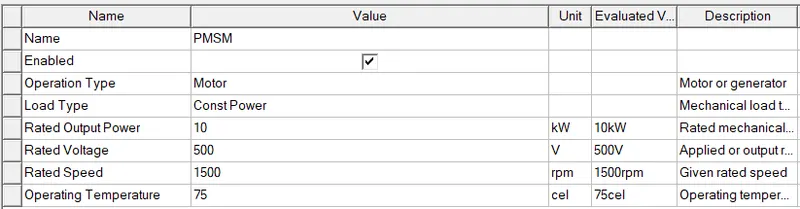

1. Solution setup considered:-

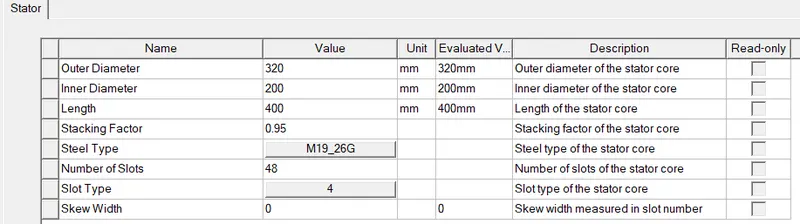

2. Stator Input:-

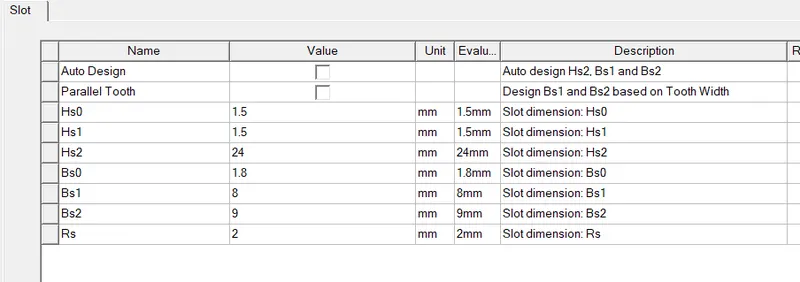

3. Stator Slot Input:-

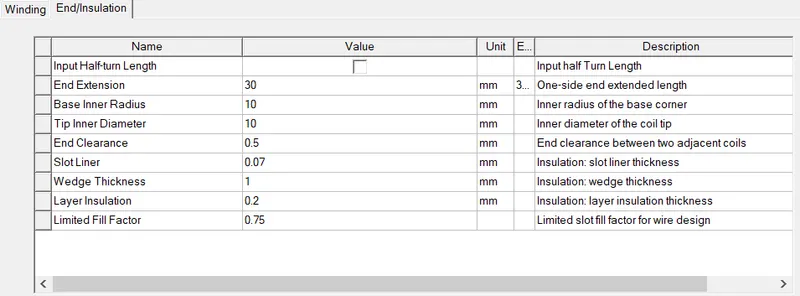

4. Winding Input

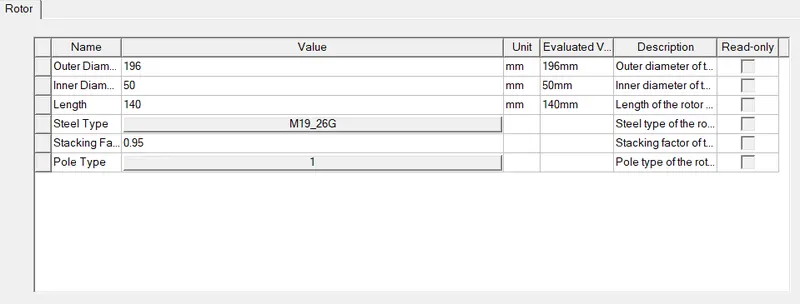

5. Rotor input:-

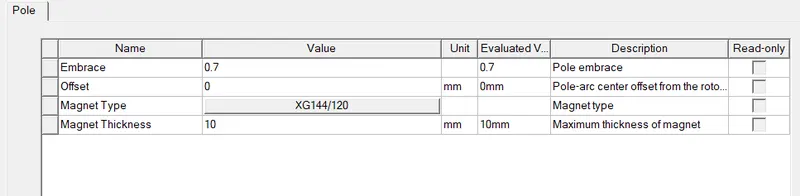

6. Rotor Pole Input:-

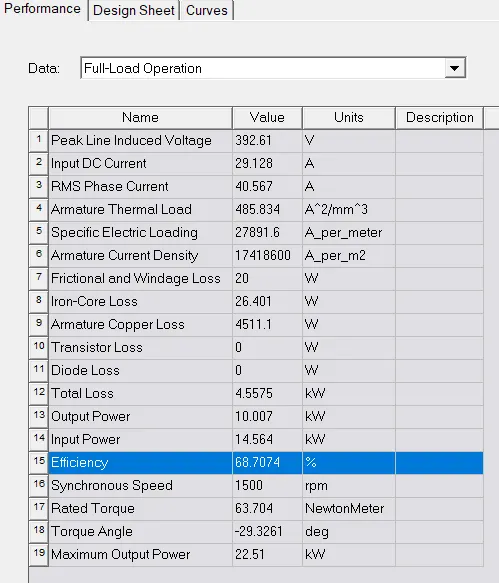

7. Full load output:-
From the above design:-
1. Rated torque=63.704 Nm.
2. Synchronous speed=1500.
3. Armature current density=17418600 A/m2

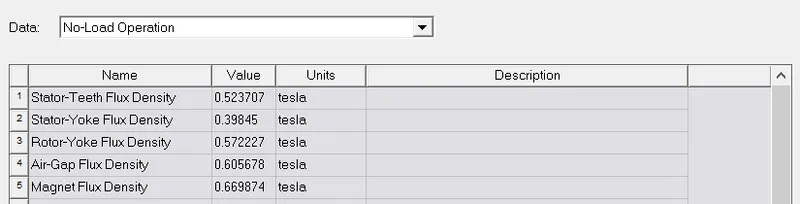

4. Flux density at no load:-
