1. Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition. The specification must be as follows:



Width	30m
Length	50m
Eave Height	9m
Bay spacing	6m
Soil type	Medium
Safe Bearing Capacity	200 kN/m2
Roof slope	1 in 12

Assume suitable sections for structural elements. Follow IS800:2007, IS1893 and IS 875

1. Prepare a Design Basis Report for the project
2. Create structural model using STAAD Pro Connect Edition
3. Prepare DL, LL, WL and EQL load calculations as per IS 875 standards
4. Design using MS – Excel
   1. Steel column
   2. Rafter
   3. Base plate
   4. Pedestal
   5. Z- purlin

1. Design Foundations using STAAD Foundation.

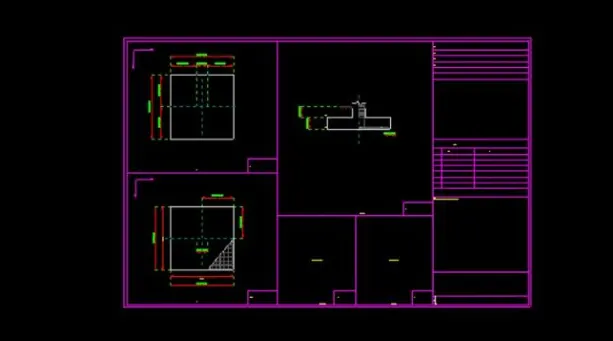

2. Attach necessary sketches and drawings wherever required.
3. All stipulations, assumptions and design parameter must adhere to Indian Standards.

INTRODUCTION

STAAD.Pro is one of the popular software that is used for analyzing & designing structures like – buildings, towers, bridges, industrial, transportation and utility structures

Here we design a building using staadpro

A warehouse building is constructed and analyse using STAAD PRO

The foundation is designed using STAAD Foundation

PROCEDURE

ROOF SLOPE CALCULATION

Roof Slope  = 1 in 12

Width, b     = 30 m

X / (b/2)    = 1/12

X               = (30/2) / 12  =  15/12

X              = 1.25 m

Total height =9 +1.25 =10.25

Calculation of Design Loads

1)Calculation of Dead load:

UDL on Rafter (Main frame):

Weight of roof sheeting = 5 Kg/m2

Weight of sag rods and braces = 5 Kg/m2

Collateral load = 10 Kg/m2

Total load = 20 Kg/m2 = 0.2 KN/m2

UDL on Rafters:

Bay spacing = 6m

UDL = 0.2 X 6 = 1.2 KN/m

UDL on Rafters from purlin:

Choose suitable purlin section for weight of purlin (IS-811)

Say Z = 270 X 75 X 20 X 2.55 = 8.77 Kg/m

weight on rafters from purlin = (Number of purlin X Length of purlin)/Length of rafter

                                          = ( 5 X 6 X 8.77)/15

                                          = 17.54 Kg/m = 0.175 KN/m

UDL on main frame = 1.2 + 0.175 = 1.375 KN/m

UDL on gable frame = 1.375/2 = 0.687 KN/m

UDL on Column (Main frame):

Weight of side wall sheeting = 5 Kg/m2

Weight of sag rod and braces = 5 Kg/m2

Load from sag rods & braces = 10 Kg/m2 = 0.1 KN/m2 = 6 X 0.1 = 0.6 KN/m

Weight of grit (270 X 75 X 20 X 2.55) = 8.77 Kg/m

Weight on column = (5 X 6 X 8.77)/6 = 43.85 Kg/m = 0.438 KN/m

Total Load = 0.6 + 0.438 = 1.038 KN/m

UDL on Column (Gable frame):

Total load = 1.038/2 = 0.565 KN/m

Load on wind column:

 Load from sheet and sag rods = 0.1 X 6 = 0.6 kN/m

Weight of grits (230 X 75 X 20 X 2) = 6.32 KG/m

Load on wind column = (6X 6.32 X 6)/6 = 37.92 Kg/m = 0.38 KN/m

Total load = 0.6 + 0.38 = 0.98 KN/m

Dead Load on eave strut & Gutter:

Point load:-

Weight of Eave strut = CS 270 X 75 X 20 X 3.15 = 10.7 Kg/m

Weight of eave gutter = 0.25 X 0.25 X 0.001 = [0.25 + 0.25 + 0.25] X 0.001 X 7850

                                   =5.89 Kg/m

Load due to eave strut & gutter = 10.7 + 5.89 = 16.59 Kg/m

Load due to eave strut & gutter (Main frame) = 16.59 X 6 = 99.54 Kg

                                                                        = 0.995 KN

Load due to eave strut & gutter (Gable frame) =0.497 KN

2) Calculation of Live load:

Live load on roof = 0.75 KN/m2 (IS 875- II)

UDL on Rafter:

Main frame rafter = 0.75 X 6 = 4.5 KN/m

Gable frame rafter = 0.5 X 4.5 = 2.25 KN/m

Eave gutter (250 X 250 X 1mm)

Load due to weight of water in gutter:

Main frame = [0.25 X 0.25 X 9 X 6] = 3.375 KN

Gable frame = [0.5 X 3.375] = 1.687 KN

3) Calculation of wind load

Basic wind speed = 50 m/s for chennai

K1 - 1.00

K2 - 1.0

K3 - 1.00

K4 - 1.15

Kd -0.9

Ka (Rafter) - 0.8 or as per tributary area.

Ka (Column) - 0.8245 or as per tributary area.

Ka (Purlin) - 0.9721 or as per tributary area.

Ka (Side Runner) - 0.978 or as per tributary area

Kc -0.9

Design wind pressure = pd = kd x ka x kc x 0.6 x (Vb x k1 x k2 x k3 x k4)^2= 0.652 kN/m2

But should not be less than 0.7 Pz = 0.7 x 1.006 = 0.704 kN/m2

Cpe - As per table 5 & 6 of IS: 875 (Part 3) – 2015

Cpe On wall:

Direction	A	B	C	D
0 deg.	0.7	-0.25	-0.6	-0.6
90 deg.	-0.5	-0.5	0.7	-0.1

Cpe On Roof:

Roof angle = 2.86

Direction	EF	GH	EG	FH
0 deg.	-0.86	-0.4
90 deg.			-0.8	-0.4

Cpi = 0.2

Wind Load on Columns = (Cpe – Cpi) x A x Pd

Wind about X Direction + Cpi = (0.7 – 0.2) x 8 x 0.704 = 2.816 kN/m on Wall A

Wind about X Direction + Cpi = (-0.25 – 0.2) x 8 x 0.704 = -2.534 kN/m on Wall B

Wind about X Direction + Cpi = (-0.6 – 0.2) x 6.75 x 0.704 = -3.802 kN/m on Wall C & D

Wind about X Direction - Cpi = (0.7 + 0.2) x 8 x 0.704 = 5.069 kN/m on Wall A

Wind about X Direction - Cpi = (-0.25 + 0.2) x 8 x 0.704 = -0.282 kN/m on Wall B

Wind about X Direction - Cpi = (-0.6 + 0.2) x 6.75 x 0.704 = -1.9 kN/m on Wall C & D

Wind about Z Direction + Cpi = (-0.5 – 0.2) x 8 x 0.704 = -3.942 kN/m on Wall A

Wind about Z Direction + Cpi = (-0.5 – 0.2) x 8 x 0.704 = -3.942 kN/m on Wall B

Wind about Z Direction + Cpi = (0.7 – 0.2) x 6.75 x 0.704 = 2.376 kN/m on Wall C

Wind about Z Direction + Cpi = (-0.1 – 0.2) x 6.75 x 0.704 = -1.425 kN/m on Wall D

Wind about Z Direction - Cpi = (-0.5 + 0.2) x 8 x 0.704 = -1.689 kN/m on Wall A

Wind about Z Direction - Cpi = (-0.5 + 0.2) x 8 x 0.704 = -1.689 kN/m on Wall B

Wind about Z Direction - Cpi = (0.7 + 0.2) x 6.75 x 0.704 = 4.276 kN/m on Wall C

Wind about Z Direction - Cpi = (-0.1 + 0.2) x 6.75 x 0.704 = 0.475 kN/m on Wall D

Wind Load on Rafters = (Cpe – Cpi) x A x Pd

Wind about X Direction + Cpi = (-0.86 – 0.2) x 8 x 0.704 = -5.970 kN/m on Side A Rafter

Wind about X Direction + Cpi = (-0.4 – 0.2) x 8 x 0.704 = -3.378 kN/m on Side B Rafter

Wind about X Direction - Cpi = (-0.86 + 0.2) x 8 x 0.704 = -3.716 kN/m on Side A Rafter

Wind about X Direction - Cpi = (-0.4 + 0.2) x 8 x 0.704 = -1.125 kN/m on Side B Rafter

Wind about Z Direction + Cpi = (-0.8 - 0.2) x 6.75 x 0.704 = -4.752 kN/m Side C Rafter

Wind about Z Direction + Cpi = (-0.4 - 0.2) x 6.75 x 0.704 = -2.851 kN/m Side D Rafter

Wind about Z Direction - Cpi = (-0.8 + 0.2) x 6.75 x 0.704 = - 2.851kN/m Side C Rafter

Wind about Z Direction - Cpi = (-0.4 + 0.2) x 6.75 x 0.704 = -0.950 kN/m Side D Rafter

Wind Load on Canopy

Cp - As per table 8 of IS: 875 (Part 3) – 2015

Roof Angle 2.86 deg.

Cp -ve = 1.08

Cp +ve = 0.35

Wind Load on Canopy (Upward) = 1.08 x 8 x 0.704 = 6.082 kN/m

Wind Load on Canopy (Downward) = 0.35 x 8 x 0.704 = 1.971 kN/m

4) Seismic Load

As per IS: 1893 - 2016

Seismic zone - III - Z = 0.16

Rf - 4.0

I - 1.0

SS - 3.0

25% of Live Load on roof considered for calculation of seismic forces.

100% of collateral load on roof considered for calculation of seismic forces.

50% of (Live load + Collateral load) on mezzanine floor considered for calculation of seismic forces.

100% of Dead load considered for calculation of seismic forces.

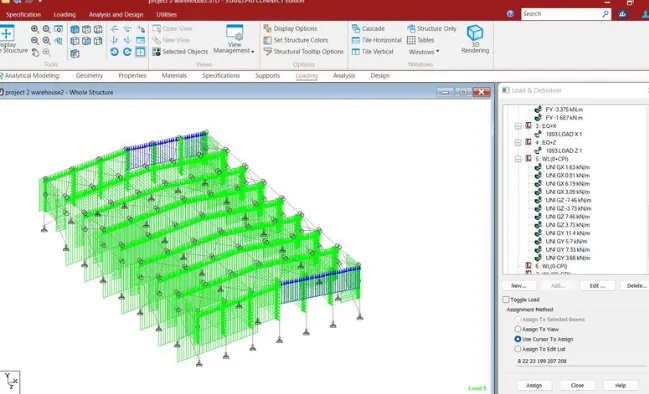

Modeling in staad pro

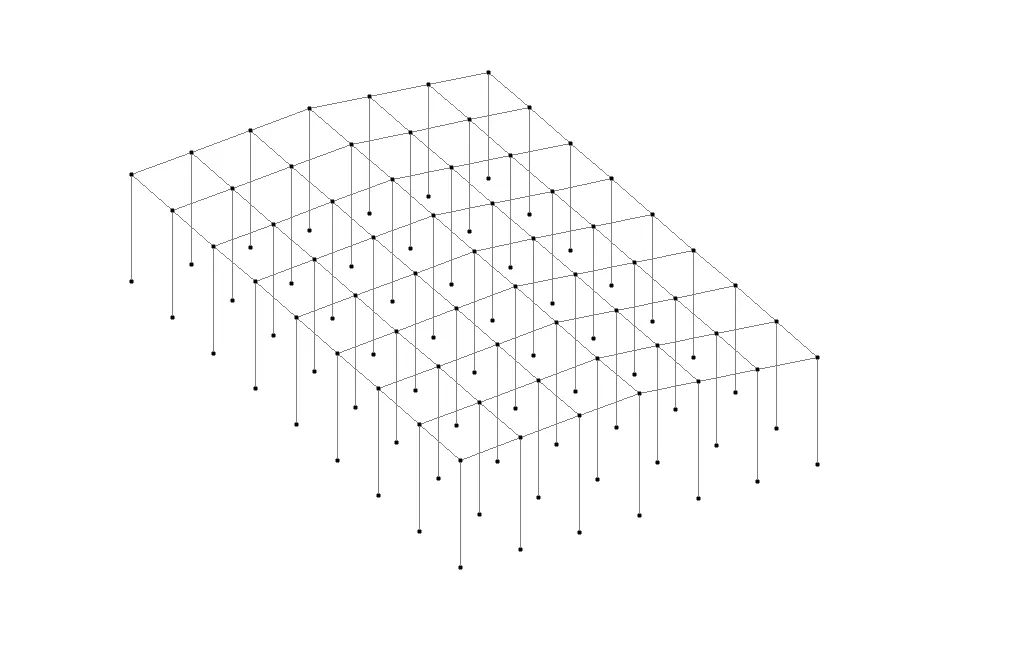

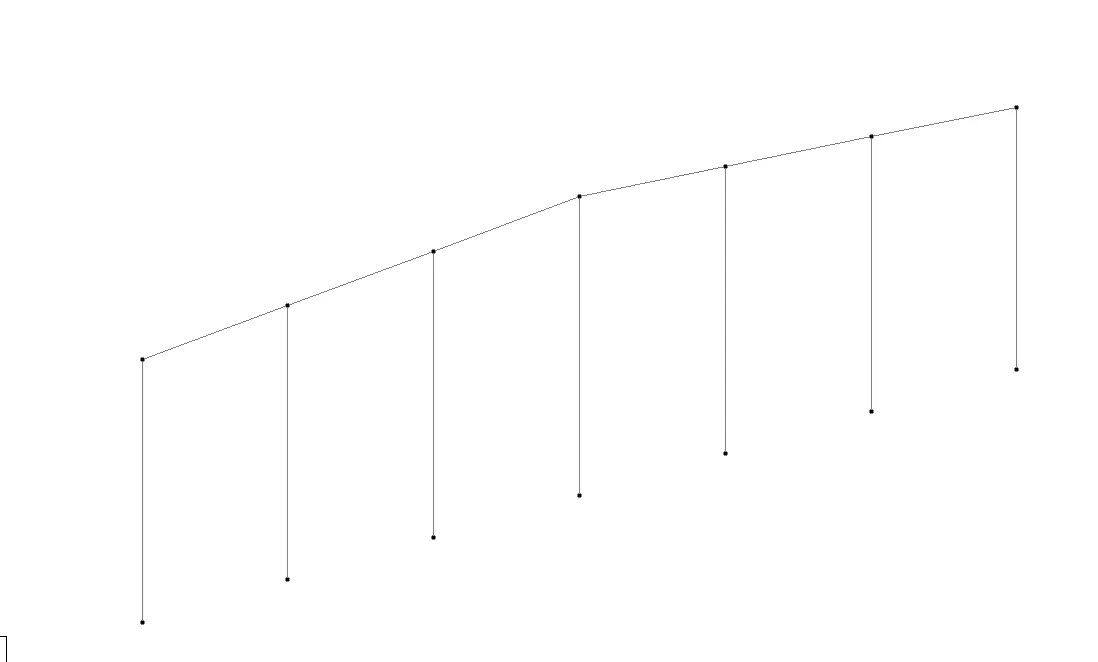

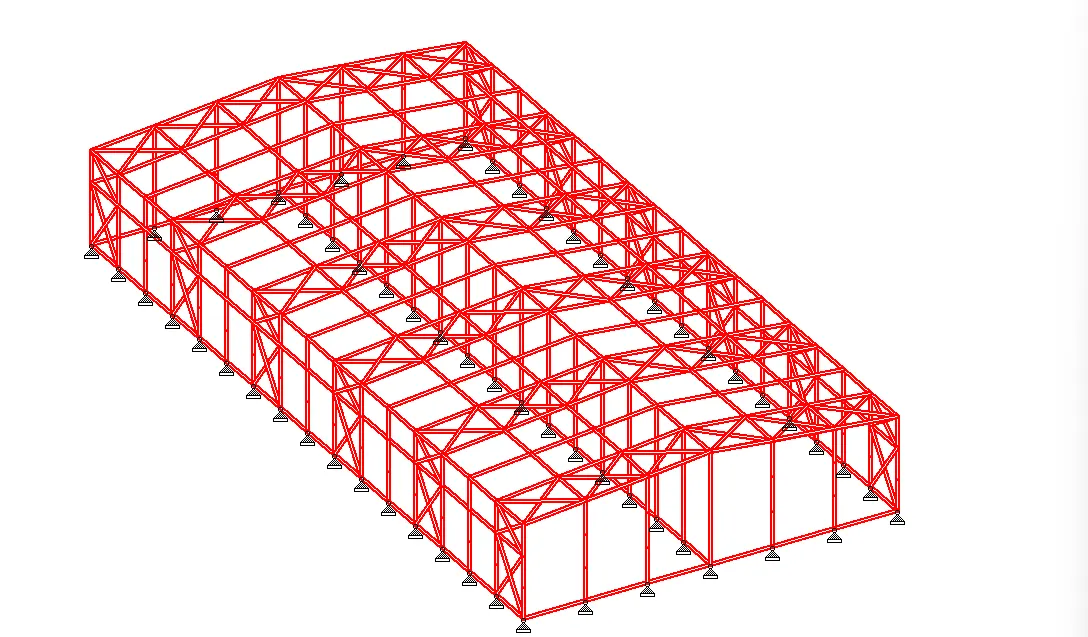

Step 1: create model in staad pro

Step 2:Assign section to the drawing

Step 3:Give specifications

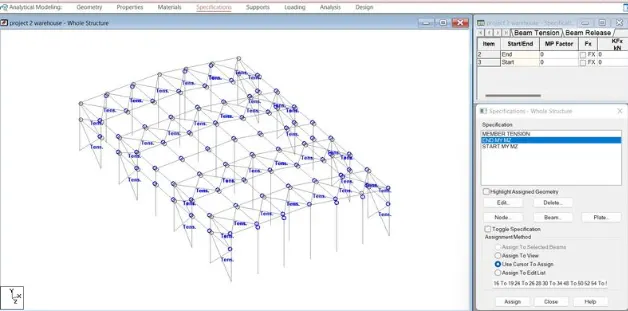

          Assign tension member

          Release moment

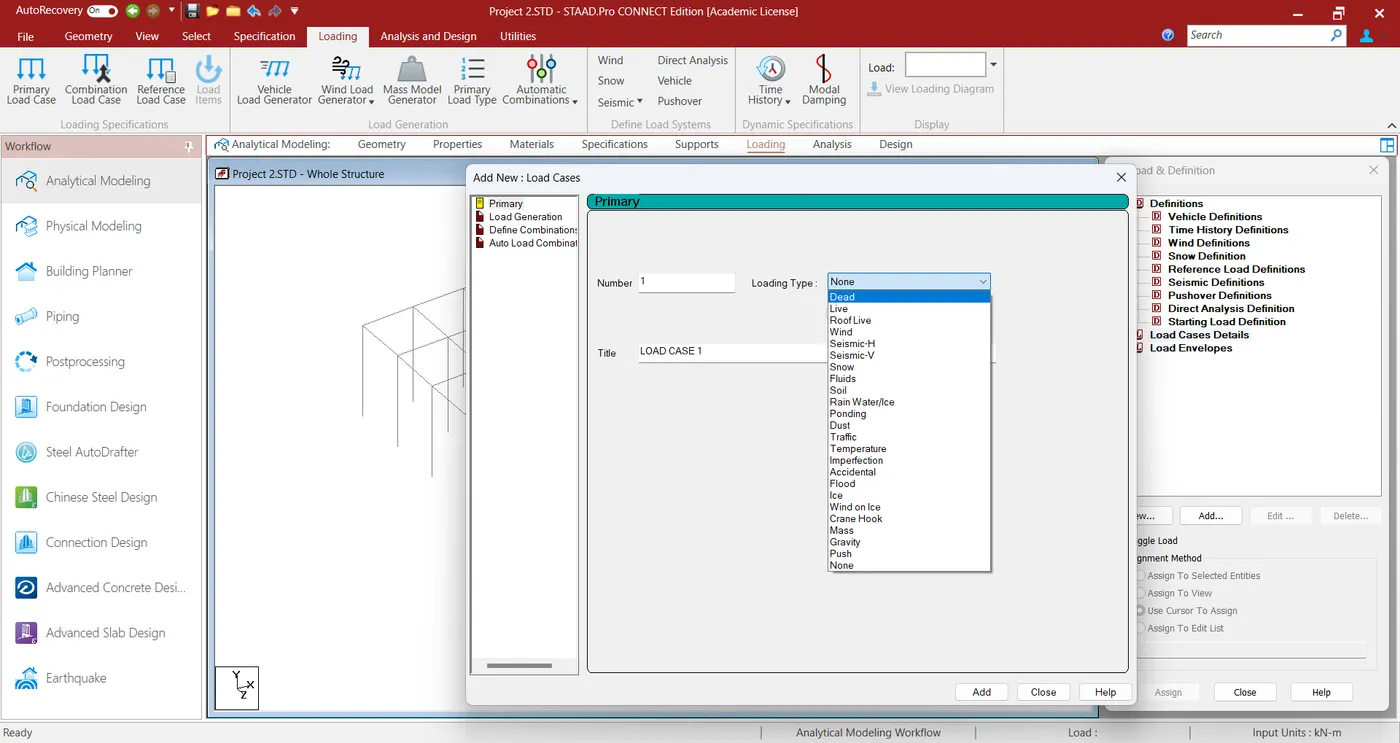

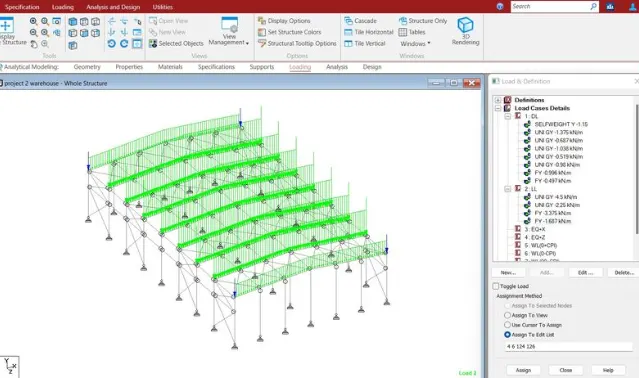

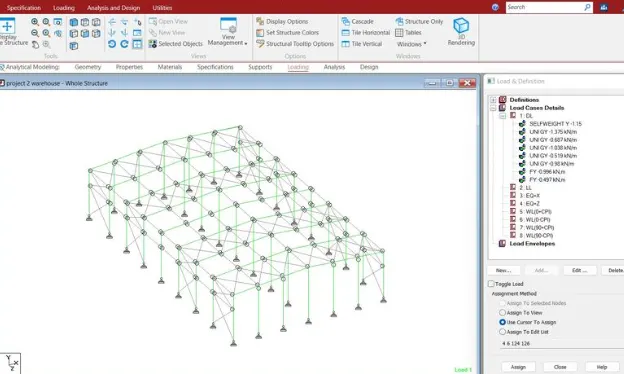

Step 4:Input all load cases

Step 5:Assign values in load cases

           Assign to the model

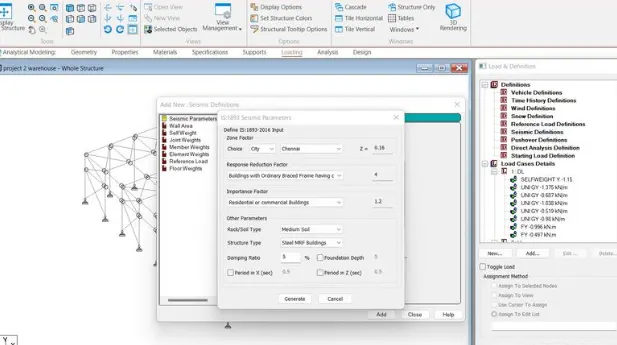

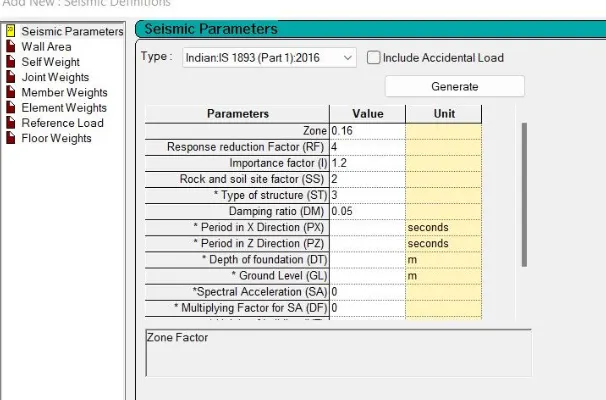

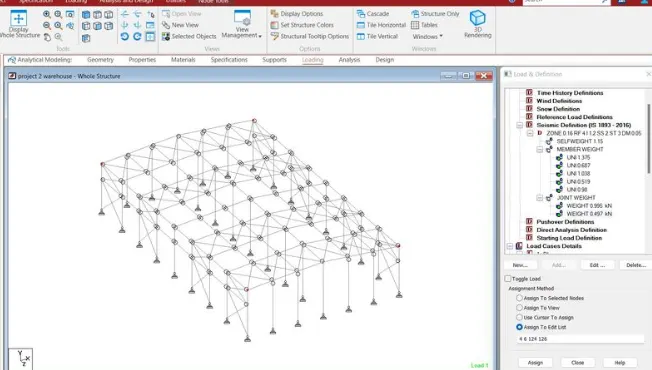

Step 6:Generate seismic definition

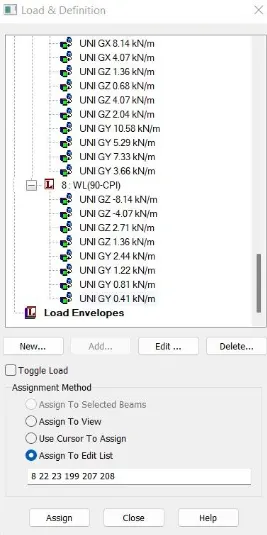

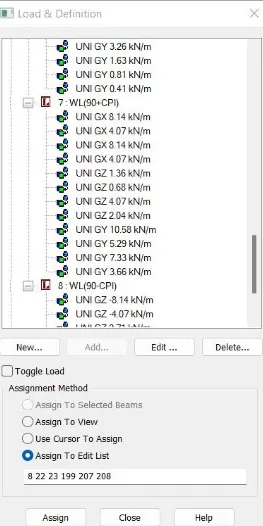

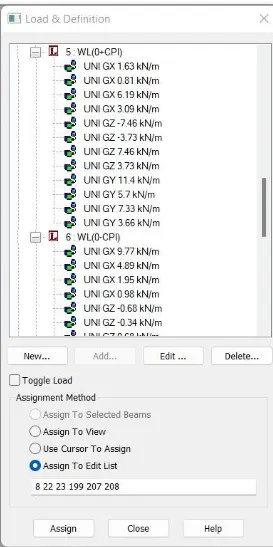

Step 7:Input wind load

           Assign to the model

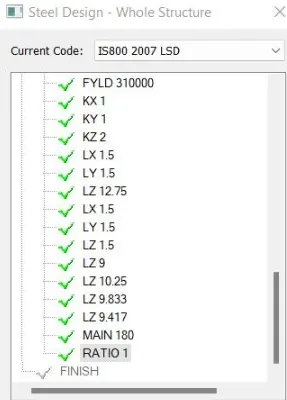

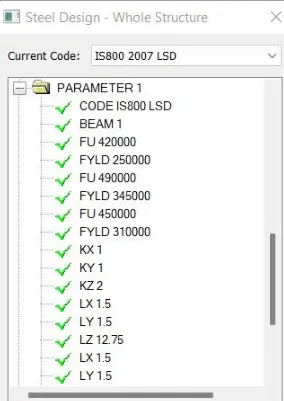

Step 8:Define parameters

          Assign to the model

Step 9:Define commands

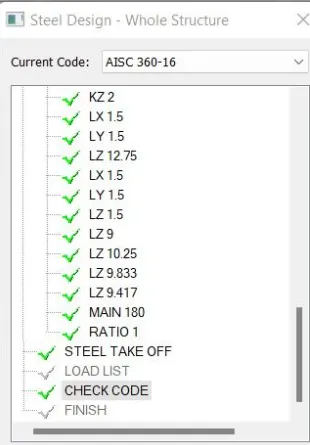

Step 10:Run analysis

Step 11:In result

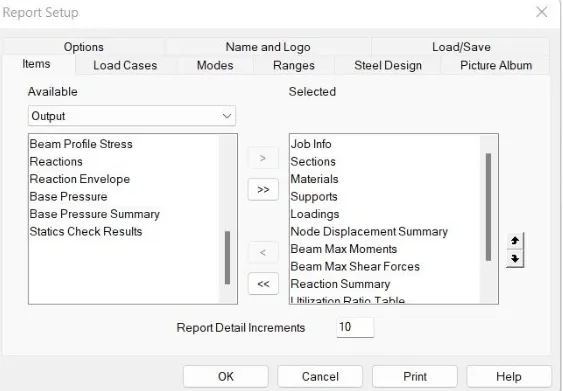

            Setup report

            Print report

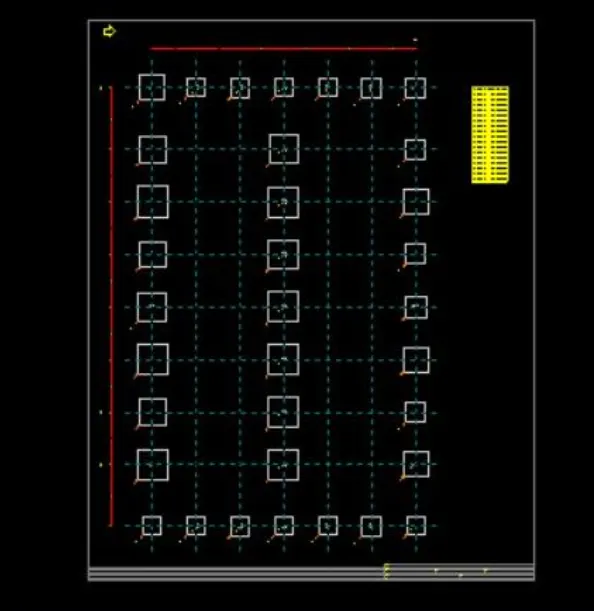

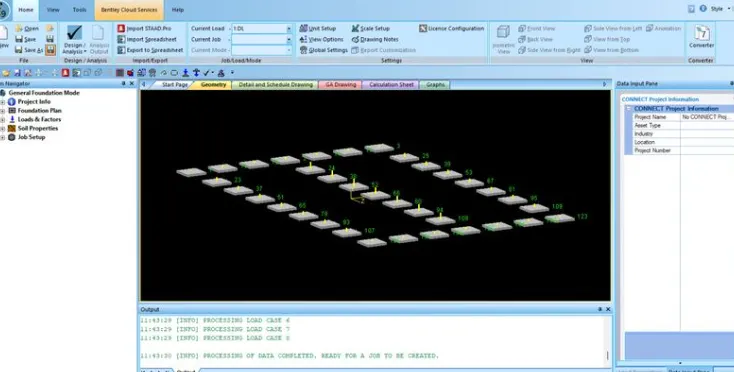

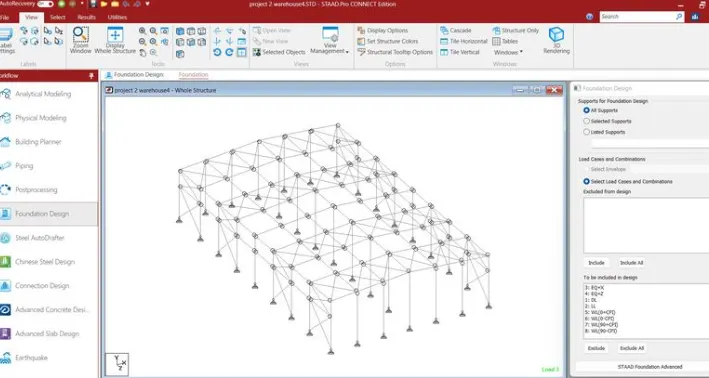

Step 12:Click on Staad foundation

            Input details

DESIGN OF STEEL COLUMN:

Flange thickness = T = 12.7 mm.

Overall height of Column ISMB400 = h = 400 mm.

Clear depth between flanges = d = 400 – (12.7 x 2)

= 374.6 mm.

Thickness of web = t = 10.6mm.

Flange width = 2b = bf = 250 mm.

Hence, half Flange Width = b = 125 mm.

Self –weight = w = 0.822 kN/m.

Area of cross-section = A = 10466 mm2.

Radius of gyration about x = rx = 166.1 mm.

Radius of gyration about y = ry = 51.6 mm.

Type of section:

b/T = 125/12.7= 9.8 < 10>

d/t =374.6/10.6 =35.3 < 42>

(Table 3.1 of IS: 800)

Hence, cross-section can be classified as “COMPACT”.

Effective Sectional Area, Ae = 10,466 mm2

(Since there is no hole, (Clause 7.3.2 of IS: 800)

no reduction has been considered)

Effective Length:

As, both ends are pin-jointed effective length, KLx = KLy = 3m

Slenderness ratios:

KLx/rx = 9000/166.1 =54.1

KLy/ry = 9000/51.6 =174.41

Non-dimensional Effective Slenderness ratio, λ">λ:

λ">λ

= (sqrt2.5X(174)^2)/(pi^2X2X10^5`= 3.83

Value of ϕ">ϕ from equation:

Hence, α">α = 0.34 for buckling class ‘b’ will be considered.

Hence, ϕ">ϕ= 0.5 x [1+0.34 x (0.654-0.2)+0.6542] = 0.791

Calculation of x:

 =   0.809



Calculation of fcd from the following equation:

= 0.809 x 250/1.1 = 183.86 N/mm2

Factored axial load in kN.

pd = Ag fcd

    = 10466 x 183.86/1000 = 1924.28 kN.

DESIGN OF RAFTER:

Span of Rafter = 6 m

Dead load = 18KN/m

Imposed load = 40KN/m

support bearing = 100mm

yield strength = 250N/mm2

Design load calculation:

Factores load 1.5(DL+LL) =87 KN/m

Factores Bending moment = Wl28">Wl28</math>">Wl28��28= 65.25 KN/m

Section modulus Required:

Z reqd = (65.25 x106</math>">106106 x1.1) /250 =287100 mm3 = 287.1 cm3

Section classification:

ISMB-200

A = 323.3 mm2

D = 200mm

B = 100mm

t = 5.7 mm

T = 10.8 mm

Ixx = 2235.4 cm4

Iyy = 150 cm4

Zp = 375.35 cm3

Moment of resistence of the cross-section:

Md = βbZpfyγm0</math>">βbZpfyγm0��������0

      = (1 x 375.35 x 250) / ( 1.1)

Md = 85.306 > 65.25 KN/m

DESIGN OF BASE PLATE:

Strength of concrete, Fcu = 40 N/mm2

Yield strength of steel, fy = 250 N/mm2

Material factor, γm">γm= 1.1 KN

Factoresl Load = 1500 KN

Steel column section:

Thickness of flange, T = 12.7 mm

Area required:

Bearing strength of concrete = 0.4fcu = 0.4 x 40 = 16 N/mm2

                                          = (1500x1000) /( 16)

                                          = 93750 mm2

Let size of plate , Bplate = 450 mm

                          Dplate = 300 mm

                 Area of plate= 135000 mm2

projection on each side = a=b =25mm

W = (1500x1000) /( 450 x 300)

     = 11.11 N/mm2

Therefore, Thickness of Base Plate, clause 7.4.3.1

ts=√2.5w(a2−0.3b2)γm0fy>tf</math>">ts=√2.5w(a2−0.3b2)γm0fy>tf��=√2.5�(�2−0.3�2)γ�0��>��

ts= 7.3 mm < 12>

Size of Base plate 450 x 350 x 16 mm

DESIGN OF PEDESTAL:

Grade of concrete = 40 N/mm2

Load                    = 200 KN

Moment               = 120 KN

Horizontal shear   = 20 KN

Yield strength       = 250 N/mm2

Length of base plate = 450 mm

Width of base plate = 350 mm

C/C distance of bolt in group-Z = 300 mm

C/C distance of bolt in group-X = 180 mm

Bearing strength of concrete Fc = 16 N/mm2

Depth of Column = 300 mm

Width of Column = 250 mm

Anchor Bolt Details

Dia of anchor bolts =24 mm

No:of anchor bolts in each side = 4

Total no:of anchor bolts, n = 8

Gross area of the bolt ;Asb' = 452.16 mm2

Net area of bolt 'Anb' = 352 mm2

Ultimate tensile strength of bolt 'fub' = 400 N/mm2

Fyb (anchor bolts) = 240 N/mm2

Base plate Details

Ultimate tensile strength of plate 'fu' = 490 N/mm2

Thickness of plate = 16 mm

Yield stress of plate = 330 N/mm2

Anchor bolt design

Area of the plate =  157500 mm2

Stress,   Maximum pressure =FA+6XMzBL2</math>">FA+6XMzBL2��+6�����2

                                         = 10.6 N/mm2 < 16>

             Minimum pressure =FA-6XMzBL2</math>">FA−6XMzBL2��-6�����2

                                         = -9.04 N/mm2 < 16>

 Centroid = LXσ1σ1+σ2</math>">LXσ1σ1+σ2���1�1+�2= 242.89 mm

a =L/2-C/3 = 144.04 mm

e = (L-Ld) / 2 =75 mm

y = (L - C/3-e) = 294.04 mm

Tension in anchor bolt along the length of plate, FT = (Mz - Fa)/Y

                                                                          = 364.38

Tension per bolt                                                   = 91 KN

Shear per bolt                                                     = 1.63 KN

Shear Check

Factored shear force = Vsb = 1.63 KN

                                 Vd,sb = 81290.9 N

                                          = 81 KN

Factored                      = 65.03 KN

Tensile Check

Factored tensile force in bolt, Tb = 91.1 KN

Tensile strength of bolt        Ts,b = Tn,b /γmb</math>">γmb���= 126 KN

Td,b = 98.65 KN

Combined Unity Check

Vsb/Vdb = 0.025

Tb/Tdb = 0.92

Unity check = 0.85 <  1, Hence OK

Anchor Bolt Length

 Bond strength in tension, τbd</math>">τbd���= 1.4 N/mm2

Anchor length required = Tb(3.14*τbd</math>">τbd���)

                                  = 863.44 mm

Let Anchor Bolt Length = 900 mm

DESIGN OF Z-PURLIN:

Span of the purlin = 6 m

spacing of purlin = 1.5 m

No:of sag rods = 1

slope of the roof = 4.76 = 5 degree

Dead load:

Weight of sheeting = 6kg/m2

self weight of purlin = 4.22 kg/m2

Additional load = 10% = 0.42 kg/m2

Total Dead load = 0.106 kg/m2

Live load:

Live load on roof = 75 kg/m2

Wind Load:

Basic wind speed = 50 m/s

Terrain caterogy  = 2

Building class      = B

               K1      = 1

               K2      = 1

               K3      = 1

Design wind speed, Vz = 57 m/s

Design wind pressure, Pz = 1949.9 m/s = 1.94 KN

Length of building, L = 50 m

Breadth of building, W = 30 m

Height of building, H = 10.25 m

Height of eaves, = 9 m

                      h/w = 0.34

                      L/w = 1.667

External Pressure Co-eeficient

Maximum downward =Cpe =  -0.4

Maximum upward =Cpe =  -0.7

Internal Pressure Co-eeficient

Maximum positive =Cpi =   0.5

Maximum negative =Cpi =  -0.5

For Maximum upward wind force

Max upward Cpe = - 0.7

Cpi = - 0.5

Cpe+Cpi = -1.2

Pz = 1.95

Wind Pressure for Purlin Design = - 2.339 KN/m2

For Maximum upward wind force

Max upward Cpe = - 0.4

Cpi = - 0.5

Cpe+Cpi = -0.1

Pz = 1.95

Wind Pressure for Purlin Design = 0.195 KN/m2

Design Load Calculation

spacing of purlin 1.5 m

slope of roof = 5degree

Total dead load = 0.096

DL Normal component = 0.144 KN/m

DL Tangential component = 0.013 KN/m

Total Live load = 0.75

LL Normal component = 1.121 KN/m

LL Tangential component = 0.098 KN/m

Total Wind load = -2.339

WL Normal component = - 3.496 KN/m

WL2 WL load = 0.195 KN/m

WL Normal component = 0.291 KN/m

Maximum Normal component = DL+LL = 1.265 KN/m

Purlin section

Selected section Z200 x 6 x 2.3

Area = 8.07 cm2

Weight of purlin = 6.335 kg/m

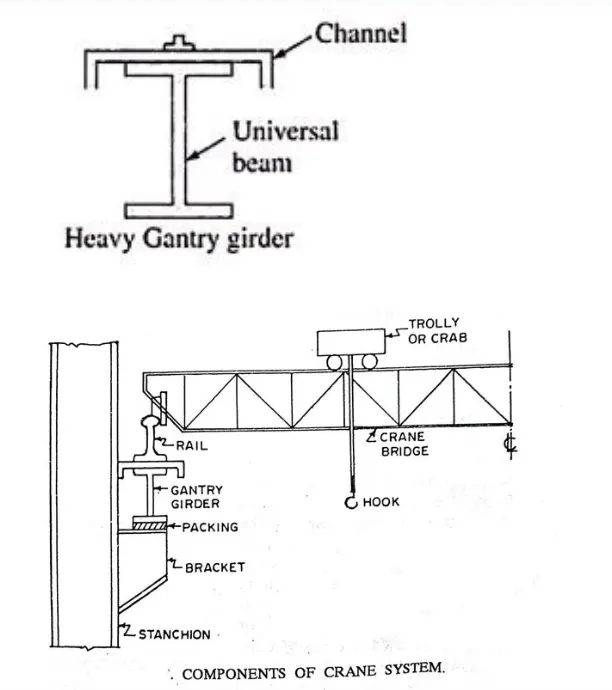

2. Design a simply supported gantry girder to carry electric overhead travelling crane

Given:

Span of gantry girder = 7 m

Span of crane girder = 9 m

Crane capacity = 250 kN

Self-weight of trolley, hook, electric motor etc. = 40 kN

Self-weight of crane girder excluding trolley = 100 kN

Minimum hook approach = 1.0 m

Distance between wheels = 3 m

Self-weight of rails = 0.2 kN/m

Solution:

Maximum moment due to vertical load

weight of trollley + crane capacity = 40 + 250 = 290 kN

Self-weight of crane girder excluding trolley = 100 kN

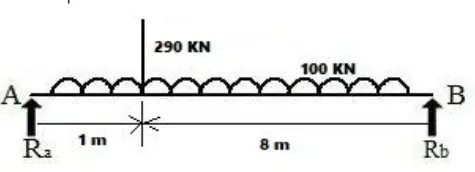

For maximum reaction on gantry girder, the moving load should be as close the gantry girder as possible.

Ra=(290X89+1002=307.77KN</math>">290*8)/9+100/2=307.77KN

This load is transferred to gantry girder, through two wheels, the wheel base being 3m.

So load on gantry girder from each wheel = 307.77/2 = 158.88 KN

Factored load = 158.88 x 1.5 =230.83 KN

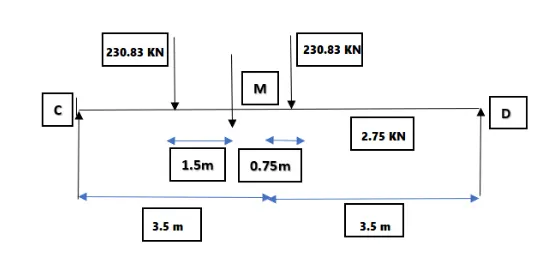

Maximum moments due to moving loads occur under a wheel when the c.g of wheel load &

The wheel are equidistant from the ccentre of girder, as shown below.

RD= 230.83 x (3-1.5-0.75) + 230.83 x (3+0.75)    = 148.40 KN

                                7

Max. moment, Me = 148.40 x 2.25 = 333.90 KN-m

Moment due to impact = 0.25 x 333.90 = 83.47 KN-m

Assume self weight of girder = 2KN-m

Dead load due to self weight  + rails = 2+0.2= 2.2 KN-m

Factored DL = 2.2 x 1.5 = 3.3 KN-m

Moment due to DL = = 20.21 KN-m

Factored moment due to all vertical loads,

Mz = 333.90 + 83.47 + 20.21 = 437.58 KN-m

Maximum moment due to Lateral force:

Horizontal force transferred to rails = 10% of weight of trolley plus load lifted = (10/100) x (250+40) = 29 KN

This is distributed over 4 wheels.

So, horizontal force on each wheel = 29/4 = 7.25 KN

Factored horizontal force on each wheel = 1.5 x 7.25 = 10.875 KN

For maximum moment in gantry girder the position of loads is same as earlier except that it is horizontal, hence byproportioning we get.

My = (10.875/230.83) x 333.90 = 15.73 KN-m.

Shear force:

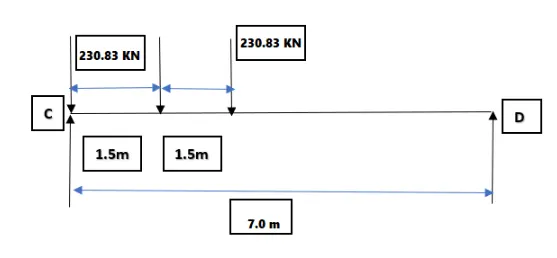

For maximum shear force on the girder, the trailing wheel should be just on the girder as shown below.

Vertical shear due to wheel loads = 230.83 + (230.83 x 3) / 7 = 329.75 KN

Priliminary Section:

Minimum economic depth, L/12 = 7000/12 = 583.33 mm

Width of the compression flange may be taken as (1/40) to (1/30) of span

So, flange width can be taken, L/40 = 7000/40 = 175 mm to L/30 = 7000/30 = 233.33 mm.

Required, Zp = 1.4 x M/fy = 1.4X437.58X106250</math>">1.4X(437.58X10^6)/250 = 2450 X 10^3 mm3

Let us try a ISMB 550 with ISMC 250 on compression flange.
