Project 2

AIM-

1. To Emulate Torque-Speed Characteristics of the designed IPM Motor in Ansys maxwell.

2. To Change the material types of magnets and Stator/Rotor.

- Run Simulation again with detailed report of the results.

--------------------------------------------------------------------------------------------------------

Emulated Torque- Speed Characteristics of the designed IPM Motor in Ansys MaxWell-2D discussed in Lecture.

Materials for Prius IPM Motor Discussed in Lecture

Stator- M19_29G

Rotor- M19_29G

Magnet- N36Z_20

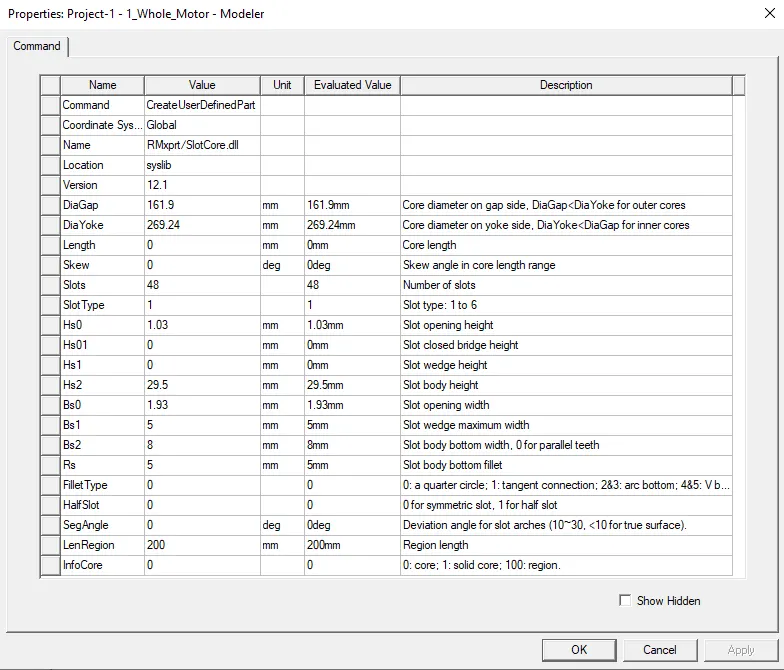

SlotCore Diamension

IPM Core Diamension

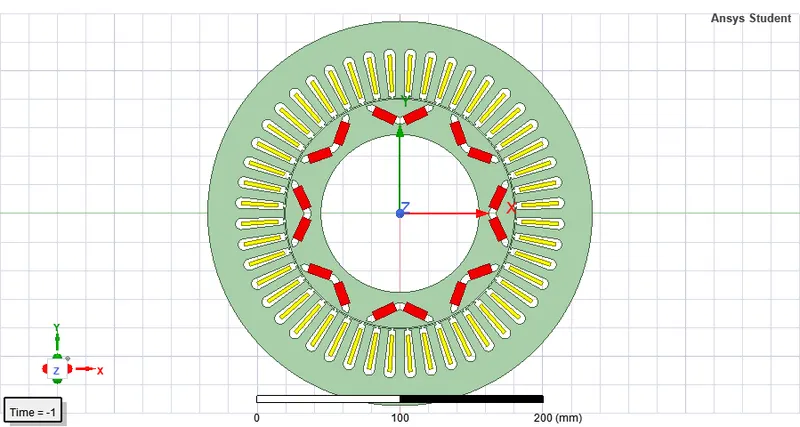

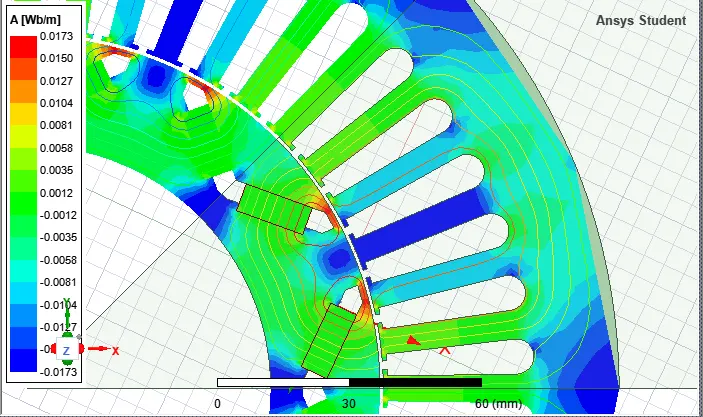

Whole Motor

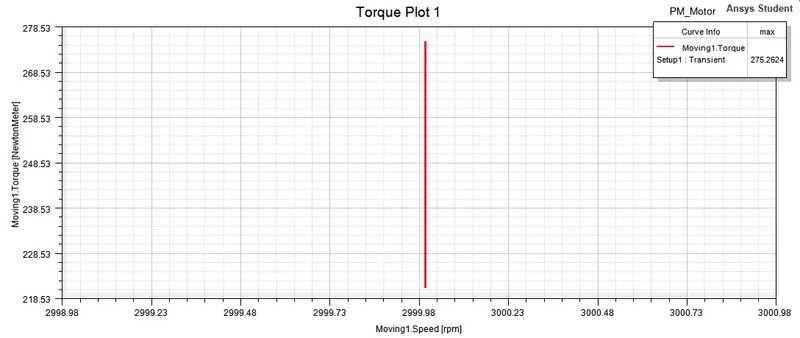

Moving Speed vs Moving Torque

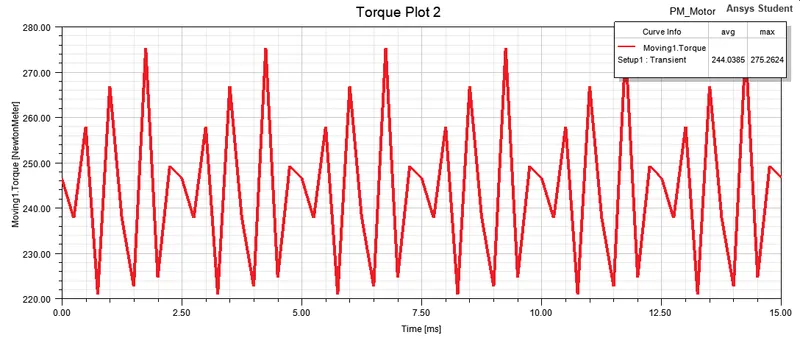

Torque

Maxium Moving Torque is 276 Nm and Average Moving Torque is 244 Nm.

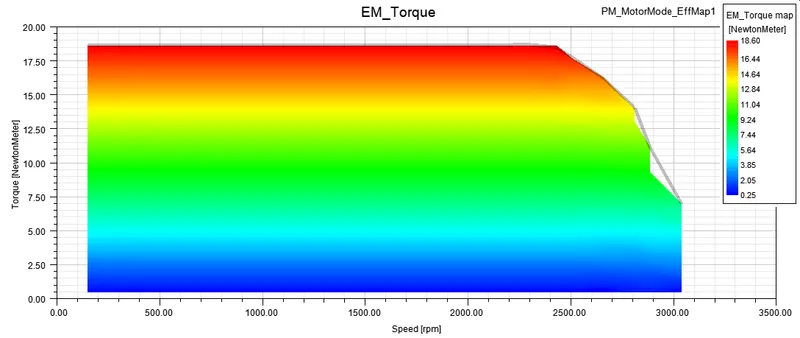

EM Torque

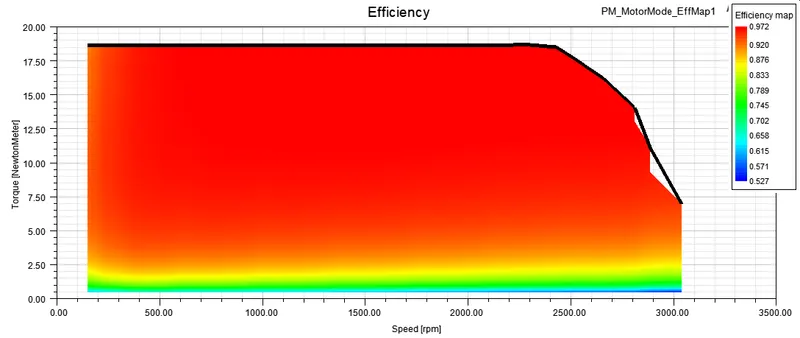

Efficiency

In Second Part of the Project material type of the magnet and Stator/Rotor is changed and Simulated again to observe Diffrent factors like Torque Production, B Mag, Flux Lines, inductance Etc. in diffrent Combinations of magnet and Rotor/Stator Materials.

Combination No.1

In this IPM Motor Simulation Magnet Material Used is ferrite magnet Y15H and material used for stator and rotor is Electrical Silicon Steel M19_29G.

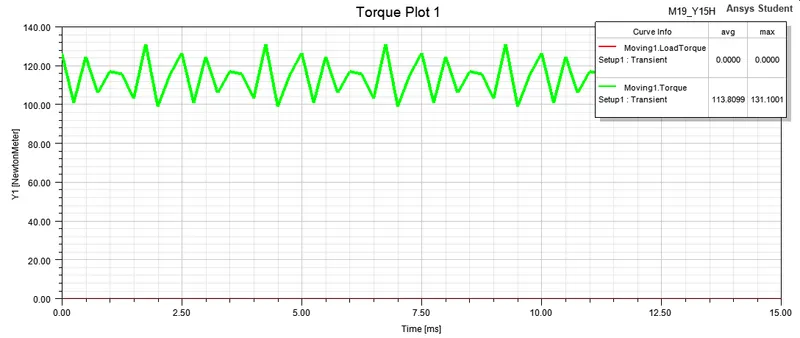

it observed that after using Ferrite Magnets Y15H the Max. and Avg. torque is Reduced to 131 Nm and 113 Nm respectively

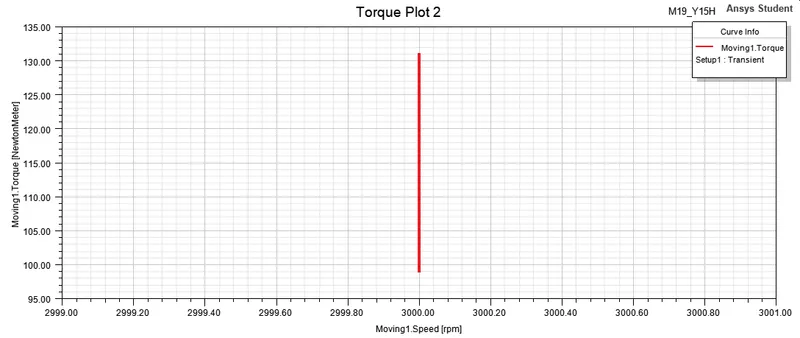

Speed Torque Plot

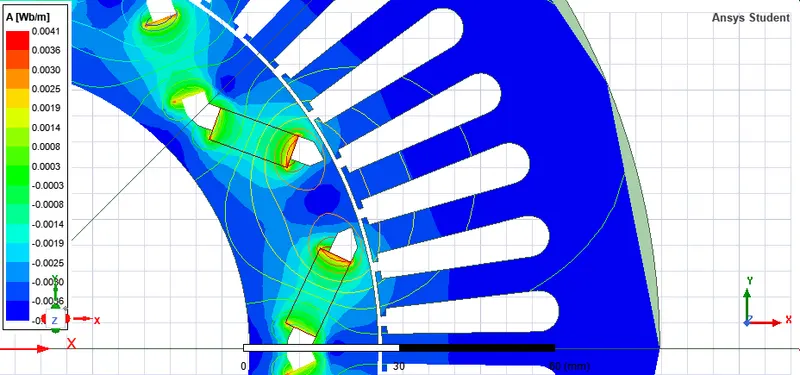

B_Mag of IPM Motor with Y15H Ferraite Magnets and M19_29G

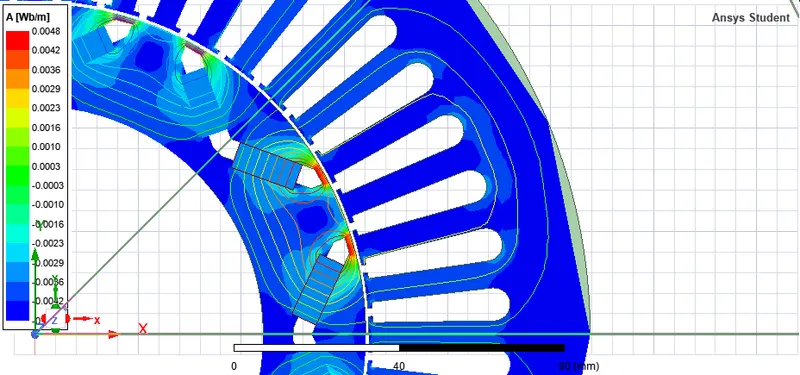

B_Mag of IPM Motor with N36Z_20 Neodymium Magnrts and M19_29G

Magnetic Flux Density Produced by the ferrite Magnet y15H is Less than the Neodymium N36Z_20 used in Prius Motor.

Combination No.2

Here in place of Electrical Silicon Steel M19_29Z Stainless Steel is used for Rotor and Stator and the magnet material is N36Z_20

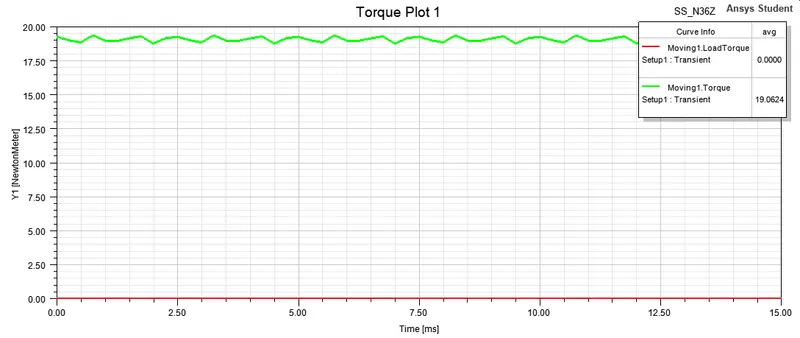

Average Moving Torque produced by IPM motor With Stainless Steel Stator and Rotor is 19 Nm which is very low in compare to Stator/Rotor Made up of Electrical Silicon Steel which is tailored to produce specific magnetic properties like low Core losses, Small Hysteresis and High Permeability.

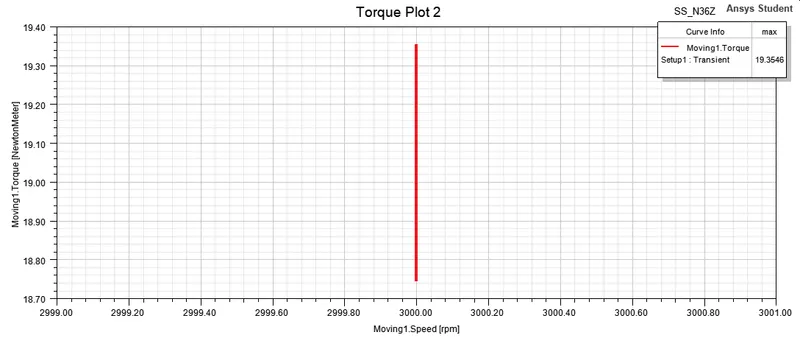

Speed Torque Plot

Magnetic Flux Density Produced by Neodymium Magnet N36Z_20 is not able to influence the organization of Magnetic Dipoles in Stainless Steel because of very low Permeability.

Designed Prius IPM Motor with diffrent Combination of material Ansys (MaxWell 2D) files are attached below-
