Project 2: Backdoor Wiring Harness Assembly:
objective:
Route the wiring harness on given car body and prepare flatten view drawing in catia v5. Application of all packaging rules, Industry best practices studided in this course shall be demonstrated in design. Apply protection coverings as required.

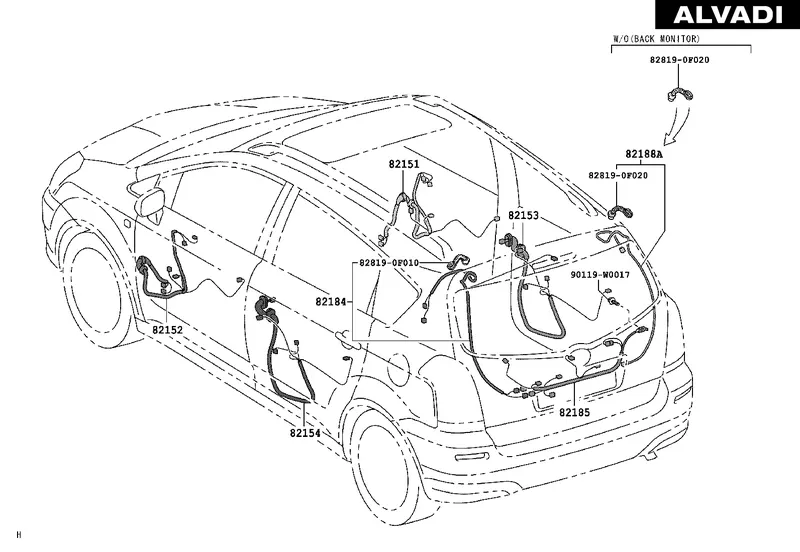

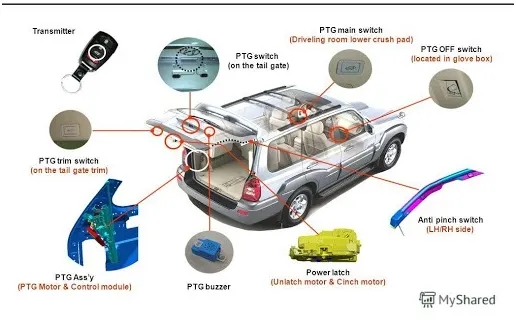

Back Door Assembly Part:
Construction of the Harness Assembly Bundle:

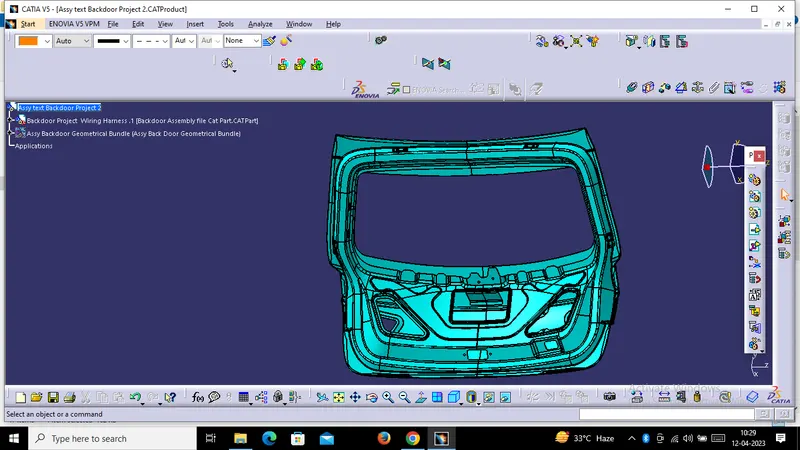

Step1: Creating Context Assembly:
. A Context Assembly for Backdoor Wire Harness has been created, which will work as the main assembly as shown in the figure above.
. A Context Assembly will Contain Backdoor Assembly data and Backdoor Wire Harness Geometrical Bundle assembly.
Step2:
Positioning the Connectors & Clip/ Clamps to the Back Door Assembly:
Here according to the requirment, We are Using:
1. c-DT06-08SA which is a 8 pole Connector Used as Inline Connector.
2. C-1563689-1 Which is a Four Pole connector for Tail light.
3. C-282080-2 Which is a 2 Pole Superseal Connector used for Numberplates Lighting and Power Latches.This Cad Data we obtained from te.com. To electrically define a connector , we must first define the geometrical parameters such as the Bundle Connection Point and the Connector Connection Point in the Electrical Part Design Workbench for the downloaded Connector.
. c-DT06-08SA
C-1563689-1
C-282080-2
For Support, We Use Furr Tree Clips

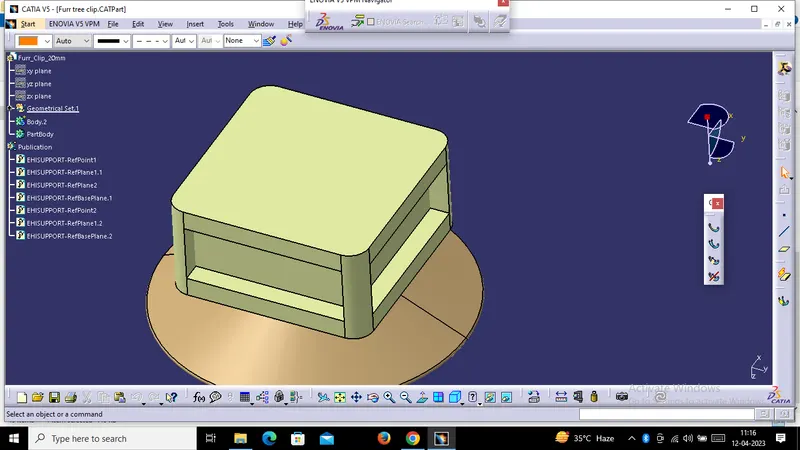

We need to Mount the Furr Tree Clips on the Backdoor to Provide Support as well as act as a guiding channel, so we must first define it electrically with geometical parameters, entry, and exit points on both the left and right side of the clips, as shown in the figure below.
Mounting the Furr Tree Clips and Placing the Connectors :

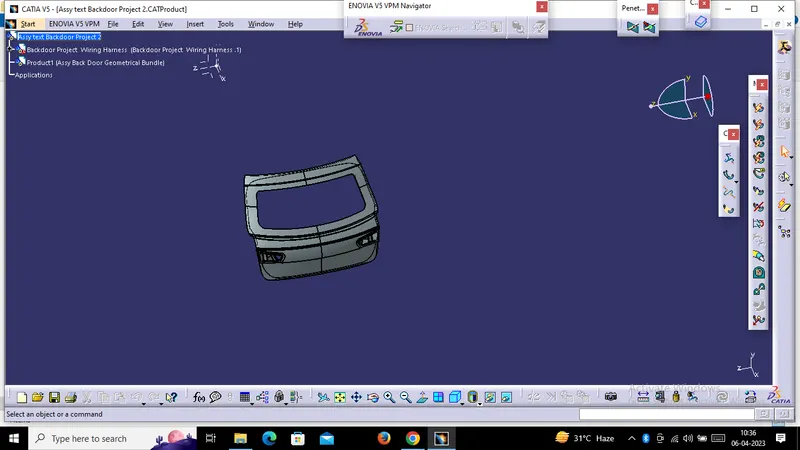

We have to Place the Connectors and Furr Tree Clips at Desired Position By Using the Smart Move , Snap & Manipulation Tools. We also use the Compass.
Step3: Bundle Routing
Step3: Bundle Routing From Interconnection:
. Here, We are routing the Bundle Segment from interconnection Connector to Furr Tree. The Diameter for this routing path is 10mm and bend radius ratio is assumed to be 1.5.
. We can See that the Bundle Segment is inside the Door Flange .
. We have to Route the Wire for Inline Connectors, Wiper motor Connector , Lighting Connector, Camera Connector, Sensor Connector.

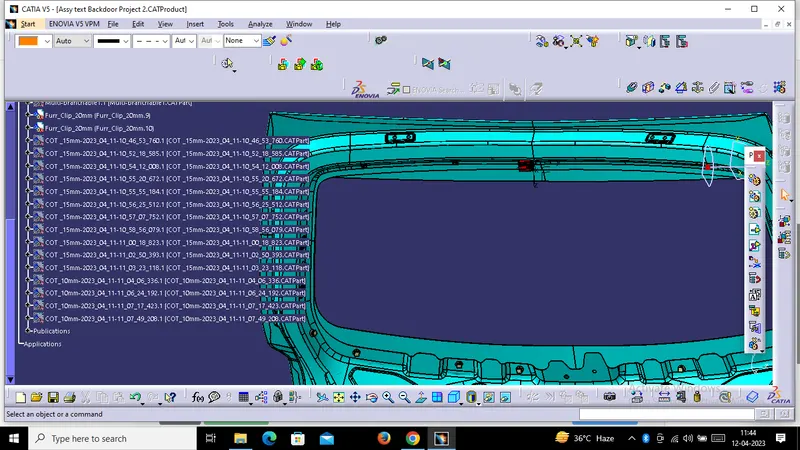

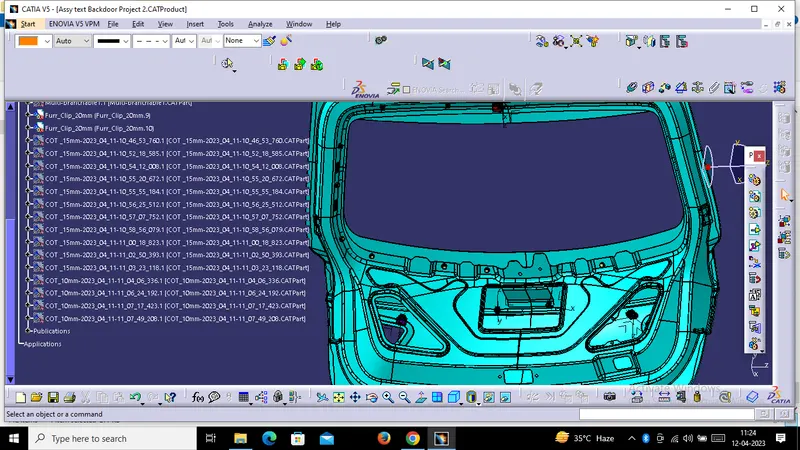

Step4: Adding Protective Coverings:
Here in the below figure, we have done with whole wiring Harness Routing for the Engine. Now, We have to add Protective coverings to all Bundle Segments.
Step5: Checking Bundle Continuity:
In this step, first we have to make Sure that Multi- Branchable is selected then we have to go in Edit> Search > Advanced > Workbench-Electrical> Type-Bundle Segment > Attribute- Fully Connected.
. By Selecting 'True' option will Show all the connected bundle Segments while Selecting False option will Show all the Non-Connected Bundle Segments.
. Here, We have selected for the True Option and search for the results. All the bundle segment are highlighted found showing that all the bundle segments are electrically connected as shown in below figure.
Check For Fully Connected Bundle:
Step6: Flatten the Bundle Routing :
In this Step, for creating Flatten view we have to work in Electrical Harness Flattening Workbench of Catia V5. We Should also make Sure that the flattening file is saved in the same folder where other files of Harness assembly are saved.
We have Extracted the Bundle Assembly into Engine Harness Flattening Product file and then flattened along the face of interconnection.
At this stage, for clarity, we have been hidden the flattening diagram of the plastic guiding channels from the drawing view.

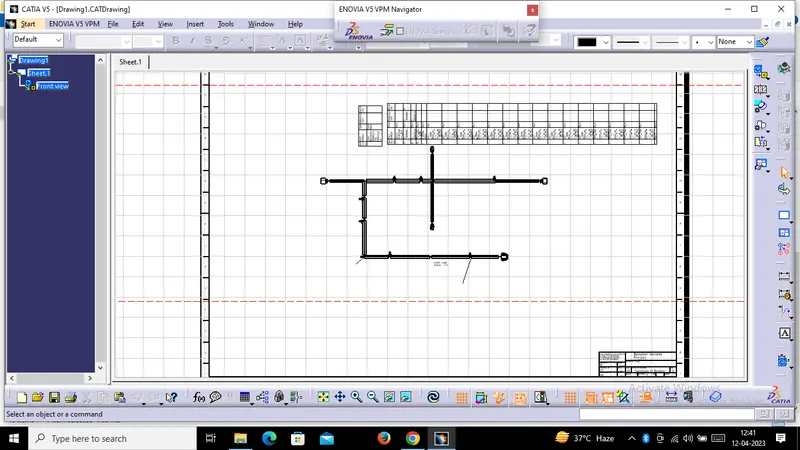

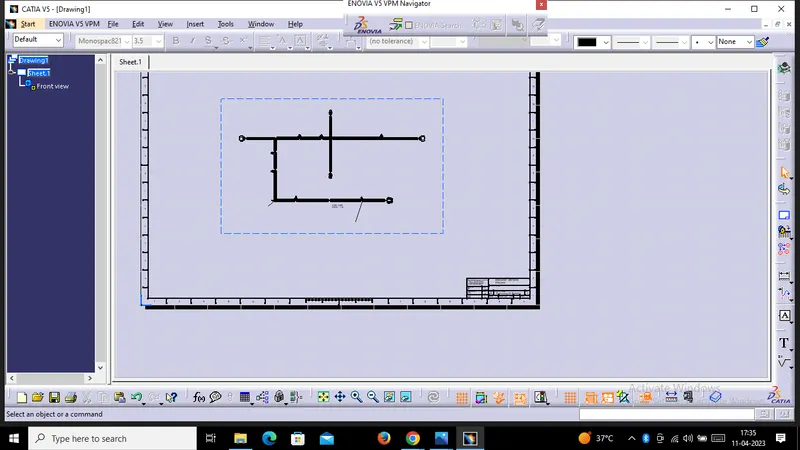

Step7:- Creating the Drawing File For this Flattened Bundle Segments :
Creating New Drawing file and defined all the Neccessary drawing Parameters, we have to insert the front view of the Engine Harness Flattening Product file into the Drawing File.
We have to define drawing Parameters as shown in the above figure. It should be noted that in 'Dress up' Settings 3D Wireframe is always ON. If this setting is not selected then the Bundle Segment is not Visible on the Drawing View.
Assumptions:
1. Easy manufacturing, installation, removal, and maintenance must be considered while designing the wiring harness.
2. Routing through small structural holes or openings shall be avoided to minimize chaffing and handling during installation.
3. Avoid Harness Routing and clipping in the blind zone or hard-to-reach areas during harness assembly or service.
4. Provide additional slack if needed according to the surrounding and harness bending requirment. For this Project, a slack value between 1-5% is used.
5. It should be made sure that there is no case of fouling while designing the wiring harness in the CAD environment. Additional clips/clamps may be used to avoid fouling.
6. Avoid harness routing near Sharp edges or else protect the harness.
7. Enough mounting equipment such as clips and clamps should be provided.
8. The Branch Length Should be greater than 50mm.
9. The minimum distance between the Clip to branch point should be at least 25mm.
10. The minimum distance between the two branch Point should be at least 50mm.
11. The Wiring Harness Should be Easy to assemble and easy to acess.
12. Clips/Clamps used for the wiring Harness Should be readily available in the market to avoid extra Costs for Custom Mounting solutions.
Conclusion :
Thus, Finally the Bundle Assembly is Routed with Protective Covering And Creating Drawing and Now the Drawing is Ready for Pre Release for Production.
