Project 2

Aim- To route the wiring harness on given Engine and flatten view drawing in CATIA V5.

Objective- The objective of the project is to route the wiring harness on given Bugatti V16 Engine and prepare flatten view drawing in CATIA V5. All types of packaging rules have to be considered while routing the harness. Also, Industry best practices should be demonstrated in design. All the necessary details like clearance, clipping/clamping selection, harness fixing requirements, harness continuity should be provided in order to design wiring harness.

• The above figure shows the 16 valve Bugatti Engine where 8 cylinders are placed on the right side and 8 cylinders are placed on the left side.
• There are total 16 injectors where 8 injectors are used for 8 cylinders on right side and 8 injectors are used for another 8 cylinders on left side.
• Also there are 4 cam-shaft sensors, so there are total 20 sensors that we have to connected electrically.
• Generally, 4-pole connectors are used for fuel injectors of the engine.
• The engine will also have an interconnection connector which will connect the engine to other parts of the vehicle. We will be using a 12-pole electrical connector with a mounting clip feature as an interconnection connector.
• The bend ratio for the all bundle segmets should be 1.4.

Assumptions-

1. Provide clips/clamps as per requirement.
2. Make sure that there is no any fauling case while designing the wire harness. Additional clips/clamps may be used to avoid fauling case.
3. Give additional slack if needed. 5-10% slack is sufficient.
4. Avoid routing over bolt and bolted joints to avoid harness puncture.
5. Avoid routing on sharp edges or else provide protection over the harness.
6. Follow the clearance distance and keep away the harness from heat generation components.
7. Protection should be provided as needed according to surrounding temperature.
8. Avoid direct support for harness on fuel lines routed in the engine.
9. Use plastic guiding channels if needed.
10. Branch length should be greater than 50mm.
11. Minimum distance between two branch points should be at least 50mm.
12. Minimum distance between clip and branch point should be at least 25mm.
13. Avoid too many sheet metal brackets on the engine. Try to use available threaded bosses on the engine or demand for it.
14. The wiring harness should be easy to assemble and easy to access.
15. While using dummy connectors, ensure that whatever positions you are defining that are practical. Bundle diameters and another placements can be defined properly for the wire harness routing.
16. If the packaging area is too tight and there are many packaging constraints then we can think of creating harness channel which can be used to route and protect the wire harness effectively.

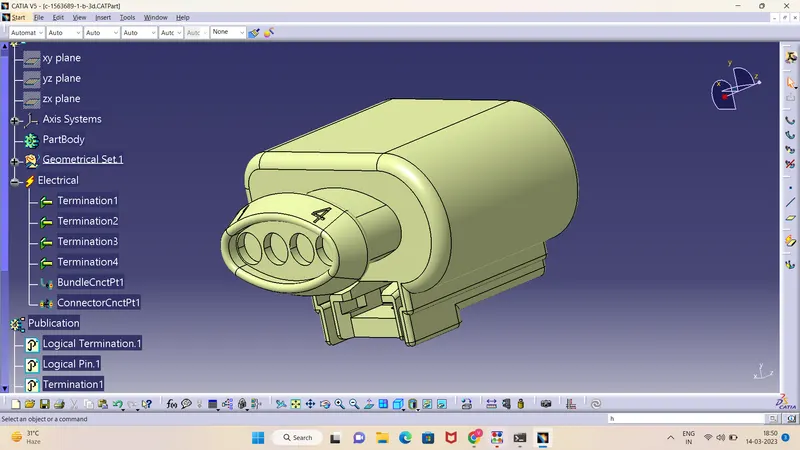

To define 4-pole , 12 pole connector electrically

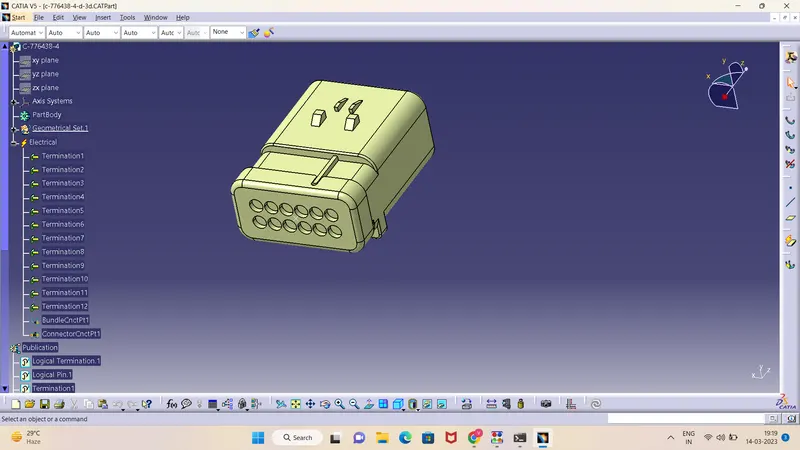

Here, according to the requirement we are using 'C-1563689' which is a 4-pole connector , 12 pole Connector. This CAD data is downloaded from te.com. Now, to define a connector electrically we should define the geometrical parameters like bundle connection point and connector connection point in Electrical Part Design workbench for the downloaded connector.

Mounting of a plastic guiding channel

We have to add now plastic guiding channel because Bugatti V16 engine has 8 injectors on right side and 8 injectors on left side which are very close to each other. Hence plastic guiding channel is best option for proper and easy routing of the wiring harness. It will reduce the complex wiring harness routing. We will require two different guiding channel for both right and left side of the engine. Now, before placing guiding channel, we have to define geometrical parameters of guiding channel as below.

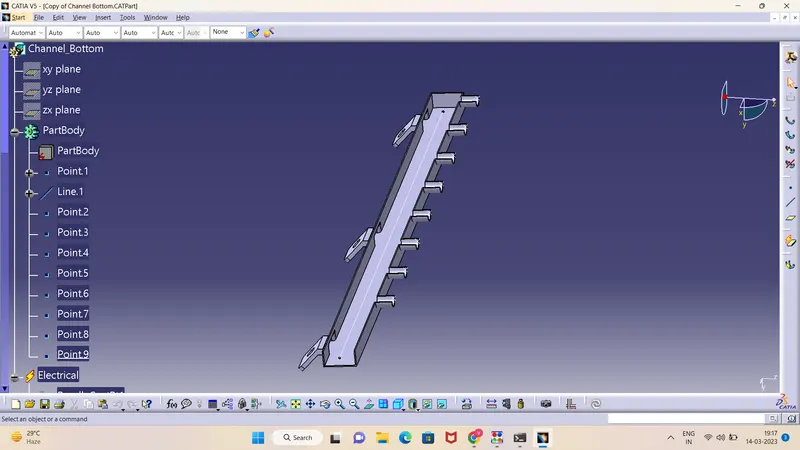

• In above figure, we have created point 1 at entry face and another point at endpoint at 560mm distance.
• Now, join that both points and create a line which will be later used for routing the wire harness bundle inside the guiding channel.
• Above figure shows for the left side guiding channel and same process will be repeated for the right side channel.

Now in above figure, we have created bundle entry points for the eight connectors, one bundle entry point at channel entry face and defined guiding channel electrically as equipmen

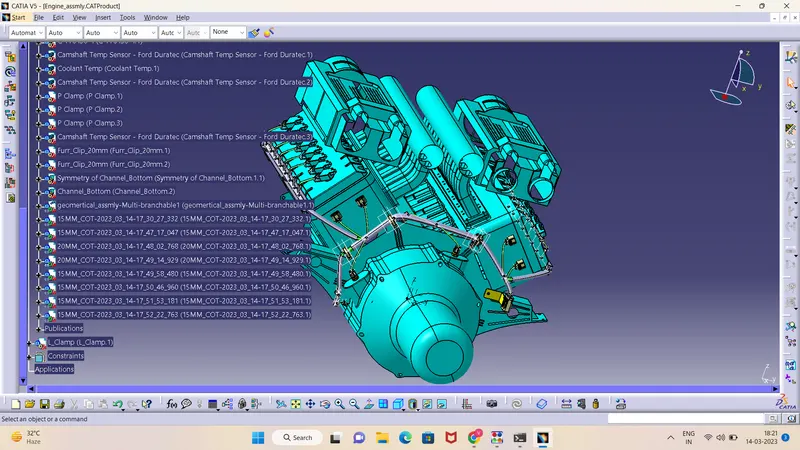

• After electrically define of guiding channel, we have located guiding channel at desired place as shown in above figure.
• Here, we have used different commands like manipulation, snap, smart move, compass etc. for placing of guiding channel.
• Now at this stage, we have just located bottom of the guiding channel.

Routing to the plastic guiding channel

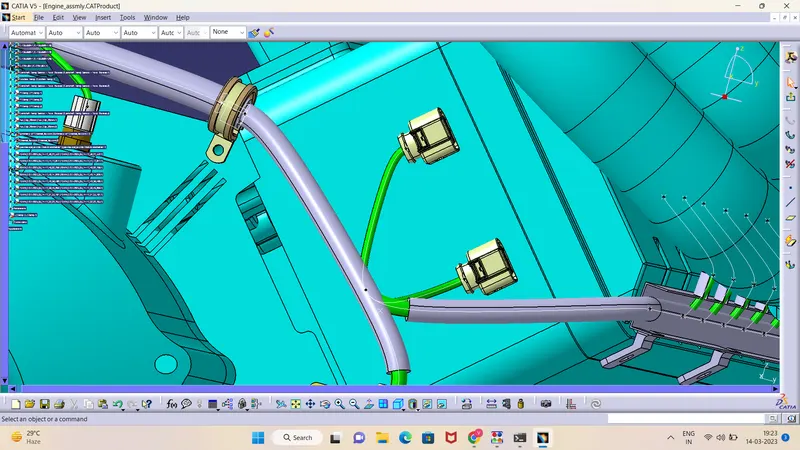

Another branch point is added from the interconnection connector at distance of 50mm. From this branch point, the bundle is routed to the right guiding channel. We have provided furr tree clip in between branch point and guiding channel for the smooth routing.

Here, from the entry side of the guiding channel, we have created first branch point at 130mm and then subsequently created six branch points at 65mm as shown in below figure.

Checking bundle continuity

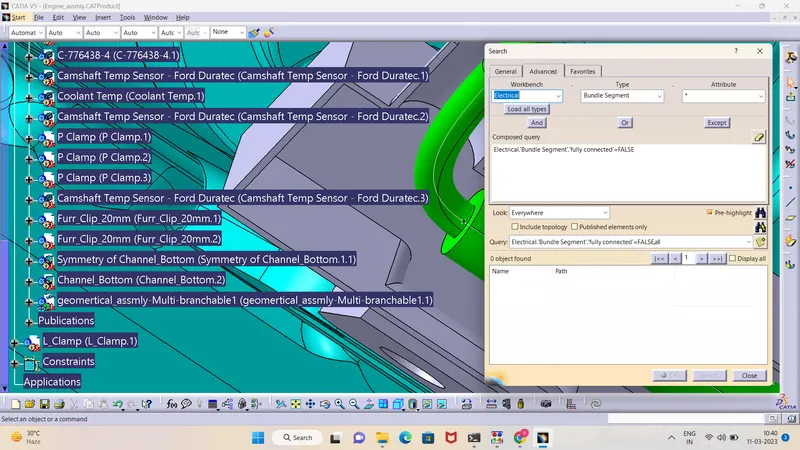

In this step, first we have to make sure that multi-branchable is selected then we have to go in Edit>Search>Advanced>Workbench-Electrical>Type-Bundle Segment>Attribute-Fully Connected

• By selecting 'True' option will show all the connected bundle segments while selecting 'False' option will show all the non-connected bundle segments.
• Here, we have selected for the 'True' option and searched for results. All the bundle segments are highlighted found showing that all the bundle segments are electrically connected as shown in below figure.

In this way, we have routed wiring harness for the Bugatti V16 Engine. Also, prepared flatten view drawing with proper sheet in CATIA V5.
