Project 1 - Wiper control system and Vehicle speed calculation for ABS using Wheel Speed sensor
Develop the Simulink model based on the given descriptions for the below challenges and also create SLDD file and link the same to the model. Perform the complete V and V workflow for the obtained models.
- Wiper control system
Develop Simulink/state flow model for wiper control system based on the given conditions.
Description of Challenge:
- If the density of the rain is low, then wiper rotates with low speed & the output signal should be 100rpm
- If the density of the rain is medium, then wiper rotates with medium speed & the output signal should be 200rpm
- If the density of the rain is high, then wiper rotates with high speed & the output signal should be 500rpm
Note: Rain density input comes from the external sensor, for the simulation purpose constant block with knob can be taken.

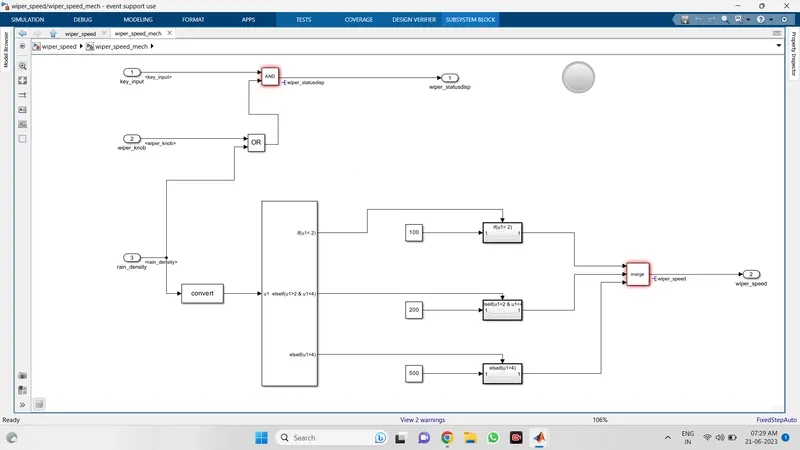

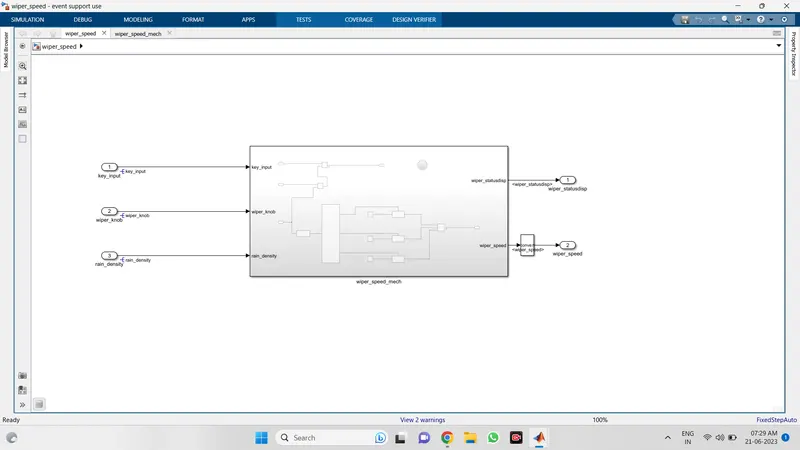

Solution:- Simulink Model

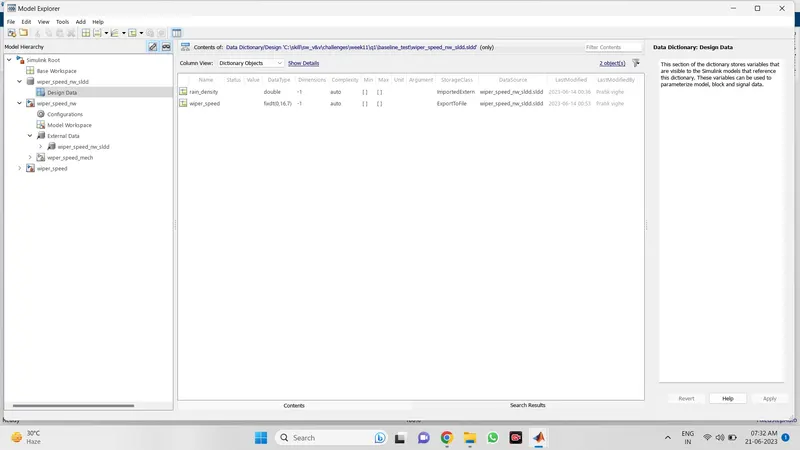

Sldd

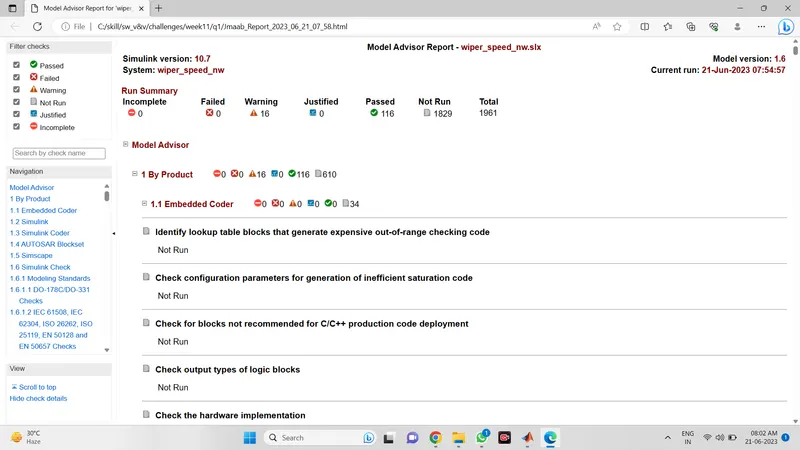

Model Advisor Report

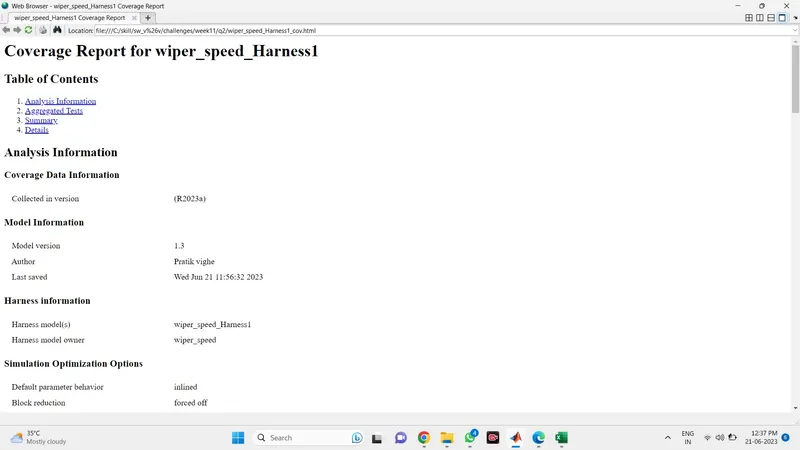

Mil TEsting Output

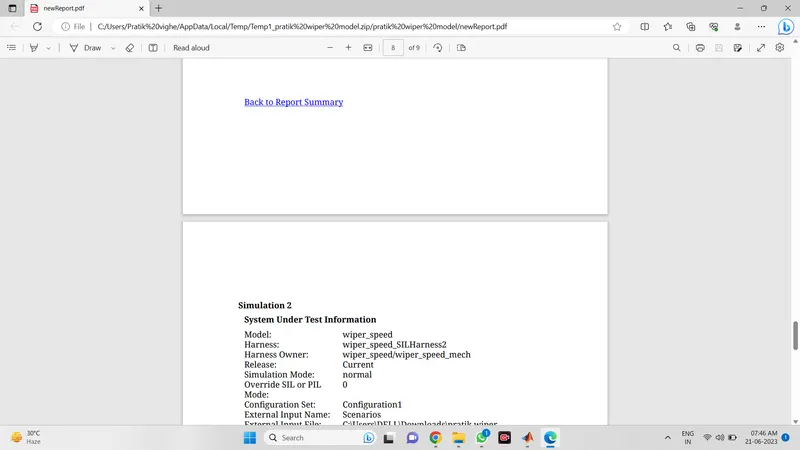

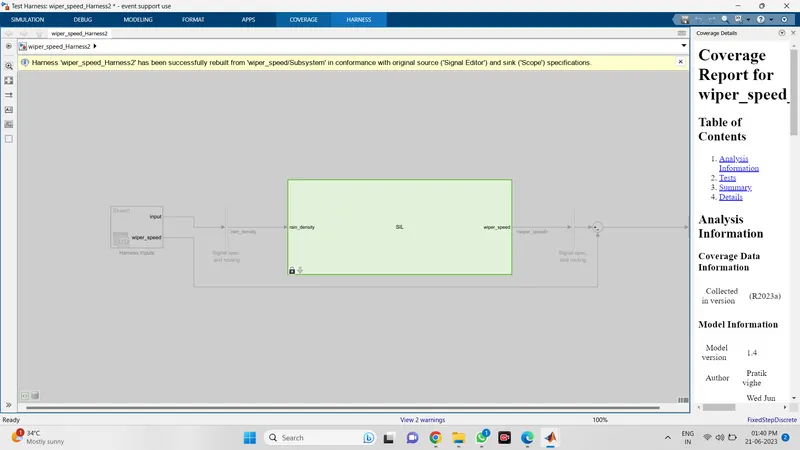

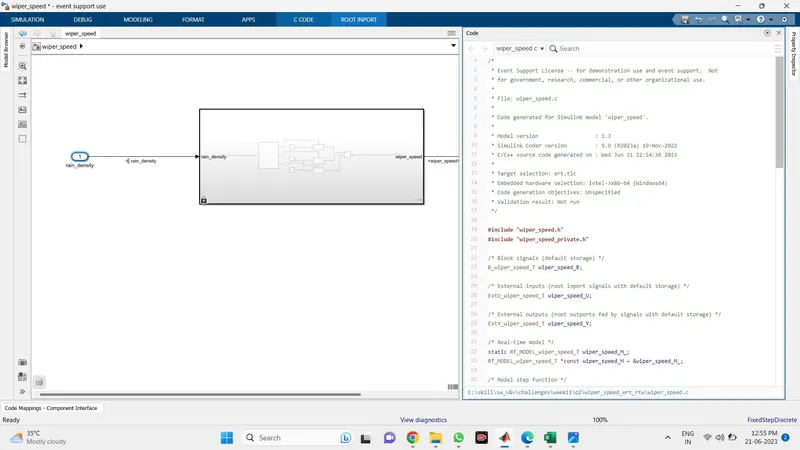

Sil Testing Output
Baseline Testing

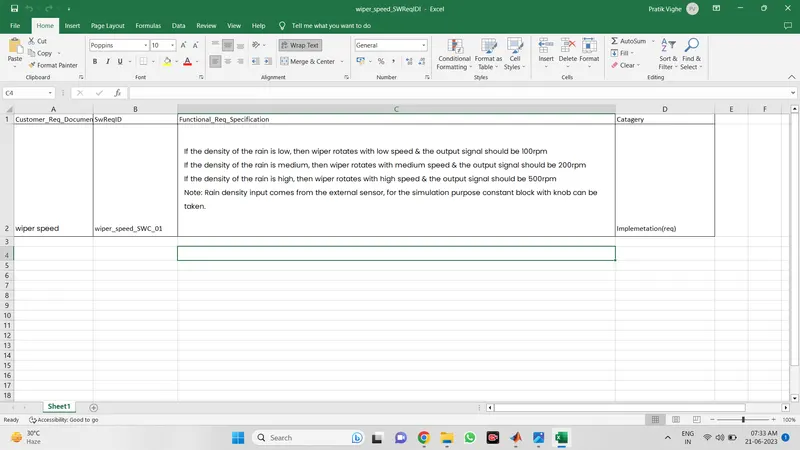

SW_REQID

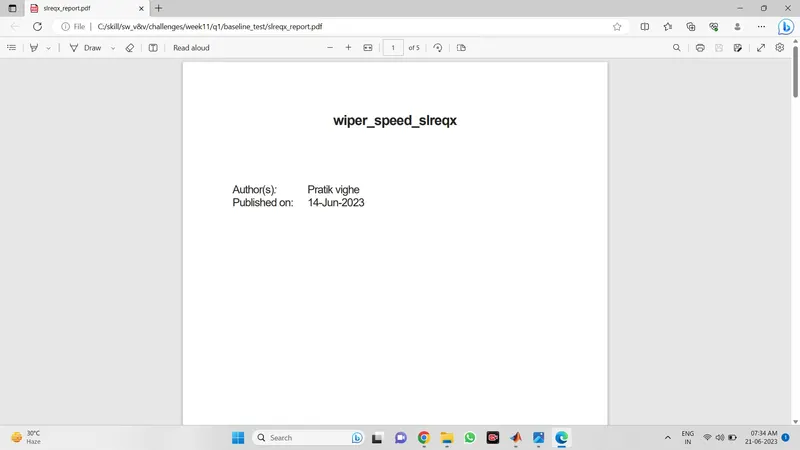

Slreqx Report
Sldv report

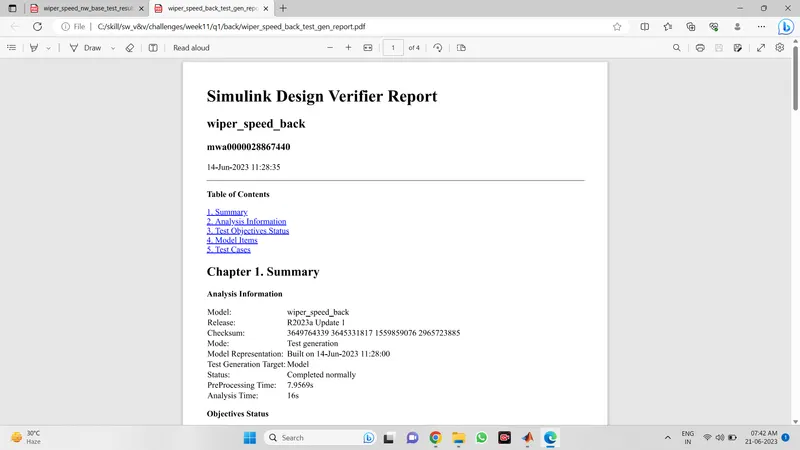

Test generation report

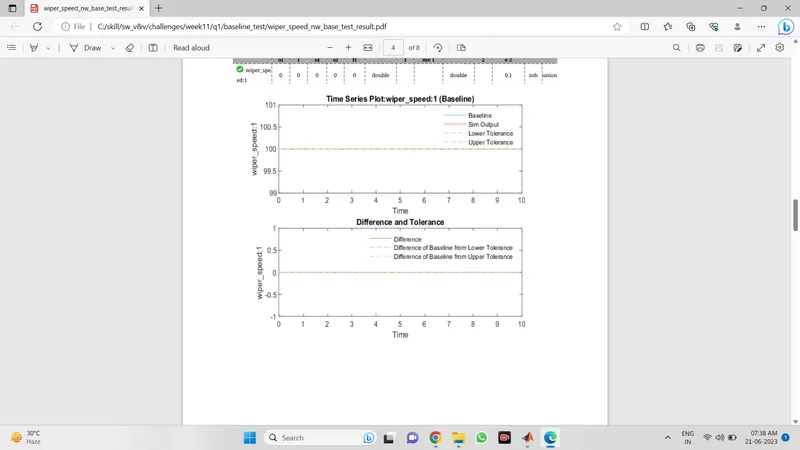

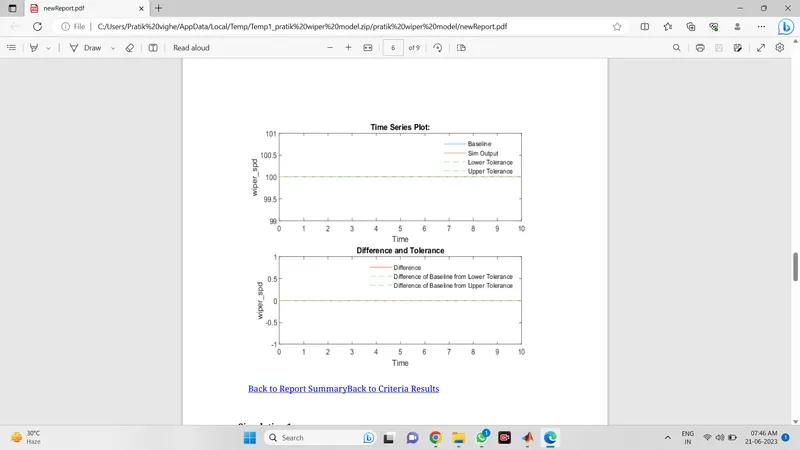

Baseline test result
Back To Back Test
Slreqx Report
Sldv report
Sldv Test Generation report

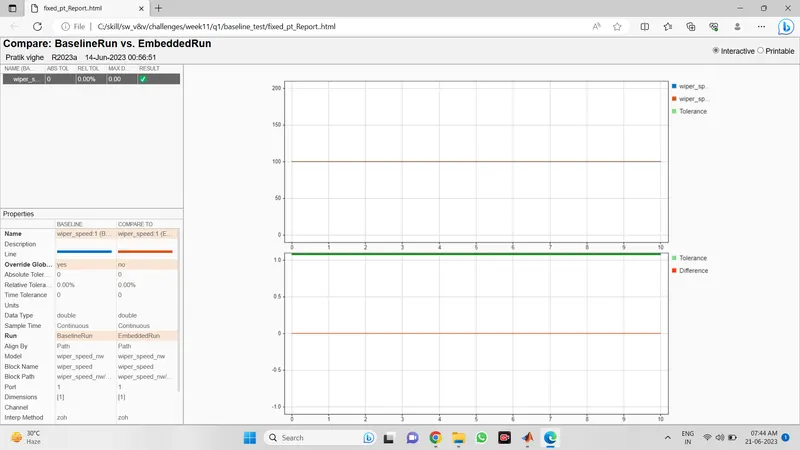

Fixed pt. Tool

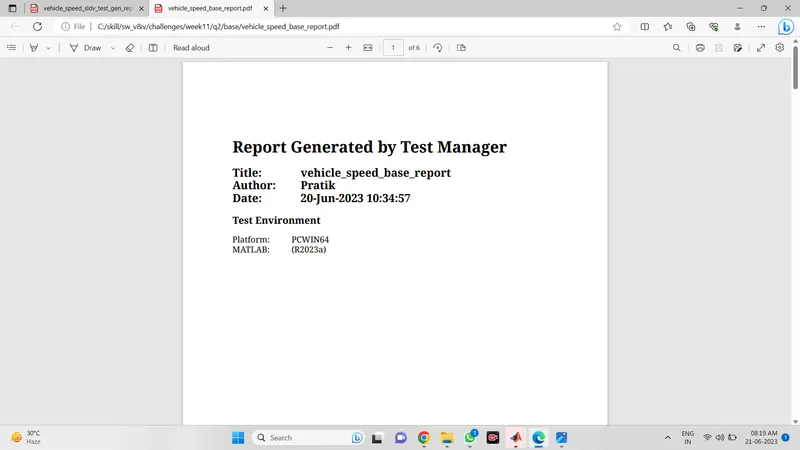

Back to Back Test Report
Back To Back Test Result
2.Vehicle speed calculation for ABS using Wheel Speed sensor
Develop Simulink/state flow model for the vehicle speed calculation unit inside the ABS system for the below conditions.
Description of Challenge:

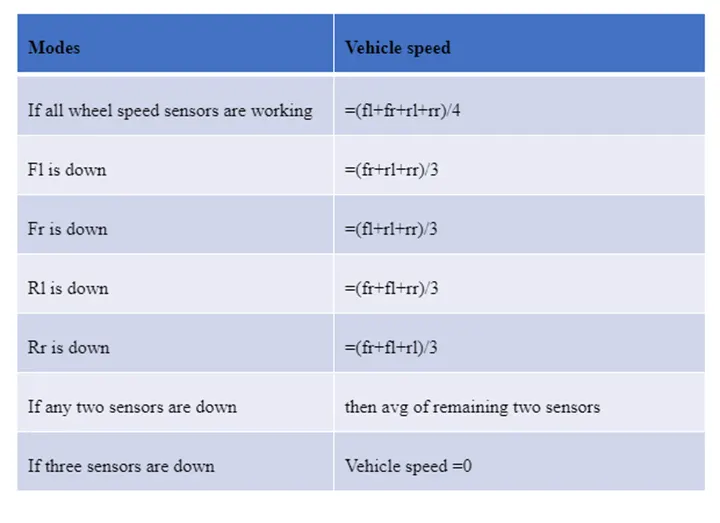

fl, fr, rl and rr are the wheel speeds of front left, front right, rear left and rear right respectively.

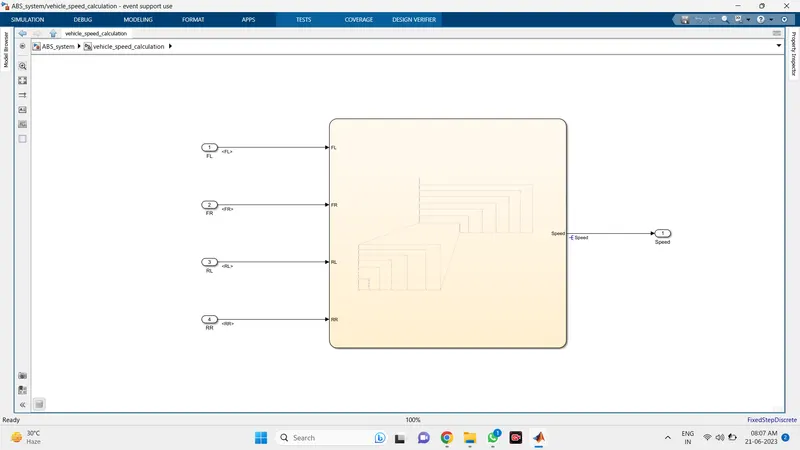

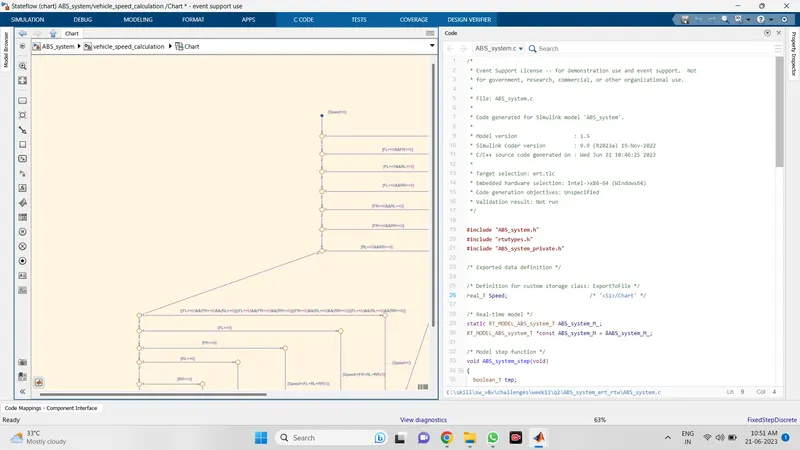

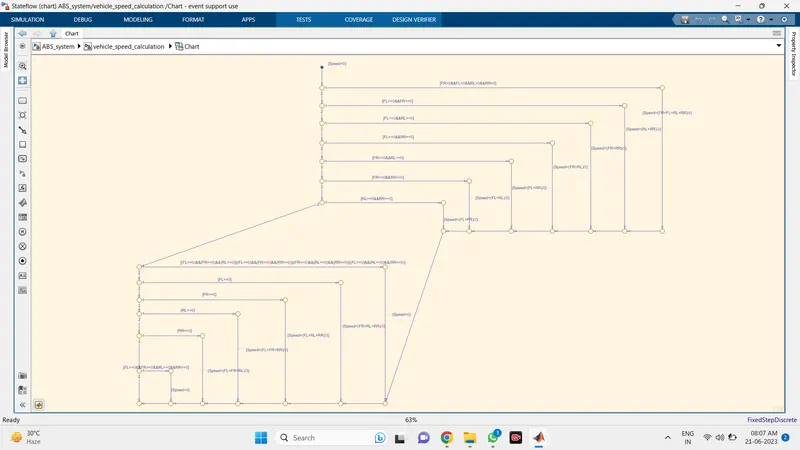

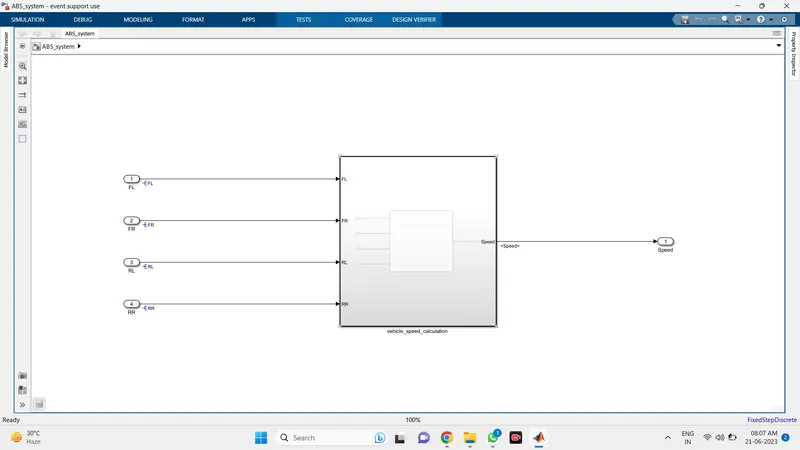

Solution:- Simulink Model

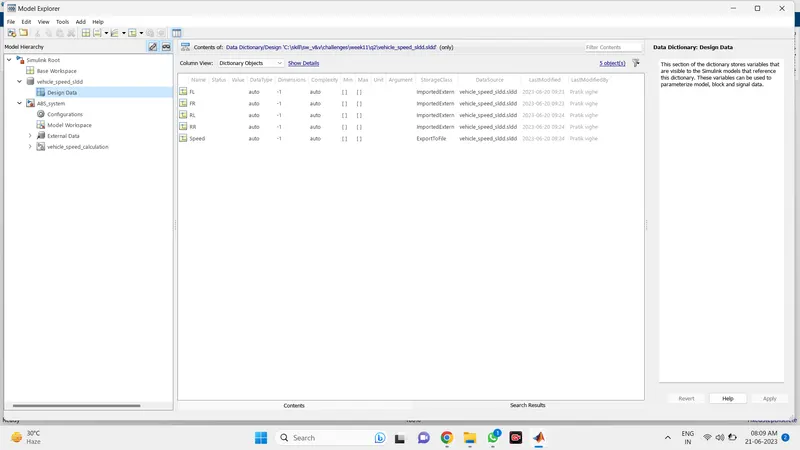

Sldd

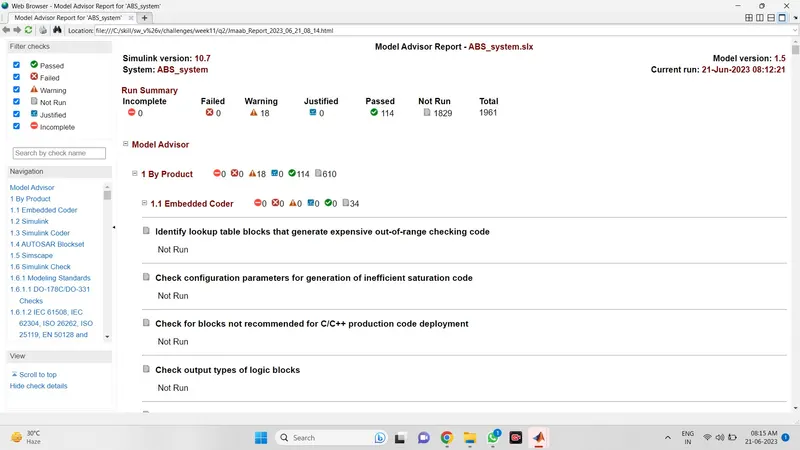

Model Advisor Report

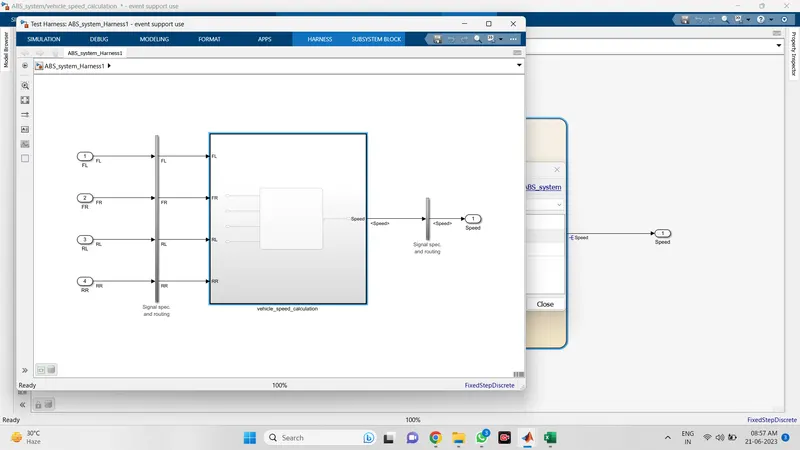

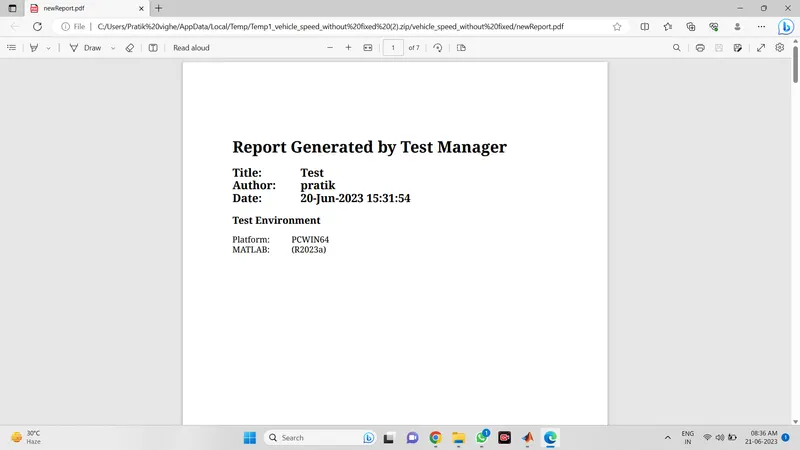

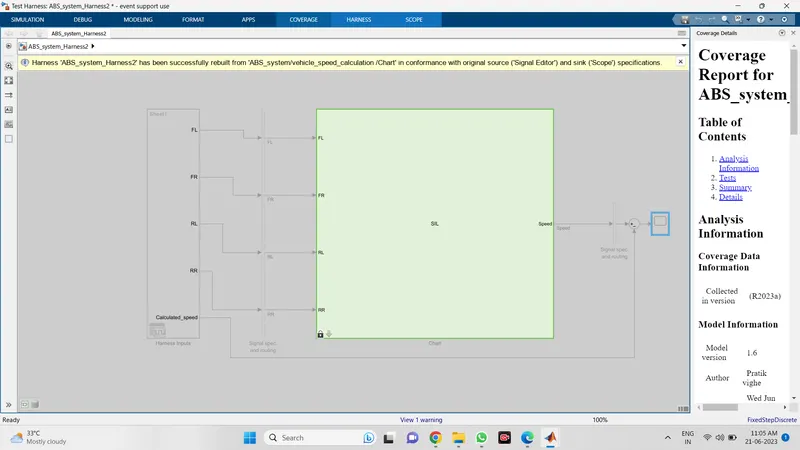

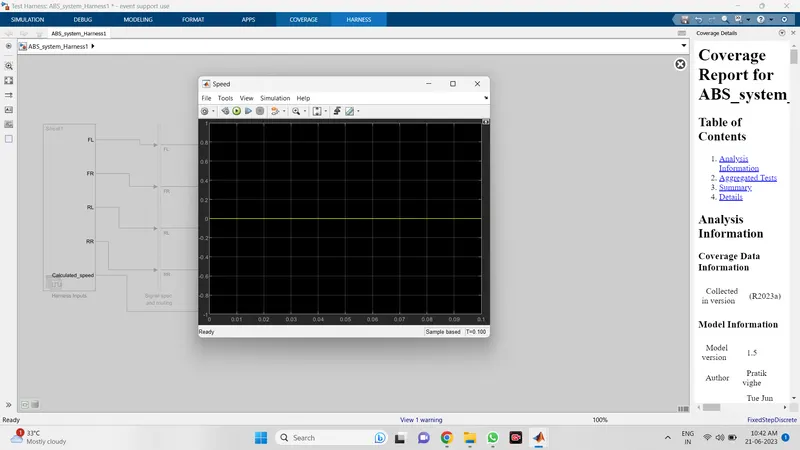

Mil Testing
Sil Testing

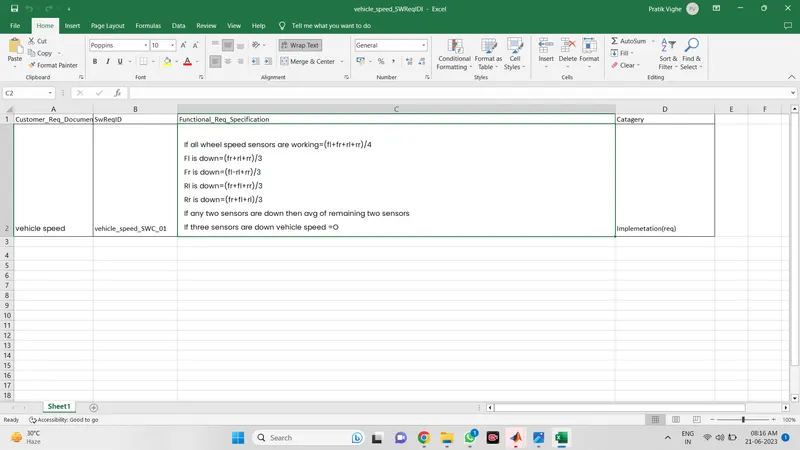

SwicReqId

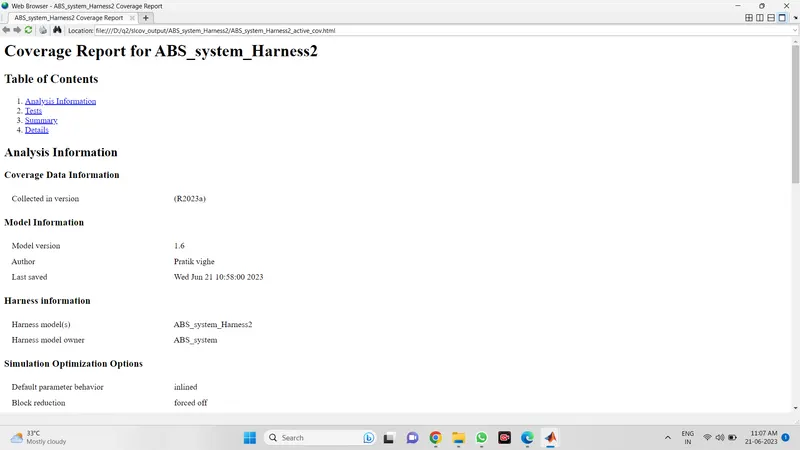

Slreqx Report

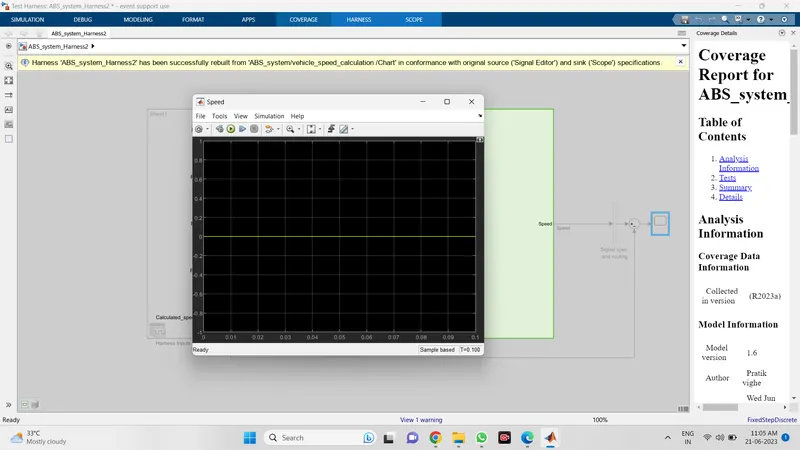

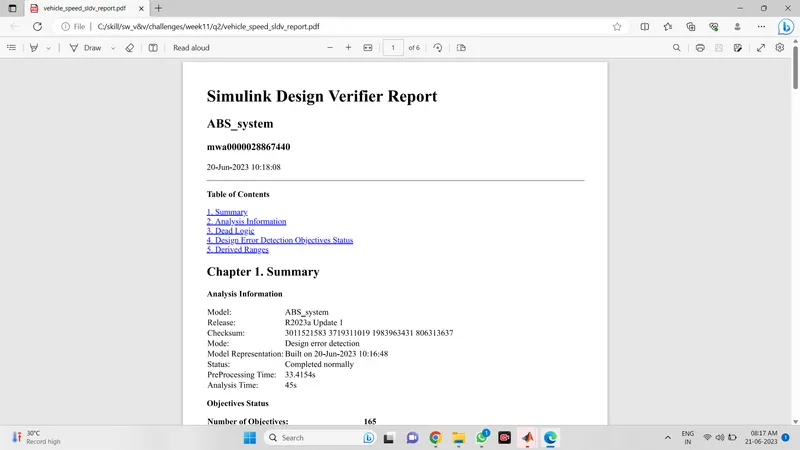

Sldv Report

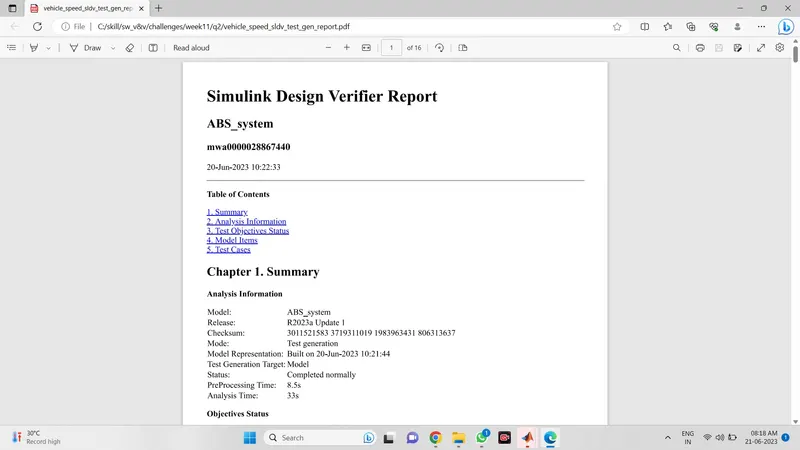

Sldv Test Generation Report

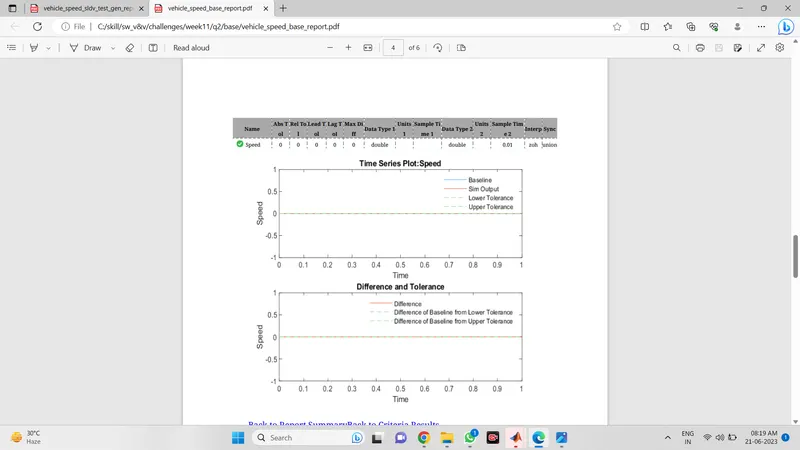

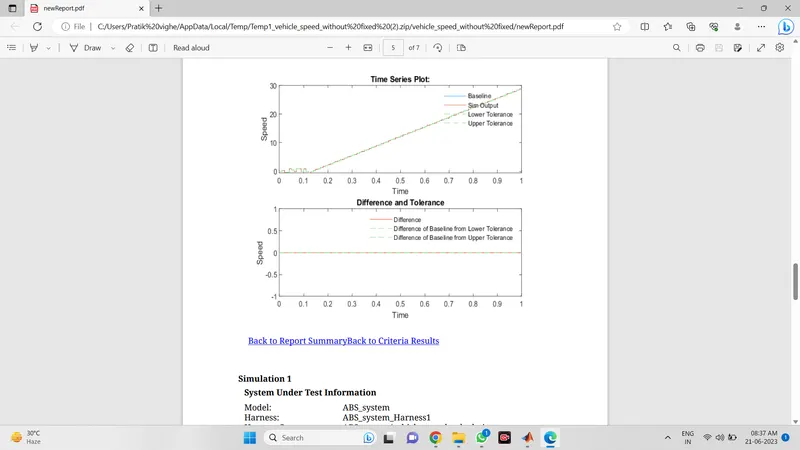

Baseline Test Report
Baseline test result

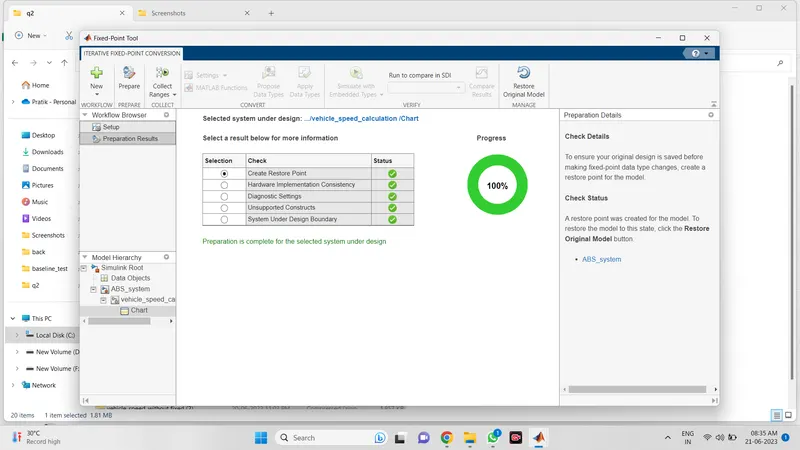

Fixed pt. tool
Back to Back Test
