Project 1 - Wiper control system and Vehicle speed calculation for ABS using Wheel Speed sensor

Q1)

The main aim of this project is to create a model of vehicle wiper control system for the given conditions.

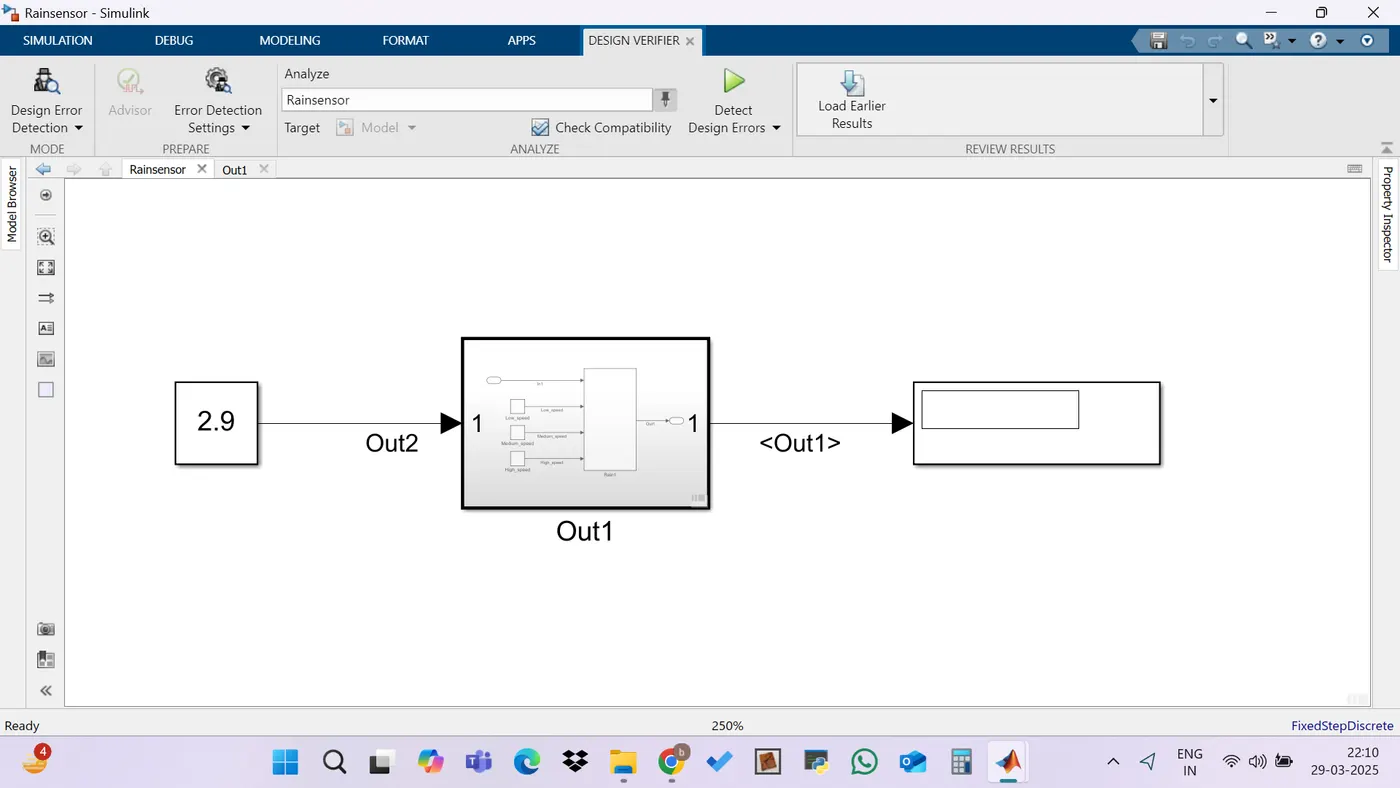

The below figure shows the actual model of the wiper control system simulink model.

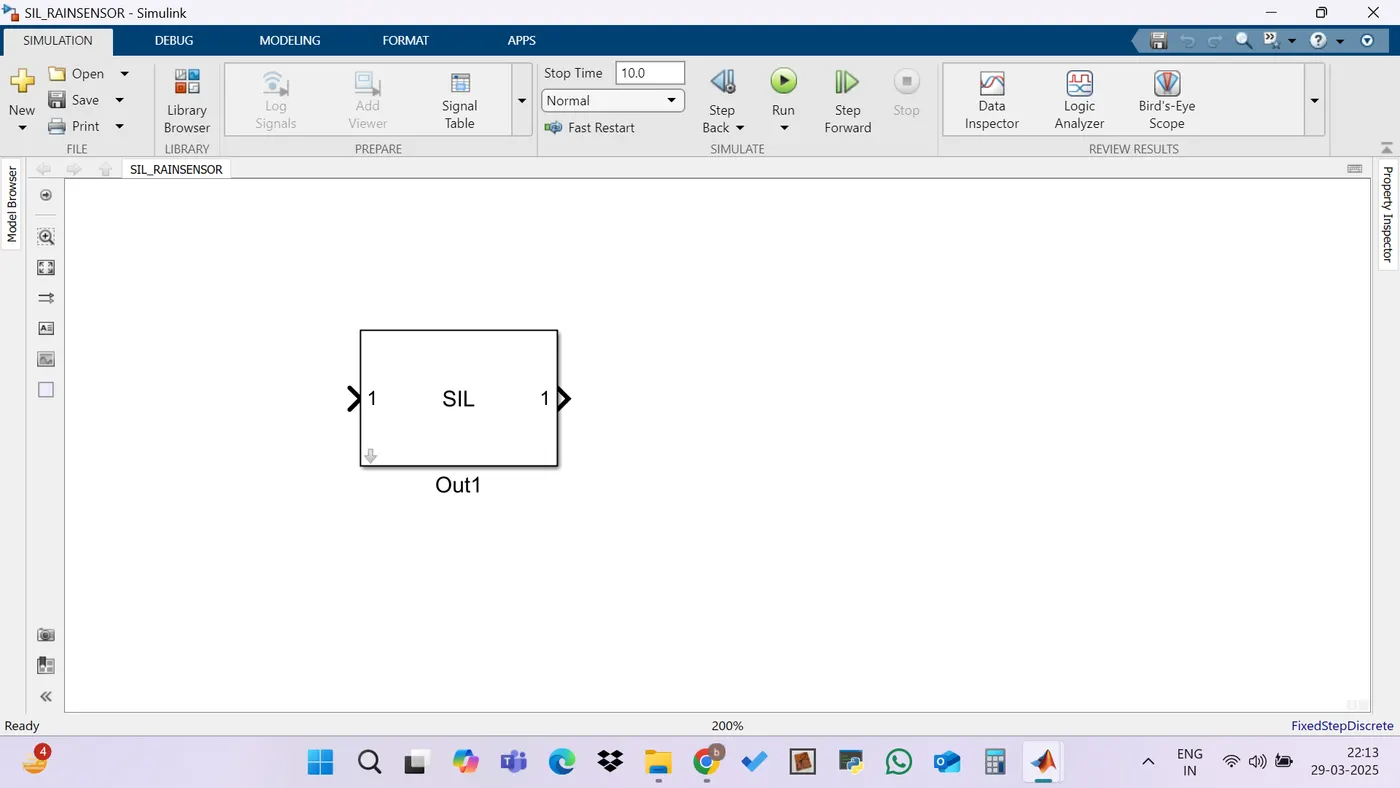

Again the below figure shows the SIL model of the above model as per the requirment.

After doin the SIL test straightly going to the JMAAB guidlines and generated a report by doing all the checks successfully.

The report is attached along with all the required documents.

Hence done the project of rain wiper control system successfully.

2Q)

The main aim of this question is to create a model of vehicle speed control using ABS from the sensor values.

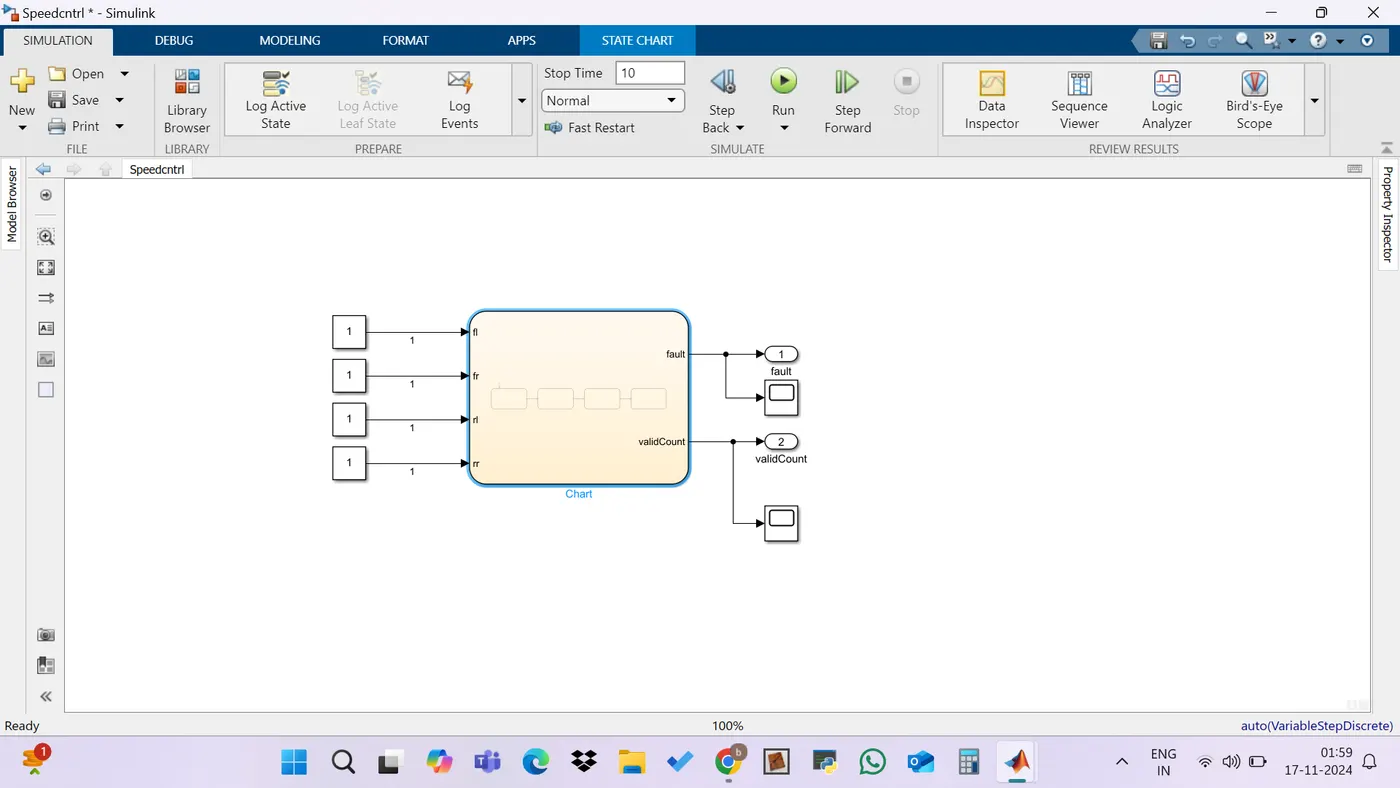

The below figure represents the stateflow model as per the requirements.

After creating the model first simulate the model after successfull run the model we have create a JMAAB report for the model.

I have done all the checks successfully after running the report I save the model.

After running the checks I have done the sil testing for the model and generated the code for the model successfully.

I attached all the supportive documents below.

Hence done all the requirments as per question successfully.
