Project 1 - Wiper control system and Vehicle speed calculation for ABS using Wheel Speed sensor

1

Wiper control system

AIM:

To develop a Simulink/state flow modules for wiper control system based on the given conditions

Conditions:

1. If the density of the rain is low, then wiper rotates with low speed, the output signal should be 100rpm
2. If the density of the rain is medium, then wiper rotates with low speed, the output signal should be 200rpm
3. If the density of the rain is high, then wiper rotates with low speed, the output signal should be 500rpm

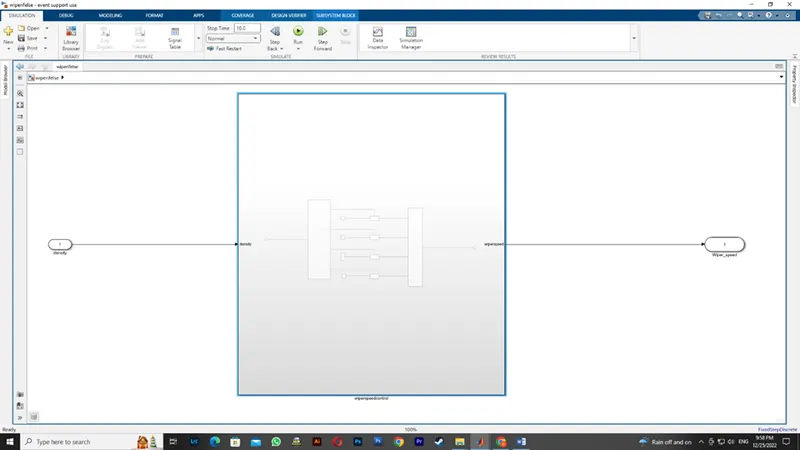

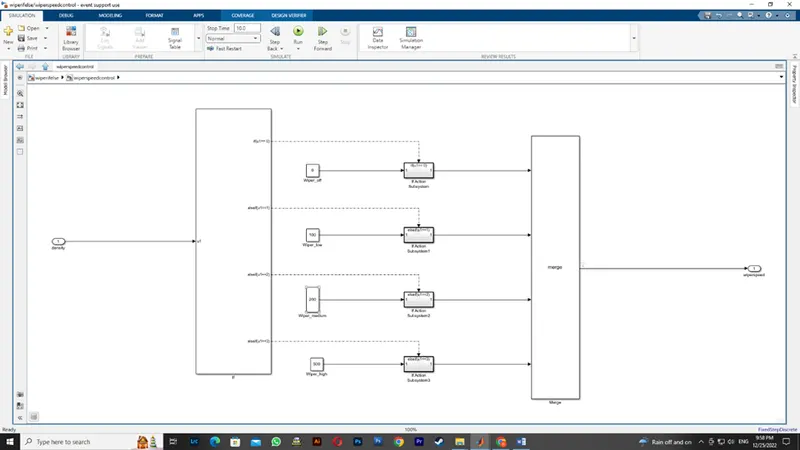

1.SIMULINK MODEL:

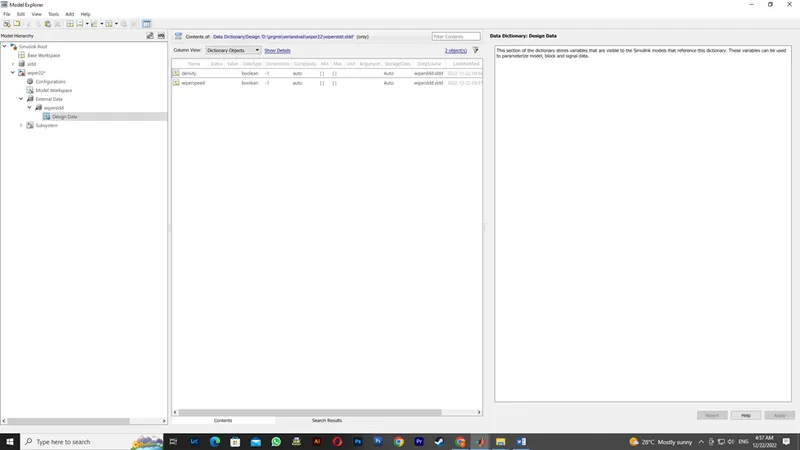

2.SLDD

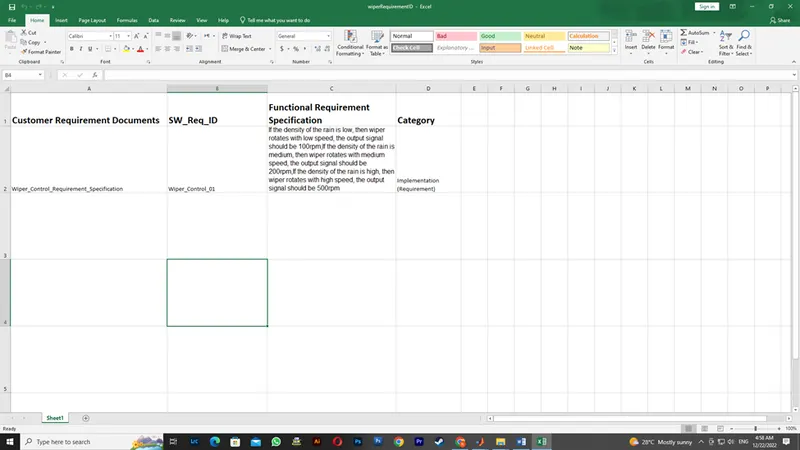

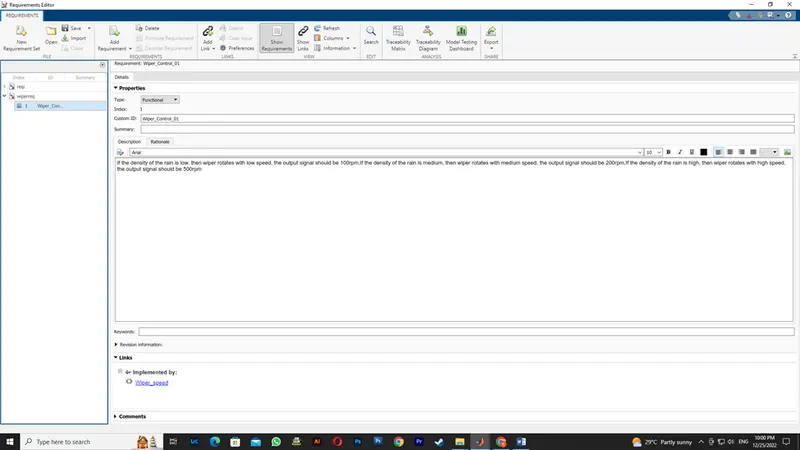

3.REQUIREMENT TAGGING REPORT:

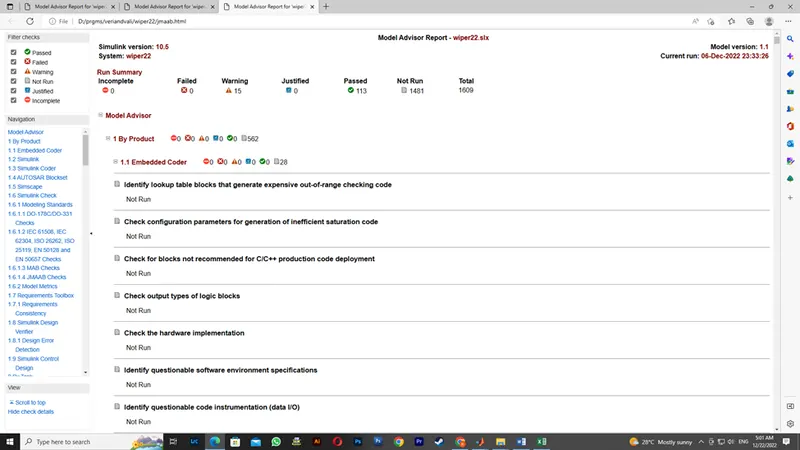

4.MODEL ADVISOR -JMAAB COMPLIANCE REPORT:

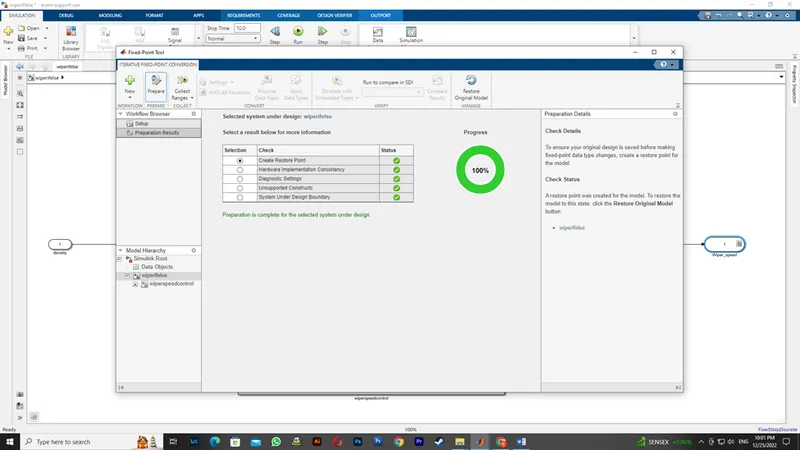

5.FIXED-POINT TOOL

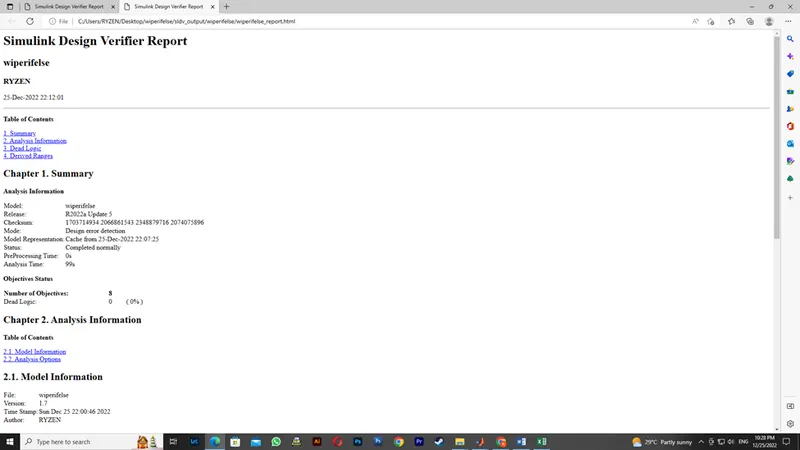

6.SLDV DESIGN ERROR DETECTION REPORT:

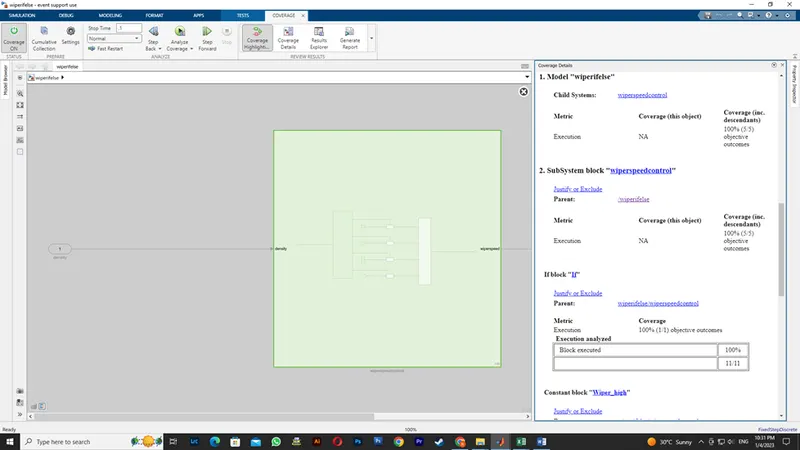

7.Functional test case, MIL, SIL harness, coverage Reports

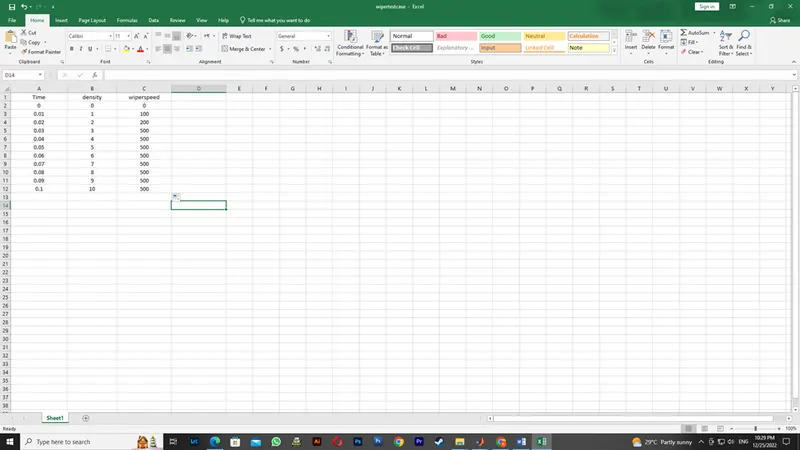

testcase

,

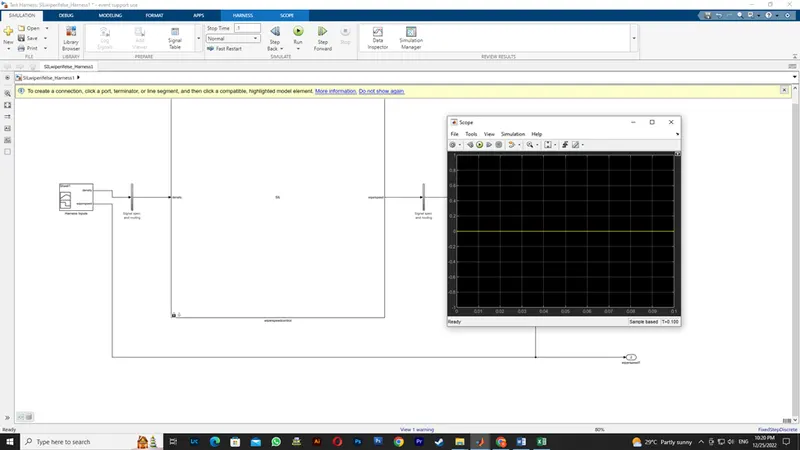

MIL:

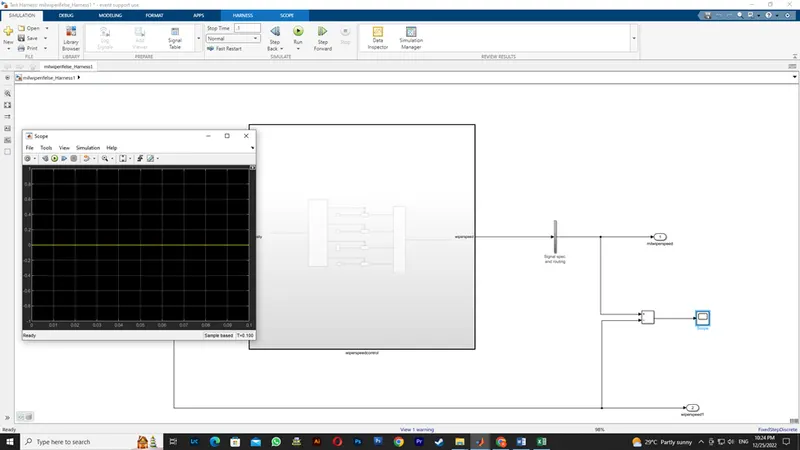

SIL:

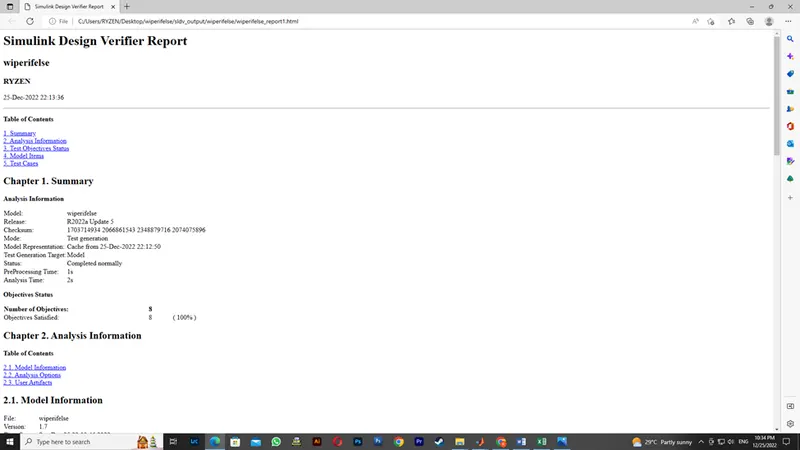

8.SLDV test generation report :

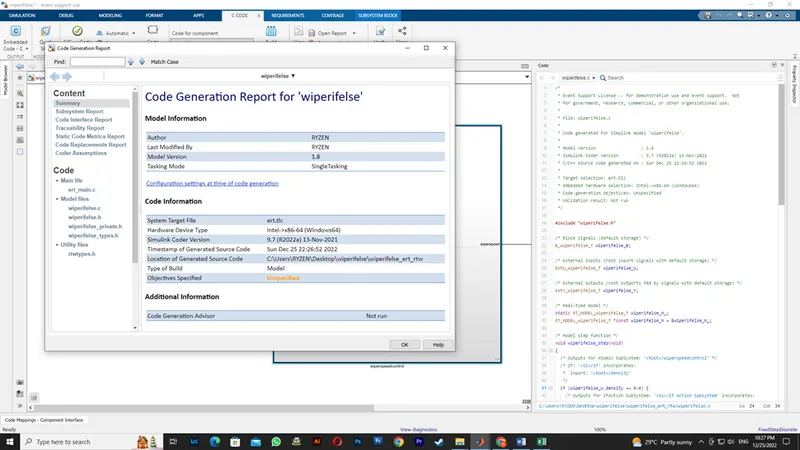

9.Auto-code generation report, main , .c & .h files :

10. Poly space analysis report / outputs:

Steps to create a Polyspace Report:

• Initially, open the Polyspace in that new project click on start new project.
• The Project Properties dialogue box will open in that give the project name as we saved in the MATLAB,then select the location where it we need to save after that click Next or use the default location.
• Then ,it asks for the Projrct source,click on browserand select the folder where th .c file are generated then optionally we can add the include folder then clock on finish,the polyspace environment will open.
• In the configuraton settings option called Target & compiler select the source code language as c,change the target processor as X86_64.
• In the coding standards & code Metrics in that enable the check MISRA C:2004 also select the calculate the code metrics option
• After that go to bug finder analysis under that select the default one.
• Go to reporting enable the generate report option and ouput formet as PDF or any file we need
• Finally save the polyspace and run the Bug Finder.

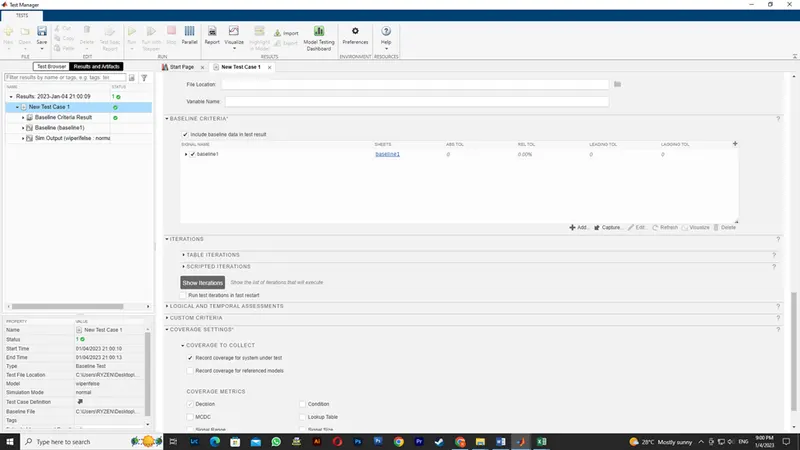

11. .Test manager reports – baseline & back-to-back testing

RESULTS:

The expected output is obtained for the simulink model for wiper control system.

2.

Vehicle speed calculation for ABS using Wheel Speed sensor

Aim:

To create a simulink model for vehicle speed calculation unit inside the ABS system.

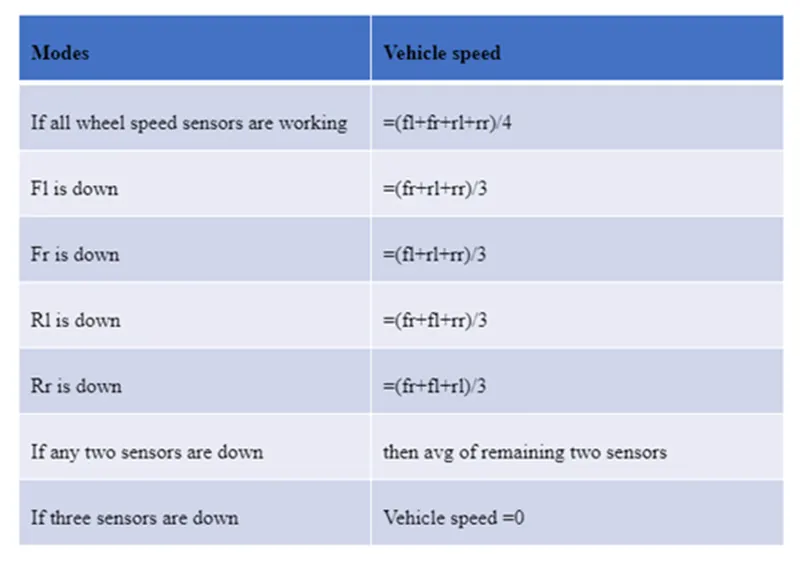

Condition:

Description:

• fl-front left
• fr-front right
• rl-rear left
• rr -rear right

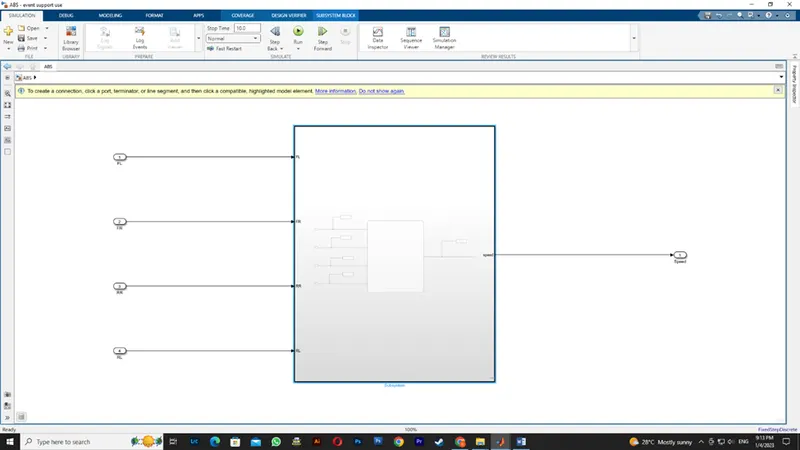

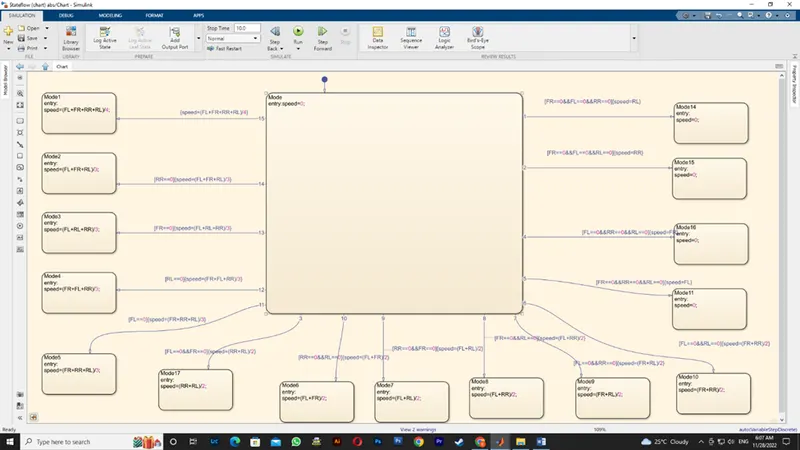

Simulink model file:

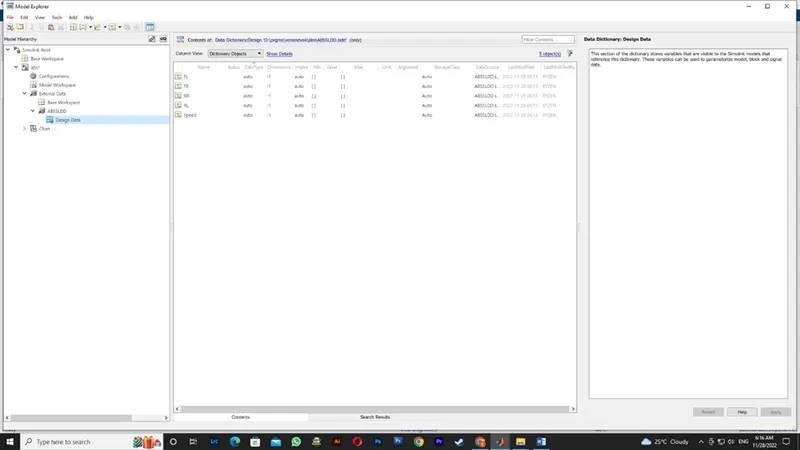

2. SLDD

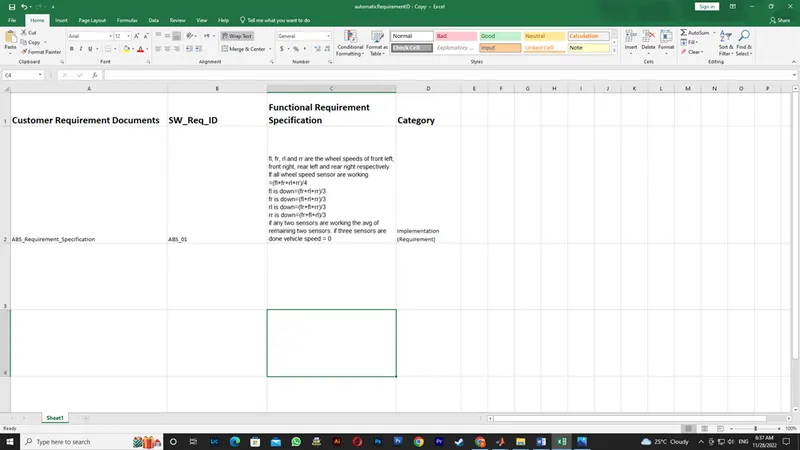

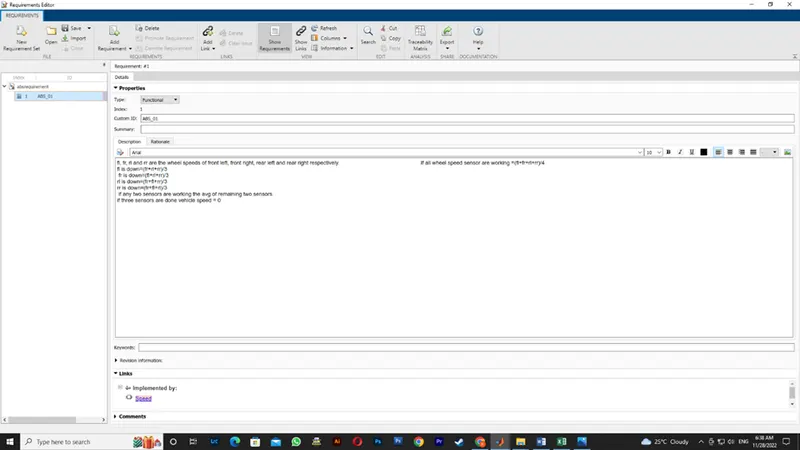

3.Requirement tagging report

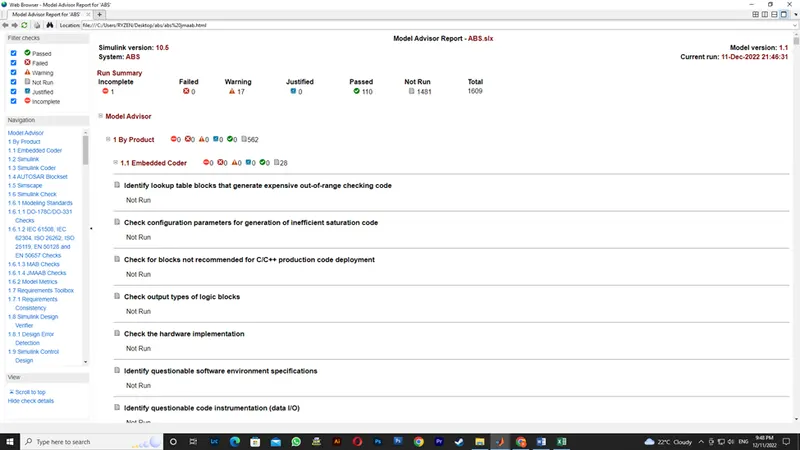

4.Model advisor - JMAAB compliance report

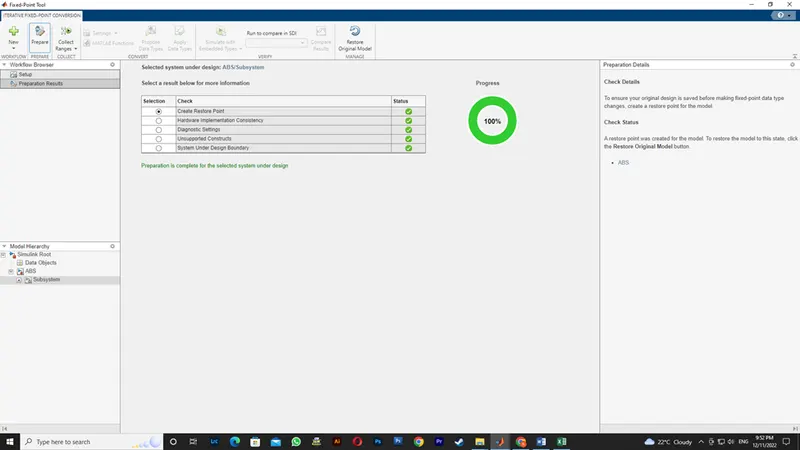

5.Fixed-point Tool

6.SLDV Design error detection report

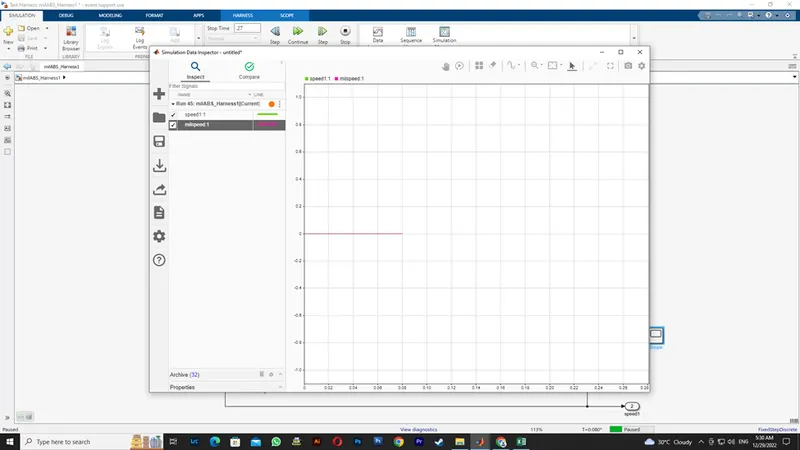

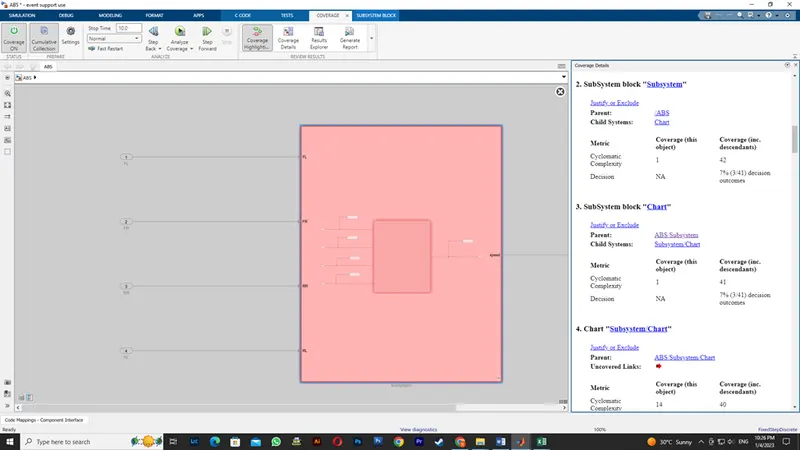

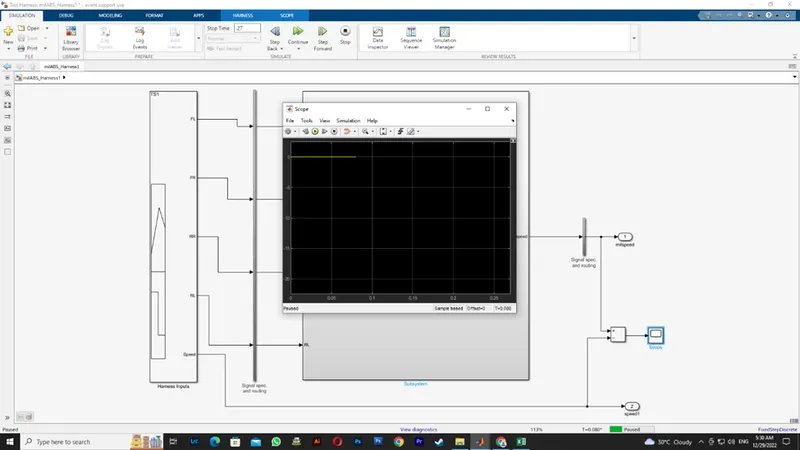

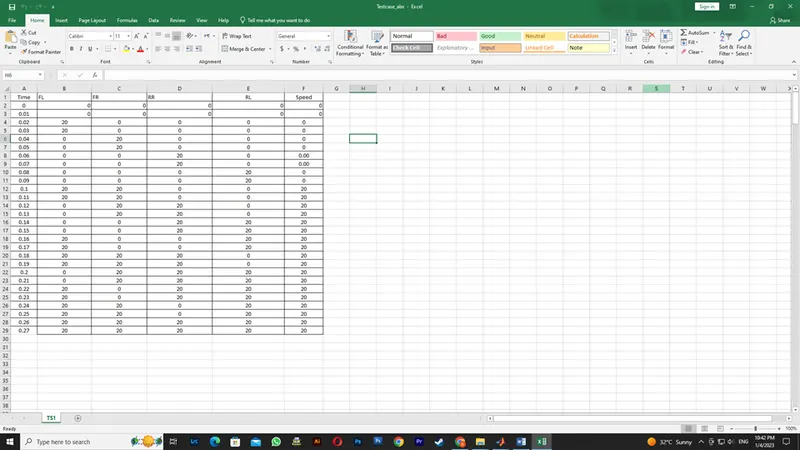

7.Functional test case, MIL, SIL harness, coverage Reports

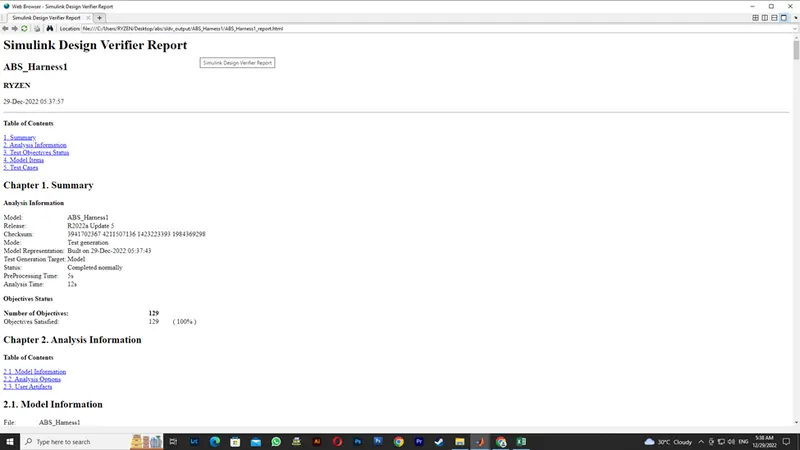

8.SLDV test generation report

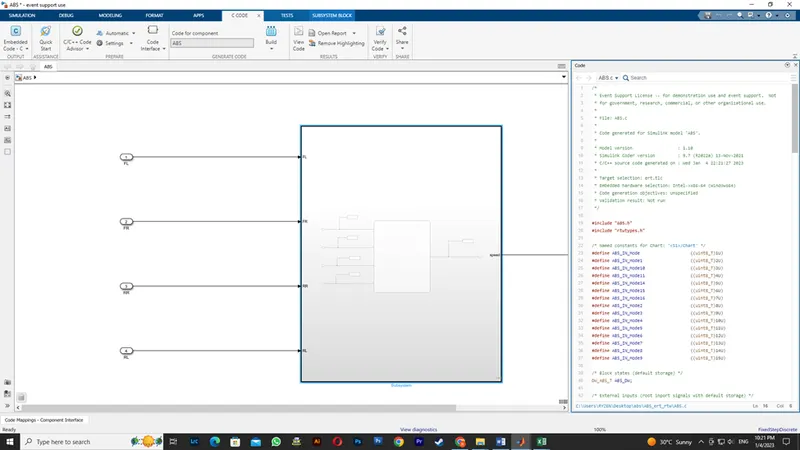

9. Auto-code generation report, main , .c & .h files

10Poly space analysis report / outputs:

Steps to create a Polyspace Report:

• Initially, open the Polyspace in that new project click on start new project.
• The Project Properties dialogue box will open in that give the project name as we saved in the MATLAB,then select the location where it we need to save after that click Next or use the default location.
• Then ,it asks for the Projrct source,click on browserand select the folder where th .c file are generated then optionally we can add the include folder then clock on finish,the polyspace environment will open.
• In the configuraton settings option called Target & compiler select the source code language as c,change the target processor as X86_64.
• In the coding standards & code Metrics in that enable the check MISRA C:2004 also select the calculate the code metrics option
• After that go to bug finder analysis under that select the default one.

• Go to reporting enable the generate report option and ouput formet as PDF or any file we need
• Finally save the polyspace and run the Bug Finder.

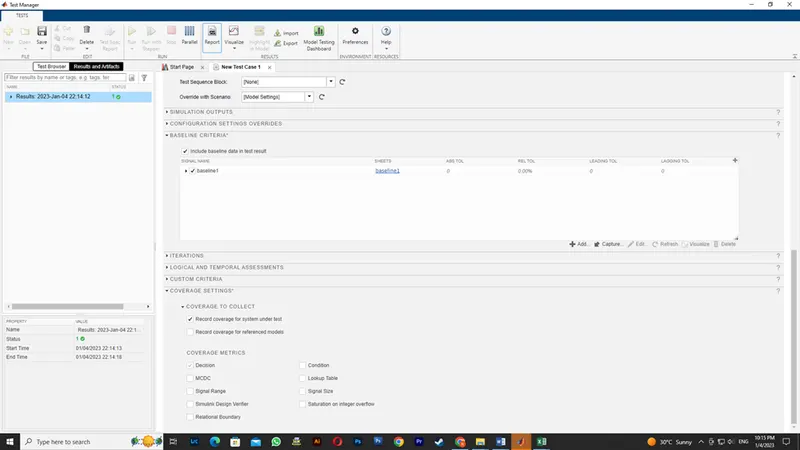

11. .Test manager reports – baseline & back-to-back testing

Results:

The expected output is obtained for the simulink model for vehicle speed calculation unit inside the ABS system

all files are attaches sil may sometimes work due to somre installation problem
