Project 1- Traffic Jam Assistant Feature

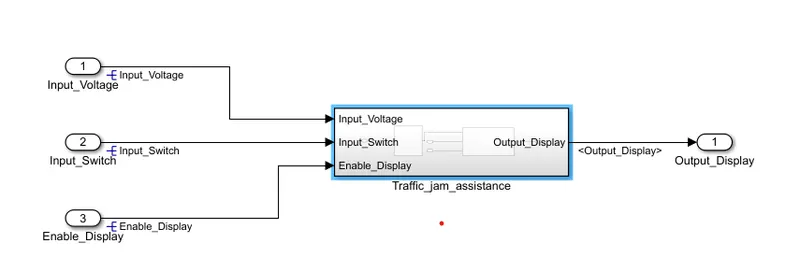

parent subsystem traffic_jam_assistance

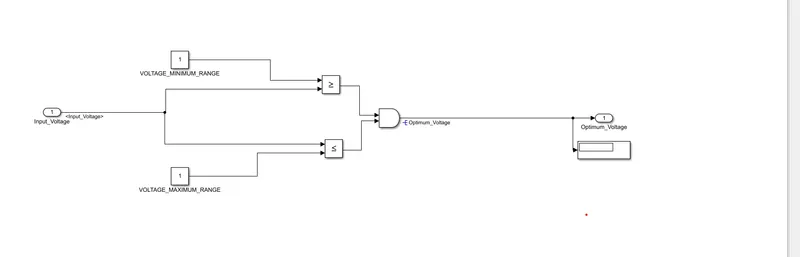

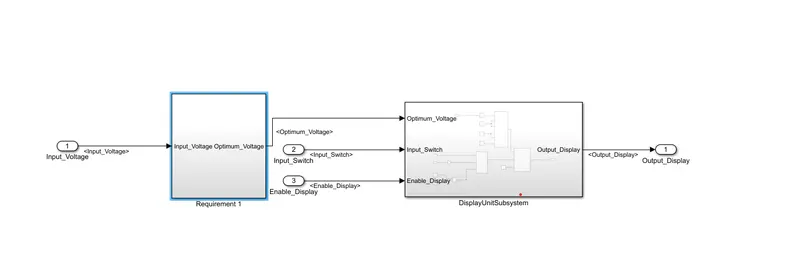

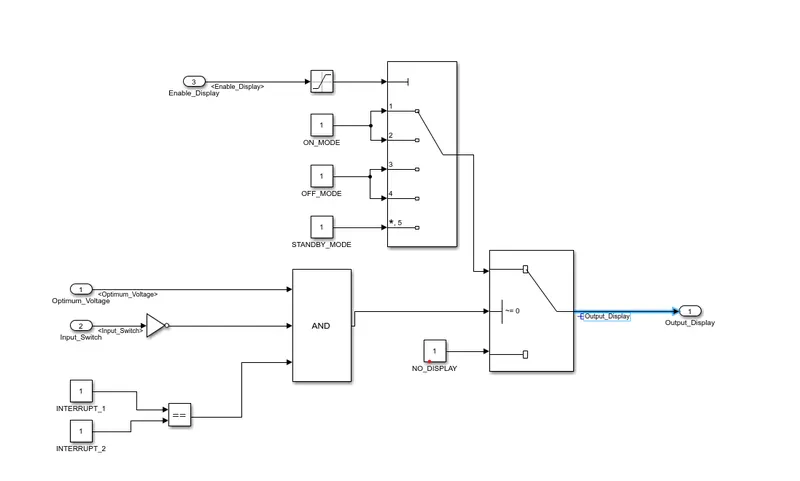

followiing are subsystems of requirement 1 and display subsystem unit

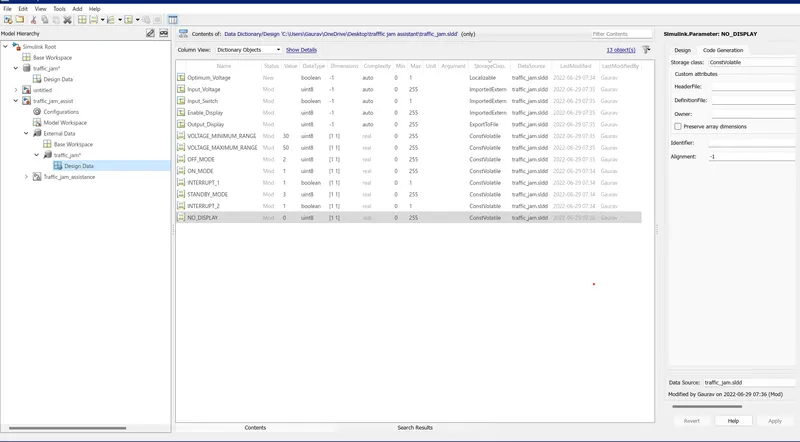

which are followed by the sldd or data dictionary

as we can clearly see that all the following singals have been resolved and propogated

and storage class ,dimnesions have been given in the sldd file
