Project 1 - Simulating a BTMS
AIM
The aim of this project is to simulate the flow inside a Battery Thermal Management System
OBJECTIVES
The main objectives are as follows

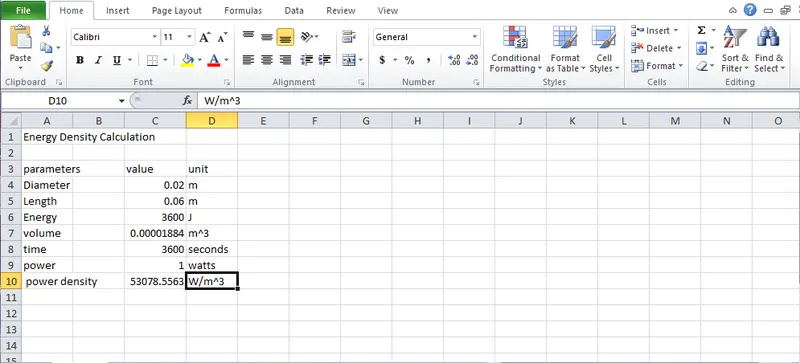

• Excel Calculator for Volumetric heat generation source
Run the case for different mesh sizes-128,6 and 4 mm
Effect of element length on accuracy of results
Given that voltage the conversion is justin
Charge (C) x Voltage (V)= Energy (J)
and
Current (A) x time (seconds)= Charge (C)
To find the mAh to Joule conversion we first find the charge in a mAh.
mA means 1/1000 of an Amp for an hour and there are 60 x 60 3600 seconds per hour. So, ImAh-0.001 Amps x 3600 seconds=3.8 Coulombs of charge.
Choosing 1 Volts for the voltage, we can now convert måh to Joules
3.6 (C) x1 (V)=3.6 (J)
We say at 1 Volts, ImAh of charge equals 3.6 Joules of energy. This is a handy value for mAh to Joule conversions
For any voltage, mAh X voltage x 3.6 Joules of energy.
For example. A 7.2 Volt battery that delivers 100 mAh of charge has delivered,
100x72x36- 2592 Joules of energy.
As we saw above, since a mAh is 1/1000 of an Ah, to convert Ah (amp hours) to Joules just use 1000 x 36-3600 as
the conversion factor instead of 3.6. An Amp Hour (Ah) is a measure of charge (measured in "Coulombs) whereas a Watt Hour (Wh) is a measure of energy. The two are related by voltage. So a 36 V battery stores twice the energy (Wh) of an 18 V battery.
When only an Ah specification is given it is understood that the voltage that determines the enorgy this represents is
that of the battery (storage device).
in summary, the onergy (measured in "Joules") stored in a 36 V, 15 Ah (15,000 mAh) battery is 36x15-540 Volt-Amp
hours or Watt-hours. Where a Volt-Amp-hour (Wh) is 3600 Joules (J). So our battery has stored 1,944,000
Joules of energy!
That's pretty close to the -2,110,000 Joules in a stick of dynamite? A good reason to respect storage batteries.
BATTERY THERMAL MANAGMENT SYSTEM SIMULATION-CASE 1
Now for the simulation of BTMS we have to follow these steps.
• Geometry
Mesh:
Solution
• Setup
• Results

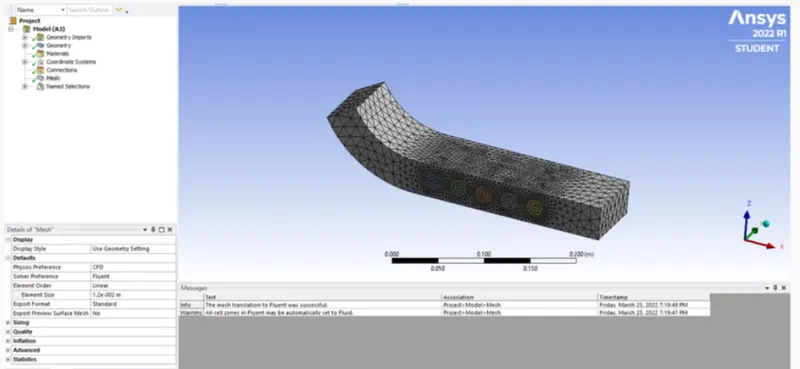

Now here on element size of 12mm is used which takes the count of the number of elements to 85127 elements. The tetrahedral mesh is used for the fluid volume. But when we say that the cell is a solid zone it creates ordinary mesh.
Setup
1. Solver Density solver
2. Solver state-Steady state.
3. turbulence Model-K-Epsilon Model
4.Inlet Velocity 4m/s
5 Volumetric Heat source=30000 W/m^3
6. Outlet Pressure 0 Pascals
While simulating the BTMS, it is not fine to use any solid material because the battery manufacturer would have specified the material that is being used for the battery cells. But for the simulation purpose it should be seen that the material should have certain thermal properties to conduct the heat easily to the cooling liquid in the battery pack
During the previous derivation of ID heat energy balance equation we see the terms like thermal conductivity and heat generation term.
Now here the simulation was run for 1000 iterations and we observe that the solution has converged after 900 iterations
BTMS SIMULATION FOR MESH SIZE = 12MM

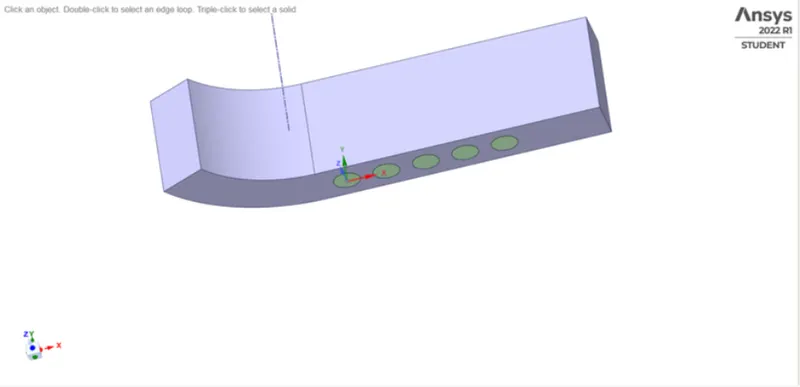

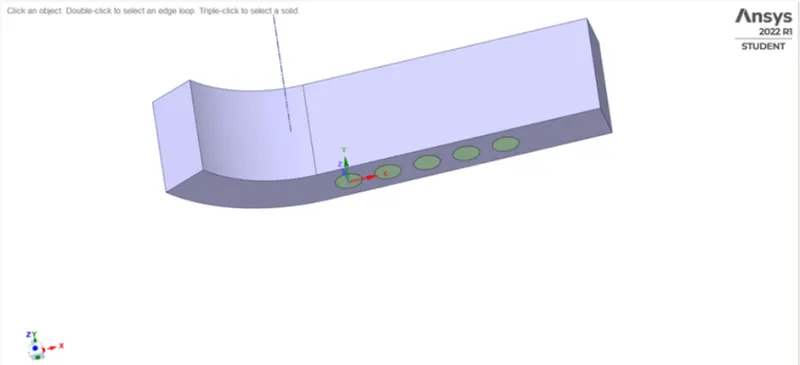

GEOMETRY
MESH

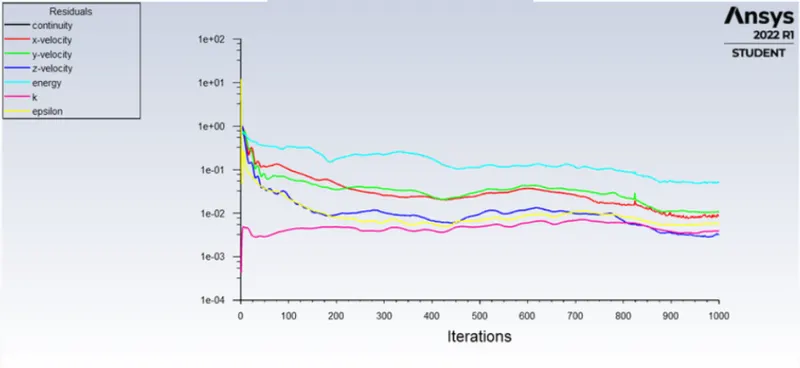

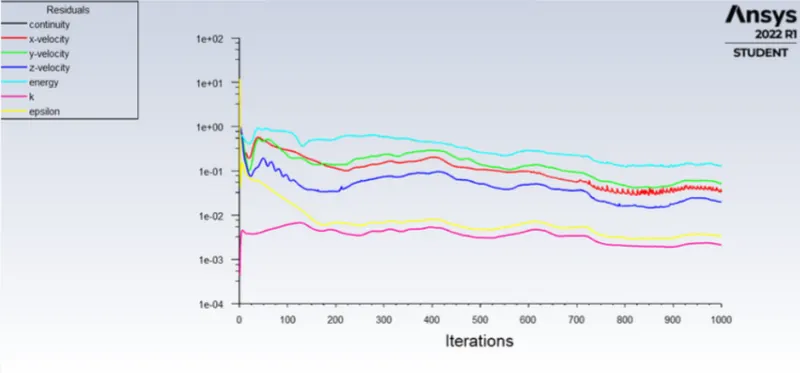

RESIDUAL PLOT

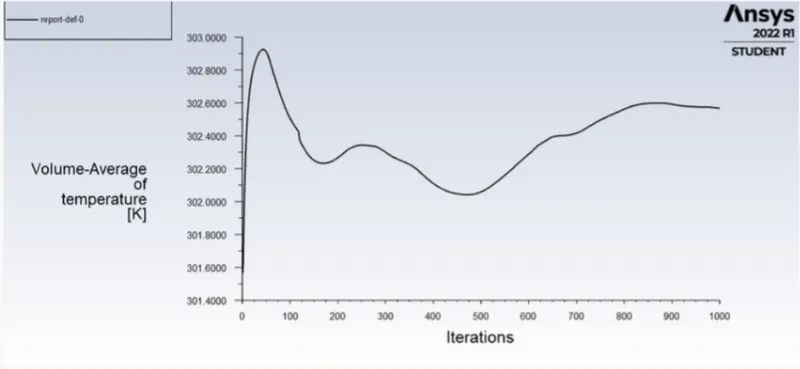

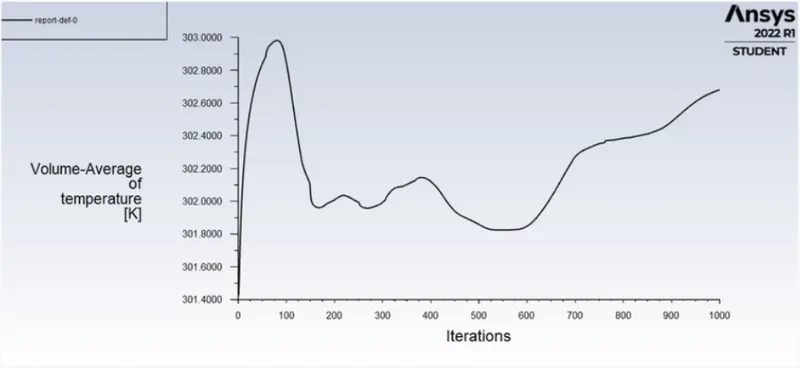

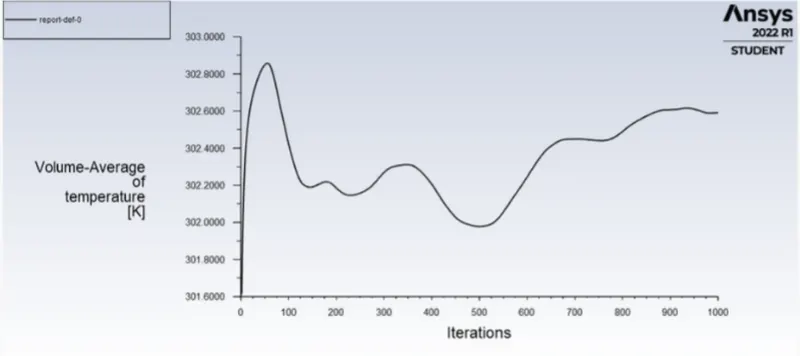

Volume average Temprature plot-

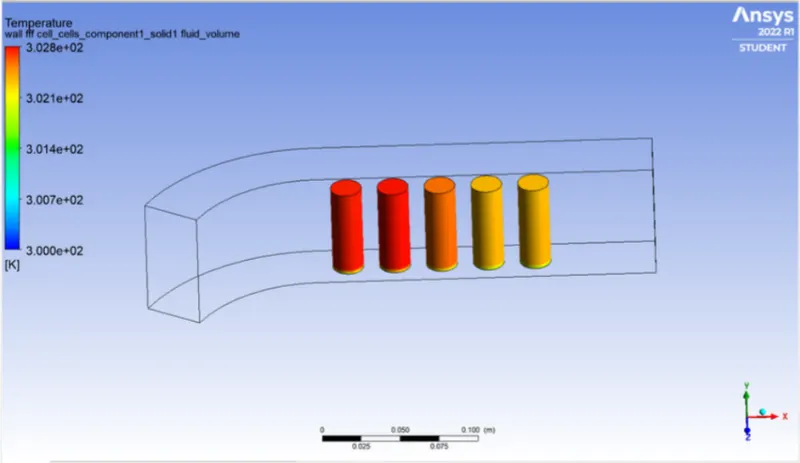

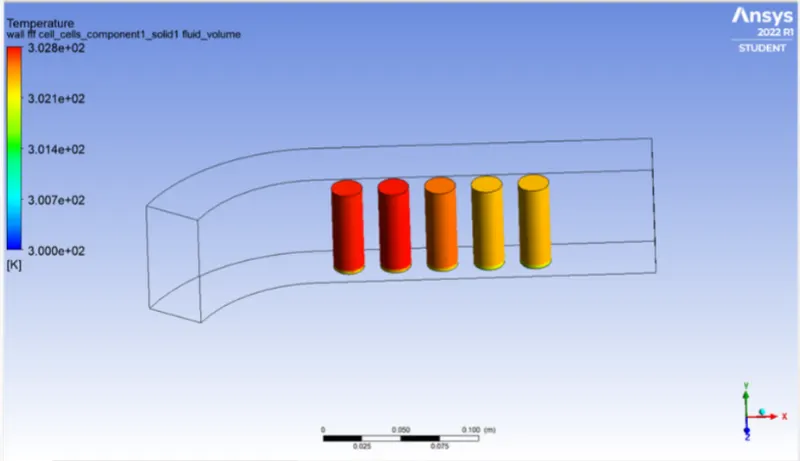

Temprature contour of cells-

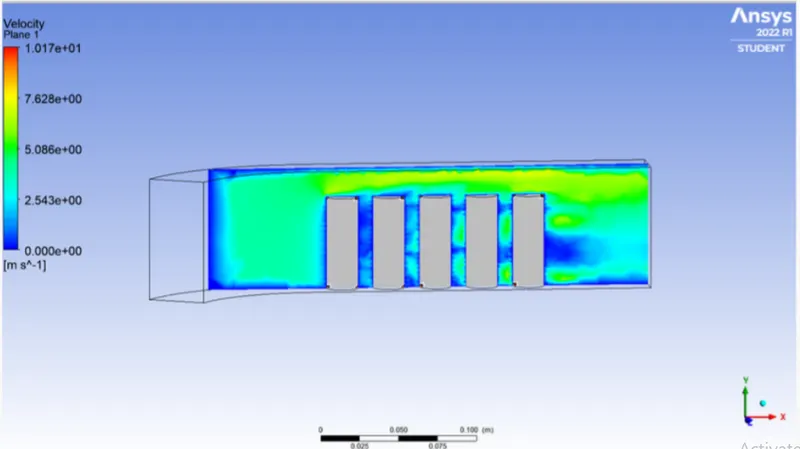

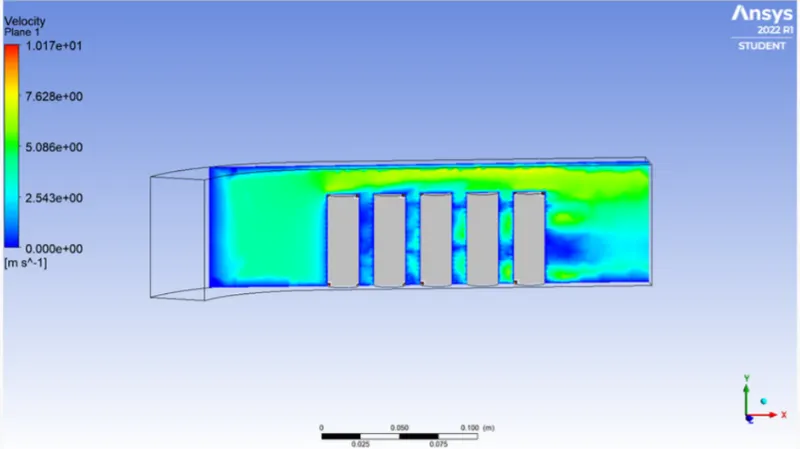

velocity contour plot-

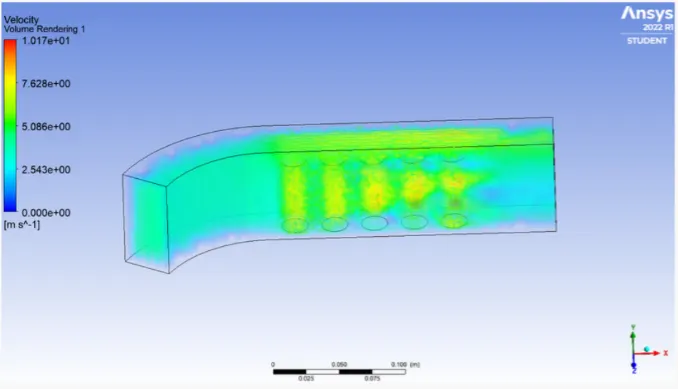

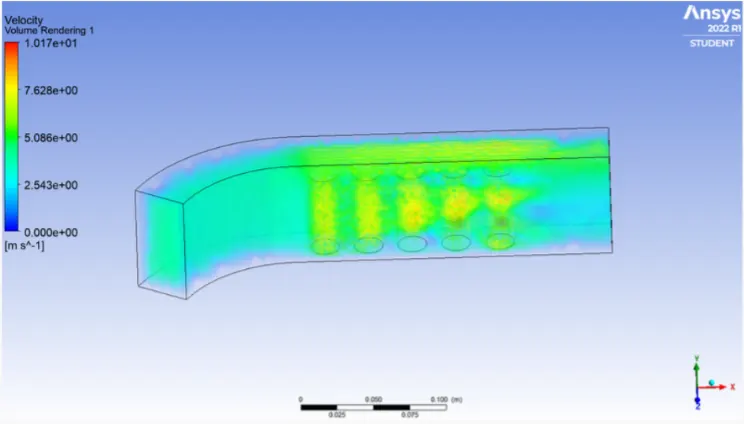

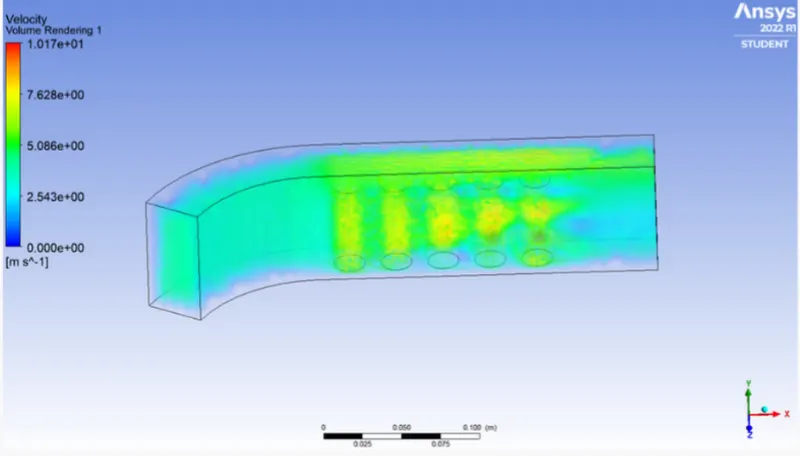

Velocity volume render-
BTMS SIMULATION FOR MESH SIZE-8mm
Geometry-

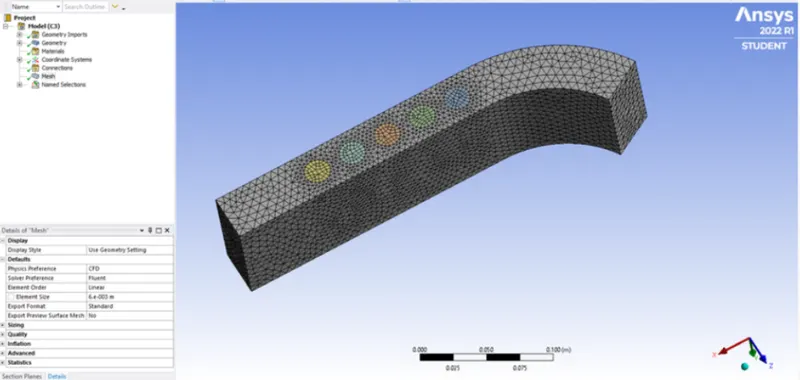

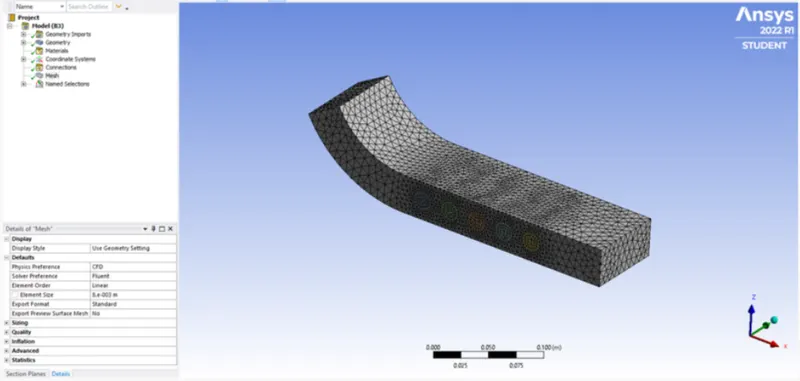

MESH-

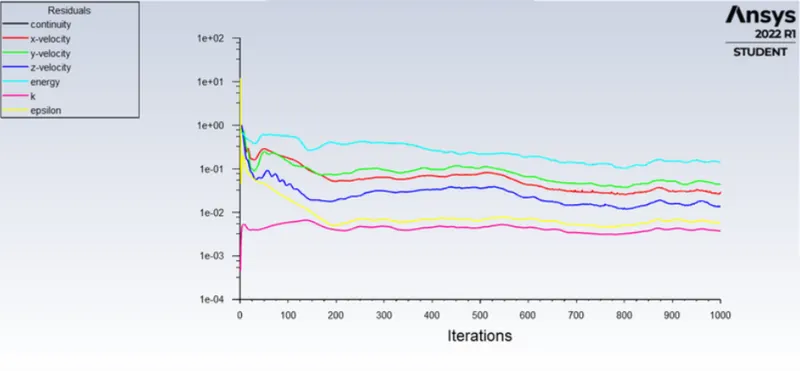

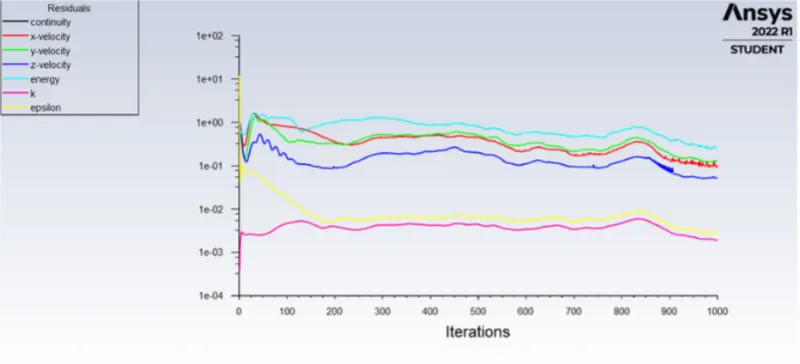

RESIDUAL PLOT-

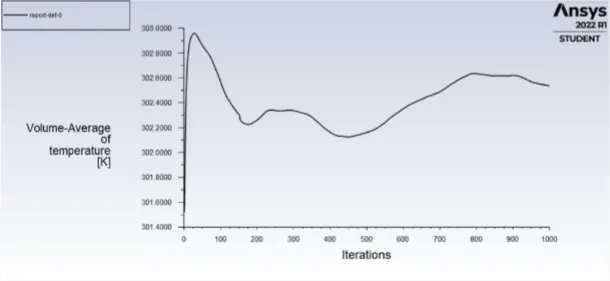

VOLUME AVERAGE TEMPRATURE PLOT-
Temperature contour of cell-

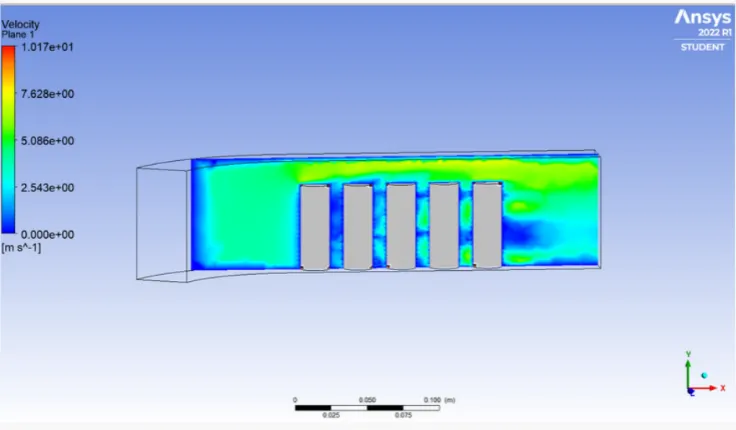

velocity contour plot-

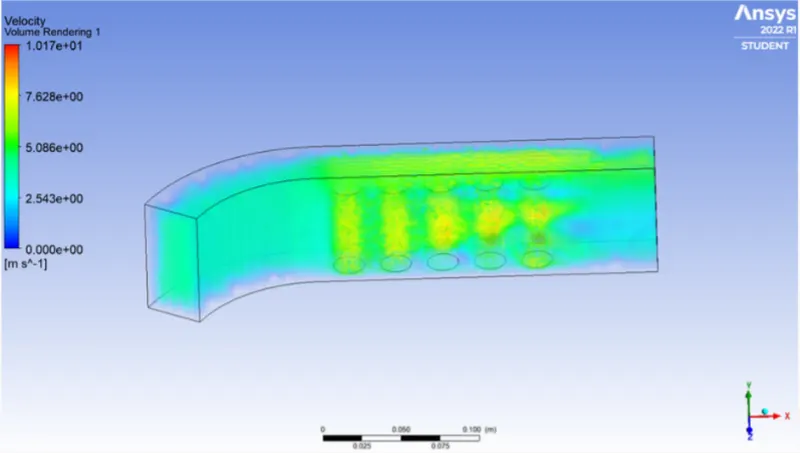

Velocity volume render-
BTMS simulation for mesh size = 6mm
Geometry-
Mesh-
Residual Plot-
Volume average temprature plot-
Temperature contour of cells-
Velocity contour plot-
Velocity volume render-
BTMS Simulation for mesh size=4mm
Geometry-

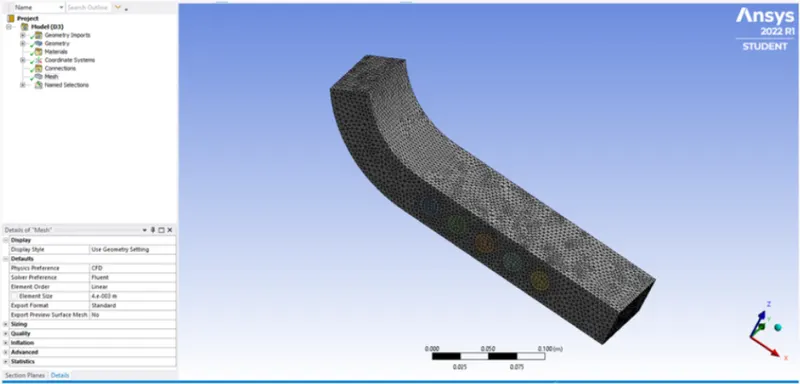

Mesh-
Residual plot-
Volume average temprature plot-
Temperature contour of cells-
Velocity contour plot-
velocity volume render-
SIMULATION ACCURACY
When we compare all the 4 cases of the residual plot, and the various contour plots, we can observe that if we refine the mesh to fine level we see an increase in the accuracy of the results. But after a certain mesh size the accuracy almost remains constant
CONCLUSION
1. The flow over a BTMS is performed
2. The heat generation source term was derived based on battery specifications
3. The mesh size was varied and we see that there is a slight improvements in the results and plots
