Project 1 - Parsing NASA thermodynamic data

%Program for filr parsing of NASA thermodynamic file
close all
clear all
clc

%opening the external file
f1=fopen('THERMO.dat','r')
line_1= fgetl(f1);
line_2= fgetl(f1);

%Obtaining the global temperature values
%splitting strings into parts
global_values= strsplit(line_2,' ');
%Converting string to number
g_low_temp= str2num(global_values{2})
g_mid_temp= str2num(global_values{3})
g_high_temp= str2num(global_values{4})

line_3= fgetl(f1);
line_4= fgetl(f1);
line_5= fgetl(f1);

%defining gas constant
R=8.314;

for i=1:53
    T=fgetl(f1);
    %extracting the species name
    species_name= T(1:9);
    species_name= deblank(species_name);

    %extracting local temperatures
    species_temp= T(49:75);
    local_values= strsplit(species_temp,' ');
    l_low_temp= str2num(local_values{1});
    l_mid_temp= str2num(local_values{3});
    l_high_temp= str2num(local_values{2});
    temp= [l_low_temp l_mid_temp l_high_temp];

    temp_range=linspace(l_low_temp,l_high_temp,500);
    coeff= fgetl(f1);
    coeff1= findstr(coeff,'E');

    %Coefficient extraction
    a1= coeff(1:coeff1(1)+3);
    a1= str2num(a1);
    a2= coeff(coeff1(1)+4:coeff1(2)+3);
    a2= str2num(a2);
    a3= coeff(coeff1(2)+4:coeff1(3)+3);
    a3= str2num(a3);
    a4= coeff(coeff1(3)+4:coeff1(4)+3);
    a4= str2num(a4);
    a5= coeff(coeff1(4)+4:coeff1(5)+3);
    a5= str2num(a5);

    new_line= fgetl(f1);
    coeff2= findstr(new_line,'E');
    a6= new_line(1:coeff2(1)+3);
    a6= str2num(a6);
    a7= new_line(coeff2(1)+4:coeff2(2)+3);
    a7= str2num(a7);
    a8= new_line(coeff2(2)+4:coeff2(3)+3);
    a8=str2num(a8);
    a9= new_line(coeff2(3)+4:coeff2(4)+3);
    a9= str2num(a9);
    a10= new_line(coeff2(4)+4:coeff2(5)+3);
    a10= str2num(a10);

    new_linel= fgetl(f1);
    coeff_3= findstr(new_linel,'E');
    a11= new_linel(1:coeff_3(1)+3);
    a11= str2num(a11);
    a12= new_linel(coeff_3(1)+4:coeff_3(2)+3);
    a12= str2num(a12);
    a13= new_linel(coeff_3(2)+4:coeff_3(3)+3);
    a13= str2num(a13);
    a14= new_linel(coeff_3(3)+4:coeff_3(4)+3);
    a14= str2num(a14);

    %Specific heat calculation
    Cp= specific_heat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,temp,temp_range,R);
    %Enthalpy calculation
    H= enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,temp,temp_range,R);
    %Entropy calculation
    S= entropy_1(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,temp,temp_range,R);

    %Calculation of molecular weight
    m_weight= weight(species_name);

    %saving molecular weight
    species_w= fopen('species_mass.txt','w');
    fprintf(species_w,'molecular mass of %s is %f',species_name,m_weight);
    fclose(species_w);

    %Plotting and saving
    cur_dir=pwd;

    %Making a new folder for each species
    mkdir(species_name);
    cd(species_name);

    figure(1)
    plot(temp_range,Cp,'linewidth',2,'color',[0.2345 0.4567 0.5678])
    xlabel('Temperature(K)');
    ylabel('Specific heat(KJ/Kg-K)');
    title(species_name);

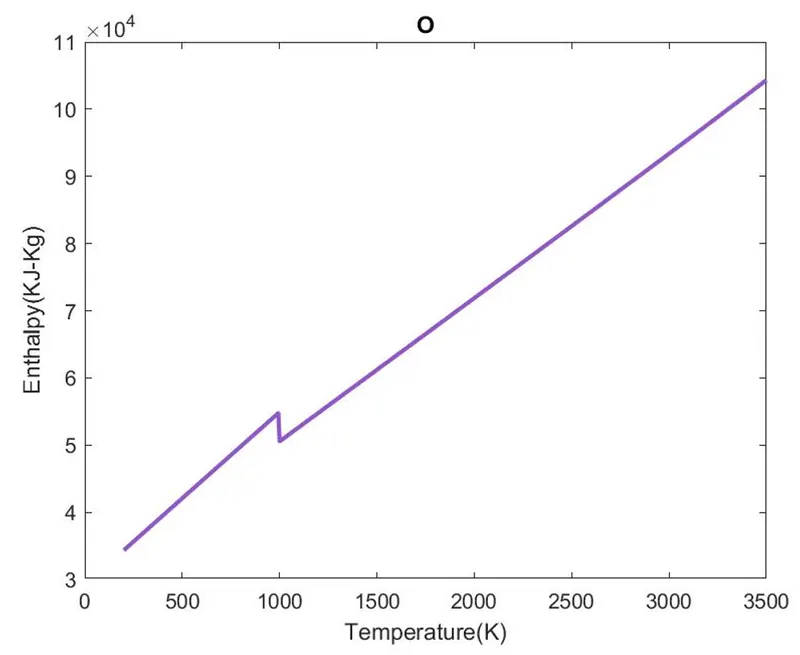

    figure(2)
    plot(temp_range,H,'linewidth',2,'color',[0.5678 0.3423 0.7874])
    xlabel('Temperature(K)');
    ylabel('Enthalpy(KJ-Kg)');
    title(species_name);

    figure(3)
    plot(temp_range,S,'linewidth',2,'color',[0.4532 0.1234 0.3324])
    xlabel('Temperature(K)');
    ylabel('Entropy(KJ/K)');
    title(species_name);

    %Saving the plots in seperate folder for each species
    saveas(1,'specific heat.jpg');
    saveas(2,'enthalpy.jpg');
    saveas(3,'entropy.jpg');

    cd(cur_dir);

    sprintf('molecular weight of %s=%f',species_name,m_weight)

end
fclose(f1)

function[m_weight]= weight(species_name)
element={'H','O','N','Ar','C','S'};
atomic_mass=[1.008,15.999,14.007,39.948,12.011,32.065];
m_weight=0;
for i=1:length(species_name)
    for j=1:length(element)
        if strcmp(species_name(i),element(j))
            m_weight=m_weight+atomic_mass(j);
            a=j;
        end
    end
    b=str2num(species_name(i));
    if b>1
        m_weight-m_weight+atomic_mass(a)*(b-1);
    end
end
end

function[H]= enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,temp,temp_range,R)
for i=1:length(temp_range)
    if temp_range(i)<=temp(2)
        H(i)= R*(a8*temp_range(i))+(a9*((temp_range(i).^2)/2))+(a10*((temp_range(i).^3)/3))+(a11*((temp_range(i).^4)/4))+(a12*(((temp_range(i).^5)/5))+a13);
    else
        H(i)= R*(a1*temp_range(i))+(a2*((temp_range(i).^2)/2))+(a3*((temp_range(i).^3)/3))+(a4*((temp_range(i).^4/4)))+(a5*((temp_range(i).^5))+a6);
    end
end

function[S]= entropy_1(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,temp,temp_range,R)
for i=1:length(temp_range)
    if temp_range(i)<=temp(2)
        S(i)=R.*((a8*log(temp_range(i)))+(a9*temp_range(i))+(a10*((temp_range(i).^2)/2))+(a11*((temp_range(i).^3)/3))+(a12*((temp_range(i).^4)/4))+a14);
    else
        S(i)=R.*((a1*log(temp_range(i)))+(a2*temp_range(i))+(a3*((temp_range(i).^2)/2))+(a4*((temp_range(i).^3)/3))+(a5*((temp_range(i).^4)/4))+a7);
    end
end

function[Cp]= specific_heat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,temp,temp_range,R)
for i=1:length(temp_range)
    if temp_range(i)<=temp(2)
        Cp(i)= R*(a8+(a9*temp_range(i))+(a10*(temp_range(i).^2))+(a11*(temp_range(i).^3))+(a12*(temp_range(i).^4)));
    else
        Cp(i)= R*(a1+(a2*temp_range(i))+(a3*(temp_range(i).^2))+(a4*(temp_range(i).^3))+(a5*(temp_range(i).^4)));
    end
end
