Project 1 - Parsing NASA thermodynamic data

Program(1)
clear my fun;
close all;
clc;
% function to calculate specific_heat function
%inputs
% gas constant
R=8.314;
% open file and reading THERMO.dat file
f1=fopen('THERMO.dat','r');
pavan=fgetl(f1);

% reading temperature from this file
T1=fgetl(f1);

%splitting the data
A=strsplit(T1,' ');

%converting sting cells into numbers
lowertemp = str2num(A{2});
mideltemp = str2num(A{3});
highertem = str2num(A{4});

%for skipping comments lines
for i=1:3
    comments=fgetl(f1);
end

%reading the species
for j=1:53
    species=fgetl(f1);
    %spliting into cell array
    B=strsplit(species);
    % to read the name of the species
    species_name =(B{1});
    % for getting next line
    list_1 = fgetl(f1);
    %finding the string E
    l1 = strfind(list_1,'E');
    %finding first 7 higher co efficients are
    a1 = str2num(list_1(1:(l1(1)+3)));
    a2 = str2num(list_1((l1(1)+4):(l1(2)+3)));
    a3 = str2num(list_1((l1(2)+4):(l1(3)+3)));
    a4 = str2num(list_1((l1(3)+4):(l1(4)+3)));
    a5 = str2num(list_1((l1(4)+4):(l1(5)+3)));

    list_2 = fgetl(f1);
    l2 = strfind(list_2,'E');
    a6 = str2num(list_2(1:(l2(1)+3)));
    a7 = str2num(list_2((l2(1)+4):(l2(2)+3)));
    a8 = str2num(list_2((l2(2)+4):(l2(3)+3)));
    a9 = str2num(list_2((l2(3)+4):(l2(4)+3)));
    a10 = str2num(list_2((l2(4)+4):(l2(5)+3)));

    list_3=fgetl(f1);
    l3=strfind(list_3,'E');
    a11=str2num(list_3(1:(l3(1)+3)));
    a12=str2num(list_3((l3(1)+4):(l3(2)+3)));
    a13=str2num(list_3((l3(2)+4):(l3(3)+3)));
    a14=str2num(list_3((l3(3)+4):(l3(4)+3)));
    % gas constant
    R=8.314;
    % creating an array temperature
    T=linspace(lowertemp,highertem,100);

    % for calculating specific heat
    cp = specific_heat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,T,R,mideltemp);
    % for calculate Entropy
    s=Entropy(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,T,R,mideltemp);
    % for enthalpy calculation
    h=Enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,T,R,mideltemp);


    % ploting CP,H AND S with temperature
    %for ploting 1 CP VS T
    figure(1)
    plot(T,cp,'LineWidth',3,'Color','k');
    xlabel('x-axis Temperature in (k)');
    ylabel('y axis in specific heat in (KJ)');
    title(species_name,'specific heat vs Temperature range ');
    grid on;
    saveas(figure(1),'specific heat.jpg')

    % for ploting 2 entopy vs temperature
    figure(2)
    plot(T,s,'LineWidth',3,'Color','r');
    xlabel('x axis Temperature in(k)');
    ylabel('y axis Entropy in (KJ/Mol-k)');
    title(species_name,'Entropy vs temperature range');
    grid on
    saveas(figure(2),'Entropy.jpg')

    % for ploting 3 Enthalpy vs temperature
    figure(3)
    plot(T,h,'LineWidth',2,'Color','g');
    xlabel('x axis Temperature in (k)');
    ylabel('y axis Enthalpy in(KJ/Mol)');
    title(species_name,'Enthalpy vs Temperature range')
    grid on
    saveas(figure(3),'Enthalpy.jpg');
    % for changing directory to original mat lab path
    cd('c:/Users/PAVANRAJPRAJJU/OneDrive/Documents/MATLAB/pavanraj')

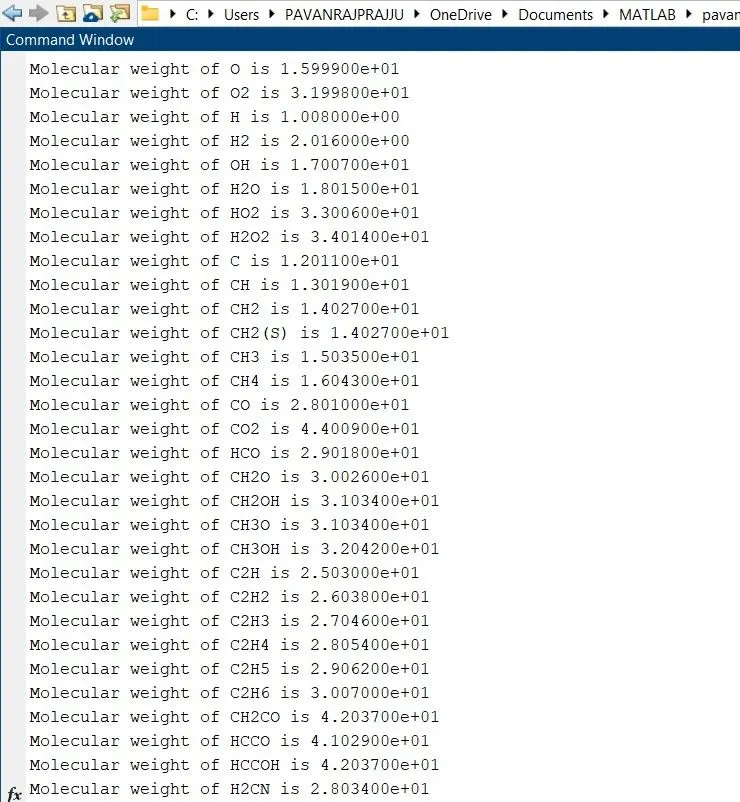

    % for molecular weight
    mw = Molecular_weight(species_name);
    fprintf('Molecular weight of %s is %d',species_name,mw);
    disp(' ')
end

Program(2)
function [s] = Entropy(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,T,R,mideltemp)
% for calculating entropy for higher and lower temperature respectivly
if(T>=mideltemp)
    s=R.*(a1.*log(T)+(a2.*T)+(a3.*((T).^2)./2)+(a4.*((T)./3)./3)+(a5.*((T)./4)./4)+a7);
else
    s=R.*(a8.*log(T)+(a9.*T)+(a10.*((T)./2)./2)+(a11.*((T)./3)./3)+(a12.*((T)./4)./4)+a14);
end
end

Program(3)
function [h]=Enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,T,R,mideltemp)
%for calculating enthalpy for higher and lower temperature respectively
if (T>=mideltemp)
    h = R.*T.*(a1+(a2.*(T./2))+(a3.*(T./3))+(a4.*(T./4))+(a5.*(T./5))+(a6.*(T./6)));
else
    h =R.*T.*(a8+(a9.*(T./2)))+(a10.*(T./3))+(a11.*(T./4))+((a12.*(T./5))+(a13.*(T./6)));
end
end

Program(4)
% calling function program for specific heat
function[cp]= specific_heat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,R,T,mideltemp)
if T>= mideltemp
    cp=R*(a1+(a2*T)+(a3*(T).^2)+(a4*(T).^3)+(a5*(T).^4));
else
    cp=R*(a8+(a9*T)+(a10*(T).^2)+(a11*(T).^3)+(a12*(T).^4));
end
end


Program(5)
function [mw] = Molecular_weight(species)
% for defining automic name of the species
elements = {'H' 'C' 'N' 'O' 'Ar'};
% for defining atomic weight of the main species
atomic_weight=[1.008  12.011  14.007  15.999  39.948];
% for molecular weight starting range will be 0
mw=0;
% for loop is using the find the species
for i=1:length(species)
    %for loop runs the atomicnames
    for j=1:length(atomic_weight)
            %function to compare 2 string
         if   strcmp(species(i),elements(j))
            mw=mw+atomic_weight(j);
            u=j;
        end
    end
    %now we will find if ther is moew element in the species
    n = str2num (species(i));
    if n>1
        mw=mw+atomic_weight(u)*(n-1);
    end
end
