Project 1 (Mini Project on Vehicle Direction Detection

Aim - To create a model for Vehicle direction Detection

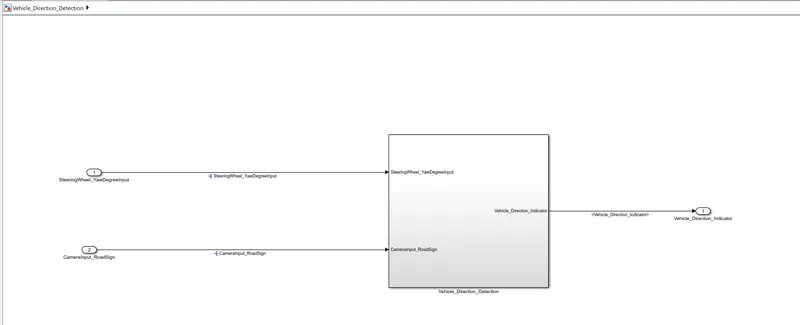

1. Create the outer level the model. Two input signals and 1 output signal

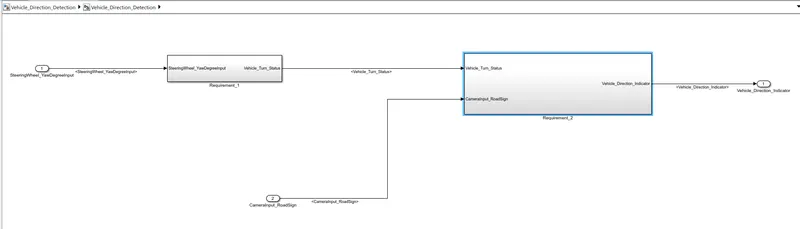

2. two subsytems are created based on requirement 1 and requirement 2. The subsystems are tagged to its respective requirement

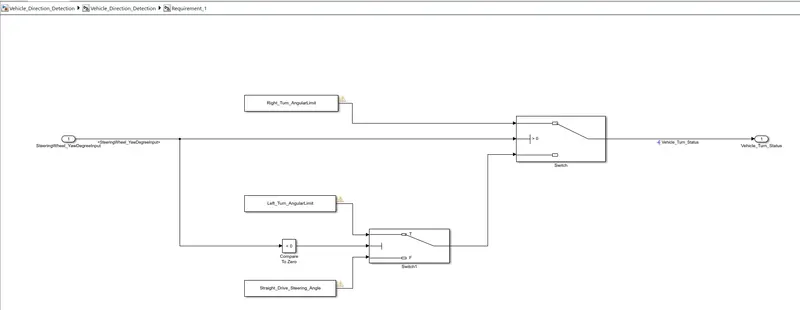

3. Requirement 1 is modelled. input signal is compared with the 3 calibrated values by using a switch block

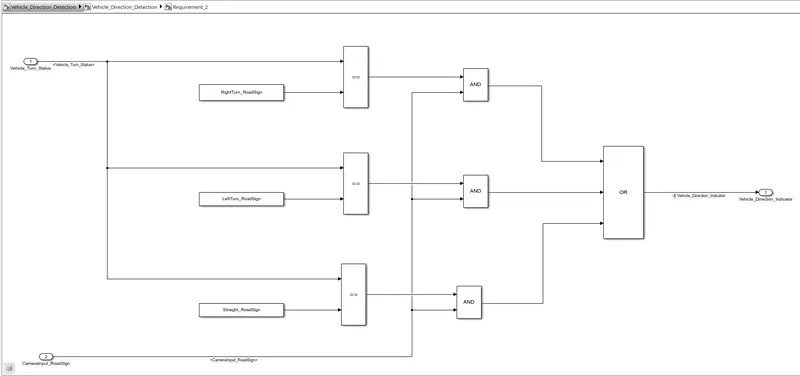

4. Requirement 2 is created. The output of req1 is provided as input and compared against the other 3 calibrated values which is inturn compared against the camera input signal using logical operators

4. The signals are propogated based on SLDD file

Conclusion

1. The model is created based on the requirement document. the sample time of the model is set to 0.01sec

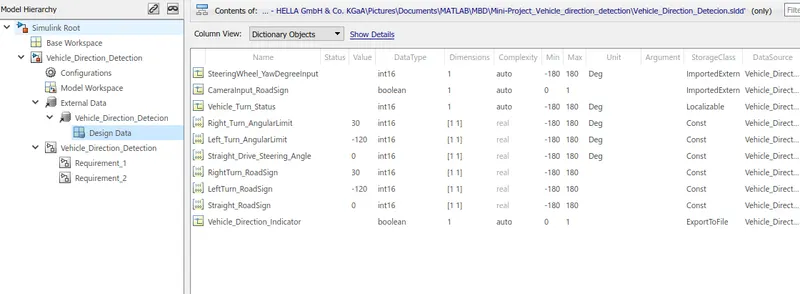

2. SLDD file is created and linked to the model

3. Future scope involves Model advisor report and Code generation
