Project 1 (Mini Project on Vehicle Direction Detection
Aim: To create simulink Model and simulink Data dictionary for Vehicle direction detection.
Requirement 1: Determing the vehicle direction using steering wheel input as yaw rate which is input to the system . Yaw rate input is then compared against 3 angular values one for each right turn, left turn & straight drive and corrosponding calibration values are Right_Turn_AngularLimit, Left_Turn_AngularLimit & Straight_Drive_Steering_Angle respectively. Depending on these calibrations turning of steering wheel to which specific direction is determined. The output for this system will be the Vehicle_Turn_Status.
Simulink Model for Requirement1:

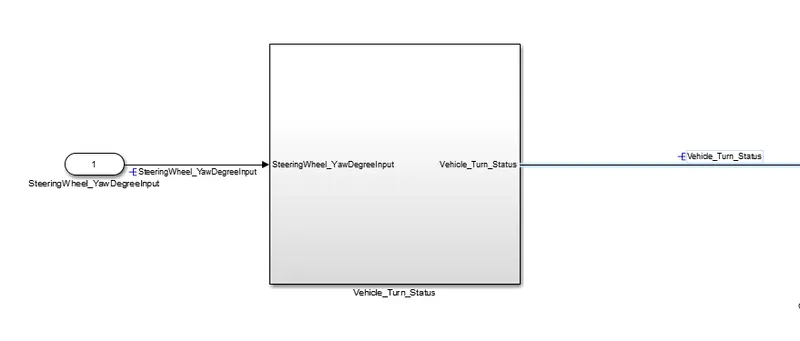

diagram1 : subsystem : Vehicle_Turn_Status
input : SteeringWheel_YawDegreeinput
output: Vehicle_Turn_Status

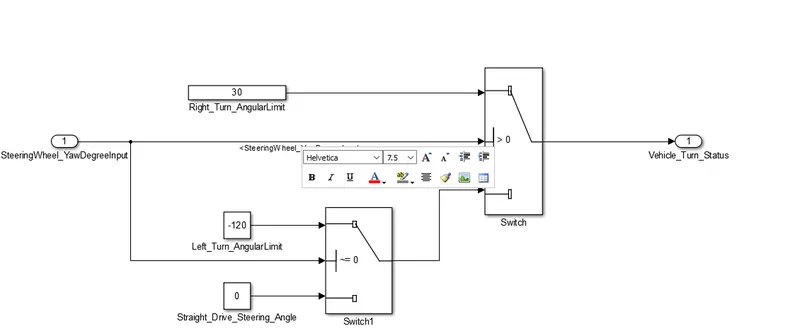

Diagram 2: Inside subsystem,
Pseudo code:
if (SteeringWheel_YawDegreeInput>0)
Right_Turn_AngularLimit = 30
else( SteeringWheel_YawDegreeInput <=0)
if ( SteeringWheel_YawDegreeInput ==0)
Straight_Drive_Steering_angle=0
else(SteeringWheel_YawDegreeInput < 0)
Left_Turn_AngularLimit =-120
Requirement 2: Create another subsystem which has 2 input , where one input is from previous requirement signal output i.e Vehicle_Turn_Status along with another input from camera i.e CameraInput_RoadSign, which confirms the occurence road sign. Signal Vehicle_Turn_Status is compared against the Road signs i.e RightTurn_RoadSign, LeftTurn_RoadSign,Straight_RoadSign. If each of the them when compared to their corrosponsding road sign matches then the corrosponsing output is compared against camera input signal and the output of this is Vehicle_Direction_Indicator.
Simulink Model for Requirement2:

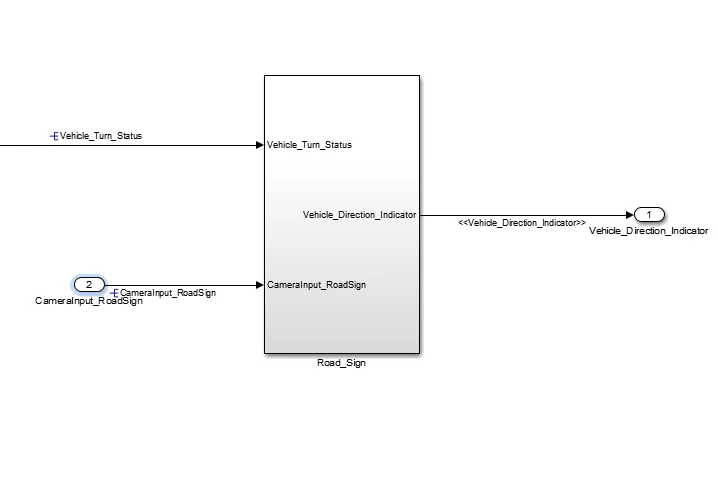

Diagram 3: Subsystem : Road_Sign
Input : a) Vehicle_Turn_Status b) CameraInput_RoadSign
output: Vehicle_Direction_Indicator

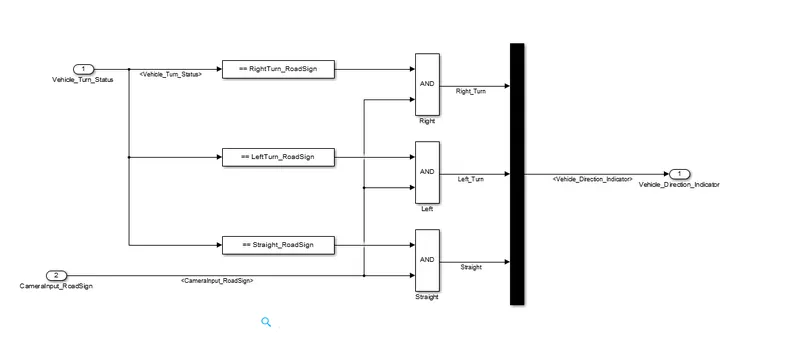

Diagram 4:
Psuedo Code:
if(Vehicle_Turn_Status == RightTurn_RoadSign && CameraInput_RoadSign)
Right Turn =1;
Left Turn = 0;
straight Turn = 0;
elseif (Vehicle_Turn_Status = LeftTurn_RoadSign && CameraInput_RoadSign)
Right Turn =0;
Left Turn = 1;
straight Turn = 0;
else
Right Turn =0;
Left Turn = 0;
straight Turn = 1;

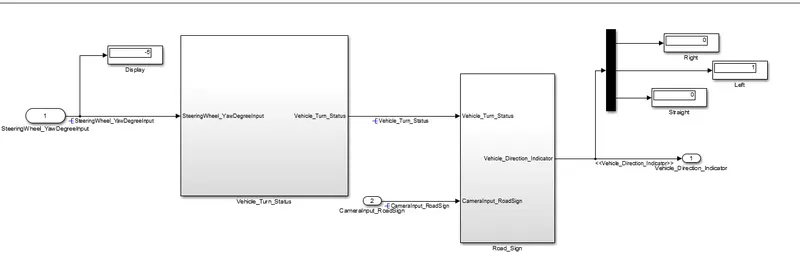

Final Model:

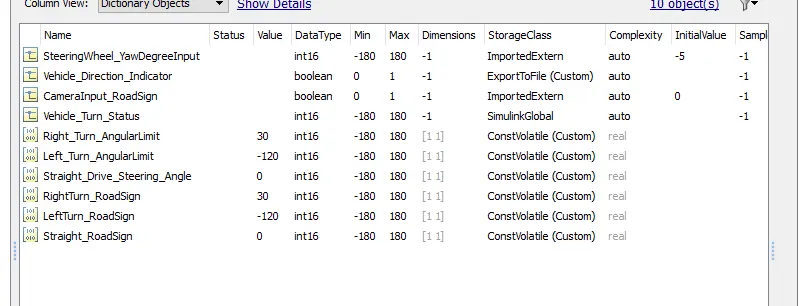

SLDD:
I have used MatlabR2015 version so here i dont have any variable as localizable so i have assigned Vehicle_Turn_Status to Simulink Global and it works fine.
Output:

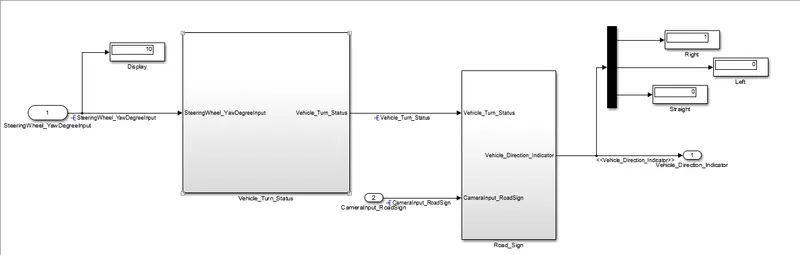

Case 1: SteeringWheel_YawDegreeInput= 10 && CameraInput_RoadSign =1.

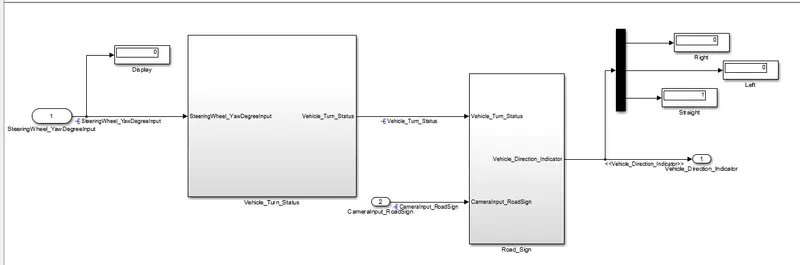

Case 2: SteeringWheel_YawDegreeInput= 0 && CameraInput_RoadSign =1.

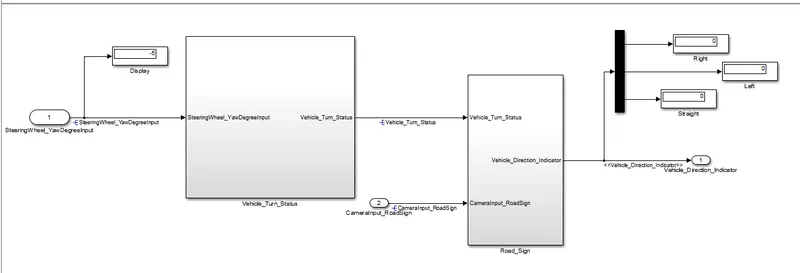

Case3: SteeringWheel_YawDegreeInput= -5 && CameraInput_RoadSign =1.
Case 4: SteeringWheel_YawDegreeInput= 10 && CameraInput_RoadSign =0. whenever the CameraInput_RoadSign =0 , what ever the input is of SteeringWheel_YawDegreeInput, inthat case there is no turning.
C code generation:
/*
* File: Vehicle_Direction_Detection.c
*
* Code generated for Simulink model 'Vehicle_Direction_Detection'.
*
* Model version : 1.16
* Simulink Coder version : 8.8 (R2015a) 09-Feb-2015
* C/C++ source code generated on : Sun Feb 13 16:33:33 2022
*
* Target selection: ert.tlc
* Embedded hardware selection: 32-bit Generic
* Code generation objectives: Unspecified
* Validation result: Not run
*/
#include "Vehicle_Direction_Detection.h"
#include "Vehicle_Direction_Detection_private.h"
/* Exported data definition */
/* ConstVolatile memory section */
/* Definition for custom storage class: ConstVolatile */
const volatile int16_T LeftTurn_RoadSign = -120;
const volatile int16_T RightTurn_RoadSign = 30;
const volatile int16_T Straight_RoadSign = 0;
/* Block signals (auto storage) */
B_Vehicle_Direction_Detection_T Vehicle_Direction_Detection_B;
/* External outputs (root outports fed by signals with auto storage) */
ExtY_Vehicle_Direction_Detect_T Vehicle_Direction_Detection_Y;
/* Real-time model */
RT_MODEL_Vehicle_Direction_De_T Vehicle_Direction_Detection_M_;
RT_MODEL_Vehicle_Direction_De_T *const Vehicle_Direction_Detection_M =
&Vehicle_Direction_Detection_M_;
/* Model step function */
void Vehicle_Direction_Detection_step(void)
{
/* Switch: '
* Constant: '
* Constant: '
* Inport: '
* Switch: '
*/
if (SteeringWheel_YawDegreeInput >
Vehicle_Direction_Detection_P.Switch_Threshold) {
Vehicle_Direction_Detection_B.Vehicle_Turn_Status =
Vehicle_Direction_Detection_P.Right_Turn_AngularLimit_Value;
} else if (SteeringWheel_YawDegreeInput != 0) {
/* Switch: '
* Constant: '
*/
Vehicle_Direction_Detection_B.Vehicle_Turn_Status =
Vehicle_Direction_Detection_P.Left_Turn_AngularLimit_Value;
} else {
Vehicle_Direction_Detection_B.Vehicle_Turn_Status =
Vehicle_Direction_Detection_P.Straight_Drive_Steering_Angle_V;
}
/* End of Switch: '
/* Outport: '
* Constant: '
* Constant: '
* Constant: '
* Inport: '
* Logic: '
* Logic: '
* Logic: '
* RelationalOperator: '
* RelationalOperator: '
* RelationalOperator: '
*/
Vehicle_Direction_Detection_Y.Vehicle_Direction_Indicator[0] =
((Vehicle_Direction_Detection_B.Vehicle_Turn_Status == RightTurn_RoadSign) &&
CameraInput_RoadSign);
Vehicle_Direction_Detection_Y.Vehicle_Direction_Indicator[1] =
((Vehicle_Direction_Detection_B.Vehicle_Turn_Status == LeftTurn_RoadSign) &&
CameraInput_RoadSign);
Vehicle_Direction_Detection_Y.Vehicle_Direction_Indicator[2] =
((Vehicle_Direction_Detection_B.Vehicle_Turn_Status == Straight_RoadSign) &&
CameraInput_RoadSign);
}
/* Model initialize function */
void Vehicle_Direction_Detection_initialize(void)
{
/* Registration code */
/* initialize error status */
rtmSetErrorStatus(Vehicle_Direction_Detection_M, (NULL));
/* block I/O */
(void) memset(((void *) &Vehicle_Direction_Detection_B), 0,
sizeof(B_Vehicle_Direction_Detection_T));
/* external outputs */
(void) memset(&Vehicle_Direction_Detection_Y.Vehicle_Direction_Indicator[0], 0,
3U*sizeof(boolean_T));
}
/* Model terminate function */
void Vehicle_Direction_Detection_terminate(void)
{
/* (no terminate code required) */
}
/*
* File trailer for generated code.
*
* [EOF]
*/

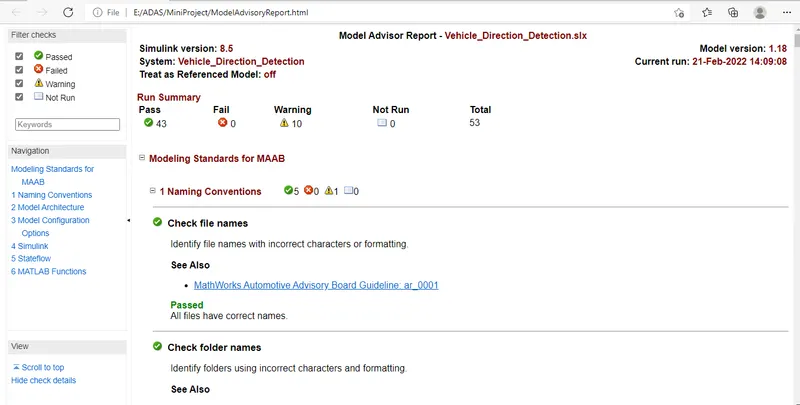

Model Advisory Report:
