Project 1-Meshing of Rear Wheel Holder challenge

Aim : Generate a midsurface and mesh the Rear wheel holder and make sure it doesnt fail on quality

procedure
1. import the given model to hypermesh
2. extract the midsurface using the geom - midsurface - extraction option - skin offset
and later extract
3. later on check for fillets where iy will fail on quality
go to Geom - defeature - surf fillets
and remove the fillets which is going to fail on quality
4. enter the quality in preferneces - quality criteria setting
5.after doin all the above parameters satrt the meshing part by part
one mid surface at a time
6. i used the tool mask - surface option and mask one surafce at a time to generte mesh
7 make sure to capture the mesh flow properly
8. toggle the lines when necessary in geom - quick edit - toggle

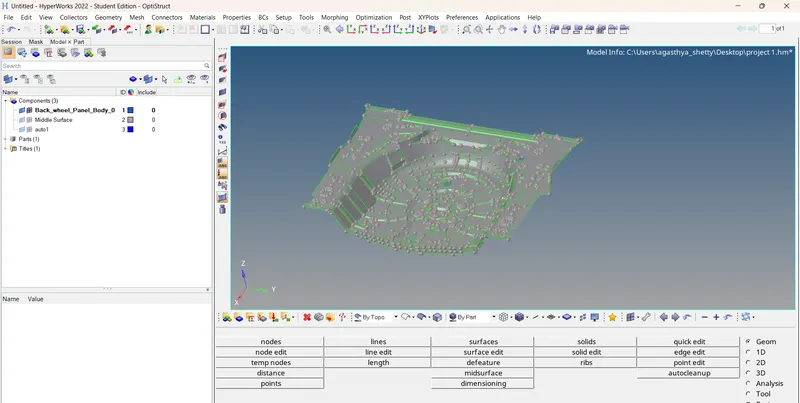

below is the model imported

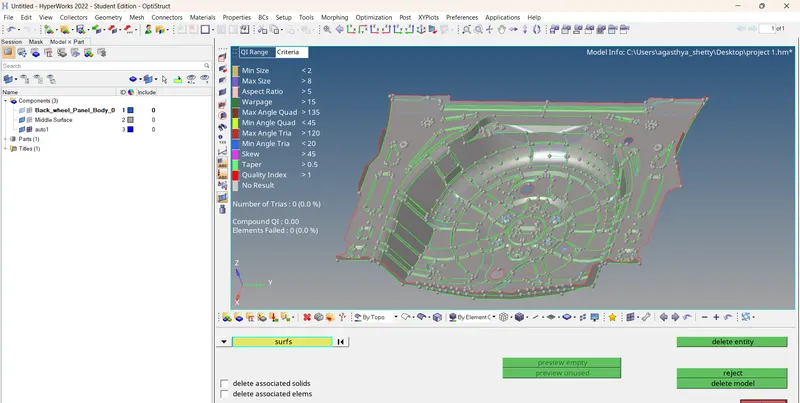

the mid extracted

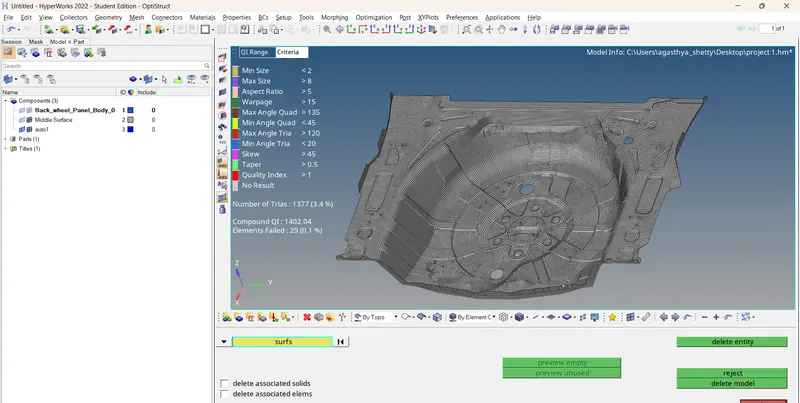

the meshed model

conclusion - this project has helped me understand how to generate midsurafce and mesh a complex geometry
