Project 1 - Meshing of Floor Panel

OBJECTIVES: -

PROCEDURE: -

OPEN ANSA V22
Import the floor panel geometry
Input perimeter length as 1 by selecting entire entity
Check the geometry
If it shows error in geometry clean it by using auto fix option remaining error clean manually,delete existing faces, creating new faces or by adjusting cones
Generate mid surface using MID.SURFACE option in faces for each part separately because, for some of the part it needs to adjust it outer surface inner surface and boarder colour properly as red, green, and blue

Put a new PID for mid surface created by using SET PID in faces
Arrange its orientation correctly by using ORIENT option in faces
Change DRAW MODE from entity (ENT) to PID
Change module form topo to mesh module
Check for geometry error for mid surface also (exclude single cone)
Do correction for geometry if it is necessary
Do geometry clean up by adjusting cones and also using defeaturing
Input quality criteria
Mesh mid surface by using best mesh or spot mesh
Adjust mesh by using reconstruction and smooth option
Eliminate maximum triangular element by using split option in element
Adjust number of nodes by using num+/- option in perimeter
If quality issue raised avoid it by it by using smooth or reconstruction or by using grid adjustment
Check quality issue and do correction for it
check mesh flow avoid tringle element touching each other ,avoid triangle element which directed to each other
improve mesh flow
freeze improvement completed area to avoid unnecessary altration
Finish the Challenges

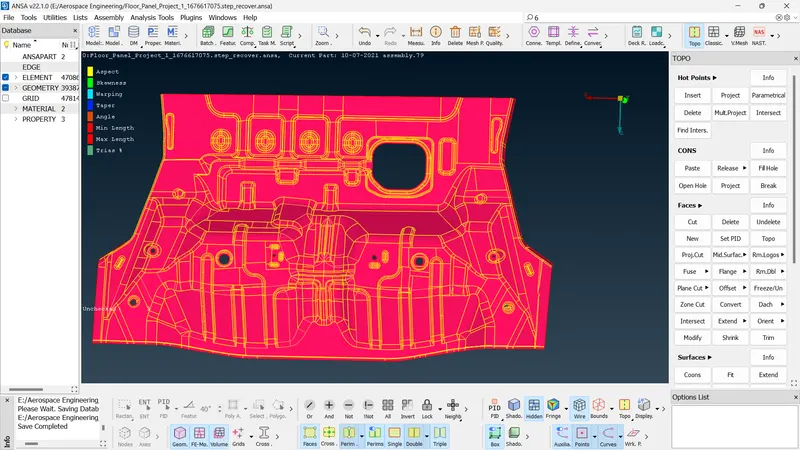

After the geometry clean up :-

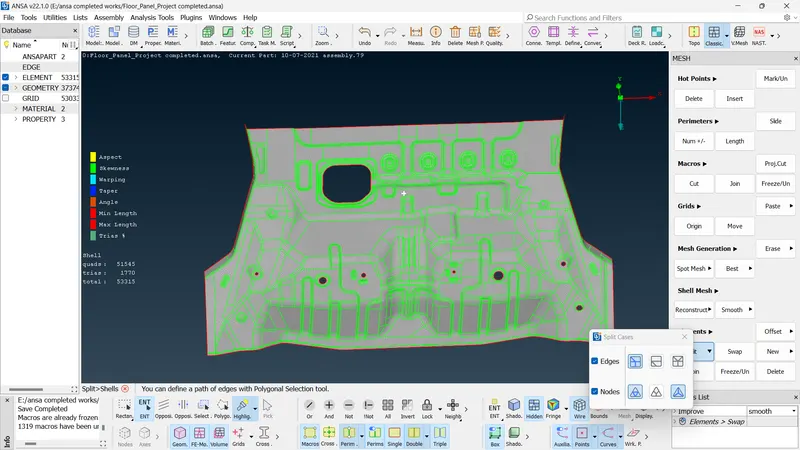

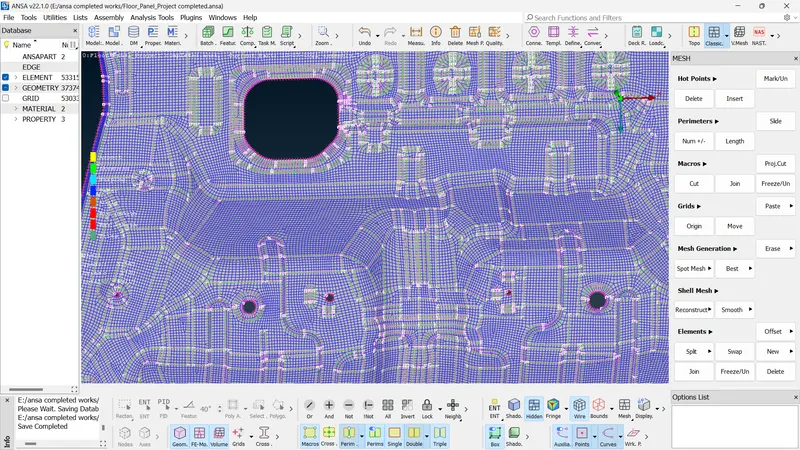

COMPLETED MID SURFACE MESH:-
