Project 1 - Loss calculation for a DC/DC converter-MATLAB

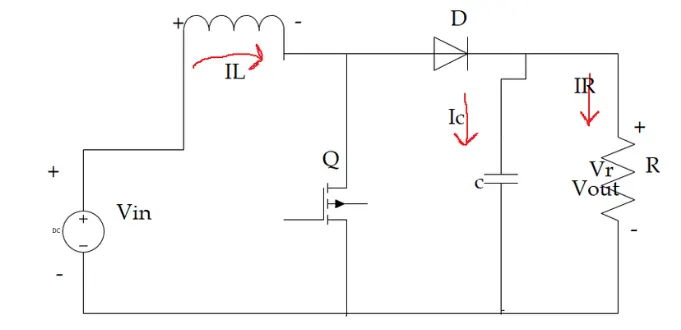

Boost converter specifications:

• Vin = 100 V;
• Vout = 200 V;
• L = 200uH ;
• C = 400uF;
• R= 10 Ohms;
• RL = 10 mOhms;
• RC = 2 mOh

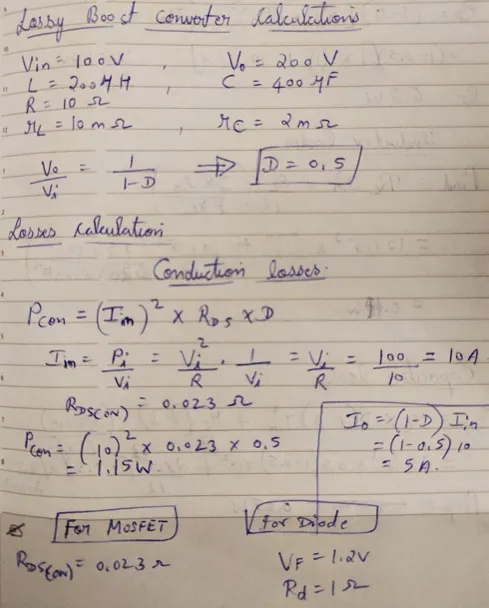

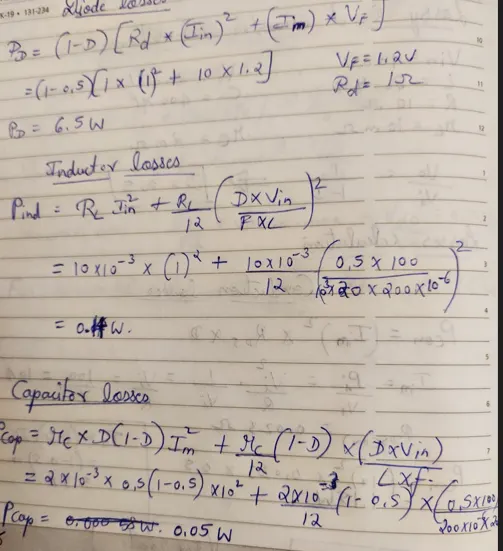

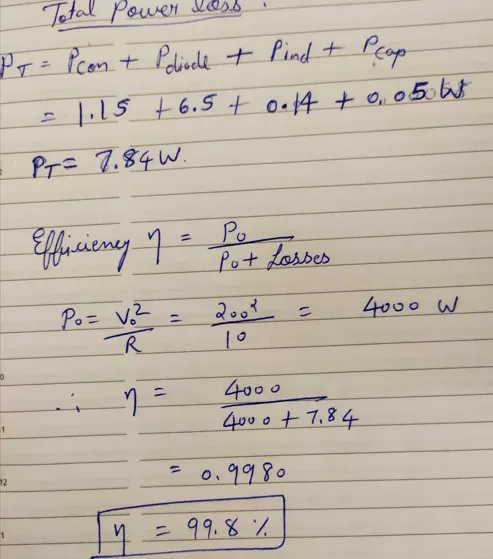

Efficiency derivation of Boost converter:

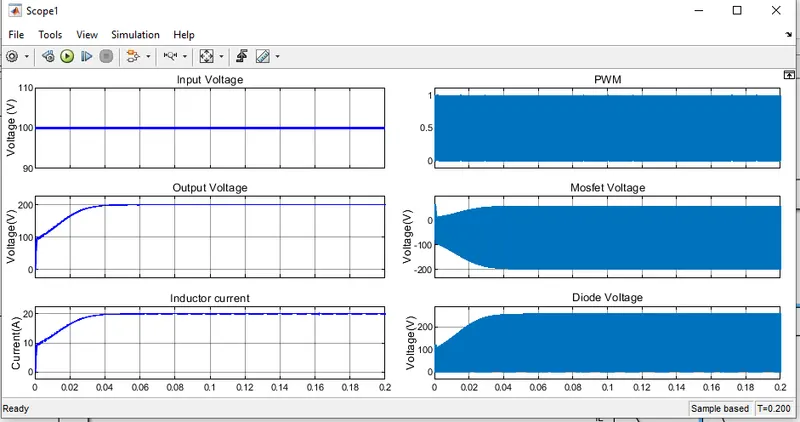

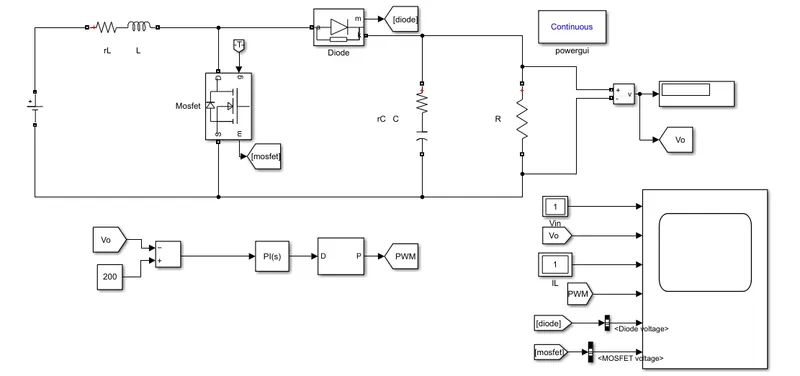

The simulation of the Boost converter along with the parasitics is carried on as follows
