Project 1 - Interfacing a 16*2 LCD with Arduino using I2C protocol
https://www.tinkercad.com/things/ftDQPSbEazs-fantabulous-hillar/editel
Program :
#include<LiquidCrystal.h> //Library for LCD display function
LiquidCrystal lcd(12, 11, 5, 4, 3, 2); //Define LCD Module Pins (RS,EN,D4,D5,D6,D7)
int val1=A4;
int val2=A5;
void setup()
{
lcd.begin(16,2); //16*2 LCD Display
}
void loop()
{
lcd.setCursor(0,0); //Sets Cursor at line one of LCD
lcd.print(">> Master <<"); //Prints >> Master << at LCD
lcd.setCursor(0,1); //Sets Cursor at line two of LCD
lcd.print("SlaveVal: 01"); //Prints SlaveVal: in LCD
delay(1000);
lcd.setCursor(0,0); //Sets Cursor at line one of LCD
lcd.print(">> Slave <<"); //Prints >> Slave << at LCD
lcd.setCursor(0,1); // Sets Cursor ar line two of LCD
lcd.print("MasterVal: 10"); //Prints MasterVal: in LCD
delay(1000);
}

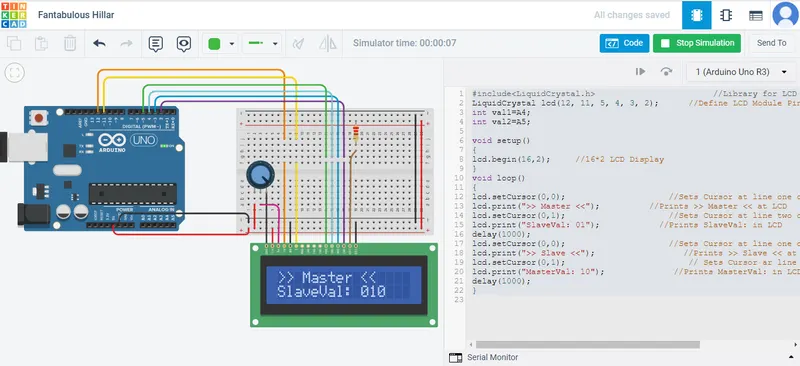

Output:
