Project 1 - Data Handling and Interpolation

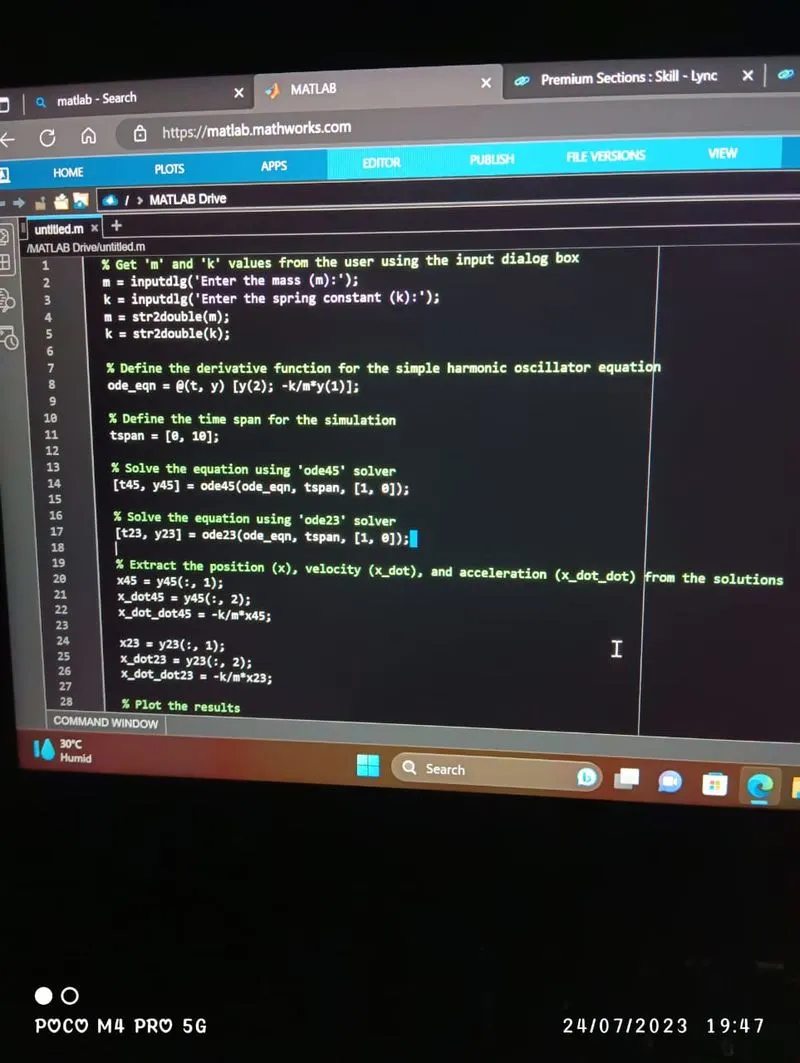

PROJECT 1-

% Get 'm' and 'k' values from the user using the input dialog box
m = inputdlg('Enter the mass (m):');
k = inputdlg('Enter the spring constant (k):');
m = str2double(m);
k = str2double(k);

% Define the derivative function for the simple harmonic oscillator equation
ode_eqn = @(t, y) [y(2); -k/m*y(1)];

% Define the time span for the simulation
tspan = [0, 10];

% Solve the equation using 'ode45' solver
[t45, y45] = ode45(ode_eqn, tspan, [1, 0]);

% Solve the equation using 'ode23' solver
[t23, y23] = ode23(ode_eqn, tspan, [1, 0]);

% Extract the position (x), velocity (x_dot), and acceleration (x_dot_dot) from the solutions
x45 = y45(:, 1);
x_dot45 = y45(:, 2);
x_dot_dot45 = -k/m*x45;

x23 = y23(:, 1);
x_dot23 = y23(:, 2);
x_dot_dot23 = -k/m*x23;

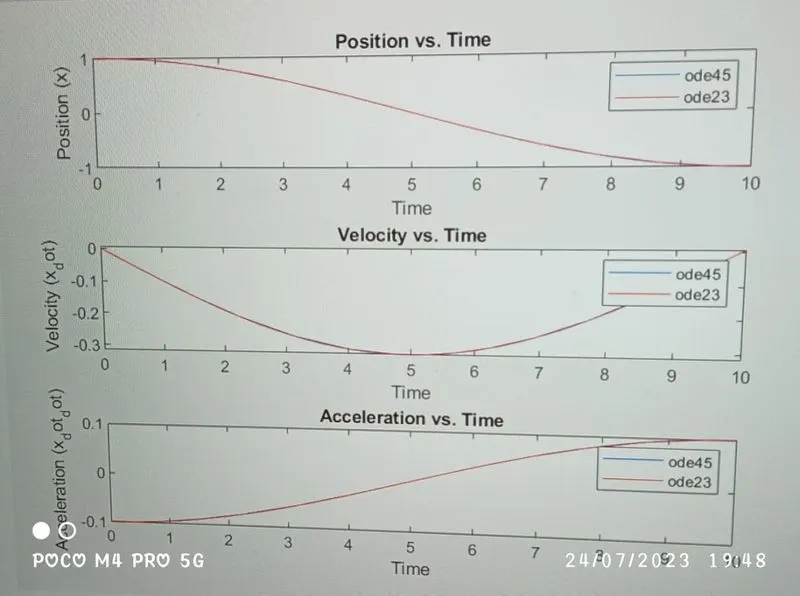

% Plot the results
figure;
subplot(3, 1, 1);
plot(t45, x45, 'b', t23, x23, 'r');
xlabel('Time');
ylabel('Position (x)');
title('Position vs. Time');
legend('ode45', 'ode23');

subplot(3, 1, 2);
plot(t45, x_dot45, 'b', t23, x_dot23, 'r');
xlabel('Time');
ylabel('Velocity (x_dot)');
title('Velocity vs. Time');
legend('ode45', 'ode23');

subplot(3, 1, 3);
plot(t45, x_dot_dot45, 'b', t23, x_dot_dot23, 'r');
xlabel('Time');
ylabel('Acceleration (x_dot_dot)');
title('Acceleration vs. Time');
legend('ode45', 'ode23');

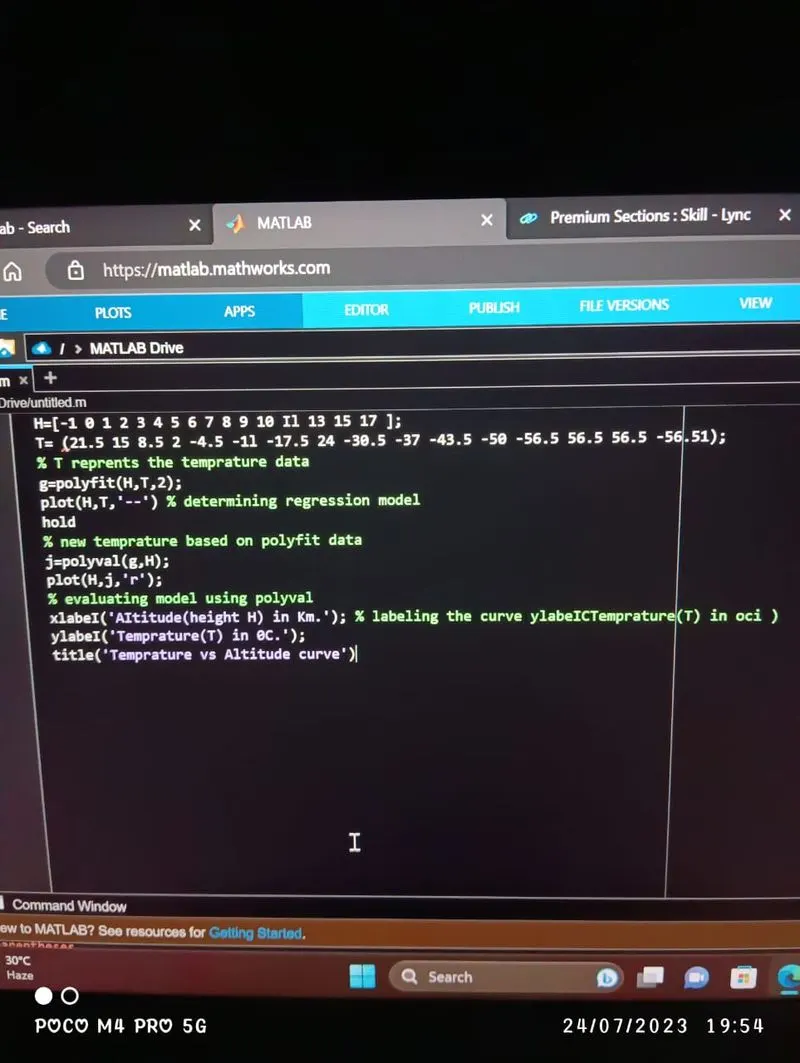

PROJECT 2-

H=[-1 0 1 2 3 4 5 6 7 8 9 10 Il 13 15 17 ];
T= (21.5 15 8.5 2 -4.5 -1l -17.5 24 -30.5 -37 -43.5 -50 -56.5 56.5 56.5 -56.51);
% T reprents the temprature data
g=polyfit(H,T,2);
plot(H,T,'--') % determining regression model
hold
% new temprature based on polyfit data
j=polyval(g,H);
plot(H,j,'r');
% evaluating model using polyval
xlabeI('AItitude(height H) in Km.'); % labeling the curve ylabeICTemprature(T) in oci )
ylabeI('Temprature(T) in 0C.');
title('Temprature vs Altitude curve')

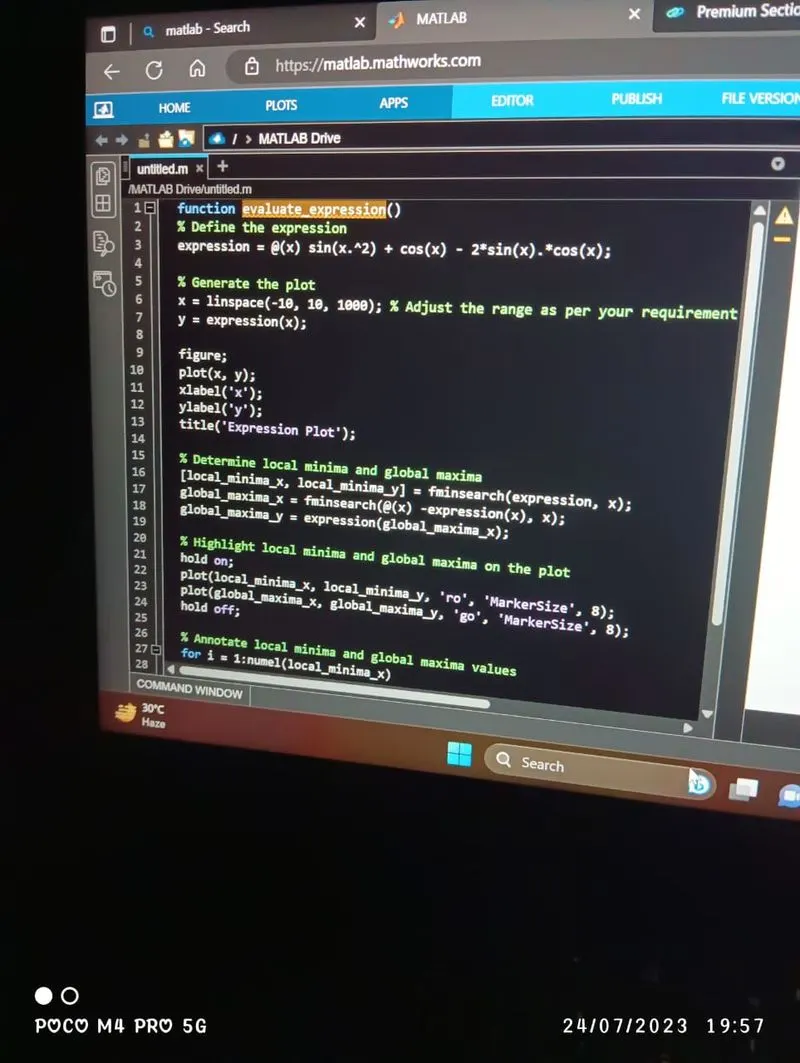

PROJECT 3-

Vfunction evaluate_expression()
% Define the expression
expression = @(x) sin(x.^2) + cos(x) - 2*sin(x).*cos(x);

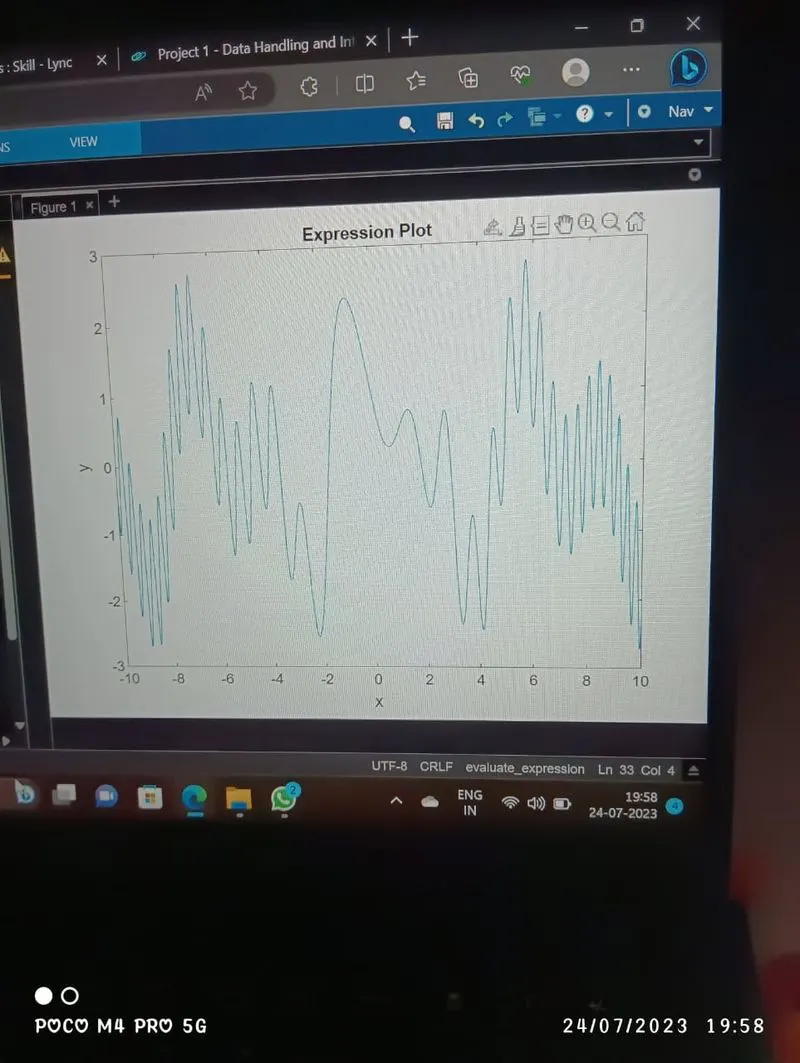

% Generate the plot
x = linspace(-10, 10, 1000); % Adjust the range as per your requirement
y = expression(x);

figure;
plot(x, y);
xlabel('x');
ylabel('y');
title('Expression Plot');

% Determine local minima and global maxima
[local_minima_x, local_minima_y] = fminsearch(expression, x);
global_maxima_x = fminsearch(@(x) -expression(x), x);
global_maxima_y = expression(global_maxima_x);

% Highlight local minima and global maxima on the plot
hold on;
plot(local_minima_x, local_minima_y, 'ro', 'MarkerSize', 8);
plot(global_maxima_x, global_maxima_y, 'go', 'MarkerSize', 8);
hold off;

% Annotate local minima and global maxima values
for i = 1:numel(local_minima_x)
text(local_minima_x(i), local_minima_y(i), sprintf('%.2f', local_minima_y(i)), 'VerticalAlignment', 'bottom');
end
for i = 1:numel(global_maxima_x)
text(global_maxima_x(i), global_maxima_y(i), sprintf('%.2f', global_maxima_y(i)), 'VerticalAlignment', 'top');
end
end

PROJECT 4-

Solution:-

Contour plots are useful for visualizing the shape and characteristics of functions or datasets. They provide a way to visualize the changing values of a variable across different levels or heights. Contour plots can reveal patterns, trends, and regions of interest in the data.

The contour lines in a plot represent the points where the function or dataset has a constant value. The spacing between the contour lines indicates the rate of change of the variable. Closer contour lines indicate a steeper gradient, while wider spacing indicates a gentler gradient.

The "contour" command provides various options to customize the appearance of the contour plot, such as specifying the contour levels, changing line styles, adding labels, and coloring the contours. These options allow you to enhance the clarity and visual appeal of the plot.

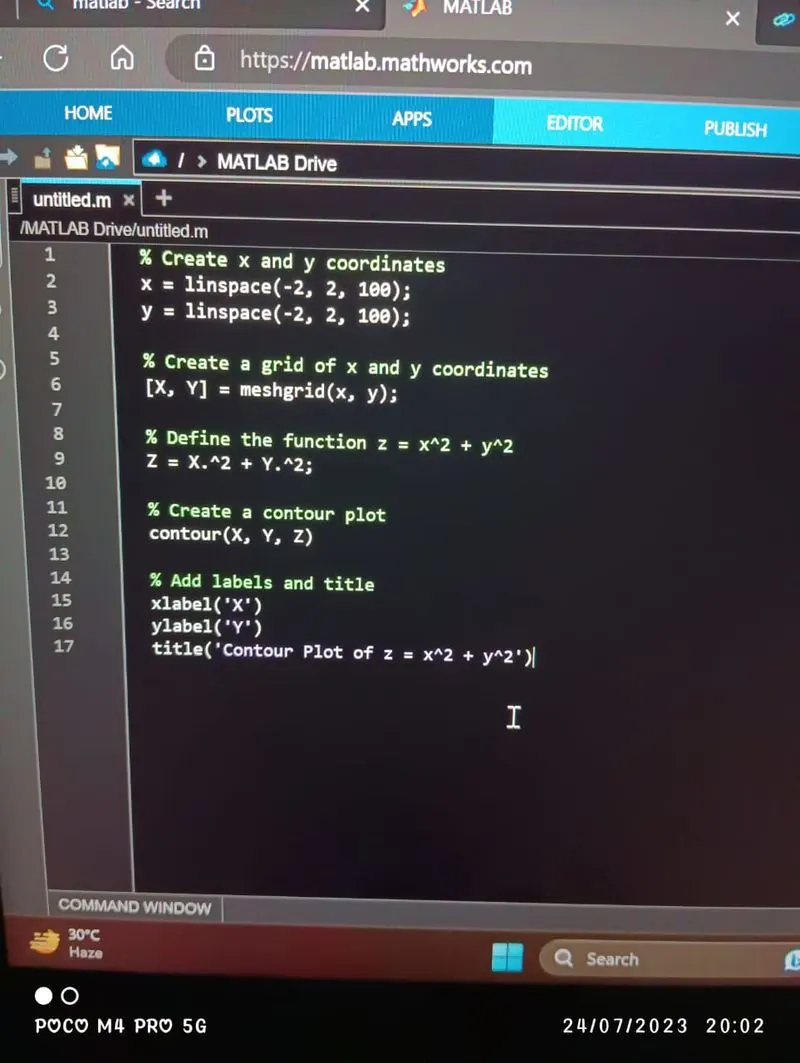

% Create x and y coordinates
x = linspace(-2, 2, 100);
y = linspace(-2, 2, 100);

% Create a grid of x and y coordinates
[X, Y] = meshgrid(x, y);

% Define the function z = x^2 + y^2
Z = X.^2 + Y.^2;

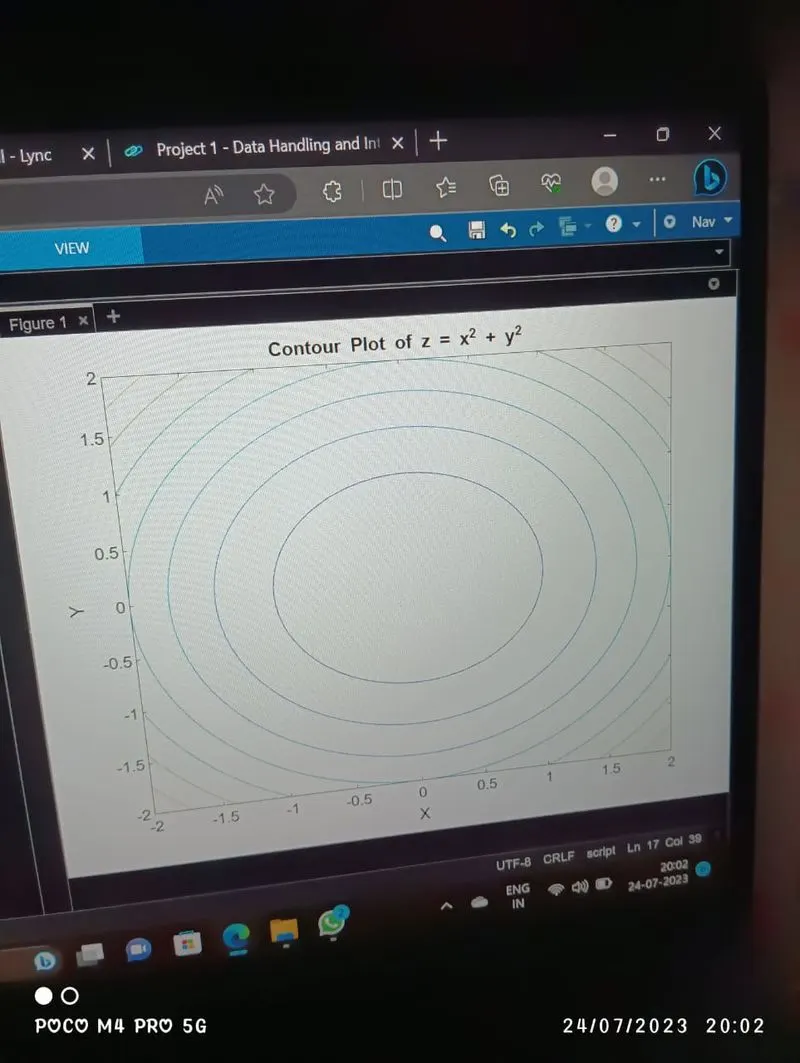

% Create a contour plot
contour(X, Y, Z)

% Add labels and title
xlabel('X')
ylabel('Y')
title('Contour Plot of z = x^2 + y^2')
