Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

Given: Design and Draft a layout of a residential building with the following details:

a. Plot Size: 60’x20’(18.3m x6m)

b. Orientation- Facing East

c. Develop the following: 1. Architectural Drawing (Floor Plan, Elevations, and Sections) 2. Structural Drawing (Column, Bean, Footing Plan)

AIM:-

To create a layout of residential building for the plot size 18.3 m x 6 m consisting of Floor plan, Elevations and Sections and also create the structural drawings for Column, Footing and Beam.

PROCEDURE:-

• Open AutoCAD software
• Start from scratch
• Set the units to engineering and select ok.

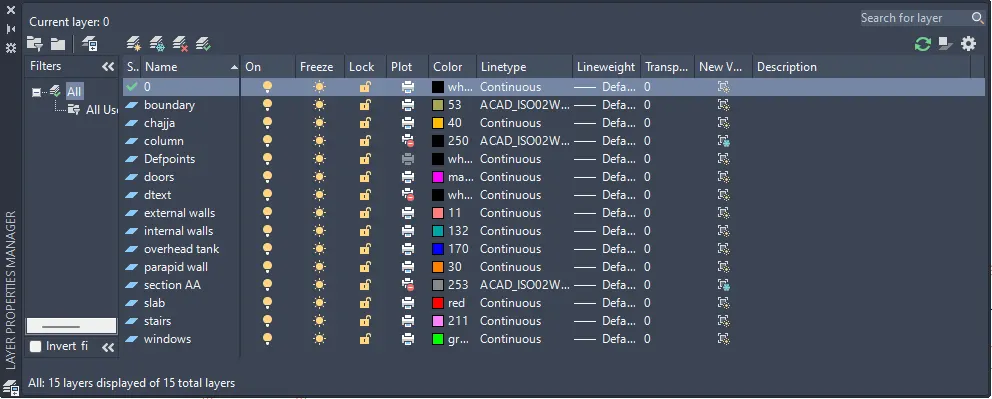

• Go to layer properties < create new layers < name the layers for reference < close.
•

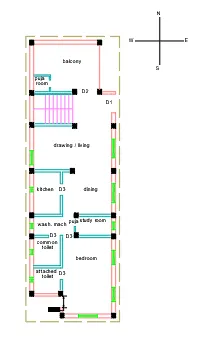

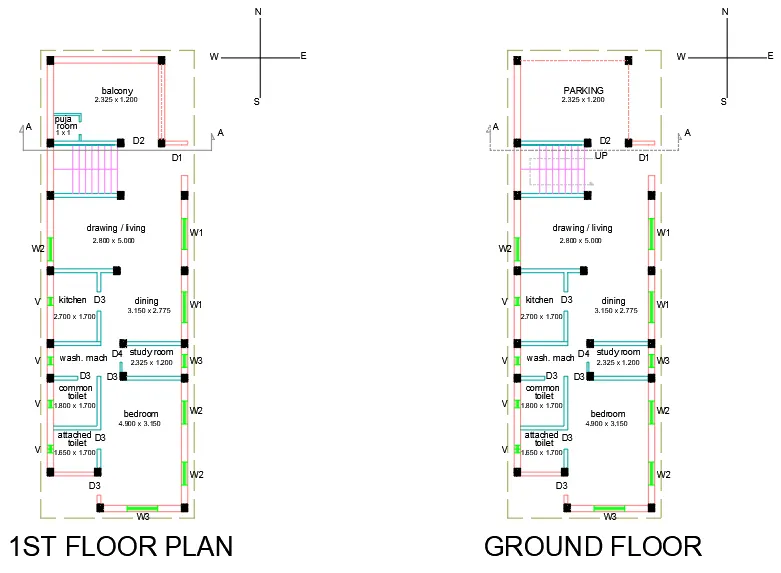

Step by step procedure of Architectural drawing

•
•

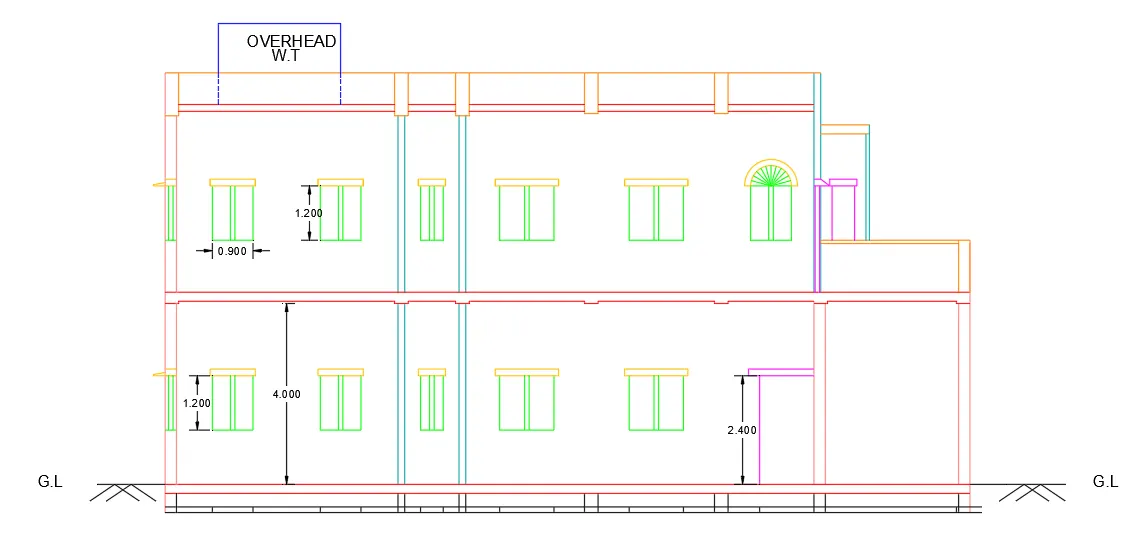

Elevation

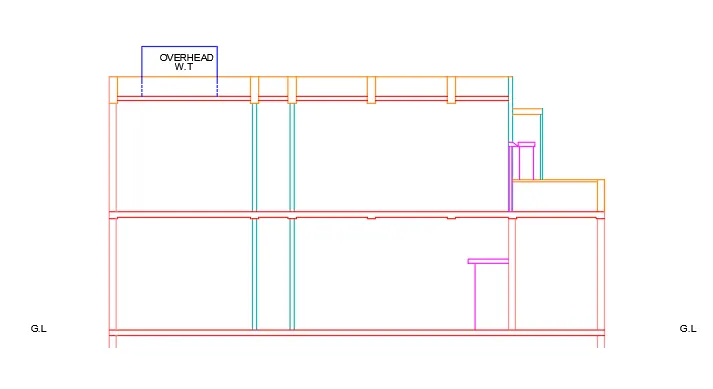

Sectional

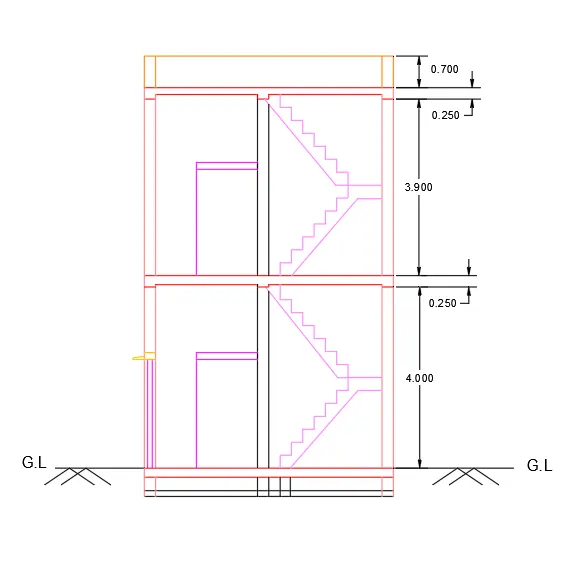

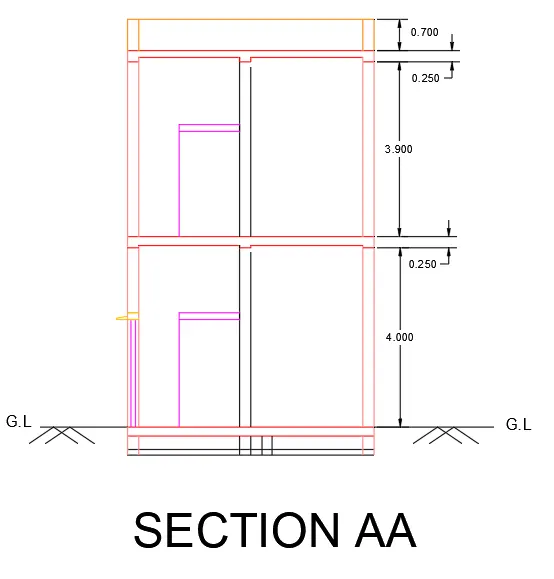

section AA

Doors

D1 - 1.2 m x 2.4 m

D2 - 1.35 m x 2.35 m

D3 - 0.75 m x 2.4 m

D4 - 0.575 m x 2.4 m

Windows

W1 - 1.2 m x 1.2 m

W2 - 1.2m x 0.9 m

W3 - 1.2 m x 0.5 m

Ventilators

V - 0.3 m x 0.3 m

Column

C - 0.25 m x 0.30 m x 0.25 m

• Structural drawing

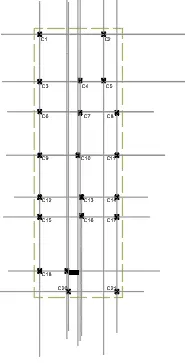

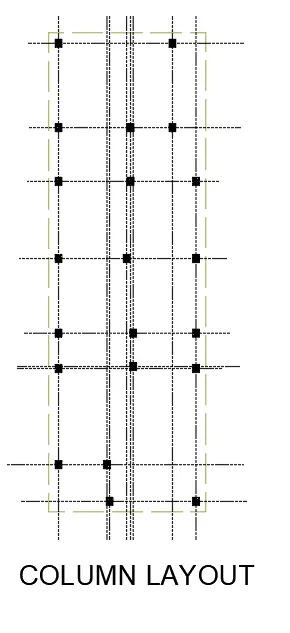

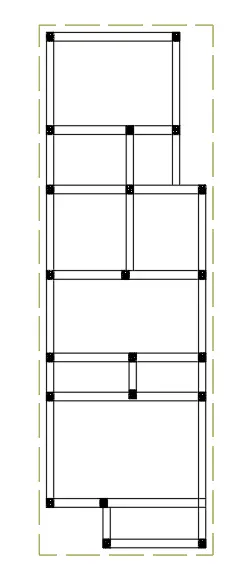

Columns

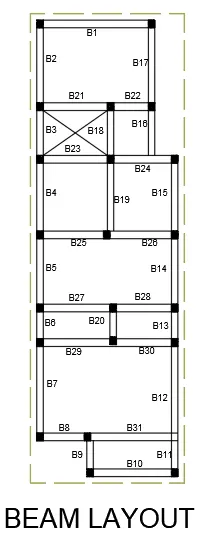

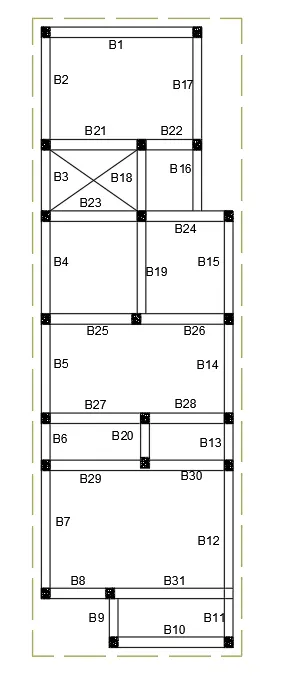

Beams

beam size - 0.25 m x 0.25 m

`

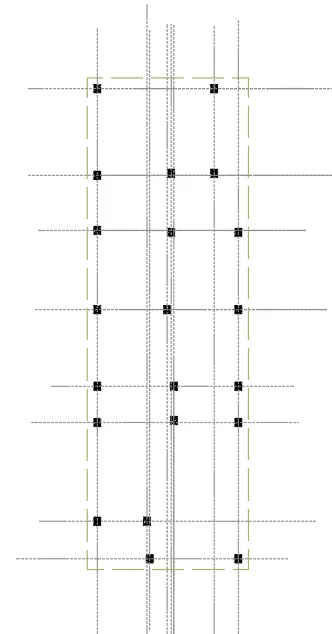

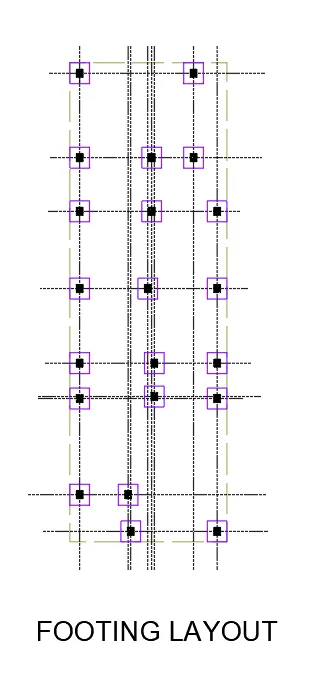

Footing

FOOTING SIZE - 1 m x 1 m

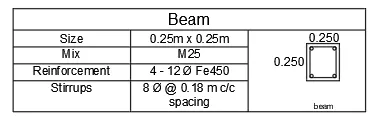

Beam schedule

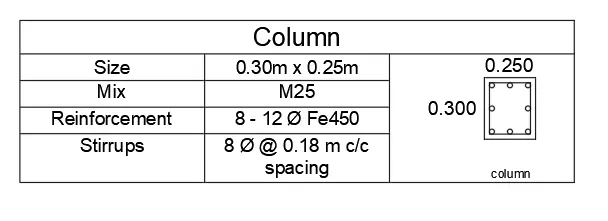

Column schedule

COMMANDS USED:-

• Layers
• Line
• Polyline
• XLine
• Dtext
• MultiLeader
• Dimlinear
• Dimcontinue
• Hatch
• Copy
• Fillet
• Trim
• Erase
• Offset
• Block

Vastu

• Main Door : East
• Stairs : North -West
• Kitchen : West
• Pooja Room : North-West
• Drawing Area : Facing East
• Study Room : South-East
• Dinning Room : East
• Master Bedroom : South-East
• Attached Bathroom : South-West
• Bathroom : South-West.
