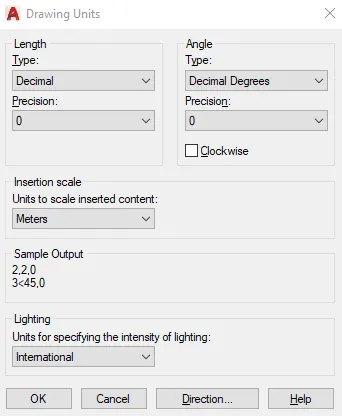

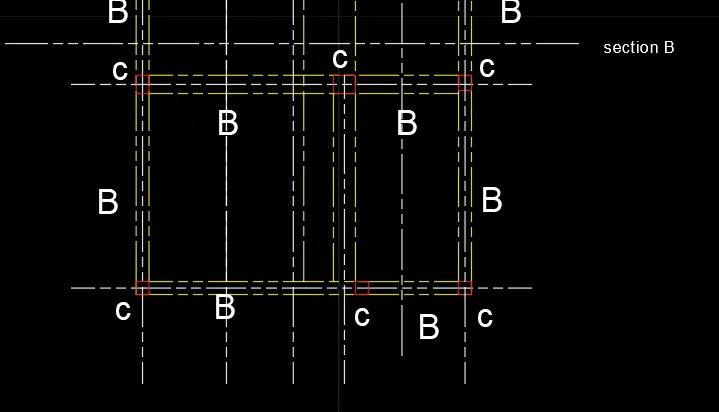

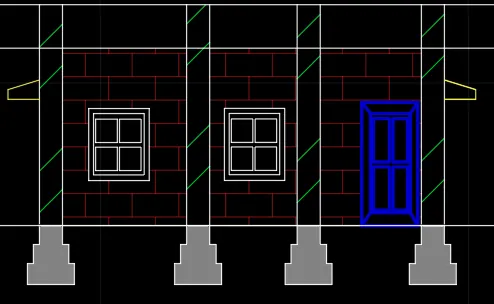

Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

1. 1. State the primary load cases to be considered for design. ANS: The primary load cases that are to be considered for design are listed below: Dead Load (IS 875: Part I). Live Load (IS 875: Part II). Wind Load (IS 875: Part III). Snow Load (IS 875: Part IV). Seismic Load (IS 1893: 2016).     2. What is One – Way slab?…

1. 1. How will you assign Circular section to column? ANS:  INTRODUCTION: The vertical component of the structure that might have different dimensions is the column. For improved weight carrying and access, a circular piece of column is added on the upper floor of the building. PROCEDURE: Make the model in Stata Pro that…

1. 1. Write the steps involved to upload a .std file through web mail? Ans: The following are the steps needed to upload a.std file via web mail: Locate the share option on the introduction screen of the STAAD pro software after opening it. Once the share button has been clicked, choose the send mail option. Next, locate…

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class. Aim: Using the Architecture/ Structure Project file developed and exporting the Revit architecture and structure model…

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo Introduction: Dynamo is an open source visual programming language for Revit, written by designers and construction professionals. Its a programminglanguage that allows you to type lines of code; while also creating…

1).   Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School.   (ANSWER): From the above the options of type of structure to build a building, i need to pick a multi-unit residential Apartment.       2).   Assume…

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level AIM:  To model a Ceiling from the architecture tab above the walls at the first-floor level. INTRODUCTION: The creation of Ceilings within Revit is a very…

Create a 3 dimensional model of the residential building with a rendered view.   AIM:  To create a 3D rendered model for a Residential Building in AutoCAD INTRODUCTION: The main objective of this project is to understand about to create a Plan in 2D, then convert it into 3D using AutoCAD 3D, applying materials…

Q 1. Create a 3D Isometric View of the building with plan and elevation given.  AIM:- To create a 3D isometric view of the given building with plan and elevation.    INTRODUCTION:-  An isometric drawing is a 3D representation of an object, room, building or design…

Q 1. Create a 3D Furniture element as shown in the Figure. Assume dimensions which are missing. AIM         To create a 3D Furniture elements using the various commands in Auto CAD. INTRODUCTION BY 3D VIEW The process of creating a mathematical representation of any surface of an object in three dimensions…

Q 1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout.…

Q 1. Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards. Aim: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension…

1. Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively.…

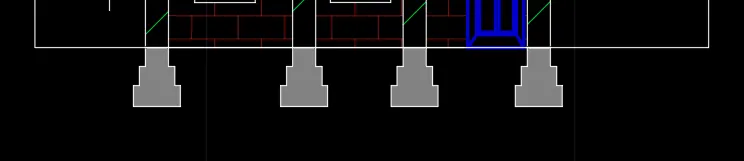

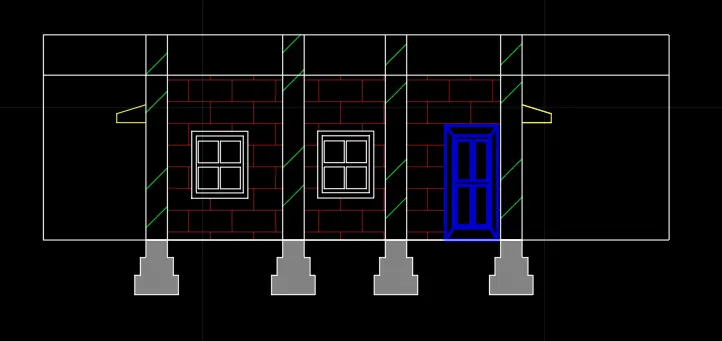

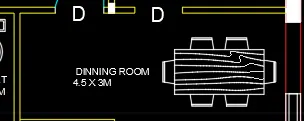

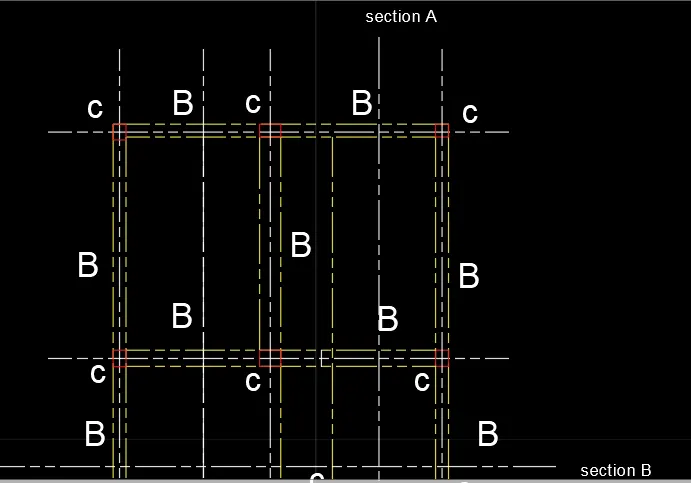

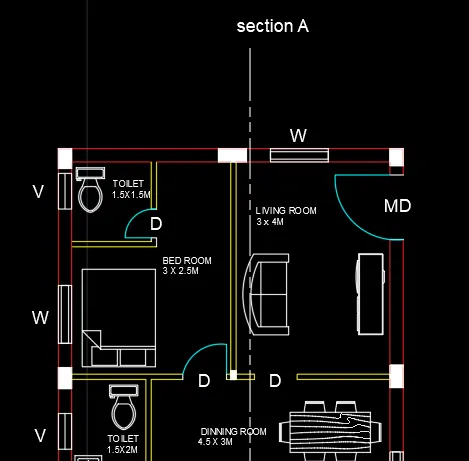

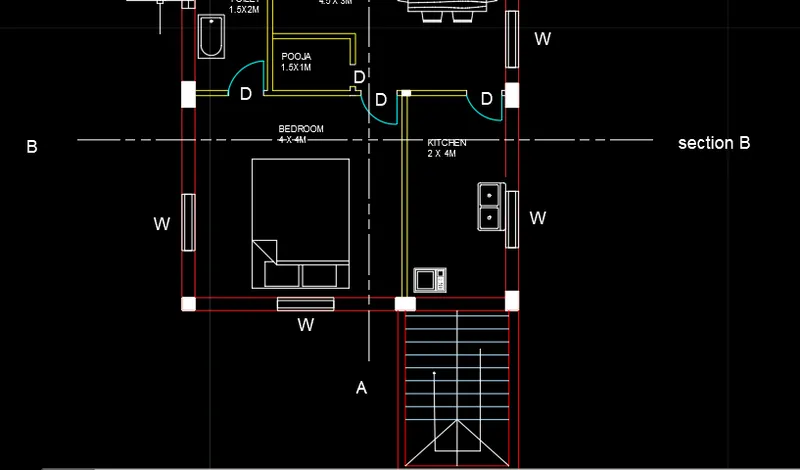

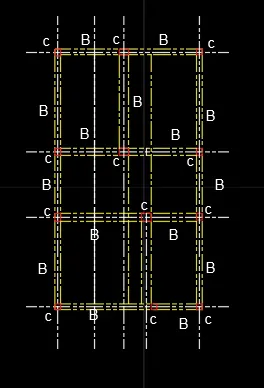

Design and Draft a layout of a residential building with the following details: a. Plot Size: 60’x20’(18.3m x6m)  b. Orientation- Facing East    c. Develop the following: 1. Architectural Drawing (Floor Plan, Elevations, and Sections) 2. Structural Drawing (Column, Bean, Footing Plan) Aim: To…

Sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction. Also, assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the members…

AIM: Calculate the concrete mix design for M35 grade concrete with fly ash Data is taken from the example a) Grade designation: M35 b) Type of cement: OPC 43 grade conforming to IS 8112 c) Type of mineral admixture: Fly ash conforming to IS 3812 (part 1) d) Maximum nominal size of aggregate: 20mm e) Minimum cement…
