Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

AIM -

To create floor Architectural & Structural diagram (60' x 20') using autocad

INTRODUCTION -

Sketching the diagram we can use AutoCad software.AutoCad is widely used in sketching the diagram & in civil design it play major role. the goal of autocad is to create free-line,circles,arcs & other geometric shapes.it have different method sketching the diagram in units ,angles and other criteria.

There are three types of co-ordinate system

1.Absolute coordinate system

2.Relative coordinate system

• Relative rectangular coordinate
• Relative polar coordinate

3.Direct distance entry.

PROCEDURE -

Let we can give a step by step procedure to sketch in AutoCad.

Application menu (A) - New - use a wizard - Quick setup - Units - engineering or Decimal

- Area

Command - limax

- Value - 100',100'

- zoom

- All

Command - Xline ,trim,offset & other geometry.

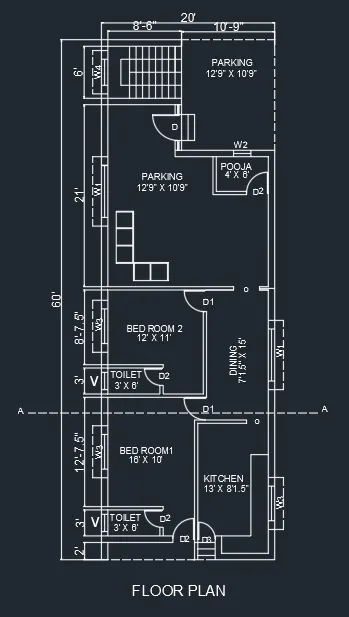

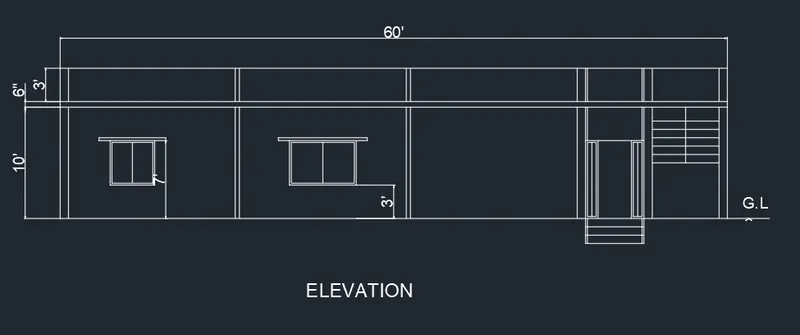

Architectural drawing

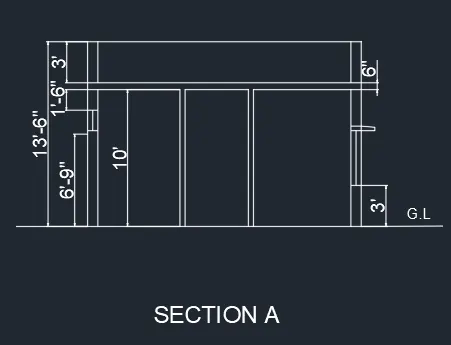

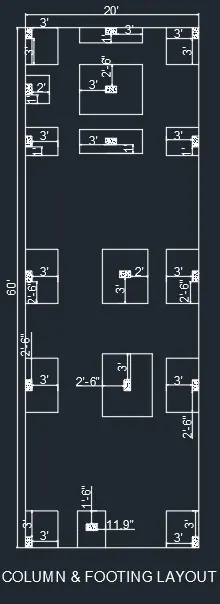

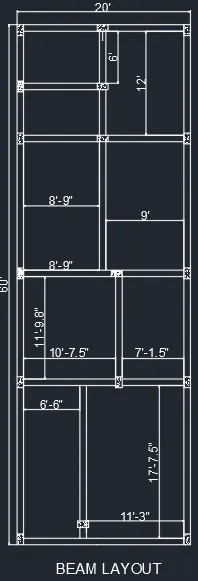

Structural drawing

RESULT -

Arcitectural and Structural drawing as plot size of 60'x20' is attached for perusal
