Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings
Design and Draft a layout a residential building with the following details:
a. Plot Size: 60'x20'(18.3m x 6m)
b. Orientation-Facing East
c. Develop the following: 1. Architectural Drawing (Floor Plan, Elevations and Sections) 2. Structural Drawing (Column, Beam, Footing Plan).
AIM:
To Design and Draft a layout of a residential building with plot size (18.3m x 6m).
Commands Used:
- Xl
- Offset
- Trim
- Extension
- ADC (Design centre)
- Line
- Rectangle
- Lt (linetype)
- Arc.
PROCEDURE:
Step-1:
- In the command prompt type units>meters
- In the command prompt type limmax >100,100
- In the command prompt type limits >0,0
- In the command prompt type zoom >a.
Step-2:

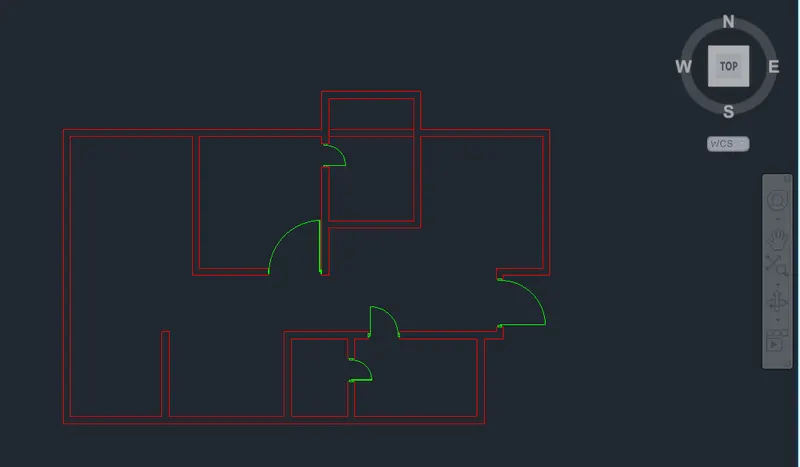

- In the command prompt type Xl to draft the infinite lines.
- In the command prompt type offset to offset it to the desired lines.
- In the command prompt type trim to remove the extra lines.
- The main enterance of my plan is in the East direction.
- In the ribbon bar > layers > walls, furniture, door, window, text.
- In the command prompt type ADC (Design Centre) to add the components.
- In the command prompt type arc (to draw the doors).
- In the command prompt type lines (to draw the windows).

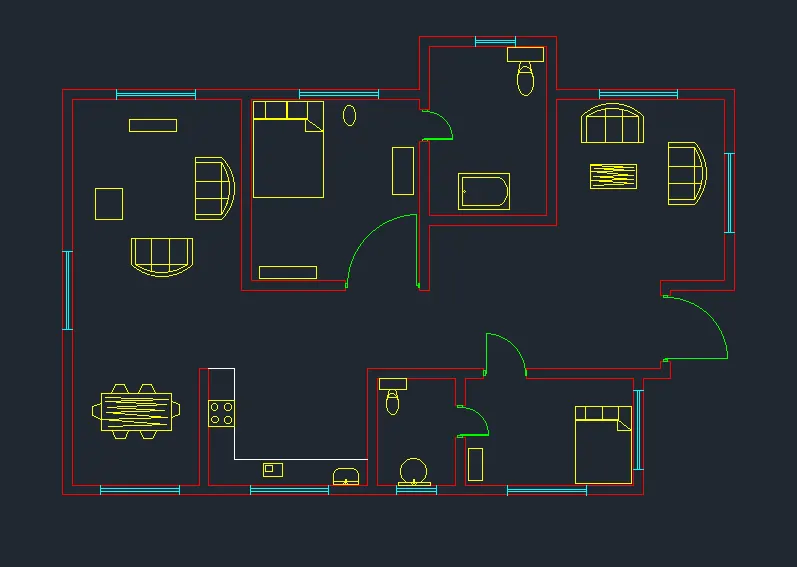

- The Architectural plan is completed.
- In the ribbon bar type Annotate to text the dimensions.
- In the command prompt type table to give the door and window schedule.

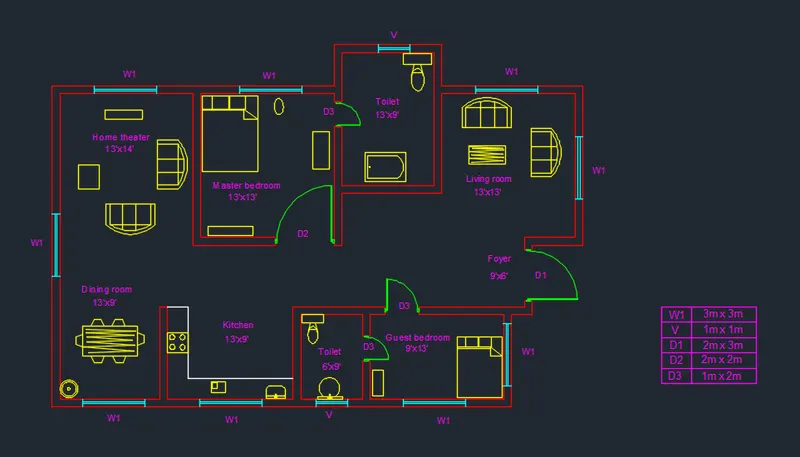

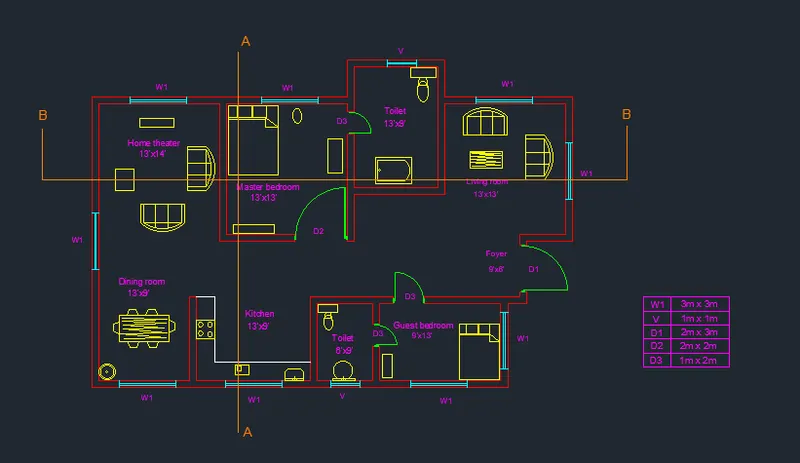

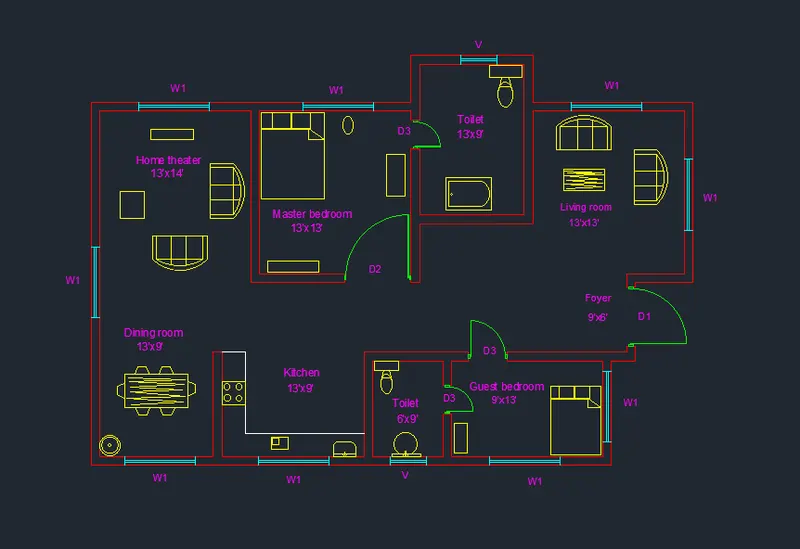

Final Result of Architectural plan:

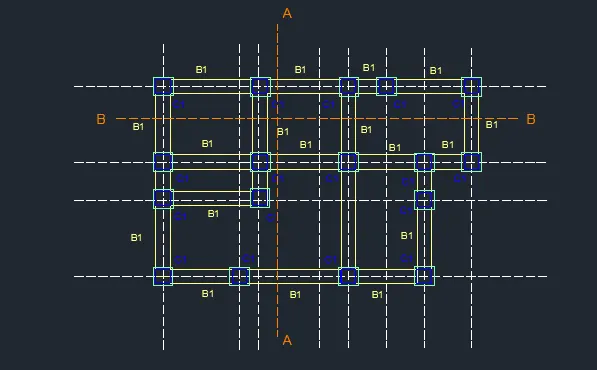

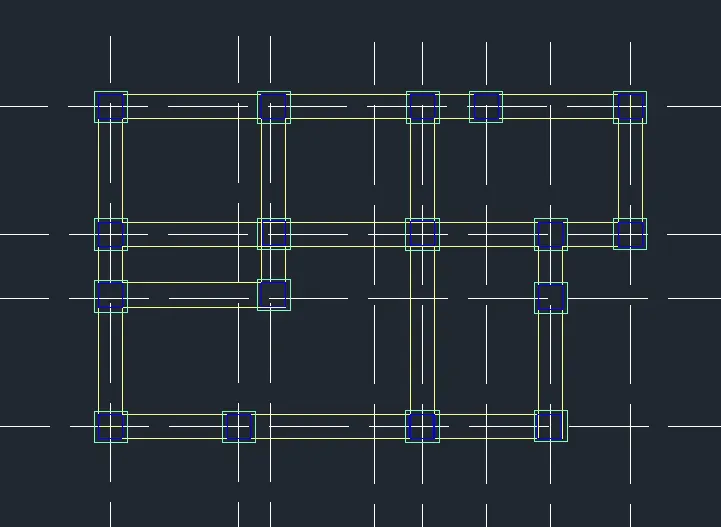

Step-3: (Structural drawing)

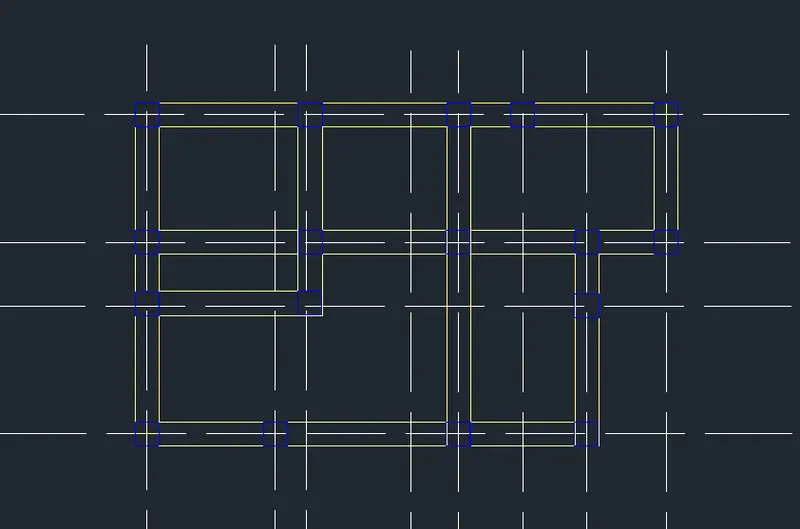

- In the command prompt type Xl to draw the gird lines.
- In the command prompt type LT (to get the dotted lines).
- In the command prompt type rec of dimension 0.5 x 0.5 for columns.
- In the command prompt type rec of dimension 0.8 x 0.8 for footings.

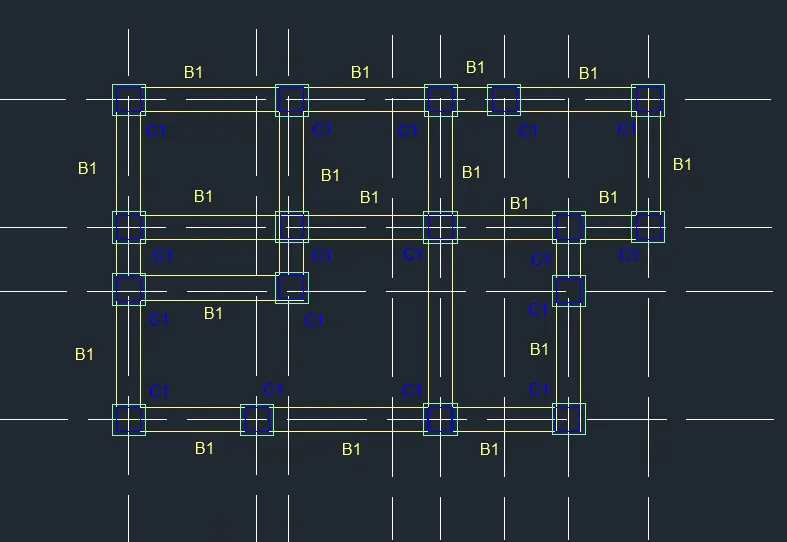

- In the command prompt type line to draft the beams.
- In the command prompt type line to draft the beams.
- In the ribbon bar type Annotate to text the dimensions.

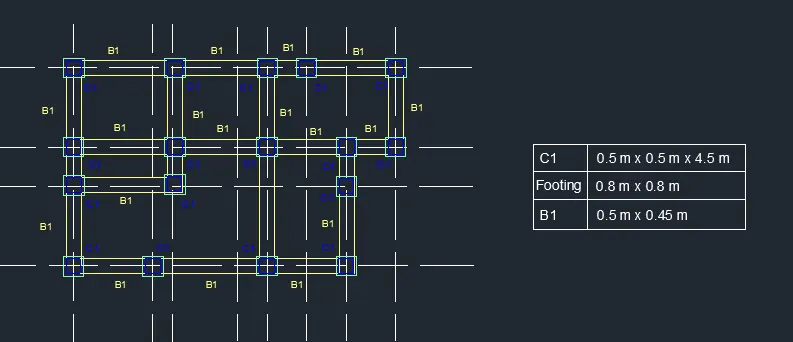

RESULT:

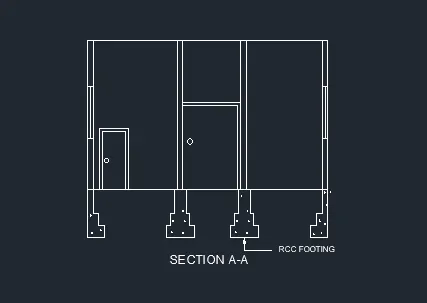

Step-4: (to give section views)
- Using dotted lines the horizontal and vertica; sections are created.
- In the ribbon tab > hatch (to annotations for concrete)

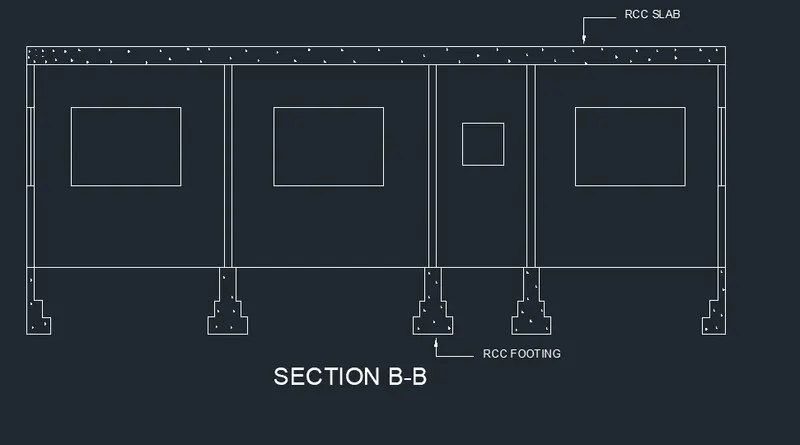

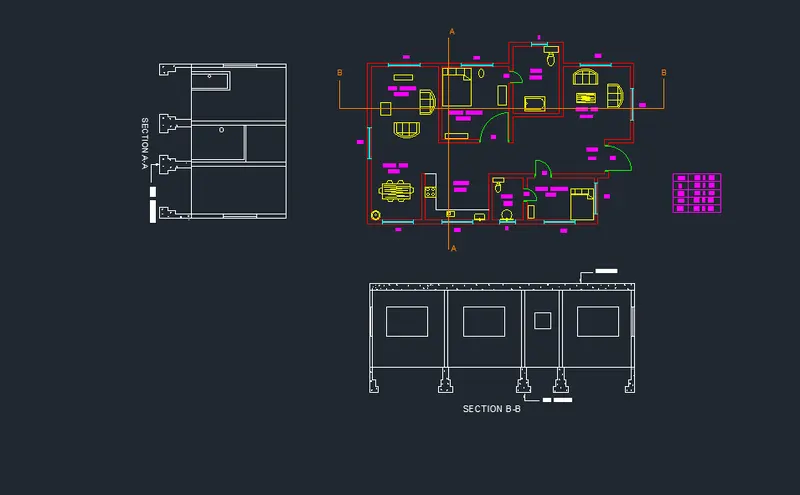

Final result for section view:

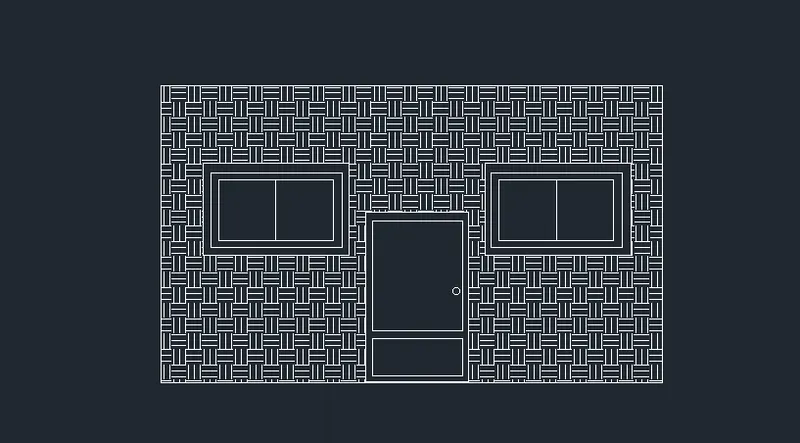

Step-5: (to create elevation)
- In the command prompt type L to draft the lines.
- In the command prompt type Hatch > solid to give the desired annotation.
