Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

Aim: To draw residential building of dimensions 60' X 20' with following drawings

• Plot drawing
• Ground Floor Plan
• First Floor Plan
• Elevation
• Center line drawing
• Footing Layout
• Beam Layout

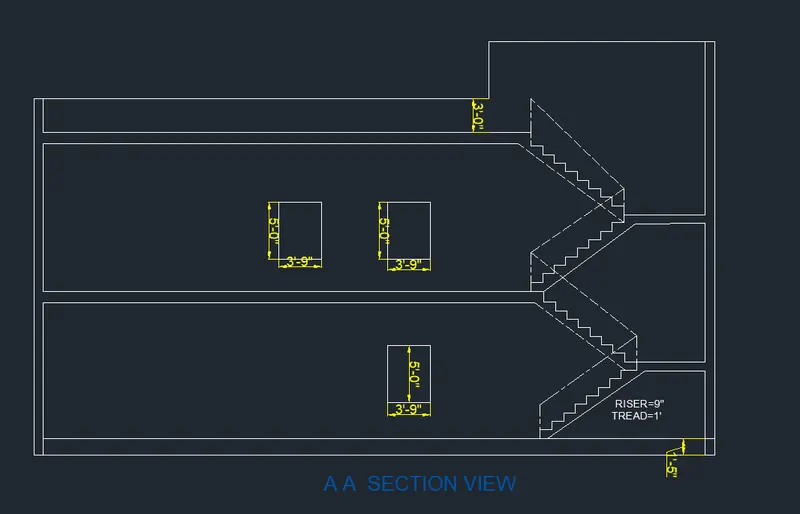

• Section View

Introduction:
The residential building to be drawn with plot dimensions 60'x20'. The G+1 floor is designed as simple house with stairs inside the house. The plot is north facing. The building is designed with following rooms

• Ground Floor Master BedRoom With attach bathroom
• Kitchen
• Bedroom
• Store room
• bathroom
• Staircase to first floor
• First Floor Master Bedroom
• Bedroom-2
• Balcony
• Staircase to roof
  Building is designed with main door at the East facing .Initially layers are created for all the components of the house. The dimensions of the components of house are as follows

Walls

• Thickness of main walls is taken as 10"
• Internal wall thickness is taken as 5"

Columns and Beams

• All the columns are of size 1'3"x10" or 10"X10" respectively
• All the beams are of size 10"X10"
• Rebar specifications are explained in procedure

Doors

• There are three door types
• Dimension of Main door and entrance 5'X8' and
• Dimension of doors of all bedrooms are 3'X7'
• Dimension of doors of all toilets 2'x7'

Windows

• Windows to the side of main door are taken as 27.5"X4'5"
• Windows in main bedrooms and in both halls 3'9"X5'
• Windows over the bed lights as 1'6"X4'6" in all bedrooms
• Ventilators as 1'6"XN depending on its preferred height

Staircase

• Inner Staircase consist of 21 steps with curved steps at the change in flight direction making it single flight straircase
• Thread and Raiser are taken as 12" and 9" respectively
• Outer staircase is connected to the roof with 21 steps
• Thread and Raiser are taken as 12" and 9" respectively
• Hand rails are 2" in diameter and height of 3'

Procedure:
Open AutoCAD

In Start-up settings start from scratch select Imperial (Feet and Inches)

• Open grid and snap settings
• Change snap and grid spacing to l'
• Change major line every grid line to 10
• Turnoff adaptive grid
• Type 'un' in command box and press enter
• Change units' type to decimal and precision to 11/16" and insertion scale to inches

Step 1: Creating Layers Open Layer properties and create new layers by clicking on new layer or right click on any layer and select new layer to create new layer
Layers are created as follows

Step 2: Creating Ground Floor Plan View A. Creating Walls Change the current layer to walls layerDraw a rectangle of dimensions 60'X20' at any point on the screen.

• Enter Explode command.
• Draw a line vertically up from top left corner of distance 10"
• Offset the left and bottom line of rectangle drawn to distance of 4'5" right and up respectively • Offset the top line of rectangle drawn to distance of 10" • Offset the right edge line of rectangle drawn to distance of 5'10" to upward
• Taking offset 10"
• Taking offset 10'11"
• Taking offset 7'
• Taking offset 10"
• Trim off the extra portions of inner rectangle.
• Draw a line Horizontal line up from top left corner of distance 10"
• Taking offset 8'10"
• Taking offset 5"
• Taking offset 14'9"
• Taking offset 5"
• Taking offset 13'4"
• Taking offset 5"
• Taking offset 19'11"
• Taking offset 10"
• Trim off the extra portions of inner rectangle.

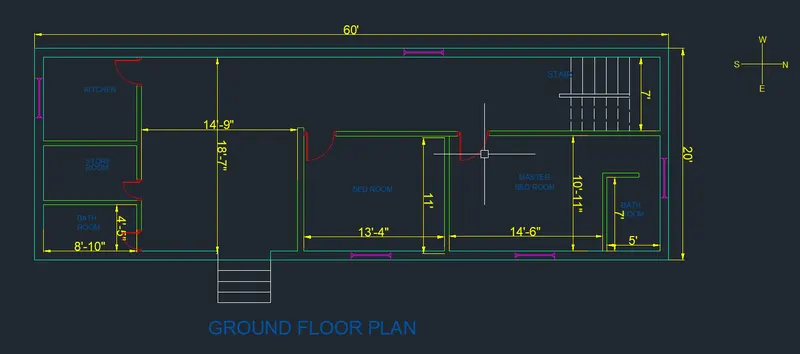

Result with text and dimension is provided in the result

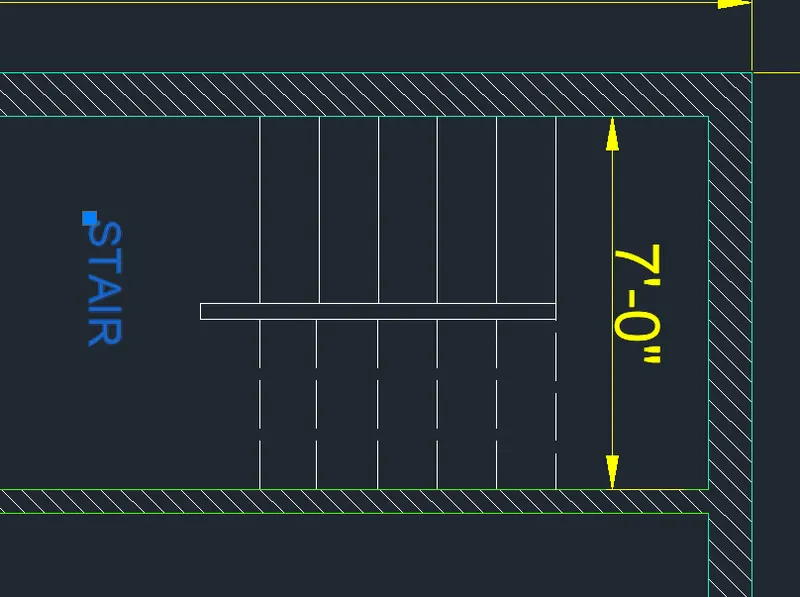

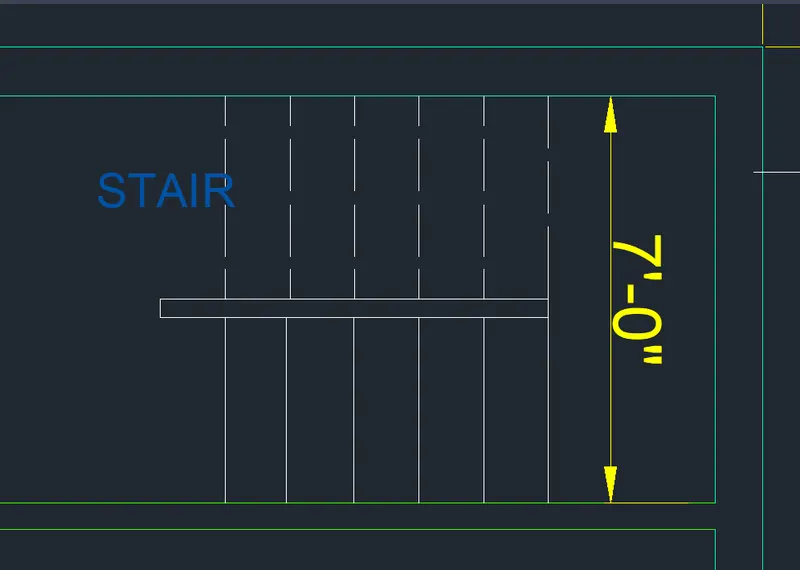

Creating Stairway.

• Change the current layer to stairs
• Draw a thread of stair line of width 7'
• Offset the line to distance of 10" to upwards
• Change the direction of stairs after 5 threads of stairs
• Draw another 6 threads lines of width 10" as shown in figure

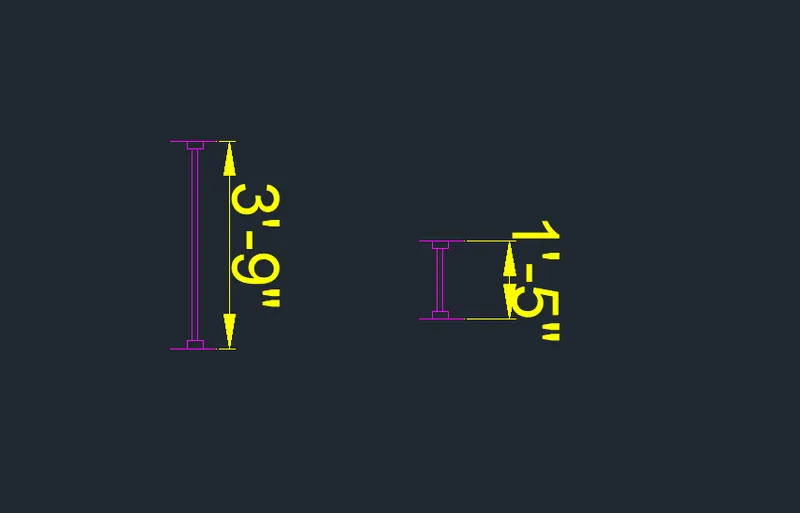

Creating Doors and windows

• Doors and windows are created as blocks and then added to the drawing

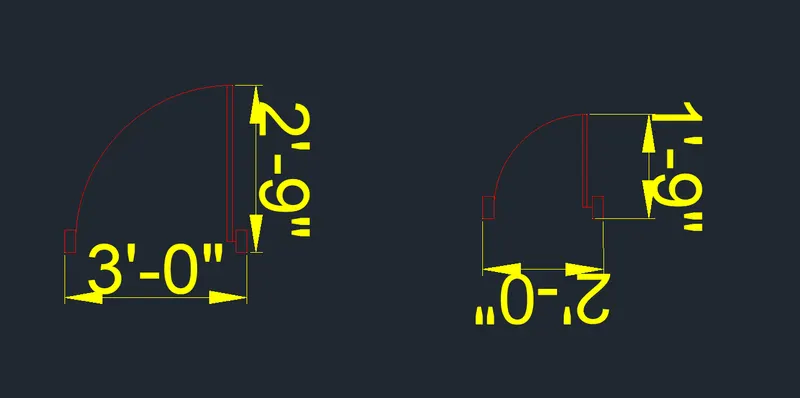

• Doors Create all door 1 using rectangles and arc of required width as shown in following figures
• Convert the drawing into block using block command
• Open the block editor and add flip states by adding parameters and actions as shown in the figure

After Adding Doors, Windows,Stairway the drawing is as follow

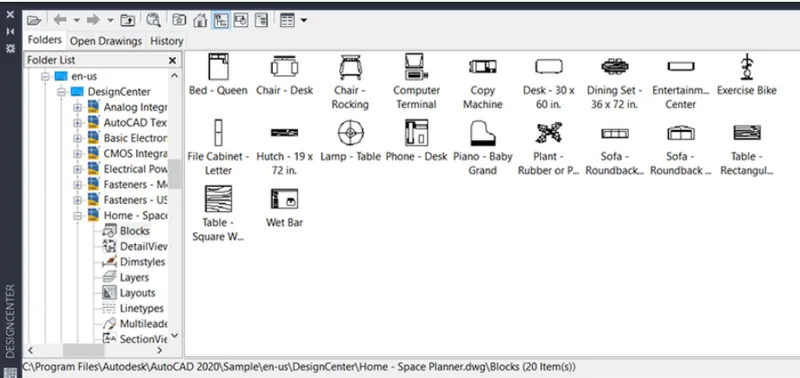

Adding Furniture and Plumbing Equipment Design center command is used add home furniture, kitchen equipment, and plumbing equipment for the rooms

Some addition furniture is imported from another file from the internet called 'mubles

Furniture added from both is

• Dining Table
• Chair-Rocking
• Bed-Queen
• Toilet-Top
• Kitchen-oven
• Kitchen-Sink
• refrigerator
• Sofa for Master Bedroom

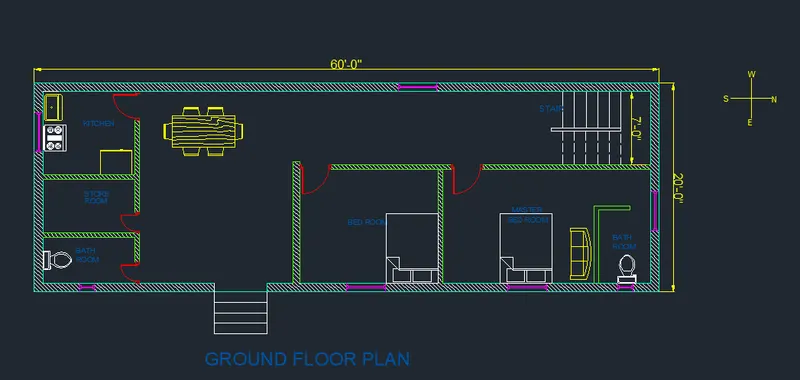

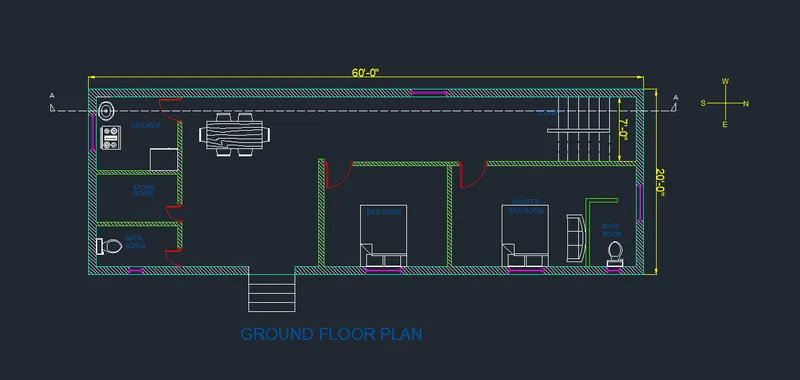

Result-

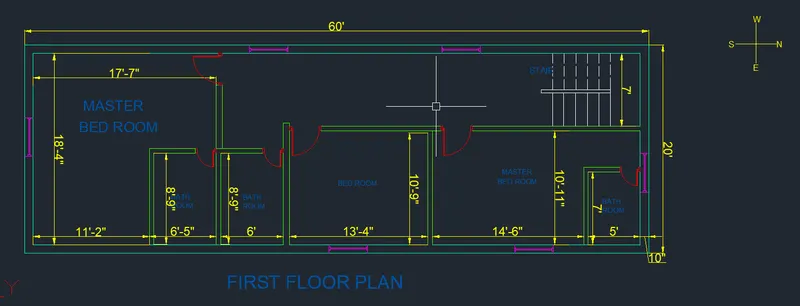

Step 3: Creating First Floor Plan View A.

• Creating Walls Change the current layer to walls layer.
• Draw a rectangle 60'X20' at any point on the screen
• Enter Explode command.
• Draw a line vertically up from top left corner of distance 10"
• Offset the left and bottom line of rectangle drawn to distance of 8'9" right and up respectively
• Offset the top line of rectangle drawn to distance of 5"
• Offset the right edge line of rectangle drawn to distance of 10'11" to upward
• Taking offset 5"
• Taking offset at a distance of 7'.
• Taking offset at a distance of 10"
• Trim off the extra portions of inner rectangle.
• Draw a line Horizontal line up from top left corner of distance 10"
• Taking offset 11'2"
• Taking offset 5"
• Taking offset 6'5"
• Taking offset 5"
• Taking offset 6'
• Taking offset 5"
• Taking offset 13'4"
• Taking offset 5"
• Taking offset 14'6"
• Taking offset 5"
• Taking offset 5'
• Taking offset 10"
• Trim off the extra portions of inner rectangle.

Creating Stairway.

• Change the current layer to stairs
• Draw a thread of stair line of width 7'
• Offset the line to distance of 10" to upwards
• Change the direction of stairs after 5 threads of stairs
• Draw another 6 threads lines of width 10" as shown in figure

Creating Doors and windows

• Doors and windows are created as blocks and then added to the drawing
• Doors Create all door 1 using rectangles and arc of required width as shown in following figures
• Convert the drawing into block using block command
• Open the block editor and add flip states by adding parameters and actions as shown in the figure

After Adding Doors, Windows,Stairway the drawing is as follow

Adding Furniture and Plumbing Equipment Design center command is used add home furniture, kitchen equipment, and plumbing equipment for the rooms

Some addition furniture is imported from another file from the internet called 'mubles

Furniture added from both is

• Dining Table
• Chair-Rocking
• Bed-Queen
• Toilet-Top
• Sofa for Master Bedroom

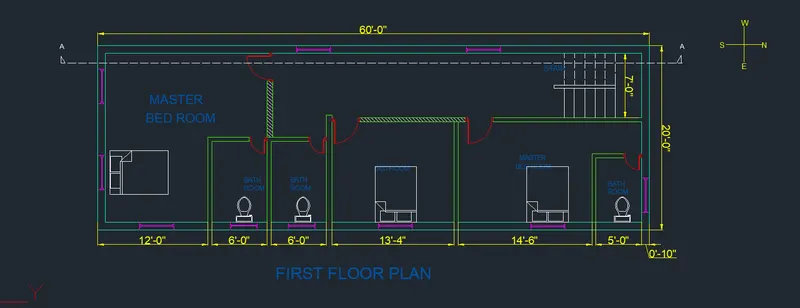

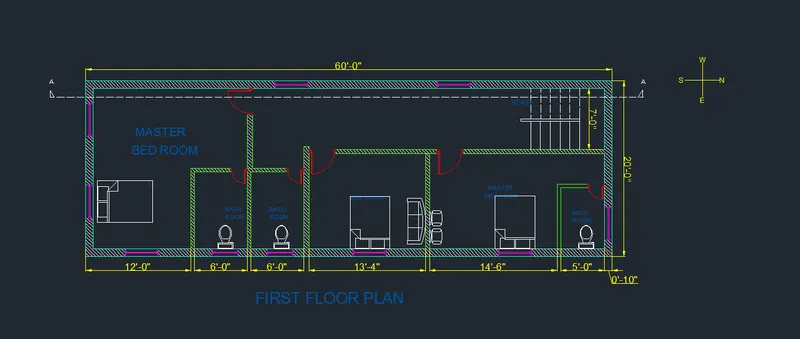

Result-

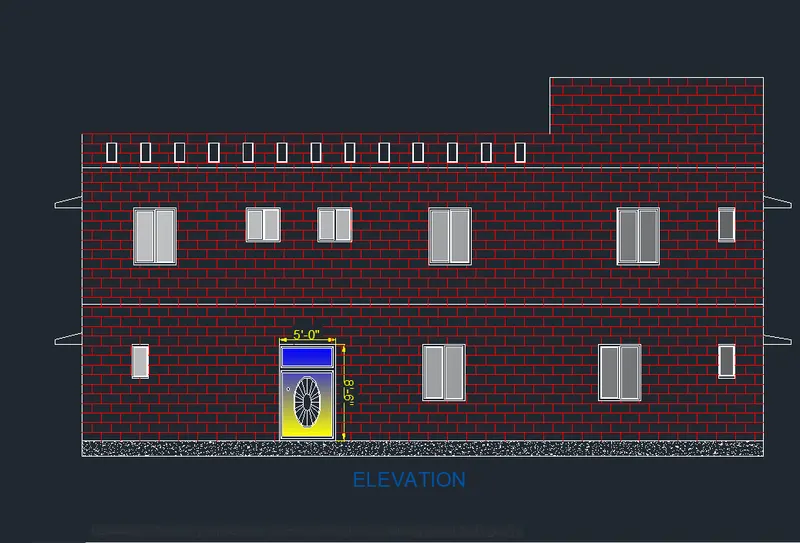

Step 4: Creating Front and Side Elevations A. Front Elevation For obtaining the proper front elevation view from the north, vertical mirror view copy of the ground floor is created

• Change the current layer to extension lines
• Create vertical extension line at all the wall edge points
• Draw all the wall with their thick
• Each floor height is taken as 10'6"
• Trim the extra portions

Doors and Windows

• Doors and windows for elevation are similar to those added in section 2-2 view
• Door of first is half visible because of the parapet wall as shown in figure
• Curved Window along the inner staircase is added at a height of 7' from the roof bottom as shown in figure

First Floor Staircase and Sceond Floor Staircase.

• Staircase to the roof of the house is through the balcony in the first floor
• Front Elevation of the staircase is side view of the stairs
• Each step is 1' in height and 9" in length
• After 11 steps flight changes direction
• Landing is of 3' width
• Hand rails of height 3' is added to each step

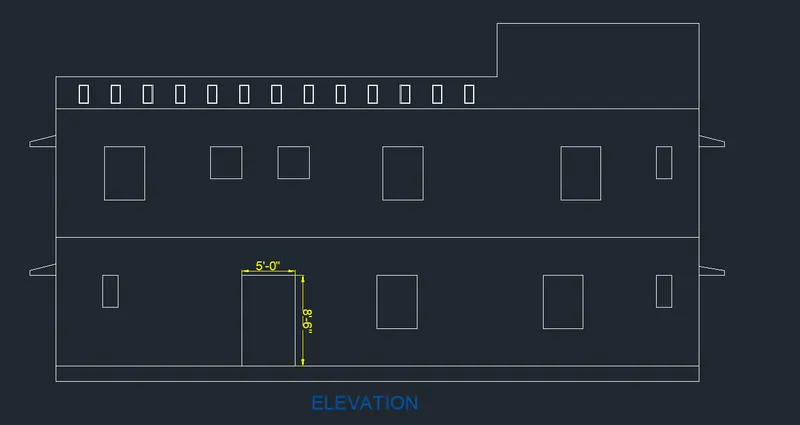

Result

After adding all the architectural features the result of elevation without hatch is shown below

Creating Other Drawing layouts

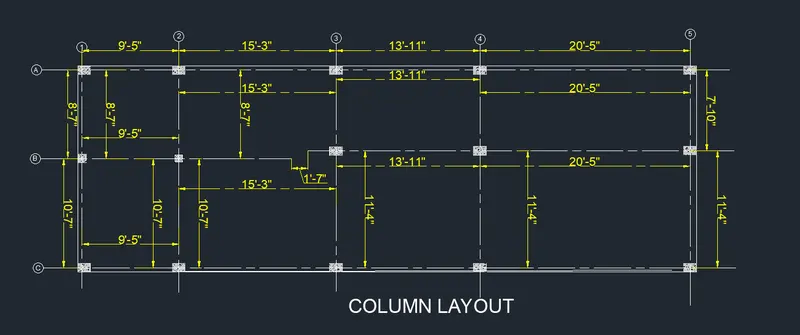

Column Layout

• Draw all the walls of the plan view excluding doors and windows
• Change the current layer to column layer

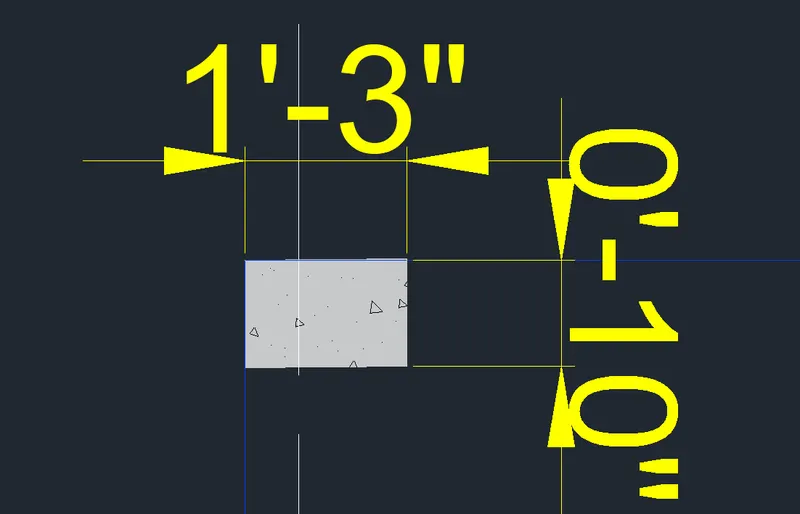

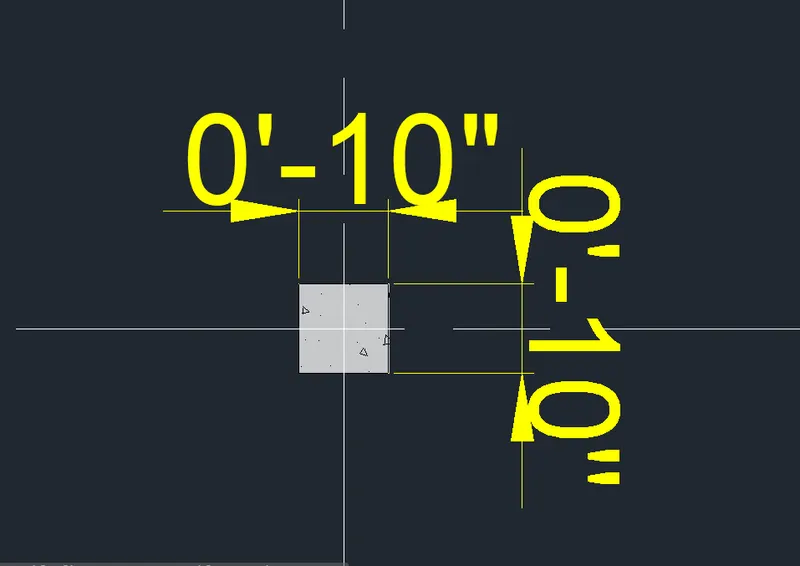

• At the bottom left corner draw a rectangle using column layer
• All the columns are of size 1'3"x10" or 10"X10"
• Columns are placed along the direction of wall in some cases
• Draw the columns at all necessary points

The column layout for the G+1 residential house is as follows.

• Reinforcement in column consists of 6 bars of 0.472" diameter(12mm) bars
• Stirrups of side 0.315" i.e.8mm dia bars with 150mm center to center spacing

Center Line Drawing

• Change the current layer to center line
• Draw the lines connecting centres of all columns in line
• Both horizontal and vertical center lines are drawn .
• Give codes with alphabets for vertical center lines
• Give code with number for horizontal center lines
• The distance from one center line to another is to be shown

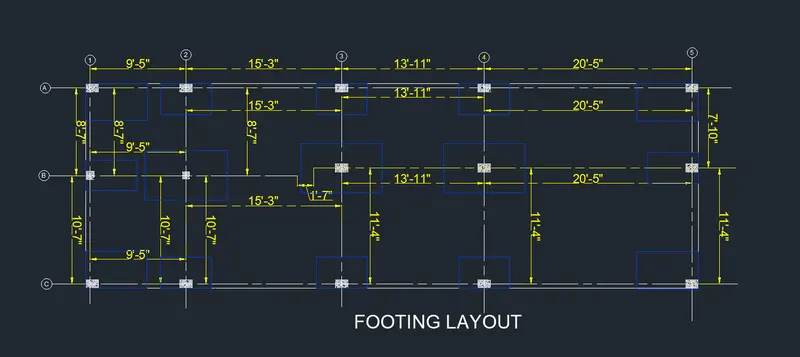

Footing Layout

• Draw the column layout again
• Change the current layer to 'Footing_Foundation'
• Draw a rectangular footing circumscribed in a circle of radius 1'8"
• Dimension of all footings drawn is 3'4"X3'4" (Imxlm)

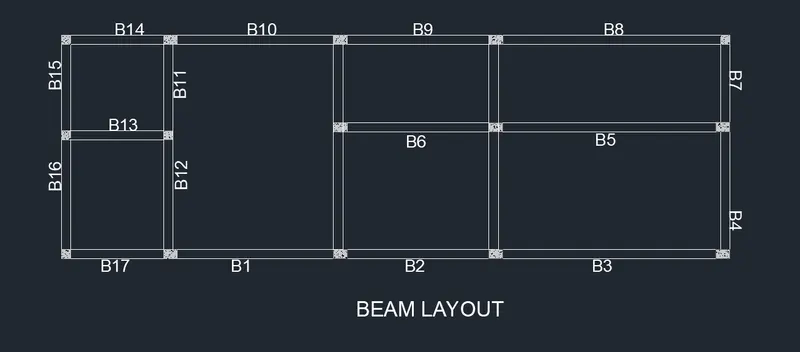

Beam layouts

• Beams layout Change the current layer to beam
• Draw the column and wall layout of the ground floor plan
• Beams are drawn with dimension 10"x12" (12" is the depth of the beam)
• Beam is not used above the bathroom walls.

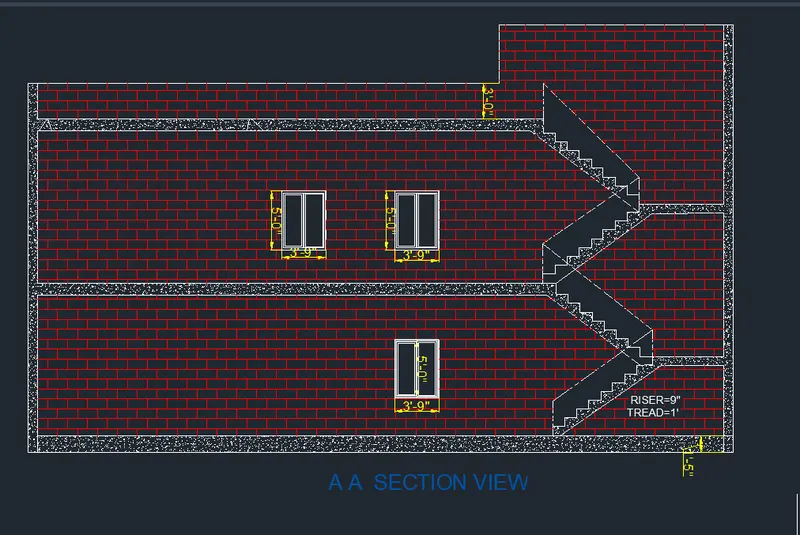

Hatching

The hatching is done for all components of plan and elevation Elevation patterns are chosen and applied with their respective attributes Hatch patterns used for respective props are

• All the walls in top view and side view are hatched with ANS132
• All walls in front view are hatched with BRICK pattern
• All beams and slabs are hatched with AR-CONC
• All floors are hatched with ANS137
• All Doors are hatched with solid colour patterns
• All windows are hatched with gradient blue patterns

Result:

Residential G+1 floor design consists of plot drawing, plan view, center line drawing, column and beam layouts, elevation view and section views are drawn.
