Project 1 - Controlling a DC motor using PWM and monitoring its Running status

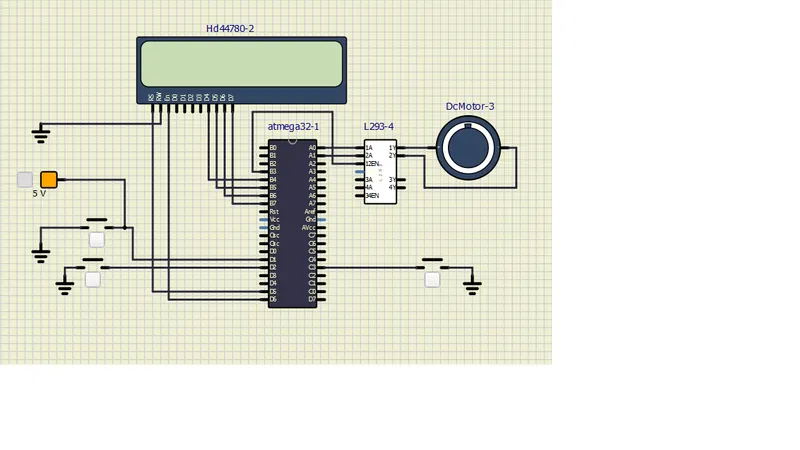

Circuits:

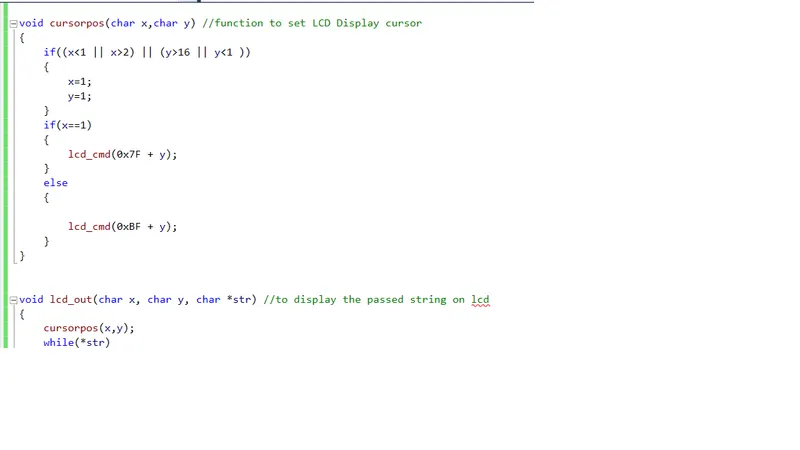

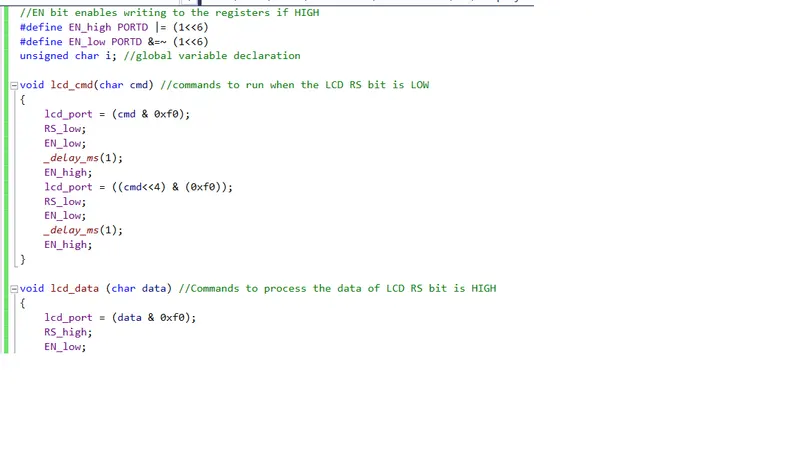

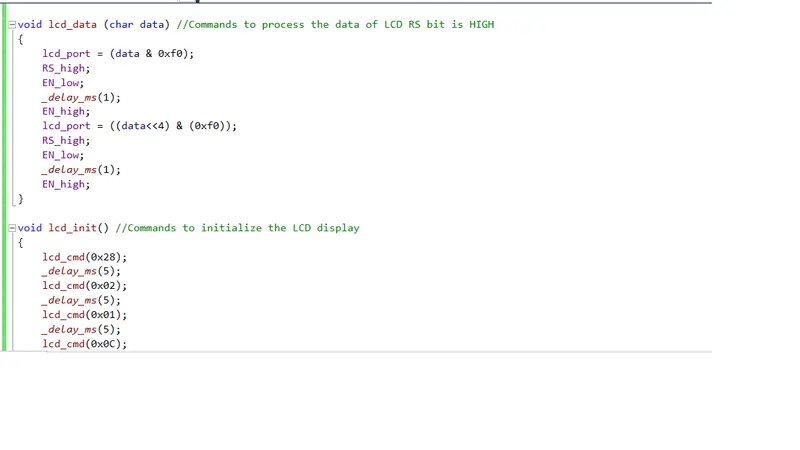

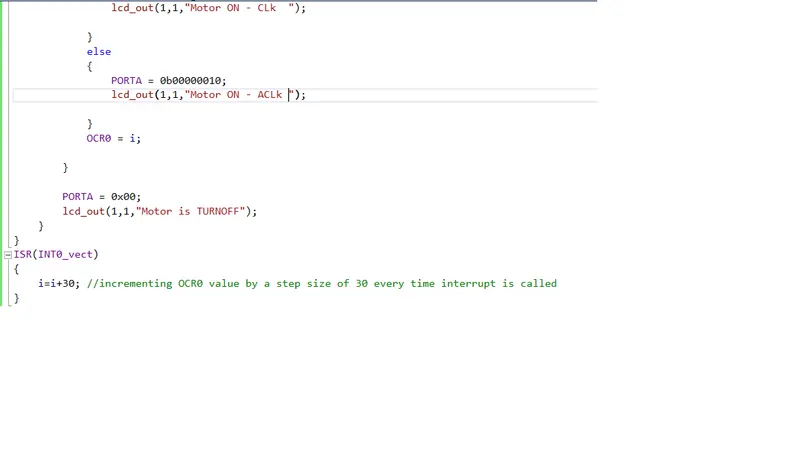

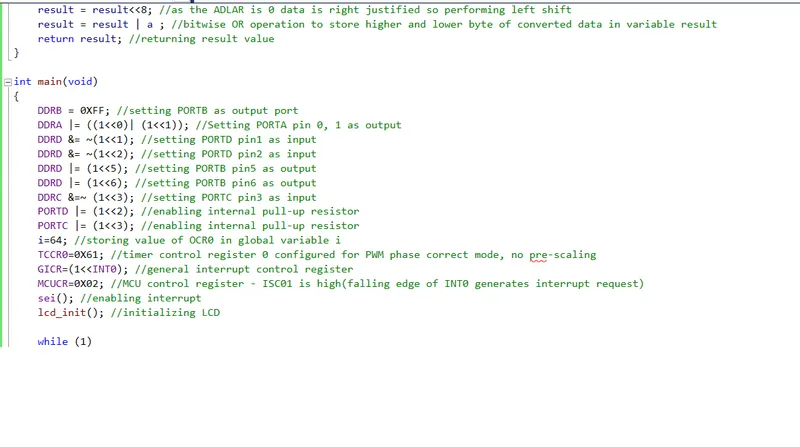

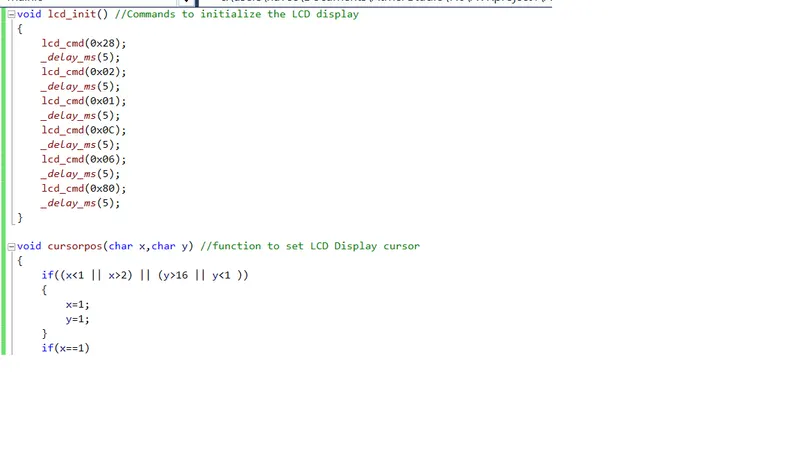

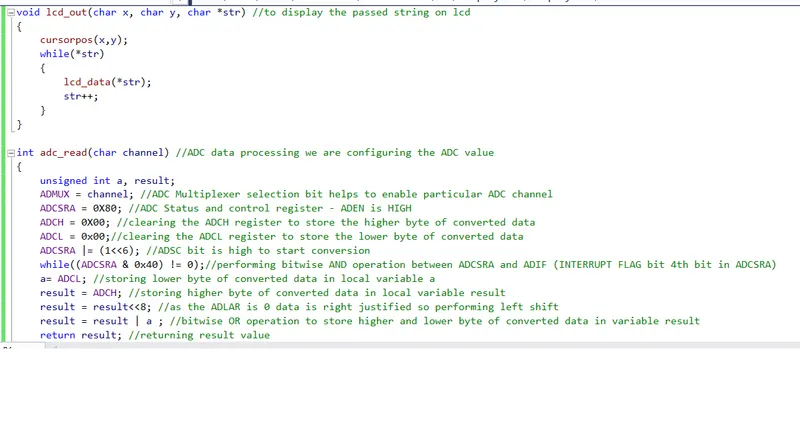

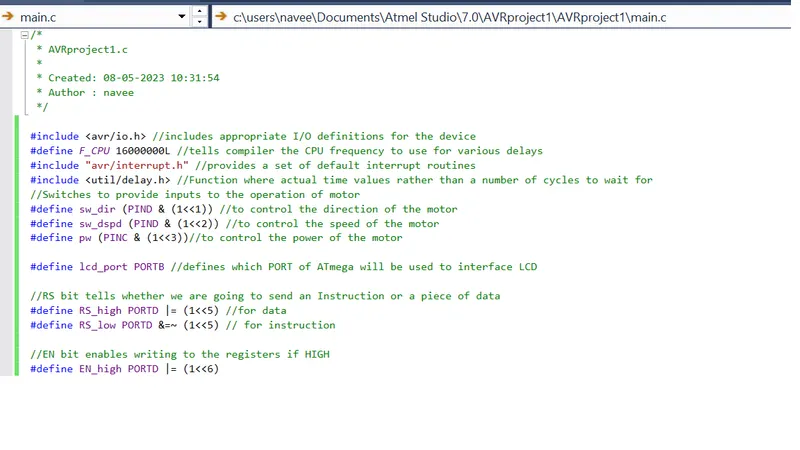

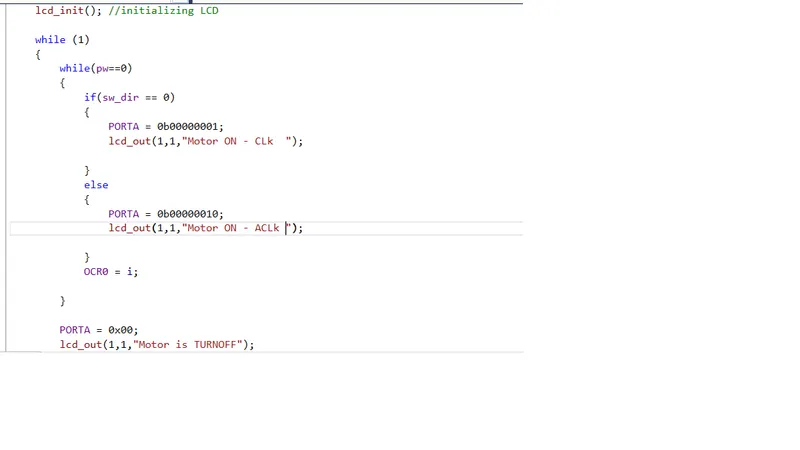

Coding:

Output:

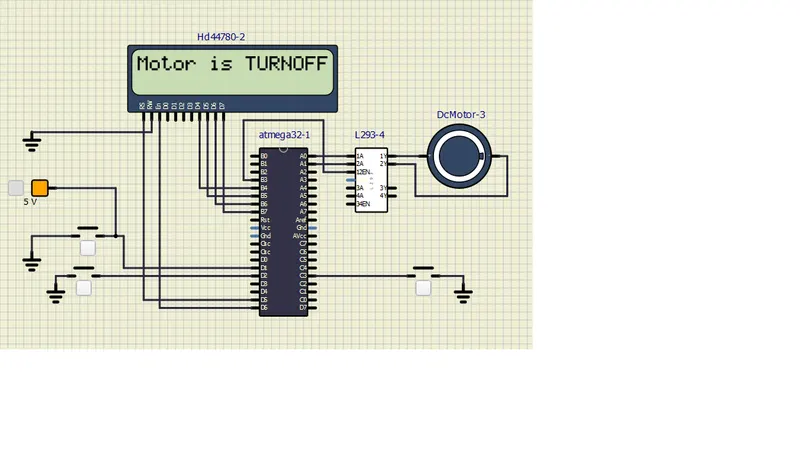

Motor is not turned on

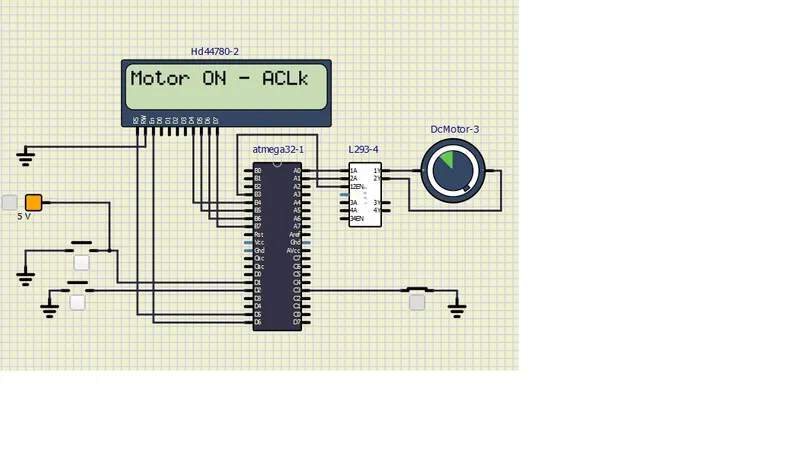

Motor is truned ON and running in anti-clockwise direction

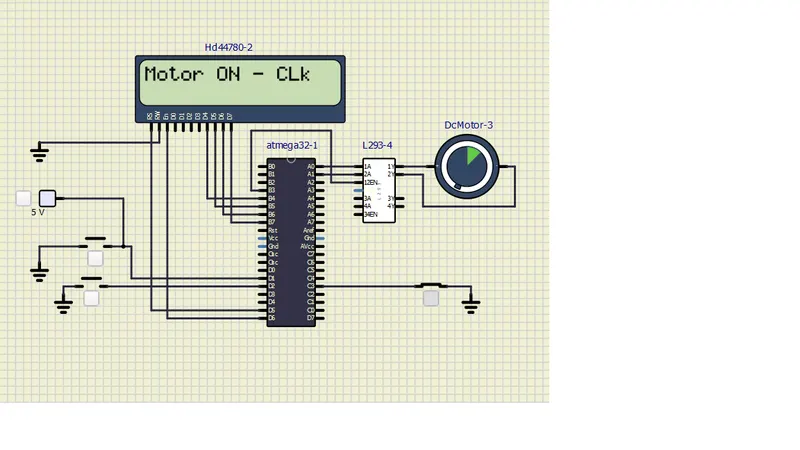

Motor is truned ON and running in clockwise direction
