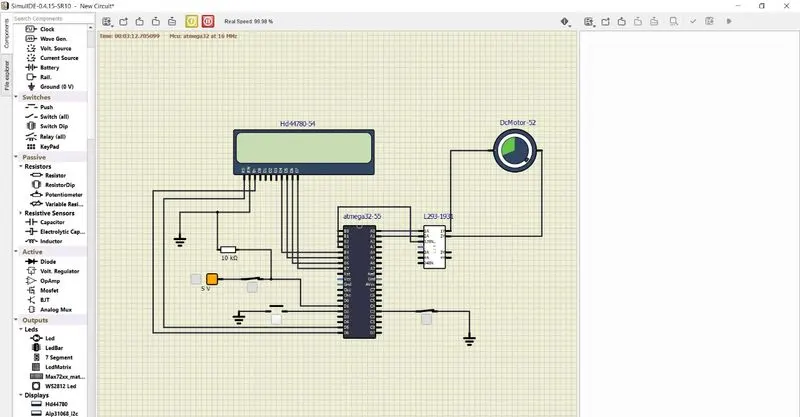

Project 1 - Controlling a DC motor using PWM and monitoring its Running status

SSujitha V1 Dec 2022

#include <avr/io.h> //i/o register of avr
#define F_CPU 16000000ul //defining cpu frequency
#include "avr/interrupt.h" //external interrupt
#include<util/delay.h> //delay function
#define sw_dir (PIND&(1<<1)) //D1 pin is used as push button for direction control
#define sw_spd (PIND&(1<<2)) //D2 pin is used as push button for speed control
#define pw (PINC&(1<<3)) //c3 pin is used as push button for power on/off
#define lcd_port PORTB //portb dedicated to lcd data
#define RS_high PORTD|=(1<<5) //d5 for register select high
#define RS_low PORTD&=~(1<<5) //d5 for register select low
#define En_high PORTD|=(1<<6)
#define En_low PORTD&=~(1<<6) //d6 used for enable
unsigned char i; //variable declaired for increase the duty cycle of pwm

void lcd_cmd(char cmd)
{
lcd_port=(cmd&0X0F); // masking 4bit lcd mode
RS_low;
En_low;
_delay_ms(1);
En_high;
lcd_port=((cmd<<4)&(0X0F));
RS_low;
En_low;
_delay_ms(1);
En_high;
}

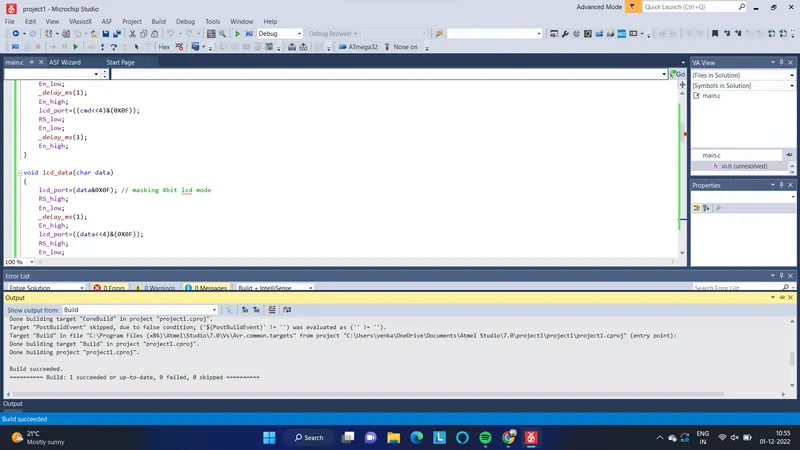

void lcd_data(char data)
{
lcd_port=(data&0X0F); // masking 4bit lcd mode
RS_high;
En_low;
_delay_ms(1);
En_high;
lcd_port=((data<<4)&(0X0F));
RS_high;
En_low;
_delay_ms(1);
En_high;
}
void lcd_init()
{
lcd_cmd(0X02);_delay_ms(5); //return the cursor to home
lcd_cmd(0X01);_delay_ms(5); //clear screen
lcd_cmd(0X0C);_delay_ms(5); //display ON cursor OFF
lcd_cmd(0X06);_delay_ms(5); //increment cursor
lcd_cmd(0X80);_delay_ms(5); //force cursor to begin !st line
lcd_cmd(0X28);_delay_ms(5); //used for 4 bit lcd mode
}
void lcd_out(char x,char y,char *str) //function for printing strings
{
cursorpos(x,y);
while(*str)
{

lcd_data(*str);
str++;
}

}
void cursorpos(char x,char y)
{

if((x<1||x>2)||(y>16||y<1))
{
x=1;
y=1;
}
if(x==1)
{
lcd_cmd(0X7+y);
}
else
{
lcd_cmd(0XBF+y);

}
}


int main(void)
{
DDRB=0XFF; //delairing all B pin as output
DDRA=((1<<0)|(1<<1)); //delairing all A0 A1 pin as output
DDRD&=~(1<<1); //declairing D1 pin as input
DDRD&=~(1<<1); //declairing D2 pin as input
DDRD|=(1<<5); //declairing D5 pin as input
DDRD|=(1<<6); //declairing D6 pin as input
DDRC&=~(1<<3); //declairing C3 pin as input
PORTD|=(1<<2); //enabling internal pull up register for D2
PORTC|=(1<<3); //enabling internal pull up register for D2
i=64; //initialiaing i=64 because e are running the motor with 25% of duty cucle
TCCR0=0X61; //non inverting mode, pwm phase correct mode , no prescalers
GICR=(1<<INT0); //unsing INT0 for interrupt
MCUCR=0X02; // make interrupt negative edge trigger
sei(); //enable global interrupt
lcd_init(); //initialise lcd

while (1)
{
while(pw==0) //continue till the power push button is release
{
if(sw_dir==0) //if the direction control push button is release
{
PORTA=0b00000001; //1 0 to respective 1A and 2A pins to rotate in clockise direction
lcd_out(1,1,"motor is running");
lcd_out(2,3,"clockwise");
}
else
{
PORTA=0b00000010; //0 1 to respective 1A and 2A pins to rotate in anticlockise direction
lcd_out(1,1,"motor is running");
lcd_out(2,3,"anticlockwise");
}
OCR0=i; // As, i increase in ISR, the corresponding value is to be loaded into the OCR0
}
PORTA=0X00; //0 0 respective 1A 2A pins to stop rotation
lcd_out(1,1,"motor is off");
lcd_out(2,3,"caution !!!!");
}
}
ISR(INT0_vect) //interrupt service routein
{
i=i+20; //as i increase the duty cycle also increase. i increase by 20 in each puch.
cli();
}

#include <avr/io.h>       //i/o register of avr
#define F_CPU 16000000ul //defining cpu frequency
#include "avr/interrupt.h"  //external interrupt
#include<util/delay.h>    //delay function
#define sw_dir (PIND&(1<<1))  //D1 pin is used as push button for direction control
#define sw_spd (PIND&(1<<2))  //D2 pin is used as push button for speed control
#define pw (PINC&(1<<3))  //c3 pin is used as push button for power on/off
#define lcd_port PORTB     //portb dedicated to lcd data
#define RS_high PORTD|=(1<<5)  //d5 for register select high
#define RS_low PORTD&=~(1<<5)  //d5 for register select low
#define En_high PORTD|=(1<<6)
#define En_low PORTD&=~(1<<6)  //d6 used for enable
unsigned char i;               //variable declaired for increase the duty cycle of pwm

void lcd_cmd(char cmd)
{
	lcd_port=(cmd&0X0F);   // masking 4bit lcd mode
	RS_low;
	En_low;
	_delay_ms(1);
	En_high;
	lcd_port=((cmd<<4)&(0X0F));
	RS_low;
	En_low;
	_delay_ms(1);
	En_high;
}

void lcd_data(char data)
{
	lcd_port=(data&0X0F);     // masking 4bit lcd mode
	RS_high;
	En_low;
	_delay_ms(1);
	En_high;
	lcd_port=((data<<4)&(0X0F));
	RS_high;
	En_low;
	_delay_ms(1);
	En_high;
}
void lcd_init()
{
 lcd_cmd(0X02);_delay_ms(5);  //return the cursor to home
 lcd_cmd(0X01);_delay_ms(5);  //clear screen
 lcd_cmd(0X0C);_delay_ms(5);  //display ON cursor OFF
 lcd_cmd(0X06);_delay_ms(5);  //increment cursor
 lcd_cmd(0X80);_delay_ms(5);   //force cursor to begin !st line
 lcd_cmd(0X28);_delay_ms(5);   //used for 4 bit lcd mode
}
void lcd_out(char x,char y,char *str)    //function for printing strings
{
	cursorpos(x,y);
	while(*str)
	{

		lcd_data(*str);
		str++;
	}

}
void cursorpos(char x,char y)
{

	if((x<1||x>2)||(y>16||y<1))
	{
		x=1;
		y=1;
	}
	if(x==1)
	{
		lcd_cmd(0X7+y);
	}
	else
	{
		lcd_cmd(0XBF+y);

	}
}


int main(void)
{
	DDRB=0XFF;                     //delairing all B pin as output
	DDRA=((1<<0)|(1<<1));         //delairing all A0 A1 pin as output
	DDRD&=~(1<<1);                //declairing D1 pin as input
	DDRD&=~(1<<1);                //declairing D2 pin as input
	DDRD|=(1<<5);                  //declairing D5 pin as input
	DDRD|=(1<<6);                  //declairing D6 pin as input
	DDRC&=~(1<<3);                 //declairing C3 pin as input
	PORTD|=(1<<2);                //enabling internal pull up register for D2
	PORTC|=(1<<3);                //enabling internal pull up register for D2
	i=64;                         //initialiaing i=64 because e are running the motor with 25% of  duty cucle
	TCCR0=0X61;                   //non inverting mode, pwm phase correct mode , no prescalers
	GICR=(1<<INT0);               //unsing INT0 for interrupt
	MCUCR=0X02;                   // make interrupt negative edge trigger
	sei();                         //enable global interrupt
	lcd_init();                    //initialise lcd

	 while (1)
    {
		while(pw==0)          //continue till the power push button is release
		{
			if(sw_dir==0)      //if the direction control push button is release
			{
			PORTA=0b00000001;   //1 0 to respective 1A and 2A pins to rotate in clockise direction
			lcd_out(1,1,"motor is running");
			lcd_out(2,3,"clockwise");
			}
			else
			{
				PORTA=0b00000010;     //0 1 to respective 1A and 2A pins to rotate in anticlockise direction
				lcd_out(1,1,"motor is running");
				lcd_out(2,3,"anticlockwise");
			}
			OCR0=i;               // As, i increase in ISR, the corresponding value is to be loaded into the OCR0
		}
		PORTA=0X00;                //0 0 respective 1A 2A pins to stop rotation
		lcd_out(1,1,"motor is off");
		lcd_out(2,3,"caution !!!!");
    }
}
ISR(INT0_vect)               //interrupt service routein
{
	i=i+20;         //as i increase the duty cycle also increase. i increase by 20 in each puch.
	cli();
}
