Project 1_Comparative study of different storey buildings for Seismic forces

AIM : To study the comparative study of different storey buildings for seismic forces.

BUILDING A :

STEP 1 :

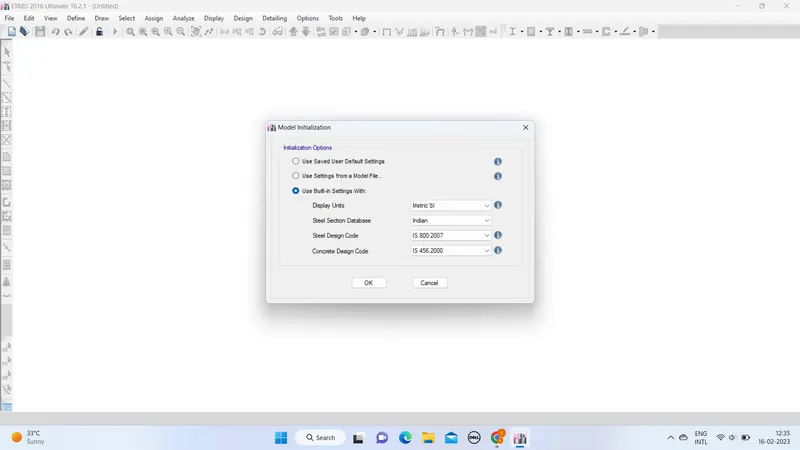

• Open ETABS and stepup the model
• Once the software is open,click on new model option

• A dialogue box will open where you can set up the codes and units to be used according to our project


  STEP 2 : Setting up the Grid and story data

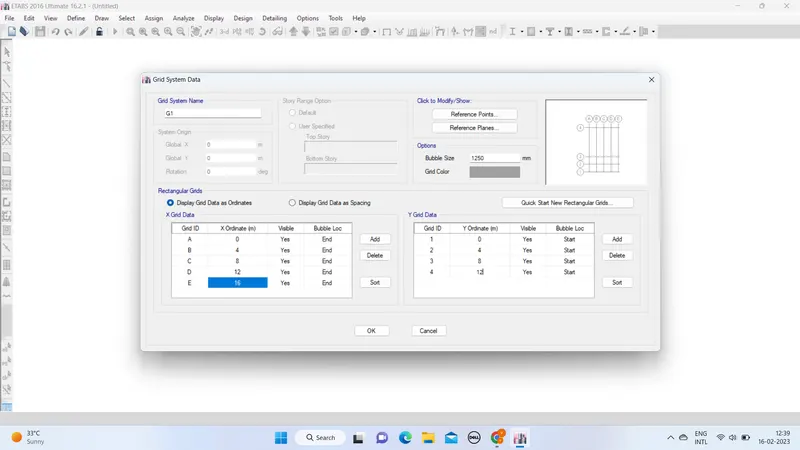

• To set up the grid data,you need to click on the custom grid option and then edit the grid data.
• In the same menu,you can fix the length,No.of grids in both directions,spacing between all the vertical and horizontal grids,etc.
• So,by following the same approach,we have set up a 4x3 bay grid with 4m center to center spacing in between.

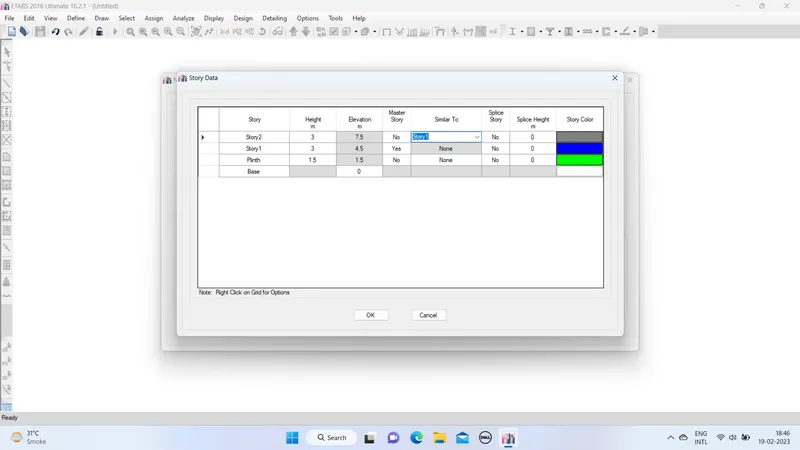

  STEP 3 : Fixing the story data
• Similar to what we did while setting up the grids,click on the custom story data option.
• Then,specify the base level,plinth level,height of each floor,and No.of floors to be included in the model.
• Thus,we have arranged for a G+2 building with a 1.5m plinth height from the base.
• Also,you need to fix a master story and all the similar stories in the same menu.
• And for our project,story one is the master and all other remaining floors are similar storeys.
• Once,you do this,your model is set to be executed in ETABS with the grid and storeys as specified.


  STEP 4 : Defining the material properties


• It is important to set details of the materials you are going to use for the project in the ETABS.
• And for our model,as given in the project we have to use the M30 grade concrete and Fe415 HYSD steel as per the specifications.
• So,in order to define the same,go to define > MATERIAL > properties > concrete / steel > grade > ok

  STEP 5 : Defining section properties
• We are using the rectangular concrete sections for all the structural elements like beams,columns and slabs.
• So, we need to define that in ETABS so that it allows us to use these sections repeatedly throughout the project.

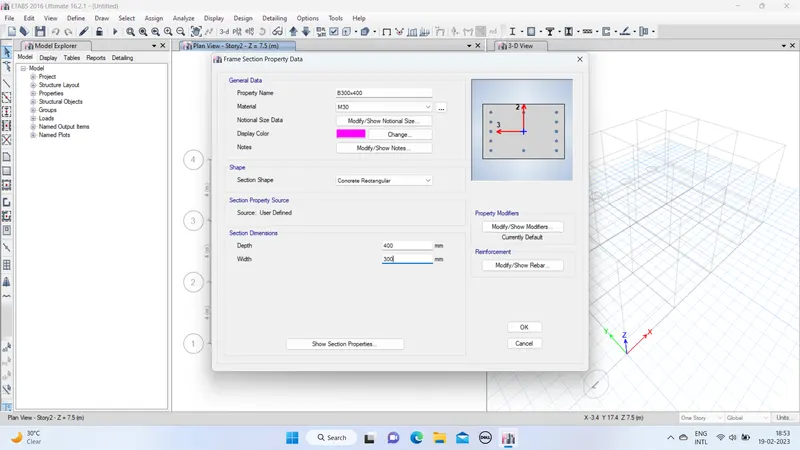

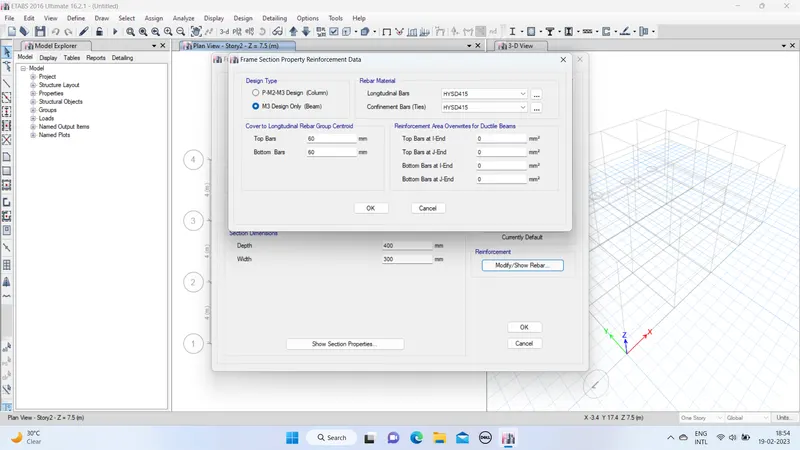

• And to do so,go to define > section properties > frame sections > concrete rectangular.

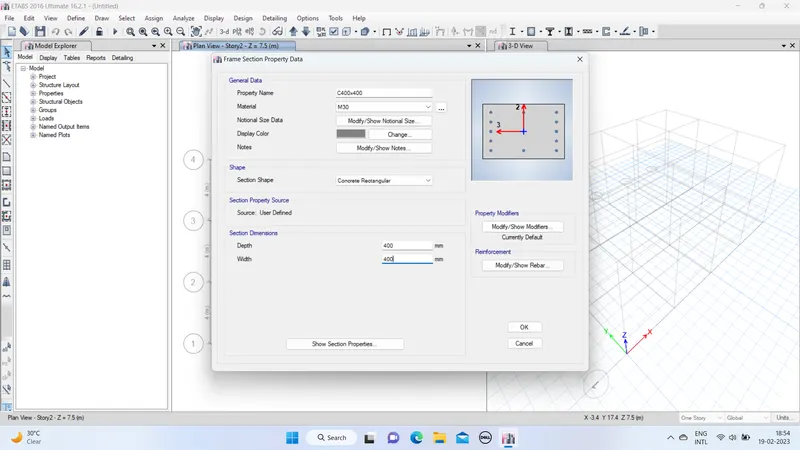

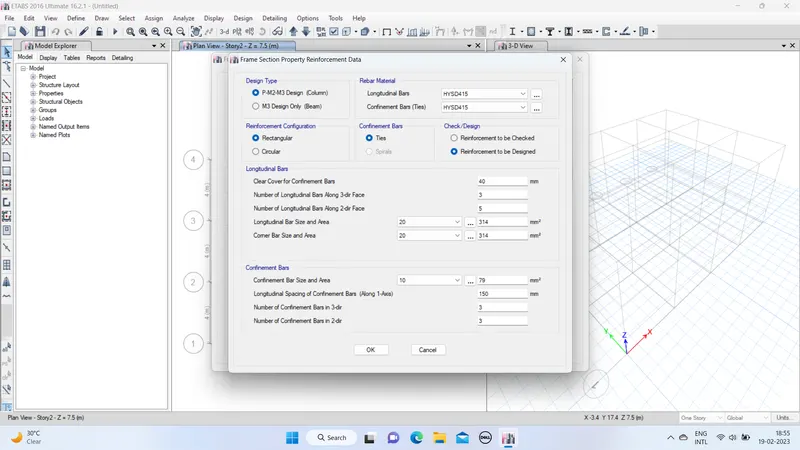

• Then,a dialouge box will open where you can specify the column / beam dimensions and type of reinforcement (HYSD415) to be used in the model.
• So,you can define both columns and beams from the same menu.

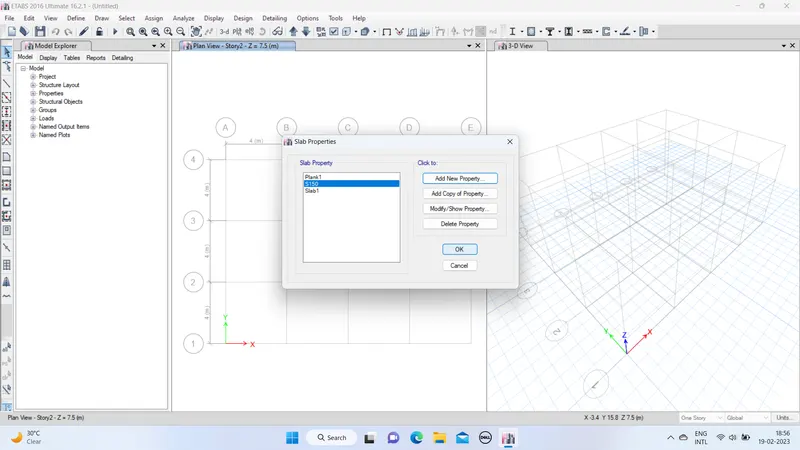

• Now,to define the slab section,again go to define > section > slab.
• Again a menu will open up where you need to set the slab specifications required for the project.

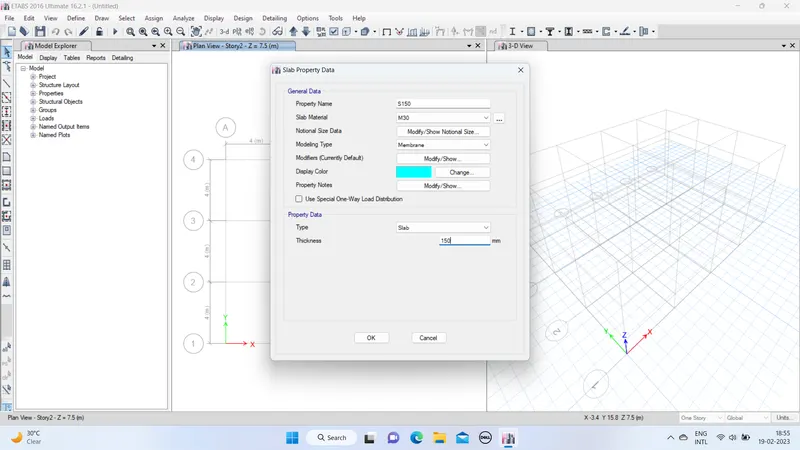

• Here,you need to specify the slab thickness as 150mm and the section as a membrane.







  STEP 7 : Execute the Modelling
• Now that we have defined everything from materials to beams,columns,and slabs to be needed for our structure,we can go ahead and draw each structural element as per the specications.

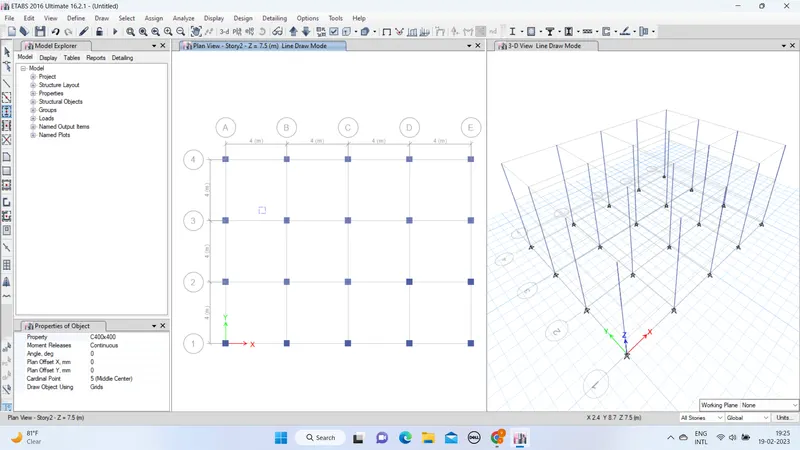

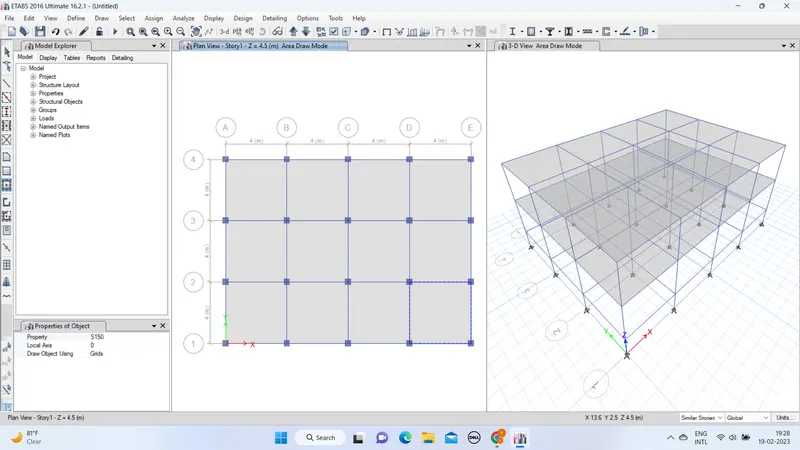

• And to do that,we can use the commands in ETABS named quick draw tool.
• As the name suggests,you can draw all the beams,floors,and columns with the help of this tool.
• All you need to do is select the relative tool that is quick draw columns for drawing columns and vice versa.Then choose the section from the dropdown list.

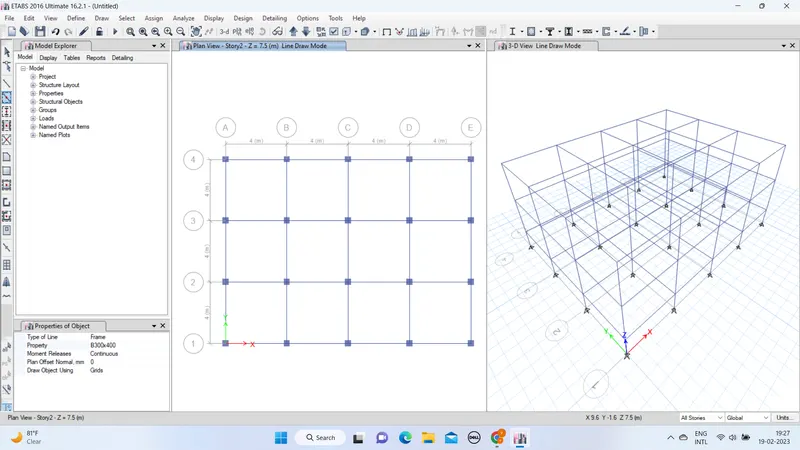

• Then,simply go to the grid system in plan view and start clicking on the grid locations where you want to build these structural elements.
• So,the same approach was followed and the following beams,floors,and slabs were drawn in our ETABS model.




  STEP 8 : Define the Load Patterns

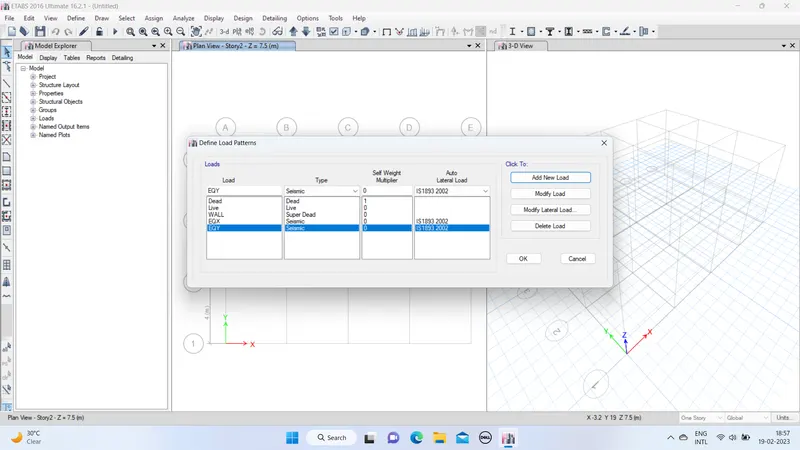

• After completing the model,now we need to list down the types of loads that are expected on the structure during its service period.

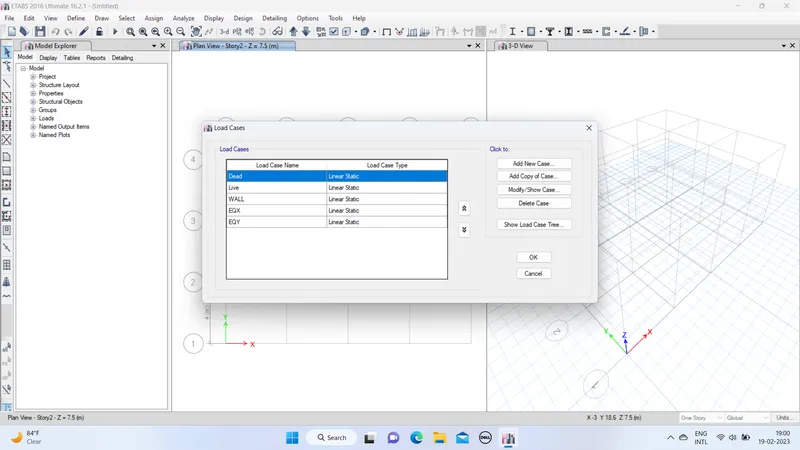

• And to do so,go to define > load patterns > add loads.

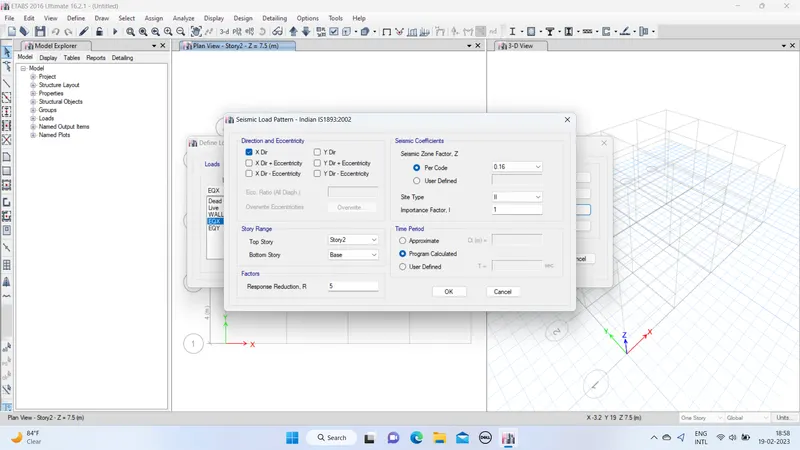

• Here,you can add all the loads and for our project,we are having the dead load,super dead load (Brick wall load),live load,and the earthquake load in X and Y directions.

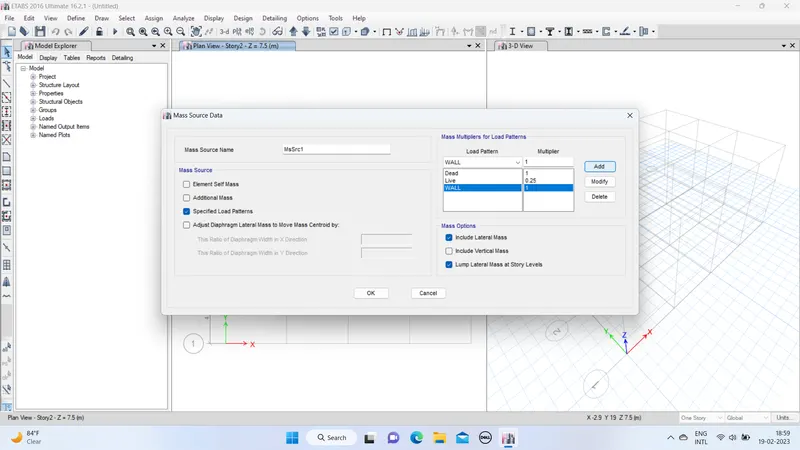

• Also,you need to define the mass source by adding 100% of dead and super dead load as well as 25 % of the imposed or live load.






  STEP 9 : Generate Load Combinations

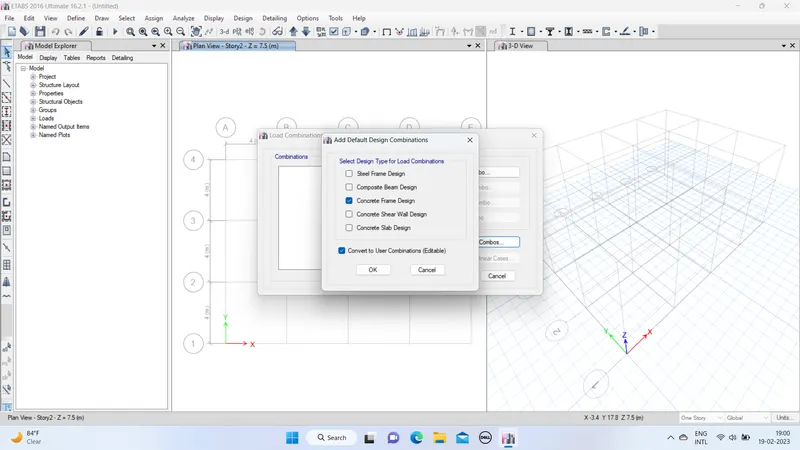

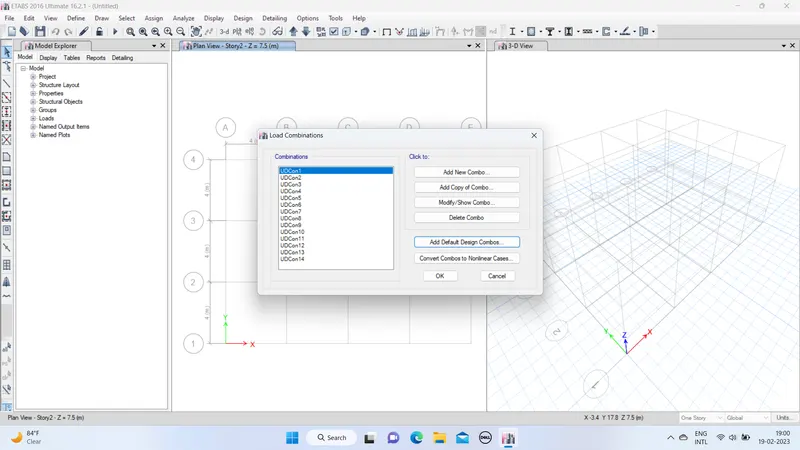

• Go to define > load combinations > default combinations > check the convertible option.
• A list of load combinations will appear which you can look at and modify anytime during the project if needed.

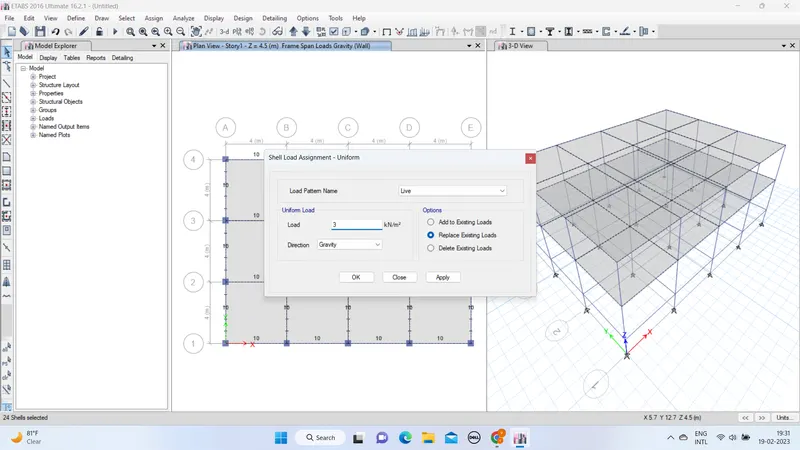

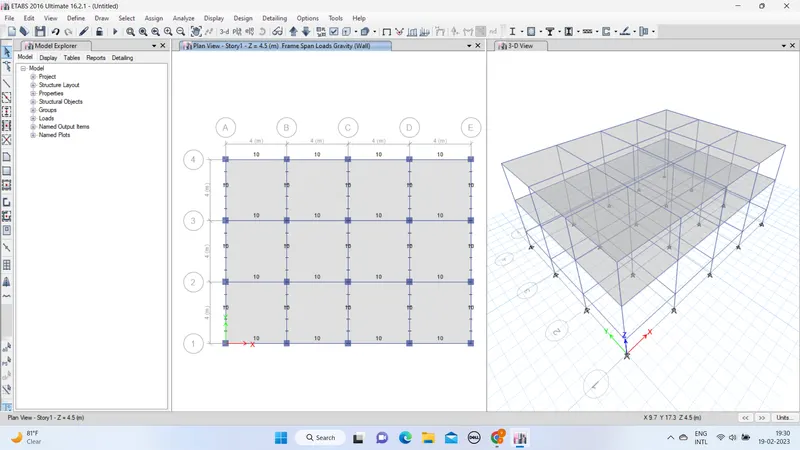

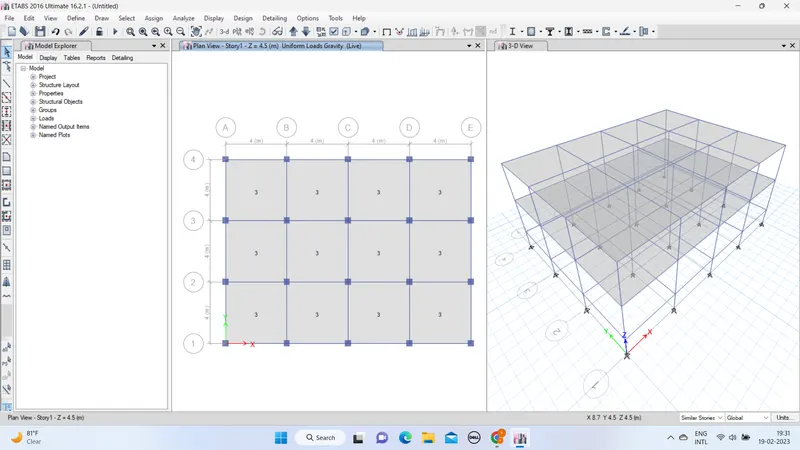

  STEP 10 : Assign Loads to the Structural Members

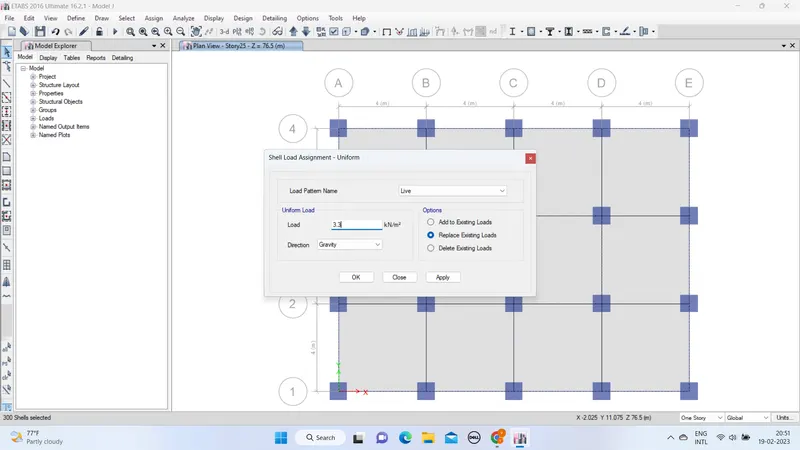

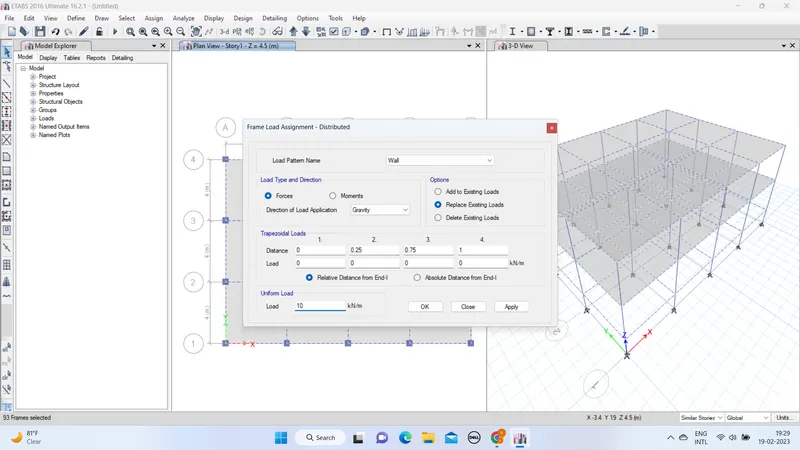

• You can select a particular structural member from the model and assign it the load that is imposed on it.
• For ex.,select the beam and assign a udl of super dead load due to the brick walls resting upon it.
• Thus,a similar technique is used and the loads on beams and slabs are assigned as follows :

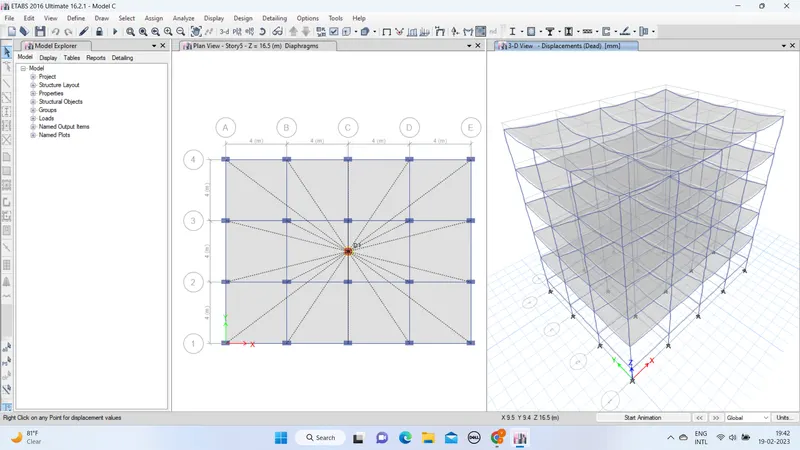

  STEP 11 : Assign the Floor Diaphragm

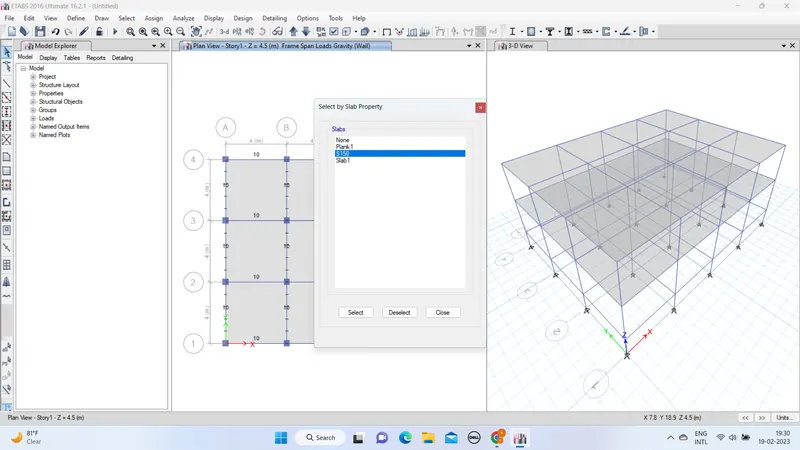

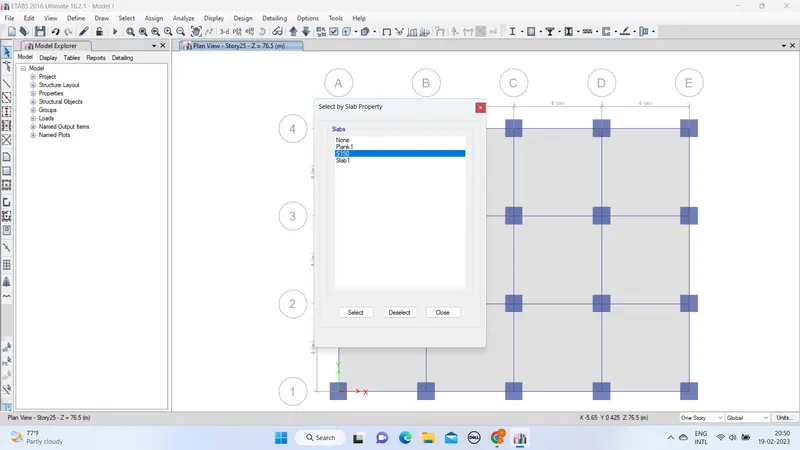

• Select the S150 slab section from the select option.
• Go to assign > shell > diaphragm.
• Select the default D1 diaphragm already incorporate in ETABS and press ok.

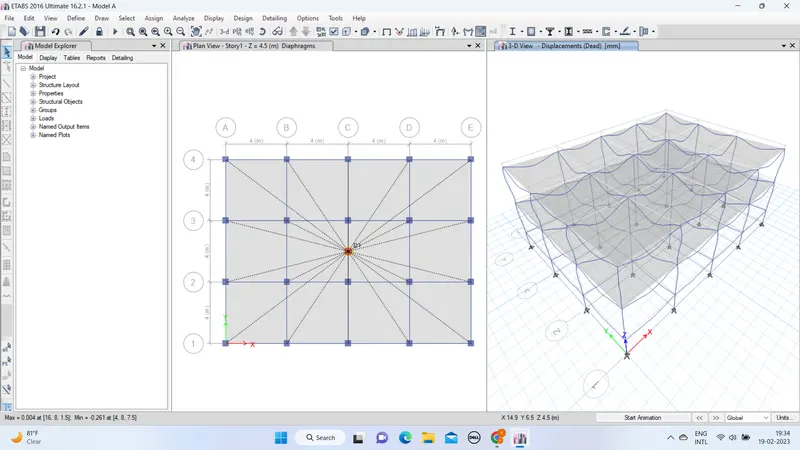

• It is now done,and you can see the center of mass for our model has been automatically calculated as we assigned the floor diaphragm.


  STEP 13 : Save the Model and Run analysis
• Now that everything with regards to our first model is complete,we can proceed to run the analysis for this building.
• But we'll have to first save our project before running the analysis so do it at the preferred location within your system.
• Then,you can simply press F5 on your keyboard or click on the arrowhead available on the ETABS screen to run the analysis for the current model.


  Building B ( G+5)
  Now to model building B,we need not create a new ETABS file from scratch.Rather we will save a copy of the building A file and do the alterations needed for building B.For ex.,we can increase the no.of stories to 5 by editing thestory data within the copied file.So, the complete procedure to do so in ETABS is discussed below :

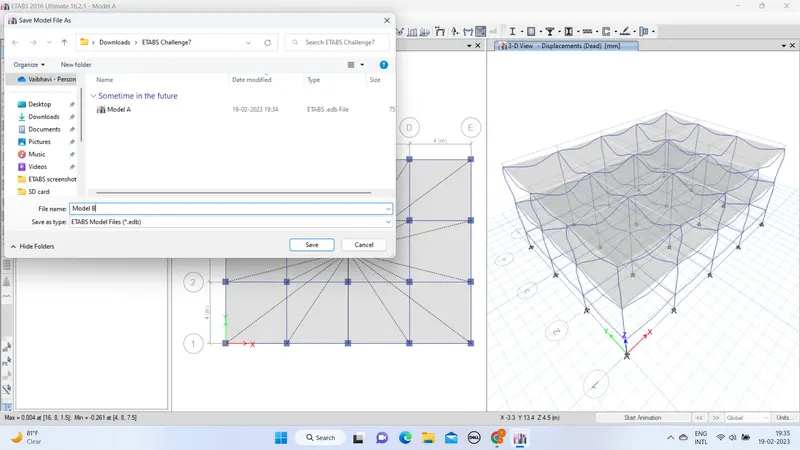

  STEP 1 : Make a copy by "Save as"

• From model A,go to files and click on the save option.
• Set the destination folder and name it "Model B".
• The model is set for changes as per the requirements of model B

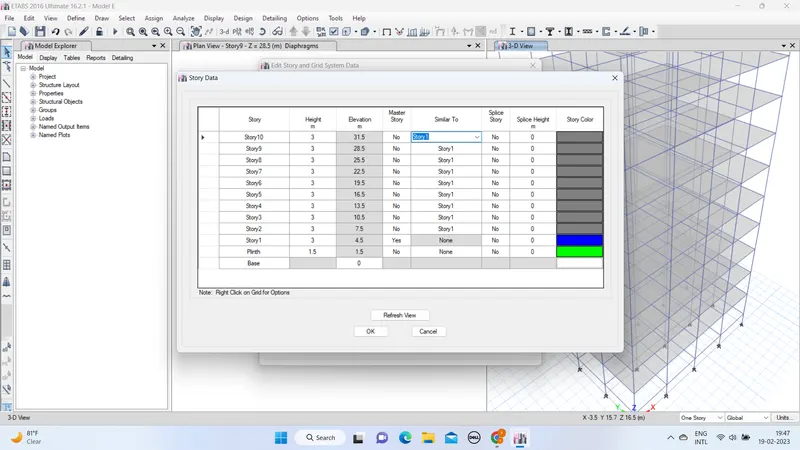

  STEP 2 : Edit story Data

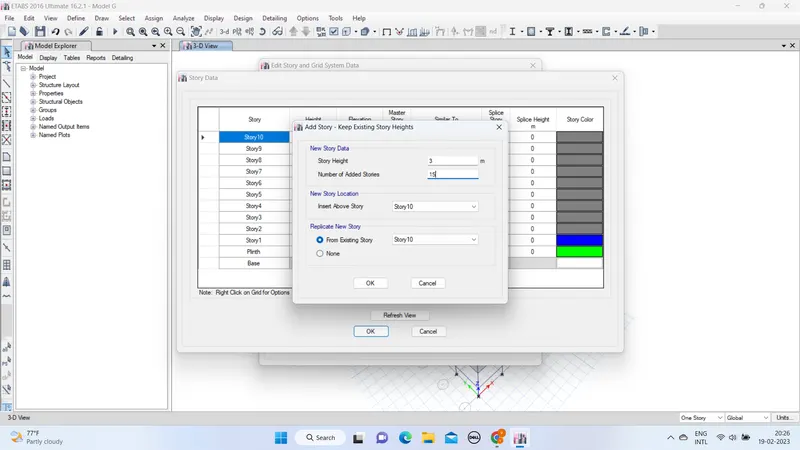

• From the new file,go to edit > story and grid data.
• Click on the modify story data option.

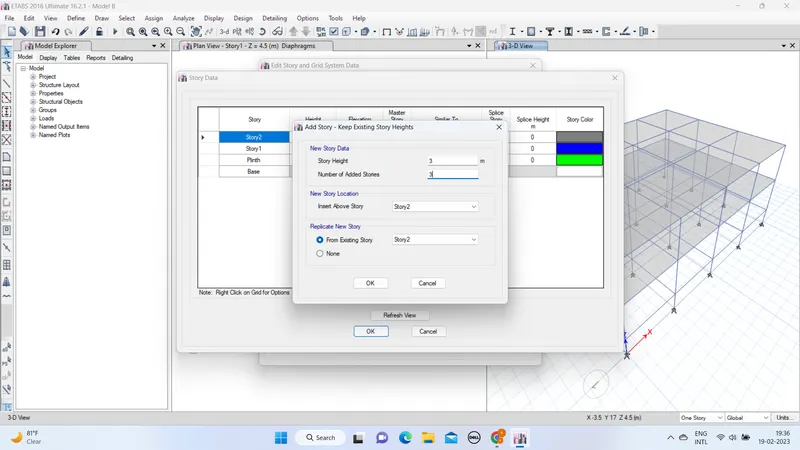

• Then,right click on the top story and select the add story option.
• Set the height and no.of storeys you want to add.
• In our case,we need to add 3 more floors to convert our 2 story into a 5 story one.
• Also,make sure to make each story similar to the master story created in Model A.



  STEP 3 : Check the Model before Running Analysis
• Now that our model is ready we need to check for 2-3 things before running the analysis and noting the modal period.
• The first check is for the load assignment.
• From the bottom ribbon in ETABS,go to show frame and shell loads one at a time.
• This way the model will show if the corresponding load has been assigned till the top floor.
• Similarly,you need to check if the diaphragm has been assigned to the new model or not.
• You can check it by going to the view settings option and checking the diaphragm visibility.
• If the diaphragm is not visible,you need to select all the floors and assign the diaphragm like we did for the first model.

  STEP 4 : Run the Analysis
• Now that all the checks have been made and the structure is ok,we can run the analysis.
• And to do that simply press F5 button on your keyboard or click on the bottom ribbon in ETABS.

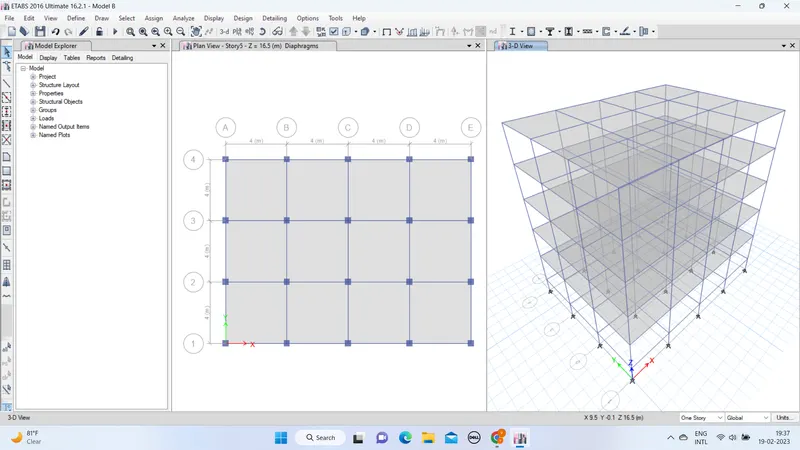

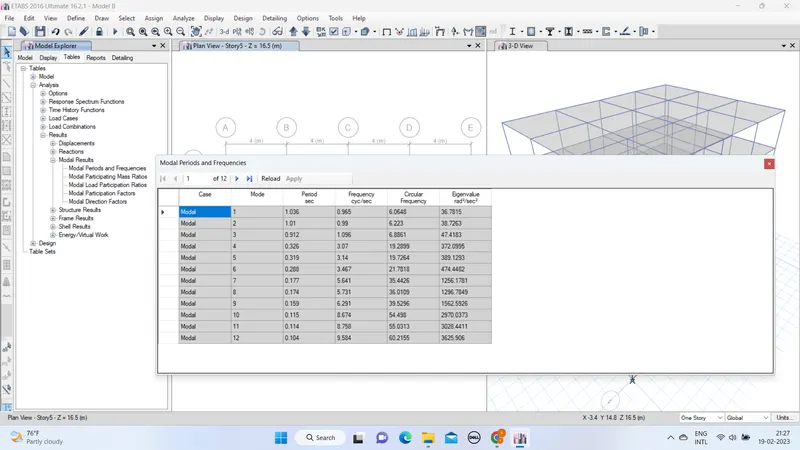

• It will take a few seconds and the deflected shape of the building will appear indicating that the analysis has been completed.



  BUILDING C (G+5 with column orientation in X-direction) :
  The story and grid data for building C will remain still.However,need to change the column size and orient the same in the X-direction.So,the complete stepwise procedure for the same is discussed in detail below:

  STEP 1 : Create a copy Model by Save as
• Like we did for model B , now do it for model C through model B.
• Choose the appropriate location and save the file as model C.
• Now,the model is set to be edited as needed.

  STEP 2 : Edit the column Size and Orientation

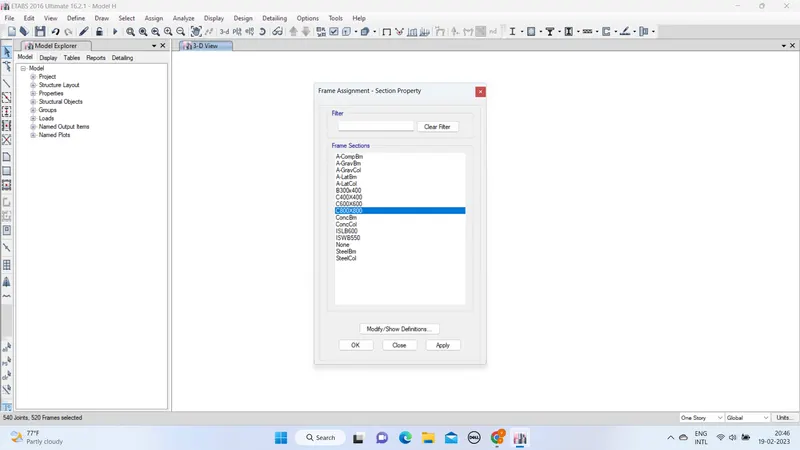

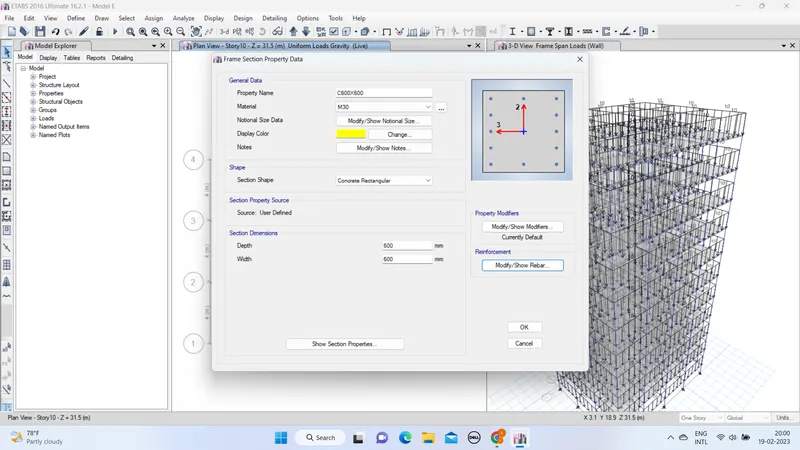

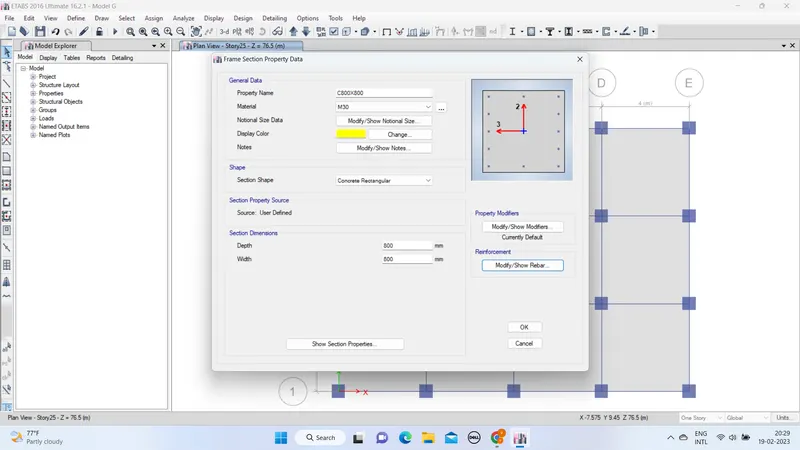

• To edit the column section,go to define > section properties > frame section.
• Now,select the previously created column for model A and B.
• Click on the modify/show properties option.

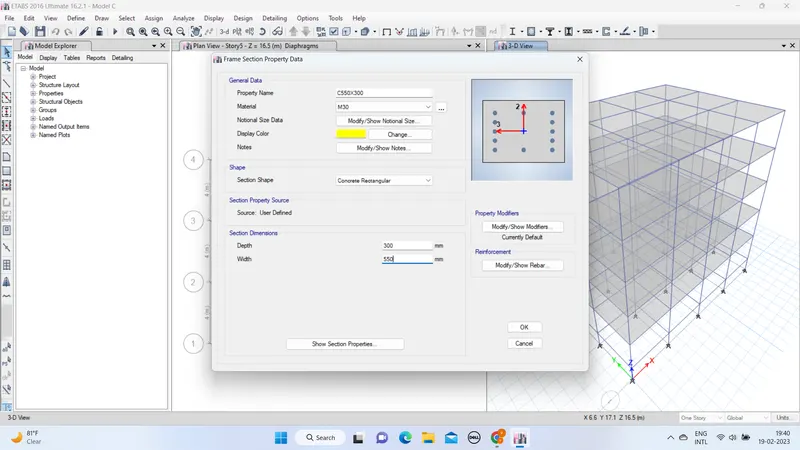

• Rename the column as needed which in our case is 550x300.
• Then,edit the length and breadth by entering the values in the box.
• Now,we need to orient the 550mm in the X-direction.

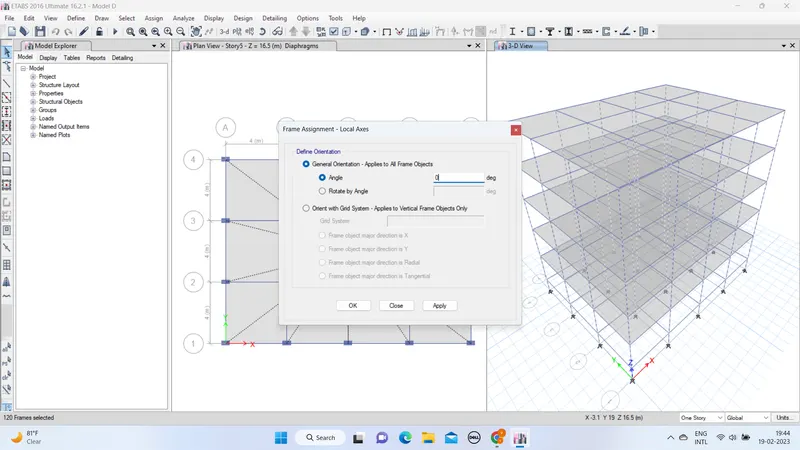

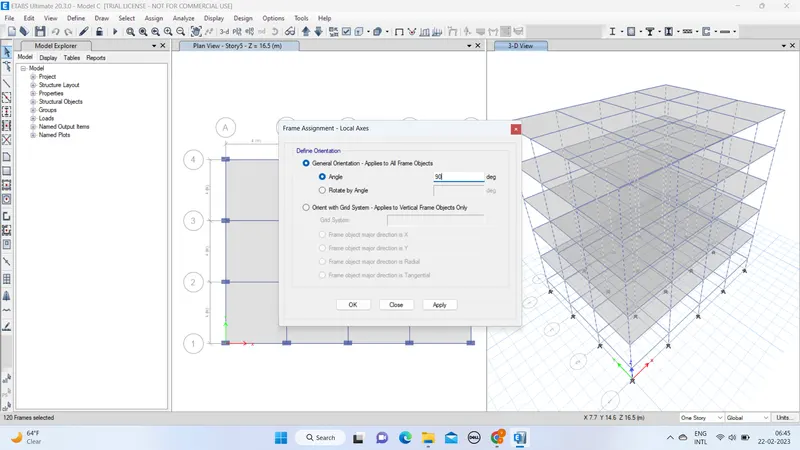

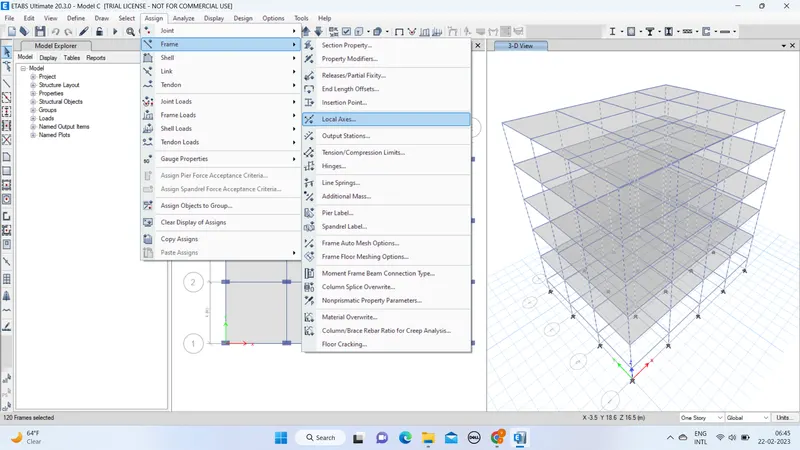

• So,select the column then go to assign > local axis > 90 degrees.
• This way,all the columns shall be oriented in the X-direction meaning 550mm laying down in the X-direction.





  STEP 3 : Check before Running the analysis
• Like we did for model B,checks for the frame and shell loads are to be made.
• Also,make sure the floor diaphragm has also been assigned before going ahead with the analysis.

  STEP 4 : Run the analysis
• Hit the F5 button on your keyboard and ETABS will automatically run the analysis for you.

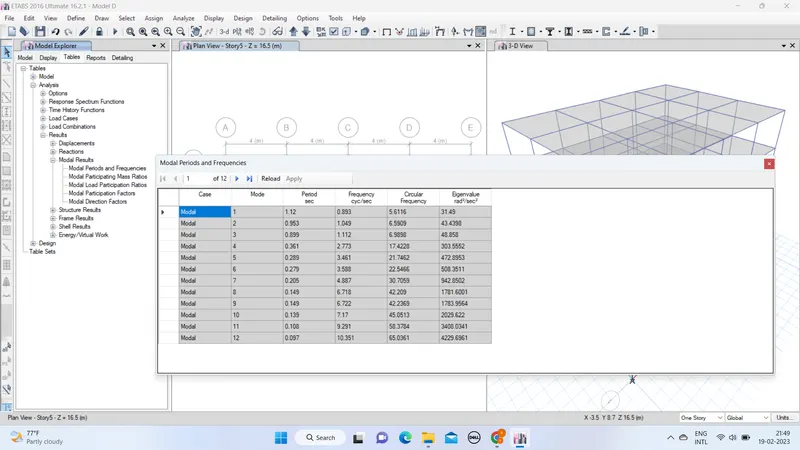

• You can display the model table when the analysis is complete and the deflected shape of the model is visible on your screen.




  BUILDING D (G+5 WITH COLUMN ORIENTATION IN THE Y-DIRECTION)
  In this model,we dont need to alter anything other than the column orientation.The sizes of the column will remain the same however,we have to shift the column orientation from X to Y direction. So follow the same procedure as we did for the previous model and save the C file into D file.Then,select the column section and assign the local axes and bring the origin back to 0.This way,all the columns shall be oriented in the Y-direction.Then like usual,check for the loads and the diphragm before running the analysis.Then,go ahead and note the modal period for building D.
  So,as explained above,the model was executed for building D and the natural period was noted as inserted below:

  STEP : Select the column section and bring the orientation back to zero

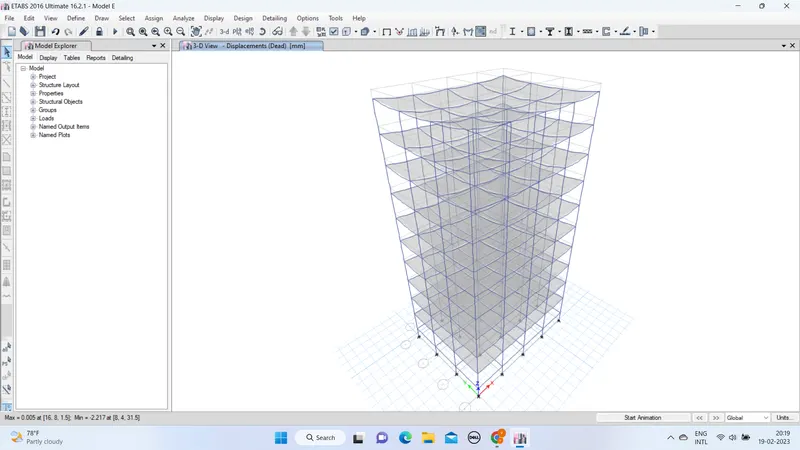

  BUILDING E (G+10)
  Column sizes for top 5 stories : 400x400
  Column sizes for bottom 5 stories : 600x600

  PROCEDURE :

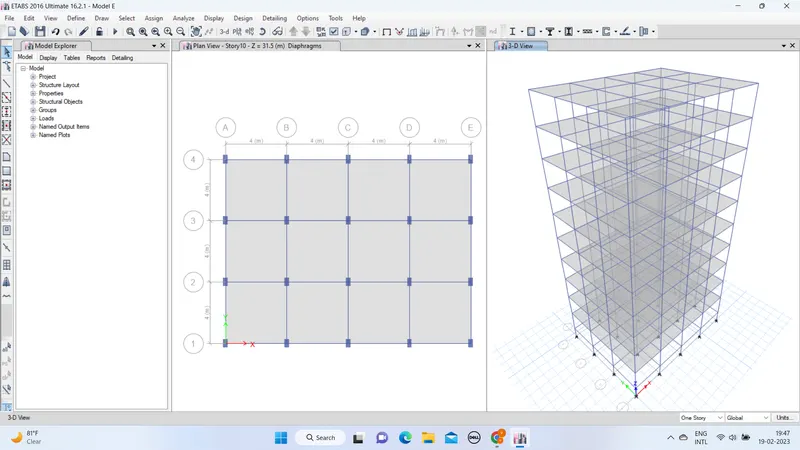

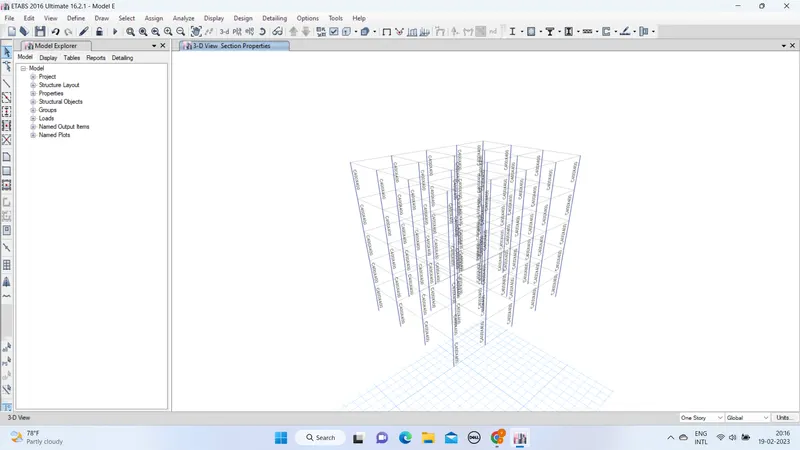

  In this model,we need to add up 5 more stories to our model.In addition,we also need to assign different column sizes on different floors.And to do that,we'll first save the ETABS file for building D as a new model for building E.Then,edit the story data as we have done for our previous model in ETABS.Then,we need to add two new column sections with required directions and assign them at appropriate floors in our model as specified.
  So,the stepwise procedure to create new columns and locate them on required floors is explained below :

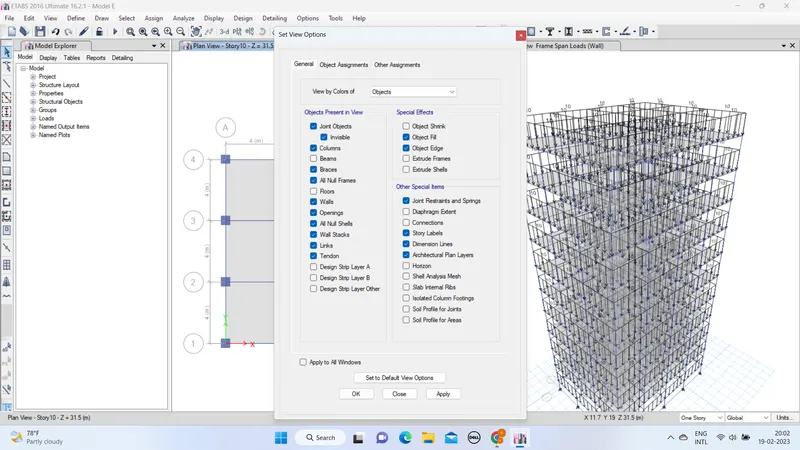

  Change the View Settings of the Model
• There's an option in ETABS that allows users to adjust the model and view the only objects that are needed to be worked on currently.
• The tool is called view option settings.It is easily accessible from the front tool ribbon of ETABS.
• So,you can go to view option settings and uncheck the structural members that you want to hide currently for modelling purposes.
• Since we need to assign different column sizes in our model,we dont need to view beams and slabs currently.
• So,we go to the tool and uncheck beams and floors in order to make the only columns visible for editing purposes.

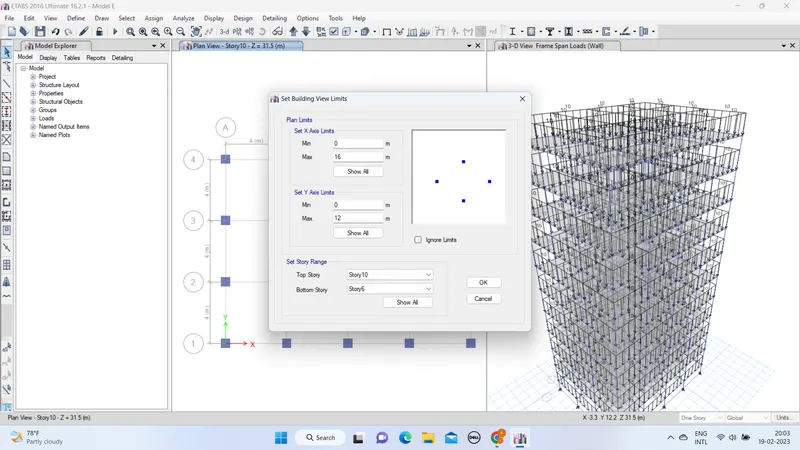

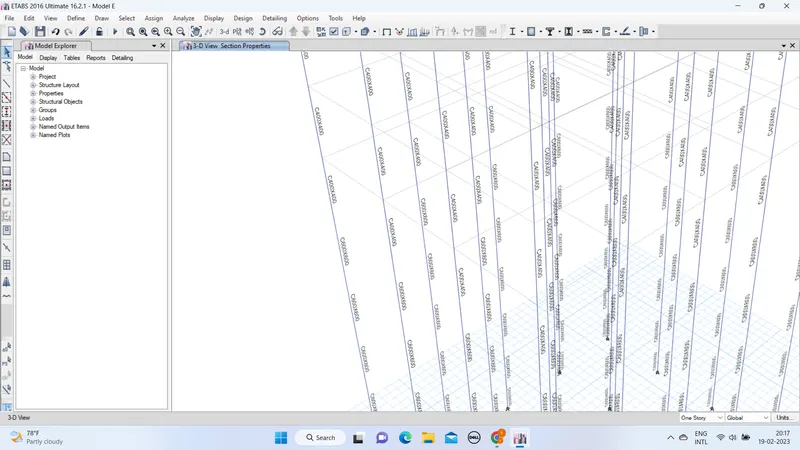

  Set the building limit,Select columns,and Assign them the Required Sections
• Now,since we need different columns for the top 5 floors and different columns for the bottom 5.
• Therefore,we need to edit the top 5 and bottom 5 stories one after the other.
• So,we need first set the building limits up to the bottom five floors and then vice versa.

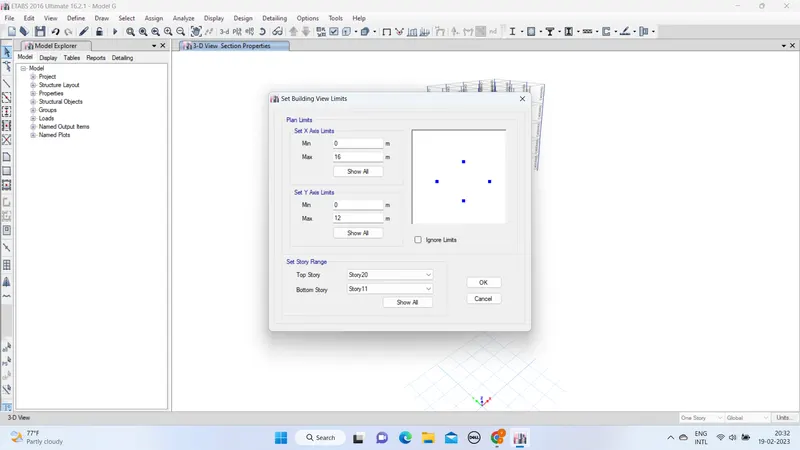

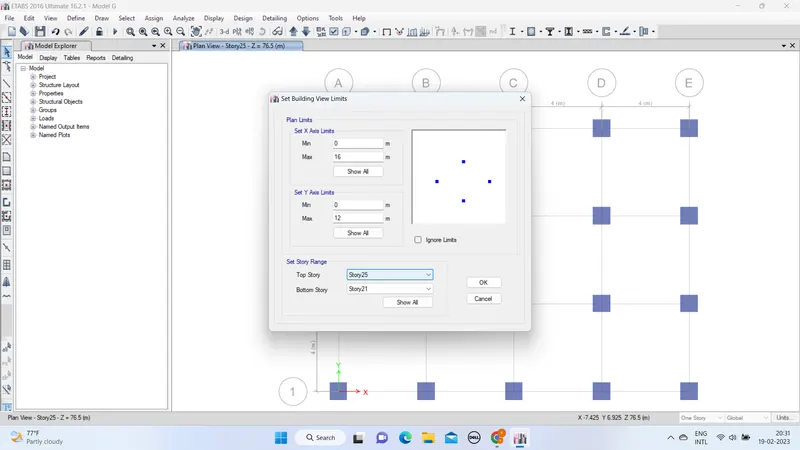

• And to do that,you can go edit > set building limits.
• The set building limit option in ETABS allows you to view only the floors that you need to work on.

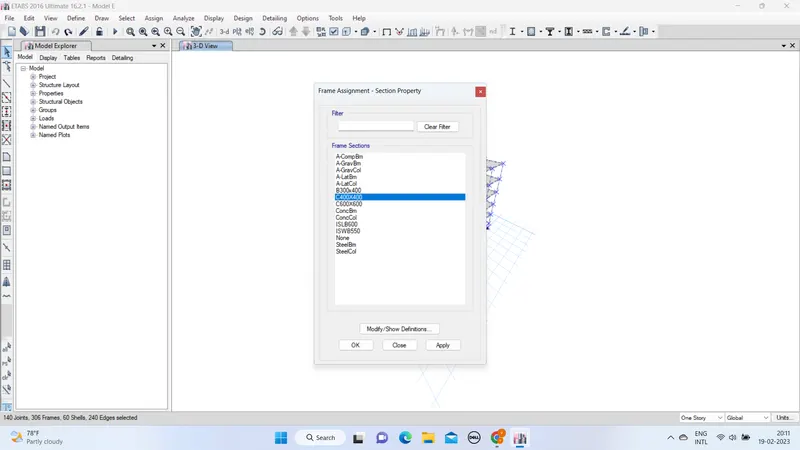

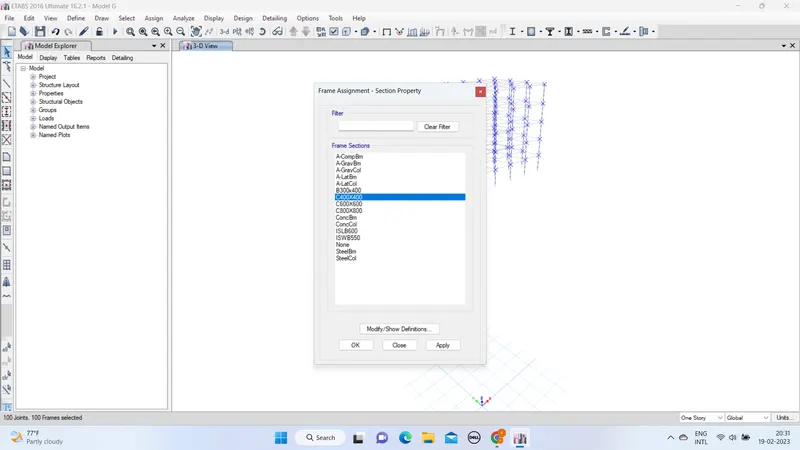

• Hence,first set the limit to bottom 5 > select all columns by holding the left-click and making the box around the entire model > go to assign and assign them the required column section.
• Repeat the procedure for the remaining top columns and complete with the model.







  BUILDING F (G+10)
  Consistent Column size throughout the structure :600x600

  PROCEDURE :

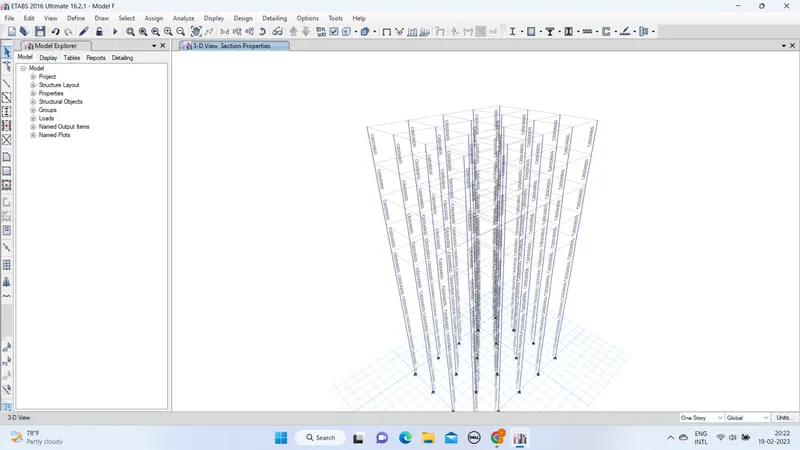

  This building has the same columns for the entire structure.Therefore,we dont need to do much editing in terms of the sections.We just need to adjust the view settings > hide beams and floors > select all the columns > assign them the frame section of C600x600

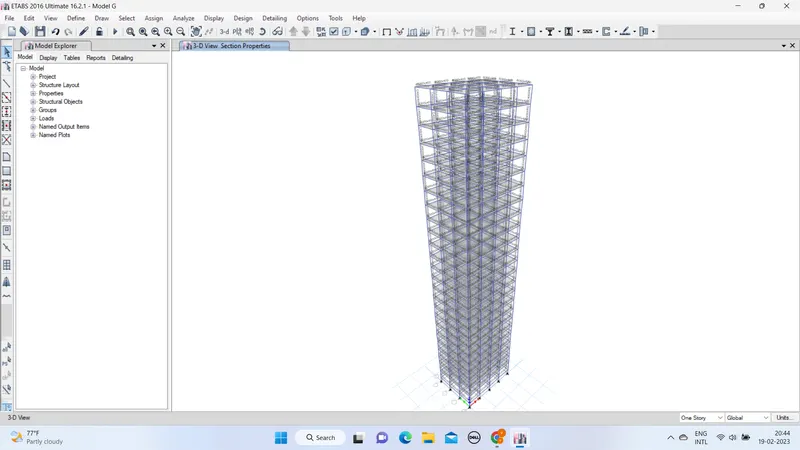

  BUILDING G (G+25)
  Columns for top 5 stories : C400x400
  Columns for middle 10 stories : C600x600
  Columns for bottom 10 stories : C800x800

  PROCEDURE :

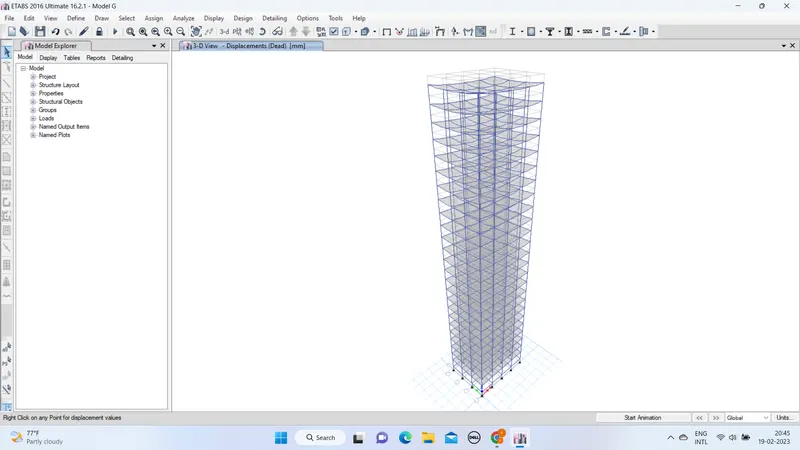

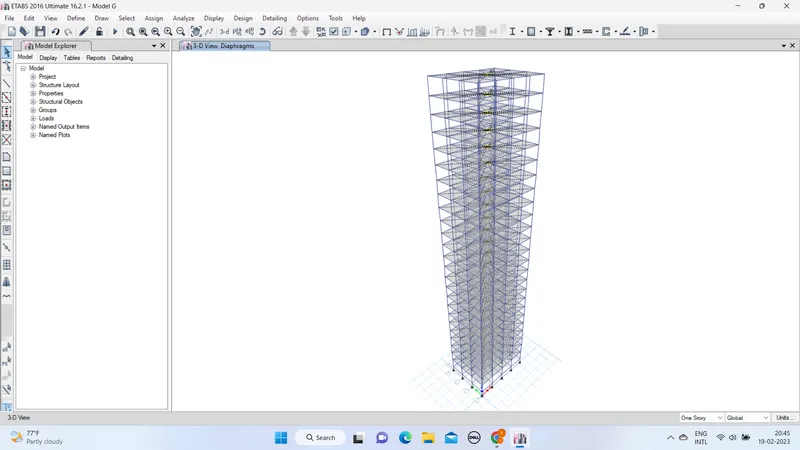

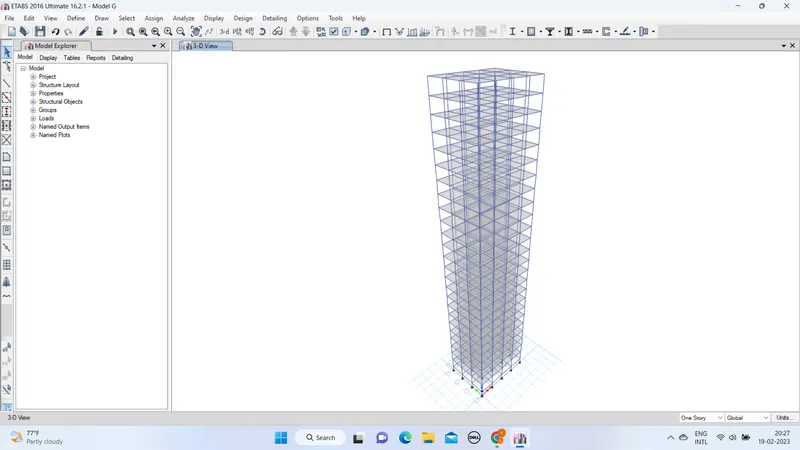

  For this model,we need to add 15 new stories and assign different column sizes on different floors.We can follow the exact procedure that has already been explained for the previousproject to create this model by editing model F.The same is discussed below :











  BUILDING H (G+25)
  Consistent column size throughout the building : C800x800

  PROCEDURE :
  This is the same model as the previous one.All we need to do is assign the column section as C800X800 for the entire structure which can be done by simply selecting all the columns > go to assign >select C800x800 > click ok and done. Thus the same procedure is listed down below for better understanding.

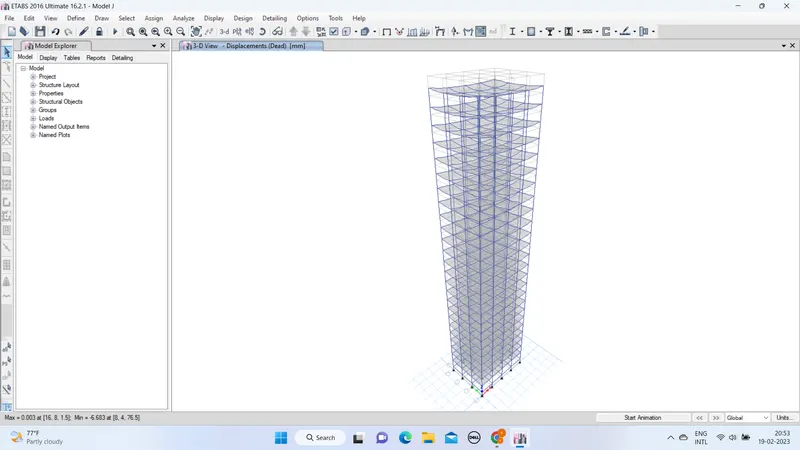

  BUILDING J (G+25)
  10% increment in the imposed loads

  PROCEDURE :

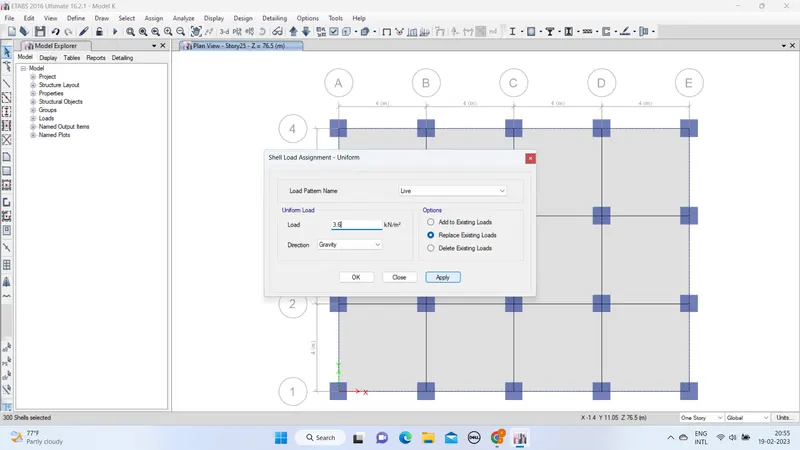

  Building J is the exact copy of building H and we dont need to alter anything related to the modelling.However,we need to increase the imposed load on building by 10% which is assigned as 3KN/m^2 on all slabs of the building.So,the procedure to do the same is listed down below :





  BUILDING K (G+25)
  20% increment in the imposed loads

  PROCEDURE :
  For this model,we can follow the exact procedure as we did for building J.However this time,we need to increase the live load by 20% as opposed to 10%.So, the stepwise procedure has been listed below :




  TASK 2 : COMPARATIVE ANALYSIS OF BUILDING PROPERTIES BASED ON THEIR STRUCTURAL OUTPUTS

  As we have completed the modelling and analysis of different storey buildings in the previous phase of this project , now we are going to compare those results and try to understand the change in behaviour of buildings based on their structural geometries.So, a comprehensive comparative analysis of structural propertis of different storey buildings is executed in the below sections on the basis of various criteria such as stiffness , mass , building height , etc.

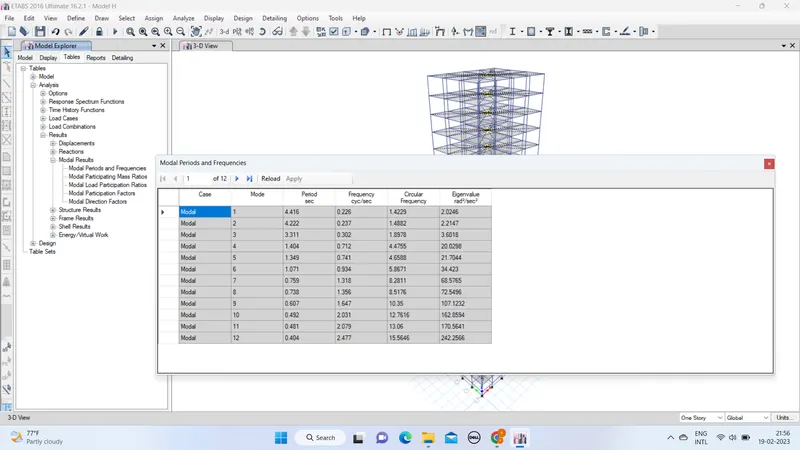

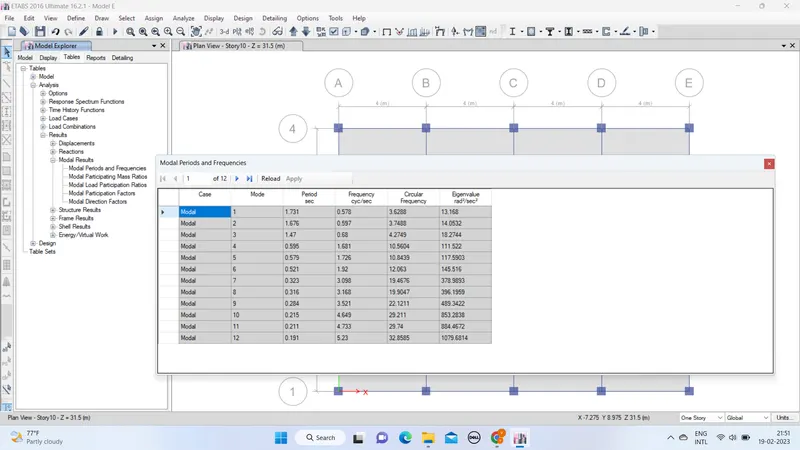

  Effect of stiffness on T :


  MODEL NAME	NO.OF STORIES	COLUMN DESIGN SPECIFICATIONS	NATURAL PERIOD (sec)
  BUILDING E	10	upper 5 storey : 400x400	1.73 s
  		bottom 5 storey : 600x600
  BUILDING F	10	All the columns of similar sizes:600x600	1.73 s

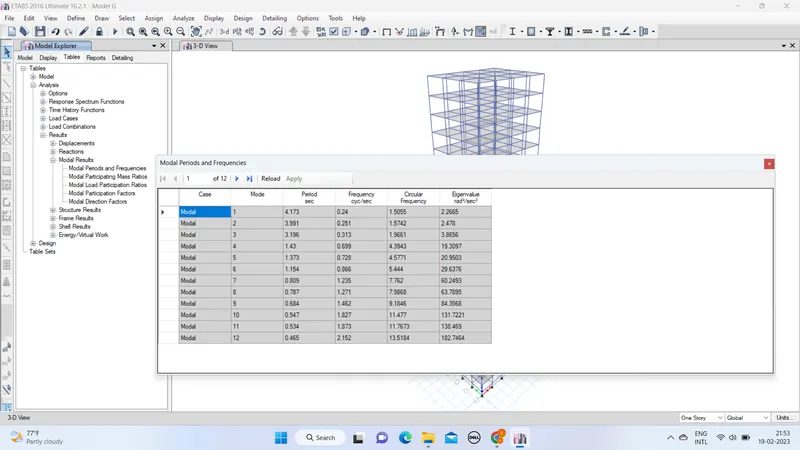

  BUILDING G	25	upper 5 storey : 400x400	4.17 s
  		middle 10 storey : 600x600
  		bottom 10 storey : 800x800
  BUILDING H	25	All the column of similar sizes : 800x800	4.41 s


  Conclusion :
  For buildings E and F , varying column design doesnt make a big difference as there are only five stories. However,we can see that for buildings G and H , the consistent column size throught the structure causes a more natural period. Therefore,it can be concluded that providing larger columns at the base and then reducing the size on top floors helps control the natural period T for all buildings.

  Effect of mass on T :

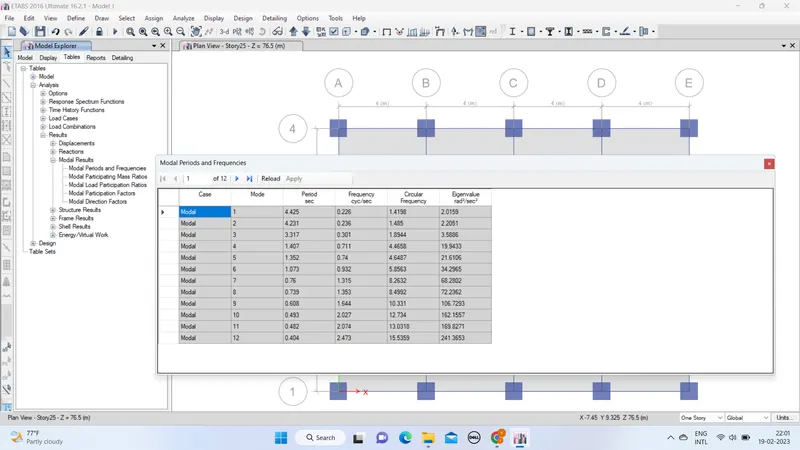

  MODEL NAME	NO.OF STOREYS	PERCENTAGE INCREASE IN MASS	NATURAL PERIOD (sec)
  BUILDING H	25	Regular mass with no increment	4.41 s
  BUILDING J	25	10% mass increment	4.42 s
  BUILDING K	25	20% mass increment	4.43 s


  Conclusion :
  As seen from table, the natural period for all buildings is directly proportional to the imposed mass of the building.

  Effect of building height on T :


  MODEL NAME	NO.OF STOREYS	TOTAL BUILDING HEIGHT(m)	NATURAL PERIOD (sec)

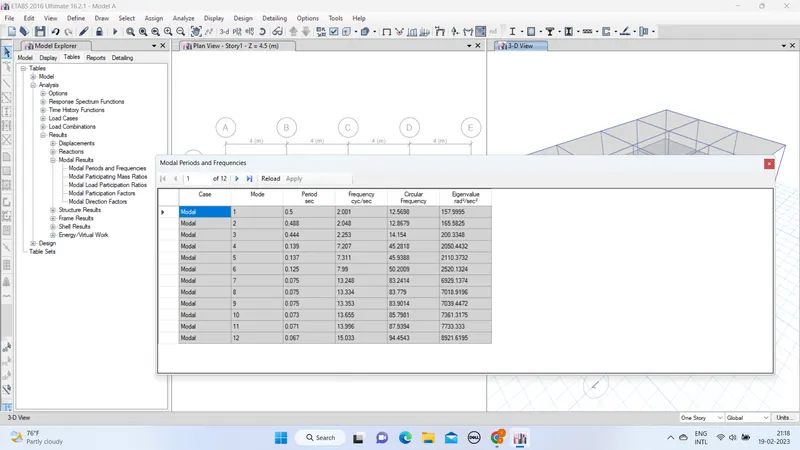

  BUILDING A	2	7.5	0.5 s
  BUILDING B	5	16.5	1.03 s
  BUILDING F	10	31.5	1.73 s
  BUILDING G	25	76.5	4.41 s


  Conclusion :
  As indicated in the above table , the natural period T is also directly proportional to the building height.

  Effect of column orientation on T :


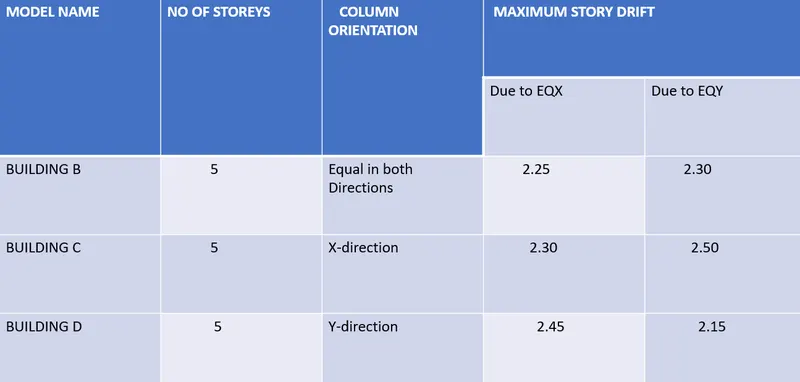

  Conclusion :
  When the column cross-section is square, there's not much difference between the lateral displacement in both the orthogonal directions. However, when you orient the column in a particular direction be it X or Y , the lateral displacement in that particular direction will be less than that in the other direction which has a lesser column length.

  Effect of Flexural Stiffness of Structural Elements on mode shapes :


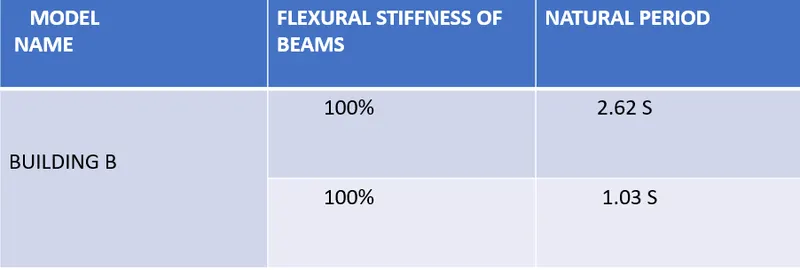

  Conclusion :
  It is pretty obvious that if you decrease the flexural stiffness of beams , the overall flexural strength of the beam is also going to reduce , and consequently ,the fundamental natural period will shoot up.

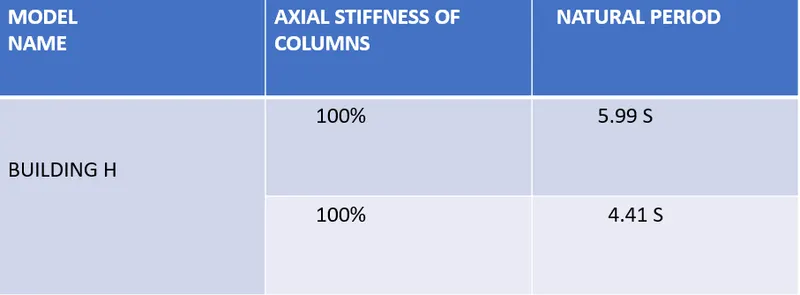

  Effect of Axial Stiffness of Vertical Members on mode shapes :



  Conclusion :
  As the axial stiffness of columns decreases, the fundamental natural period of the building increases regardless of its structural geometry.

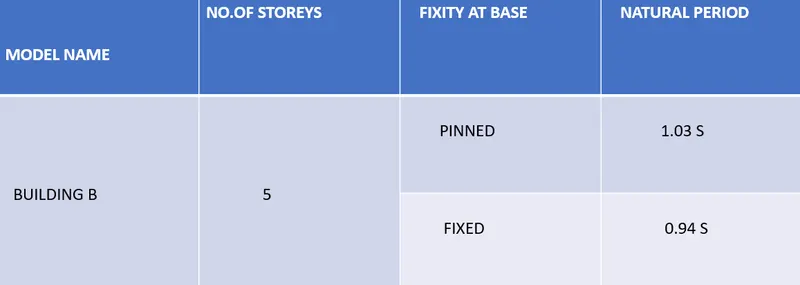

  Effect of Degree of Fixity at column bases on mode shape :


  Conclusion :
  It is evident that pinned support offers fewer restraints compared to the fixed one which leads to more movements and thus increased natural period.As a result , it can be concluded that the fixed support will give you better control over the fundamental natural period of buildings.
