Project 1

AIM: To route the wiring harness for the given engine. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. INTRODUCTION: WIRING HARNESS OR CABLE HARNESS: A cable harness, also known as a wire harness, wiring…

Aim - Flatten the harness assembly completed in “ week 4 challenge”. Place the flattened view on drawing sheet. Ensure bundles with protective coverings has different visuals on drawing view.   Process - 1.) Define the Connector a) Download Connector 3D Part from www.te.com DT06-4S b) Create…

Ans-  bundle continuty= Annotations =

  SOFTWARE USED : CATIA V5   STEPS TO DEFINE GIVEN HARNESS LAYOUT : First, download above mentioned connector 3D data from www.te.com Create necessary points and axis system on connectors and define them as electrical connector by using mentioned steps in below image.     DT06-4S    …

AIM:  Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html) Tyco 174357-2…

  AIM:= Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.   Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)…

pdf attached

pdf attached

Aims: Simulate the 3 test cases from harness dashboard and write a detailed report on the results. What is coulomb counting? Refer to the above model and explain how BMS implements coulomb counting for SOC estimation?   Theory: Matlab model to simulate the 3 test conditions from harness dashboard and to explain how…

1) Li-ion Batteries A lithium-ion battery or Li-ion battery is a type of rechargeable battery. Lithium-ion batteries are commonly used for portable electronics and electric vehicles and are growing in popularity for military and aerospace applications. Similar to the lead- and nickel-based architecture, lithium-ion uses…

Answer : THEORY Forward-Modelling Approach The forward modelling approach is also known as cause-effect, engine-to-wheel or rear-to-front method. The direction of calculation is the same as the direction of positive power flow, from engine-to-wheel. This approach is based on vehicle dynamics equations and the behaviour…

clear allclose allclc%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% Skill-Lync -> Hybrid Drives Development% Project 1 - Conventional Vehicle Model% By - Ullekh Gambhira % Description: %% Initialization File% Initialization file for loading the variables for the Conventional vehicle simulation…

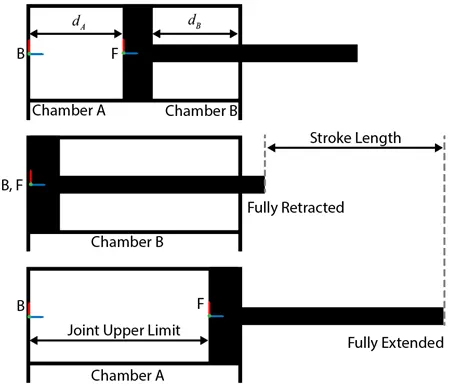

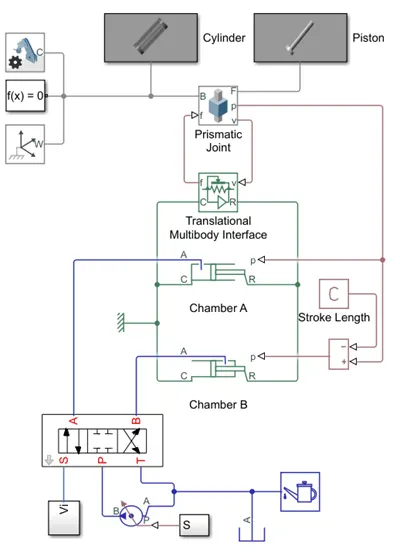

This example shows how to model a double-acting actuator with Simscape™ Multibody™ and Simscape. Simscape Multibody models the mechanical system of the cylinder, and Simscape models the hydraulic system. You can use Translational Multibody Interface block to connect the two systems. Cylinder…

Speed Control of a Direct Current (DC) motor Objective : In this project, a Simulink model for the DC motor will be first developed per the schematic. Use the Proportional, Integral, and Derivative (PID) control design knowledge gained in training to design, develop and test a controller to maintain a desired speed for…

In several upcoming labs, a primary goal will be to determine the mathematical relationship between two variable physical parameters. Graphs are useful tools that can elucidate such relationships. First, plotting a graph provides a visual image of data and any trends therein. Second, via appropriate analysis, they provide…

1) Battery,starter,breaker,ignition coil, distributor,generator,current,food selector switch  2)BATTERY ; What is the purpose of batteries?  Batteries and similar devices accept, store, and release electricity on demand. Batteries use chemistry, in the form of chemical potential, to store energy, just like…
