Challenge

Project 1

PPiyush Purushottam Raghorte18 Sept 2022
  • 1. Create Civil 3D Design File.

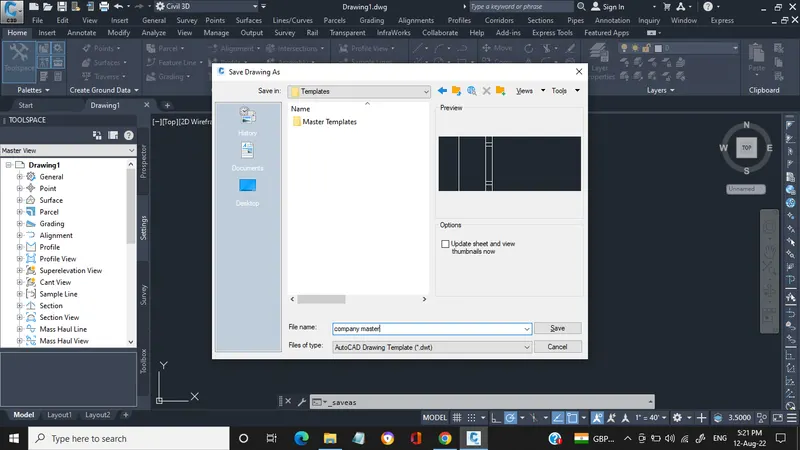

    • Create a company master template file.
    1. Open a new drawing page.
    2. Open file and click on a save as.
    3. Select the file location where you want.
    4. Naming a file as company master.
    5. Select the .dwt in files of type.
    6. Click on a save.
    • Get the necessary layers, text styles, blocks, dimension styles, multileader styles, and the layout from the .DWG CADD Standards File provided.
    1. Open a company master.dwt in Civil 3D which is we created recently.

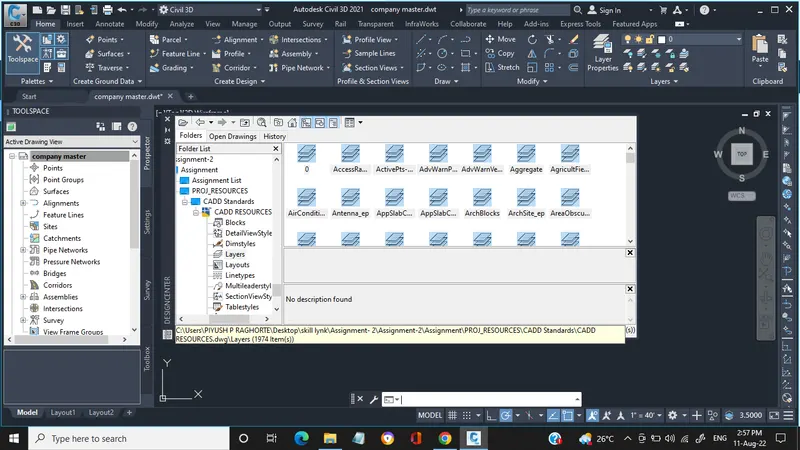

    2. Press control + 2 to open design centre.
    3. Open file location in design centre which is provided as project resources.
    4. Drag the files such as necessary layers, text styles, blocks, dimension styles, multileader styles, and the layout to the company master.dwt.

  • Create surface File & Create Surface by using given Survey Data.
    • Create an aerial file using the template file and Name the file using the naming convention outlined in the File Naming Convention folder.
    1. In Civil 3D go to file > open and select the path of company master.dwt and click on open.
    2. Go to file > save as and put the name of file using naming convection which is provided as AERIAL.dwg.

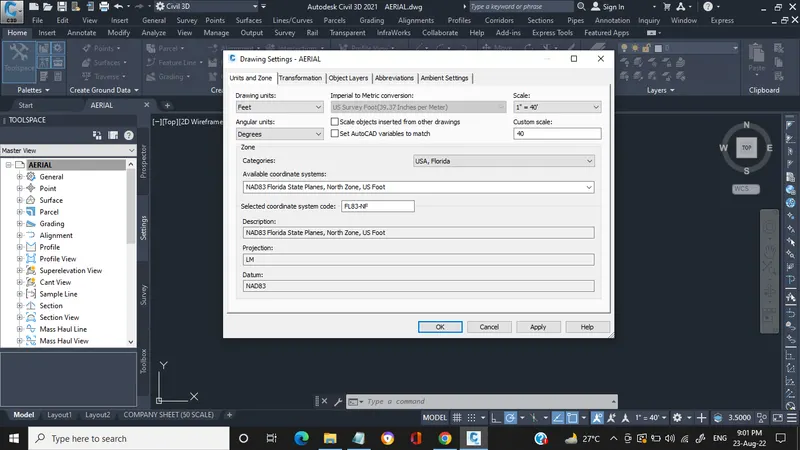

    3. Go to toolspace > drawing setting click a right click on aerial select edit drawing setting and set the co-ordinate as a FL83-NF.
    • Use the correct command to insert the aerials for the project as discussed in the lecture.
    1. A command of mapiinsert and press enter.

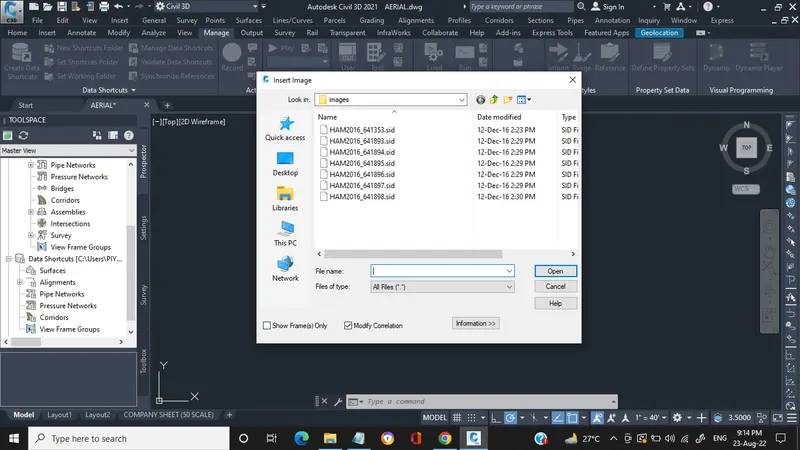

    2. Select a path of .Sid files select a files of required aerial and click on open. (press z enter e enter)

  • 3. Create Alignment by Using Proper Geometry Standard & apply Supeelevation.
    • Make sure the coordinate system is set to FL83-NF and Create Alignment file.
    1. In Civil 3D go to file > open and select the path of company master.dwt and click on open.
    2. Go to file > save as and put the name of file using naming convection which is provided as ALGNRD.dwg.
    3. Go to toolspace > drawing setting click a right click on ALGNRD select edit drawing setting and set the co-ordinate as a FL83-NF.

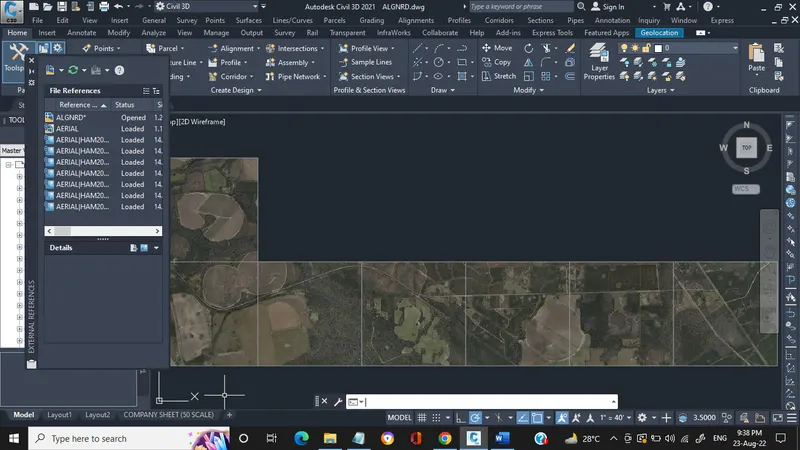

    4. Put a external reference file as aerial file to create alignment of existing road.

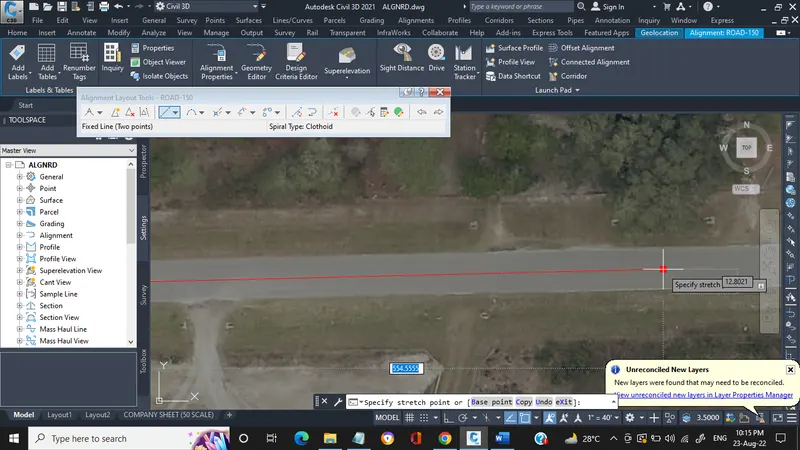

  2. create alignment of existing road with the help of alignment creation tool in CIVIL 3D.

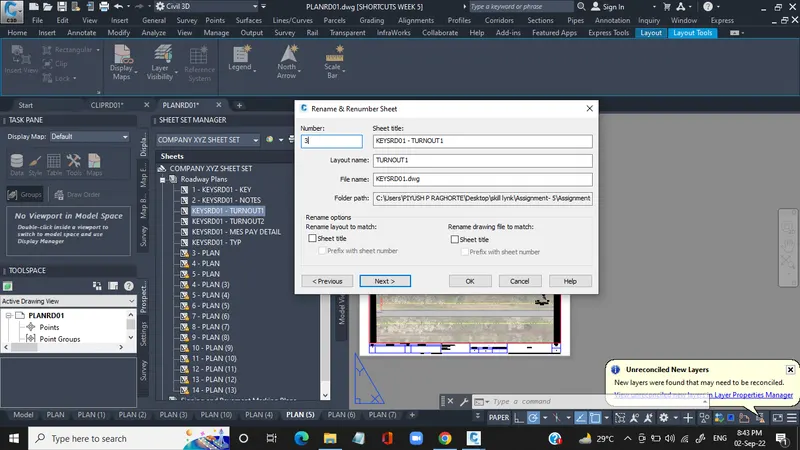

  • Create View frames & sheet & create seperate .dst file for the same.

  • 5. Workout quantity by using civil 3d.
    • Creating Quantity File.
    1. Open a new drawing page.
    2. Open file and click on a save as.
    3. Select the file location where you want.
    4. Naming a file as QTDSRD .
    5. Click on a save.
    • Copy in the DSGNRD01 AutoCAD objects into the file.
    1. Open file DSGNRD01.
    2. Press ctrl + A to select all objects in DSGNRD01.
    3. Copy all selected objects.
    4. Go to the QTDSRD.

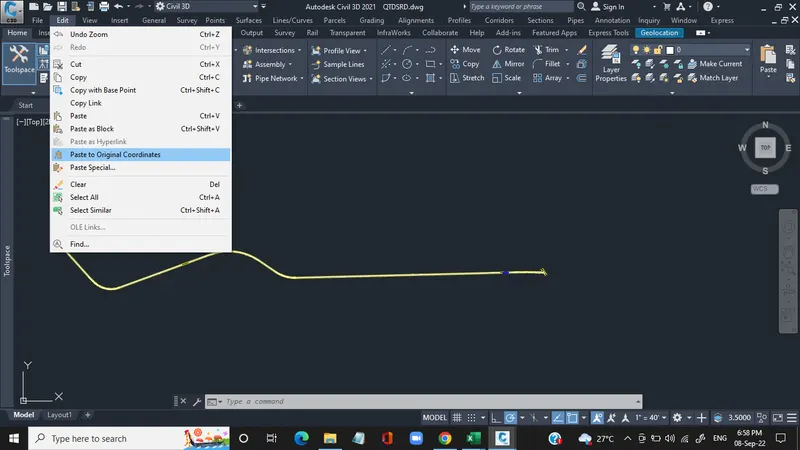

    5. In edit select paste with original coordinate.
    • Fix the pay items noted in the assignment video.

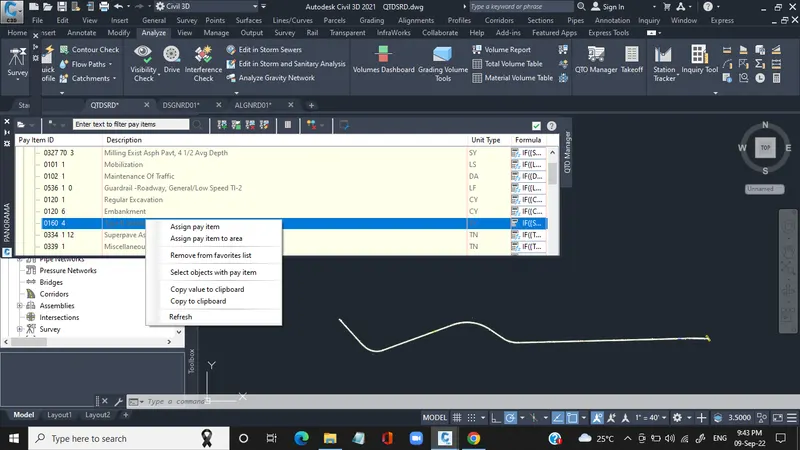

    • Using quantity manager, apply the appropriate pay items to the AutoCAD objects based upon the lecture.
    1. Draw AutoCAD item which is required for the pay items.
    2. Go to analyze and QTO manager.
    3. In QTO manager open master per items list file and original categorization file.
    4. Add a csv file in open pay item file window.
    5. Then assign the object to the pay item according to their items.
    • Perform quantity takeoff to create quantity summary sheets.
    1. After previous steps go to the analyze and takeoff.

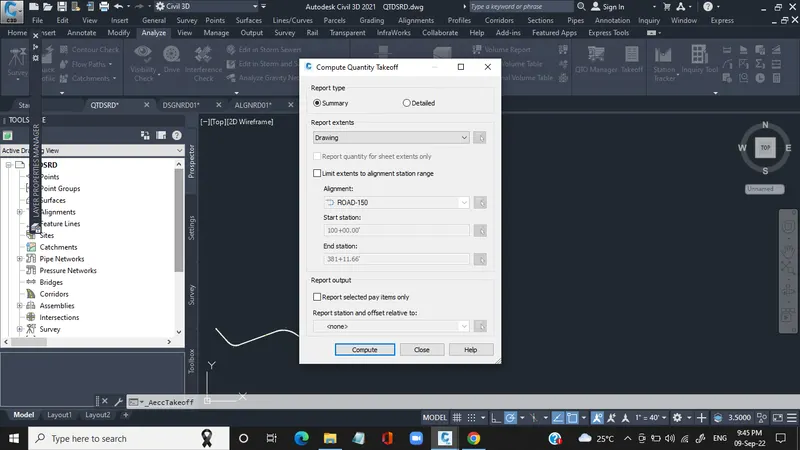

    2. In compute quantity take off selectionary and click on compute.
    3. In quantity takeoff report select summary html.xml and click on save as.
    4. Fillup the provide Excel sheets according to take off quantity.
    • Link the quantity summary Excel sheets into AutoCAD and create layouts.
    1. Create a new working file.
    2. Insert a layout form a design centre.
    3. Then go to annotate table and insert table.

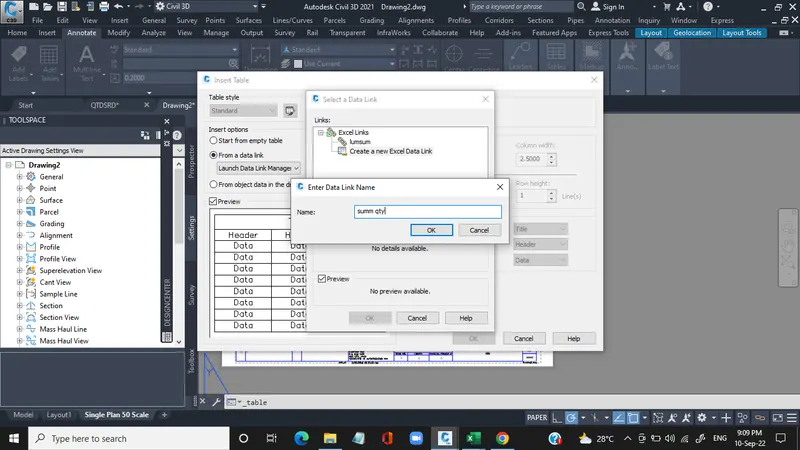

    4. In insert table window create a new Excel data link of Summary sheet.
