Project 1

Aim :- To get familiar with the modeling process, writing scripts in Matlab, modeling in Simulink, analyzing data and generating plots.

Task :- The task of this project is to compute the fuel economy numbers for the given vehicle (kmpl) on the urban cycle (UDDS) and highway cycle (HWFET). Also, to analyze and understand the vehicle operating points in terms of engine speed, torque, transmission speeds, pedal positions, gear, distance traveled, etc.

Objectives :-

a. Tabulate the fuel economy numbers (kmpl) for UDDS and HWFET cycle. This forms the baseline numbers for comparing with the future hybrid version.
b. Plot the time trace for engine, transmission input, transmission output and wheel speed on one plot.
c. Plot engine torque, engine power, fuel rate and fuel consumption using subplots.
d. Plot accelerator and brake pedal, gear command, vehicle desired and actual speed, vehicle distance using subplots.
e. Plot the engine operating points on the engine fuel map.
f. Write down appropriate brief comments on each of these plots, describing the vehicle behavior throughout the drive cycle.
g. Generate the plots for both drive cycles

Explanation of Given Data :-

“Project1_InitFile.m” is a Matlab script used to load all the variables required for running the Simulink model and for post-processing. The drive cycle selection is also done here. Before running the Simulink vehicle model, run this initialization script.

%% Vehicle Parameters
M = 1500; % Vehicle weight [kg]
Cr = 0.015; % Rolling resistance coefficient
Rw = 0.35; % Rolling radius [m]
Cd = 0.33; % Drag coefficient
Af = 2; % Frontal area [m2]
rhoa = 1.225; % Air density [kg/m3]
Vwind = 0; % Wind velocity [kmph]
g = 9.81; % Gravitational acceleration [m/s2]
theta = 0; % Slope [deg]
myu_road_tire = 1; % Coefficient of friction between tire - road interface

%% Powertrain Parameters
FDR = 3.73; % Final Drive Ratio / Diff Ratio
DiffEff = 0.99; % Differential efficiency (assumed independent of operating conditions)

NumGear = 4; % Number of gears in transmission
TransGear = [1:NumGear]; % Transmission Gears
TransRatio = [3.06, 1.62, 1, 0.7]; % Corresponding Transmission ratios
TransEff = 0.90; % Transmission efficiency (assumed independent of operating conditions)

TC_SR = [0, .5, .6, .7, .8, .87, .92, .94, .96, .97, 1]; % Torque Converter Speed Ratio (Matlab default) -> TurbSpd/PumpSpd
TC_TR = [2.232, 1.5462, 1.4058, 1.2746, 1.1528, 1.0732, 1.0192, 1, 1, 1, 1]; % Torque Converter Torque Ratio (Matlab default) -> TurbTrq/PumpTrq
TC_Cf = 1e-4 * [.72558, .66322, .63463, .59042, .51331, .4144, .29287, .22444, .12186, .04386, 0]; % Torque Converter Capacity Factor (Matlab default) -> PumpTrq/PumpSpd^2 [Nm/rpm^2]

load Vehicle_Data/Engine_data_1_9L_Saturn_95kW
load Vehicle_Data/Trans_Shift_map

%% Driver Parameters
Kp = 10; % P gain for driver PI model
Ki = 1; % I gain for driver PI model
Drive_Cycle_Select = 2; % Drive cycle selection

% Drive cycle values in m/s

if Drive_Cycle_Select == 1
load DriveCycles/UDDS;

elseif Drive_Cycle_Select == 2
load DriveCycles/HWFET;

elseif Drive_Cycle_Select == 3
load DriveCycles/FTP;

elseif Drive_Cycle_Select == 4
load DriveCycles/US06;

elseif Drive_Cycle_Select == 5
load DriveCycles/NEDC;

elseif Drive_Cycle_Select == 6
load DriveCycles/WLTP;

end

time_end = cyc_time(end);
vel_end = cyc_vel(end);

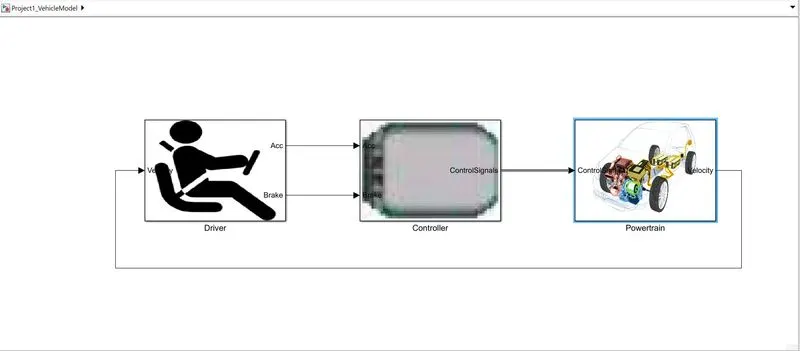

“Project1_VehicleModel.slx” is the Simulink model of the vehicle. It is modeled using a ‘Driver’ block, which is a basic PI controller that generates accelerator and brake pedal outputs to match the desired and actual vehicle speeds. The ‘Controller’ block is the brains of the vehicle, representing the electronic controls units. Based on the driver inputs, it generates desired engine torque, desired transmission gear and desired brake torque. These inputs are fed to the ‘Powertrain’ block which represents the drivetrain of the vehicle. It consists of an ‘Engine’ connected to the ‘Automatic Transmission’ through a ‘Torque Converter’. The output of the transmission is connected to the ’Differential’, which powers the ‘Wheels’, that provides the tractive force for vehicle acceleration. The longitudinal dynamics of the vehicle along with the road load is represented in the ‘Vehicle Dynamics’ block. The solver selected is ode3 with a fixed step size of 0.01 sec.

After running this Simulink model, data from the model will be loaded in the Matlab workspace.

“Project1_ProcessingFile.m” is the Matlab script used to analyze this data and to generate plots. This script needs to be executed after the Simulink model data has been loaded into the workspace.

%% Post-Processing File
% File for post-processing the Conventional vehicle simulation model data

%% Renaming variables
Time = out.tout;
Acc_Pdl = out.Acc_Pdl; % Accelerator pedal [%]
Brk_Pdl = out.Brk_Pdl; % Brake pedal [%]
Gear_Cmd = out.Gear_Cmd; % Transmission gear
Trans_In_Spd = out.Trans_In_Spd*30/pi; % Transmission input speed [rpm]
Trans_Out_Spd = out.Trans_Out_Spd*30/pi;% Transmission output speed [rpm]
Eng_Trq = out.Eng_Trq; % Engine brake torque [Nm]
Eng_Spd = out.Eng_Spd*30/pi; % Engine speed [rpm]
Eng_Fuel_Consump = out.Eng_Fuel_Consumption; % Engine fuel consumption [g]
Veh_Dist = out.Veh_Dist/1000; % Distance traveled by vehicle [km]
Veh_Spd = out.Veh_Spd*18/5; % Vehicle speed [kmph]
wheel_spd = out.wheel_Spd;
Eng_Fuel_Rate = out.Eng_Fuel_Rate;
%% Data Analysis
Eng_Pwr = (Eng_Spd*pi/30).*Eng_Trq/1000; % Engine brake power [kW]
rho_petrol = 0.7197; % Density of petrol [kg/L]
kmpl = Veh_Dist(end)/(Eng_Fuel_Consump(end)/1000/rho_petrol); % Fuel economy [kmpl]

%% Plotting vehicle characteristics time trace
figure()
subplot(3,1,1)
hold on
grid on
plot(Time, Acc_Pdl, 'linewidth', 1, 'Color', 'black');
plot(Time, Brk_Pdl, 'linewidth', 1, 'Color', 'red');
ylabel('Pedal [%]')
xlim([0, Time(end)]);
legend('Accel','Brake');
subplot(3,1,2)
hold on
grid on
plot(Time, Trans_In_Spd, 'linewidth', 1, 'Color', 'black');
plot(Time, Trans_Out_Spd, 'linewidth', 1, 'Color', 'red');
ylabel('Speed [rpm]')
xlim([0, Time(end)]);
ylim([0, 6000]);
legend('Trans Input','Trans Output');
subplot(3,1,3)
hold on
grid on
plot(Time, Gear_Cmd, 'linewidth', 1, 'Color', 'black');
xlim([0, Time(end)]);
xlabel('Time [s]');
ylabel('Gear');

%% Plotting engine operating points on engine fuel map
figure('Name','Engine Operating Points');
hold on
grid on
title('Engine Operating Points','fontsize',12);
p1=plot(Eng_map_spd*30/pi,Eng_max_trq,'linewidth',2,'color','r');
p2=line([Eng_map_spd(end)*30/pi Eng_map_spd(end)*30/pi],[0 Eng_max_trq(end)]);
set(p2,'linewidth',1,'linestyle','--','color','k');
p3=line([Eng_map_spd(1)*30/pi Eng_map_spd(1)*30/pi],[0 Eng_max_trq(1)]);
set(p3,'linewidth',1,'linestyle','--','color','k');
[c,h] = contour(Eng_map_spd'*30/pi,Eng_map_trq,Eng_fuel_map');
clabel(c,h);
xlabel('Engine Speed [rpm]');
ylabel('Engine Torque [Nm]');
title('Engine Fuel Consumption Map [g/s]');
p4 = plot(Eng_Spd,Eng_Trq,'.','color','k');
legend([p1 p4],{'Max Curve','Operating Points'});
axis([Eng_map_spd(1)*30/pi Eng_map_spd(end)*30/pi 0 Eng_map_trq(end)]);

%% Plotting engine torque, engine power,fuel consumption

figure()
subplot(4,1,1)
hold on
grid on
plot(Time,Eng_Trq , 'linewidth', 1, 'Color', 'black');
ylabel('engine torque')
xlim([0, Time(end)]);
legend('engine torque');
subplot(4,1,2)
hold on
grid on
plot(Time,Eng_Pwr, 'linewidth', 1, 'Color', 'red');
ylabel('Eng Pwr')
xlim([0, Time(end)]);
legend('Eng Pwr');
subplot(4,1,3)
hold on
grid on
plot(Time,Eng_Fuel_Consump, 'linewidth', 1, 'Color', 'green');
xlim([0, Time(end)]);
xlabel('Time [s]');
ylabel('Eng Fuel Consump');
subplot(4,1,4)
hold on
grid on
plot(Time,Eng_Fuel_Rate, 'linewidth', 1, 'Color', 'red');
ylabel('Eng Fuel Rate')
xlim([0, Time(end)]);
legend('Eng Fuel Rate');

%% Plotting engine speed, transmission input,transmission output,wheel speed

figure()
hold on
grid on
plot(Time,Eng_Spd,'linewidth', 1, 'Color', 'green');
plot(Time, Trans_In_Spd, 'linewidth', 1, 'Color', 'black');
plot(Time, Trans_Out_Spd, 'linewidth', 1, 'Color', 'red');
plot(Time,wheel_spd,'linewidth', 1, 'Color', 'blue');
xlim([0, Time(end)]);
xlabel('Time [s]');
ylabel('speed');
legend('Eng Spd','Trans Input','Trans Output','wheel spd');

To simulate the vehicle model on UDDS and HWFET drive cycles :-

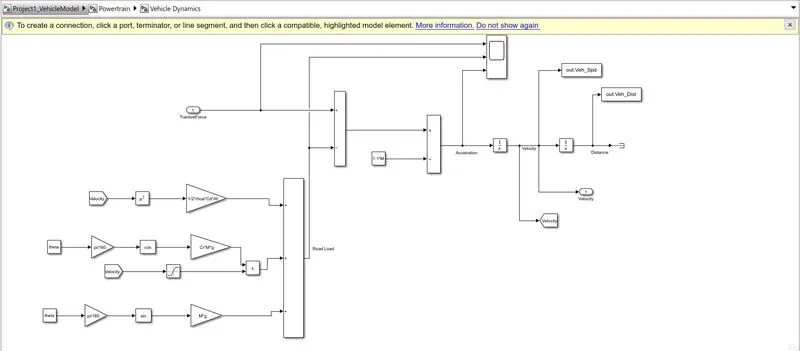

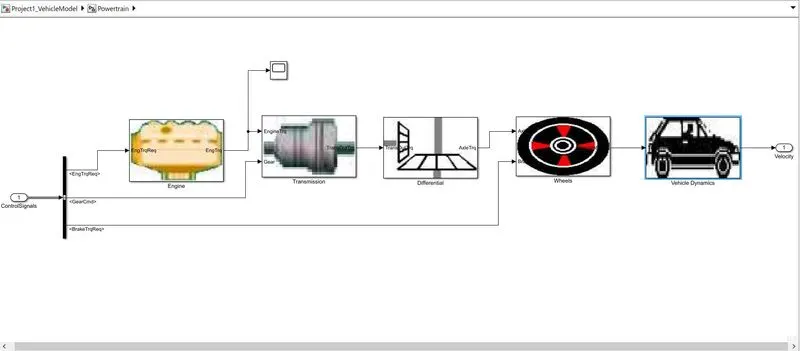

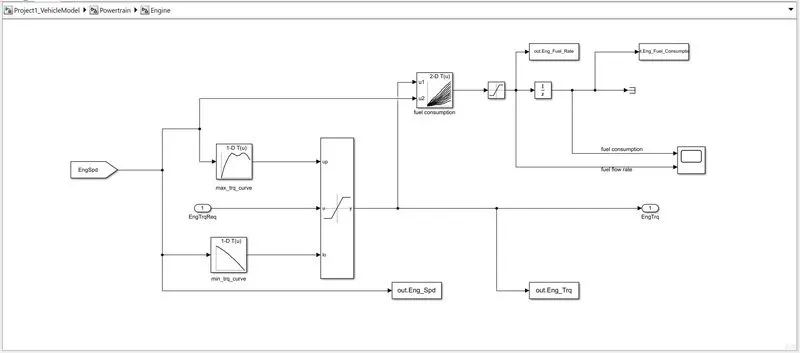

Firstly I have run the “Project1_InitFile.m” to load all the variables required for running the Simulink model and for post-processing. The drive cycle selection is also done here. Before running the Simulink vehicle model, run this initialization script. After that,I have opened given vehicle model file “Project1_VehicleModel.slx” in the Simulink and completed engine and vehicle dynamic block.The engine and vehicle dynamic block is shown in following images.

Results :-

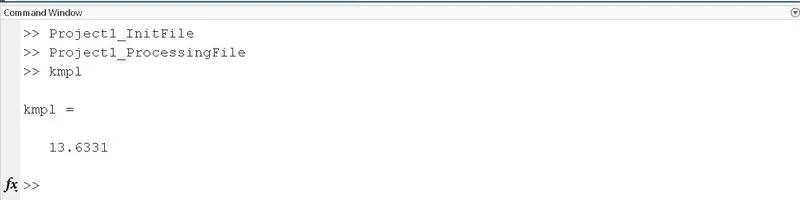

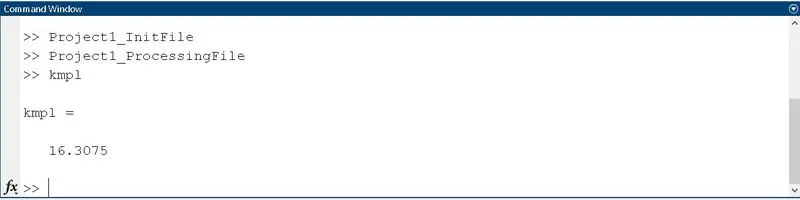

* The fuel economy numbers (kmpl) for UDDS cycle.

* The fuel economy numbers (kmpl) for HWFET cycle.

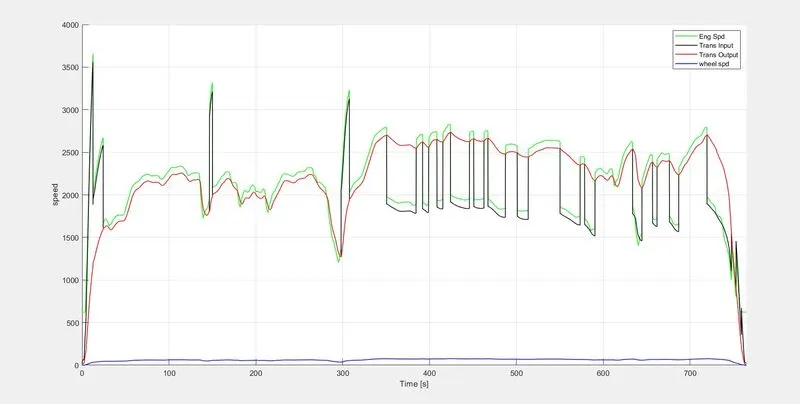

* Plot the time trace for engine, transmission input, transmission output and wheel speed on one plot.

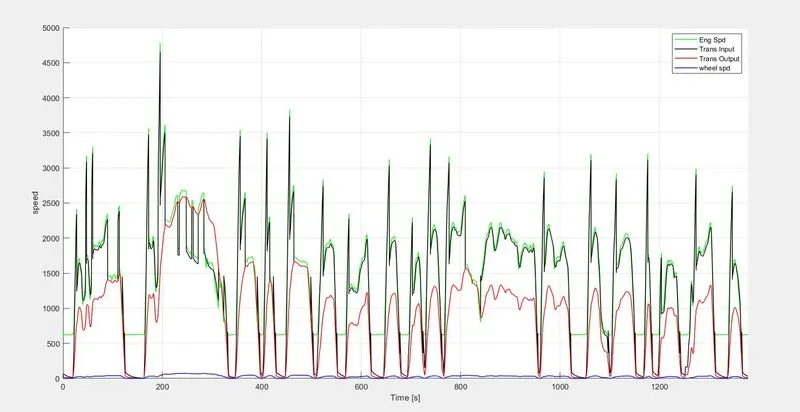

# Plot for UDDS drive cycle :-

# Plot for HWFET drive cycle :-

In above images time trace plot for engine speed ,Transmission input and output speed,wheel speed are shown for UDDS and HWFET drive cycle respectively.This data we get from engine ,transmission and wheel blocks of powertarin. from respective blocks this data is transfered to workspace .As shown in above image ,speed get reduces from engine to wheel.

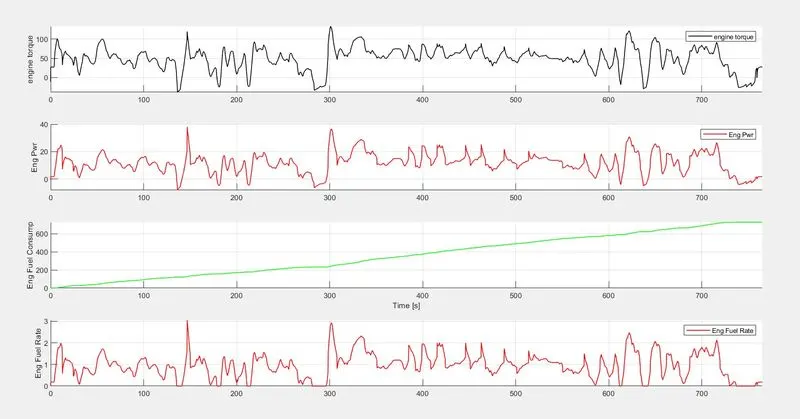

* Plot engine torque, engine power, fuel rate and fuel consumption using subplots.

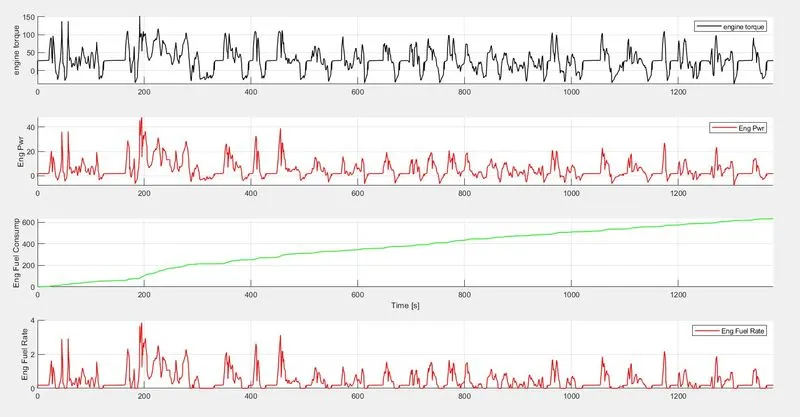

# Plot for UDDS drive cycle :-

# Plot for HWFET drive cycle :-

The above plot shows the variation in engine torque,engine power ,fuel rate and fuel consumption.As the requirement of engine torque and power increases,the fuel rate also get increased.

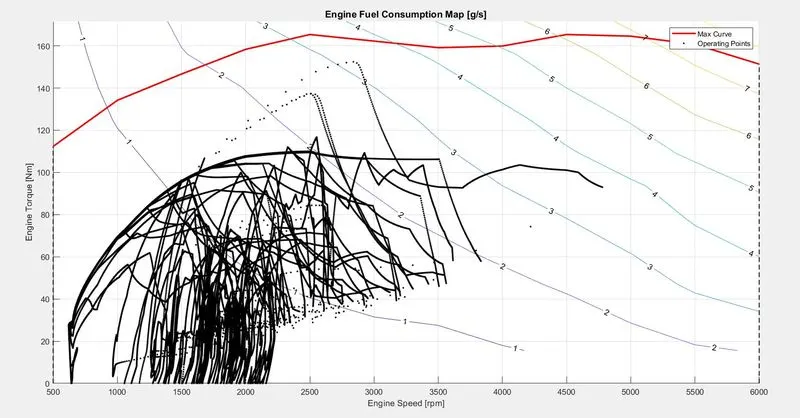

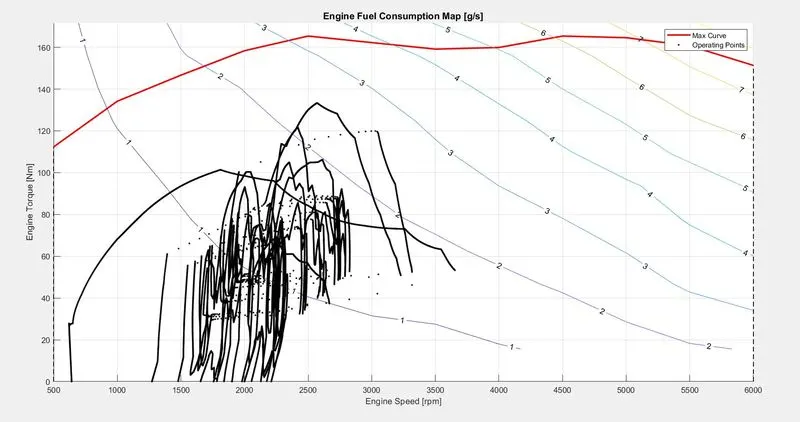

* Plot the engine operating points on the engine fuel map. :-

# Plot for UDDS drive cycle :-

# Plot for HWFET drive cycle :-

The engine operating points are speed and torque points obtained from simulation results which is plotted on the speed and torque input map showing the area where the engine operates with respect to the data provided.

For a given power requirement, the number of gears in a transmision provide the number of operating points for the powertrain in terms of torque and speed.

In the above images the operating points are shown by "." .
