Project 1

Aim : To calculate the dead load , IRS live loads , Earth pressure load , wind load and seismic loads for the bridge structure at Ahmedabad Metro rail project and model the bridge structure in Staad Pro and apply all the calculated loads.

Introduction : The given bridge is of Ahmedabad Metro rail project. The structure is divided into floors as per drawing as follows , Rail level, platform level, concourse level and Roof level. Each floor will carry suitable dead and live loads along with wind and seismic. Assume the unit weight of soil as 18 kN/m3 . Use IS 875 code book for finding the Basic wind speed at the site location. Use IS 1893 code book for determining the seismic zone. Assume suitable data.

Procedure :

Step 1 - Staad Modelling

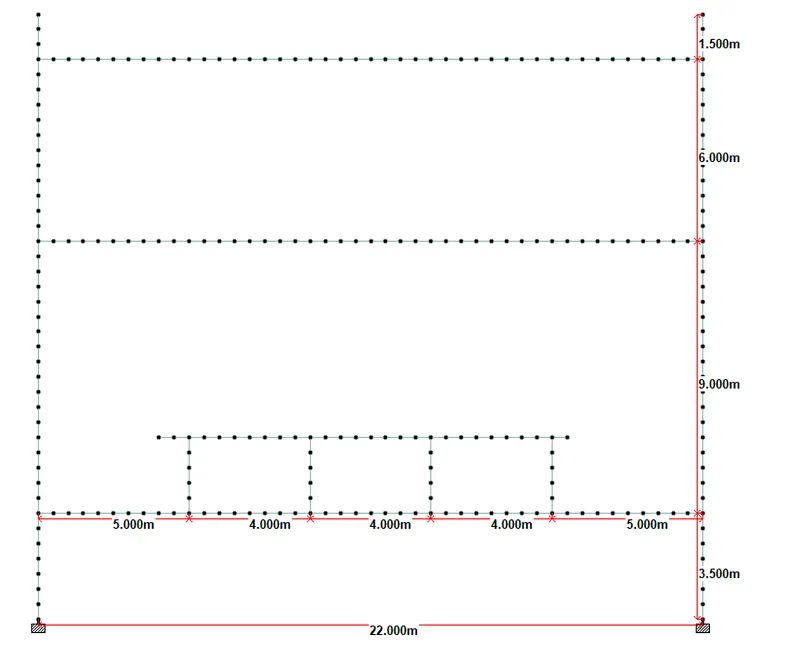

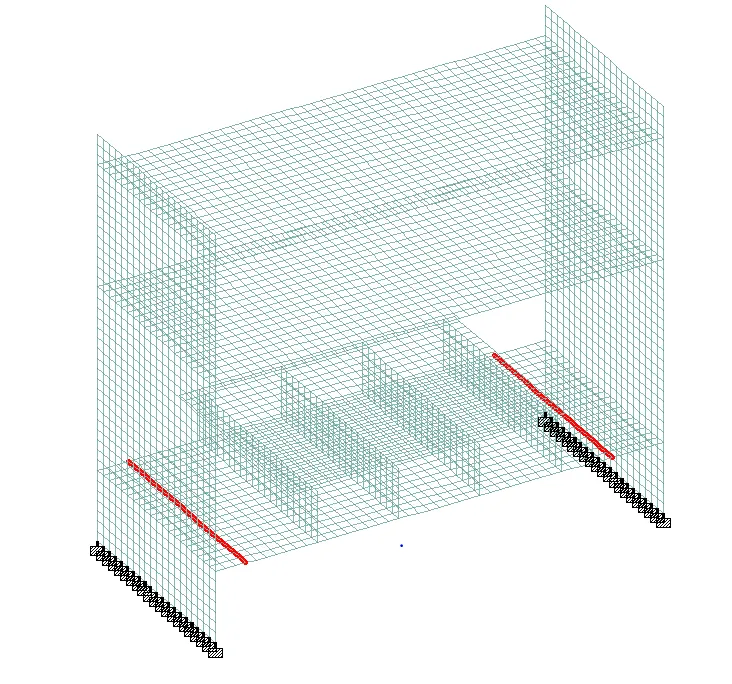

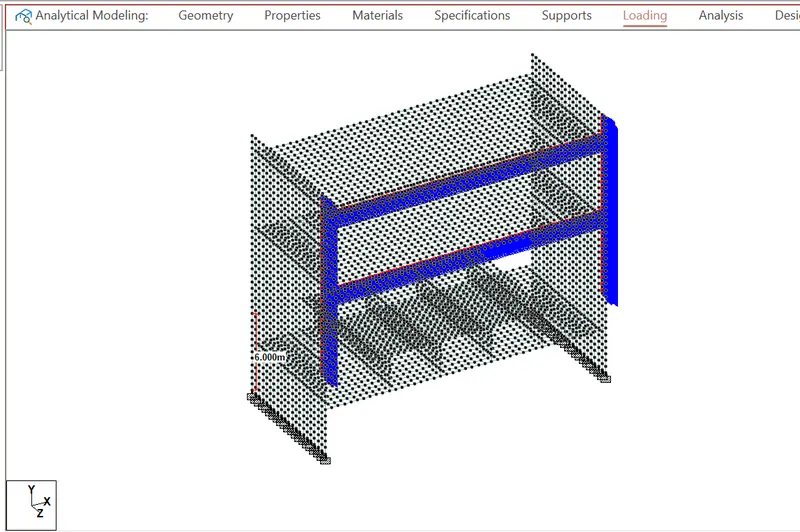

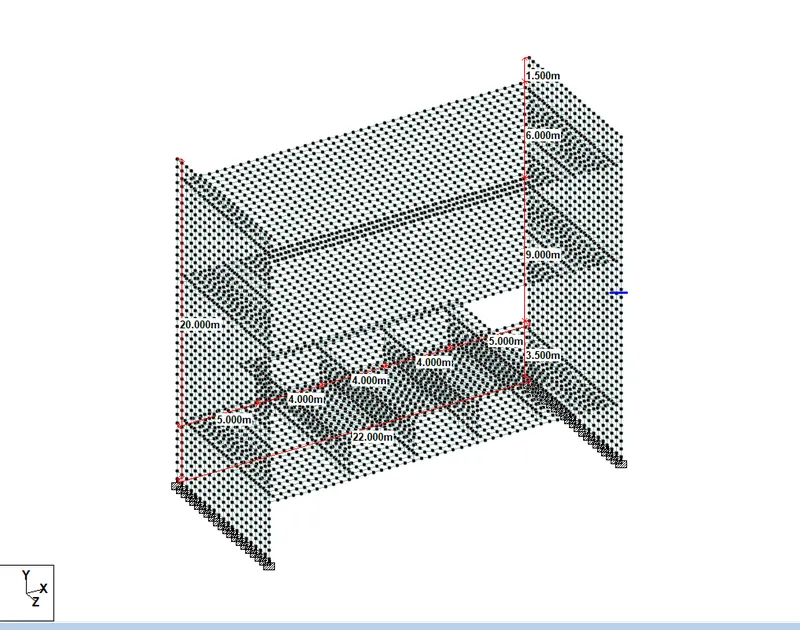

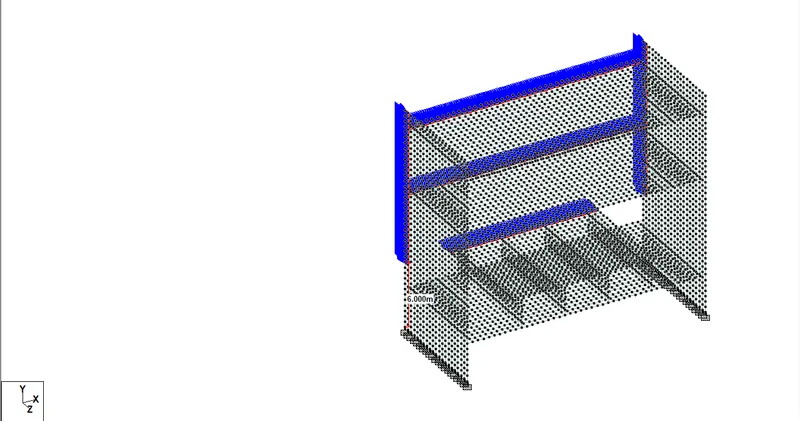

The Staad model provided is as follows

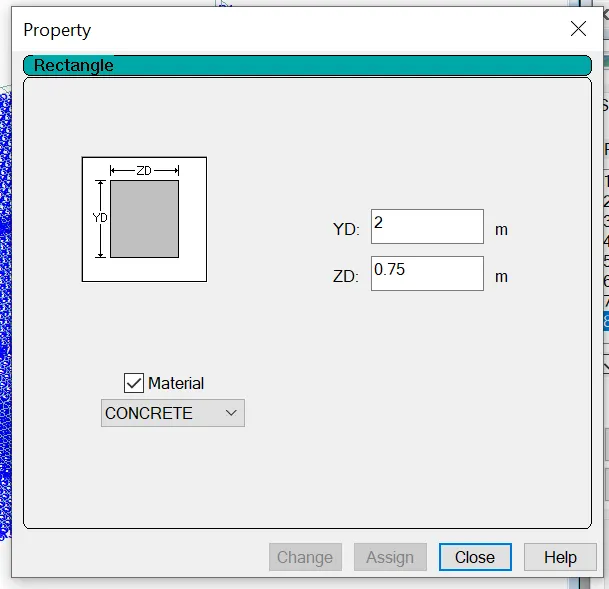

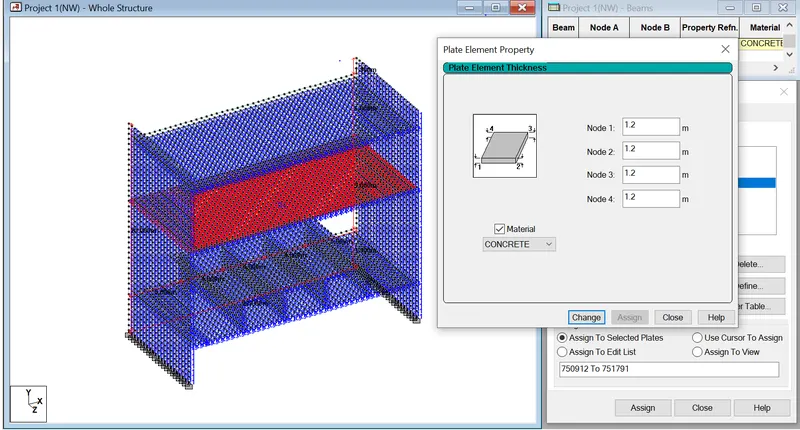

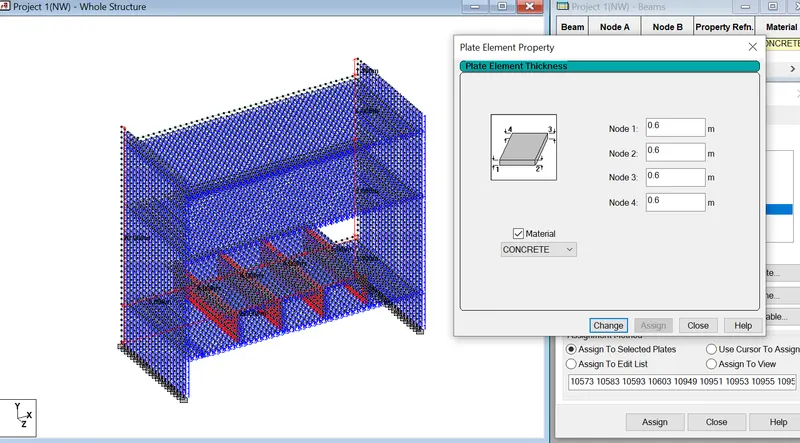

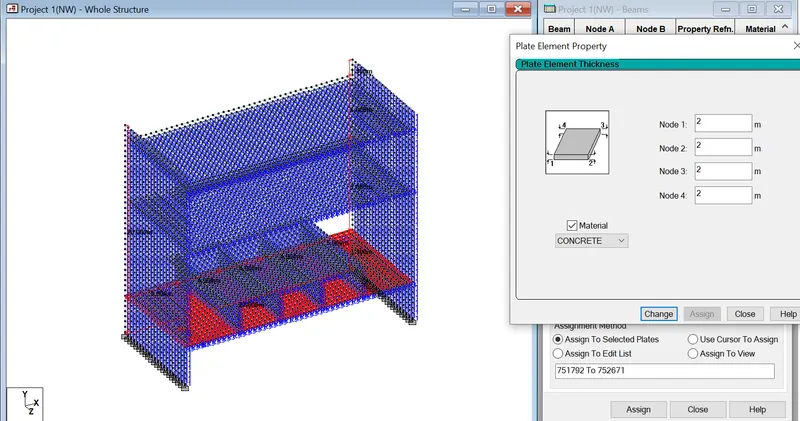

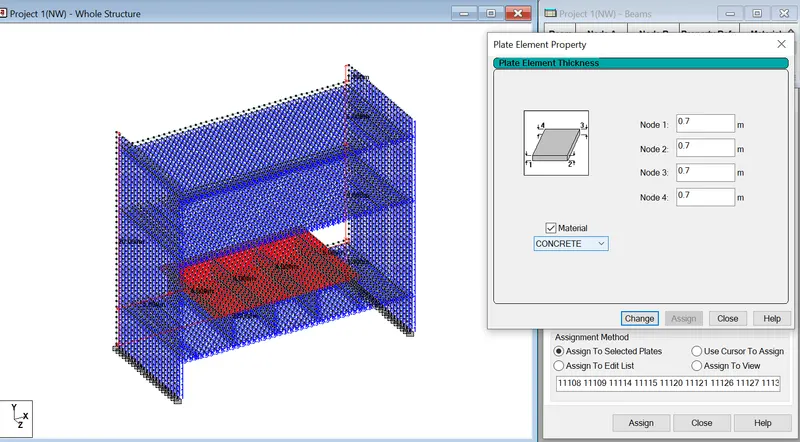

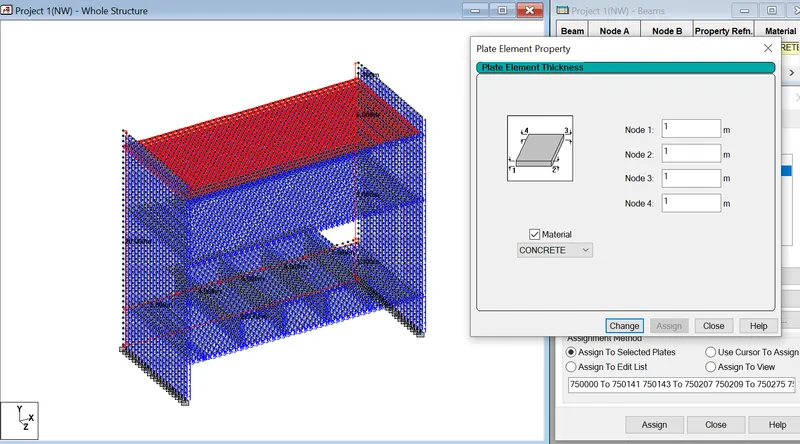

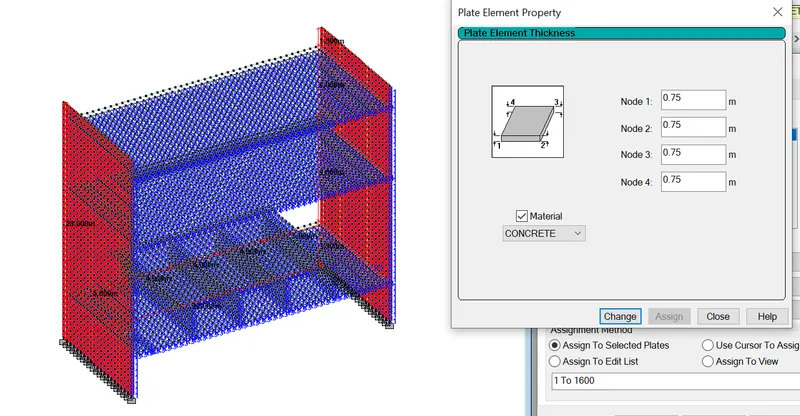

Member Properties

Step 2: Calculation of Loads

Dead Load

Assigning self weight factor of -1 to the staad for Dead load of the structure

Live Load

Since this is a metro rail project, metro loading shall be applied in the structure as per IRS

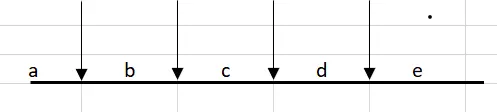

a=e=2.1m b=d=2.2m c=12.4m

All the axle loads are of 170kN

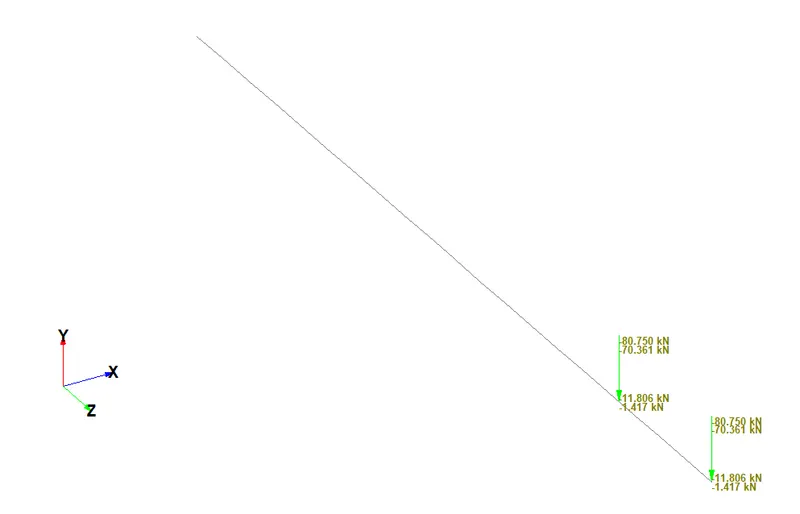

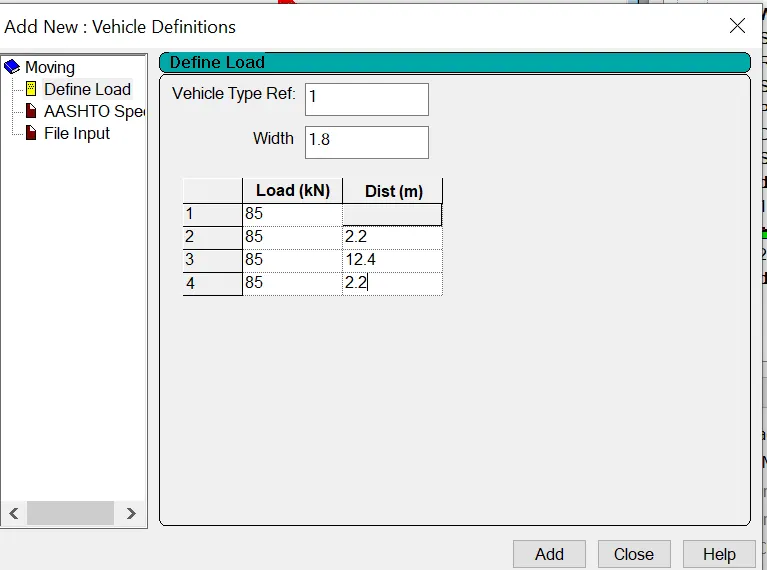

Staad Input:

Applying the load on beam provided for rail track structure

Assuming 1 lane for going and one load for coming

Earth Pressure Load

Assuming the portion between bottom of base slab and top of foundation is filled with soil of unit weight 18kN/m3

Assuming active earth pressure coefficient Ka = 0.35

Earth pressure coefficient at rest Ko=0.5

Unit weight of soil = 18 kN/m3

Height of earthfill between walls =3.5m (Foundation top to bottom of base slab)

Height of earthfill outside walls = 6m (Foundation top to platform level)

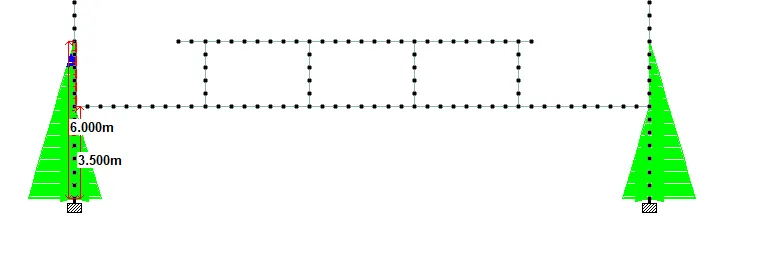

Force applied on Staad

Active Earth pressure P1 between walls= 0.35 x 18 x 3.5 = 22.05 kN/m2

Active Earth pressure P1 outside walls= 0.35 x 18 x 6 = 37.8 kN/m2

Earth pressure P2 at rest between walls = 0.5 x 18 x 3.5 = 31.5 kN/m2

Earth pressure P2 at rest outside walls = 0.5 x 18 x 6 = 54 kN/m2

Effective pressure that acts on the wall

Active earth pressure P1 = 37.8- 22.05 = 15.75 kN/m2

Earth pressure at rest P2 = 54 -31.5 = 22.5 kN/m2

Wind load

WInd Load is calculated as per IS 875 Part 3.

As per the code,

Design Wind Speed Vz = Vb x k1 x k2 x k3 x k4

Vb = basic wind speed

For Ahmedabad Vb=39m/s as per Annex A

k1 = Risk Coefficient = 1.06 from table 1

Assuming terrain category 3 and height of bridge is 10m

k2 = 0.91

Since there is no inclination k3 = 1

k4 = 1

Vz = 39x1.06x0.91x1x1 = 37.6 m/s

Wind pressure Pz = 0.6 x Vz x Vz = 848.2 N/m2 = 0.85 kN/m2

Design wind pressure Pd = Kd x Ka x Kc x Pz

Kd = 1

Ka = 1

Kc = 0.9

Pd = 0.85x1x1x0.9 = 0.765 kN/m2

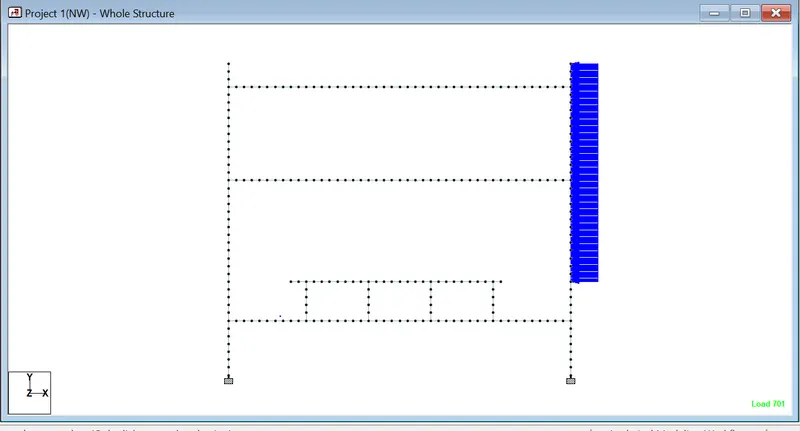

This pressure is directly applied on the plates in X direction

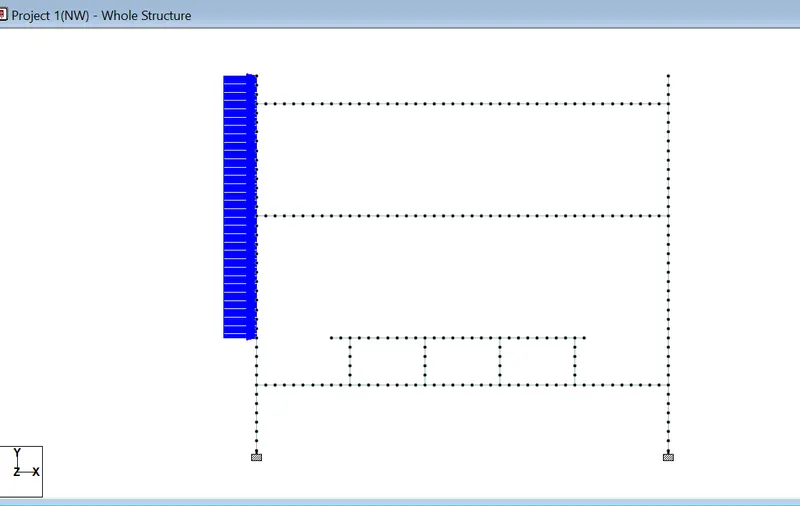

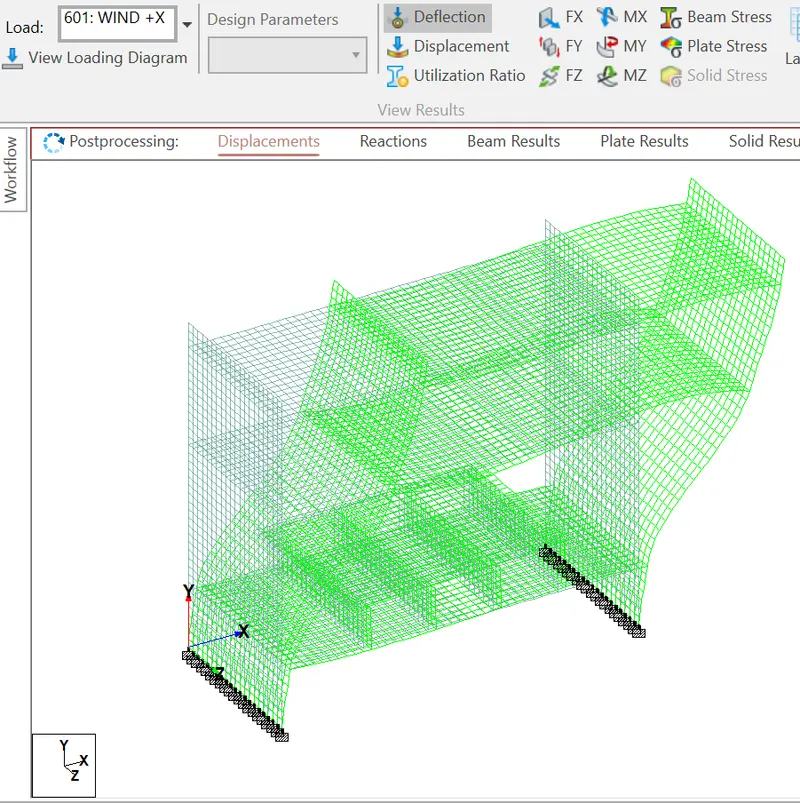

Positive X direction

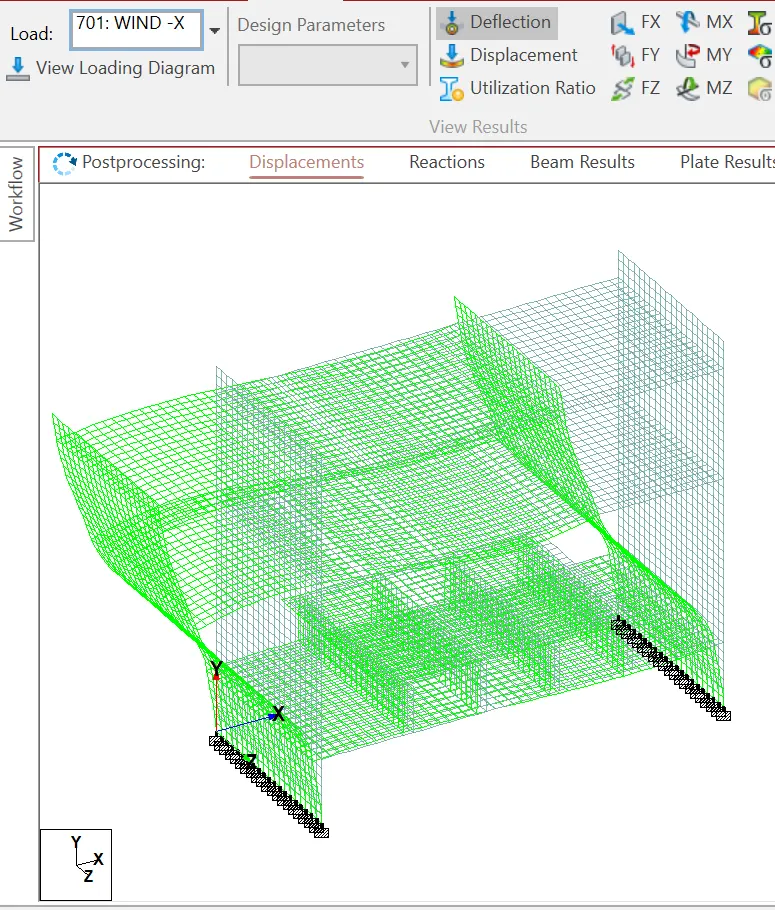

Negative X direction

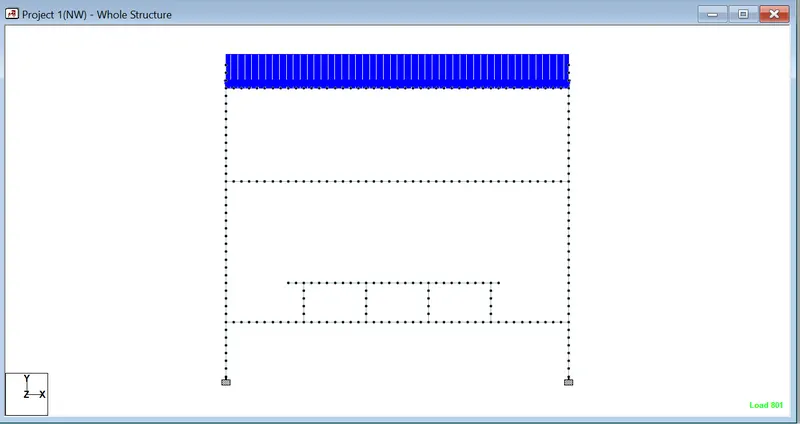

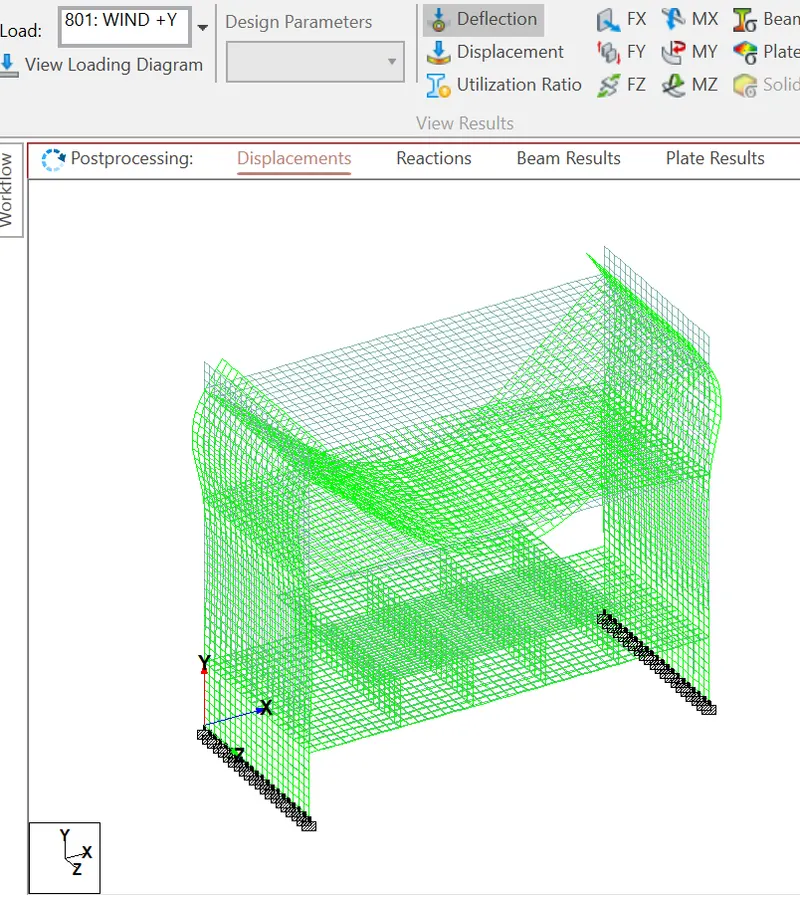

Wind Positive Y is applied on top slab

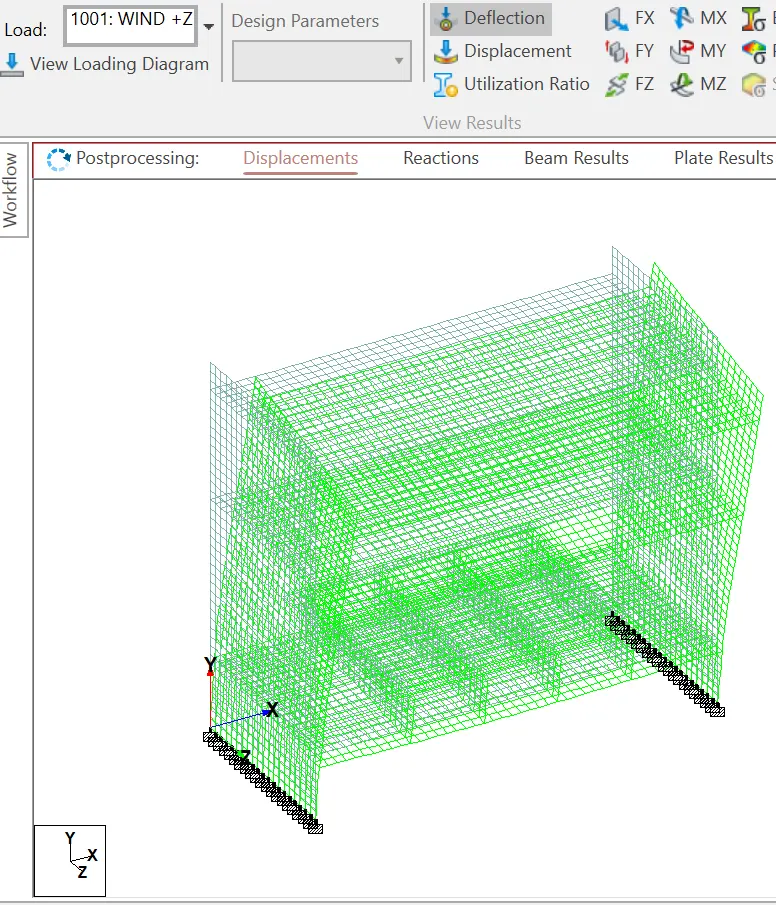

Wind in Positive Z direction

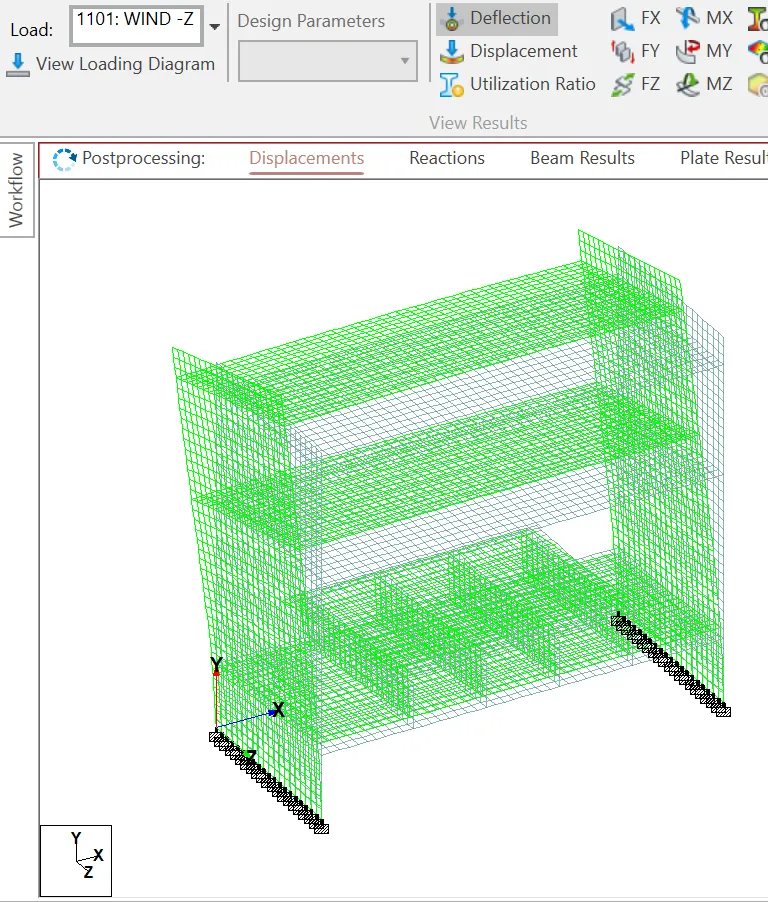

Wind in negative Z direction

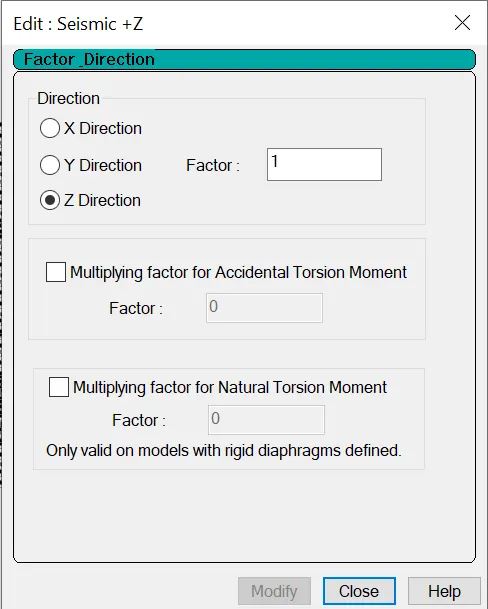

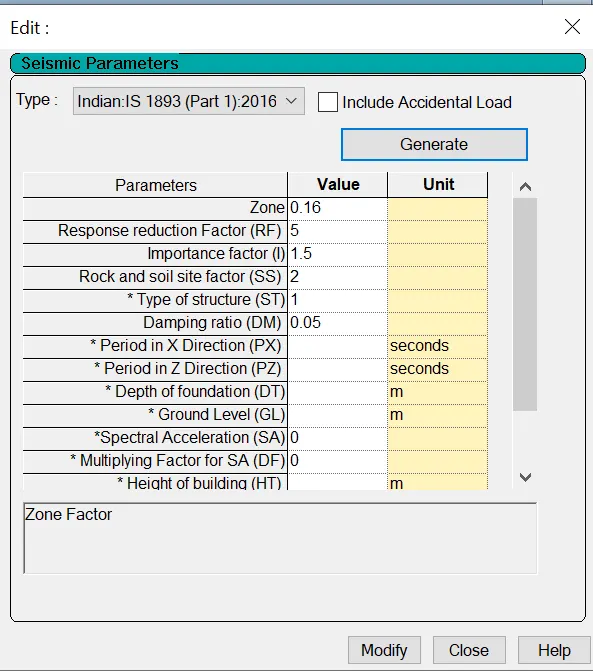

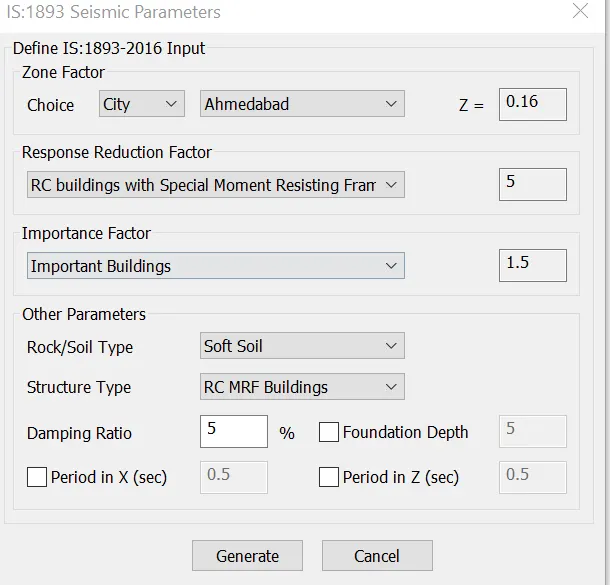

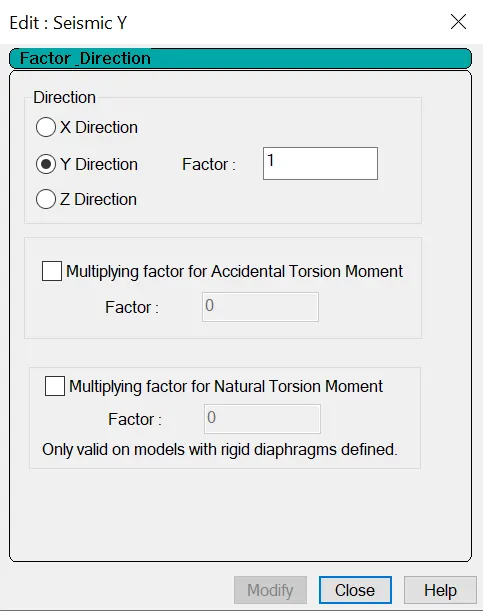

Seismic Load

As per IS 1893 Part1

Ahmedabad comes under Zone 3

hence Z=0.16

I=1.5

R=5

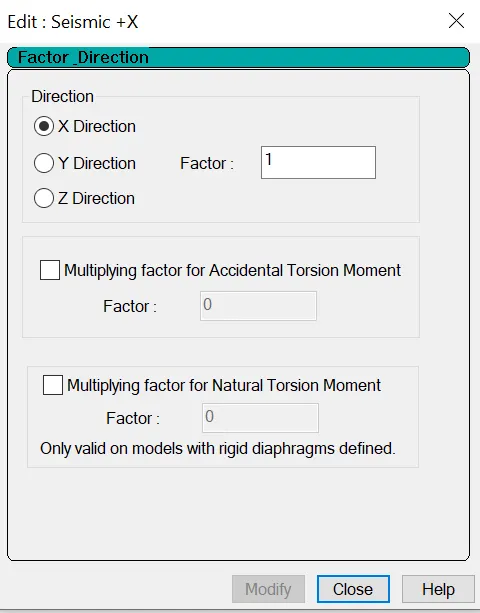

These Parameters are put in Staad

Results:

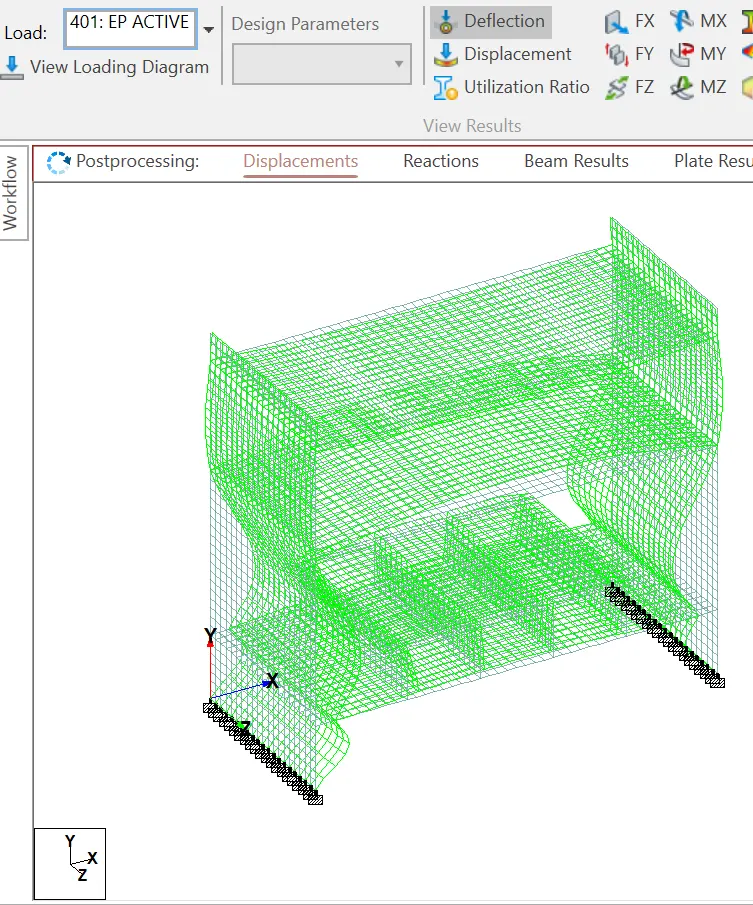

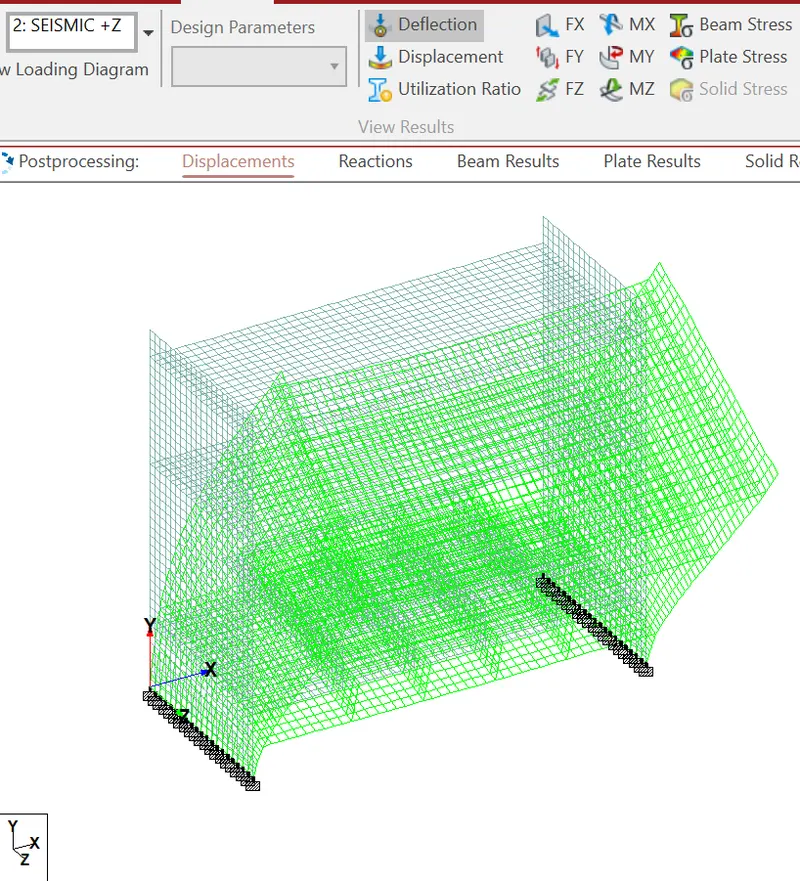

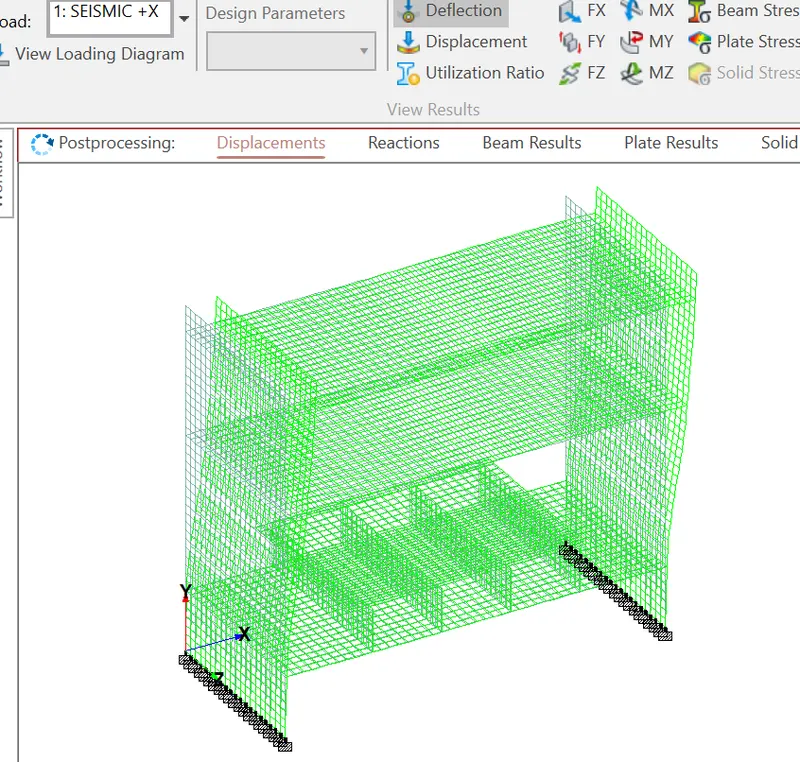

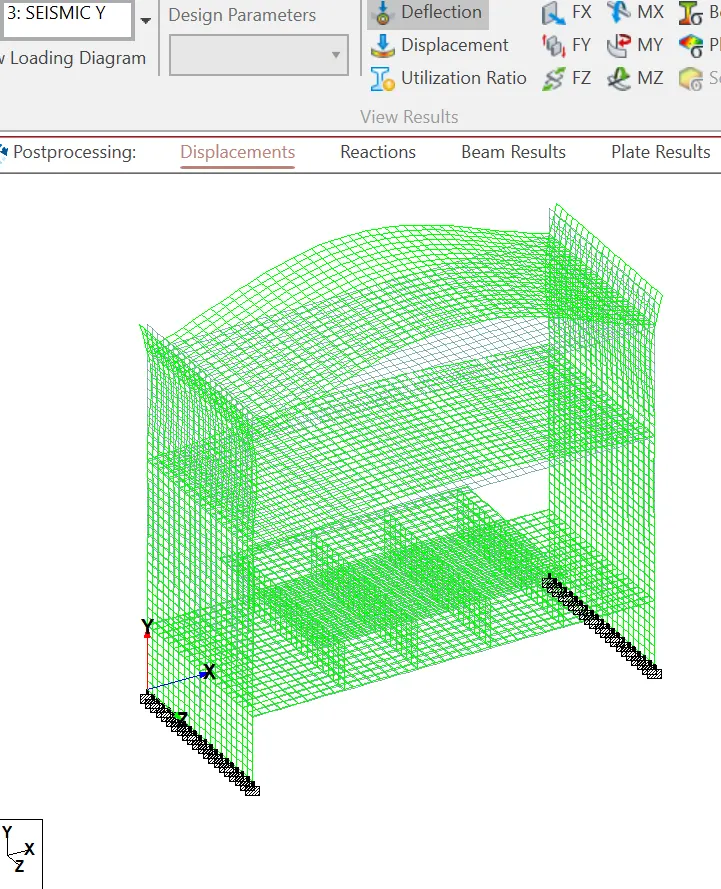

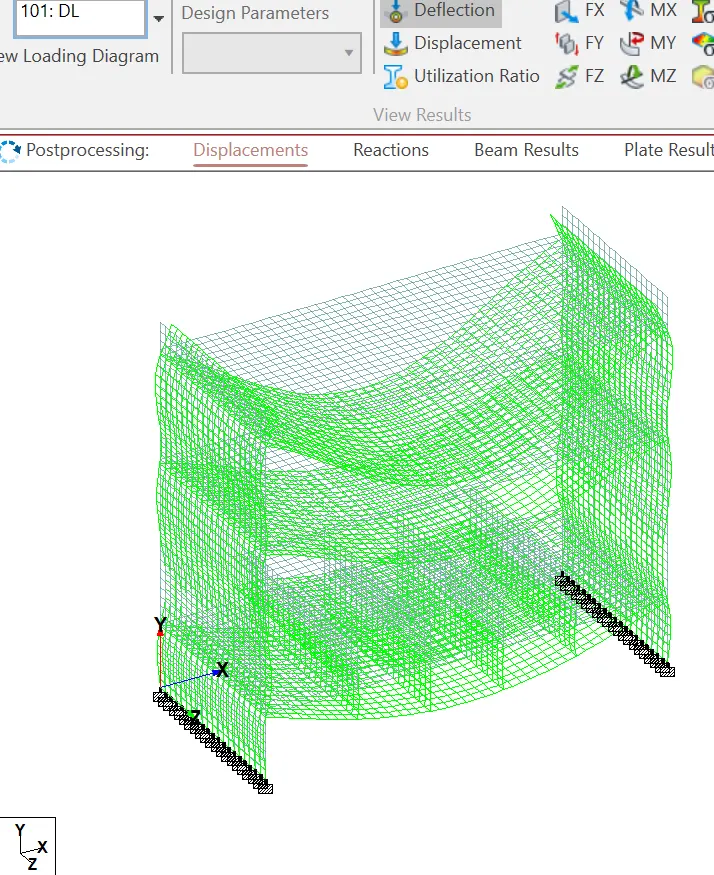

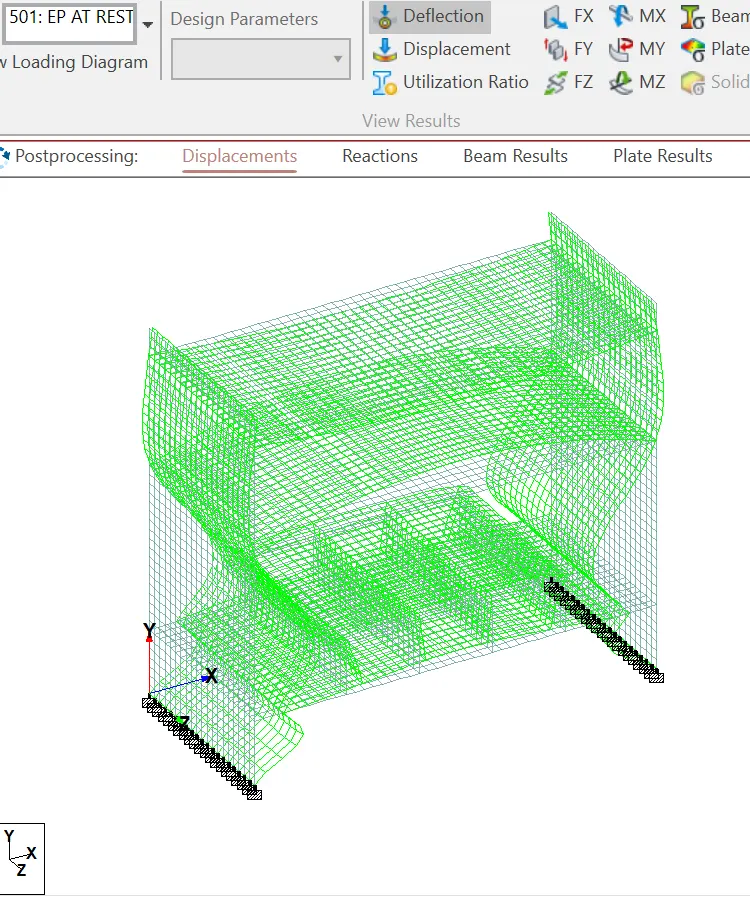

Deflection Diagram

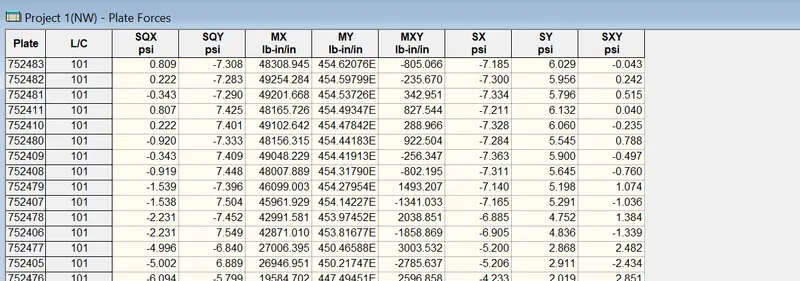

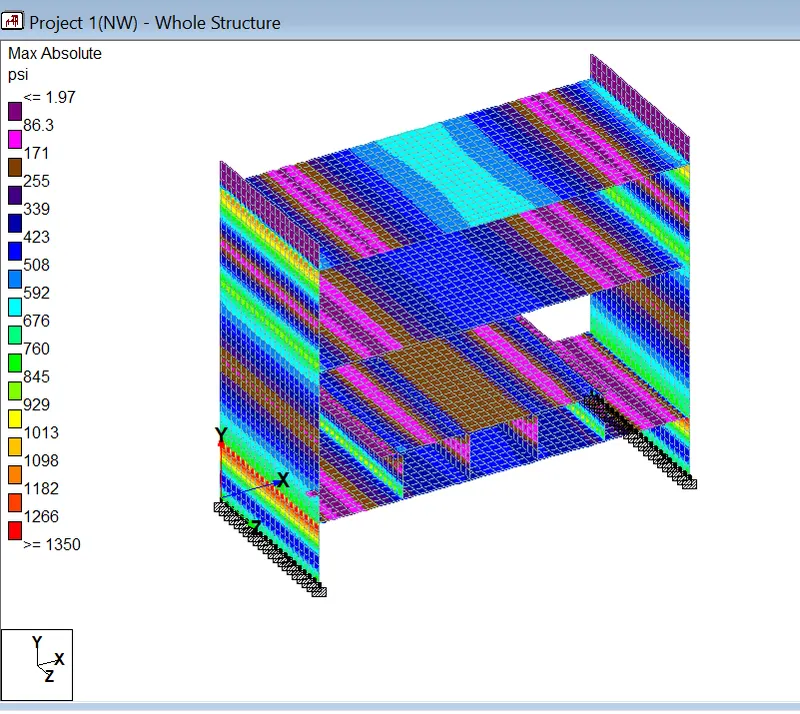

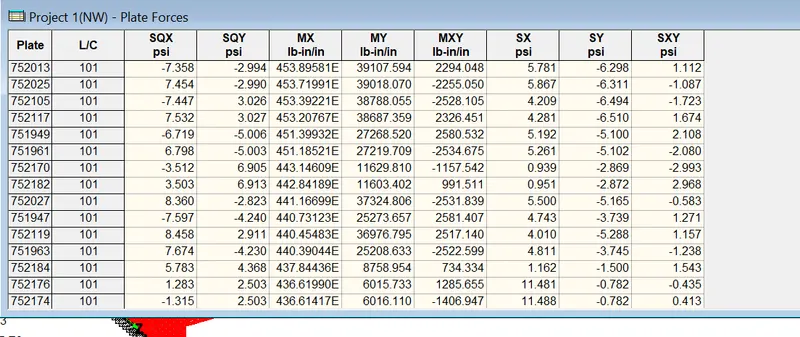

Max absolute stress DL

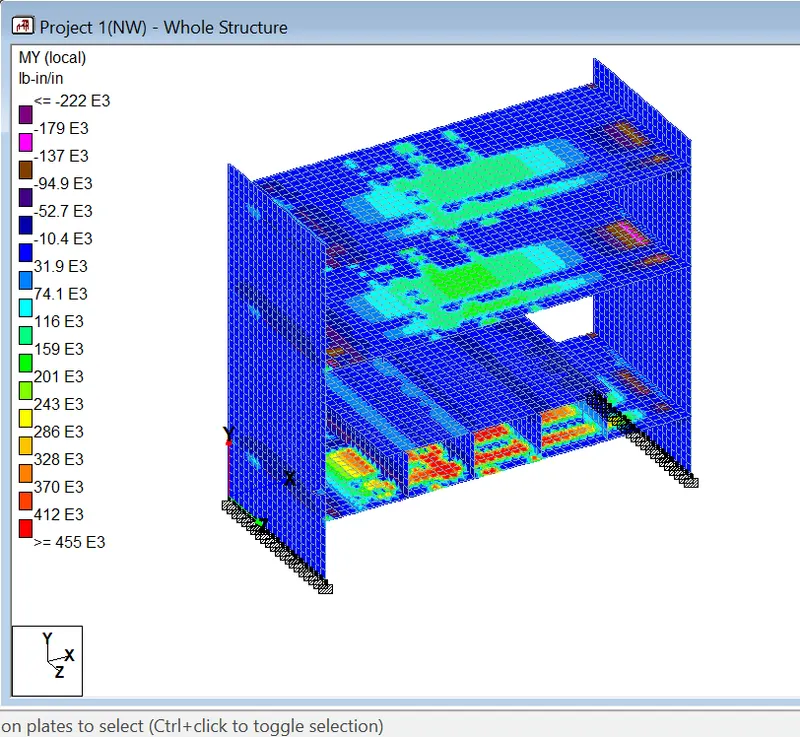

Maximum MY DL

Maximum MX

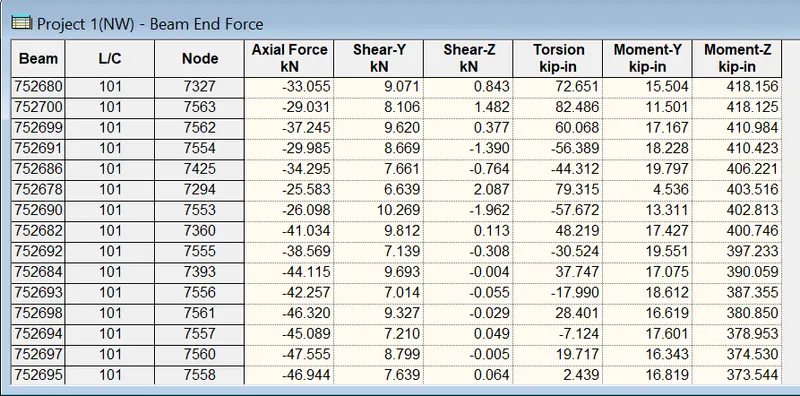

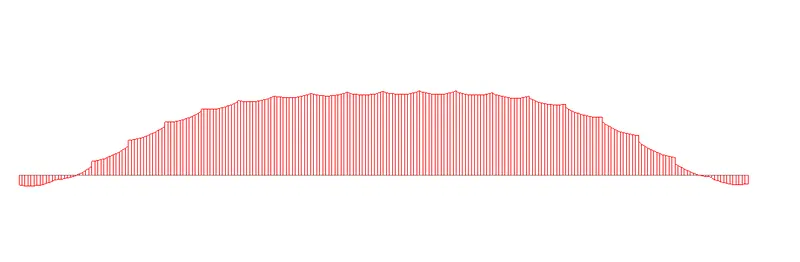

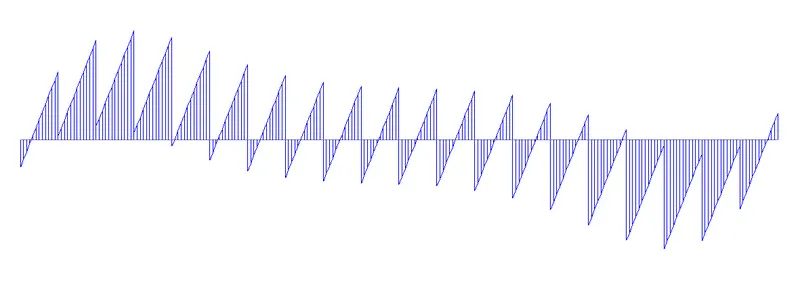

Maximum Mz in Beams

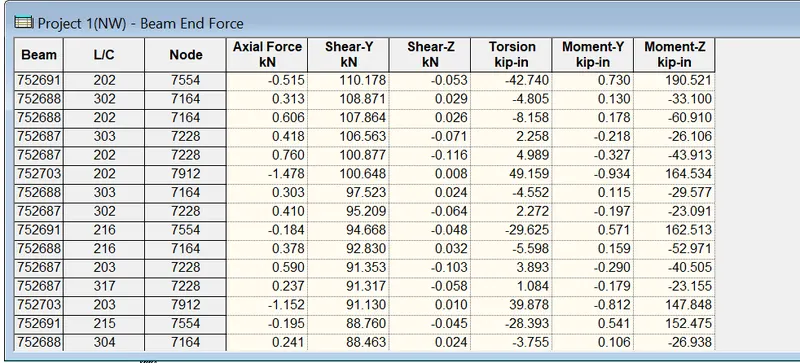

Maximum Shear Y in beam

Report:

STAAD SPACE

INPUT FILE: C:\Users\Muthulakshmi\Downloads\Old Laptop data of 1st week\Challenge Staad\Project 1(NW).STD

2. START JOB INFORMATION
3. ENGINEER DATE 25-MAY-21
4. END JOB INFORMATION
5. INPUT WIDTH 79
6. UNIT METER KN
7. JOINT COORDINATES
8. 1 0 0 0; 2 0 0.500001 0; 3 0 0 0.500001; 4 0 0.500001 0.500001; 5 0 1 0
9. 6 0 1 0.500001; 7 0 1.5 0; 8 0 1.5 0.500001; 9 0 2 0; 10 0 2 0.500001
10. 11 0 2.50001 0; 12 0 2.50001 0.500001; 13 0 3.00001 0; 14 0 3.00001 0.500001
11. 15 0 3.50001 0; 16 0 3.50001 0.500001; 17 0 4.00001 0; 18 0 4.00001 0.500001
12. 19 0 4.50001 0; 20 0 4.50001 0.500001; 21 0 5.00001 0; 22 0 5.00001 0.500001
13. 23 0 5.50001 0; 24 0 5.50001 0.500001; 25 0 6.00001 0; 26 0 6.00001 0.500001
14. 27 0 6.50001 0; 28 0 6.50001 0.500001; 29 0 7.00001 0; 30 0 7.00001 0.500001
15. 31 0 7.50002 0; 32 0 7.50002 0.500001; 33 0 8.00002 0; 34 0 8.00002 0.500001
16. 35 0 8.50002 0; 36 0 8.50002 0.500001; 37 0 9.00002 0; 38 0 9.00002 0.500001
17. 39 0 9.50002 0; 40 0 9.50002 0.500001; 41 0 10 0; 42 0 10 0.500001
18. 43 0 10.5 0; 44 0 10.5 0.500001; 45 0 11 0; 46 0 11 0.500001; 47 0 11.5 0
19. 48 0 11.5 0.500001; 49 0 12 0; 50 0 12 0.500001; 51 0 12.5 0
20. 52 0 12.5 0.500001; 53 0 13 0; 54 0 13 0.500001; 55 0 13.5 0
21. 56 0 13.5 0.500001; 57 0 14 0; 58 0 14 0.500001; 59 0 14.5 0
22. 60 0 14.5 0.500001; 61 0 15 0; 62 0 15 0.500001; 63 0 15.5 0
23. 64 0 15.5 0.500001; 65 0 16 0; 66 0 16 0.500001; 67 0 16.5 0
24. 68 0 16.5 0.500001; 69 0 17 0; 70 0 17 0.500001; 71 0 17.5 0
25. 72 0 17.5 0.500001; 73 0 18 0; 74 0 18 0.500001; 75 0 18.5 0
26. 76 0 18.5 0.500001; 77 0 19 0; 78 0 19 0.500001; 79 0 19.5 0
27. 80 0 19.5 0.500001; 81 0 20 0; 82 0 20 0.500001; 83 0 0 1; 84 0 0.500001 1
28. 85 0 1 1; 86 0 1.5 1; 87 0 2 1; 88 0 2.50001 1; 89 0 3.00001 1; 90 0 3.50001 1
29. 91 0 4.00001 1; 92 0 4.50001 1; 93 0 5.00001 1; 94 0 5.50001 1; 95 0 6.00001 1
30. 96 0 6.50001 1; 97 0 7.00001 1; 98 0 7.50002 1; 99 0 8.00002 1
31. 100 0 8.50002 1; 101 0 9.00002 1; 102 0 9.50002 1; 103 0 10 1; 104 0 10.5 1
32. 105 0 11 1; 106 0 11.5 1; 107 0 12 1; 108 0 12.5 1; 109 0 13 1; 110 0 13.5 1
33. 111 0 14 1; 112 0 14.5 1; 113 0 15 1; 114 0 15.5 1; 115 0 16 1; 116 0 16.5 1
34. 117 0 17 1; 118 0 17.5 1; 119 0 18 1; 120 0 18.5 1; 121 0 19 1; 122 0 19.5 1
35. 123 0 20 1; 124 0 0 1.5; 125 0 0.500001 1.5; 126 0 1 1.5; 127 0 1.5 1.5
36. 128 0 2 1.5; 129 0 2.50001 1.5; 130 0 3.00001 1.5; 131 0 3.50001 1.5
37. 132 0 4.00001 1.5; 133 0 4.50001 1.5; 134 0 5.00001 1.5; 135 0 5.50001 1.5
38. 136 0 6.00001 1.5; 137 0 6.50001 1.5; 138 0 7.00001 1.5; 139 0 7.50002 1.5

_ STAAD SPACE -- PAGE NO. 2

39. 140 0 8.00002 1.5; 141 0 8.50002 1.5; 142 0 9.00002 1.5; 143 0 9.50002 1.5
40. 144 0 10 1.5; 145 0 10.5 1.5; 146 0 11 1.5; 147 0 11.5 1.5; 148 0 12 1.5
41. 149 0 12.5 1.5; 150 0 13 1.5; 151 0 13.5 1.5; 152 0 14 1.5; 153 0 14.5 1.5
42. 154 0 15 1.5; 155 0 15.5 1.5; 156 0 16 1.5; 157 0 16.5 1.5; 158 0 17 1.5
43. 159 0 17.5 1.5; 160 0 18 1.5; 161 0 18.5 1.5; 162 0 19 1.5; 163 0 19.5 1.5
44. 164 0 20 1.5; 165 0 0 2; 166 0 0.500001 2; 167 0 1 2; 168 0 1.5 2; 169 0 2 2
45. 170 0 2.50001 2; 171 0 3.00001 2; 172 0 3.50001 2; 173 0 4.00001 2
46. 174 0 4.50001 2; 175 0 5.00001 2; 176 0 5.50001 2; 177 0 6.00001 2
47. 178 0 6.50001 2; 179 0 7.00001 2; 180 0 7.50002 2; 181 0 8.00002 2
48. 182 0 8.50002 2; 183 0 9.00002 2; 184 0 9.50002 2; 185 0 10 2; 186 0 10.5 2
49. 187 0 11 2; 188 0 11.5 2; 189 0 12 2; 190 0 12.5 2; 191 0 13 2; 192 0 13.5 2
50. 193 0 14 2; 194 0 14.5 2; 195 0 15 2; 196 0 15.5 2; 197 0 16 2; 198 0 16.5 2
51. 199 0 17 2; 200 0 17.5 2; 201 0 18 2; 202 0 18.5 2; 203 0 19 2; 204 0 19.5 2
52. 205 0 20 2; 206 0 0 2.50001; 207 0 0.500001 2.50001; 208 0 1 2.50001
53. 209 0 1.5 2.50001; 210 0 2 2.50001; 211 0 2.50001 2.50001
54. 212 0 3.00001 2.50001; 213 0 3.50001 2.50001; 214 0 4.00001 2.50001
55. 215 0 4.50001 2.50001; 216 0 5.00001 2.50001; 217 0 5.50001 2.50001
56. 218 0 6.00001 2.50001; 219 0 6.50001 2.50001; 220 0 7.00001 2.50001
57. 221 0 7.50002 2.50001; 222 0 8.00002 2.50001; 223 0 8.50002 2.50001
58. 224 0 9.00002 2.50001; 225 0 9.50002 2.50001; 226 0 10 2.50001
59. 227 0 10.5 2.50001; 228 0 11 2.50001; 229 0 11.5 2.50001; 230 0 12 2.50001
60. 231 0 12.5 2.50001; 232 0 13 2.50001; 233 0 13.5 2.50001; 234 0 14 2.50001
61. 235 0 14.5 2.50001; 236 0 15 2.50001; 237 0 15.5 2.50001; 238 0 16 2.50001
62. 239 0 16.5 2.50001; 240 0 17 2.50001; 241 0 17.5 2.50001; 242 0 18 2.50001
63. 243 0 18.5 2.50001; 244 0 19 2.50001; 245 0 19.5 2.50001; 246 0 20 2.50001
64. 247 0 0 3.00001; 248 0 0.500001 3.00001; 249 0 1 3.00001; 250 0 1.5 3.00001
65. 251 0 2 3.00001; 252 0 2.50001 3.00001; 253 0 3.00001 3.00001
66. 254 0 3.50001 3.00001; 255 0 4.00001 3.00001; 256 0 4.50001 3.00001
67. 257 0 5.00001 3.00001; 258 0 5.50001 3.00001; 259 0 6.00001 3.00001
68. 260 0 6.50001 3.00001; 261 0 7.00001 3.00001; 262 0 7.50002 3.00001
69. 263 0 8.00002 3.00001; 264 0 8.50002 3.00001; 265 0 9.00002 3.00001
70. 266 0 9.50002 3.00001; 267 0 10 3.00001; 268 0 10.5 3.00001; 269 0 11 3.00001
71. 270 0 11.5 3.00001; 271 0 12 3.00001; 272 0 12.5 3.00001; 273 0 13 3.00001
72. 274 0 13.5 3.00001; 275 0 14 3.00001; 276 0 14.5 3.00001; 277 0 15 3.00001
73. 278 0 15.5 3.00001; 279 0 16 3.00001; 280 0 16.5 3.00001; 281 0 17 3.00001
74. 282 0 17.5 3.00001; 283 0 18 3.00001; 284 0 18.5 3.00001; 285 0 19 3.00001
75. 286 0 19.5 3.00001; 287 0 20 3.00001; 288 0 0 3.50001; 289 0 0.500001 3.50001
76. 290 0 1 3.50001; 291 0 1.5 3.50001; 292 0 2 3.50001; 293 0 2.50001 3.50001
77. 294 0 3.00001 3.50001; 295 0 3.50001 3.50001; 296 0 4.00001 3.50001
78. 297 0 4.50001 3.50001; 298 0 5.00001 3.50001; 299 0 5.50001 3.50001
79. 300 0 6.00001 3.50001; 301 0 6.50001 3.50001; 302 0 7.00001 3.50001
80. 303 0 7.50002 3.50001; 304 0 8.00002 3.50001; 305 0 8.50002 3.50001
81. 306 0 9.00002 3.50001; 307 0 9.50002 3.50001; 308 0 10 3.50001
82. 309 0 10.5 3.50001; 310 0 11 3.50001; 311 0 11.5 3.50001; 312 0 12 3.50001
83. 313 0 12.5 3.50001; 314 0 13 3.50001; 315 0 13.5 3.50001; 316 0 14 3.50001
84. 317 0 14.5 3.50001; 318 0 15 3.50001; 319 0 15.5 3.50001; 320 0 16 3.50001
85. 321 0 16.5 3.50001; 322 0 17 3.50001; 323 0 17.5 3.50001; 324 0 18 3.50001
86. 325 0 18.5 3.50001; 326 0 19 3.50001; 327 0 19.5 3.50001; 328 0 20 3.50001
87. 329 0 0 4.00001; 330 0 0.500001 4.00001; 331 0 1 4.00001; 332 0 1.5 4.00001
88. 333 0 2 4.00001; 334 0 2.50001 4.00001; 335 0 3.00001 4.00001
89. 336 0 3.50001 4.00001; 337 0 4.00001 4.00001; 338 0 4.50001 4.00001
90. 339 0 5.00001 4.00001; 340 0 5.50001 4.00001; 341 0 6.00001 4.00001
91. 342 0 6.50001 4.00001; 343 0 7.00001 4.00001; 344 0 7.50002 4.00001
92. 345 0 8.00002 4.00001; 346 0 8.50002 4.00001; 347 0 9.00002 4.00001
93. 348 0 9.50002 4.00001; 349 0 10 4.00001; 350 0 10.5 4.00001; 351 0 11 4.00001
94. 352 0 11.5 4.00001; 353 0 12 4.00001; 354 0 12.5 4.00001; 355 0 13 4.00001

_ STAAD SPACE -- PAGE NO. 3

95. 356 0 13.5 4.00001; 357 0 14 4.00001; 358 0 14.5 4.00001; 359 0 15 4.00001
96. 360 0 15.5 4.00001; 361 0 16 4.00001; 362 0 16.5 4.00001; 363 0 17 4.00001
97. 364 0 17.5 4.00001; 365 0 18 4.00001; 366 0 18.5 4.00001; 367 0 19 4.00001
98. 368 0 19.5 4.00001; 369 0 20 4.00001; 370 0 0 4.50001; 371 0 0.500001 4.50001
99. 372 0 1 4.50001; 373 0 1.5 4.50001; 374 0 2 4.50001; 375 0 2.50001 4.50001
100. 376 0 3.00001 4.50001; 377 0 3.50001 4.50001; 378 0 4.00001 4.50001
101. 379 0 4.50001 4.50001; 380 0 5.00001 4.50001; 381 0 5.50001 4.50001
102. 382 0 6.00001 4.50001; 383 0 6.50001 4.50001; 384 0 7.00001 4.50001
103. 385 0 7.50002 4.50001; 386 0 8.00002 4.50001; 387 0 8.50002 4.50001
104. 388 0 9.00002 4.50001; 389 0 9.50002 4.50001; 390 0 10 4.50001
105. 391 0 10.5 4.50001; 392 0 11 4.50001; 393 0 11.5 4.50001; 394 0 12 4.50001
106. 395 0 12.5 4.50001; 396 0 13 4.50001; 397 0 13.5 4.50001; 398 0 14 4.50001
107. 399 0 14.5 4.50001; 400 0 15 4.50001; 401 0 15.5 4.50001; 402 0 16 4.50001
108. 403 0 16.5 4.50001; 404 0 17 4.50001; 405 0 17.5 4.50001; 406 0 18 4.50001
109. 407 0 18.5 4.50001; 408 0 19 4.50001; 409 0 19.5 4.50001; 410 0 20 4.50001
110. 411 0 0 5.00001; 412 0 0.500001 5.00001; 413 0 1 5.00001; 414 0 1.5 5.00001
111. 415 0 2 5.00001; 416 0 2.50001 5.00001; 417 0 3.00001 5.00001
112. 418 0 3.50001 5.00001; 419 0 4.00001 5.00001; 420 0 4.50001 5.00001
113. 421 0 5.00001 5.00001; 422 0 5.50001 5.00001; 423 0 6.00001 5.00001
114. 424 0 6.50001 5.00001; 425 0 7.00001 5.00001; 426 0 7.50002 5.00001
115. 427 0 8.00002 5.00001; 428 0 8.50002 5.00001; 429 0 9.00002 5.00001
116. 430 0 9.50002 5.00001; 431 0 10 5.00001; 432 0 10.5 5.00001; 433 0 11 5.00001
117. 434 0 11.5 5.00001; 435 0 12 5.00001; 436 0 12.5 5.00001; 437 0 13 5.00001
118. 438 0 13.5 5.00001; 439 0 14 5.00001; 440 0 14.5 5.00001; 441 0 15 5.00001
119. 442 0 15.5 5.00001; 443 0 16 5.00001; 444 0 16.5 5.00001; 445 0 17 5.00001
120. 446 0 17.5 5.00001; 447 0 18 5.00001; 448 0 18.5 5.00001; 449 0 19 5.00001
121. 450 0 19.5 5.00001; 451 0 20 5.00001; 452 0 0 5.50001; 453 0 0.500001 5.50001
122. 454 0 1 5.50001; 455 0 1.5 5.50001; 456 0 2 5.50001; 457 0 2.50001 5.50001
123. 458 0 3.00001 5.50001; 459 0 3.50001 5.50001; 460 0 4.00001 5.50001
124. 461 0 4.50001 5.50001; 462 0 5.00001 5.50001; 463 0 5.50001 5.50001
125. 464 0 6.00001 5.50001; 465 0 6.50001 5.50001; 466 0 7.00001 5.50001
126. 467 0 7.50002 5.50001; 468 0 8.00002 5.50001; 469 0 8.50002 5.50001
127. 470 0 9.00002 5.50001; 471 0 9.50002 5.50001; 472 0 10 5.50001
128. 473 0 10.5 5.50001; 474 0 11 5.50001; 475 0 11.5 5.50001; 476 0 12 5.50001
129. 477 0 12.5 5.50001; 478 0 13 5.50001; 479 0 13.5 5.50001; 480 0 14 5.50001
130. 481 0 14.5 5.50001; 482 0 15 5.50001; 483 0 15.5 5.50001; 484 0 16 5.50001
131. 485 0 16.5 5.50001; 486 0 17 5.50001; 487 0 17.5 5.50001; 488 0 18 5.50001
132. 489 0 18.5 5.50001; 490 0 19 5.50001; 491 0 19.5 5.50001; 492 0 20 5.50001
133. 493 0 0 6.00001; 494 0 0.500001 6.00001; 495 0 1 6.00001; 496 0 1.5 6.00001
134. 497 0 2 6.00001; 498 0 2.50001 6.00001; 499 0 3.00001 6.00001
135. 500 0 3.50001 6.00001; 501 0 4.00001 6.00001; 502 0 4.50001 6.00001
136. 503 0 5.00001 6.00001; 504 0 5.50001 6.00001; 505 0 6.00001 6.00001
137. 506 0 6.50001 6.00001; 507 0 7.00001 6.00001; 508 0 7.50002 6.00001
138. 509 0 8.00002 6.00001; 510 0 8.50002 6.00001; 511 0 9.00002 6.00001
139. 512 0 9.50002 6.00001; 513 0 10 6.00001; 514 0 10.5 6.00001; 515 0 11 6.00001
140. 516 0 11.5 6.00001; 517 0 12 6.00001; 518 0 12.5 6.00001; 519 0 13 6.00001
141. 520 0 13.5 6.00001; 521 0 14 6.00001; 522 0 14.5 6.00001; 523 0 15 6.00001
142. 524 0 15.5 6.00001; 525 0 16 6.00001; 526 0 16.5 6.00001; 527 0 17 6.00001
143. 528 0 17.5 6.00001; 529 0 18 6.00001; 530 0 18.5 6.00001; 531 0 19 6.00001
144. 532 0 19.5 6.00001; 533 0 20 6.00001; 534 0 0 6.50001; 535 0 0.500001 6.50001
145. 536 0 1 6.50001; 537 0 1.5 6.50001; 538 0 2 6.50001; 539 0 2.50001 6.50001
146. 540 0 3.00001 6.50001; 541 0 3.50001 6.50001; 542 0 4.00001 6.50001
147. 543 0 4.50001 6.50001; 544 0 5.00001 6.50001; 545 0 5.50001 6.50001
148. 546 0 6.00001 6.50001; 547 0 6.50001 6.50001; 548 0 7.00001 6.50001
149. 549 0 7.50002 6.50001; 550 0 8.00002 6.50001; 551 0 8.50002 6.50001
150. 552 0 9.00002 6.50001; 553 0 9.50002 6.50001; 554 0 10 6.50001

_ STAAD SPACE -- PAGE NO. 4

151. 555 0 10.5 6.50001; 556 0 11 6.50001; 557 0 11.5 6.50001; 558 0 12 6.50001
152. 559 0 12.5 6.50001; 560 0 13 6.50001; 561 0 13.5 6.50001; 562 0 14 6.50001
153. 563 0 14.5 6.50001; 564 0 15 6.50001; 565 0 15.5 6.50001; 566 0 16 6.50001
154. 567 0 16.5 6.50001; 568 0 17 6.50001; 569 0 17.5 6.50001; 570 0 18 6.50001
155. 571 0 18.5 6.50001; 572 0 19 6.50001; 573 0 19.5 6.50001; 574 0 20 6.50001
156. 575 0 0 7.00001; 576 0 0.500001 7.00001; 577 0 1 7.00001; 578 0 1.5 7.00001
157. 579 0 2 7.00001; 580 0 2.50001 7.00001; 581 0 3.00001 7.00001
158. 582 0 3.50001 7.00001; 583 0 4.00001 7.00001; 584 0 4.50001 7.00001
159. 585 0 5.00001 7.00001; 586 0 5.50001 7.00001; 587 0 6.00001 7.00001
160. 588 0 6.50001 7.00001; 589 0 7.00001 7.00001; 590 0 7.50002 7.00001
161. 591 0 8.00002 7.00001; 592 0 8.50002 7.00001; 593 0 9.00002 7.00001
162. 594 0 9.50002 7.00001; 595 0 10 7.00001; 596 0 10.5 7.00001; 597 0 11 7.00001
163. 598 0 11.5 7.00001; 599 0 12 7.00001; 600 0 12.5 7.00001; 601 0 13 7.00001
164. 602 0 13.5 7.00001; 603 0 14 7.00001; 604 0 14.5 7.00001; 605 0 15 7.00001
165. 606 0 15.5 7.00001; 607 0 16 7.00001; 608 0 16.5 7.00001; 609 0 17 7.00001
166. 610 0 17.5 7.00001; 611 0 18 7.00001; 612 0 18.5 7.00001; 613 0 19 7.00001
167. 614 0 19.5 7.00001; 615 0 20 7.00001; 616 0 0 7.50002; 617 0 0.500001 7.50002
168. 618 0 1 7.50002; 619 0 1.5 7.50002; 620 0 2 7.50002; 621 0 2.50001 7.50002
169. 622 0 3.00001 7.50002; 623 0 3.50001 7.50002; 624 0 4.00001 7.50002
170. 625 0 4.50001 7.50002; 626 0 5.00001 7.50002; 627 0 5.50001 7.50002
171. 628 0 6.00001 7.50002; 629 0 6.50001 7.50002; 630 0 7.00001 7.50002
172. 631 0 7.50002 7.50002; 632 0 8.00002 7.50002; 633 0 8.50002 7.50002
173. 634 0 9.00002 7.50002; 635 0 9.50002 7.50002; 636 0 10 7.50002
174. 637 0 10.5 7.50002; 638 0 11 7.50002; 639 0 11.5 7.50002; 640 0 12 7.50002
175. 641 0 12.5 7.50002; 642 0 13 7.50002; 643 0 13.5 7.50002; 644 0 14 7.50002
176. 645 0 14.5 7.50002; 646 0 15 7.50002; 647 0 15.5 7.50002; 648 0 16 7.50002
177. 649 0 16.5 7.50002; 650 0 17 7.50002; 651 0 17.5 7.50002; 652 0 18 7.50002
178. 653 0 18.5 7.50002; 654 0 19 7.50002; 655 0 19.5 7.50002; 656 0 20 7.50002
179. 657 0 0 8.00002; 658 0 0.500001 8.00002; 659 0 1 8.00002; 660 0 1.5 8.00002
180. 661 0 2 8.00002; 662 0 2.50001 8.00002; 663 0 3.00001 8.00002
181. 664 0 3.50001 8.00002; 665 0 4.00001 8.00002; 666 0 4.50001 8.00002
182. 667 0 5.00001 8.00002; 668 0 5.50001 8.00002; 669 0 6.00001 8.00002
183. 670 0 6.50001 8.00002; 671 0 7.00001 8.00002; 672 0 7.50002 8.00002
184. 673 0 8.00002 8.00002; 674 0 8.50002 8.00002; 675 0 9.00002 8.00002
185. 676 0 9.50002 8.00002; 677 0 10 8.00002; 678 0 10.5 8.00002; 679 0 11 8.00002
186. 680 0 11.5 8.00002; 681 0 12 8.00002; 682 0 12.5 8.00002; 683 0 13 8.00002
187. 684 0 13.5 8.00002; 685 0 14 8.00002; 686 0 14.5 8.00002; 687 0 15 8.00002
188. 688 0 15.5 8.00002; 689 0 16 8.00002; 690 0 16.5 8.00002; 691 0 17 8.00002
189. 692 0 17.5 8.00002; 693 0 18 8.00002; 694 0 18.5 8.00002; 695 0 19 8.00002
190. 696 0 19.5 8.00002; 697 0 20 8.00002; 698 0 0 8.50002; 699 0 0.500001 8.50002
191. 700 0 1 8.50002; 701 0 1.5 8.50002; 702 0 2 8.50002; 703 0 2.50001 8.50002
192. 704 0 3.00001 8.50002; 705 0 3.50001 8.50002; 706 0 4.00001 8.50002
193. 707 0 4.50001 8.50002; 708 0 5.00001 8.50002; 709 0 5.50001 8.50002
194. 710 0 6.00001 8.50002; 711 0 6.50001 8.50002; 712 0 7.00001 8.50002
195. 713 0 7.50002 8.50002; 714 0 8.00002 8.50002; 715 0 8.50002 8.50002
196. 716 0 9.00002 8.50002; 717 0 9.50002 8.50002; 718 0 10 8.50002
197. 719 0 10.5 8.50002; 720 0 11 8.50002; 721 0 11.5 8.50002; 722 0 12 8.50002
198. 723 0 12.5 8.50002; 724 0 13 8.50002; 725 0 13.5 8.50002; 726 0 14 8.50002
199. 727 0 14.5 8.50002; 728 0 15 8.50002; 729 0 15.5 8.50002; 730 0 16 8.50002
200. 731 0 16.5 8.50002; 732 0 17 8.50002; 733 0 17.5 8.50002; 734 0 18 8.50002
201. 735 0 18.5 8.50002; 736 0 19 8.50002; 737 0 19.5 8.50002; 738 0 20 8.50002
202. 739 0 0 9.00002; 740 0 0.500001 9.00002; 741 0 1 9.00002; 742 0 1.5 9.00002
203. 743 0 2 9.00002; 744 0 2.50001 9.00002; 745 0 3.00001 9.00002
204. 746 0 3.50001 9.00002; 747 0 4.00001 9.00002; 748 0 4.50001 9.00002
205. 749 0 5.00001 9.00002; 750 0 5.50001 9.00002; 751 0 6.00001 9.00002
206. 752 0 6.50001 9.00002; 753 0 7.00001 9.00002; 754 0 7.50002 9.00002

_ STAAD SPACE -- PAGE NO. 5

207. 755 0 8.00002 9.00002; 756 0 8.50002 9.00002; 757 0 9.00002 9.00002
208. 758 0 9.50002 9.00002; 759 0 10 9.00002; 760 0 10.5 9.00002; 761 0 11 9.00002
209. 762 0 11.5 9.00002; 763 0 12 9.00002; 764 0 12.5 9.00002; 765 0 13 9.00002
210. 766 0 13.5 9.00002; 767 0 14 9.00002; 768 0 14.5 9.00002; 769 0 15 9.00002
211. 770 0 15.5 9.00002; 771 0 16 9.00002; 772 0 16.5 9.00002; 773 0 17 9.00002
212. 774 0 17.5 9.00002; 775 0 18 9.00002; 776 0 18.5 9.00002; 777 0 19 9.00002
213. 778 0 19.5 9.00002; 779 0 20 9.00002; 780 0 0 9.50002; 781 0 0.500001 9.50002
214. 782 0 1 9.50002; 783 0 1.5 9.50002; 784 0 2 9.50002; 785 0 2.50001 9.50002
215. 786 0 3.00001 9.50002; 787 0 3.50001 9.50002; 788 0 4.00001 9.50002
216. 789 0 4.50001 9.50002; 790 0 5.00001 9.50002; 791 0 5.50001 9.50002
217. 792 0 6.00001 9.50002; 793 0 6.50001 9.50002; 794 0 7.00001 9.50002
218. 795 0 7.50002 9.50002; 796 0 8.00002 9.50002; 797 0 8.50002 9.50002
219. 798 0 9.00002 9.50002; 799 0 9.50002 9.50002; 800 0 10 9.50002
220. 801 0 10.5 9.50002; 802 0 11 9.50002; 803 0 11.5 9.50002; 804 0 12 9.50002
221. 805 0 12.5 9.50002; 806 0 13 9.50002; 807 0 13.5 9.50002; 808 0 14 9.50002
222. 809 0 14.5 9.50002; 810 0 15 9.50002; 811 0 15.5 9.50002; 812 0 16 9.50002
223. 813 0 16.5 9.50002; 814 0 17 9.50002; 815 0 17.5 9.50002; 816 0 18 9.50002
224. 817 0 18.5 9.50002; 818 0 19 9.50002; 819 0 19.5 9.50002; 820 0 20 9.50002
225. 821 0 0 10; 822 0 0.500001 10; 823 0 1 10; 824 0 1.5 10; 825 0 2 10
226. 826 0 2.50001 10; 827 0 3.00001 10; 828 0 3.50001 10; 829 0 4.00001 10
227. 830 0 4.50001 10; 831 0 5.00001 10; 832 0 5.50001 10; 833 0 6.00001 10
228. 834 0 6.50001 10; 835 0 7.00001 10; 836 0 7.50002 10; 837 0 8.00002 10
229. 838 0 8.50002 10; 839 0 9.00002 10; 840 0 9.50002 10; 841 0 10 10
230. 842 0 10.5 10; 843 0 11 10; 844 0 11.5 10; 845 0 12 10; 846 0 12.5 10
231. 847 0 13 10; 848 0 13.5 10; 849 0 14 10; 850 0 14.5 10; 851 0 15 10
232. 852 0 15.5 10; 853 0 16 10; 854 0 16.5 10; 855 0 17 10; 856 0 17.5 10
233. 857 0 18 10; 858 0 18.5 10; 859 0 19 10; 860 0 19.5 10; 861 0 20 10
234. 862 22 0 0; 863 22 0.500001 0; 864 22 0 0.500001; 865 22 0.500001 0.500001
235. 866 22 1 0; 867 22 1 0.500001; 868 22 1.5 0; 869 22 1.5 0.500001; 870 22 2 0
236. 871 22 2 0.500001; 872 22 2.50001 0; 873 22 2.50001 0.500001; 874 22 3.00001 0
237. 875 22 3.00001 0.500001; 876 22 3.50001 0; 877 22 3.50001 0.500001
238. 878 22 4.00001 0; 879 22 4.00001 0.500001; 880 22 4.50001 0
239. 881 22 4.50001 0.500001; 882 22 5.00001 0; 883 22 5.00001 0.500001
240. 884 22 5.50001 0; 885 22 5.50001 0.500001; 886 22 6.00001 0
241. 887 22 6.00001 0.500001; 888 22 6.50001 0; 889 22 6.50001 0.500001
242. 890 22 7.00001 0; 891 22 7.00001 0.500001; 892 22 7.50002 0
243. 893 22 7.50002 0.500001; 894 22 8.00002 0; 895 22 8.00002 0.500001
244. 896 22 8.50002 0; 897 22 8.50002 0.500001; 898 22 9.00002 0
245. 899 22 9.00002 0.500001; 900 22 9.50002 0; 901 22 9.50002 0.500001
246. 902 22 10 0; 903 22 10 0.500001; 904 22 10.5 0; 905 22 10.5 0.500001
247. 906 22 11 0; 907 22 11 0.500001; 908 22 11.5 0; 909 22 11.5 0.500001
248. 910 22 12 0; 911 22 12 0.500001; 912 22 12.5 0; 913 22 12.5 0.500001
249. 914 22 13 0; 915 22 13 0.500001; 916 22 13.5 0; 917 22 13.5 0.500001
250. 918 22 14 0; 919 22 14 0.500001; 920 22 14.5 0; 921 22 14.5 0.500001
251. 922 22 15 0; 923 22 15 0.500001; 924 22 15.5 0; 925 22 15.5 0.500001
252. 926 22 16 0; 927 22 16 0.500001; 928 22 16.5 0; 929 22 16.5 0.500001
253. 930 22 17 0; 931 22 17 0.500001; 932 22 17.5 0; 933 22 17.5 0.500001
254. 934 22 18 0; 935 22 18 0.500001; 936 22 18.5 0; 937 22 18.5 0.500001
255. 938 22 19 0; 939 22 19 0.500001; 940 22 19.5 0; 941 22 19.5 0.500001
256. 942 22 20 0; 943 22 20 0.500001; 944 22 0 1; 945 22 0.500001 1; 946 22 1 1
257. 947 22 1.5 1; 948 22 2 1; 949 22 2.50001 1; 950 22 3.00001 1; 951 22 3.50001 1
258. 952 22 4.00001 1; 953 22 4.50001 1; 954 22 5.00001 1; 955 22 5.50001 1
259. 956 22 6.00001 1; 957 22 6.50001 1; 958 22 7.00001 1; 959 22 7.50002 1
260. 960 22 8.00002 1; 961 22 8.50002 1; 962 22 9.00002 1; 963 22 9.50002 1
261. 964 22 10 1; 965 22 10.5 1; 966 22 11 1; 967 22 11.5 1; 968 22 12 1
262. 969 22 12.5 1; 970 22 13 1; 971 22 13.5 1; 972 22 14 1; 973 22 14.5 1

_ STAAD SPACE -- PAGE NO. 6

263. 974 22 15 1; 975 22 15.5 1; 976 22 16 1; 977 22 16.5 1; 978 22 17 1
264. 979 22 17.5 1; 980 22 18 1; 981 22 18.5 1; 982 22 19 1; 983 22 19.5 1
265. 984 22 20 1; 985 22 0 1.5; 986 22 0.500001 1.5; 987 22 1 1.5; 988 22 1.5 1.5
266. 989 22 2 1.5; 990 22 2.50001 1.5; 991 22 3.00001 1.5; 992 22 3.50001 1.5
267. 993 22 4.00001 1.5; 994 22 4.50001 1.5; 995 22 5.00001 1.5; 996 22 5.50001 1.5
268. 997 22 6.00001 1.5; 998 22 6.50001 1.5; 999 22 7.00001 1.5
269. 1000 22 7.50002 1.5; 1001 22 8.00002 1.5; 1002 22 8.50002 1.5
270. 1003 22 9.00002 1.5; 1004 22 9.50002 1.5; 1005 22 10 1.5; 1006 22 10.5 1.5
271. 1007 22 11 1.5; 1008 22 11.5 1.5; 1009 22 12 1.5; 1010 22 12.5 1.5
272. 1011 22 13 1.5; 1012 22 13.5 1.5; 1013 22 14 1.5; 1014 22 14.5 1.5
273. 1015 22 15 1.5; 1016 22 15.5 1.5; 1017 22 16 1.5; 1018 22 16.5 1.5
274. 1019 22 17 1.5; 1020 22 17.5 1.5; 1021 22 18 1.5; 1022 22 18.5 1.5
275. 1023 22 19 1.5; 1024 22 19.5 1.5; 1025 22 20 1.5; 1026 22 0 2
276. 1027 22 0.500001 2; 1028 22 1 2; 1029 22 1.5 2; 1030 22 2 2; 1031 22 2.50001 2
277. 1032 22 3.00001 2; 1033 22 3.50001 2; 1034 22 4.00001 2; 1035 22 4.50001 2
278. 1036 22 5.00001 2; 1037 22 5.50001 2; 1038 22 6.00001 2; 1039 22 6.50001 2
279. 1040 22 7.00001 2; 1041 22 7.50002 2; 1042 22 8.00002 2; 1043 22 8.50002 2
280. 1044 22 9.00002 2; 1045 22 9.50002 2; 1046 22 10 2; 1047 22 10.5 2
281. 1048 22 11 2; 1049 22 11.5 2; 1050 22 12 2; 1051 22 12.5 2; 1052 22 13 2
282. 1053 22 13.5 2; 1054 22 14 2; 1055 22 14.5 2; 1056 22 15 2; 1057 22 15.5 2
283. 1058 22 16 2; 1059 22 16.5 2; 1060 22 17 2; 1061 22 17.5 2; 1062 22 18 2
284. 1063 22 18.5 2; 1064 22 19 2; 1065 22 19.5 2; 1066 22 20 2; 1067 22 0 2.50001
285. 1068 22 0.500001 2.50001; 1069 22 1 2.50001; 1070 22 1.5 2.50001
286. 1071 22 2 2.50001; 1072 22 2.50001 2.50001; 1073 22 3.00001 2.50001
287. 1074 22 3.50001 2.50001; 1075 22 4.00001 2.50001; 1076 22 4.50001 2.50001
288. 1077 22 5.00001 2.50001; 1078 22 5.50001 2.50001; 1079 22 6.00001 2.50001
289. 1080 22 6.50001 2.50001; 1081 22 7.00001 2.50001; 1082 22 7.50002 2.50001
290. 1083 22 8.00002 2.50001; 1084 22 8.50002 2.50001; 1085 22 9.00002 2.50001
291. 1086 22 9.50002 2.50001; 1087 22 10 2.50001; 1088 22 10.5 2.50001
292. 1089 22 11 2.50001; 1090 22 11.5 2.50001; 1091 22 12 2.50001
293. 1092 22 12.5 2.50001; 1093 22 13 2.50001; 1094 22 13.5 2.50001
294. 1095 22 14 2.50001; 1096 22 14.5 2.50001; 1097 22 15 2.50001
295. 1098 22 15.5 2.50001; 1099 22 16 2.50001; 1100 22 16.5 2.50001
296. 1101 22 17 2.50001; 1102 22 17.5 2.50001; 1103 22 18 2.50001
297. 1104 22 18.5 2.50001; 1105 22 19 2.50001; 1106 22 19.5 2.50001
298. 1107 22 20 2.50001; 1108 22 0 3.00001; 1109 22 0.500001 3.00001
299. 1110 22 1 3.00001; 1111 22 1.5 3.00001; 1112 22 2 3.00001
300. 1113 22 2.50001 3.00001; 1114 22 3.00001 3.00001; 1115 22 3.50001 3.00001
301. 1116 22 4.00001 3.00001; 1117 22 4.50001 3.00001; 1118 22 5.00001 3.00001
302. 1119 22 5.50001 3.00001; 1120 22 6.00001 3.00001; 1121 22 6.50001 3.00001
303. 1122 22 7.00001 3.00001; 1123 22 7.50002 3.00001; 1124 22 8.00002 3.00001
304. 1125 22 8.50002 3.00001; 1126 22 9.00002 3.00001; 1127 22 9.50002 3.00001
305. 1128 22 10 3.00001; 1129 22 10.5 3.00001; 1130 22 11 3.00001
306. 1131 22 11.5 3.00001; 1132 22 12 3.00001; 1133 22 12.5 3.00001
307. 1134 22 13 3.00001; 1135 22 13.5 3.00001; 1136 22 14 3.00001
308. 1137 22 14.5 3.00001; 1138 22 15 3.00001; 1139 22 15.5 3.00001
309. 1140 22 16 3.00001; 1141 22 16.5 3.00001; 1142 22 17 3.00001
310. 1143 22 17.5 3.00001; 1144 22 18 3.00001; 1145 22 18.5 3.00001
311. 1146 22 19 3.00001; 1147 22 19.5 3.00001; 1148 22 20 3.00001
312. 1149 22 0 3.50001; 1150 22 0.500001 3.50001; 1151 22 1 3.50001
313. 1152 22 1.5 3.50001; 1153 22 2 3.50001; 1154 22 2.50001 3.50001
314. 1155 22 3.00001 3.50001; 1156 22 3.50001 3.50001; 1157 22 4.00001 3.50001
315. 1158 22 4.50001 3.50001; 1159 22 5.00001 3.50001; 1160 22 5.50001 3.50001
316. 1161 22 6.00001 3.50001; 1162 22 6.50001 3.50001; 1163 22 7.00001 3.50001
317. 1164 22 7.50002 3.50001; 1165 22 8.00002 3.50001; 1166 22 8.50002 3.50001
318. 1167 22 9.00002 3.50001; 1168 22 9.50002 3.50001; 1169 22 10 3.50001

_ STAAD SPACE -- PAGE NO. 7

319. 1170 22 10.5 3.50001; 1171 22 11 3.50001; 1172 22 11.5 3.50001
320. 1173 22 12 3.50001; 1174 22 12.5 3.50001; 1175 22 13 3.50001
321. 1176 22 13.5 3.50001; 1177 22 14 3.50001; 1178 22 14.5 3.50001
322. 1179 22 15 3.50001; 1180 22 15.5 3.50001; 1181 22 16 3.50001
323. 1182 22 16.5 3.50001; 1183 22 17 3.50001; 1184 22 17.5 3.50001
324. 1185 22 18 3.50001; 1186 22 18.5 3.50001; 1187 22 19 3.50001
325. 1188 22 19.5 3.50001; 1189 22 20 3.50001; 1190 22 0 4.00001
326. 1191 22 0.500001 4.00001; 1192 22 1 4.00001; 1193 22 1.5 4.00001
327. 1194 22 2 4.00001; 1195 22 2.50001 4.00001; 1196 22 3.00001 4.00001
328. 1197 22 3.50001 4.00001; 1198 22 4.00001 4.00001; 1199 22 4.50001 4.00001
329. 1200 22 5.00001 4.00001; 1201 22 5.50001 4.00001; 1202 22 6.00001 4.00001
330. 1203 22 6.50001 4.00001; 1204 22 7.00001 4.00001; 1205 22 7.50002 4.00001
331. 1206 22 8.00002 4.00001; 1207 22 8.50002 4.00001; 1208 22 9.00002 4.00001
332. 1209 22 9.50002 4.00001; 1210 22 10 4.00001; 1211 22 10.5 4.00001
333. 1212 22 11 4.00001; 1213 22 11.5 4.00001; 1214 22 12 4.00001
334. 1215 22 12.5 4.00001; 1216 22 13 4.00001; 1217 22 13.5 4.00001
335. 1218 22 14 4.00001; 1219 22 14.5 4.00001; 1220 22 15 4.00001
336. 1221 22 15.5 4.00001; 1222 22 16 4.00001; 1223 22 16.5 4.00001
337. 1224 22 17 4.00001; 1225 22 17.5 4.00001; 1226 22 18 4.00001
338. 1227 22 18.5 4.00001; 1228 22 19 4.00001; 1229 22 19.5 4.00001
339. 1230 22 20 4.00001; 1231 22 0 4.50001; 1232 22 0.500001 4.50001
340. 1233 22 1 4.50001; 1234 22 1.5 4.50001; 1235 22 2 4.50001
341. 1236 22 2.50001 4.50001; 1237 22 3.00001 4.50001; 1238 22 3.50001 4.50001
342. 1239 22 4.00001 4.50001; 1240 22 4.50001 4.50001; 1241 22 5.00001 4.50001
343. 1242 22 5.50001 4.50001; 1243 22 6.00001 4.50001; 1244 22 6.50001 4.50001
344. 1245 22 7.00001 4.50001; 1246 22 7.50002 4.50001; 1247 22 8.00002 4.50001
345. 1248 22 8.50002 4.50001; 1249 22 9.00002 4.50001; 1250 22 9.50002 4.50001
346. 1251 22 10 4.50001; 1252 22 10.5 4.50001; 1253 22 11 4.50001
347. 1254 22 11.5 4.50001; 1255 22 12 4.50001; 1256 22 12.5 4.50001
348. 1257 22 13 4.50001; 1258 22 13.5 4.50001; 1259 22 14 4.50001
349. 1260 22 14.5 4.50001; 1261 22 15 4.50001; 1262 22 15.5 4.50001
350. 1263 22 16 4.50001; 1264 22 16.5 4.50001; 1265 22 17 4.50001
351. 1266 22 17.5 4.50001; 1267 22 18 4.50001; 1268 22 18.5 4.50001
352. 1269 22 19 4.50001; 1270 22 19.5 4.50001; 1271 22 20 4.50001
353. 1272 22 0 5.00001; 1273 22 0.500001 5.00001; 1274 22 1 5.00001
354. 1275 22 1.5 5.00001; 1276 22 2 5.00001; 1277 22 2.50001 5.00001
355. 1278 22 3.00001 5.00001; 1279 22 3.50001 5.00001; 1280 22 4.00001 5.00001
356. 1281 22 4.50001 5.00001; 1282 22 5.00001 5.00001; 1283 22 5.50001 5.00001
357. 1284 22 6.00001 5.00001; 1285 22 6.50001 5.00001; 1286 22 7.00001 5.00001
358. 1287 22 7.50002 5.00001; 1288 22 8.00002 5.00001; 1289 22 8.50002 5.00001
359. 1290 22 9.00002 5.00001; 1291 22 9.50002 5.00001; 1292 22 10 5.00001
360. 1293 22 10.5 5.00001; 1294 22 11 5.00001; 1295 22 11.5 5.00001
361. 1296 22 12 5.00001; 1297 22 12.5 5.00001; 1298 22 13 5.00001
362. 1299 22 13.5 5.00001; 1300 22 14 5.00001; 1301 22 14.5 5.00001
363. 1302 22 15 5.00001; 1303 22 15.5 5.00001; 1304 22 16 5.00001
364. 1305 22 16.5 5.00001; 1306 22 17 5.00001; 1307 22 17.5 5.00001
365. 1308 22 18 5.00001; 1309 22 18.5 5.00001; 1310 22 19 5.00001
366. 1311 22 19.5 5.00001; 1312 22 20 5.00001; 1313 22 0 5.50001
367. 1314 22 0.500001 5.50001; 1315 22 1 5.50001; 1316 22 1.5 5.50001
368. 1317 22 2 5.50001; 1318 22 2.50001 5.50001; 1319 22 3.00001 5.50001
369. 1320 22 3.50001 5.50001; 1321 22 4.00001 5.50001; 1322 22 4.50001 5.50001
370. 1323 22 5.00001 5.50001; 1324 22 5.50001 5.50001; 1325 22 6.00001 5.50001
371. 1326 22 6.50001 5.50001; 1327 22 7.00001 5.50001; 1328 22 7.50002 5.50001
372. 1329 22 8.00002 5.50001; 1330 22 8.50002 5.50001; 1331 22 9.00002 5.50001
373. 1332 22 9.50002 5.50001; 1333 22 10 5.50001; 1334 22 10.5 5.50001
374. 1335 22 11 5.50001; 1336 22 11.5 5.50001; 1337 22 12 5.50001

_ STAAD SPACE -- PAGE NO. 8

375. 1338 22 12.5 5.50001; 1339 22 13 5.50001; 1340 22 13.5 5.50001
376. 1341 22 14 5.50001; 1342 22 14.5 5.50001; 1343 22 15 5.50001
377. 1344 22 15.5 5.50001; 1345 22 16 5.50001; 1346 22 16.5 5.50001
378. 1347 22 17 5.50001; 1348 22 17.5 5.50001; 1349 22 18 5.50001
379. 1350 22 18.5 5.50001; 1351 22 19 5.50001; 1352 22 19.5 5.50001
380. 1353 22 20 5.50001; 1354 22 0 6.00001; 1355 22 0.500001 6.00001
381. 1356 22 1 6.00001; 1357 22 1.5 6.00001; 1358 22 2 6.00001
382. 1359 22 2.50001 6.00001; 1360 22 3.00001 6.00001; 1361 22 3.50001 6.00001
383. 1362 22 4.00001 6.00001; 1363 22 4.50001 6.00001; 1364 22 5.00001 6.00001
384. 1365 22 5.50001 6.00001; 1366 22 6.00001 6.00001; 1367 22 6.50001 6.00001
385. 1368 22 7.00001 6.00001; 1369 22 7.50002 6.00001; 1370 22 8.00002 6.00001
386. 1371 22 8.50002 6.00001; 1372 22 9.00002 6.00001; 1373 22 9.50002 6.00001
387. 1374 22 10 6.00001; 1375 22 10.5 6.00001; 1376 22 11 6.00001
388. 1377 22 11.5 6.00001; 1378 22 12 6.00001; 1379 22 12.5 6.00001
389. 1380 22 13 6.00001; 1381 22 13.5 6.00001; 1382 22 14 6.00001
390. 1383 22 14.5 6.00001; 1384 22 15 6.00001; 1385 22 15.5 6.00001
391. 1386 22 16 6.00001; 1387 22 16.5 6.00001; 1388 22 17 6.00001
392. 1389 22 17.5 6.00001; 1390 22 18 6.00001; 1391 22 18.5 6.00001
393. 1392 22 19 6.00001; 1393 22 19.5 6.00001; 1394 22 20 6.00001
394. 1395 22 0 6.50001; 1396 22 0.500001 6.50001; 1397 22 1 6.50001
395. 1398 22 1.5 6.50001; 1399 22 2 6.50001; 1400 22 2.50001 6.50001
396. 1401 22 3.00001 6.50001; 1402 22 3.50001 6.50001; 1403 22 4.00001 6.50001
397. 1404 22 4.50001 6.50001; 1405 22 5.00001 6.50001; 1406 22 5.50001 6.50001
398. 1407 22 6.00001 6.50001; 1408 22 6.50001 6.50001; 1409 22 7.00001 6.50001
399. 1410 22 7.50002 6.50001; 1411 22 8.00002 6.50001; 1412 22 8.50002 6.50001
400. 1413 22 9.00002 6.50001; 1414 22 9.50002 6.50001; 1415 22 10 6.50001
401. 1416 22 10.5 6.50001; 1417 22 11 6.50001; 1418 22 11.5 6.50001
402. 1419 22 12 6.50001; 1420 22 12.5 6.50001; 1421 22 13 6.50001
403. 1422 22 13.5 6.50001; 1423 22 14 6.50001; 1424 22 14.5 6.50001
404. 1425 22 15 6.50001; 1426 22 15.5 6.50001; 1427 22 16 6.50001
405. 1428 22 16.5 6.50001; 1429 22 17 6.50001; 1430 22 17.5 6.50001
406. 1431 22 18 6.50001; 1432 22 18.5 6.50001; 1433 22 19 6.50001
407. 1434 22 19.5 6.50001; 1435 22 20 6.50001; 1436 22 0 7.00001
408. 1437 22 0.500001 7.00001; 1438 22 1 7.00001; 1439 22 1.5 7.00001
409. 1440 22 2 7.00001; 1441 22 2.50001 7.00001; 1442 22 3.00001 7.00001
410. 1443 22 3.50001 7.00001; 1444 22 4.00001 7.00001; 1445 22 4.50001 7.00001
411. 1446 22 5.00001 7.00001; 1447 22 5.50001 7.00001; 1448 22 6.00001 7.00001
412. 1449 22 6.50001 7.00001; 1450 22 7.00001 7.00001; 1451 22 7.50002 7.00001
413. 1452 22 8.00002 7.00001; 1453 22 8.50002 7.00001; 1454 22 9.00002 7.00001
414. 1455 22 9.50002 7.00001; 1456 22 10 7.00001; 1457 22 10.5 7.00001
415. 1458 22 11 7.00001; 1459 22 11.5 7.00001; 1460 22 12 7.00001
416. 1461 22 12.5 7.00001; 1462 22 13 7.00001; 1463 22 13.5 7.00001
417. 1464 22 14 7.00001; 1465 22 14.5 7.00001; 1466 22 15 7.00001
418. 1467 22 15.5 7.00001; 1468 22 16 7.00001; 1469 22 16.5 7.00001
419. 1470 22 17 7.00001; 1471 22 17.5 7.00001; 1472 22 18 7.00001
420. 1473 22 18.5 7.00001; 1474 22 19 7.00001; 1475 22 19.5 7.00001
421. 1476 22 20 7.00001; 1477 22 0 7.50002; 1478 22 0.500001 7.50002
422. 1479 22 1 7.50002; 1480 22 1.5 7.50002; 1481 22 2 7.50002
423. 1482 22 2.50001 7.50002; 1483 22 3.00001 7.50002; 1484 22 3.50001 7.50002
424. 1485 22 4.00001 7.50002; 1486 22 4.50001 7.50002; 1487 22 5.00001 7.50002
425. 1488 22 5.50001 7.50002; 1489 22 6.00001 7.50002; 1490 22 6.50001 7.50002
426. 1491 22 7.00001 7.50002; 1492 22 7.50002 7.50002; 1493 22 8.00002 7.50002
427. 1494 22 8.50002 7.50002; 1495 22 9.00002 7.50002; 1496 22 9.50002 7.50002
428. 1497 22 10 7.50002; 1498 22 10.5 7.50002; 1499 22 11 7.50002
429. 1500 22 11.5 7.50002; 1501 22 12 7.50002; 1502 22 12.5 7.50002
430. 1503 22 13 7.50002; 1504 22 13.5 7.50002; 1505 22 14 7.50002

_ STAAD SPACE -- PAGE NO. 9

431. 1506 22 14.5 7.50002; 1507 22 15 7.50002; 1508 22 15.5 7.50002
432. 1509 22 16 7.50002; 1510 22 16.5 7.50002; 1511 22 17 7.50002
433. 1512 22 17.5 7.50002; 1513 22 18 7.50002; 1514 22 18.5 7.50002
434. 1515 22 19 7.50002; 1516 22 19.5 7.50002; 1517 22 20 7.50002
435. 1518 22 0 8.00002; 1519 22 0.500001 8.00002; 1520 22 1 8.00002
436. 1521 22 1.5 8.00002; 1522 22 2 8.00002; 1523 22 2.50001 8.00002
437. 1524 22 3.00001 8.00002; 1525 22 3.50001 8.00002; 1526 22 4.00001 8.00002
438. 1527 22 4.50001 8.00002; 1528 22 5.00001 8.00002; 1529 22 5.50001 8.00002
439. 1530 22 6.00001 8.00002; 1531 22 6.50001 8.00002; 1532 22 7.00001 8.00002
440. 1533 22 7.50002 8.00002; 1534 22 8.00002 8.00002; 1535 22 8.50002 8.00002
441. 1536 22 9.00002 8.00002; 1537 22 9.50002 8.00002; 1538 22 10 8.00002
442. 1539 22 10.5 8.00002; 1540 22 11 8.00002; 1541 22 11.5 8.00002
443. 1542 22 12 8.00002; 1543 22 12.5 8.00002; 1544 22 13 8.00002
444. 1545 22 13.5 8.00002; 1546 22 14 8.00002; 1547 22 14.5 8.00002
445. 1548 22 15 8.00002; 1549 22 15.5 8.00002; 1550 22 16 8.00002
446. 1551 22 16.5 8.00002; 1552 22 17 8.00002; 1553 22 17.5 8.00002
447. 1554 22 18 8.00002; 1555 22 18.5 8.00002; 1556 22 19 8.00002
448. 1557 22 19.5 8.00002; 1558 22 20 8.00002; 1559 22 0 8.50002
449. 1560 22 0.500001 8.50002; 1561 22 1 8.50002; 1562 22 1.5 8.50002
450. 1563 22 2 8.50002; 1564 22 2.50001 8.50002; 1565 22 3.00001 8.50002
451. 1566 22 3.50001 8.50002; 1567 22 4.00001 8.50002; 1568 22 4.50001 8.50002
452. 1569 22 5.00001 8.50002; 1570 22 5.50001 8.50002; 1571 22 6.00001 8.50002
453. 1572 22 6.50001 8.50002; 1573 22 7.00001 8.50002; 1574 22 7.50002 8.50002
454. 1575 22 8.00002 8.50002; 1576 22 8.50002 8.50002; 1577 22 9.00002 8.50002
455. 1578 22 9.50002 8.50002; 1579 22 10 8.50002; 1580 22 10.5 8.50002
456. 1581 22 11 8.50002; 1582 22 11.5 8.50002; 1583 22 12 8.50002
457. 1584 22 12.5 8.50002; 1585 22 13 8.50002; 1586 22 13.5 8.50002
458. 1587 22 14 8.50002; 1588 22 14.5 8.50002; 1589 22 15 8.50002
459. 1590 22 15.5 8.50002; 1591 22 16 8.50002; 1592 22 16.5 8.50002
460. 1593 22 17 8.50002; 1594 22 17.5 8.50002; 1595 22 18 8.50002
461. 1596 22 18.5 8.50002; 1597 22 19 8.50002; 1598 22 19.5 8.50002
462. 1599 22 20 8.50002; 1600 22 0 9.00002; 1601 22 0.500001 9.00002
463. 1602 22 1 9.00002; 1603 22 1.5 9.00002; 1604 22 2 9.00002
464. 1605 22 2.50001 9.00002; 1606 22 3.00001 9.00002; 1607 22 3.50001 9.00002
465. 1608 22 4.00001 9.00002; 1609 22 4.50001 9.00002; 1610 22 5.00001 9.00002
466. 1611 22 5.50001 9.00002; 1612 22 6.00001 9.00002; 1613 22 6.50001 9.00002
467. 1614 22 7.00001 9.00002; 1615 22 7.50002 9.00002; 1616 22 8.00002 9.00002
468. 1617 22 8.50002 9.00002; 1618 22 9.00002 9.00002; 1619 22 9.50002 9.00002
469. 1620 22 10 9.00002; 1621 22 10.5 9.00002; 1622 22 11 9.00002
470. 1623 22 11.5 9.00002; 1624 22 12 9.00002; 1625 22 12.5 9.00002
471. 1626 22 13 9.00002; 1627 22 13.5 9.00002; 1628 22 14 9.00002
472. 1629 22 14.5 9.00002; 1630 22 15 9.00002; 1631 22 15.5 9.00002
473. 1632 22 16 9.00002; 1633 22 16.5 9.00002; 1634 22 17 9.00002
474. 1635 22 17.5 9.00002; 1636 22 18 9.00002; 1637 22 18.5 9.00002
475. 1638 22 19 9.00002; 1639 22 19.5 9.00002; 1640 22 20 9.00002
476. 1641 22 0 9.50002; 1642 22 0.500001 9.50002; 1643 22 1 9.50002
477. 1644 22 1.5 9.50002; 1645 22 2 9.50002; 1646 22 2.50001 9.50002
478. 1647 22 3.00001 9.50002; 1648 22 3.50001 9.50002; 1649 22 4.00001 9.50002
479. 1650 22 4.50001 9.50002; 1651 22 5.00001 9.50002; 1652 22 5.50001 9.50002
480. 1653 22 6.00001 9.50002; 1654 22 6.50001 9.50002; 1655 22 7.00001 9.50002
481. 1656 22 7.50002 9.50002; 1657 22 8.00002 9.50002; 1658 22 8.50002 9.50002
482. 1659 22 9.00002 9.50002; 1660 22 9.50002 9.50002; 1661 22 10 9.50002
483. 1662 22 10.5 9.50002; 1663 22 11 9.50002; 1664 22 11.5 9.50002
484. 1665 22 12 9.50002; 1666 22 12.5 9.50002; 1667 22 13 9.50002
485. 1668 22 13.5 9.50002; 1669 22 14 9.50002; 1670 22 14.5 9.50002
486. 1671 22 15 9.50002; 1672 22 15.5 9.50002; 1673 22 16 9.50002

_ STAAD SPACE -- PAGE NO. 10

487. 1674 22 16.5 9.50002; 1675 22 17 9.50002; 1676 22 17.5 9.50002
488. 1677 22 18 9.50002; 1678 22 18.5 9.50002; 1679 22 19 9.50002
489. 1680 22 19.5 9.50002; 1681 22 20 9.50002; 1682 22 0 10; 1683 22 0.500001 10
490. 1684 22 1 10; 1685 22 1.5 10; 1686 22 2 10; 1687 22 2.50001 10
491. 1688 22 3.00001 10; 1689 22 3.50001 10; 1690 22 4.00001 10; 1691 22 4.50001 10
492. 1692 22 5.00001 10; 1693 22 5.50001 10; 1694 22 6.00001 10; 1695 22 6.50001 10
493. 1696 22 7.00001 10; 1697 22 7.50002 10; 1698 22 8.00002 10; 1699 22 8.50002 10
494. 1700 22 9.00002 10; 1701 22 9.50002 10; 1702 22 10 10; 1703 22 10.5 10
495. 1704 22 11 10; 1705 22 11.5 10; 1706 22 12 10; 1707 22 12.5 10; 1708 22 13 10
496. 1709 22 13.5 10; 1710 22 14 10; 1711 22 14.5 10; 1712 22 15 10
497. 1713 22 15.5 10; 1714 22 16 10; 1715 22 16.5 10; 1716 22 17 10
498. 1717 22 17.5 10; 1718 22 18 10; 1719 22 18.5 10; 1720 22 19 10
499. 1721 22 19.5 10; 1722 22 20 10; 1741 17 3.50001 0; 1742 17 3.50001 10
500. 1757 13 3.50001 0; 1758 13 3.50001 10; 1773 9.00002 3.50001 0
501. 1774 9.00002 3.50001 10; 1789 5.00001 3.50001 0; 1790 5.00001 3.50001 10
502. 1895 21.5 18.5 0; 1896 21.5 18.5 10; 1897 21 18.5 0; 1898 21 18.5 10
503. 1899 20.5 18.5 0; 1900 20.5 18.5 10; 1901 20 18.5 0; 1902 20 18.5 10
504. 1903 19.5 18.5 0; 1904 19.5 18.5 10; 1905 19 18.5 0; 1906 19 18.5 10
505. 1907 18.5 18.5 0; 1908 18.5 18.5 10; 1909 18 18.5 0; 1910 18 18.5 10
506. 1911 17.5 18.5 0; 1912 17.5 18.5 10; 1913 17 18.5 0; 1914 17 18.5 10
507. 1915 16.5 18.5 0; 1916 16.5 18.5 10; 1917 16 18.5 0; 1918 16 18.5 10
508. 1919 15.5 18.5 0; 1920 15.5 18.5 10; 1921 15 18.5 0; 1922 15 18.5 10
509. 1923 14.5 18.5 0; 1924 14.5 18.5 10; 1925 14 18.5 0; 1926 14 18.5 10
510. 1927 13.5 18.5 0; 1928 13.5 18.5 10; 1929 13 18.5 0; 1930 13 18.5 10
511. 1931 12.5 18.5 0; 1932 12.5 18.5 10; 1933 12 18.5 0; 1934 12 18.5 10
512. 1935 11.5 18.5 0; 1936 11.5 18.5 10; 1937 11 18.5 0; 1938 11 18.5 10
513. 1939 10.5 18.5 0; 1940 10.5 18.5 10; 1941 10 18.5 0; 1942 10 18.5 10
514. 1943 9.50002 18.5 0; 1944 9.50002 18.5 10; 1945 9.00002 18.5 0
515. 1946 9.00002 18.5 10; 1947 8.50002 18.5 0; 1948 8.50002 18.5 10
516. 1949 8.00002 18.5 0; 1950 8.00002 18.5 10; 1951 7.50001 18.5 0
517. 1952 7.50001 18.5 10; 1953 7.00001 18.5 0; 1954 7.00001 18.5 10
518. 1955 6.50001 18.5 0; 1956 6.50001 18.5 10; 1957 6.00001 18.5 0
519. 1958 6.00001 18.5 10; 1959 5.50001 18.5 0; 1960 5.50001 18.5 10
520. 1961 5.00001 18.5 0; 1962 5.00001 18.5 10; 1963 4.50001 18.5 0
521. 1964 4.50001 18.5 10; 1965 4.00001 18.5 0; 1966 4.00001 18.5 10
522. 1967 3.50001 18.5 0; 1968 3.50001 18.5 10; 1969 3.00001 18.5 0
523. 1970 3.00001 18.5 10; 1971 2.50001 18.5 0; 1972 2.50001 18.5 10
524. 1973 2.00001 18.5 0; 1974 2.00001 18.5 10; 1975 1.50001 18.5 0
525. 1976 1.50001 18.5 10; 1977 1 18.5 0; 1978 1 18.5 10; 1979 0.500004 18.5 0
526. 1980 0.500004 18.5 10; 2729 5.00001 4.00001 0; 2730 5.00001 4.00001 10
527. 2731 5.00001 4.50001 0; 2732 5.00001 4.50001 10; 2733 5.00001 5.00001 0
528. 2734 5.00001 5.00001 10; 2735 5.00001 5.50001 0; 2736 5.00001 5.50001 10
529. 2737 5.00001 6.00001 0; 2738 5.00001 6.00001 10; 2745 5.00001 3.50001 0.500001
530. 2746 5.00001 4.00001 0.500001; 2747 5.00001 4.50001 0.500001
531. 2748 5.00001 5.00001 0.500001; 2749 5.00001 5.50001 0.500001
532. 2750 5.00001 6.00001 0.500001; 2754 5.00001 3.50001 1; 2755 5.00001 4.00001 1
533. 2756 5.00001 4.50001 1; 2757 5.00001 5.00001 1; 2758 5.00001 5.50001 1
534. 2759 5.00001 6.00001 1; 2763 5.00001 3.50001 1.5; 2764 5.00001 4.00001 1.5
535. 2765 5.00001 4.50001 1.5; 2766 5.00001 5.00001 1.5; 2767 5.00001 5.50001 1.5
536. 2768 5.00001 6.00001 1.5; 2772 5.00001 3.50001 2; 2773 5.00001 4.00001 2
537. 2774 5.00001 4.50001 2; 2775 5.00001 5.00001 2; 2776 5.00001 5.50001 2
538. 2777 5.00001 6.00001 2; 2781 5.00001 3.50001 2.50001
539. 2782 5.00001 4.00001 2.50001; 2783 5.00001 4.50001 2.50001
540. 2784 5.00001 5.00001 2.50001; 2785 5.00001 5.50001 2.50001
541. 2786 5.00001 6.00001 2.50001; 2790 5.00001 3.50001 3.00001
542. 2791 5.00001 4.00001 3.00001; 2792 5.00001 4.50001 3.00001

_ STAAD SPACE -- PAGE NO. 11

543. 2793 5.00001 5.00001 3.00001; 2794 5.00001 5.50001 3.00001
544. 2795 5.00001 6.00001 3.00001; 2799 5.00001 3.50001 3.50001
545. 2800 5.00001 4.00001 3.50001; 2801 5.00001 4.50001 3.50001
546. 2802 5.00001 5.00001 3.50001; 2803 5.00001 5.50001 3.50001
547. 2804 5.00001 6.00001 3.50001; 2808 5.00001 3.50001 4.00001
548. 2809 5.00001 4.00001 4.00001; 2810 5.00001 4.50001 4.00001
549. 2811 5.00001 5.00001 4.00001; 2812 5.00001 5.50001 4.00001
550. 2813 5.00001 6.00001 4.00001; 2817 5.00001 3.50001 4.50001
551. 2818 5.00001 4.00001 4.50001; 2819 5.00001 4.50001 4.50001
552. 2820 5.00001 5.00001 4.50001; 2821 5.00001 5.50001 4.50001
553. 2822 5.00001 6.00001 4.50001; 2826 5.00001 3.50001 5.00001
554. 2827 5.00001 4.00001 5.00001; 2828 5.00001 4.50001 5.00001
555. 2829 5.00001 5.00001 5.00001; 2830 5.00001 5.50001 5.00001
556. 2831 5.00001 6.00001 5.00001; 2835 5.00001 3.50001 5.50001
557. 2836 5.00001 4.00001 5.50001; 2837 5.00001 4.50001 5.50001
558. 2838 5.00001 5.00001 5.50001; 2839 5.00001 5.50001 5.50001
559. 2840 5.00001 6.00001 5.50001; 2844 5.00001 3.50001 6.00001
560. 2845 5.00001 4.00001 6.00001; 2846 5.00001 4.50001 6.00001
561. 2847 5.00001 5.00001 6.00001; 2848 5.00001 5.50001 6.00001
562. 2849 5.00001 6.00001 6.00001; 2853 5.00001 3.50001 6.50001
563. 2854 5.00001 4.00001 6.50001; 2855 5.00001 4.50001 6.50001
564. 2856 5.00001 5.00001 6.50001; 2857 5.00001 5.50001 6.50001
565. 2858 5.00001 6.00001 6.50001; 2862 5.00001 3.50001 7.00001
566. 2863 5.00001 4.00001 7.00001; 2864 5.00001 4.50001 7.00001
567. 2865 5.00001 5.00001 7.00001; 2866 5.00001 5.50001 7.00001
568. 2867 5.00001 6.00001 7.00001; 2871 5.00001 3.50001 7.50002
569. 2872 5.00001 4.00001 7.50002; 2873 5.00001 4.50001 7.50002
570. 2874 5.00001 5.00001 7.50002; 2875 5.00001 5.50001 7.50002
571. 2876 5.00001 6.00001 7.50002; 2880 5.00001 3.50001 8.00002
572. 2881 5.00001 4.00001 8.00002; 2882 5.00001 4.50001 8.00002
573. 2883 5.00001 5.00001 8.00002; 2884 5.00001 5.50001 8.00002
574. 2885 5.00001 6.00001 8.00002; 2889 5.00001 3.50001 8.50002
575. 2890 5.00001 4.00001 8.50002; 2891 5.00001 4.50001 8.50002
576. 2892 5.00001 5.00001 8.50002; 2893 5.00001 5.50001 8.50002
577. 2894 5.00001 6.00001 8.50002; 2898 5.00001 3.50001 9.00002
578. 2899 5.00001 4.00001 9.00002; 2900 5.00001 4.50001 9.00002
579. 2901 5.00001 5.00001 9.00002; 2902 5.00001 5.50001 9.00002
580. 2903 5.00001 6.00001 9.00002; 2907 5.00001 3.50001 9.50002
581. 2908 5.00001 4.00001 9.50002; 2909 5.00001 4.50001 9.50002
582. 2910 5.00001 5.00001 9.50002; 2911 5.00001 5.50001 9.50002
583. 2912 5.00001 6.00001 9.50002; 2916 9.00002 4.00001 0; 2917 9.00002 4.00001 10
584. 2918 9.00002 4.50001 0; 2919 9.00002 4.50001 10; 2920 9.00002 5.00001 0
585. 2921 9.00002 5.00001 10; 2922 9.00002 5.50001 0; 2923 9.00002 5.50001 10
586. 2924 9.00002 6.00001 0; 2925 9.00002 6.00001 10; 2932 9.00002 3.50001 0.500001
587. 2933 9.00002 4.00001 0.500001; 2934 9.00002 4.50001 0.500001
588. 2935 9.00002 5.00001 0.500001; 2936 9.00002 5.50001 0.500001
589. 2937 9.00002 6.00001 0.500001; 2941 9.00002 3.50001 1; 2942 9.00002 4.00001 1
590. 2943 9.00002 4.50001 1; 2944 9.00002 5.00001 1; 2945 9.00002 5.50001 1
591. 2946 9.00002 6.00001 1; 2950 9.00002 3.50001 1.5; 2951 9.00002 4.00001 1.5
592. 2952 9.00002 4.50001 1.5; 2953 9.00002 5.00001 1.5; 2954 9.00002 5.50001 1.5
593. 2955 9.00002 6.00001 1.5; 2959 9.00002 3.50001 2; 2960 9.00002 4.00001 2
594. 2961 9.00002 4.50001 2; 2962 9.00002 5.00001 2; 2963 9.00002 5.50001 2
595. 2964 9.00002 6.00001 2; 2968 9.00002 3.50001 2.50001
596. 2969 9.00002 4.00001 2.50001; 2970 9.00002 4.50001 2.50001
597. 2971 9.00002 5.00001 2.50001; 2972 9.00002 5.50001 2.50001
598. 2973 9.00002 6.00001 2.50001; 2977 9.00002 3.50001 3.00001

_ STAAD SPACE -- PAGE NO. 12

599. 2978 9.00002 4.00001 3.00001; 2979 9.00002 4.50001 3.00001
600. 2980 9.00002 5.00001 3.00001; 2981 9.00002 5.50001 3.00001
601. 2982 9.00002 6.00001 3.00001; 2986 9.00002 3.50001 3.50001
602. 2987 9.00002 4.00001 3.50001; 2988 9.00002 4.50001 3.50001
603. 2989 9.00002 5.00001 3.50001; 2990 9.00002 5.50001 3.50001
604. 2991 9.00002 6.00001 3.50001; 2995 9.00002 3.50001 4.00001
605. 2996 9.00002 4.00001 4.00001; 2997 9.00002 4.50001 4.00001
606. 2998 9.00002 5.00001 4.00001; 2999 9.00002 5.50001 4.00001
607. 3000 9.00002 6.00001 4.00001; 3004 9.00002 3.50001 4.50001
608. 3005 9.00002 4.00001 4.50001; 3006 9.00002 4.50001 4.50001
609. 3007 9.00002 5.00001 4.50001; 3008 9.00002 5.50001 4.50001
610. 3009 9.00002 6.00001 4.50001; 3013 9.00002 3.50001 5.00001
611. 3014 9.00002 4.00001 5.00001; 3015 9.00002 4.50001 5.00001
612. 3016 9.00002 5.00001 5.00001; 3017 9.00002 5.50001 5.00001
613. 3018 9.00002 6.00001 5.00001; 3022 9.00002 3.50001 5.50001
614. 3023 9.00002 4.00001 5.50001; 3024 9.00002 4.50001 5.50001
615. 3025 9.00002 5.00001 5.50001; 3026 9.00002 5.50001 5.50001
616. 3027 9.00002 6.00001 5.50001; 3031 9.00002 3.50001 6.00001
617. 3032 9.00002 4.00001 6.00001; 3033 9.00002 4.50001 6.00001
618. 3034 9.00002 5.00001 6.00001; 3035 9.00002 5.50001 6.00001
619. 3036 9.00002 6.00001 6.00001; 3040 9.00002 3.50001 6.50001
620. 3041 9.00002 4.00001 6.50001; 3042 9.00002 4.50001 6.50001
621. 3043 9.00002 5.00001 6.50001; 3044 9.00002 5.50001 6.50001
622. 3045 9.00002 6.00001 6.50001; 3049 9.00002 3.50001 7.00001
623. 3050 9.00002 4.00001 7.00001; 3051 9.00002 4.50001 7.00001
624. 3052 9.00002 5.00001 7.00001; 3053 9.00002 5.50001 7.00001
625. 3054 9.00002 6.00001 7.00001; 3058 9.00002 3.50001 7.50002
626. 3059 9.00002 4.00001 7.50002; 3060 9.00002 4.50001 7.50002
627. 3061 9.00002 5.00001 7.50002; 3062 9.00002 5.50001 7.50002
628. 3063 9.00002 6.00001 7.50002; 3067 9.00002 3.50001 8.00002
629. 3068 9.00002 4.00001 8.00002; 3069 9.00002 4.50001 8.00002
630. 3070 9.00002 5.00001 8.00002; 3071 9.00002 5.50001 8.00002
631. 3072 9.00002 6.00001 8.00002; 3076 9.00002 3.50001 8.50002
632. 3077 9.00002 4.00001 8.50002; 3078 9.00002 4.50001 8.50002
633. 3079 9.00002 5.00001 8.50002; 3080 9.00002 5.50001 8.50002
634. 3081 9.00002 6.00001 8.50002; 3085 9.00002 3.50001 9.00002
635. 3086 9.00002 4.00001 9.00002; 3087 9.00002 4.50001 9.00002
636. 3088 9.00002 5.00001 9.00002; 3089 9.00002 5.50001 9.00002
637. 3090 9.00002 6.00001 9.00002; 3094 9.00002 3.50001 9.50002
638. 3095 9.00002 4.00001 9.50002; 3096 9.00002 4.50001 9.50002
639. 3097 9.00002 5.00001 9.50002; 3098 9.00002 5.50001 9.50002
640. 3099 9.00002 6.00001 9.50002; 3103 13 4.00001 0; 3104 13 4.00001 10
641. 3105 13 4.50001 0; 3106 13 4.50001 10; 3107 13 5.00001 0; 3108 13 5.00001 10
642. 3109 13 5.50001 0; 3110 13 5.50001 10; 3111 13 6.00001 0; 3112 13 6.00001 10
643. 3119 13 3.50001 0.500001; 3120 13 4.00001 0.500001; 3121 13 4.50001 0.500001
644. 3122 13 5.00001 0.500001; 3123 13 5.50001 0.500001; 3124 13 6.00001 0.500001
645. 3128 13 3.50001 1; 3129 13 4.00001 1; 3130 13 4.50001 1; 3131 13 5.00001 1
646. 3132 13 5.50001 1; 3133 13 6.00001 1; 3137 13 3.50001 1.5; 3138 13 4.00001 1.5
647. 3139 13 4.50001 1.5; 3140 13 5.00001 1.5; 3141 13 5.50001 1.5
648. 3142 13 6.00001 1.5; 3146 13 3.50001 2; 3147 13 4.00001 2; 3148 13 4.50001 2
649. 3149 13 5.00001 2; 3150 13 5.50001 2; 3151 13 6.00001 2
650. 3155 13 3.50001 2.50001; 3156 13 4.00001 2.50001; 3157 13 4.50001 2.50001
651. 3158 13 5.00001 2.50001; 3159 13 5.50001 2.50001; 3160 13 6.00001 2.50001
652. 3164 13 3.50001 3.00001; 3165 13 4.00001 3.00001; 3166 13 4.50001 3.00001
653. 3167 13 5.00001 3.00001; 3168 13 5.50001 3.00001; 3169 13 6.00001 3.00001
654. 3173 13 3.50001 3.50001; 3174 13 4.00001 3.50001; 3175 13 4.50001 3.50001

_ STAAD SPACE -- PAGE NO. 13

655. 3176 13 5.00001 3.50001; 3177 13 5.50001 3.50001; 3178 13 6.00001 3.50001
656. 3182 13 3.50001 4.00001; 3183 13 4.00001 4.00001; 3184 13 4.50001 4.00001
657. 3185 13 5.00001 4.00001; 3186 13 5.50001 4.00001; 3187 13 6.00001 4.00001
658. 3191 13 3.50001 4.50001; 3192 13 4.00001 4.50001; 3193 13 4.50001 4.50001
659. 3194 13 5.00001 4.50001; 3195 13 5.50001 4.50001; 3196 13 6.00001 4.50001
660. 3200 13 3.50001 5.00001; 3201 13 4.00001 5.00001; 3202 13 4.50001 5.00001
661. 3203 13 5.00001 5.00001; 3204 13 5.50001 5.00001; 3205 13 6.00001 5.00001
662. 3209 13 3.50001 5.50001; 3210 13 4.00001 5.50001; 3211 13 4.50001 5.50001
663. 3212 13 5.00001 5.50001; 3213 13 5.50001 5.50001; 3214 13 6.00001 5.50001
664. 3218 13 3.50001 6.00001; 3219 13 4.00001 6.00001; 3220 13 4.50001 6.00001
665. 3221 13 5.00001 6.00001; 3222 13 5.50001 6.00001; 3223 13 6.00001 6.00001
666. 3227 13 3.50001 6.50001; 3228 13 4.00001 6.50001; 3229 13 4.50001 6.50001
667. 3230 13 5.00001 6.50001; 3231 13 5.50001 6.50001; 3232 13 6.00001 6.50001
668. 3236 13 3.50001 7.00001; 3237 13 4.00001 7.00001; 3238 13 4.50001 7.00001
669. 3239 13 5.00001 7.00001; 3240 13 5.50001 7.00001; 3241 13 6.00001 7.00001
670. 3245 13 3.50001 7.50002; 3246 13 4.00001 7.50002; 3247 13 4.50001 7.50002
671. 3248 13 5.00001 7.50002; 3249 13 5.50001 7.50002; 3250 13 6.00001 7.50002
672. 3254 13 3.50001 8.00002; 3255 13 4.00001 8.00002; 3256 13 4.50001 8.00002
673. 3257 13 5.00001 8.00002; 3258 13 5.50001 8.00002; 3259 13 6.00001 8.00002
674. 3263 13 3.50001 8.50002; 3264 13 4.00001 8.50002; 3265 13 4.50001 8.50002
675. 3266 13 5.00001 8.50002; 3267 13 5.50001 8.50002; 3268 13 6.00001 8.50002
676. 3272 13 3.50001 9.00002; 3273 13 4.00001 9.00002; 3274 13 4.50001 9.00002
677. 3275 13 5.00001 9.00002; 3276 13 5.50001 9.00002; 3277 13 6.00001 9.00002
678. 3281 13 3.50001 9.50002; 3282 13 4.00001 9.50002; 3283 13 4.50001 9.50002
679. 3284 13 5.00001 9.50002; 3285 13 5.50001 9.50002; 3286 13 6.00001 9.50002
680. 3290 17 4.00001 0; 3291 17 4.00001 10; 3292 17 4.50001 0; 3293 17 4.50001 10
681. 3294 17 5.00001 0; 3295 17 5.00001 10; 3296 17 5.50001 0; 3297 17 5.50001 10
682. 3298 17 6.00001 0; 3299 17 6.00001 10; 3306 17 3.50001 0.500001
683. 3307 17 4.00001 0.500001; 3308 17 4.50001 0.500001; 3309 17 5.00001 0.500001
684. 3310 17 5.50001 0.500001; 3311 17 6.00001 0.500001; 3315 17 3.50001 1
685. 3316 17 4.00001 1; 3317 17 4.50001 1; 3318 17 5.00001 1; 3319 17 5.50001 1
686. 3320 17 6.00001 1; 3324 17 3.50001 1.5; 3325 17 4.00001 1.5
687. 3326 17 4.50001 1.5; 3327 17 5.00001 1.5; 3328 17 5.50001 1.5
688. 3329 17 6.00001 1.5; 3333 17 3.50001 2; 3334 17 4.00001 2; 3335 17 4.50001 2
689. 3336 17 5.00001 2; 3337 17 5.50001 2; 3338 17 6.00001 2
690. 3342 17 3.50001 2.50001; 3343 17 4.00001 2.50001; 3344 17 4.50001 2.50001
691. 3345 17 5.00001 2.50001; 3346 17 5.50001 2.50001; 3347 17 6.00001 2.50001
692. 3351 17 3.50001 3.00001; 3352 17 4.00001 3.00001; 3353 17 4.50001 3.00001
693. 3354 17 5.00001 3.00001; 3355 17 5.50001 3.00001; 3356 17 6.00001 3.00001
694. 3360 17 3.50001 3.50001; 3361 17 4.00001 3.50001; 3362 17 4.50001 3.50001
695. 3363 17 5.00001 3.50001; 3364 17 5.50001 3.50001; 3365 17 6.00001 3.50001
696. 3369 17 3.50001 4.00001; 3370 17 4.00001 4.00001; 3371 17 4.50001 4.00001
697. 3372 17 5.00001 4.00001; 3373 17 5.50001 4.00001; 3374 17 6.00001 4.00001
698. 3378 17 3.50001 4.50001; 3379 17 4.00001 4.50001; 3380 17 4.50001 4.50001
699. 3381 17 5.00001 4.50001; 3382 17 5.50001 4.50001; 3383 17 6.00001 4.50001
700. 3387 17 3.50001 5.00001; 3388 17 4.00001 5.00001; 3389 17 4.50001 5.00001
701. 3390 17 5.00001 5.00001; 3391 17 5.50001 5.00001; 3392 17 6.00001 5.00001
702. 3396 17 3.50001 5.50001; 3397 17 4.00001 5.50001; 3398 17 4.50001 5.50001
703. 3399 17 5.00001 5.50001; 3400 17 5.50001 5.50001; 3401 17 6.00001 5.50001
704. 3405 17 3.50001 6.00001; 3406 17 4.00001 6.00001; 3407 17 4.50001 6.00001
705. 3408 17 5.00001 6.00001; 3409 17 5.50001 6.00001; 3410 17 6.00001 6.00001
706. 3414 17 3.50001 6.50001; 3415 17 4.00001 6.50001; 3416 17 4.50001 6.50001
707. 3417 17 5.00001 6.50001; 3418 17 5.50001 6.50001; 3419 17 6.00001 6.50001
708. 3423 17 3.50001 7.00001; 3424 17 4.00001 7.00001; 3425 17 4.50001 7.00001
709. 3426 17 5.00001 7.00001; 3427 17 5.50001 7.00001; 3428 17 6.00001 7.00001
710. 3432 17 3.50001 7.50002; 3433 17 4.00001 7.50002; 3434 17 4.50001 7.50002

_ STAAD SPACE -- PAGE NO. 14

711. 3435 17 5.00001 7.50002; 3436 17 5.50001 7.50002; 3437 17 6.00001 7.50002
712. 3441 17 3.50001 8.00002; 3442 17 4.00001 8.00002; 3443 17 4.50001 8.00002
713. 3444 17 5.00001 8.00002; 3445 17 5.50001 8.00002; 3446 17 6.00001 8.00002
714. 3450 17 3.50001 8.50002; 3451 17 4.00001 8.50002; 3452 17 4.50001 8.50002
715. 3453 17 5.00001 8.50002; 3454 17 5.50001 8.50002; 3455 17 6.00001 8.50002
716. 3459 17 3.50001 9.00002; 3460 17 4.00001 9.00002; 3461 17 4.50001 9.00002
717. 3462 17 5.00001 9.00002; 3463 17 5.50001 9.00002; 3464 17 6.00001 9.00002
718. 3468 17 3.50001 9.50002; 3469 17 4.00001 9.50002; 3470 17 4.50001 9.50002
719. 3471 17 5.00001 9.50002; 3472 17 5.50001 9.50002; 3473 17 6.00001 9.50002
720. 3479 17.5 6.00001 0; 3481 16.5 6.00001 0; 3482 16 6.00001 0
721. 3483 15.5 6.00001 0; 3484 15 6.00001 0; 3485 14.5 6.00001 0; 3486 14 6.00001 0
722. 3487 13.5 6.00001 0; 3489 12.5 6.00001 0; 3490 12 6.00001 0
723. 3491 11.5 6.00001 0; 3492 11 6.00001 0; 3493 10.5 6.00001 0; 3494 10 6.00001 0
724. 3495 9.50002 6.00001 0; 3497 8.50002 6.00001 0; 3498 8.00002 6.00001 0
725. 3499 7.50001 6.00001 0; 3500 7.00001 6.00001 0; 3501 6.50001 6.00001 0
726. 3502 6.00001 6.00001 0; 3503 5.50001 6.00001 0; 3505 4.50001 6.00001 0
727. 3506 4.00001 6.00001 0; 3507 5.50001 6.00001 0.500001; 3508 5.50001 6.00001 1
728. 3509 5.50001 6.00001 1.5; 3510 5.50001 6.00001 2; 3511 5.50001 6.00001 2.50001
729. 3512 5.50001 6.00001 3.00001; 3513 5.50001 6.00001 3.50001
730. 3514 5.50001 6.00001 4.00001; 3515 5.50001 6.00001 4.50001
731. 3516 5.50001 6.00001 5.00001; 3517 5.50001 6.00001 5.50001
732. 3518 5.50001 6.00001 6.00001; 3519 5.50001 6.00001 6.50001
733. 3520 5.50001 6.00001 7.00001; 3521 5.50001 6.00001 7.50002
734. 3522 5.50001 6.00001 8.00002; 3523 5.50001 6.00001 8.50002
735. 3524 5.50001 6.00001 9.00002; 3525 5.50001 6.00001 9.50002
736. 3526 9.50002 6.00001 0.500001; 3527 9.50002 6.00001 1
737. 3528 9.50002 6.00001 1.5; 3529 9.50002 6.00001 2; 3530 9.50002 6.00001 2.50001
738. 3531 9.50002 6.00001 3.00001; 3532 9.50002 6.00001 3.50001
739. 3533 9.50002 6.00001 4.00001; 3534 9.50002 6.00001 4.50001
740. 3535 9.50002 6.00001 5.00001; 3536 9.50002 6.00001 5.50001
741. 3537 9.50002 6.00001 6.00001; 3538 9.50002 6.00001 6.50001
742. 3539 9.50002 6.00001 7.00001; 3540 9.50002 6.00001 7.50002
743. 3541 9.50002 6.00001 8.00002; 3542 9.50002 6.00001 8.50002
744. 3543 9.50002 6.00001 9.00002; 3544 9.50002 6.00001 9.50002
745. 3545 13.5 6.00001 0.500001; 3546 13.5 6.00001 1; 3547 13.5 6.00001 1.5
746. 3548 13.5 6.00001 2; 3549 13.5 6.00001 2.50001; 3550 13.5 6.00001 3.00001
747. 3551 13.5 6.00001 3.50001; 3552 13.5 6.00001 4.00001
748. 3553 13.5 6.00001 4.50001; 3554 13.5 6.00001 5.00001
749. 3555 13.5 6.00001 5.50001; 3556 13.5 6.00001 6.00001
750. 3557 13.5 6.00001 6.50001; 3558 13.5 6.00001 7.00001
751. 3559 13.5 6.00001 7.50002; 3560 13.5 6.00001 8.00002
752. 3561 13.5 6.00001 8.50002; 3562 13.5 6.00001 9.00002
753. 3563 13.5 6.00001 9.50002; 3564 17.5 6.00001 0.500001; 3565 17.5 6.00001 1
754. 3566 17.5 6.00001 1.5; 3567 17.5 6.00001 2; 3568 17.5 6.00001 2.50001
755. 3569 17.5 6.00001 3.00001; 3570 17.5 6.00001 3.50001
756. 3571 17.5 6.00001 4.00001; 3572 17.5 6.00001 4.50001
757. 3573 17.5 6.00001 5.00001; 3574 17.5 6.00001 5.50001
758. 3575 17.5 6.00001 6.00001; 3576 17.5 6.00001 6.50001
759. 3577 17.5 6.00001 7.00001; 3578 17.5 6.00001 7.50002
760. 3579 17.5 6.00001 8.00002; 3580 17.5 6.00001 8.50002
761. 3581 17.5 6.00001 9.00002; 3582 17.5 6.00001 9.50002
762. 4239 1.50001 3.49997 7.00001; 4280 16.5 6.00001 9.50002
763. 4281 16.5 6.00001 9.00002; 4282 16.5 6.00001 8.00002
764. 4283 16.5 6.00001 7.50002; 4284 16.5 6.00001 7.00001
765. 4285 16.5 6.00001 6.00001; 4286 16.5 6.00001 5.50001
766. 4287 16.5 6.00001 5.00001; 4288 16.5 6.00001 4.00001

_ STAAD SPACE -- PAGE NO. 15

767. 4289 16.5 6.00001 3.50001; 4290 16.5 6.00001 2; 4291 16.5 6.00001 1
768. 4292 16.5 6.00001 0.500001; 4293 16 6.00001 9.50002; 4294 16 6.00001 9.00002
769. 4295 16 6.00001 8.00002; 4296 16 6.00001 7.50002; 4297 16 6.00001 7.00001
770. 4298 16 6.00001 6.00001; 4299 16 6.00001 5.50001; 4300 16 6.00001 5.00001
771. 4301 16 6.00001 4.00001; 4302 16 6.00001 3.50001; 4303 16 6.00001 2
772. 4304 16 6.00001 1; 4305 16 6.00001 0.500001; 4306 15.5 6.00001 9.50002
773. 4307 15.5 6.00001 9.00002; 4308 15.5 6.00001 8.00002
774. 4309 15.5 6.00001 7.50002; 4310 15.5 6.00001 7.00001
775. 4311 15.5 6.00001 6.00001; 4312 15.5 6.00001 5.50001
776. 4313 15.5 6.00001 5.00001; 4314 15.5 6.00001 4.00001
777. 4315 15.5 6.00001 3.50001; 4316 15.5 6.00001 2; 4317 15.5 6.00001 1
778. 4318 15.5 6.00001 0.500001; 4319 15 6.00001 9.50002; 4320 15 6.00001 9.00002
779. 4321 15 6.00001 8.00002; 4322 15 6.00001 7.50002; 4323 15 6.00001 7.00001
780. 4324 15 6.00001 6.00001; 4325 15 6.00001 5.50001; 4326 15 6.00001 5.00001
781. 4327 15 6.00001 4.00001; 4328 15 6.00001 3.50001; 4329 15 6.00001 2
782. 4330 15 6.00001 1; 4331 15 6.00001 0.500001; 4332 14.5 6.00001 9.50002
783. 4333 14.5 6.00001 9.00002; 4334 14.5 6.00001 8.00002
784. 4335 14.5 6.00001 7.50002; 4336 14.5 6.00001 7.00001
785. 4337 14.5 6.00001 6.00001; 4338 14.5 6.00001 5.50001
786. 4339 14.5 6.00001 5.00001; 4340 14.5 6.00001 4.00001
787. 4341 14.5 6.00001 3.50001; 4342 14.5 6.00001 2; 4343 14.5 6.00001 1
788. 4344 14.5 6.00001 0.500001; 4345 14 6.00001 9.50002; 4346 14 6.00001 9.00002
789. 4347 14 6.00001 8.00002; 4348 14 6.00001 7.50002; 4349 14 6.00001 7.00001
790. 4350 14 6.00001 6.00001; 4351 14 6.00001 5.50001; 4352 14 6.00001 5.00001
791. 4353 14 6.00001 4.00001; 4354 14 6.00001 3.50001; 4355 14 6.00001 2
792. 4356 14 6.00001 1; 4357 14 6.00001 0.500001; 4358 12.5 6.00001 9.50002
793. 4359 12.5 6.00001 9.00002; 4360 12.5 6.00001 8.50002
794. 4361 12.5 6.00001 8.00002; 4362 12.5 6.00001 7.50002
795. 4363 12.5 6.00001 7.00001; 4364 12.5 6.00001 6.50001
796. 4365 12.5 6.00001 6.00001; 4366 12.5 6.00001 5.50001
797. 4367 12.5 6.00001 4.50001; 4368 12.5 6.00001 4.00001
798. 4369 12.5 6.00001 3.50001; 4370 12.5 6.00001 2; 4371 12.5 6.00001 1.5
799. 4372 12.5 6.00001 1; 4373 12.5 6.00001 0.500001; 4374 12 6.00001 9.50002
800. 4375 12 6.00001 9.00002; 4376 12 6.00001 8.50002; 4377 12 6.00001 8.00002
801. 4378 12 6.00001 7.50002; 4379 12 6.00001 7.00001; 4380 12 6.00001 6.50001
802. 4381 12 6.00001 6.00001; 4382 12 6.00001 5.50001; 4383 12 6.00001 4.50001
803. 4384 12 6.00001 4.00001; 4385 12 6.00001 3.50001; 4386 12 6.00001 2
804. 4387 12 6.00001 1.5; 4388 12 6.00001 1; 4389 12 6.00001 0.500001
805. 4390 11.5 6.00001 9.50002; 4391 11.5 6.00001 9.00002
806. 4392 11.5 6.00001 8.50002; 4393 11.5 6.00001 8.00002
807. 4394 11.5 6.00001 7.50002; 4395 11.5 6.00001 7.00001
808. 4396 11.5 6.00001 6.50001; 4397 11.5 6.00001 6.00001
809. 4398 11.5 6.00001 5.50001; 4399 11.5 6.00001 4.50001
810. 4400 11.5 6.00001 4.00001; 4401 11.5 6.00001 3.50001; 4402 11.5 6.00001 2
811. 4403 11.5 6.00001 1.5; 4404 11.5 6.00001 1; 4405 11.5 6.00001 0.500001
812. 4406 11 6.00001 9.50002; 4407 11 6.00001 9.00002; 4408 11 6.00001 8.50002
813. 4409 11 6.00001 8.00002; 4410 11 6.00001 7.50002; 4411 11 6.00001 7.00001
814. 4412 11 6.00001 6.50001; 4413 11 6.00001 6.00001; 4414 11 6.00001 5.50001
815. 4415 11 6.00001 4.50001; 4416 11 6.00001 4.00001; 4417 11 6.00001 3.50001
816. 4418 11 6.00001 2; 4419 11 6.00001 1.5; 4420 11 6.00001 1
817. 4421 11 6.00001 0.500001; 4422 10.5 6.00001 9.50002; 4423 10.5 6.00001 9.00002
818. 4424 10.5 6.00001 8.50002; 4425 10.5 6.00001 8.00002
819. 4426 10.5 6.00001 7.50002; 4427 10.5 6.00001 7.00001
820. 4428 10.5 6.00001 6.50001; 4429 10.5 6.00001 6.00001
821. 4430 10.5 6.00001 5.50001; 4431 10.5 6.00001 4.50001
822. 4432 10.5 6.00001 4.00001; 4433 10.5 6.00001 3.50001; 4434 10.5 6.00001 2

_ STAAD SPACE -- PAGE NO. 16

823. 4435 10.5 6.00001 1.5; 4436 10.5 6.00001 1; 4437 10.5 6.00001 0.500001
824. 4438 10 6.00001 9.50002; 4439 10 6.00001 9.00002; 4440 10 6.00001 8.50002
825. 4441 10 6.00001 8.00002; 4442 10 6.00001 7.50002; 4443 10 6.00001 7.00001
826. 4444 10 6.00001 6.50001; 4445 10 6.00001 6.00001; 4446 10 6.00001 5.50001
827. 4447 10 6.00001 4.50001; 4448 10 6.00001 4.00001; 4449 10 6.00001 3.50001
828. 4450 10 6.00001 2; 4451 10 6.00001 1.5; 4452 10 6.00001 1
829. 4453 10 6.00001 0.500001; 4454 8.50002 6.00001 9.50002
830. 4455 8.50002 6.00001 9.00002; 4456 8.50002 6.00001 8.50002
831. 4457 8.50002 6.00001 8.00002; 4458 8.50002 6.00001 7.50002
832. 4459 8.50002 6.00001 7.00001; 4460 8.50002 6.00001 6.50001
833. 4461 8.50002 6.00001 5.50001; 4462 8.50002 6.00001 4.50001
834. 4463 8.50002 6.00001 4.00001; 4464 8.50002 6.00001 3.50001
835. 4465 8.50002 6.00001 2; 4466 8.50002 6.00001 1.5; 4467 8.50002 6.00001 1
836. 4468 8.50002 6.00001 0.500001; 4469 8.00002 6.00001 9.50002
837. 4470 8.00002 6.00001 9.00002; 4471 8.00002 6.00001 8.50002
838. 4472 8.00002 6.00001 8.00002; 4473 8.00002 6.00001 7.50002
839. 4474 8.00002 6.00001 7.00001; 4475 8.00002 6.00001 6.50001
840. 4476 8.00002 6.00001 5.50001; 4477 8.00002 6.00001 4.50001
841. 4478 8.00002 6.00001 4.00001; 4479 8.00002 6.00001 3.50001
842. 4480 8.00002 6.00001 2; 4481 8.00002 6.00001 1.5; 4482 8.00002 6.00001 1
843. 4483 8.00002 6.00001 0.500001; 4484 7.50001 6.00001 9.50002
844. 4485 7.50001 6.00001 9.00002; 4486 7.50001 6.00001 8.50002
845. 4487 7.50001 6.00001 8.00002; 4488 7.50001 6.00001 7.50002
846. 4489 7.50001 6.00001 7.00001; 4490 7.50001 6.00001 6.50001
847. 4491 7.50001 6.00001 5.50001; 4492 7.50001 6.00001 4.50001
848. 4493 7.50001 6.00001 4.00001; 4494 7.50001 6.00001 3.50001
849. 4495 7.50001 6.00001 2; 4496 7.50001 6.00001 1.5; 4497 7.50001 6.00001 1
850. 4498 7.50001 6.00001 0.500001; 4499 7.00001 6.00001 9.50002
851. 4500 7.00001 6.00001 9.00002; 4501 7.00001 6.00001 8.50002
852. 4502 7.00001 6.00001 8.00002; 4503 7.00001 6.00001 7.50002
853. 4504 7.00001 6.00001 7.00001; 4505 7.00001 6.00001 6.50001
854. 4506 7.00001 6.00001 5.50001; 4507 7.00001 6.00001 4.50001
855. 4508 7.00001 6.00001 4.00001; 4509 7.00001 6.00001 3.50001
856. 4510 7.00001 6.00001 2; 4511 7.00001 6.00001 1.5; 4512 7.00001 6.00001 1
857. 4513 7.00001 6.00001 0.500001; 4514 6.50001 6.00001 9.50002
858. 4515 6.50001 6.00001 9.00002; 4516 6.50001 6.00001 8.50002
859. 4517 6.50001 6.00001 8.00002; 4518 6.50001 6.00001 7.50002
860. 4519 6.50001 6.00001 7.00001; 4520 6.50001 6.00001 6.50001
861. 4521 6.50001 6.00001 5.50001; 4522 6.50001 6.00001 4.50001
862. 4523 6.50001 6.00001 4.00001; 4524 6.50001 6.00001 3.50001
863. 4525 6.50001 6.00001 2; 4526 6.50001 6.00001 1.5; 4527 6.50001 6.00001 1
864. 4528 6.50001 6.00001 0.500001; 4529 6.00001 6.00001 9.50002
865. 4530 6.00001 6.00001 9.00002; 4531 6.00001 6.00001 8.50002
866. 4532 6.00001 6.00001 8.00002; 4533 6.00001 6.00001 7.50002
867. 4534 6.00001 6.00001 7.00001; 4535 6.00001 6.00001 6.50001
868. 4536 6.00001 6.00001 5.50001; 4537 6.00001 6.00001 4.50001
869. 4538 6.00001 6.00001 4.00001; 4539 6.00001 6.00001 3.50001
870. 4540 6.00001 6.00001 2; 4541 6.00001 6.00001 1.5; 4542 6.00001 6.00001 1
871. 4543 6.00001 6.00001 0.500001; 4544 4.50001 6.00001 9.00002
872. 4545 4.50001 6.00001 8.00002; 4546 4.50001 6.00001 7.50002
873. 4547 4.50001 6.00001 7.00001; 4548 4.50001 6.00001 6.50001
874. 4549 4.50001 6.00001 6.00001; 4550 4.50001 6.00001 5.00001
875. 4551 4.50001 6.00001 4.50001; 4552 4.50001 6.00001 4.00001
876. 4553 4.50001 6.00001 3.50001; 4554 4.50001 6.00001 2; 4555 4.50001 6.00001 1
877. 4556 4.00001 6.00001 9.00002; 4557 4.00001 6.00001 8.00002
878. 4558 4.00001 6.00001 7.50002; 4559 4.00001 6.00001 7.00001

_ STAAD SPACE -- PAGE NO. 17

879. 4560 4.00001 6.00001 6.50001; 4561 4.00001 6.00001 6.00001
880. 4562 4.00001 6.00001 5.00001; 4563 4.00001 6.00001 4.50001
881. 4564 4.00001 6.00001 4.00001; 4565 4.00001 6.00001 3.50001
882. 4566 4.00001 6.00001 2; 4567 4.00001 6.00001 1; 4568 4.00001 6.00001 0.500001
883. 4569 4.50001 6.00001 0.500001; 4570 4.00001 6.00001 1.5
884. 4571 4.50001 6.00001 1.5; 4572 4.00001 6.00001 2.50001
885. 4573 4.50001 6.00001 2.50001; 4574 4.00001 6.00001 3.00001
886. 4575 4.50001 6.00001 3.00001; 4576 4.00001 6.00001 5.50001
887. 4577 4.50001 6.00001 5.50001; 4578 4.00001 6.00001 8.50002
888. 4579 4.50001 6.00001 8.50002; 4580 4.00001 6.00001 9.50002
889. 4581 4.50001 6.00001 9.50002; 4582 6.00001 6.00001 2.50001
890. 4583 6.50001 6.00001 2.50001; 4584 7.00001 6.00001 2.50001
891. 4585 7.50001 6.00001 2.50001; 4586 8.00002 6.00001 2.50001
892. 4587 8.50002 6.00001 2.50001; 4588 6.00001 6.00001 3.00001
893. 4589 6.50001 6.00001 3.00001; 4590 7.00001 6.00001 3.00001
894. 4591 7.50001 6.00001 3.00001; 4592 8.00002 6.00001 3.00001
895. 4593 8.50002 6.00001 3.00001; 4594 6.00001 6.00001 5.00001
896. 4595 6.50001 6.00001 5.00001; 4596 7.00001 6.00001 5.00001
897. 4597 7.50001 6.00001 5.00001; 4598 8.00002 6.00001 5.00001
898. 4599 8.50002 6.00001 5.00001; 4600 6.00001 6.00001 6.00001
899. 4601 6.50001 6.00001 6.00001; 4602 7.00001 6.00001 6.00001
900. 4603 7.50001 6.00001 6.00001; 4604 8.00002 6.00001 6.00001
901. 4605 8.50002 6.00001 6.00001; 4606 10 6.00001 2.50001
902. 4607 10.5 6.00001 2.50001; 4608 11 6.00001 2.50001; 4609 11.5 6.00001 2.50001
903. 4610 12 6.00001 2.50001; 4611 12.5 6.00001 2.50001; 4612 10 6.00001 3.00001
904. 4613 10.5 6.00001 3.00001; 4614 11 6.00001 3.00001; 4615 11.5 6.00001 3.00001
905. 4616 12 6.00001 3.00001; 4617 12.5 6.00001 3.00001; 4618 10 6.00001 5.00001
906. 4619 10.5 6.00001 5.00001; 4620 11 6.00001 5.00001; 4621 11.5 6.00001 5.00001
907. 4622 12 6.00001 5.00001; 4623 12.5 6.00001 5.00001; 4624 14 6.00001 1.5
908. 4625 14.5 6.00001 1.5; 4626 15 6.00001 1.5; 4627 15.5 6.00001 1.5
909. 4628 16 6.00001 1.5; 4629 16.5 6.00001 1.5; 4630 14 6.00001 2.50001
910. 4631 14.5 6.00001 2.50001; 4632 15 6.00001 2.50001; 4633 15.5 6.00001 2.50001
911. 4634 16 6.00001 2.50001; 4635 16.5 6.00001 2.50001; 4636 14 6.00001 3.00001
912. 4637 14.5 6.00001 3.00001; 4638 15 6.00001 3.00001; 4639 15.5 6.00001 3.00001
913. 4640 16 6.00001 3.00001; 4641 16.5 6.00001 3.00001; 4642 14 6.00001 4.50001
914. 4643 14.5 6.00001 4.50001; 4644 15 6.00001 4.50001; 4645 15.5 6.00001 4.50001
915. 4646 16 6.00001 4.50001; 4647 16.5 6.00001 4.50001; 4648 14 6.00001 6.50001
916. 4649 14.5 6.00001 6.50001; 4650 15 6.00001 6.50001; 4651 15.5 6.00001 6.50001
917. 4652 16 6.00001 6.50001; 4653 16.5 6.00001 6.50001; 4654 14 6.00001 8.50002
918. 4655 14.5 6.00001 8.50002; 4656 15 6.00001 8.50002; 4657 15.5 6.00001 8.50002
919. 4658 16 6.00001 8.50002; 4659 16.5 6.00001 8.50002
920. 4959 0.500004 18.5 0.500001; 4960 1.50001 18.5 0.500001
921. 4961 3.00001 18.5 0.500001; 4962 3.50001 18.5 0.500001
922. 4963 4.00001 18.5 0.500001; 4964 4.50001 18.5 0.500001
923. 4965 5.00001 18.5 0.500001; 4966 5.50001 18.5 0.500001
924. 4967 6.00001 18.5 0.500001; 4968 6.50001 18.5 0.500001
925. 4969 7.50001 18.5 0.500001; 4970 8.00002 18.5 0.500001
926. 4971 8.50002 18.5 0.500001; 4972 9.00002 18.5 0.500001
927. 4973 9.50002 18.5 0.500001; 4974 11 18.5 0.500001; 4975 11.5 18.5 0.500001
928. 4976 12 18.5 0.500001; 4977 12.5 18.5 0.500001; 4978 13.5 18.5 0.500001
929. 4979 14 18.5 0.500001; 4980 14.5 18.5 0.500001; 4981 15 18.5 0.500001
930. 4982 15.5 18.5 0.500001; 4983 16 18.5 0.500001; 4984 16.5 18.5 0.500001
931. 4985 17 18.5 0.500001; 4986 17.5 18.5 0.500001; 4987 18 18.5 0.500001
932. 4988 18.5 18.5 0.500001; 4989 19 18.5 0.500001; 4990 19.5 18.5 0.500001
933. 4991 20 18.5 0.500001; 4992 20.5 18.5 0.500001; 4993 21 18.5 0.500001
934. 4994 21.5 18.5 0.500001; 4995 0.500004 18.5 1; 4996 1.50001 18.5 1

_ STAAD SPACE -- PAGE NO. 18

935. 4997 3.00001 18.5 1; 4998 3.50001 18.5 1; 4999 4.00001 18.5 1
936. 5000 4.50001 18.5 1; 5001 5.00001 18.5 1; 5002 5.50001 18.5 1
937. 5003 6.00001 18.5 1; 5004 6.50001 18.5 1; 5005 7.50001 18.5 1
938. 5006 8.00002 18.5 1; 5007 8.50002 18.5 1; 5008 9.00002 18.5 1
939. 5009 9.50002 18.5 1; 5010 11 18.5 1; 5011 11.5 18.5 1; 5012 12 18.5 1
940. 5013 12.5 18.5 1; 5014 13.5 18.5 1; 5015 14 18.5 1; 5016 14.5 18.5 1
941. 5017 15 18.5 1; 5018 15.5 18.5 1; 5019 16 18.5 1; 5020 16.5 18.5 1
942. 5021 17 18.5 1; 5022 17.5 18.5 1; 5023 18 18.5 1; 5024 18.5 18.5 1
943. 5025 19 18.5 1; 5026 19.5 18.5 1; 5027 20 18.5 1; 5028 20.5 18.5 1
944. 5029 21 18.5 1; 5030 21.5 18.5 1; 5031 0.500004 18.5 2; 5032 1.50001 18.5 2
945. 5033 3.00001 18.5 2; 5034 3.50001 18.5 2; 5035 4.00001 18.5 2
946. 5036 4.50001 18.5 2; 5037 5.00001 18.5 2; 5038 5.50001 18.5 2
947. 5039 6.00001 18.5 2; 5040 6.50001 18.5 2; 5041 7.50001 18.5 2
948. 5042 8.00002 18.5 2; 5043 8.50002 18.5 2; 5044 9.00002 18.5 2
949. 5045 9.50002 18.5 2; 5046 11 18.5 2; 5047 11.5 18.5 2; 5048 12 18.5 2
950. 5049 12.5 18.5 2; 5050 13.5 18.5 2; 5051 14 18.5 2; 5052 14.5 18.5 2
951. 5053 15 18.5 2; 5054 15.5 18.5 2; 5055 16 18.5 2; 5056 16.5 18.5 2
952. 5057 17 18.5 2; 5058 17.5 18.5 2; 5059 18 18.5 2; 5060 18.5 18.5 2
953. 5061 19 18.5 2; 5062 19.5 18.5 2; 5063 20 18.5 2; 5064 20.5 18.5 2
954. 5065 21 18.5 2; 5066 21.5 18.5 2; 5067 0.500004 18.5 3.00001
955. 5068 1.50001 18.5 3.00001; 5069 3.00001 18.5 3.00001
956. 5070 3.50001 18.5 3.00001; 5071 4.00001 18.5 3.00001
957. 5072 4.50001 18.5 3.00001; 5073 5.00001 18.5 3.00001
958. 5074 5.50001 18.5 3.00001; 5075 6.00001 18.5 3.00001
959. 5076 6.50001 18.5 3.00001; 5077 7.50001 18.5 3.00001
960. 5078 8.00002 18.5 3.00001; 5079 8.50002 18.5 3.00001
961. 5080 9.00002 18.5 3.00001; 5081 9.50002 18.5 3.00001; 5082 11 18.5 3.00001
962. 5083 11.5 18.5 3.00001; 5084 12 18.5 3.00001; 5085 12.5 18.5 3.00001
963. 5086 13.5 18.5 3.00001; 5087 14 18.5 3.00001; 5088 14.5 18.5 3.00001
964. 5089 15 18.5 3.00001; 5090 15.5 18.5 3.00001; 5091 16 18.5 3.00001
965. 5092 16.5 18.5 3.00001; 5093 17 18.5 3.00001; 5094 17.5 18.5 3.00001
966. 5095 18 18.5 3.00001; 5096 18.5 18.5 3.00001; 5097 19 18.5 3.00001
967. 5098 19.5 18.5 3.00001; 5099 20 18.5 3.00001; 5100 20.5 18.5 3.00001
968. 5101 21 18.5 3.00001; 5102 21.5 18.5 3.00001; 5103 0.500004 18.5 3.50001
969. 5104 1.50001 18.5 3.50001; 5105 3.00001 18.5 3.50001
970. 5106 3.50001 18.5 3.50001; 5107 4.00001 18.5 3.50001
971. 5108 4.50001 18.5 3.50001; 5109 5.00001 18.5 3.50001
972. 5110 5.50001 18.5 3.50001; 5111 6.00001 18.5 3.50001
973. 5112 6.50001 18.5 3.50001; 5113 7.50001 18.5 3.50001
974. 5114 8.00002 18.5 3.50001; 5115 8.50002 18.5 3.50001
975. 5116 9.00002 18.5 3.50001; 5117 9.50002 18.5 3.50001; 5118 11 18.5 3.50001
976. 5119 11.5 18.5 3.50001; 5120 12 18.5 3.50001; 5121 12.5 18.5 3.50001
977. 5122 13.5 18.5 3.50001; 5123 14 18.5 3.50001; 5124 14.5 18.5 3.50001
978. 5125 15 18.5 3.50001; 5126 15.5 18.5 3.50001; 5127 16 18.5 3.50001
979. 5128 16.5 18.5 3.50001; 5129 17 18.5 3.50001; 5130 17.5 18.5 3.50001
980. 5131 18 18.5 3.50001; 5132 18.5 18.5 3.50001; 5133 19 18.5 3.50001
981. 5134 19.5 18.5 3.50001; 5135 20 18.5 3.50001; 5136 20.5 18.5 3.50001
982. 5137 21 18.5 3.50001; 5138 21.5 18.5 3.50001; 5139 0.500004 18.5 7.50002
983. 5140 1.50001 18.5 7.50002; 5141 3.00001 18.5 7.50002
984. 5142 3.50001 18.5 7.50002; 5143 4.00001 18.5 7.50002
985. 5144 4.50001 18.5 7.50002; 5145 5.00001 18.5 7.50002
986. 5146 5.50001 18.5 7.50002; 5147 6.00001 18.5 7.50002
987. 5148 6.50001 18.5 7.50002; 5149 7.50001 18.5 7.50002
988. 5151 8.50002 18.5 7.50002; 5152 9.00002 18.5 7.50002
989. 5153 9.50002 18.5 7.50002; 5154 11 18.5 7.50002; 5155 11.5 18.5 7.50002
990. 5156 12 18.5 7.50002; 5157 12.5 18.5 7.50002; 5158 13.5 18.5 7.50002

_ STAAD SPACE -- PAGE NO. 19

991. 5159 14 18.5 7.50002; 5160 14.5 18.5 7.50002; 5161 15 18.5 7.50002
992. 5162 15.5 18.5 7.50002; 5163 16 18.5 7.50002; 5164 16.5 18.5 7.50002
993. 5165 17 18.5 7.50002; 5166 17.5 18.5 7.50002; 5167 18 18.5 7.50002
994. 5168 18.5 18.5 7.50002; 5169 19 18.5 7.50002; 5170 19.5 18.5 7.50002
995. 5171 20 18.5 7.50002; 5172 20.5 18.5 7.50002; 5173 21 18.5 7.50002
996. 5174 21.5 18.5 7.50002; 5175 0.500004 18.5 9.50002; 5176 1.50001 18.5 9.50002
997. 5177 3.00001 18.5 9.50002; 5178 3.50001 18.5 9.50002
998. 5179 4.00001 18.5 9.50002; 5180 4.50001 18.5 9.50002
999. 5181 5.00001 18.5 9.50002; 5182 5.50001 18.5 9.50002
1000. 5183 6.00001 18.5 9.50002; 5184 6.50001 18.5 9.50002
1001. 5185 7.50001 18.5 9.50002; 5186 8.00002 18.5 9.50002
1002. 5187 8.50002 18.5 9.50002; 5188 9.00002 18.5 9.50002
1003. 5189 9.50002 18.5 9.50002; 5190 11 18.5 9.50002; 5191 11.5 18.5 9.50002
1004. 5192 12 18.5 9.50002; 5193 12.5 18.5 9.50002; 5194 13.5 18.5 9.50002
1005. 5195 14 18.5 9.50002; 5196 14.5 18.5 9.50002; 5197 15 18.5 9.50002
1006. 5198 15.5 18.5 9.50002; 5199 16 18.5 9.50002; 5200 16.5 18.5 9.50002
1007. 5201 17 18.5 9.50002; 5202 17.5 18.5 9.50002; 5203 18 18.5 9.50002
1008. 5204 18.5 18.5 9.50002; 5205 19 18.5 9.50002; 5206 19.5 18.5 9.50002
1009. 5207 20 18.5 9.50002; 5208 20.5 18.5 9.50002; 5209 21 18.5 9.50002
1010. 5210 21.5 18.5 9.50002; 5211 13 18.5 9.50002; 5212 13 18.5 7.50002
1011. 5213 13 18.5 3.50001; 5214 13 18.5 3.00001; 5215 13 18.5 2; 5216 13 18.5 1
1012. 5217 13 18.5 0.500001; 5218 10.5 18.5 9.50002; 5219 10.5 18.5 7.50002
1013. 5220 10.5 18.5 3.50001; 5221 10.5 18.5 3.00001; 5222 10.5 18.5 2
1014. 5223 10.5 18.5 1; 5224 10.5 18.5 0.500001; 5225 10 18.5 9.50002
1015. 5226 10 18.5 7.50002; 5227 10 18.5 3.50001; 5228 10 18.5 3.00001
1016. 5229 10 18.5 2; 5230 10 18.5 1; 5231 10 18.5 0.500001
1017. 5232 7.00001 18.5 9.50002; 5233 7.00001 18.5 7.50002
1018. 5234 7.00001 18.5 3.50001; 5235 7.00001 18.5 3.00001; 5236 7.00001 18.5 2
1019. 5237 7.00001 18.5 1; 5238 7.00001 18.5 0.500001; 5239 2.50001 18.5 9.50002
1020. 5241 2.50001 18.5 3.50001; 5242 2.50001 18.5 2; 5243 2.50001 18.5 1
1021. 5244 2.50001 18.5 0.500001; 5245 2.00001 18.5 9.50002
1022. 5246 2.00001 18.5 7.50002; 5247 2.00001 18.5 3.50001; 5248 2.00001 18.5 2
1023. 5249 2.00001 18.5 1; 5250 2.00001 18.5 0.500001; 5251 1 18.5 9.50002
1024. 5252 1 18.5 7.50002; 5253 1 18.5 3.50001; 5254 1 18.5 3.00001; 5255 1 18.5 2
1025. 5256 1 18.5 1; 5257 1 18.5 0.500001; 5730 2.00001 18.5 3.00001
1026. 5731 2.50001 18.5 3.00001; 5732 21.5 18.5 9.00002; 5733 21.5 18.5 8.50002
1027. 5734 21.5 18.5 8.00002; 5735 21.5 18.5 7.00001; 5736 21.5 18.5 6.50001
1028. 5737 21.5 18.5 6.00001; 5738 21.5 18.5 5.50001; 5739 21.5 18.5 5.00001
1029. 5740 21.5 18.5 4.50001; 5741 21.5 18.5 4.00001; 5742 21.5 18.5 2.50001
1030. 5743 21.5 18.5 1.5; 5744 21 18.5 9.00002; 5745 21 18.5 8.50002
1031. 5746 21 18.5 8.00002; 5747 21 18.5 7.00001; 5748 21 18.5 6.50001
1032. 5749 21 18.5 6.00001; 5750 21 18.5 5.50001; 5751 21 18.5 5.00001
1033. 5752 21 18.5 4.50001; 5753 21 18.5 4.00001; 5754 21 18.5 2.50001
1034. 5755 21 18.5 1.5; 5756 20.5 18.5 9.00002; 5757 20.5 18.5 8.50002
1035. 5758 20.5 18.5 8.00002; 5759 20.5 18.5 7.00001; 5760 20.5 18.5 6.50001
1036. 5761 20.5 18.5 6.00001; 5762 20.5 18.5 5.50001; 5763 20.5 18.5 5.00001
1037. 5764 20.5 18.5 4.50001; 5765 20.5 18.5 4.00001; 5766 20.5 18.5 2.50001
1038. 5767 20.5 18.5 1.5; 5768 20 18.5 9.00002; 5769 20 18.5 8.50002
1039. 5770 20 18.5 8.00002; 5771 20 18.5 7.00001; 5772 20 18.5 6.50001
1040. 5773 20 18.5 6.00001; 5774 20 18.5 5.50001; 5775 20 18.5 5.00001
1041. 5776 20 18.5 4.50001; 5777 20 18.5 4.00001; 5778 20 18.5 2.50001
1042. 5779 20 18.5 1.5; 5780 19.5 18.5 9.00002; 5781 19.5 18.5 8.50002
1043. 5782 19.5 18.5 8.00002; 5783 19.5 18.5 7.00001; 5784 19.5 18.5 6.50001
1044. 5785 19.5 18.5 6.00001; 5786 19.5 18.5 5.50001; 5787 19.5 18.5 5.00001
1045. 5788 19.5 18.5 4.50001; 5789 19.5 18.5 4.00001; 5790 19.5 18.5 2.50001
1046. 5791 19.5 18.5 1.5; 5792 19 18.5 9.00002; 5793 19 18.5 8.50002

_ STAAD SPACE -- PAGE NO. 20

1047. 5794 19 18.5 8.00002; 5795 19 18.5 7.00001; 5796 19 18.5 6.50001
1048. 5797 19 18.5 6.00001; 5798 19 18.5 5.50001; 5799 19 18.5 5.00001
1049. 5800 19 18.5 4.50001; 5801 19 18.5 4.00001; 5802 19 18.5 2.50001
1050. 5803 19 18.5 1.5; 5804 18.5 18.5 9.00002; 5805 18.5 18.5 8.50002
1051. 5806 18.5 18.5 8.00002; 5807 18.5 18.5 7.00001; 5808 18.5 18.5 6.50001
1052. 5809 18.5 18.5 6.00001; 5810 18.5 18.5 5.50001; 5811 18.5 18.5 5.00001
1053. 5812 18.5 18.5 4.50001; 5813 18.5 18.5 4.00001; 5814 18.5 18.5 2.50001
1054. 5815 18.5 18.5 1.5; 5816 18 18.5 9.00002; 5817 18 18.5 8.50002
1055. 5818 18 18.5 8.00002; 5819 18 18.5 7.00001; 5820 18 18.5 6.50001
1056. 5821 18 18.5 6.00001; 5822 18 18.5 5.50001; 5823 18 18.5 5.00001
1057. 5824 18 18.5 4.50001; 5825 18 18.5 4.00001; 5826 18 18.5 2.50001
1058. 5827 18 18.5 1.5; 5828 17.5 18.5 9.00002; 5829 17.5 18.5 8.50002
1059. 5830 17.5 18.5 8.00002; 5831 17.5 18.5 7.00001; 5832 17.5 18.5 6.50001
1060. 5833 17.5 18.5 6.00001; 5834 17.5 18.5 5.50001; 5835 17.5 18.5 5.00001
1061. 5836 17.5 18.5 4.50001; 5837 17.5 18.5 4.00001; 5838 17.5 18.5 2.50001
1062. 5839 17.5 18.5 1.5; 5840 17 18.5 9.00002; 5841 17 18.5 8.50002
1063. 5842 17 18.5 8.00002; 5843 17 18.5 7.00001; 5844 17 18.5 6.50001
1064. 5845 17 18.5 6.00001; 5846 17 18.5 5.50001; 5847 17 18.5 5.00001
1065. 5848 17 18.5 4.50001; 5849 17 18.5 4.00001; 5850 17 18.5 2.50001
1066. 5851 17 18.5 1.5; 5852 16.5 18.5 9.00002; 5853 16.5 18.5 8.50002
1067. 5854 16.5 18.5 8.00002; 5855 16.5 18.5 7.00001; 5856 16.5 18.5 6.50001
1068. 5857 16.5 18.5 6.00001; 5858 16.5 18.5 5.50001; 5859 16.5 18.5 5.00001
1069. 5860 16.5 18.5 4.50001; 5861 16.5 18.5 4.00001; 5862 16.5 18.5 2.50001
1070. 5863 16.5 18.5 1.5; 5864 16 18.5 9.00002; 5865 16 18.5 8.50002
1071. 5866 16 18.5 8.00002; 5867 16 18.5 7.00001; 5868 16 18.5 6.50001
1072. 5869 16 18.5 6.00001; 5870 16 18.5 5.50001; 5871 16 18.5 5.00001
1073. 5872 16 18.5 4.50001; 5873 16 18.5 4.00001; 5874 16 18.5 2.50001
1074. 5875 16 18.5 1.5; 5876 15.5 18.5 9.00002; 5877 15.5 18.5 8.50002
1075. 5878 15.5 18.5 8.00002; 5879 15.5 18.5 7.00001; 5880 15.5 18.5 6.50001
1076. 5881 15.5 18.5 6.00001; 5882 15.5 18.5 5.50001; 5883 15.5 18.5 5.00001
1077. 5884 15.5 18.5 4.50001; 5885 15.5 18.5 4.00001; 5886 15.5 18.5 2.50001
1078. 5887 15.5 18.5 1.5; 5888 15 18.5 9.00002; 5889 15 18.5 8.50002
1079. 5890 15 18.5 8.00002; 5891 15 18.5 7.00001; 5892 15 18.5 6.50001
1080. 5893 15 18.5 6.00001; 5894 15 18.5 5.50001; 5895 15 18.5 5.00001
1081. 5896 15 18.5 4.50001; 5897 15 18.5 4.00001; 5898 15 18.5 2.50001
1082. 5899 15 18.5 1.5; 5900 14.5 18.5 9.00002; 5901 14.5 18.5 8.50002
1083. 5902 14.5 18.5 8.00002; 5903 14.5 18.5 7.00001; 5904 14.5 18.5 6.50001
1084. 5905 14.5 18.5 6.00001; 5906 14.5 18.5 5.50001; 5907 14.5 18.5 5.00001
1085. 5908 14.5 18.5 4.50001; 5909 14.5 18.5 4.00001; 5910 14.5 18.5 2.50001
1086. 5911 14.5 18.5 1.5; 5912 14 18.5 9.00002; 5913 14 18.5 8.50002
1087. 5914 14 18.5 8.00002; 5915 14 18.5 7.00001; 5916 14 18.5 6.50001
1088. 5917 14 18.5 6.00001; 5918 14 18.5 5.50001; 5919 14 18.5 5.00001
1089. 5920 14 18.5 4.50001; 5921 14 18.5 4.00001; 5922 14 18.5 2.50001
1090. 5923 14 18.5 1.5; 5924 13.5 18.5 9.00002; 5925 13.5 18.5 8.50002
1091. 5926 13.5 18.5 8.00002; 5927 13.5 18.5 7.00001; 5928 13.5 18.5 6.50001
1092. 5929 13.5 18.5 6.00001; 5930 13.5 18.5 5.50001; 5931 13.5 18.5 5.00001
1093. 5932 13.5 18.5 4.50001; 5933 13.5 18.5 4.00001; 5934 13.5 18.5 2.50001
1094. 5935 13.5 18.5 1.5; 5936 13 18.5 9.00002; 5937 13 18.5 8.50002
1095. 5938 13 18.5 8.00002; 5939 13 18.5 7.00001; 5940 13 18.5 6.50001
1096. 5941 13 18.5 6.00001; 5942 13 18.5 5.50001; 5943 13 18.5 5.00001
1097. 5944 13 18.5 4.50001; 5945 13 18.5 4.00001; 5946 13 18.5 2.50001
1098. 5947 13 18.5 1.5; 5948 12.5 18.5 9.00002; 5949 12.5 18.5 8.50002
1099. 5950 12.5 18.5 8.00002; 5951 12.5 18.5 7.00001; 5952 12.5 18.5 6.50001
1100. 5953 12.5 18.5 6.00001; 5954 12.5 18.5 5.50001; 5955 12.5 18.5 5.00001
1101. 5956 12.5 18.5 4.50001; 5957 12.5 18.5 4.00001; 5958 12.5 18.5 2.50001
1102. 5959 12.5 18.5 1.5; 5960 12 18.5 9.00002; 5961 12 18.5 8.50002

_ STAAD SPACE -- PAGE NO. 21

1103. 5962 12 18.5 8.00002; 5963 12 18.5 7.00001; 5964 12 18.5 6.50001
1104. 5965 12 18.5 6.00001; 5966 12 18.5 5.50001; 5967 12 18.5 5.00001
1105. 5968 12 18.5 4.50001; 5969 12 18.5 4.00001; 5970 12 18.5 2.50001
1106. 5971 12 18.5 1.5; 5972 11.5 18.5 9.00002; 5973 11.5 18.5 8.50002
1107. 5974 11.5 18.5 8.00002; 5975 11.5 18.5 7.00001; 5976 11.5 18.5 6.50001
1108. 5977 11.5 18.5 6.00001; 5978 11.5 18.5 5.50001; 5979 11.5 18.5 5.00001
1109. 5980 11.5 18.5 4.50001; 5981 11.5 18.5 4.00001; 5982 11.5 18.5 2.50001
1110. 5983 11.5 18.5 1.5; 5984 11 18.5 9.00002; 5985 11 18.5 8.50002
1111. 5986 11 18.5 8.00002; 5987 11 18.5 7.00001; 5988 11 18.5 6.50001
1112. 5989 11 18.5 6.00001; 5990 11 18.5 5.50001; 5991 11 18.5 5.00001
1113. 5992 11 18.5 4.50001; 5993 11 18.5 4.00001; 5994 11 18.5 2.50001
1114. 5995 11 18.5 1.5; 5996 10.5 18.5 9.00002; 5997 10.5 18.5 8.50002
1115. 5998 10.5 18.5 8.00002; 5999 10.5 18.5 7.00001; 6000 10.5 18.5 6.50001
1116. 6001 10.5 18.5 6.00001; 6002 10.5 18.5 5.50001; 6003 10.5 18.5 5.00001
1117. 6004 10.5 18.5 4.50001; 6005 10.5 18.5 4.00001; 6006 10.5 18.5 2.50001
1118. 6007 10.5 18.5 1.5; 6008 10 18.5 9.00002; 6009 10 18.5 8.50002
1119. 6010 10 18.5 8.00002; 6011 10 18.5 7.00001; 6012 10 18.5 6.50001
1120. 6013 10 18.5 6.00001; 6014 10 18.5 5.50001; 6015 10 18.5 5.00001
1121. 6016 10 18.5 4.50001; 6017 10 18.5 4.00001; 6018 10 18.5 2.50001
1122. 6019 10 18.5 1.5; 6020 9.50002 18.5 9.00002; 6021 9.50002 18.5 8.50002
1123. 6022 9.50002 18.5 8.00002; 6023 9.50002 18.5 7.00001
1124. 6024 9.50002 18.5 6.50001; 6025 9.50002 18.5 6.00001
1125. 6026 9.50002 18.5 5.50001; 6027 9.50002 18.5 5.00001
1126. 6028 9.50002 18.5 4.50001; 6029 9.50002 18.5 4.00001
1127. 6030 9.50002 18.5 2.50001; 6031 9.50002 18.5 1.5; 6032 9.00002 18.5 9.00002
1128. 6033 9.00002 18.5 8.50002; 6034 9.00002 18.5 8.00002
1129. 6035 9.00002 18.5 7.00001; 6036 9.00002 18.5 6.50001
1130. 6037 9.00002 18.5 6.00001; 6038 9.00002 18.5 5.50001
1131. 6039 9.00002 18.5 5.00001; 6040 9.00002 18.5 4.50001
1132. 6041 9.00002 18.5 4.00001; 6042 9.00002 18.5 2.50001; 6043 9.00002 18.5 1.5
1133. 6044 8.50002 18.5 9.00002; 6045 8.50002 18.5 8.50002
1134. 6046 8.50002 18.5 8.00002; 6047 8.50002 18.5 7.00001
1135. 6048 8.50002 18.5 6.50001; 6049 8.50002 18.5 6.00001
1136. 6050 8.50002 18.5 5.50001; 6051 8.50002 18.5 5.00001
1137. 6052 8.50002 18.5 4.50001; 6053 8.50002 18.5 4.00001
1138. 6054 8.50002 18.5 2.50001; 6055 8.50002 18.5 1.5; 6056 8.00002 18.5 1.5
1139. 6057 7.50001 18.5 9.00002; 6058 7.50001 18.5 8.50002
1140. 6059 7.50001 18.5 8.00002; 6060 7.50001 18.5 7.00001
1141. 6061 7.50001 18.5 6.50001; 6062 7.50001 18.5 6.00001
1142. 6063 7.50001 18.5 5.50001; 6064 7.50001 18.5 5.00001
1143. 6065 7.50001 18.5 4.50001; 6066 7.50001 18.5 4.00001
1144. 6067 7.50001 18.5 2.50001; 6068 7.50001 18.5 1.5; 6069 7.00001 18.5 9.00002
1145. 6070 7.00001 18.5 8.50002; 6071 7.00001 18.5 8.00002
1146. 6072 7.00001 18.5 7.00001; 6073 7.00001 18.5 6.50001
1147. 6074 7.00001 18.5 6.00001; 6075 7.00001 18.5 5.50001
1148. 6076 7.00001 18.5 5.00001; 6077 7.00001 18.5 4.50001
1149. 6078 7.00001 18.5 4.00001; 6079 7.00001 18.5 2.50001; 6080 7.00001 18.5 1.5
1150. 6081 6.50001 18.5 9.00002; 6082 6.50001 18.5 8.50002
1151. 6083 6.50001 18.5 8.00002; 6084 6.50001 18.5 7.00001
1152. 6085 6.50001 18.5 6.50001; 6086 6.50001 18.5 6.00001
1153. 6087 6.50001 18.5 5.50001; 6088 6.50001 18.5 5.00001
1154. 6089 6.50001 18.5 4.50001; 6090 6.50001 18.5 4.00001
1155. 6091 6.50001 18.5 2.50001; 6092 6.50001 18.5 1.5; 6093 6.00001 18.5 9.00002
1156. 6094 6.00001 18.5 8.50002; 6095 6.00001 18.5 8.00002
1157. 6096 6.00001 18.5 7.00001; 6097 6.00001 18.5 6.50001
1158. 6098 6.00001 18.5 6.00001; 6099 6.00001 18.5 5.50001

_ STAAD SPACE -- PAGE NO. 22

1159. 6100 6.00001 18.5 5.00001; 6101 6.00001 18.5 4.50001
1160. 6102 6.00001 18.5 4.00001; 6103 6.00001 18.5 2.50001; 6104 6.00001 18.5 1.5
1161. 6105 5.50001 18.5 9.00002; 6106 5.50001 18.5 8.50002
1162. 6107 5.50001 18.5 8.00002; 6108 5.50001 18.5 7.00001
1163. 6109 5.50001 18.5 6.50001; 6110 5.50001 18.5 6.00001
1164. 6111 5.50001 18.5 5.50001; 6112 5.50001 18.5 5.00001
1165. 6113 5.50001 18.5 4.50001; 6114 5.50001 18.5 4.00001
1166. 6115 5.50001 18.5 2.50001; 6116 5.50001 18.5 1.5; 6117 5.00001 18.5 9.00002
1167. 6118 5.00001 18.5 8.50002; 6119 5.00001 18.5 8.00002
1168. 6120 5.00001 18.5 7.00001; 6121 5.00001 18.5 6.50001
1169. 6122 5.00001 18.5 6.00001; 6123 5.00001 18.5 5.50001
1170. 6124 5.00001 18.5 5.00001; 6125 5.00001 18.5 4.50001
1171. 6126 5.00001 18.5 4.00001; 6127 5.00001 18.5 2.50001; 6128 5.00001 18.5 1.5
1172. 6129 4.50001 18.5 9.00002; 6130 4.50001 18.5 8.50002
1173. 6131 4.50001 18.5 8.00002; 6132 4.50001 18.5 7.00001
1174. 6133 4.50001 18.5 6.50001; 6134 4.50001 18.5 6.00001
1175. 6135 4.50001 18.5 5.50001; 6136 4.50001 18.5 5.00001
1176. 6137 4.50001 18.5 4.50001; 6138 4.50001 18.5 4.00001
1177. 6139 4.50001 18.5 2.50001; 6140 4.50001 18.5 1.5; 6141 4.00001 18.5 7.00001
1178. 6142 4.00001 18.5 6.50001; 6143 4.00001 18.5 6.00001
1179. 6144 4.00001 18.5 5.50001; 6145 4.00001 18.5 5.00001
1180. 6146 4.00001 18.5 4.50001; 6147 4.00001 18.5 4.00001; 6148 4.00001 18.5 1.5
1181. 6149 3.50001 18.5 9.00002; 6150 3.50001 18.5 8.50002
1182. 6151 3.50001 18.5 8.00002; 6152 3.50001 18.5 7.00001
1183. 6153 3.50001 18.5 6.50001; 6154 3.50001 18.5 6.00001
1184. 6155 3.50001 18.5 5.50001; 6156 3.50001 18.5 5.00001
1185. 6157 3.50001 18.5 4.50001; 6158 3.50001 18.5 4.00001
1186. 6159 3.50001 18.5 2.50001; 6160 3.50001 18.5 1.5; 6161 3.00001 18.5 9.00002
1187. 6162 3.00001 18.5 8.50002; 6163 3.00001 18.5 8.00002
1188. 6164 3.00001 18.5 7.00001; 6165 3.00001 18.5 6.50001
1189. 6166 3.00001 18.5 6.00001; 6167 3.00001 18.5 5.50001
1190. 6168 3.00001 18.5 5.00001; 6169 3.00001 18.5 4.50001
1191. 6170 3.00001 18.5 4.00001; 6171 3.00001 18.5 2.50001; 6172 3.00001 18.5 1.5
1192. 6173 2.50001 18.5 1.5; 6174 2.00001 18.5 9.00002; 6175 2.00001 18.5 8.50002
1193. 6176 2.00001 18.5 8.00002; 6177 2.00001 18.5 7.00001
1194. 6178 2.00001 18.5 6.50001; 6179 2.00001 18.5 6.00001
1195. 6180 2.00001 18.5 5.50001; 6181 2.00001 18.5 5.00001
1196. 6182 2.00001 18.5 4.50001; 6183 2.00001 18.5 4.00001
1197. 6184 2.00001 18.5 2.50001; 6185 2.00001 18.5 1.5; 6186 1.50001 18.5 9.00002
1198. 6187 1.50001 18.5 8.50002; 6188 1.50001 18.5 8.00002
1199. 6189 1.50001 18.5 7.00001; 6190 1.50001 18.5 6.50001
1200. 6191 1.50001 18.5 6.00001; 6192 1.50001 18.5 5.50001
1201. 6193 1.50001 18.5 5.00001; 6194 1.50001 18.5 4.50001
1202. 6195 1.50001 18.5 4.00001; 6196 1.50001 18.5 1.5; 6197 1 18.5 9.00002
1203. 6198 1 18.5 8.50002; 6199 1 18.5 8.00002; 6200 1 18.5 1.5
1204. 6201 0.500004 18.5 2.50001; 6204 8.00002 18.5 9.00002
1205. 6205 8.00002 18.5 8.50002; 6206 8.00002 18.5 8.00002
1206. 6207 8.00002 18.5 7.50002; 6208 8.00002 18.5 7.00001
1207. 6209 8.00002 18.5 6.50001; 6210 8.00002 18.5 6.00001
1208. 6211 8.00002 18.5 5.50001; 6212 8.00002 18.5 5.00001
1209. 6213 8.00002 18.5 4.50001; 6214 8.00002 18.5 4.00001
1210. 6215 8.00002 18.5 2.50001; 6216 4.00001 18.5 9.00002
1211. 6217 4.00001 18.5 8.50002; 6218 4.00001 18.5 8.00002
1212. 6219 4.00001 18.5 2.50001; 6220 2.50001 18.5 9.00002
1213. 6221 2.50001 18.5 8.50002; 6222 2.50001 18.5 8.00002
1214. 6223 2.50001 18.5 7.50002; 6224 2.50001 18.5 7.00001

_ STAAD SPACE -- PAGE NO. 23

1215. 6225 2.50001 18.5 6.50001; 6226 2.50001 18.5 6.00001
1216. 6227 2.50001 18.5 5.50001; 6228 2.50001 18.5 5.00001
1217. 6229 2.50001 18.5 4.50001; 6230 2.50001 18.5 4.00001
1218. 6231 2.50001 18.5 2.50001; 6232 0.500004 18.5 9.00002
1219. 6233 0.500004 18.5 8.50002; 6234 0.500004 18.5 8.00002; 6235 1 18.5 7.00001
1220. 6236 0.500004 18.5 7.00001; 6237 1 18.5 6.50001; 6238 0.500004 18.5 6.50001
1221. 6239 1 18.5 6.00001; 6240 0.500004 18.5 6.00001; 6241 1 18.5 5.00001
1222. 6242 1 18.5 5.50001; 6243 0.500004 18.5 5.50001; 6244 0.500004 18.5 5.00001
1223. 6245 1 18.5 4.50001; 6246 0.500004 18.5 4.50001; 6247 1 18.5 4.00001
1224. 6248 0.500004 18.5 4.00001; 6249 1 18.5 2.50001; 6250 0.500004 18.5 1.5
1225. 6251 1.50001 18.5 2.5; 6252 21.5 12.5 0; 6253 21.5 12.5 10; 6254 21 12.5 0
1226. 6255 21 12.5 10; 6256 20.5 12.5 0; 6257 20.5 12.5 10; 6258 20 12.5 0
1227. 6259 20 12.5 10; 6260 19.5 12.5 0; 6261 19.5 12.5 10; 6262 19 12.5 0
1228. 6263 19 12.5 10; 6264 18.5 12.5 0; 6265 18.5 12.5 10; 6266 18 12.5 0
1229. 6267 18 12.5 10; 6268 17.5 12.5 0; 6269 17.5 12.5 10; 6270 17 12.5 0
1230. 6271 17 12.5 10; 6272 16.5 12.5 0; 6273 16.5 12.5 10; 6274 16 12.5 0
1231. 6275 16 12.5 10; 6276 15.5 12.5 0; 6277 15.5 12.5 10; 6278 15 12.5 0
1232. 6279 15 12.5 10; 6280 14.5 12.5 0; 6281 14.5 12.5 10; 6282 14 12.5 0
1233. 6283 14 12.5 10; 6284 13.5 12.5 0; 6285 13.5 12.5 10; 6286 13 12.5 0
1234. 6287 13 12.5 10; 6288 12.5 12.5 0; 6289 12.5 12.5 10; 6290 12 12.5 0
1235. 6291 12 12.5 10; 6292 11.5 12.5 0; 6293 11.5 12.5 10; 6294 11 12.5 0
1236. 6295 11 12.5 10; 6296 10.5 12.5 0; 6297 10.5 12.5 10; 6298 10 12.5 0
1237. 6299 10 12.5 10; 6300 9.50002 12.5 0; 6301 9.50002 12.5 10
1238. 6302 9.00002 12.5 0; 6303 9.00002 12.5 10; 6304 8.50002 12.5 0
1239. 6305 8.50002 12.5 10; 6306 8.00002 12.5 0; 6307 8.00002 12.5 10
1240. 6308 7.50001 12.5 0; 6309 7.50001 12.5 10; 6310 7.00001 12.5 0
1241. 6311 7.00001 12.5 10; 6312 6.50001 12.5 0; 6313 6.50001 12.5 10
1242. 6314 6.00001 12.5 0; 6315 6.00001 12.5 10; 6316 5.50001 12.5 0
1243. 6317 5.50001 12.5 10; 6318 5.00001 12.5 0; 6319 5.00001 12.5 10
1244. 6320 4.50001 12.5 0; 6321 4.50001 12.5 10; 6322 4.00001 12.5 0
1245. 6323 4.00001 12.5 10; 6324 3.50001 12.5 0; 6325 3.50001 12.5 10
1246. 6326 3.00001 12.5 0; 6327 3.00001 12.5 10; 6328 2.50001 12.5 0
1247. 6329 2.50001 12.5 10; 6330 2.00001 12.5 0; 6331 2.00001 12.5 10
1248. 6332 1.50001 12.5 0; 6333 1.50001 12.5 10; 6334 1 12.5 0; 6335 1 12.5 10
1249. 6336 0.500004 12.5 0; 6337 0.500004 12.5 10; 6338 0.500004 12.5 0.500001
1250. 6339 1.50001 12.5 0.500001; 6340 3.00001 12.5 0.500001
1251. 6341 3.50001 12.5 0.500001; 6342 4.00001 12.5 0.500001
1252. 6343 4.50001 12.5 0.500001; 6344 5.00001 12.5 0.500001
1253. 6345 5.50001 12.5 0.500001; 6346 6.00001 12.5 0.500001
1254. 6347 6.50001 12.5 0.500001; 6348 7.50001 12.5 0.500001
1255. 6349 8.00002 12.5 0.500001; 6350 8.50002 12.5 0.500001
1256. 6351 9.00002 12.5 0.500001; 6352 9.50002 12.5 0.500001; 6353 11 12.5 0.500001
1257. 6354 11.5 12.5 0.500001; 6355 12 12.5 0.500001; 6356 12.5 12.5 0.500001
1258. 6357 13.5 12.5 0.500001; 6358 14 12.5 0.500001; 6359 14.5 12.5 0.500001
1259. 6360 15 12.5 0.500001; 6361 15.5 12.5 0.500001; 6362 16 12.5 0.500001
1260. 6363 16.5 12.5 0.500001; 6364 17 12.5 0.500001; 6365 17.5 12.5 0.500001
1261. 6366 18 12.5 0.500001; 6367 18.5 12.5 0.500001; 6368 19 12.5 0.500001
1262. 6369 19.5 12.5 0.500001; 6370 20 12.5 0.500001; 6371 20.5 12.5 0.500001
1263. 6372 21 12.5 0.500001; 6373 21.5 12.5 0.500001; 6374 0.500004 12.5 1
1264. 6375 1.50001 12.5 1; 6376 3.00001 12.5 1; 6377 3.50001 12.5 1
1265. 6378 4.00001 12.5 1; 6379 4.50001 12.5 1; 6380 5.00001 12.5 1
1266. 6381 5.50001 12.5 1; 6382 6.00001 12.5 1; 6383 6.50001 12.5 1
1267. 6384 7.50001 12.5 1; 6385 8.00002 12.5 1; 6386 8.50002 12.5 1
1268. 6387 9.00002 12.5 1; 6388 9.50002 12.5 1; 6389 11 12.5 1; 6390 11.5 12.5 1
1269. 6391 12 12.5 1; 6392 12.5 12.5 1; 6393 13.5 12.5 1; 6394 14 12.5 1
1270. 6395 14.5 12.5 1; 6396 15 12.5 1; 6397 15.5 12.5 1; 6398 16 12.5 1

_ STAAD SPACE -- PAGE NO. 24

1271. 6399 16.5 12.5 1; 6400 17 12.5 1; 6401 17.5 12.5 1; 6402 18 12.5 1
1272. 6403 18.5 12.5 1; 6404 19 12.5 1; 6405 19.5 12.5 1; 6406 20 12.5 1
1273. 6407 20.5 12.5 1; 6408 21 12.5 1; 6409 21.5 12.5 1; 6410 0.500004 12.5 2
1274. 6411 1.50001 12.5 2; 6412 3.00001 12.5 2; 6413 3.50001 12.5 2
1275. 6414 4.00001 12.5 2; 6415 4.50001 12.5 2; 6416 5.00001 12.5 2
1276. 6417 5.50001 12.5 2; 6418 6.00001 12.5 2; 6419 6.50001 12.5 2
1277. 6420 7.50001 12.5 2; 6421 8.00002 12.5 2; 6422 8.50002 12.5 2
1278. 6423 9.00002 12.5 2; 6424 9.50002 12.5 2; 6425 11 12.5 2; 6426 11.5 12.5 2
1279. 6427 12 12.5 2; 6428 12.5 12.5 2; 6429 13.5 12.5 2; 6430 14 12.5 2
1280. 6431 14.5 12.5 2; 6432 15 12.5 2; 6433 15.5 12.5 2; 6434 16 12.5 2
1281. 6435 16.5 12.5 2; 6436 17 12.5 2; 6437 17.5 12.5 2; 6438 18 12.5 2
1282. 6439 18.5 12.5 2; 6440 19 12.5 2; 6441 19.5 12.5 2; 6442 20 12.5 2
1283. 6443 20.5 12.5 2; 6444 21 12.5 2; 6445 21.5 12.5 2; 6446 0.500004 12.5 3.00001
1284. 6447 1.50001 12.5 3.00001; 6448 3.00001 12.5 3.00001
1285. 6449 3.50001 12.5 3.00001; 6450 4.00001 12.5 3.00001
1286. 6451 4.50001 12.5 3.00001; 6452 5.00001 12.5 3.00001
1287. 6453 5.50001 12.5 3.00001; 6454 6.00001 12.5 3.00001
1288. 6455 6.50001 12.5 3.00001; 6456 7.50001 12.5 3.00001
1289. 6457 8.00002 12.5 3.00001; 6458 8.50002 12.5 3.00001
1290. 6459 9.00002 12.5 3.00001; 6460 9.50002 12.5 3.00001; 6461 11 12.5 3.00001
1291. 6462 11.5 12.5 3.00001; 6463 12 12.5 3.00001; 6464 12.5 12.5 3.00001
1292. 6465 13.5 12.5 3.00001; 6466 14 12.5 3.00001; 6467 14.5 12.5 3.00001
1293. 6468 15 12.5 3.00001; 6469 15.5 12.5 3.00001; 6470 16 12.5 3.00001
1294. 6471 16.5 12.5 3.00001; 6472 17 12.5 3.00001; 6473 17.5 12.5 3.00001
1295. 6474 18 12.5 3.00001; 6475 18.5 12.5 3.00001; 6476 19 12.5 3.00001
1296. 6477 19.5 12.5 3.00001; 6478 20 12.5 3.00001; 6479 20.5 12.5 3.00001
1297. 6480 21 12.5 3.00001; 6481 21.5 12.5 3.00001; 6482 0.500004 12.5 3.50001
1298. 6483 1.50001 12.5 3.50001; 6484 3.00001 12.5 3.50001
1299. 6485 3.50001 12.5 3.50001; 6486 4.00001 12.5 3.50001
1300. 6487 4.50001 12.5 3.50001; 6488 5.00001 12.5 3.50001
1301. 6489 5.50001 12.5 3.50001; 6490 6.00001 12.5 3.50001
1302. 6491 6.50001 12.5 3.50001; 6492 7.50001 12.5 3.50001
1303. 6493 8.00002 12.5 3.50001; 6494 8.50002 12.5 3.50001
1304. 6495 9.00002 12.5 3.50001; 6496 9.50002 12.5 3.50001; 6497 11 12.5 3.50001
1305. 6498 11.5 12.5 3.50001; 6499 12 12.5 3.50001; 6500 12.5 12.5 3.50001
1306. 6501 13.5 12.5 3.50001; 6502 14 12.5 3.50001; 6503 14.5 12.5 3.50001
1307. 6504 15 12.5 3.50001; 6505 15.5 12.5 3.50001; 6506 16 12.5 3.50001
1308. 6507 16.5 12.5 3.50001; 6508 17 12.5 3.50001; 6509 17.5 12.5 3.50001
1309. 6510 18 12.5 3.50001; 6511 18.5 12.5 3.50001; 6512 19 12.5 3.50001
1310. 6513 19.5 12.5 3.50001; 6514 20 12.5 3.50001; 6515 20.5 12.5 3.50001
1311. 6516 21 12.5 3.50001; 6517 21.5 12.5 3.50001; 6518 0.500004 12.5 7.50002
1312. 6519 1.50001 12.5 7.50002; 6520 3.00001 12.5 7.50002
1313. 6521 3.50001 12.5 7.50002; 6522 4.00001 12.5 7.50002
1314. 6523 4.50001 12.5 7.50002; 6524 5.00001 12.5 7.50002
1315. 6525 5.50001 12.5 7.50002; 6526 6.00001 12.5 7.50002
1316. 6527 6.50001 12.5 7.50002; 6528 7.50001 12.5 7.50002
1317. 6529 8.50002 12.5 7.50002; 6530 9.00002 12.5 7.50002
1318. 6531 9.50002 12.5 7.50002; 6532 11 12.5 7.50002; 6533 11.5 12.5 7.50002
1319. 6534 12 12.5 7.50002; 6535 12.5 12.5 7.50002; 6536 13.5 12.5 7.50002
1320. 6537 14 12.5 7.50002; 6538 14.5 12.5 7.50002; 6539 15 12.5 7.50002
1321. 6540 15.5 12.5 7.50002; 6541 16 12.5 7.50002; 6542 16.5 12.5 7.50002
1322. 6543 17 12.5 7.50002; 6544 17.5 12.5 7.50002; 6545 18 12.5 7.50002
1323. 6546 18.5 12.5 7.50002; 6547 19 12.5 7.50002; 6548 19.5 12.5 7.50002
1324. 6549 20 12.5 7.50002; 6550 20.5 12.5 7.50002; 6551 21 12.5 7.50002
1325. 6552 21.5 12.5 7.50002; 6553 0.500004 12.5 9.50002; 6554 1.50001 12.5 9.50002
1326. 6555 3.00001 12.5 9.50002; 6556 3.50001 12.5 9.50002

_ STAAD SPACE -- PAGE NO. 25

1327. 6557 4.00001 12.5 9.50002; 6558 4.50001 12.5 9.50002
1328. 6559 5.00001 12.5 9.50002; 6560 5.50001 12.5 9.50002
1329. 6561 6.00001 12.5 9.50002; 6562 6.50001 12.5 9.50002
1330. 6563 7.50001 12.5 9.50002; 6564 8.00002 12.5 9.50002
1331. 6565 8.50002 12.5 9.50002; 6566 9.00002 12.5 9.50002
1332. 6567 9.50002 12.5 9.50002; 6568 11 12.5 9.50002; 6569 11.5 12.5 9.50002
1333. 6570 12 12.5 9.50002; 6571 12.5 12.5 9.50002; 6572 13.5 12.5 9.50002
1334. 6573 14 12.5 9.50002; 6574 14.5 12.5 9.50002; 6575 15 12.5 9.50002
1335. 6576 15.5 12.5 9.50002; 6577 16 12.5 9.50002; 6578 16.5 12.5 9.50002
1336. 6579 17 12.5 9.50002; 6580 17.5 12.5 9.50002; 6581 18 12.5 9.50002
1337. 6582 18.5 12.5 9.50002; 6583 19 12.5 9.50002; 6584 19.5 12.5 9.50002
1338. 6585 20 12.5 9.50002; 6586 20.5 12.5 9.50002; 6587 21 12.5 9.50002
1339. 6588 21.5 12.5 9.50002; 6589 13 12.5 9.50002; 6590 13 12.5 7.50002
1340. 6591 13 12.5 3.50001; 6592 13 12.5 3.00001; 6593 13 12.5 2; 6594 13 12.5 1
1341. 6595 13 12.5 0.500001; 6596 10.5 12.5 9.50002; 6597 10.5 12.5 7.50002
1342. 6598 10.5 12.5 3.50001; 6599 10.5 12.5 3.00001; 6600 10.5 12.5 2
1343. 6601 10.5 12.5 1; 6602 10.5 12.5 0.500001; 6603 10 12.5 9.50002
1344. 6604 10 12.5 7.50002; 6605 10 12.5 3.50001; 6606 10 12.5 3.00001
1345. 6607 10 12.5 2; 6608 10 12.5 1; 6609 10 12.5 0.500001
1346. 6610 7.00001 12.5 9.50002; 6611 7.00001 12.5 7.50002
1347. 6612 7.00001 12.5 3.50001; 6613 7.00001 12.5 3.00001; 6614 7.00001 12.5 2
1348. 6615 7.00001 12.5 1; 6616 7.00001 12.5 0.500001; 6617 2.50001 12.5 9.50002
1349. 6618 2.50001 12.5 3.50001; 6619 2.50001 12.5 2; 6620 2.50001 12.5 1
1350. 6621 2.50001 12.5 0.500001; 6622 2.00001 12.5 9.50002
1351. 6623 2.00001 12.5 7.50002; 6624 2.00001 12.5 3.50001; 6625 2.00001 12.5 2
1352. 6626 2.00001 12.5 1; 6627 2.00001 12.5 0.500001; 6628 1 12.5 9.50002
1353. 6629 1 12.5 7.50002; 6630 1 12.5 3.50001; 6631 1 12.5 3.00001; 6632 1 12.5 2
1354. 6633 1 12.5 1; 6634 1 12.5 0.500001; 6635 2.00001 12.5 3.00001
1355. 6636 2.50001 12.5 3.00001; 6637 21.5 12.5 9.00002; 6638 21.5 12.5 8.50002
1356. 6639 21.5 12.5 8.00002; 6640 21.5 12.5 7.00001; 6641 21.5 12.5 6.50001
1357. 6642 21.5 12.5 6.00001; 6643 21.5 12.5 5.50001; 6644 21.5 12.5 5.00001
1358. 6645 21.5 12.5 4.50001; 6646 21.5 12.5 4.00001; 6647 21.5 12.5 2.50001
1359. 6648 21.5 12.5 1.5; 6649 21 12.5 9.00002; 6650 21 12.5 8.50002
1360. 6651 21 12.5 8.00002; 6652 21 12.5 7.00001; 6653 21 12.5 6.50001
1361. 6654 21 12.5 6.00001; 6655 21 12.5 5.50001; 6656 21 12.5 5.00001
1362. 6657 21 12.5 4.50001; 6658 21 12.5 4.00001; 6659 21 12.5 2.50001
1363. 6660 21 12.5 1.5; 6661 20.5 12.5 9.00002; 6662 20.5 12.5 8.50002
1364. 6663 20.5 12.5 8.00002; 6664 20.5 12.5 7.00001; 6665 20.5 12.5 6.50001
1365. 6666 20.5 12.5 6.00001; 6667 20.5 12.5 5.50001; 6668 20.5 12.5 5.00001
1366. 6669 20.5 12.5 4.50001; 6670 20.5 12.5 4.00001; 6671 20.5 12.5 2.50001
1367. 6672 20.5 12.5 1.5; 6673 20 12.5 9.00002; 6674 20 12.5 8.50002
1368. 6675 20 12.5 8.00002; 6676 20 12.5 7.00001; 6677 20 12.5 6.50001
1369. 6678 20 12.5 6.00001; 6679 20 12.5 5.50001; 6680 20 12.5 5.00001
1370. 6681 20 12.5 4.50001; 6682 20 12.5 4.00001; 6683 20 12.5 2.50001
1371. 6684 20 12.5 1.5; 6685 19.5 12.5 9.00002; 6686 19.5 12.5 8.50002
1372. 6687 19.5 12.5 8.00002; 6688 19.5 12.5 7.00001; 6689 19.5 12.5 6.50001
1373. 6690 19.5 12.5 6.00001; 6691 19.5 12.5 5.50001; 6692 19.5 12.5 5.00001
1374. 6693 19.5 12.5 4.50001; 6694 19.5 12.5 4.00001; 6695 19.5 12.5 2.50001
1375. 6696 19.5 12.5 1.5; 6697 19 12.5 9.00002; 6698 19 12.5 8.50002
1376. 6699 19 12.5 8.00002; 6700 19 12.5 7.00001; 6701 19 12.5 6.50001
1377. 6702 19 12.5 6.00001; 6703 19 12.5 5.50001; 6704 19 12.5 5.00001
1378. 6705 19 12.5 4.50001; 6706 19 12.5 4.00001; 6707 19 12.5 2.50001
1379. 6708 19 12.5 1.5; 6709 18.5 12.5 9.00002; 6710 18.5 12.5 8.50002
1380. 6711 18.5 12.5 8.00002; 6712 18.5 12.5 7.00001; 6713 18.5 12.5 6.50001
1381. 6714 18.5 12.5 6.00001; 6715 18.5 12.5 5.50001; 6716 18.5 12.5 5.00001
1382. 6717 18.5 12.5 4.50001; 6718 18.5 12.5 4.00001; 6719 18.5 12.5 2.50001

_ STAAD SPACE -- PAGE NO. 26

1383. 6720 18.5 12.5 1.5; 6721 18 12.5 9.00002; 6722 18 12.5 8.50002
1384. 6723 18 12.5 8.00002; 6724 18 12.5 7.00001; 6725 18 12.5 6.50001
1385. 6726 18 12.5 6.00001; 6727 18 12.5 5.50001; 6728 18 12.5 5.00001
1386. 6729 18 12.5 4.50001; 6730 18 12.5 4.00001; 6731 18 12.5 2.50001
1387. 6732 18 12.5 1.5; 6733 17.5 12.5 9.00002; 6734 17.5 12.5 8.50002
1388. 6735 17.5 12.5 8.00002; 6736 17.5 12.5 7.00001; 6737 17.5 12.5 6.50001
1389. 6738 17.5 12.5 6.00001; 6739 17.5 12.5 5.50001; 6740 17.5 12.5 5.00001
1390. 6741 17.5 12.5 4.50001; 6742 17.5 12.5 4.00001; 6743 17.5 12.5 2.50001
1391. 6744 17.5 12.5 1.5; 6745 17 12.5 9.00002; 6746 17 12.5 8.50002
1392. 6747 17 12.5 8.00002; 6748 17 12.5 7.00001; 6749 17 12.5 6.50001
1393. 6750 17 12.5 6.00001; 6751 17 12.5 5.50001; 6752 17 12.5 5.00001
1394. 6753 17 12.5 4.50001; 6754 17 12.5 4.00001; 6755 17 12.5 2.50001
1395. 6756 17 12.5 1.5; 6757 16.5 12.5 9.00002; 6758 16.5 12.5 8.50002
1396. 6759 16.5 12.5 8.00002; 6760 16.5 12.5 7.00001; 6761 16.5 12.5 6.50001
1397. 6762 16.5 12.5 6.00001; 6763 16.5 12.5 5.50001; 6764 16.5 12.5 5.00001
1398. 6765 16.5 12.5 4.50001; 6766 16.5 12.5 4.00001; 6767 16.5 12.5 2.50001
1399. 6768 16.5 12.5 1.5; 6769 16 12.5 9.00002; 6770 16 12.5 8.50002
1400. 6771 16 12.5 8.00002; 6772 16 12.5 7.00001; 6773 16 12.5 6.50001
1401. 6774 16 12.5 6.00001; 6775 16 12.5 5.50001; 6776 16 12.5 5.00001
1402. 6777 16 12.5 4.50001; 6778 16 12.5 4.00001; 6779 16 12.5 2.50001
1403. 6780 16 12.5 1.5; 6781 15.5 12.5 9.00002; 6782 15.5 12.5 8.50002
1404. 6783 15.5 12.5 8.00002; 6784 15.5 12.5 7.00001; 6785 15.5 12.5 6.50001
1405. 6786 15.5 12.5 6.00001; 6787 15.5 12.5 5.50001; 6788 15.5 12.5 5.00001
1406. 6789 15.5 12.5 4.50001; 6790 15.5 12.5 4.00001; 6791 15.5 12.5 2.50001
1407. 6792 15.5 12.5 1.5; 6793 15 12.5 9.00002; 6794 15 12.5 8.50002
1408. 6795 15 12.5 8.00002; 6796 15 12.5 7.00001; 6797 15 12.5 6.50001
1409. 6798 15 12.5 6.00001; 6799 15 12.5 5.50001; 6800 15 12.5 5.00001
1410. 6801 15 12.5 4.50001; 6802 15 12.5 4.00001; 6803 15 12.5 2.50001
1411. 6804 15 12.5 1.5; 6805 14.5 12.5 9.00002; 6806 14.5 12.5 8.50002
1412. 6807 14.5 12.5 8.00002; 6808 14.5 12.5 7.00001; 6809 14.5 12.5 6.50001
1413. 6810 14.5 12.5 6.00001; 6811 14.5 12.5 5.50001; 6812 14.5 12.5 5.00001
1414. 6813 14.5 12.5 4.50001; 6814 14.5 12.5 4.00001; 6815 14.5 12.5 2.50001
1415. 6816 14.5 12.5 1.5; 6817 14 12.5 9.00002; 6818 14 12.5 8.50002
1416. 6819 14 12.5 8.00002; 6820 14 12.5 7.00001; 6821 14 12.5 6.50001
1417. 6822 14 12.5 6.00001; 6823 14 12.5 5.50001; 6824 14 12.5 5.00001
1418. 6825 14 12.5 4.50001; 6826 14 12.5 4.00001; 6827 14 12.5 2.50001
1419. 6828 14 12.5 1.5; 6829 13.5 12.5 9.00002; 6830 13.5 12.5 8.50002
1420. 6831 13.5 12.5 8.00002; 6832 13.5 12.5 7.00001; 6833 13.5 12.5 6.50001
1421. 6834 13.5 12.5 6.00001; 6835 13.5 12.5 5.50001; 6836 13.5 12.5 5.00001
1422. 6837 13.5 12.5 4.50001; 6838 13.5 12.5 4.00001; 6839 13.5 12.5 2.50001
1423. 6840 13.5 12.5 1.5; 6841 13 12.5 9.00002; 6842 13 12.5 8.50002
1424. 6843 13 12.5 8.00002; 6844 13 12.5 7.00001; 6845 13 12.5 6.50001
1425. 6846 13 12.5 6.00001; 6847 13 12.5 5.50001; 6848 13 12.5 5.00001
1426. 6849 13 12.5 4.50001; 6850 13 12.5 4.00001; 6851 13 12.5 2.50001
1427. 6852 13 12.5 1.5; 6853 12.5 12.5 9.00002; 6854 12.5 12.5 8.50002
1428. 6855 12.5 12.5 8.00002; 6856 12.5 12.5 7.00001; 6857 12.5 12.5 6.50001
1429. 6858 12.5 12.5 6.00001; 6859 12.5 12.5 5.50001; 6860 12.5 12.5 5.00001
1430. 6861 12.5 12.5 4.50001; 6862 12.5 12.5 4.00001; 6863 12.5 12.5 2.50001
1431. 6864 12.5 12.5 1.5; 6865 12 12.5 9.00002; 6866 12 12.5 8.50002
1432. 6867 12 12.5 8.00002; 6868 12 12.5 7.00001; 6869 12 12.5 6.50001
1433. 6870 12 12.5 6.00001; 6871 12 12.5 5.50001; 6872 12 12.5 5.00001
1434. 6873 12 12.5 4.50001; 6874 12 12.5 4.00001; 6875 12 12.5 2.50001
1435. 6876 12 12.5 1.5; 6877 11.5 12.5 9.00002; 6878 11.5 12.5 8.50002
1436. 6879 11.5 12.5 8.00002; 6880 11.5 12.5 7.00001; 6881 11.5 12.5 6.50001
1437. 6882 11.5 12.5 6.00001; 6883 11.5 12.5 5.50001; 6884 11.5 12.5 5.00001
1438. 6885 11.5 12.5 4.50001; 6886 11.5 12.5 4.00001; 6887 11.5 12.5 2.50001

_ STAAD SPACE -- PAGE NO. 27

1439. 6888 11.5 12.5 1.5; 6889 11 12.5 9.00002; 6890 11 12.5 8.50002
1440. 6891 11 12.5 8.00002; 6892 11 12.5 7.00001; 6893 11 12.5 6.50001
1441. 6894 11 12.5 6.00001; 6895 11 12.5 5.50001; 6896 11 12.5 5.00001
1442. 6897 11 12.5 4.50001; 6898 11 12.5 4.00001; 6899 11 12.5 2.50001
1443. 6900 11 12.5 1.5; 6901 10.5 12.5 9.00002; 6902 10.5 12.5 8.50002
1444. 6903 10.5 12.5 8.00002; 6904 10.5 12.5 7.00001; 6905 10.5 12.5 6.50001
1445. 6906 10.5 12.5 6.00001; 6907 10.5 12.5 5.50001; 6908 10.5 12.5 5.00001
1446. 6909 10.5 12.5 4.50001; 6910 10.5 12.5 4.00001; 6911 10.5 12.5 2.50001
1447. 6912 10.5 12.5 1.5; 6913 10 12.5 9.00002; 6914 10 12.5 8.50002
1448. 6915 10 12.5 8.00002; 6916 10 12.5 7.00001; 6917 10 12.5 6.50001
1449. 6918 10 12.5 6.00001; 6919 10 12.5 5.50001; 6920 10 12.5 5.00001
1450. 6921 10 12.5 4.50001; 6922 10 12.5 4.00001; 6923 10 12.5 2.50001
1451. 6924 10 12.5 1.5; 6925 9.50002 12.5 9.00002; 6926 9.50002 12.5 8.50002
1452. 6927 9.50002 12.5 8.00002; 6928 9.50002 12.5 7.00001
1453. 6929 9.50002 12.5 6.50001; 6930 9.50002 12.5 6.00001
1454. 6931 9.50002 12.5 5.50001; 6932 9.50002 12.5 5.00001
1455. 6933 9.50002 12.5 4.50001; 6934 9.50002 12.5 4.00001
1456. 6935 9.50002 12.5 2.50001; 6936 9.50002 12.5 1.5; 6937 9.00002 12.5 9.00002
1457. 6938 9.00002 12.5 8.50002; 6939 9.00002 12.5 8.00002
1458. 6940 9.00002 12.5 7.00001; 6941 9.00002 12.5 6.50001
1459. 6942 9.00002 12.5 6.00001; 6943 9.00002 12.5 5.50001
1460. 6944 9.00002 12.5 5.00001; 6945 9.00002 12.5 4.50001
1461. 6946 9.00002 12.5 4.00001; 6947 9.00002 12.5 2.50001; 6948 9.00002 12.5 1.5
1462. 6949 8.50002 12.5 9.00002; 6950 8.50002 12.5 8.50002
1463. 6951 8.50002 12.5 8.00002; 6952 8.50002 12.5 7.00001
1464. 6953 8.50002 12.5 6.50001; 6954 8.50002 12.5 6.00001
1465. 6955 8.50002 12.5 5.50001; 6956 8.50002 12.5 5.00001
1466. 6957 8.50002 12.5 4.50001; 6958 8.50002 12.5 4.00001
1467. 6959 8.50002 12.5 2.50001; 6960 8.50002 12.5 1.5; 6961 8.00002 12.5 1.5
1468. 6962 7.50001 12.5 9.00002; 6963 7.50001 12.5 8.50002
1469. 6964 7.50001 12.5 8.00002; 6965 7.50001 12.5 7.00001
1470. 6966 7.50001 12.5 6.50001; 6967 7.50001 12.5 6.00001
1471. 6968 7.50001 12.5 5.50001; 6969 7.50001 12.5 5.00001
1472. 6970 7.50001 12.5 4.50001; 6971 7.50001 12.5 4.00001
1473. 6972 7.50001 12.5 2.50001; 6973 7.50001 12.5 1.5; 6974 7.00001 12.5 9.00002
1474. 6975 7.00001 12.5 8.50002; 6976 7.00001 12.5 8.00002
1475. 6977 7.00001 12.5 7.00001; 6978 7.00001 12.5 6.50001
1476. 6979 7.00001 12.5 6.00001; 6980 7.00001 12.5 5.50001
1477. 6981 7.00001 12.5 5.00001; 6982 7.00001 12.5 4.50001
1478. 6983 7.00001 12.5 4.00001; 6984 7.00001 12.5 2.50001; 6985 7.00001 12.5 1.5
1479. 6986 6.50001 12.5 9.00002; 6987 6.50001 12.5 8.50002
1480. 6988 6.50001 12.5 8.00002; 6989 6.50001 12.5 7.00001
1481. 6990 6.50001 12.5 6.50001; 6991 6.50001 12.5 6.00001
1482. 6992 6.50001 12.5 5.50001; 6993 6.50001 12.5 5.00001
1483. 6994 6.50001 12.5 4.50001; 6995 6.50001 12.5 4.00001
1484. 6996 6.50001 12.5 2.50001; 6997 6.50001 12.5 1.5; 6998 6.00001 12.5 9.00002
1485. 6999 6.00001 12.5 8.50002; 7000 6.00001 12.5 8.00002
1486. 7001 6.00001 12.5 7.00001; 7002 6.00001 12.5 6.50001
1487. 7003 6.00001 12.5 6.00001; 7004 6.00001 12.5 5.50001
1488. 7005 6.00001 12.5 5.00001; 7006 6.00001 12.5 4.50001
1489. 7007 6.00001 12.5 4.00001; 7008 6.00001 12.5 2.50001; 7009 6.00001 12.5 1.5
1490. 7010 5.50001 12.5 9.00002; 7011 5.50001 12.5 8.50002
1491. 7012 5.50001 12.5 8.00002; 7013 5.50001 12.5 7.00001
1492. 7014 5.50001 12.5 6.50001; 7015 5.50001 12.5 6.00001
1493. 7016 5.50001 12.5 5.50001; 7017 5.50001 12.5 5.00001
1494. 7018 5.50001 12.5 4.50001; 7019 5.50001 12.5 4.00001

_ STAAD SPACE -- PAGE NO. 28

1495. 7020 5.50001 12.5 2.50001; 7021 5.50001 12.5 1.5; 7022 5.00001 12.5 9.00002
1496. 7023 5.00001 12.5 8.50002; 7024 5.00001 12.5 8.00002
1497. 7025 5.00001 12.5 7.00001; 7026 5.00001 12.5 6.50001
1498. 7027 5.00001 12.5 6.00001; 7028 5.00001 12.5 5.50001
1499. 7029 5.00001 12.5 5.00001; 7030 5.00001 12.5 4.50001
1500. 7031 5.00001 12.5 4.00001; 7032 5.00001 12.5 2.50001; 7033 5.00001 12.5 1.5
1501. 7034 4.50001 12.5 9.00002; 7035 4.50001 12.5 8.50002
1502. 7036 4.50001 12.5 8.00002; 7037 4.50001 12.5 7.00001
1503. 7038 4.50001 12.5 6.50001; 7039 4.50001 12.5 6.00001
1504. 7040 4.50001 12.5 5.50001; 7041 4.50001 12.5 5.00001
1505. 7042 4.50001 12.5 4.50001; 7043 4.50001 12.5 4.00001
1506. 7044 4.50001 12.5 2.50001; 7045 4.50001 12.5 1.5; 7046 4.00001 12.5 7.00001
1507. 7047 4.00001 12.5 6.50001; 7048 4.00001 12.5 6.00001
1508. 7049 4.00001 12.5 5.50001; 7050 4.00001 12.5 5.00001
1509. 7051 4.00001 12.5 4.50001; 7052 4.00001 12.5 4.00001; 7053 4.00001 12.5 1.5
1510. 7054 3.50001 12.5 9.00002; 7055 3.50001 12.5 8.50002
1511. 7056 3.50001 12.5 8.00002; 7057 3.50001 12.5 7.00001
1512. 7058 3.50001 12.5 6.50001; 7059 3.50001 12.5 6.00001
1513. 7060 3.50001 12.5 5.50001; 7061 3.50001 12.5 5.00001
1514. 7062 3.50001 12.5 4.50001; 7063 3.50001 12.5 4.00001
1515. 7064 3.50001 12.5 2.50001; 7065 3.50001 12.5 1.5; 7066 3.00001 12.5 9.00002
1516. 7067 3.00001 12.5 8.50002; 7068 3.00001 12.5 8.00002
1517. 7069 3.00001 12.5 7.00001; 7070 3.00001 12.5 6.50001
1518. 7071 3.00001 12.5 6.00001; 7072 3.00001 12.5 5.50001
1519. 7073 3.00001 12.5 5.00001; 7074 3.00001 12.5 4.50001
1520. 7075 3.00001 12.5 4.00001; 7076 3.00001 12.5 2.50001; 7077 3.00001 12.5 1.5
1521. 7078 2.50001 12.5 1.5; 7079 2.00001 12.5 9.00002; 7080 2.00001 12.5 8.50002
1522. 7081 2.00001 12.5 8.00002; 7082 2.00001 12.5 7.00001
1523. 7083 2.00001 12.5 6.50001; 7084 2.00001 12.5 6.00001
1524. 7085 2.00001 12.5 5.50001; 7086 2.00001 12.5 5.00001
1525. 7087 2.00001 12.5 4.50001; 7088 2.00001 12.5 4.00001
1526. 7089 2.00001 12.5 2.50001; 7090 2.00001 12.5 1.5; 7091 1.50001 12.5 9.00002
1527. 7092 1.50001 12.5 8.50002; 7093 1.50001 12.5 8.00002
1528. 7094 1.50001 12.5 7.00001; 7095 1.50001 12.5 6.50001
1529. 7096 1.50001 12.5 6.00001; 7097 1.50001 12.5 5.50001
1530. 7098 1.50001 12.5 5.00001; 7099 1.50001 12.5 4.50001
1531. 7100 1.50001 12.5 4.00001; 7101 1.50001 12.5 1.5; 7102 1 12.5 9.00002
1532. 7103 1 12.5 8.50002; 7104 1 12.5 8.00002; 7105 1 12.5 1.5
1533. 7106 0.500004 12.5 2.50001; 7107 8.00002 12.5 9.00002
1534. 7108 8.00002 12.5 8.50002; 7109 8.00002 12.5 8.00002
1535. 7110 8.00002 12.5 7.50002; 7111 8.00002 12.5 7.00001
1536. 7112 8.00002 12.5 6.50001; 7113 8.00002 12.5 6.00001
1537. 7114 8.00002 12.5 5.50001; 7115 8.00002 12.5 5.00001
1538. 7116 8.00002 12.5 4.50001; 7117 8.00002 12.5 4.00001
1539. 7118 8.00002 12.5 2.50001; 7119 4.00001 12.5 9.00002
1540. 7120 4.00001 12.5 8.50002; 7121 4.00001 12.5 8.00002
1541. 7122 4.00001 12.5 2.50001; 7123 2.50001 12.5 9.00002
1542. 7124 2.50001 12.5 8.50002; 7125 2.50001 12.5 8.00002
1543. 7126 2.50001 12.5 7.50002; 7127 2.50001 12.5 7.00001
1544. 7128 2.50001 12.5 6.50001; 7129 2.50001 12.5 6.00001
1545. 7130 2.50001 12.5 5.50001; 7131 2.50001 12.5 5.00001
1546. 7132 2.50001 12.5 4.50001; 7133 2.50001 12.5 4.00001
1547. 7134 2.50001 12.5 2.50001; 7135 0.500004 12.5 9.00002
1548. 7136 0.500004 12.5 8.50002; 7137 0.500004 12.5 8.00002; 7138 1 12.5 7.00001
1549. 7139 0.500004 12.5 7.00001; 7140 1 12.5 6.50001; 7141 0.500004 12.5 6.50001
1550. 7142 1 12.5 6.00001; 7143 0.500004 12.5 6.00001; 7144 1 12.5 5.00001

_ STAAD SPACE -- PAGE NO. 29

1551. 7145 1 12.5 5.50001; 7146 0.500004 12.5 5.50001; 7147 0.500004 12.5 5.00001
1552. 7148 1 12.5 4.50001; 7149 0.500004 12.5 4.50001; 7150 1 12.5 4.00001
1553. 7151 0.500004 12.5 4.00001; 7152 1 12.5 2.50001; 7153 0.500004 12.5 1.5
1554. 7154 1.50001 12.5 2.5; 7155 21.5 3.49997 0; 7156 21.5 3.49997 10
1555. 7157 21 3.49997 0; 7158 21 3.49997 10; 7159 20.5 3.49997 0
1556. 7160 20.5 3.49997 10; 7161 20 3.49997 0; 7162 20 3.49997 10
1557. 7163 19.5 3.49997 0; 7164 19.5 3.49997 10; 7165 19 3.49997 0
1558. 7166 19 3.49997 10; 7167 18.5 3.49997 0; 7168 18.5 3.49997 10
1559. 7169 18 3.49997 0; 7170 18 3.49997 10; 7171 17.5 3.49997 0
1560. 7172 17.5 3.49997 10; 7173 16.5 3.49997 0; 7174 16.5 3.49997 10
1561. 7175 16 3.49997 0; 7176 16 3.49997 10; 7177 15.5 3.49997 0
1562. 7178 15.5 3.49997 10; 7179 15 3.49997 0; 7180 15 3.49997 10
1563. 7181 14.5 3.49997 0; 7182 14.5 3.49997 10; 7183 14 3.49997 0
1564. 7184 14 3.49997 10; 7185 13.5 3.49997 0; 7186 13.5 3.49997 10
1565. 7187 12.5 3.49997 0; 7188 12.5 3.49997 10; 7189 12 3.49997 0
1566. 7190 12 3.49997 10; 7191 11.5 3.49997 0; 7192 11.5 3.49997 10
1567. 7193 11 3.49997 0; 7194 11 3.49997 10; 7195 10.5 3.49997 0
1568. 7196 10.5 3.49997 10; 7197 10 3.49997 0; 7198 10 3.49997 10
1569. 7199 9.50002 3.49997 0; 7200 9.50002 3.49997 10; 7201 8.50002 3.49997 0
1570. 7202 8.50002 3.49997 10; 7203 8.00002 3.49997 0; 7204 8.00002 3.49997 10
1571. 7205 7.50001 3.49997 0; 7206 7.50001 3.49997 10; 7207 7.00001 3.49997 0
1572. 7208 7.00001 3.49997 10; 7209 6.50001 3.49997 0; 7210 6.50001 3.49997 10
1573. 7211 6.00001 3.49997 0; 7212 6.00001 3.49997 10; 7213 5.50001 3.49997 0
1574. 7214 5.50001 3.49997 10; 7215 4.50001 3.49997 0; 7216 4.50001 3.49997 10
1575. 7217 4.00001 3.49997 0; 7218 4.00001 3.49997 10; 7219 3.50001 3.49997 0
1576. 7220 3.50001 3.49997 10; 7221 3.00001 3.49997 0; 7222 3.00001 3.49997 10
1577. 7223 2.50001 3.49997 0; 7224 2.50001 3.49997 10; 7225 2.00001 3.49997 0
1578. 7226 2.00001 3.49997 10; 7227 1.50001 3.49997 0; 7228 1.50001 3.49997 10
1579. 7229 1 3.49997 0; 7230 1 3.49997 10; 7231 0.500004 3.49997 0
1580. 7232 0.500004 3.49997 10; 7233 0.500004 3.49997 0.500001
1581. 7234 1.50001 3.49997 0.500001; 7235 3.00001 3.49997 0.500001
1582. 7236 3.50001 3.49997 0.500001; 7237 4.00001 3.49997 0.500001
1583. 7238 4.50001 3.49997 0.500001; 7239 5.50001 3.49997 0.500001
1584. 7240 6.00001 3.49997 0.500001; 7241 6.50001 3.49997 0.500001
1585. 7242 7.50001 3.49997 0.500001; 7243 8.00002 3.49997 0.500001
1586. 7244 8.50002 3.49997 0.500001; 7245 9.50002 3.49997 0.500001
1587. 7246 11 3.49997 0.500001; 7247 11.5 3.49997 0.500001; 7248 12 3.49997 0.500001
1588. 7249 12.5 3.49997 0.500001; 7250 13.5 3.49997 0.500001
1589. 7251 14 3.49997 0.500001; 7252 14.5 3.49997 0.500001; 7253 15 3.49997 0.500001
1590. 7254 15.5 3.49997 0.500001; 7255 16 3.49997 0.500001
1591. 7256 16.5 3.49997 0.500001; 7257 17.5 3.49997 0.500001
1592. 7258 18 3.49997 0.500001; 7259 18.5 3.49997 0.500001; 7260 19 3.49997 0.500001
1593. 7261 19.5 3.49997 0.500001; 7262 20 3.49997 0.500001
1594. 7263 20.5 3.49997 0.500001; 7264 21 3.49997 0.500001
1595. 7265 21.5 3.49997 0.500001; 7266 0.500004 3.49997 1; 7267 1.50001 3.49997 1
1596. 7268 3.00001 3.49997 1; 7269 3.50001 3.49997 1; 7270 4.00001 3.49997 1
1597. 7271 4.50001 3.49997 1; 7272 5.50001 3.49997 1; 7273 6.00001 3.49997 1
1598. 7274 6.50001 3.49997 1; 7275 7.50001 3.49997 1; 7276 8.00002 3.49997 1
1599. 7277 8.50002 3.49997 1; 7278 9.50002 3.49997 1; 7279 11 3.49997 1
1600. 7280 11.5 3.49997 1; 7281 12 3.49997 1; 7282 12.5 3.49997 1
1601. 7283 13.5 3.49997 1; 7284 14 3.49997 1; 7285 14.5 3.49997 1; 7286 15 3.49997 1
1602. 7287 15.5 3.49997 1; 7288 16 3.49997 1; 7289 16.5 3.49997 1
1603. 7290 17.5 3.49997 1; 7291 18 3.49997 1; 7292 18.5 3.49997 1; 7293 19 3.49997 1
1604. 7294 19.5 3.49997 1; 7295 20 3.49997 1; 7296 20.5 3.49997 1; 7297 21 3.49997 1
1605. 7298 21.5 3.49997 1; 7299 0.500004 3.49997 2; 7300 1.50001 3.49997 2
1606. 7301 3.00001 3.49997 2; 7302 3.50001 3.49997 2; 7303 4.00001 3.49997 2

_ STAAD SPACE -- PAGE NO. 30

1607. 7304 4.50001 3.49997 2; 7305 5.50001 3.49997 2; 7306 6.00001 3.49997 2
1608. 7307 6.50001 3.49997 2; 7308 7.50001 3.49997 2; 7309 8.00002 3.49997 2
1609. 7310 8.50002 3.49997 2; 7311 9.50002 3.49997 2; 7312 11 3.49997 2
1610. 7313 11.5 3.49997 2; 7314 12 3.49997 2; 7315 12.5 3.49997 2
1611. 7316 13.5 3.49997 2; 7317 14 3.49997 2; 7318 14.5 3.49997 2; 7319 15 3.49997 2
1612. 7320 15.5 3.49997 2; 7321 16 3.49997 2; 7322 16.5 3.49997 2
1613. 7323 17.5 3.49997 2; 7324 18 3.49997 2; 7325 18.5 3.49997 2; 7326 19 3.49997 2
1614. 7327 19.5 3.49997 2; 7328 20 3.49997 2; 7329 20.5 3.49997 2; 7330 21 3.49997 2
1615. 7331 21.5 3.49997 2; 7332 0.500004 3.49997 3.00001
1616. 7333 1.50001 3.49997 3.00001; 7334 3.00001 3.49997 3.00001
1617. 7335 3.50001 3.49997 3.00001; 7336 4.00001 3.49997 3.00001
1618. 7337 4.50001 3.49997 3.00001; 7338 5.50001 3.49997 3.00001
1619. 7339 6.00001 3.49997 3.00001; 7340 6.50001 3.49997 3.00001
1620. 7341 7.50001 3.49997 3.00001; 7342 8.00002 3.49997 3.00001
1621. 7343 8.50002 3.49997 3.00001; 7344 9.50002 3.49997 3.00001
1622. 7345 11 3.49997 3.00001; 7346 11.5 3.49997 3.00001; 7347 12 3.49997 3.00001
1623. 7348 12.5 3.49997 3.00001; 7349 13.5 3.49997 3.00001; 7350 14 3.49997 3.00001
1624. 7351 14.5 3.49997 3.00001; 7352 15 3.49997 3.00001; 7353 15.5 3.49997 3.00001
1625. 7354 16 3.49997 3.00001; 7355 16.5 3.49997 3.00001; 7356 17.5 3.49997 3.00001
1626. 7357 18 3.49997 3.00001; 7358 18.5 3.49997 3.00001; 7359 19 3.49997 3.00001
1627. 7360 19.5 3.49997 3.00001; 7361 20 3.49997 3.00001; 7362 20.5 3.49997 3.00001
1628. 7363 21 3.49997 3.00001; 7364 21.5 3.49997 3.00001
1629. 7365 0.500004 3.49997 3.50001; 7366 1.50001 3.49997 3.50001
1630. 7367 3.00001 3.49997 3.50001; 7368 3.50001 3.49997 3.50001
1631. 7369 4.00001 3.49997 3.50001; 7370 4.50001 3.49997 3.50001
1632. 7371 5.50001 3.49997 3.50001; 7372 6.00001 3.49997 3.50001
1633. 7373 6.50001 3.49997 3.50001; 7374 7.50001 3.49997 3.50001
1634. 7375 8.00002 3.49997 3.50001; 7376 8.50002 3.49997 3.50001
1635. 7377 9.50002 3.49997 3.50001; 7378 11 3.49997 3.50001
1636. 7379 11.5 3.49997 3.50001; 7380 12 3.49997 3.50001; 7381 12.5 3.49997 3.50001
1637. 7382 13.5 3.49997 3.50001; 7383 14 3.49997 3.50001; 7384 14.5 3.49997 3.50001
1638. 7385 15 3.49997 3.50001; 7386 15.5 3.49997 3.50001; 7387 16 3.49997 3.50001
1639. 7388 16.5 3.49997 3.50001; 7389 17.5 3.49997 3.50001; 7390 18 3.49997 3.50001
1640. 7391 18.5 3.49997 3.50001; 7392 19 3.49997 3.50001; 7393 19.5 3.49997 3.50001
1641. 7394 20 3.49997 3.50001; 7395 20.5 3.49997 3.50001; 7396 21 3.49997 3.50001
1642. 7397 21.5 3.49997 3.50001; 7398 0.500004 3.49997 7.50002
1643. 7399 1.50001 3.49997 7.50002; 7400 3.00001 3.49997 7.50002
1644. 7401 3.50001 3.49997 7.50002; 7402 4.00001 3.49997 7.50002
1645. 7403 4.50001 3.49997 7.50002; 7404 5.50001 3.49997 7.50002
1646. 7405 6.00001 3.49997 7.50002; 7406 6.50001 3.49997 7.50002
1647. 7407 7.50001 3.49997 7.50002; 7408 8.50002 3.49997 7.50002
1648. 7409 9.50002 3.49997 7.50002; 7410 11 3.49997 7.50002
1649. 7411 11.5 3.49997 7.50002; 7412 12 3.49997 7.50002; 7413 12.5 3.49997 7.50002
1650. 7414 13.5 3.49997 7.50002; 7415 14 3.49997 7.50002; 7416 14.5 3.49997 7.50002
1651. 7417 15 3.49997 7.50002; 7418 15.5 3.49997 7.50002; 7419 16 3.49997 7.50002
1652. 7420 16.5 3.49997 7.50002; 7421 17.5 3.49997 7.50002; 7422 18 3.49997 7.50002
1653. 7423 18.5 3.49997 7.50002; 7424 19 3.49997 7.50002; 7425 19.5 3.49997 7.50002
1654. 7426 20 3.49997 7.50002; 7427 20.5 3.49997 7.50002; 7428 21 3.49997 7.50002
1655. 7429 21.5 3.49997 7.50002; 7430 0.500004 3.49997 9.50002
1656. 7431 1.50001 3.49997 9.50002; 7432 3.00001 3.49997 9.50002
1657. 7433 3.50001 3.49997 9.50002; 7434 4.00001 3.49997 9.50002
1658. 7435 4.50001 3.49997 9.50002; 7436 5.50001 3.49997 9.50002
1659. 7437 6.00001 3.49997 9.50002; 7438 6.50001 3.49997 9.50002
1660. 7439 7.50001 3.49997 9.50002; 7440 8.00002 3.49997 9.50002
1661. 7441 8.50002 3.49997 9.50002; 7442 9.50002 3.49997 9.50002
1662. 7443 11 3.49997 9.50002; 7444 11.5 3.49997 9.50002; 7445 12 3.49997 9.50002

_ STAAD SPACE -- PAGE NO. 31

1663. 7446 12.5 3.49997 9.50002; 7447 13.5 3.49997 9.50002; 7448 14 3.49997 9.50002
1664. 7449 14.5 3.49997 9.50002; 7450 15 3.49997 9.50002; 7451 15.5 3.49997 9.50002
1665. 7452 16 3.49997 9.50002; 7453 16.5 3.49997 9.50002; 7454 17.5 3.49997 9.50002
1666. 7455 18 3.49997 9.50002; 7456 18.5 3.49997 9.50002; 7457 19 3.49997 9.50002
1667. 7458 19.5 3.49997 9.50002; 7459 20 3.49997 9.50002; 7460 20.5 3.49997 9.50002
1668. 7461 21 3.49997 9.50002; 7462 21.5 3.49997 9.50002; 7463 10.5 3.49997 9.50002
1669. 7464 10.5 3.49997 7.50002; 7465 10.5 3.49997 3.50001
1670. 7466 10.5 3.49997 3.00001; 7467 10.5 3.49997 2; 7468 10.5 3.49997 1
1671. 7469 10.5 3.49997 0.500001; 7470 10 3.49997 9.50002; 7471 10 3.49997 7.50002
1672. 7472 10 3.49997 3.50001; 7473 10 3.49997 3.00001; 7474 10 3.49997 2
1673. 7475 10 3.49997 1; 7476 10 3.49997 0.500001; 7477 7.00001 3.49997 9.50002
1674. 7478 7.00001 3.49997 7.50002; 7479 7.00001 3.49997 3.50001
1675. 7480 7.00001 3.49997 3.00001; 7481 7.00001 3.49997 2; 7482 7.00001 3.49997 1
1676. 7483 7.00001 3.49997 0.500001; 7484 2.50001 3.49997 9.50002
1677. 7485 2.50001 3.49997 3.50001; 7486 2.50001 3.49997 2; 7487 2.50001 3.49997 1
1678. 7488 2.50001 3.49997 0.500001; 7489 2.00001 3.49997 9.50002
1679. 7490 2.00001 3.49997 7.50002; 7491 2.00001 3.49997 3.50001
1680. 7492 2.00001 3.49997 2; 7493 2.00001 3.49997 1; 7494 2.00001 3.49997 0.500001
1681. 7495 1 3.49997 9.50002; 7496 1 3.49997 7.50002; 7497 1 3.49997 3.50001
1682. 7498 1 3.49997 3.00001; 7499 1 3.49997 2; 7500 1 3.49997 1
1683. 7501 1 3.49997 0.500001; 7502 2.00001 3.49997 3.00001
1684. 7503 2.50001 3.49997 3.00001; 7504 21.5 3.49997 9.00002
1685. 7505 21.5 3.49997 8.50002; 7506 21.5 3.49997 8.00002
1686. 7507 21.5 3.49997 7.00001; 7508 21.5 3.49997 6.50001
1687. 7509 21.5 3.49997 6.00001; 7510 21.5 3.49997 5.50001
1688. 7511 21.5 3.49997 5.00001; 7512 21.5 3.49997 4.50001
1689. 7513 21.5 3.49997 4.00001; 7514 21.5 3.49997 2.50001; 7515 21.5 3.49997 1.5
1690. 7516 21 3.49997 9.00002; 7517 21 3.49997 8.50002; 7518 21 3.49997 8.00002
1691. 7519 21 3.49997 7.00001; 7520 21 3.49997 6.50001; 7521 21 3.49997 6.00001
1692. 7522 21 3.49997 5.50001; 7523 21 3.49997 5.00001; 7524 21 3.49997 4.50001
1693. 7525 21 3.49997 4.00001; 7526 21 3.49997 2.50001; 7527 21 3.49997 1.5
1694. 7528 20.5 3.49997 9.00002; 7529 20.5 3.49997 8.50002
1695. 7530 20.5 3.49997 8.00002; 7531 20.5 3.49997 7.00001
1696. 7532 20.5 3.49997 6.50001; 7533 20.5 3.49997 6.00001
1697. 7534 20.5 3.49997 5.50001; 7535 20.5 3.49997 5.00001
1698. 7536 20.5 3.49997 4.50001; 7537 20.5 3.49997 4.00001
1699. 7538 20.5 3.49997 2.50001; 7539 20.5 3.49997 1.5; 7540 20 3.49997 9.00002
1700. 7541 20 3.49997 8.50002; 7542 20 3.49997 8.00002; 7543 20 3.49997 7.00001
1701. 7544 20 3.49997 6.50001; 7545 20 3.49997 6.00001; 7546 20 3.49997 5.50001
1702. 7547 20 3.49997 5.00001; 7548 20 3.49997 4.50001; 7549 20 3.49997 4.00001
1703. 7550 20 3.49997 2.50001; 7551 20 3.49997 1.5; 7552 19.5 3.49997 9.00002
1704. 7553 19.5 3.49997 8.50002; 7554 19.5 3.49997 8.00002
1705. 7555 19.5 3.49997 7.00001; 7556 19.5 3.49997 6.50001
1706. 7557 19.5 3.49997 6.00001; 7558 19.5 3.49997 5.50001
1707. 7559 19.5 3.49997 5.00001; 7560 19.5 3.49997 4.50001
1708. 7561 19.5 3.49997 4.00001; 7562 19.5 3.49997 2.50001; 7563 19.5 3.49997 1.5
1709. 7564 19 3.49997 9.00002; 7565 19 3.49997 8.50002; 7566 19 3.49997 8.00002
1710. 7567 19 3.49997 7.00001; 7568 19 3.49997 6.50001; 7569 19 3.49997 6.00001
1711. 7570 19 3.49997 5.50001; 7571 19 3.49997 5.00001; 7572 19 3.49997 4.50001
1712. 7573 19 3.49997 4.00001; 7574 19 3.49997 2.50001; 7575 19 3.49997 1.5
1713. 7576 18.5 3.49997 9.00002; 7577 18.5 3.49997 8.50002
1714. 7578 18.5 3.49997 8.00002; 7579 18.5 3.49997 7.00001
1715. 7580 18.5 3.49997 6.50001; 7581 18.5 3.49997 6.00001
1716. 7582 18.5 3.49997 5.50001; 7583 18.5 3.49997 5.00001
1717. 7584 18.5 3.49997 4.50001; 7585 18.5 3.49997 4.00001
1718. 7586 18.5 3.49997 2.50001; 7587 18.5 3.49997 1.5; 7588 18 3.49997 9.00002

_ STAAD SPACE -- PAGE NO. 32

1719. 7589 18 3.49997 8.50002; 7590 18 3.49997 8.00002; 7591 18 3.49997 7.00001
1720. 7592 18 3.49997 6.50001; 7593 18 3.49997 6.00001; 7594 18 3.49997 5.50001
1721. 7595 18 3.49997 5.00001; 7596 18 3.49997 4.50001; 7597 18 3.49997 4.00001
1722. 7598 18 3.49997 2.50001; 7599 18 3.49997 1.5; 7600 17.5 3.49997 9.00002
1723. 7601 17.5 3.49997 8.50002; 7602 17.5 3.49997 8.00002
1724. 7603 17.5 3.49997 7.00001; 7604 17.5 3.49997 6.50001
1725. 7605 17.5 3.49997 6.00001; 7606 17.5 3.49997 5.50001
1726. 7607 17.5 3.49997 5.00001; 7608 17.5 3.49997 4.50001
1727. 7609 17.5 3.49997 4.00001; 7610 17.5 3.49997 2.50001; 7611 17.5 3.49997 1.5
1728. 7612 16.5 3.49997 9.00002; 7613 16.5 3.49997 8.50002
1729. 7614 16.5 3.49997 8.00002; 7615 16.5 3.49997 7.00001
1730. 7616 16.5 3.49997 6.50001; 7617 16.5 3.49997 6.00001
1731. 7618 16.5 3.49997 5.50001; 7619 16.5 3.49997 5.00001
1732. 7620 16.5 3.49997 4.50001; 7621 16.5 3.49997 4.00001
1733. 7622 16.5 3.49997 2.50001; 7623 16.5 3.49997 1.5; 7624 16 3.49997 9.00002
1734. 7625 16 3.49997 8.50002; 7626 16 3.49997 8.00002; 7627 16 3.49997 7.00001
1735. 7628 16 3.49997 6.50001; 7629 16 3.49997 6.00001; 7630 16 3.49997 5.50001
1736. 7631 16 3.49997 5.00001; 7632 16 3.49997 4.50001; 7633 16 3.49997 4.00001
1737. 7634 16 3.49997 2.50001; 7635 16 3.49997 1.5; 7636 15.5 3.49997 9.00002
1738. 7637 15.5 3.49997 8.50002; 7638 15.5 3.49997 8.00002
1739. 7639 15.5 3.49997 7.00001; 7640 15.5 3.49997 6.50001
1740. 7641 15.5 3.49997 6.00001; 7642 15.5 3.49997 5.50001
1741. 7643 15.5 3.49997 5.00001; 7644 15.5 3.49997 4.50001
1742. 7645 15.5 3.49997 4.00001; 7646 15.5 3.49997 2.50001; 7647 15.5 3.49997 1.5
1743. 7648 15 3.49997 9.00002; 7649 15 3.49997 8.50002; 7650 15 3.49997 8.00002
1744. 7651 15 3.49997 7.00001; 7652 15 3.49997 6.50001; 7653 15 3.49997 6.00001
1745. 7654 15 3.49997 5.50001; 7655 15 3.49997 5.00001; 7656 15 3.49997 4.50001
1746. 7657 15 3.49997 4.00001; 7658 15 3.49997 2.50001; 7659 15 3.49997 1.5
1747. 7660 14.5 3.49997 9.00002; 7661 14.5 3.49997 8.50002
1748. 7662 14.5 3.49997 8.00002; 7663 14.5 3.49997 7.00001
1749. 7664 14.5 3.49997 6.50001; 7665 14.5 3.49997 6.00001
1750. 7666 14.5 3.49997 5.50001; 7667 14.5 3.49997 5.00001
1751. 7668 14.5 3.49997 4.50001; 7669 14.5 3.49997 4.00001
1752. 7670 14.5 3.49997 2.50001; 7671 14.5 3.49997 1.5; 7672 14 3.49997 9.00002
1753. 7673 14 3.49997 8.50002; 7674 14 3.49997 8.00002; 7675 14 3.49997 7.00001
1754. 7676 14 3.49997 6.50001; 7677 14 3.49997 6.00001; 7678 14 3.49997 5.50001
1755. 7679 14 3.49997 5.00001; 7680 14 3.49997 4.50001; 7681 14 3.49997 4.00001
1756. 7682 14 3.49997 2.50001; 7683 14 3.49997 1.5; 7684 13.5 3.49997 9.00002
1757. 7685 13.5 3.49997 8.50002; 7686 13.5 3.49997 8.00002
1758. 7687 13.5 3.49997 7.00001; 7688 13.5 3.49997 6.50001
1759. 7689 13.5 3.49997 6.00001; 7690 13.5 3.49997 5.50001
1760. 7691 13.5 3.49997 5.00001; 7692 13.5 3.49997 4.50001
1761. 7693 13.5 3.49997 4.00001; 7694 13.5 3.49997 2.50001; 7695 13.5 3.49997 1.5
1762. 7696 12.5 3.49997 9.00002; 7697 12.5 3.49997 8.50002
1763. 7698 12.5 3.49997 8.00002; 7699 12.5 3.49997 7.00001
1764. 7700 12.5 3.49997 6.50001; 7701 12.5 3.49997 6.00001
1765. 7702 12.5 3.49997 5.50001; 7703 12.5 3.49997 5.00001
1766. 7704 12.5 3.49997 4.50001; 7705 12.5 3.49997 4.00001
1767. 7706 12.5 3.49997 2.50001; 7707 12.5 3.49997 1.5; 7708 12 3.49997 9.00002
1768. 7709 12 3.49997 8.50002; 7710 12 3.49997 8.00002; 7711 12 3.49997 7.00001
1769. 7712 12 3.49997 6.50001; 7713 12 3.49997 6.00001; 7714 12 3.49997 5.50001
1770. 7715 12 3.49997 5.00001; 7716 12 3.49997 4.50001; 7717 12 3.49997 4.00001
1771. 7718 12 3.49997 2.50001; 7719 12 3.49997 1.5; 7720 11.5 3.49997 9.00002
1772. 7721 11.5 3.49997 8.50002; 7722 11.5 3.49997 8.00002
1773. 7723 11.5 3.49997 7.00001; 7724 11.5 3.49997 6.50001
1774. 7725 11.5 3.49997 6.00001; 7726 11.5 3.49997 5.50001

_ STAAD SPACE -- PAGE NO. 33

1775. 7727 11.5 3.49997 5.00001; 7728 11.5 3.49997 4.50001
1776. 7729 11.5 3.49997 4.00001; 7730 11.5 3.49997 2.50001; 7731 11.5 3.49997 1.5
1777. 7732 11 3.49997 9.00002; 7733 11 3.49997 8.50002; 7734 11 3.49997 8.00002
1778. 7735 11 3.49997 7.00001; 7736 11 3.49997 6.50001; 7737 11 3.49997 6.00001
1779. 7738 11 3.49997 5.50001; 7739 11 3.49997 5.00001; 7740 11 3.49997 4.50001
1780. 7741 11 3.49997 4.00001; 7742 11 3.49997 2.50001; 7743 11 3.49997 1.5
1781. 7744 10.5 3.49997 9.00002; 7745 10.5 3.49997 8.50002
1782. 7746 10.5 3.49997 8.00002; 7747 10.5 3.49997 7.00001
1783. 7748 10.5 3.49997 6.50001; 7749 10.5 3.49997 6.00001
1784. 7750 10.5 3.49997 5.50001; 7751 10.5 3.49997 5.00001
1785. 7752 10.5 3.49997 4.50001; 7753 10.5 3.49997 4.00001
1786. 7754 10.5 3.49997 2.50001; 7755 10.5 3.49997 1.5; 7756 10 3.49997 9.00002
1787. 7757 10 3.49997 8.50002; 7758 10 3.49997 8.00002; 7759 10 3.49997 7.00001
1788. 7760 10 3.49997 6.50001; 7761 10 3.49997 6.00001; 7762 10 3.49997 5.50001
1789. 7763 10 3.49997 5.00001; 7764 10 3.49997 4.50001; 7765 10 3.49997 4.00001
1790. 7766 10 3.49997 2.50001; 7767 10 3.49997 1.5; 7768 9.50002 3.49997 9.00002
1791. 7769 9.50002 3.49997 8.50002; 7770 9.50002 3.49997 8.00002
1792. 7771 9.50002 3.49997 7.00001; 7772 9.50002 3.49997 6.50001
1793. 7773 9.50002 3.49997 6.00001; 7774 9.50002 3.49997 5.50001
1794. 7775 9.50002 3.49997 5.00001; 7776 9.50002 3.49997 4.50001
1795. 7777 9.50002 3.49997 4.00001; 7778 9.50002 3.49997 2.50001
1796. 7779 9.50002 3.49997 1.5; 7780 8.50002 3.49997 9.00002
1797. 7781 8.50002 3.49997 8.50002; 7782 8.50002 3.49997 8.00002
1798. 7783 8.50002 3.49997 7.00001; 7784 8.50002 3.49997 6.50001
1799. 7785 8.50002 3.49997 6.00001; 7786 8.50002 3.49997 5.50001
1800. 7787 8.50002 3.49997 5.00001; 7788 8.50002 3.49997 4.50001
1801. 7789 8.50002 3.49997 4.00001; 7790 8.50002 3.49997 2.50001
1802. 7791 8.50002 3.49997 1.5; 7792 8.00002 3.49997 1.5
1803. 7793 7.50001 3.49997 9.00002; 7794 7.50001 3.49997 8.50002
1804. 7795 7.50001 3.49997 8.00002; 7796 7.50001 3.49997 7.00001
1805. 7797 7.50001 3.49997 6.50001; 7798 7.50001 3.49997 6.00001
1806. 7799 7.50001 3.49997 5.50001; 7800 7.50001 3.49997 5.00001
1807. 7801 7.50001 3.49997 4.50001; 7802 7.50001 3.49997 4.00001
1808. 7803 7.50001 3.49997 2.50001; 7804 7.50001 3.49997 1.5
1809. 7805 7.00001 3.49997 9.00002; 7806 7.00001 3.49997 8.50002
1810. 7807 7.00001 3.49997 8.00002; 7808 7.00001 3.49997 7.00001
1811. 7809 7.00001 3.49997 6.50001; 7810 7.00001 3.49997 6.00001
1812. 7811 7.00001 3.49997 5.50001; 7812 7.00001 3.49997 5.00001
1813. 7813 7.00001 3.49997 4.50001; 7814 7.00001 3.49997 4.00001
1814. 7815 7.00001 3.49997 2.50001; 7816 7.00001 3.49997 1.5
1815. 7817 6.50001 3.49997 9.00002; 7818 6.50001 3.49997 8.50002
1816. 7819 6.50001 3.49997 8.00002; 7820 6.50001 3.49997 7.00001
1817. 7821 6.50001 3.49997 6.50001; 7822 6.50001 3.49997 6.00001
1818. 7823 6.50001 3.49997 5.50001; 7824 6.50001 3.49997 5.00001
1819. 7825 6.50001 3.49997 4.50001; 7826 6.50001 3.49997 4.00001
1820. 7827 6.50001 3.49997 2.50001; 7828 6.50001 3.49997 1.5
1821. 7829 6.00001 3.49997 9.00002; 7830 6.00001 3.49997 8.50002
1822. 7831 6.00001 3.49997 8.00002; 7832 6.00001 3.49997 7.00001
1823. 7833 6.00001 3.49997 6.50001; 7834 6.00001 3.49997 6.00001
1824. 7835 6.00001 3.49997 5.50001; 7836 6.00001 3.49997 5.00001
1825. 7837 6.00001 3.49997 4.50001; 7838 6.00001 3.49997 4.00001
1826. 7839 6.00001 3.49997 2.50001; 7840 6.00001 3.49997 1.5
1827. 7841 5.50001 3.49997 9.00002; 7842 5.50001 3.49997 8.50002
1828. 7843 5.50001 3.49997 8.00002; 7844 5.50001 3.49997 7.00001
1829. 7845 5.50001 3.49997 6.50001; 7846 5.50001 3.49997 6.00001
1830. 7847 5.50001 3.49997 5.50001; 7848 5.50001 3.49997 5.00001

_ STAAD SPACE -- PAGE NO. 34

1831. 7849 5.50001 3.49997 4.50001; 7850 5.50001 3.49997 4.00001
1832. 7851 5.50001 3.49997 2.50001; 7852 5.50001 3.49997 1.5
1833. 7853 4.50001 3.49997 9.00002; 7854 4.50001 3.49997 8.50002
1834. 7855 4.50001 3.49997 8.00002; 7856 4.50001 3.49997 7.00001
1835. 7857 4.50001 3.49997 6.50001; 7858 4.50001 3.49997 6.00001
1836. 7859 4.50001 3.49997 5.50001; 7860 4.50001 3.49997 5.00001
1837. 7861 4.50001 3.49997 4.50001; 7862 4.50001 3.49997 4.00001
1838. 7863 4.50001 3.49997 2.50001; 7864 4.50001 3.49997 1.5
1839. 7865 4.00001 3.49997 7.00001; 7866 4.00001 3.49997 6.50001
1840. 7867 4.00001 3.49997 6.00001; 7868 4.00001 3.49997 5.50001
1841. 7869 4.00001 3.49997 5.00001; 7870 4.00001 3.49997 4.50001
1842. 7871 4.00001 3.49997 4.00001; 7872 4.00001 3.49997 1.5
1843. 7873 3.50001 3.49997 9.00002; 7874 3.50001 3.49997 8.50002
1844. 7875 3.50001 3.49997 8.00002; 7876 3.50001 3.49997 7.00001
1845. 7877 3.50001 3.49997 6.50001; 7878 3.50001 3.49997 6.00001
1846. 7879 3.50001 3.49997 5.50001; 7880 3.50001 3.49997 5.00001
1847. 7881 3.50001 3.49997 4.50001; 7882 3.50001 3.49997 4.00001
1848. 7883 3.50001 3.49997 2.50001; 7884 3.50001 3.49997 1.5
1849. 7885 3.00001 3.49997 9.00002; 7886 3.00001 3.49997 8.50002
1850. 7887 3.00001 3.49997 8.00002; 7888 3.00001 3.49997 7.00001
1851. 7889 3.00001 3.49997 6.50001; 7890 3.00001 3.49997 6.00001
1852. 7891 3.00001 3.49997 5.50001; 7892 3.00001 3.49997 5.00001
1853. 7893 3.00001 3.49997 4.50001; 7894 3.00001 3.49997 4.00001
1854. 7895 3.00001 3.49997 2.50001; 7896 3.00001 3.49997 1.5
1855. 7897 2.50001 3.49997 1.5; 7898 2.00001 3.49997 9.00002
1856. 7899 2.00001 3.49997 8.50002; 7900 2.00001 3.49997 8.00002
1857. 7901 2.00001 3.49997 7.00001; 7902 2.00001 3.49997 6.50001
1858. 7903 2.00001 3.49997 6.00001; 7904 2.00001 3.49997 5.50001
1859. 7905 2.00001 3.49997 5.00001; 7906 2.00001 3.49997 4.50001
1860. 7907 2.00001 3.49997 4.00001; 7908 2.00001 3.49997 2.50001
1861. 7909 2.00001 3.49997 1.5; 7910 1.50001 3.49997 9.00002
1862. 7911 1.50001 3.49997 8.50002; 7912 1.50001 3.49997 8.00002
1863. 7913 1.50001 3.49997 6.50001; 7914 1.50001 3.49997 6.00001
1864. 7915 1.50001 3.49997 5.50001; 7916 1.50001 3.49997 5.00001
1865. 7917 1.50001 3.49997 4.50001; 7918 1.50001 3.49997 4.00001
1866. 7919 1.50001 3.49997 1.5; 7920 1 3.49997 9.00002; 7921 1 3.49997 8.50002
1867. 7922 1 3.49997 8.00002; 7923 1 3.49997 1.5; 7924 0.500004 3.49997 2.50001
1868. 7925 8.00002 3.49997 9.00002; 7926 8.00002 3.49997 8.50002
1869. 7927 8.00002 3.49997 8.00002; 7928 8.00002 3.49997 7.50002
1870. 7929 8.00002 3.49997 7.00001; 7930 8.00002 3.49997 6.50001
1871. 7931 8.00002 3.49997 6.00001; 7932 8.00002 3.49997 5.50001
1872. 7933 8.00002 3.49997 5.00001; 7934 8.00002 3.49997 4.50001
1873. 7935 8.00002 3.49997 4.00001; 7936 8.00002 3.49997 2.50001
1874. 7937 4.00001 3.49997 9.00002; 7938 4.00001 3.49997 8.50002
1875. 7939 4.00001 3.49997 8.00002; 7940 4.00001 3.49997 2.50001
1876. 7941 2.50001 3.49997 9.00002; 7942 2.50001 3.49997 8.50002
1877. 7943 2.50001 3.49997 8.00002; 7944 2.50001 3.49997 7.50002
1878. 7945 2.50001 3.49997 7.00001; 7946 2.50001 3.49997 6.50001
1879. 7947 2.50001 3.49997 6.00001; 7948 2.50001 3.49997 5.50001
1880. 7949 2.50001 3.49997 5.00001; 7950 2.50001 3.49997 4.50001
1881. 7951 2.50001 3.49997 4.00001; 7952 2.50001 3.49997 2.50001
1882. 7953 0.500004 3.49997 9.00002; 7954 0.500004 3.49997 8.50002
1883. 7955 0.500004 3.49997 8.00002; 7956 1 3.49997 7.00001
1884. 7957 0.500004 3.49997 7.00001; 7958 1 3.49997 6.50001
1885. 7959 0.500004 3.49997 6.50001; 7960 1 3.49997 6.00001
1886. 7961 0.500004 3.49997 6.00001; 7962 1 3.49997 5.00001; 7963 1 3.49997 5.50001

_ STAAD SPACE -- PAGE NO. 35

1887. 7964 0.500004 3.49997 5.50001; 7965 0.500004 3.49997 5.00001
1888. 7966 1 3.49997 4.50001; 7967 0.500004 3.49997 4.50001; 7968 1 3.49997 4.00001
1889. 7969 0.500004 3.49997 4.00001; 7970 1 3.49997 2.50001
1890. 7971 0.500004 3.49997 1.5; 7972 1.50001 3.49997 2.5
1891. MEMBER INCIDENCES
1892. 752672 7227 7234; 752673 7163 7261; 752674 4239 7399; 752675 7234 7267
1893. 752676 7261 7294; 752677 7267 7919; 752678 7294 7563; 752679 7300 7972
1894. 752680 7327 7562; 752681 7333 7366; 752682 7360 7393; 752683 7366 7918
1895. 752684 7393 7561; 752685 7399 7912; 752686 7425 7554; 752687 7431 7228
1896. 752688 7458 7164; 752689 7552 7458; 752690 7553 7552; 752691 7554 7553
1897. 752692 7555 7425; 752693 7556 7555; 752694 7557 7556; 752695 7558 7557
1898. 752696 7559 7558; 752697 7560 7559; 752698 7561 7560; 752699 7562 7360
1899. 752700 7563 7327; 752701 7910 7431; 752702 7911 7910; 752703 7912 7911
1900. 752704 7913 4239; 752705 7914 7913; 752706 7915 7914; 752707 7916 7915
1901. 752708 7917 7916; 752709 7918 7917; 752710 7919 7300; 752711 7972 7333
1902. ELEMENT INCIDENCES SHELL
1903. 1 2 1 3 4; 2 5 2 4 6; 3 7 5 6 8; 4 9 7 8 10; 5 11 9 10 12; 6 13 11 12 14
1904. 7 15 13 14 16; 8 17 15 16 18; 9 19 17 18 20; 10 21 19 20 22; 11 23 21 22 24
1905. 12 25 23 24 26; 13 27 25 26 28; 14 29 27 28 30; 15 31 29 30 32; 16 33 31 32 34
1906. 17 35 33 34 36; 18 37 35 36 38; 19 39 37 38 40; 20 41 39 40 42; 21 43 41 42 44
1907. 22 45 43 44 46; 23 47 45 46 48; 24 49 47 48 50; 25 51 49 50 52; 26 53 51 52 54
1908. 27 55 53 54 56; 28 57 55 56 58; 29 59 57 58 60; 30 61 59 60 62; 31 63 61 62 64
1909. 32 65 63 64 66; 33 67 65 66 68; 34 69 67 68 70; 35 71 69 70 72; 36 73 71 72 74
1910. 37 75 73 74 76; 38 77 75 76 78; 39 79 77 78 80; 40 81 79 80 82; 41 4 3 83 84
1911. 42 6 4 84 85; 43 8 6 85 86; 44 10 8 86 87; 45 12 10 87 88; 46 14 12 88 89
1912. 47 16 14 89 90; 48 18 16 90 91; 49 20 18 91 92; 50 22 20 92 93; 51 24 22 93 94
1913. 52 26 24 94 95; 53 28 26 95 96; 54 30 28 96 97; 55 32 30 97 98; 56 34 32 98 99
1914. 57 36 34 99 100; 58 38 36 100 101; 59 40 38 101 102; 60 42 40 102 103
1915. 61 44 42 103 104; 62 46 44 104 105; 63 48 46 105 106; 64 50 48 106 107
1916. 65 52 50 107 108; 66 54 52 108 109; 67 56 54 109 110; 68 58 56 110 111
1917. 69 60 58 111 112; 70 62 60 112 113; 71 64 62 113 114; 72 66 64 114 115
1918. 73 68 66 115 116; 74 70 68 116 117; 75 72 70 117 118; 76 74 72 118 119
1919. 77 76 74 119 120; 78 78 76 120 121; 79 80 78 121 122; 80 82 80 122 123
1920. 81 84 83 124 125; 82 85 84 125 126; 83 86 85 126 127; 84 87 86 127 128
1921. 85 88 87 128 129; 86 89 88 129 130; 87 90 89 130 131; 88 91 90 131 132
1922. 89 92 91 132 133; 90 93 92 133 134; 91 94 93 134 135; 92 95 94 135 136
1923. 93 96 95 136 137; 94 97 96 137 138; 95 98 97 138 139; 96 99 98 139 140
1924. 97 100 99 140 141; 98 101 100 141 142; 99 102 101 142 143; 100 103 102 143 144
1925. 101 104 103 144 145; 102 105 104 145 146; 103 106 105 146 147
1926. 104 107 106 147 148; 105 108 107 148 149; 106 109 108 149 150
1927. 107 110 109 150 151; 108 111 110 151 152; 109 112 111 152 153
1928. 110 113 112 153 154; 111 114 113 154 155; 112 115 114 155 156
1929. 113 116 115 156 157; 114 117 116 157 158; 115 118 117 158 159
1930. 116 119 118 159 160; 117 120 119 160 161; 118 121 120 161 162
1931. 119 122 121 162 163; 120 123 122 163 164; 121 125 124 165 166
1932. 122 126 125 166 167; 123 127 126 167 168; 124 128 127 168 169
1933. 125 129 128 169 170; 126 130 129 170 171; 127 131 130 171 172
1934. 128 132 131 172 173; 129 133 132 173 174; 130 134 133 174 175
1935. 131 135 134 175 176; 132 136 135 176 177; 133 137 136 177 178
1936. 134 138 137 178 179; 135 139 138 179 180; 136 140 139 180 181
1937. 137 141 140 181 182; 138 142 141 182 183; 139 143 142 183 184
1938. 140 144 143 184 185; 141 145 144 185 186; 142 146 145 186 187
1939. 143 147 146 187 188; 144 148 147 188 189; 145 149 148 189 190
1940. 146 150 149 190 191; 147 151 150 191 192; 148 152 151 192 193
1941. 149 153 152 193 194; 150 154 153 194 195; 151 155 154 195 196
1942. 152 156 155 196 197; 153 157 156 197 198; 154 158 157 198 199

_ STAAD SPACE -- PAGE NO. 36

1943. 155 159 158 199 200; 156 160 159 200 201; 157 161 160 201 202
1944. 158 162 161 202 203; 159 163 162 203 204; 160 164 163 204 205
1945. 161 166 165 206 207; 162 167 166 207 208; 163 168 167 208 209
1946. 164 169 168 209 210; 165 170 169 210 211; 166 171 170 211 212
1947. 167 172 171 212 213; 168 173 172 213 214; 169 174 173 214 215
1948. 170 175 174 215 216; 171 176 175 216 217; 172 177 176 217 218
1949. 173 178 177 218 219; 174 179 178 219 220; 175 180 179 220 221
1950. 176 181 180 221 222; 177 182 181 222 223; 178 183 182 223 224
1951. 179 184 183 224 225; 180 185 184 225 226; 181 186 185 226 227
1952. 182 187 186 227 228; 183 188 187 228 229; 184 189 188 229 230
1953. 185 190 189 230 231; 186 191 190 231 232; 187 192 191 232 233
1954. 188 193 192 233 234; 189 194 193 234 235; 190 195 194 235 236
1955. 191 196 195 236 237; 192 197 196 237 238; 193 198 197 238 239
1956. 194 199 198 239 240; 195 200 199 240 241; 196 201 200 241 242
1957. 197 202 201 242 243; 198 203 202 243 244; 199 204 203 244 245
1958. 200 205 204 245 246; 201 207 206 247 248; 202 208 207 248 249
1959. 203 209 208 249 250; 204 210 209 250 251; 205 211 210 251 252
1960. 206 212 211 252 253; 207 213 212 253 254; 208 214 213 254 255
1961. 209 215 214 255 256; 210 216 215 256 257; 211 217 216 257 258
1962. 212 218 217 258 259; 213 219 218 259 260; 214 220 219 260 261
1963. 215 221 220 261 262; 216 222 221 262 263; 217 223 222 263 264
1964. 218 224 223 264 265; 219 225 224 265 266; 220 226 225 266 267
1965. 221 227 226 267 268; 222 228 227 268 269; 223 229 228 269 270
1966. 224 230 229 270 271; 225 231 230 271 272; 226 232 231 272 273
1967. 227 233 232 273 274; 228 234 233 274 275; 229 235 234 275 276
1968. 230 236 235 276 277; 231 237 236 277 278; 232 238 237 278 279
1969. 233 239 238 279 280; 234 240 239 280 281; 235 241 240 281 282
1970. 236 242 241 282 283; 237 243 242 283 284; 238 244 243 284 285
1971. 239 245 244 285 286; 240 246 245 286 287; 241 248 247 288 289
1972. 242 249 248 289 290; 243 250 249 290 291; 244 251 250 291 292
1973. 245 252 251 292 293; 246 253 252 293 294; 247 254 253 294 295
1974. 248 255 254 295 296; 249 256 255 296 297; 250 257 256 297 298
1975. 251 258 257 298 299; 252 259 258 299 300; 253 260 259 300 301
1976. 254 261 260 301 302; 255 262 261 302 303; 256 263 262 303 304
1977. 257 264 263 304 305; 258 265 264 305 306; 259 266 265 306 307
1978. 260 267 266 307 308; 261 268 267 308 309; 262 269 268 309 310
1979. 263 270 269 310 311; 264 271 270 311 312; 265 272 271 312 313
1980. 266 273 272 313 314; 267 274 273 314 315; 268 275 274 315 316
1981. 269 276 275 316 317; 270 277 276 317 318; 271 278 277 318 319
1982. 272 279 278 319 320; 273 280 279 320 321; 274 281 280 321 322
1983. 275 282 281 322 323; 276 283 282 323 324; 277 284 283 324 325
1984. 278 285 284 325 326; 279 286 285 326 327; 280 287 286 327 328
1985. 281 289 288 329 330; 282 290 289 330 331; 283 291 290 331 332
1986. 284 292 291 332 333; 285 293 292 333 334; 286 294 293 334 335
1987. 287 295 294 335 336; 288 296 295 336 337; 289 297 296 337 338
1988. 290 298 297 338 339; 291 299 298 339 340; 292 300 299 340 341
1989. 293 301 300 341 342; 294 302 301 342 343; 295 303 302 343 344
1990. 296 304 303 344 345; 297 305 304 345 346; 298 306 305 346 347
1991. 299 307 306 347 348; 300 308 307 348 349; 301 309 308 349 350
1992. 302 310 309 350 351; 303 311 310 351 352; 304 312 311 352 353
1993. 305 313 312 353 354; 306 314 313 354 355; 307 315 314 355 356
1994. 308 316 315 356 357; 309 317 316 357 358; 310 318 317 358 359
1995. 311 319 318 359 360; 312 320 319 360 361; 313 321 320 361 362
1996. 314 322 321 362 363; 315 323 322 363 364; 316 324 323 364 365
1997. 317 325 324 365 366; 318 326 325 366 367; 319 327 326 367 368
1998. 320 328 327 368 369; 321 330 329 370 371; 322 331 330 371 372

_ STAAD SPACE -- PAGE NO. 37

1999. 323 332 331 372 373; 324 333 332 373 374; 325 334 333 374 375
2000. 326 335 334 375 376; 327 336 335 376 377; 328 337 336 377 378
2001. 329 338 337 378 379; 330 339 338 379 380; 331 340 339 380 381
2002. 332 341 340 381 382; 333 342 341 382 383; 334 343 342 383 384
2003. 335 344 343 384 385; 336 345 344 385 386; 337 346 345 386 387
2004. 338 347 346 387 388; 339 348 347 388 389; 340 349 348 389 390
2005. 341 350 349 390 391; 342 351 350 391 392; 343 352 351 392 393
2006. 344 353 352 393 394; 345 354 353 394 395; 346 355 354 395 396
2007. 347 356 355 396 397; 348 357 356 397 398; 349 358 357 398 399
2008. 350 359 358 399 400; 351 360 359 400 401; 352 361 360 401 402
2009. 353 362 361 402 403; 354 363 362 403 404; 355 364 363 404 405
2010. 356 365 364 405 406; 357 366 365 406 407; 358 367 366 407 408
2011. 359 368 367 408 409; 360 369 368 409 410; 361 371 370 411 412
2012. 362 372 371 412 413; 363 373 372 413 414; 364 374 373 414 415
2013. 365 375 374 415 416; 366 376 375 416 417; 367 377 376 417 418
2014. 368 378 377 418 419; 369 379 378 419 420; 370 380 379 420 421
2015. 371 381 380 421 422; 372 382 381 422 423; 373 383 382 423 424
2016. 374 384 383 424 425; 375 385 384 425 426; 376 386 385 426 427
2017. 377 387 386 427 428; 378 388 387 428 429; 379 389 388 429 430
2018. 380 390 389 430 431; 381 391 390 431 432; 382 392 391 432 433
2019. 383 393 392 433 434; 384 394 393 434 435; 385 395 394 435 436
2020. 386 396 395 436 437; 387 397 396 437 438; 388 398 397 438 439
2021. 389 399 398 439 440; 390 400 399 440 441; 391 401 400 441 442
2022. 392 402 401 442 443; 393 403 402 443 444; 394 404 403 444 445
2023. 395 405 404 445 446; 396 406 405 446 447; 397 407 406 447 448
2024. 398 408 407 448 449; 399 409 408 449 450; 400 410 409 450 451
2025. 401 412 411 452 453; 402 413 412 453 454; 403 414 413 454 455
2026. 404 415 414 455 456; 405 416 415 456 457; 406 417 416 457 458
2027. 407 418 417 458 459; 408 419 418 459 460; 409 420 419 460 461
2028. 410 421 420 461 462; 411 422 421 462 463; 412 423 422 463 464
2029. 413 424 423 464 465; 414 425 424 465 466; 415 426 425 466 467
2030. 416 427 426 467 468; 417 428 427 468 469; 418 429 428 469 470
2031. 419 430 429 470 471; 420 431 430 471 472; 421 432 431 472 473
2032. 422 433 432 473 474; 423 434 433 474 475; 424 435 434 475 476
2033. 425 436 435 476 477; 426 437 436 477 478; 427 438 437 478 479
2034. 428 439 438 479 480; 429 440 439 480 481; 430 441 440 481 482
2035. 431 442 441 482 483; 432 443 442 483 484; 433 444 443 484 485
2036. 434 445 444 485 486; 435 446 445 486 487; 436 447 446 487 488
2037. 437 448 447 488 489; 438 449 448 489 490; 439 450 449 490 491
2038. 440 451 450 491 492; 441 453 452 493 494; 442 454 453 494 495
2039. 443 455 454 495 496; 444 456 455 496 497; 445 457 456 497 498
2040. 446 458 457 498 499; 447 459 458 499 500; 448 460 459 500 501
2041. 449 461 460 501 502; 450 462 461 502 503; 451 463 462 503 504
2042. 452 464 463 504 505; 453 465 464 505 506; 454 466 465 506 507
2043. 455 467 466 507 508; 456 468 467 508 509; 457 469 468 509 510
2044. 458 470 469 510 511; 459 471 470 511 512; 460 472 471 512 513
2045. 461 473 472 513 514; 462 474 473 514 515; 463 475 474 515 516
2046. 464 476 475 516 517; 465 477 476 517 518; 466 478 477 518 519
2047. 467 479 478 519 520; 468 480 479 520 521; 469 481 480 521 522
2048. 470 482 481 522 523; 471 483 482 523 524; 472 484 483 524 525
2049. 473 485 484 525 526; 474 486 485 526 527; 475 487 486 527 528
2050. 476 488 487 528 529; 477 489 488 529 530; 478 490 489 530 531
2051. 479 491 490 531 532; 480 492 491 532 533; 481 494 493 534 535
2052. 482 495 494 535 536; 483 496 495 536 537; 484 497 496 537 538
2053. 485 498 497 538 539; 486 499 498 539 540; 487 500 499 540 541
2054. 488 501 500 541 542; 489 502 501 542 543; 490 503 502 543 544

_ STAAD SPACE -- PAGE NO. 38

2055. 491 504 503 544 545; 492 505 504 545 546; 493 506 505 546 547
2056. 494 507 506 547 548; 495 508 507 548 549; 496 509 508 549 550
2057. 497 510 509 550 551; 498 511 510 551 552; 499 512 511 552 553
2058. 500 513 512 553 554; 501 514 513 554 555; 502 515 514 555 556
2059. 503 516 515 556 557; 504 517 516 557 558; 505 518 517 558 559
2060. 506 519 518 559 560; 507 520 519 560 561; 508 521 520 561 562
2061. 509 522 521 562 563; 510 523 522 563 564; 511 524 523 564 565
2062. 512 525 524 565 566; 513 526 525 566 567; 514 527 526 567 568
2063. 515 528 527 568 569; 516 529 528 569 570; 517 530 529 570 571
2064. 518 531 530 571 572; 519 532 531 572 573; 520 533 532 573 574
2065. 521 535 534 575 576; 522 536 535 576 577; 523 537 536 577 578
2066. 524 538 537 578 579; 525 539 538 579 580; 526 540 539 580 581
2067. 527 541 540 581 582; 528 542 541 582 583; 529 543 542 583 584
2068. 530 544 543 584 585; 531 545 544 585 586; 532 546 545 586 587
2069. 533 547 546 587 588; 534 548 547 588 589; 535 549 548 589 590
2070. 536 550 549 590 591; 537 551 550 591 592; 538 552 551 592 593
2071. 539 553 552 593 594; 540 554 553 594 595; 541 555 554 595 596
2072. 542 556 555 596 597; 543 557 556 597 598; 544 558 557 598 599
2073. 545 559 558 599 600; 546 560 559 600 601; 547 561 560 601 602
2074. 548 562 561 602 603; 549 563 562 603 604; 550 564 563 604 605
2075. 551 565 564 605 606; 552 566 565 606 607; 553 567 566 607 608
2076. 554 568 567 608 609; 555 569 568 609 610; 556 570 569 610 611
2077. 557 571 570 611 612; 558 572 571 612 613; 559 573 572 613 614
2078. 560 574 573 614 615; 561 576 575 616 617; 562 577 576 617 618
2079. 563 578 577 618 619; 564 579 578 619 620; 565 580 579 620 621
2080. 566 581 580 621 622; 567 582 581 622 623; 568 583 582 623 624
2081. 569 584 583 624 625; 570 585 584 625 626; 571 586 585 626 627
2082. 572 587 586 627 628; 573 588 587 628 629; 574 589 588 629 630
2083. 575 590 589 630 631; 576 591 590 631 632; 577 592 591 632 633
2084. 578 593 592 633 634; 579 594 593 634 635; 580 595 594 635 636
2085. 581 596 595 636 637; 582 597 596 637 638; 583 598 597 638 639
2086. 584 599 598 639 640; 585 600 599 640 641; 586 601 600 641 642
2087. 587 602 601 642 643; 588 603 602 643 644; 589 604 603 644 645
2088. 590 605 604 645 646; 591 606 605 646 647; 592 607 606 647 648
2089. 593 608 607 648 649; 594 609 608 649 650; 595 610 609 650 651
2090. 596 611 610 651 652; 597 612 611 652 653; 598 613 612 653 654
2091. 599 614 613 654 655; 600 615 614 655 656; 601 617 616 657 658
2092. 602 618 617 658 659; 603 619 618 659 660; 604 620 619 660 661
2093. 605 621 620 661 662; 606 622 621 662 663; 607 623 622 663 664
2094. 608 624 623 664 665; 609 625 624 665 666; 610 626 625 666 667
2095. 611 627 626 667 668; 612 628 627 668 669; 613 629 628 669 670
2096. 614 630 629 670 671; 615 631 630 671 672; 616 632 631 672 673
2097. 617 633 632 673 674; 618 634 633 674 675; 619 635 634 675 676
2098. 620 636 635 676 677; 621 637 636 677 678; 622 638 637 678 679
2099. 623 639 638 679 680; 624 640 639 680 681; 625 641 640 681 682
2100. 626 642 641 682 683; 627 643 642 683 684; 628 644 643 684 685
2101. 629 645 644 685 686; 630 646 645 686 687; 631 647 646 687 688
2102. 632 648 647 688 689; 633 649 648 689 690; 634 650 649 690 691
2103. 635 651 650 691 692; 636 652 651 692 693; 637 653 652 693 694
2104. 638 654 653 694 695; 639 655 654 695 696; 640 656 655 696 697
2105. 641 658 657 698 699; 642 659 658 699 700; 643 660 659 700 701
2106. 644 661 660 701 702; 645 662 661 702 703; 646 663 662 703 704
2107. 647 664 663 704 705; 648 665 664 705 706; 649 666 665 706 707
2108. 650 667 666 707 708; 651 668 667 708 709; 652 669 668 709 710
2109. 653 670 669 710 711; 654 671 670 711 712; 655 672 671 712 713
2110. 656 673 672 713 714; 657 674 673 714 715; 658 675 674 715 716

_ STAAD SPACE -- PAGE NO. 39

2111. 659 676 675 716 717; 660 677 676 717 718; 661 678 677 718 719
2112. 662 679 678 719 720; 663 680 679 720 721; 664 681 680 721 722
2113. 665 682 681 722 723; 666 683 682 723 724; 667 684 683 724 725
2114. 668 685 684 725 726; 669 686 685 726 727; 670 687 686 727 728
2115. 671 688 687 728 729; 672 689 688 729 730; 673 690 689 730 731
2116. 674 691 690 731 732; 675 692 691 732 733; 676 693 692 733 734
2117. 677 694 693 734 735; 678 695 694 735 736; 679 696 695 736 737
2118. 680 697 696 737 738; 681 699 698 739 740; 682 700 699 740 741
2119. 683 701 700 741 742; 684 702 701 742 743; 685 703 702 743 744
2120. 686 704 703 744 745; 687 705 704 745 746; 688 706 705 746 747
2121. 689 707 706 747 748; 690 708 707 748 749; 691 709 708 749 750
2122. 692 710 709 750 751; 693 711 710 751 752; 694 712 711 752 753
2123. 695 713 712 753 754; 696 714 713 754 755; 697 715 714 755 756
2124. 698 716 715 756 757; 699 717 716 757 758; 700 718 717 758 759
2125. 701 719 718 759 760; 702 720 719 760 761; 703 721 720 761 762
2126. 704 722 721 762 763; 705 723 722 763 764; 706 724 723 764 765
2127. 707 725 724 765 766; 708 726 725 766 767; 709 727 726 767 768
2128. 710 728 727 768 769; 711 729 728 769 770; 712 730 729 770 771
2129. 713 731 730 771 772; 714 732 731 772 773; 715 733 732 773 774
2130. 716 734 733 774 775; 717 735 734 775 776; 718 736 735 776 777
2131. 719 737 736 777 778; 720 738 737 778 779; 721 740 739 780 781
2132. 722 741 740 781 782; 723 742 741 782 783; 724 743 742 783 784
2133. 725 744 743 784 785; 726 745 744 785 786; 727 746 745 786 787
2134. 728 747 746 787 788; 729 748 747 788 789; 730 749 748 789 790
2135. 731 750 749 790 791; 732 751 750 791 792; 733 752 751 792 793
2136. 734 753 752 793 794; 735 754 753 794 795; 736 755 754 795 796
2137. 737 756 755 796 797; 738 757 756 797 798; 739 758 757 798 799
2138. 740 759 758 799 800; 741 760 759 800 801; 742 761 760 801 802
2139. 743 762 761 802 803; 744 763 762 803 804; 745 764 763 804 805
2140. 746 765 764 805 806; 747 766 765 806 807; 748 767 766 807 808
2141. 749 768 767 808 809; 750 769 768 809 810; 751 770 769 810 811
2142. 752 771 770 811 812; 753 772 771 812 813; 754 773 772 813 814
2143. 755 774 773 814 815; 756 775 774 815 816; 757 776 775 816 817
2144. 758 777 776 817 818; 759 778 777 818 819; 760 779 778 819 820
2145. 761 781 780 821 822; 762 782 781 822 823; 763 783 782 823 824
2146. 764 784 783 824 825; 765 785 784 825 826; 766 786 785 826 827
2147. 767 787 786 827 828; 768 788 787 828 829; 769 789 788 829 830
2148. 770 790 789 830 831; 771 791 790 831 832; 772 792 791 832 833
2149. 773 793 792 833 834; 774 794 793 834 835; 775 795 794 835 836
2150. 776 796 795 836 837; 777 797 796 837 838; 778 798 797 838 839
2151. 779 799 798 839 840; 780 800 799 840 841; 781 801 800 841 842
2152. 782 802 801 842 843; 783 803 802 843 844; 784 804 803 844 845
2153. 785 805 804 845 846; 786 806 805 846 847; 787 807 806 847 848
2154. 788 808 807 848 849; 789 809 808 849 850; 790 810 809 850 851
2155. 791 811 810 851 852; 792 812 811 852 853; 793 813 812 853 854
2156. 794 814 813 854 855; 795 815 814 855 856; 796 816 815 856 857
2157. 797 817 816 857 858; 798 818 817 858 859; 799 819 818 859 860
2158. 800 820 819 860 861; 801 863 862 864 865; 802 866 863 865 867
2159. 803 868 866 867 869; 804 870 868 869 871; 805 872 870 871 873
2160. 806 874 872 873 875; 807 876 874 875 877; 808 878 876 877 879
2161. 809 880 878 879 881; 810 882 880 881 883; 811 884 882 883 885
2162. 812 886 884 885 887; 813 888 886 887 889; 814 890 888 889 891
2163. 815 892 890 891 893; 816 894 892 893 895; 817 896 894 895 897
2164. 818 898 896 897 899; 819 900 898 899 901; 820 902 900 901 903
2165. 821 904 902 903 905; 822 906 904 905 907; 823 908 906 907 909
2166. 824 910 908 909 911; 825 912 910 911 913; 826 914 912 913 915

_ STAAD SPACE -- PAGE NO. 40

2167. 827 916 914 915 917; 828 918 916 917 919; 829 920 918 919 921
2168. 830 922 920 921 923; 831 924 922 923 925; 832 926 924 925 927
2169. 833 928 926 927 929; 834 930 928 929 931; 835 932 930 931 933
2170. 836 934 932 933 935; 837 936 934 935 937; 838 938 936 937 939
2171. 839 940 938 939 941; 840 942 940 941 943; 841 865 864 944 945
2172. 842 867 865 945 946; 843 869 867 946 947; 844 871 869 947 948
2173. 845 873 871 948 949; 846 875 873 949 950; 847 877 875 950 951
2174. 848 879 877 951 952; 849 881 879 952 953; 850 883 881 953 954
2175. 851 885 883 954 955; 852 887 885 955 956; 853 889 887 956 957
2176. 854 891 889 957 958; 855 893 891 958 959; 856 895 893 959 960
2177. 857 897 895 960 961; 858 899 897 961 962; 859 901 899 962 963
2178. 860 903 901 963 964; 861 905 903 964 965; 862 907 905 965 966
2179. 863 909 907 966 967; 864 911 909 967 968; 865 913 911 968 969
2180. 866 915 913 969 970; 867 917 915 970 971; 868 919 917 971 972
2181. 869 921 919 972 973; 870 923 921 973 974; 871 925 923 974 975
2182. 872 927 925 975 976; 873 929 927 976 977; 874 931 929 977 978
2183. 875 933 931 978 979; 876 935 933 979 980; 877 937 935 980 981
2184. 878 939 937 981 982; 879 941 939 982 983; 880 943 941 983 984
2185. 881 945 944 985 986; 882 946 945 986 987; 883 947 946 987 988
2186. 884 948 947 988 989; 885 949 948 989 990; 886 950 949 990 991
2187. 887 951 950 991 992; 888 952 951 992 993; 889 953 952 993 994
2188. 890 954 953 994 995; 891 955 954 995 996; 892 956 955 996 997
2189. 893 957 956 997 998; 894 958 957 998 999; 895 959 958 999 1000
2190. 896 960 959 1000 1001; 897 961 960 1001 1002; 898 962 961 1002 1003
2191. 899 963 962 1003 1004; 900 964 963 1004 1005; 901 965 964 1005 1006
2192. 902 966 965 1006 1007; 903 967 966 1007 1008; 904 968 967 1008 1009
2193. 905 969 968 1009 1010; 906 970 969 1010 1011; 907 971 970 1011 1012
2194. 908 972 971 1012 1013; 909 973 972 1013 1014; 910 974 973 1014 1015
2195. 911 975 974 1015 1016; 912 976 975 1016 1017; 913 977 976 1017 1018
2196. 914 978 977 1018 1019; 915 979 978 1019 1020; 916 980 979 1020 1021
2197. 917 981 980 1021 1022; 918 982 981 1022 1023; 919 983 982 1023 1024
2198. 920 984 983 1024 1025; 921 986 985 1026 1027; 922 987 986 1027 1028
2199. 923 988 987 1028 1029; 924 989 988 1029 1030; 925 990 989 1030 1031
2200. 926 991 990 1031 1032; 927 992 991 1032 1033; 928 993 992 1033 1034
2201. 929 994 993 1034 1035; 930 995 994 1035 1036; 931 996 995 1036 1037
2202. 932 997 996 1037 1038; 933 998 997 1038 1039; 934 999 998 1039 1040
2203. 935 1000 999 1040 1041; 936 1001 1000 1041 1042; 937 1002 1001 1042 1043
2204. 938 1003 1002 1043 1044; 939 1004 1003 1044 1045; 940 1005 1004 1045 1046
2205. 941 1006 1005 1046 1047; 942 1007 1006 1047 1048; 943 1008 1007 1048 1049
2206. 944 1009 1008 1049 1050; 945 1010 1009 1050 1051; 946 1011 1010 1051 1052
2207. 947 1012 1011 1052 1053; 948 1013 1012 1053 1054; 949 1014 1013 1054 1055
2208. 950 1015 1014 1055 1056; 951 1016 1015 1056 1057; 952 1017 1016 1057 1058
2209. 953 1018 1017 1058 1059; 954 1019 1018 1059 1060; 955 1020 1019 1060 1061
2210. 956 1021 1020 1061 1062; 957 1022 1021 1062 1063; 958 1023 1022 1063 1064
2211. 959 1024 1023 1064 1065; 960 1025 1024 1065 1066; 961 1027 1026 1067 1068
2212. 962 1028 1027 1068 1069; 963 1029 1028 1069 1070; 964 1030 1029 1070 1071
2213. 965 1031 1030 1071 1072; 966 1032 1031 1072 1073; 967 1033 1032 1073 1074
2214. 968 1034 1033 1074 1075; 969 1035 1034 1075 1076; 970 1036 1035 1076 1077
2215. 971 1037 1036 1077 1078; 972 1038 1037 1078 1079; 973 1039 1038 1079 1080
2216. 974 1040 1039 1080 1081; 975 1041 1040 1081 1082; 976 1042 1041 1082 1083
2217. 977 1043 1042 1083 1084; 978 1044 1043 1084 1085; 979 1045 1044 1085 1086
2218. 980 1046 1045 1086 1087; 981 1047 1046 1087 1088; 982 1048 1047 1088 1089
2219. 983 1049 1048 1089 1090; 984 1050 1049 1090 1091; 985 1051 1050 1091 1092
2220. 986 1052 1051 1092 1093; 987 1053 1052 1093 1094; 988 1054 1053 1094 1095
2221. 989 1055 1054 1095 1096; 990 1056 1055 1096 1097; 991 1057 1056 1097 1098
2222. 992 1058 1057 1098 1099; 993 1059 1058 1099 1100; 994 1060 1059 1100 1101

_ STAAD SPACE -- PAGE NO. 41

2223. 995 1061 1060 1101 1102; 996 1062 1061 1102 1103; 997 1063 1062 1103 1104
2224. 998 1064 1063 1104 1105; 999 1065 1064 1105 1106; 1000 1066 1065 1106 1107
2225. 1001 1068 1067 1108 1109; 1002 1069 1068 1109 1110; 1003 1070 1069 1110 1111
2226. 1004 1071 1070 1111 1112; 1005 1072 1071 1112 1113; 1006 1073 1072 1113 1114
2227. 1007 1074 1073 1114 1115; 1008 1075 1074 1115 1116; 1009 1076 1075 1116 1117
2228. 1010 1077 1076 1117 1118; 1011 1078 1077 1118 1119; 1012 1079 1078 1119 1120
2229. 1013 1080 1079 1120 1121; 1014 1081 1080 1121 1122; 1015 1082 1081 1122 1123
2230. 1016 1083 1082 1123 1124; 1017 1084 1083 1124 1125; 1018 1085 1084 1125 1126
2231. 1019 1086 1085 1126 1127; 1020 1087 1086 1127 1128; 1021 1088 1087 1128 1129
2232. 1022 1089 1088 1129 1130; 1023 1090 1089 1130 1131; 1024 1091 1090 1131 1132
2233. 1025 1092 1091 1132 1133; 1026 1093 1092 1133 1134; 1027 1094 1093 1134 1135
2234. 1028 1095 1094 1135 1136; 1029 1096 1095 1136 1137; 1030 1097 1096 1137 1138
2235. 1031 1098 1097 1138 1139; 1032 1099 1098 1139 1140; 1033 1100 1099 1140 1141
2236. 1034 1101 1100 1141 1142; 1035 1102 1101 1142 1143; 1036 1103 1102 1143 1144
2237. 1037 1104 1103 1144 1145; 1038 1105 1104 1145 1146; 1039 1106 1105 1146 1147
2238. 1040 1107 1106 1147 1148; 1041 1109 1108 1149 1150; 1042 1110 1109 1150 1151
2239. 1043 1111 1110 1151 1152; 1044 1112 1111 1152 1153; 1045 1113 1112 1153 1154
2240. 1046 1114 1113 1154 1155; 1047 1115 1114 1155 1156; 1048 1116 1115 1156 1157
2241. 1049 1117 1116 1157 1158; 1050 1118 1117 1158 1159; 1051 1119 1118 1159 1160
2242. 1052 1120 1119 1160 1161; 1053 1121 1120 1161 1162; 1054 1122 1121 1162 1163
2243. 1055 1123 1122 1163 1164; 1056 1124 1123 1164 1165; 1057 1125 1124 1165 1166
2244. 1058 1126 1125 1166 1167; 1059 1127 1126 1167 1168; 1060 1128 1127 1168 1169
2245. 1061 1129 1128 1169 1170; 1062 1130 1129 1170 1171; 1063 1131 1130 1171 1172
2246. 1064 1132 1131 1172 1173; 1065 1133 1132 1173 1174; 1066 1134 1133 1174 1175
2247. 1067 1135 1134 1175 1176; 1068 1136 1135 1176 1177; 1069 1137 1136 1177 1178
2248. 1070 1138 1137 1178 1179; 1071 1139 1138 1179 1180; 1072 1140 1139 1180 1181
2249. 1073 1141 1140 1181 1182; 1074 1142 1141 1182 1183; 1075 1143 1142 1183 1184
2250. 1076 1144 1143 1184 1185; 1077 1145 1144 1185 1186; 1078 1146 1145 1186 1187
2251. 1079 1147 1146 1187 1188; 1080 1148 1147 1188 1189; 1081 1150 1149 1190 1191
2252. 1082 1151 1150 1191 1192; 1083 1152 1151 1192 1193; 1084 1153 1152 1193 1194
2253. 1085 1154 1153 1194 1195; 1086 1155 1154 1195 1196; 1087 1156 1155 1196 1197
2254. 1088 1157 1156 1197 1198; 1089 1158 1157 1198 1199; 1090 1159 1158 1199 1200
2255. 1091 1160 1159 1200 1201; 1092 1161 1160 1201 1202; 1093 1162 1161 1202 1203
2256. 1094 1163 1162 1203 1204; 1095 1164 1163 1204 1205; 1096 1165 1164 1205 1206
2257. 1097 1166 1165 1206 1207; 1098 1167 1166 1207 1208; 1099 1168 1167 1208 1209
2258. 1100 1169 1168 1209 1210; 1101 1170 1169 1210 1211; 1102 1171 1170 1211 1212
2259. 1103 1172 1171 1212 1213; 1104 1173 1172 1213 1214; 1105 1174 1173 1214 1215
2260. 1106 1175 1174 1215 1216; 1107 1176 1175 1216 1217; 1108 1177 1176 1217 1218
2261. 1109 1178 1177 1218 1219; 1110 1179 1178 1219 1220; 1111 1180 1179 1220 1221
2262. 1112 1181 1180 1221 1222; 1113 1182 1181 1222 1223; 1114 1183 1182 1223 1224
2263. 1115 1184 1183 1224 1225; 1116 1185 1184 1225 1226; 1117 1186 1185 1226 1227
2264. 1118 1187 1186 1227 1228; 1119 1188 1187 1228 1229; 1120 1189 1188 1229 1230
2265. 1121 1191 1190 1231 1232; 1122 1192 1191 1232 1233; 1123 1193 1192 1233 1234
2266. 1124 1194 1193 1234 1235; 1125 1195 1194 1235 1236; 1126 1196 1195 1236 1237
2267. 1127 1197 1196 1237 1238; 1128 1198 1197 1238 1239; 1129 1199 1198 1239 1240
2268. 1130 1200 1199 1240 1241; 1131 1201 1200 1241 1242; 1132 1202 1201 1242 1243
2269. 1133 1203 1202 1243 1244; 1134 1204 1203 1244 1245; 1135 1205 1204 1245 1246
2270. 1136 1206 1205 1246 1247; 1137 1207 1206 1247 1248; 1138 1208 1207 1248 1249
2271. 1139 1209 1208 1249 1250; 1140 1210 1209 1250 1251; 1141 1211 1210 1251 1252
2272. 1142 1212 1211 1252 1253; 1143 1213 1212 1253 1254; 1144 1214 1213 1254 1255
2273. 1145 1215 1214 1255 1256; 1146 1216 1215 1256 1257; 1147 1217 1216 1257 1258
2274. 1148 1218 1217 1258 1259; 1149 1219 1218 1259 1260; 1150 1220 1219 1260 1261
2275. 1151 1221 1220 1261 1262; 1152 1222 1221 1262 1263; 1153 1223 1222 1263 1264
2276. 1154 1224 1223 1264 1265; 1155 1225 1224 1265 1266; 1156 1226 1225 1266 1267
2277. 1157 1227 1226 1267 1268; 1158 1228 1227 1268 1269; 1159 1229 1228 1269 1270
2278. 1160 1230 1229 1270 1271; 1161 1232 1231 1272 1273; 1162 1233 1232 1273 1274

_ STAAD SPACE -- PAGE NO. 42

2279. 1163 1234 1233 1274 1275; 1164 1235 1234 1275 1276; 1165 1236 1235 1276 1277
2280. 1166 1237 1236 1277 1278; 1167 1238 1237 1278 1279; 1168 1239 1238 1279 1280
2281. 1169 1240 1239 1280 1281; 1170 1241 1240 1281 1282; 1171 1242 1241 1282 1283
2282. 1172 1243 1242 1283 1284; 1173 1244 1243 1284 1285; 1174 1245 1244 1285 1286
2283. 1175 1246 1245 1286 1287; 1176 1247 1246 1287 1288; 1177 1248 1247 1288 1289
2284. 1178 1249 1248 1289 1290; 1179 1250 1249 1290 1291; 1180 1251 1250 1291 1292
2285. 1181 1252 1251 1292 1293; 1182 1253 1252 1293 1294; 1183 1254 1253 1294 1295
2286. 1184 1255 1254 1295 1296; 1185 1256 1255 1296 1297; 1186 1257 1256 1297 1298
2287. 1187 1258 1257 1298 1299; 1188 1259 1258 1299 1300; 1189 1260 1259 1300 1301
2288. 1190 1261 1260 1301 1302; 1191 1262 1261 1302 1303; 1192 1263 1262 1303 1304
2289. 1193 1264 1263 1304 1305; 1194 1265 1264 1305 1306; 1195 1266 1265 1306 1307
2290. 1196 1267 1266 1307 1308; 1197 1268 1267 1308 1309; 1198 1269 1268 1309 1310
2291. 1199 1270 1269 1310 1311; 1200 1271 1270 1311 1312; 1201 1273 1272 1313 1314
2292. 1202 1274 1273 1314 1315; 1203 1275 1274 1315 1316; 1204 1276 1275 1316 1317
2293. 1205 1277 1276 1317 1318; 1206 1278 1277 1318 1319; 1207 1279 1278 1319 1320
2294. 1208 1280 1279 1320 1321; 1209 1281 1280 1321 1322; 1210 1282 1281 1322 1323
2295. 1211 1283 1282 1323 1324; 1212 1284 1283 1324 1325; 1213 1285 1284 1325 1326
2296. 1214 1286 1285 1326 1327; 1215 1287 1286 1327 1328; 1216 1288 1287 1328 1329
2297. 1217 1289 1288 1329 1330; 1218 1290 1289 1330 1331; 1219 1291 1290 1331 1332
2298. 1220 1292 1291 1332 1333; 1221 1293 1292 1333 1334; 1222 1294 1293 1334 1335
2299. 1223 1295 1294 1335 1336; 1224 1296 1295 1336 1337; 1225 1297 1296 1337 1338
2300. 1226 1298 1297 1338 1339; 1227 1299 1298 1339 1340; 1228 1300 1299 1340 1341
2301. 1229 1301 1300 1341 1342; 1230 1302 1301 1342 1343; 1231 1303 1302 1343 1344
2302. 1232 1304 1303 1344 1345; 1233 1305 1304 1345 1346; 1234 1306 1305 1346 1347
2303. 1235 1307 1306 1347 1348; 1236 1308 1307 1348 1349; 1237 1309 1308 1349 1350
2304. 1238 1310 1309 1350 1351; 1239 1311 1310 1351 1352; 1240 1312 1311 1352 1353
2305. 1241 1314 1313 1354 1355; 1242 1315 1314 1355 1356; 1243 1316 1315 1356 1357
2306. 1244 1317 1316 1357 1358; 1245 1318 1317 1358 1359; 1246 1319 1318 1359 1360
2307. 1247 1320 1319 1360 1361; 1248 1321 1320 1361 1362; 1249 1322 1321 1362 1363
2308. 1250 1323 1322 1363 1364; 1251 1324 1323 1364 1365; 1252 1325 1324 1365 1366
2309. 1253 1326 1325 1366 1367; 1254 1327 1326 1367 1368; 1255 1328 1327 1368 1369
2310. 1256 1329 1328 1369 1370; 1257 1330 1329 1370 1371; 1258 1331 1330 1371 1372
2311. 1259 1332 1331 1372 1373; 1260 1333 1332 1373 1374; 1261 1334 1333 1374 1375
2312. 1262 1335 1334 1375 1376; 1263 1336 1335 1376 1377; 1264 1337 1336 1377 1378
2313. 1265 1338 1337 1378 1379; 1266 1339 1338 1379 1380; 1267 1340 1339 1380 1381
2314. 1268 1341 1340 1381 1382; 1269 1342 1341 1382 1383; 1270 1343 1342 1383 1384
2315. 1271 1344 1343 1384 1385; 1272 1345 1344 1385 1386; 1273 1346 1345 1386 1387
2316. 1274 1347 1346 1387 1388; 1275 1348 1347 1388 1389; 1276 1349 1348 1389 1390
2317. 1277 1350 1349 1390 1391; 1278 1351 1350 1391 1392; 1279 1352 1351 1392 1393
2318. 1280 1353 1352 1393 1394; 1281 1355 1354 1395 1396; 1282 1356 1355 1396 1397
2319. 1283 1357 1356 1397 1398; 1284 1358 1357 1398 1399; 1285 1359 1358 1399 1400
2320. 1286 1360 1359 1400 1401; 1287 1361 1360 1401 1402; 1288 1362 1361 1402 1403
2321. 1289 1363 1362 1403 1404; 1290 1364 1363 1404 1405; 1291 1365 1364 1405 1406
2322. 1292 1366 1365 1406 1407; 1293 1367 1366 1407 1408; 1294 1368 1367 1408 1409
2323. 1295 1369 1368 1409 1410; 1296 1370 1369 1410 1411; 1297 1371 1370 1411 1412
2324. 1298 1372 1371 1412 1413; 1299 1373 1372 1413 1414; 1300 1374 1373 1414 1415
2325. 1301 1375 1374 1415 1416; 1302 1376 1375 1416 1417; 1303 1377 1376 1417 1418
2326. 1304 1378 1377 1418 1419; 1305 1379 1378 1419 1420; 1306 1380 1379 1420 1421
2327. 1307 1381 1380 1421 1422; 1308 1382 1381 1422 1423; 1309 1383 1382 1423 1424
2328. 1310 1384 1383 1424 1425; 1311 1385 1384 1425 1426; 1312 1386 1385 1426 1427
2329. 1313 1387 1386 1427 1428; 1314 1388 1387 1428 1429; 1315 1389 1388 1429 1430
2330. 1316 1390 1389 1430 1431; 1317 1391 1390 1431 1432; 1318 1392 1391 1432 1433
2331. 1319 1393 1392 1433 1434; 1320 1394 1393 1434 1435; 1321 1396 1395 1436 1437
2332. 1322 1397 1396 1437 1438; 1323 1398 1397 1438 1439; 1324 1399 1398 1439 1440
2333. 1325 1400 1399 1440 1441; 1326 1401 1400 1441 1442; 1327 1402 1401 1442 1443
2334. 1328 1403 1402 1443 1444; 1329 1404 1403 1444 1445; 1330 1405 1404 1445 1446

_ STAAD SPACE -- PAGE NO. 43

2335. 1331 1406 1405 1446 1447; 1332 1407 1406 1447 1448; 1333 1408 1407 1448 1449
2336. 1334 1409 1408 1449 1450; 1335 1410 1409 1450 1451; 1336 1411 1410 1451 1452
2337. 1337 1412 1411 1452 1453; 1338 1413 1412 1453 1454; 1339 1414 1413 1454 1455
2338. 1340 1415 1414 1455 1456; 1341 1416 1415 1456 1457; 1342 1417 1416 1457 1458
2339. 1343 1418 1417 1458 1459; 1344 1419 1418 1459 1460; 1345 1420 1419 1460 1461
2340. 1346 1421 1420 1461 1462; 1347 1422 1421 1462 1463; 1348 1423 1422 1463 1464
2341. 1349 1424 1423 1464 1465; 1350 1425 1424 1465 1466; 1351 1426 1425 1466 1467
2342. 1352 1427 1426 1467 1468; 1353 1428 1427 1468 1469; 1354 1429 1428 1469 1470
2343. 1355 1430 1429 1470 1471; 1356 1431 1430 1471 1472; 1357 1432 1431 1472 1473
2344. 1358 1433 1432 1473 1474; 1359 1434 1433 1474 1475; 1360 1435 1434 1475 1476
2345. 1361 1437 1436 1477 1478; 1362 1438 1437 1478 1479; 1363 1439 1438 1479 1480
2346. 1364 1440 1439 1480 1481; 1365 1441 1440 1481 1482; 1366 1442 1441 1482 1483
2347. 1367 1443 1442 1483 1484; 1368 1444 1443 1484 1485; 1369 1445 1444 1485 1486
2348. 1370 1446 1445 1486 1487; 1371 1447 1446 1487 1488; 1372 1448 1447 1488 1489
2349. 1373 1449 1448 1489 1490; 1374 1450 1449 1490 1491; 1375 1451 1450 1491 1492
2350. 1376 1452 1451 1492 1493; 1377 1453 1452 1493 1494; 1378 1454 1453 1494 1495
2351. 1379 1455 1454 1495 1496; 1380 1456 1455 1496 1497; 1381 1457 1456 1497 1498
2352. 1382 1458 1457 1498 1499; 1383 1459 1458 1499 1500; 1384 1460 1459 1500 1501
2353. 1385 1461 1460 1501 1502; 1386 1462 1461 1502 1503; 1387 1463 1462 1503 1504
2354. 1388 1464 1463 1504 1505; 1389 1465 1464 1505 1506; 1390 1466 1465 1506 1507
2355. 1391 1467 1466 1507 1508; 1392 1468 1467 1508 1509; 1393 1469 1468 1509 1510
2356. 1394 1470 1469 1510 1511; 1395 1471 1470 1511 1512; 1396 1472 1471 1512 1513
2357. 1397 1473 1472 1513 1514; 1398 1474 1473 1514 1515; 1399 1475 1474 1515 1516
2358. 1400 1476 1475 1516 1517; 1401 1478 1477 1518 1519; 1402 1479 1478 1519 1520
2359. 1403 1480 1479 1520 1521; 1404 1481 1480 1521 1522; 1405 1482 1481 1522 1523
2360. 1406 1483 1482 1523 1524; 1407 1484 1483 1524 1525; 1408 1485 1484 1525 1526
2361. 1409 1486 1485 1526 1527; 1410 1487 1486 1527 1528; 1411 1488 1487 1528 1529
2362. 1412 1489 1488 1529 1530; 1413 1490 1489 1530 1531; 1414 1491 1490 1531 1532
2363. 1415 1492 1491 1532 1533; 1416 1493 1492 1533 1534; 1417 1494 1493 1534 1535
2364. 1418 1495 1494 1535 1536; 1419 1496 1495 1536 1537; 1420 1497 1496 1537 1538
2365. 1421 1498 1497 1538 1539; 1422 1499 1498 1539 1540; 1423 1500 1499 1540 1541
2366. 1424 1501 1500 1541 1542; 1425 1502 1501 1542 1543; 1426 1503 1502 1543 1544
2367. 1427 1504 1503 1544 1545; 1428 1505 1504 1545 1546; 1429 1506 1505 1546 1547
2368. 1430 1507 1506 1547 1548; 1431 1508 1507 1548 1549; 1432 1509 1508 1549 1550
2369. 1433 1510 1509 1550 1551; 1434 1511 1510 1551 1552; 1435 1512 1511 1552 1553
2370. 1436 1513 1512 1553 1554; 1437 1514 1513 1554 1555; 1438 1515 1514 1555 1556
2371. 1439 1516 1515 1556 1557; 1440 1517 1516 1557 1558; 1441 1519 1518 1559 1560
2372. 1442 1520 1519 1560 1561; 1443 1521 1520 1561 1562; 1444 1522 1521 1562 1563
2373. 1445 1523 1522 1563 1564; 1446 1524 1523 1564 1565; 1447 1525 1524 1565 1566
2374. 1448 1526 1525 1566 1567; 1449 1527 1526 1567 1568; 1450 1528 1527 1568 1569
2375. 1451 1529 1528 1569 1570; 1452 1530 1529 1570 1571; 1453 1531 1530 1571 1572
2376. 1454 1532 1531 1572 1573; 1455 1533 1532 1573 1574; 1456 1534 1533 1574 1575
2377. 1457 1535 1534 1575 1576; 1458 1536 1535 1576 1577; 1459 1537 1536 1577 1578
2378. 1460 1538 1537 1578 1579; 1461 1539 1538 1579 1580; 1462 1540 1539 1580 1581
2379. 1463 1541 1540 1581 1582; 1464 1542 1541 1582 1583; 1465 1543 1542 1583 1584
2380. 1466 1544 1543 1584 1585; 1467 1545 1544 1585 1586; 1468 1546 1545 1586 1587
2381. 1469 1547 1546 1587 1588; 1470 1548 1547 1588 1589; 1471 1549 1548 1589 1590
2382. 1472 1550 1549 1590 1591; 1473 1551 1550 1591 1592; 1474 1552 1551 1592 1593
2383. 1475 1553 1552 1593 1594; 1476 1554 1553 1594 1595; 1477 1555 1554 1595 1596
2384. 1478 1556 1555 1596 1597; 1479 1557 1556 1597 1598; 1480 1558 1557 1598 1599
2385. 1481 1560 1559 1600 1601; 1482 1561 1560 1601 1602; 1483 1562 1561 1602 1603
2386. 1484 1563 1562 1603 1604; 1485 1564 1563 1604 1605; 1486 1565 1564 1605 1606
2387. 1487 1566 1565 1606 1607; 1488 1567 1566 1607 1608; 1489 1568 1567 1608 1609
2388. 1490 1569 1568 1609 1610; 1491 1570 1569 1610 1611; 1492 1571 1570 1611 1612
2389. 1493 1572 1571 1612 1613; 1494 1573 1572 1613 1614; 1495 1574 1573 1614 1615
2390. 1496 1575 1574 1615 1616; 1497 1576 1575 1616 1617; 1498 1577 1576 1617 1618

_ STAAD SPACE -- PAGE NO. 44

2391. 1499 1578 1577 1618 1619; 1500 1579 1578 1619 1620; 1501 1580 1579 1620 1621
2392. 1502 1581 1580 1621 1622; 1503 1582 1581 1622 1623; 1504 1583 1582 1623 1624
2393. 1505 1584 1583 1624 1625; 1506 1585 1584 1625 1626; 1507 1586 1585 1626 1627
2394. 1508 1587 1586 1627 1628; 1509 1588 1587 1628 1629; 1510 1589 1588 1629 1630
2395. 1511 1590 1589 1630 1631; 1512 1591 1590 1631 1632; 1513 1592 1591 1632 1633
2396. 1514 1593 1592 1633 1634; 1515 1594 1593 1634 1635; 1516 1595 1594 1635 1636
2397. 1517 1596 1595 1636 1637; 1518 1597 1596 1637 1638; 1519 1598 1597 1638 1639
2398. 1520 1599 1598 1639 1640; 1521 1601 1600 1641 1642; 1522 1602 1601 1642 1643
2399. 1523 1603 1602 1643 1644; 1524 1604 1603 1644 1645; 1525 1605 1604 1645 1646
2400. 1526 1606 1605 1646 1647; 1527 1607 1606 1647 1648; 1528 1608 1607 1648 1649
2401. 1529 1609 1608 1649 1650; 1530 1610 1609 1650 1651; 1531 1611 1610 1651 1652
2402. 1532 1612 1611 1652 1653; 1533 1613 1612 1653 1654; 1534 1614 1613 1654 1655
2403. 1535 1615 1614 1655 1656; 1536 1616 1615 1656 1657; 1537 1617 1616 1657 1658
2404. 1538 1618 1617 1658 1659; 1539 1619 1618 1659 1660; 1540 1620 1619 1660 1661
2405. 1541 1621 1620 1661 1662; 1542 1622 1621 1662 1663; 1543 1623 1622 1663 1664
2406. 1544 1624 1623 1664 1665; 1545 1625 1624 1665 1666; 1546 1626 1625 1666 1667
2407. 1547 1627 1626 1667 1668; 1548 1628 1627 1668 1669; 1549 1629 1628 1669 1670
2408. 1550 1630 1629 1670 1671; 1551 1631 1630 1671 1672; 1552 1632 1631 1672 1673
2409. 1553 1633 1632 1673 1674; 1554 1634 1633 1674 1675; 1555 1635 1634 1675 1676
2410. 1556 1636 1635 1676 1677; 1557 1637 1636 1677 1678; 1558 1638 1637 1678 1679
2411. 1559 1639 1638 1679 1680; 1560 1640 1639 1680 1681; 1561 1642 1641 1682 1683
2412. 1562 1643 1642 1683 1684; 1563 1644 1643 1684 1685; 1564 1645 1644 1685 1686
2413. 1565 1646 1645 1686 1687; 1566 1647 1646 1687 1688; 1567 1648 1647 1688 1689
2414. 1568 1649 1648 1689 1690; 1569 1650 1649 1690 1691; 1570 1651 1650 1691 1692
2415. 1571 1652 1651 1692 1693; 1572 1653 1652 1693 1694; 1573 1654 1653 1694 1695
2416. 1574 1655 1654 1695 1696; 1575 1656 1655 1696 1697; 1576 1657 1656 1697 1698
2417. 1577 1658 1657 1698 1699; 1578 1659 1658 1699 1700; 1579 1660 1659 1700 1701
2418. 1580 1661 1660 1701 1702; 1581 1662 1661 1702 1703; 1582 1663 1662 1703 1704
2419. 1583 1664 1663 1704 1705; 1584 1665 1664 1705 1706; 1585 1666 1665 1706 1707
2420. 1586 1667 1666 1707 1708; 1587 1668 1667 1708 1709; 1588 1669 1668 1709 1710
2421. 1589 1670 1669 1710 1711; 1590 1671 1670 1711 1712; 1591 1672 1671 1712 1713
2422. 1592 1673 1672 1713 1714; 1593 1674 1673 1714 1715; 1594 1675 1674 1715 1716
2423. 1595 1676 1675 1716 1717; 1596 1677 1676 1717 1718; 1597 1678 1677 1718 1719
2424. 1598 1679 1678 1719 1720; 1599 1680 1679 1720 1721; 1600 1681 1680 1721 1722
2425. 10573 1741 3306 3307 3290; 10583 1757 3119 3120 3103
2426. 10593 1773 2932 2933 2916; 10603 1789 2745 2746 2729
2427. 10949 2745 2754 2755 2746; 10951 2754 2763 2764 2755
2428. 10953 2763 2772 2773 2764; 10955 2772 2781 2782 2773
2429. 10957 2781 2790 2791 2782; 10959 2790 2799 2800 2791
2430. 10961 2799 2808 2809 2800; 10963 2808 2817 2818 2809
2431. 10965 2817 2826 2827 2818; 10967 2826 2835 2836 2827
2432. 10969 2835 2844 2845 2836; 10971 2844 2853 2854 2845
2433. 10973 2853 2862 2863 2854; 10975 2862 2871 2872 2863
2434. 10977 2871 2880 2881 2872; 10979 2880 2889 2890 2881
2435. 10981 2889 2898 2899 2890; 10983 2898 2907 2908 2899
2436. 10985 2907 1790 2730 2908; 10987 2932 2941 2942 2933
2437. 10989 2941 2950 2951 2942; 10991 2950 2959 2960 2951
2438. 10993 2959 2968 2969 2960; 10995 2968 2977 2978 2969
2439. 10997 2977 2986 2987 2978; 10999 2986 2995 2996 2987
2440. 11001 2995 3004 3005 2996; 11003 3004 3013 3014 3005
2441. 11005 3013 3022 3023 3014; 11007 3022 3031 3032 3023
2442. 11009 3031 3040 3041 3032; 11011 3040 3049 3050 3041
2443. 11013 3049 3058 3059 3050; 11015 3058 3067 3068 3059
2444. 11017 3067 3076 3077 3068; 11019 3076 3085 3086 3077
2445. 11021 3085 3094 3095 3086; 11023 3094 1774 2917 3095
2446. 11025 3119 3128 3129 3120; 11027 3128 3137 3138 3129

_ STAAD SPACE -- PAGE NO. 45

2447. 11029 3137 3146 3147 3138; 11031 3146 3155 3156 3147
2448. 11033 3155 3164 3165 3156; 11035 3164 3173 3174 3165
2449. 11037 3173 3182 3183 3174; 11039 3182 3191 3192 3183
2450. 11041 3191 3200 3201 3192; 11043 3200 3209 3210 3201
2451. 11045 3209 3218 3219 3210; 11047 3218 3227 3228 3219
2452. 11049 3227 3236 3237 3228; 11051 3236 3245 3246 3237
2453. 11053 3245 3254 3255 3246; 11055 3254 3263 3264 3255
2454. 11057 3263 3272 3273 3264; 11059 3272 3281 3282 3273
2455. 11061 3281 1758 3104 3282; 11063 3306 3315 3316 3307
2456. 11065 3315 3324 3325 3316; 11067 3324 3333 3334 3325
2457. 11069 3333 3342 3343 3334; 11071 3342 3351 3352 3343
2458. 11073 3351 3360 3361 3352; 11075 3360 3369 3370 3361
2459. 11077 3369 3378 3379 3370; 11079 3378 3387 3388 3379
2460. 11081 3387 3396 3397 3388; 11083 3396 3405 3406 3397
2461. 11085 3405 3414 3415 3406; 11087 3414 3423 3424 3415
2462. 11089 3423 3432 3433 3424; 11091 3432 3441 3442 3433
2463. 11093 3441 3450 3451 3442; 11095 3450 3459 3460 3451
2464. 11097 3459 3468 3469 3460; 11099 3468 1742 3291 3469
2465. 11100 2729 2746 2747 2731; 11101 2730 2732 2909 2908
2466. 11102 2731 2747 2748 2733; 11103 2732 2734 2910 2909
2467. 11104 2733 2748 2749 2735; 11105 2734 2736 2911 2910
2468. 11106 2735 2749 2750 2737; 11107 2736 2738 2912 2911
2469. 11108 2737 2750 3507 3503; 11109 2737 2750 4569 3505
2470. 11110 2746 2755 2756 2747; 11111 2747 2756 2757 2748
2471. 11112 2748 2757 2758 2749; 11113 2749 2758 2759 2750
2472. 11114 2750 2759 3508 3507; 11115 2750 2759 4555 4569
2473. 11116 2755 2764 2765 2756; 11117 2756 2765 2766 2757
2474. 11118 2757 2766 2767 2758; 11119 2758 2767 2768 2759
2475. 11120 2759 2768 3509 3508; 11121 2759 2768 4571 4555
2476. 11122 2764 2773 2774 2765; 11123 2765 2774 2775 2766
2477. 11124 2766 2775 2776 2767; 11125 2767 2776 2777 2768
2478. 11126 2768 2777 3510 3509; 11127 2768 2777 4554 4571
2479. 11128 2773 2782 2783 2774; 11129 2774 2783 2784 2775
2480. 11130 2775 2784 2785 2776; 11131 2776 2785 2786 2777
2481. 11132 2777 2786 3511 3510; 11133 2777 2786 4573 4554
2482. 11134 2782 2791 2792 2783; 11135 2783 2792 2793 2784
2483. 11136 2784 2793 2794 2785; 11137 2785 2794 2795 2786
2484. 11138 2786 2795 3512 3511; 11139 2786 2795 4575 4573
2485. 11140 2791 2800 2801 2792; 11141 2792 2801 2802 2793
2486. 11142 2793 2802 2803 2794; 11143 2794 2803 2804 2795
2487. 11144 2795 2804 3513 3512; 11145 2795 2804 4553 4575
2488. 11146 2800 2809 2810 2801; 11147 2801 2810 2811 2802
2489. 11148 2802 2811 2812 2803; 11149 2803 2812 2813 2804
2490. 11150 2804 2813 3514 3513; 11151 2804 2813 4552 4553
2491. 11152 2809 2818 2819 2810; 11153 2810 2819 2820 2811
2492. 11154 2811 2820 2821 2812; 11155 2812 2821 2822 2813
2493. 11156 2813 2822 3515 3514; 11157 2813 2822 4551 4552
2494. 11158 2818 2827 2828 2819; 11159 2819 2828 2829 2820
2495. 11160 2820 2829 2830 2821; 11161 2821 2830 2831 2822
2496. 11162 2822 2831 3516 3515; 11163 2822 2831 4550 4551
2497. 11164 2827 2836 2837 2828; 11165 2828 2837 2838 2829
2498. 11166 2829 2838 2839 2830; 11167 2830 2839 2840 2831
2499. 11168 2831 2840 3517 3516; 11169 2831 2840 4577 4550
2500. 11170 2836 2845 2846 2837; 11171 2837 2846 2847 2838
2501. 11172 2838 2847 2848 2839; 11173 2839 2848 2849 2840
2502. 11174 2840 2849 3518 3517; 11175 2840 2849 4549 4577

_ STAAD SPACE -- PAGE NO. 46

2503. 11176 2845 2854 2855 2846; 11177 2846 2855 2856 2847
2504. 11178 2847 2856 2857 2848; 11179 2848 2857 2858 2849
2505. 11180 2849 2858 3519 3518; 11181 2849 2858 4548 4549
2506. 11182 2854 2863 2864 2855; 11183 2855 2864 2865 2856
2507. 11184 2856 2865 2866 2857; 11185 2857 2866 2867 2858
2508. 11186 2858 2867 3520 3519; 11187 2858 2867 4547 4548
2509. 11188 2863 2872 2873 2864; 11189 2864 2873 2874 2865
2510. 11190 2865 2874 2875 2866; 11191 2866 2875 2876 2867
2511. 11192 2867 2876 3521 3520; 11193 2867 2876 4546 4547
2512. 11194 2872 2881 2882 2873; 11195 2873 2882 2883 2874
2513. 11196 2874 2883 2884 2875; 11197 2875 2884 2885 2876
2514. 11198 2876 2885 3522 3521; 11199 2876 2885 4545 4546
2515. 11200 2881 2890 2891 2882; 11201 2882 2891 2892 2883
2516. 11202 2883 2892 2893 2884; 11203 2884 2893 2894 2885
2517. 11204 2885 2894 3523 3522; 11205 2885 2894 4579 4545
2518. 11206 2890 2899 2900 2891; 11207 2891 2900 2901 2892
2519. 11208 2892 2901 2902 2893; 11209 2893 2902 2903 2894
2520. 11210 2894 2903 3524 3523; 11211 2894 2903 4544 4579
2521. 11212 2899 2908 2909 2900; 11213 2900 2909 2910 2901
2522. 11214 2901 2910 2911 2902; 11215 2902 2911 2912 2903
2523. 11216 2903 2912 3525 3524; 11217 2903 2912 4581 4544
2524. 11218 2916 2933 2934 2918; 11219 2917 2919 3096 3095
2525. 11220 2918 2934 2935 2920; 11221 2919 2921 3097 3096
2526. 11222 2920 2935 2936 2922; 11223 2921 2923 3098 3097
2527. 11224 2922 2936 2937 2924; 11225 2923 2925 3099 3098
2528. 11226 2924 2937 3526 3495; 11227 2924 2937 4468 3497
2529. 11228 2933 2942 2943 2934; 11229 2934 2943 2944 2935
2530. 11230 2935 2944 2945 2936; 11231 2936 2945 2946 2937
2531. 11232 2937 2946 3527 3526; 11233 2937 2946 4467 4468
2532. 11234 2942 2951 2952 2943; 11235 2943 2952 2953 2944
2533. 11236 2944 2953 2954 2945; 11237 2945 2954 2955 2946
2534. 11238 2946 2955 3528 3527; 11239 2946 2955 4466 4467
2535. 11240 2951 2960 2961 2952; 11241 2952 2961 2962 2953
2536. 11242 2953 2962 2963 2954; 11243 2954 2963 2964 2955
2537. 11244 2955 2964 3529 3528; 11245 2955 2964 4465 4466
2538. 11246 2960 2969 2970 2961; 11247 2961 2970 2971 2962
2539. 11248 2962 2971 2972 2963; 11249 2963 2972 2973 2964
2540. 11250 2964 2973 3530 3529; 11251 2964 2973 4587 4465
2541. 11252 2969 2978 2979 2970; 11253 2970 2979 2980 2971
2542. 11254 2971 2980 2981 2972; 11255 2972 2981 2982 2973
2543. 11256 2973 2982 3531 3530; 11257 2973 2982 4593 4587
2544. 11258 2978 2987 2988 2979; 11259 2979 2988 2989 2980
2545. 11260 2980 2989 2990 2981; 11261 2981 2990 2991 2982
2546. 11262 2982 2991 3532 3531; 11263 2982 2991 4464 4593
2547. 11264 2987 2996 2997 2988; 11265 2988 2997 2998 2989
2548. 11266 2989 2998 2999 2990; 11267 2990 2999 3000 2991
2549. 11268 2991 3000 3533 3532; 11269 2991 3000 4463 4464
2550. 11270 2996 3005 3006 2997; 11271 2997 3006 3007 2998
2551. 11272 2998 3007 3008 2999; 11273 2999 3008 3009 3000
2552. 11274 3000 3009 3534 3533; 11275 3000 3009 4462 4463
2553. 11276 3005 3014 3015 3006; 11277 3006 3015 3016 3007
2554. 11278 3007 3016 3017 3008; 11279 3008 3017 3018 3009
2555. 11280 3009 3018 3535 3534; 11281 3009 3018 4599 4462
2556. 11282 3014 3023 3024 3015; 11283 3015 3024 3025 3016
2557. 11284 3016 3025 3026 3017; 11285 3017 3026 3027 3018
2558. 11286 3018 3027 3536 3535; 11287 3018 3027 4461 4599

_ STAAD SPACE -- PAGE NO. 47

2559. 11288 3023 3032 3033 3024; 11289 3024 3033 3034 3025
2560. 11290 3025 3034 3035 3026; 11291 3026 3035 3036 3027
2561. 11292 3027 3036 3537 3536; 11293 3027 3036 4605 4461
2562. 11294 3032 3041 3042 3033; 11295 3033 3042 3043 3034
2563. 11296 3034 3043 3044 3035; 11297 3035 3044 3045 3036
2564. 11298 3036 3045 3538 3537; 11299 3036 3045 4460 4605
2565. 11300 3041 3050 3051 3042; 11301 3042 3051 3052 3043
2566. 11302 3043 3052 3053 3044; 11303 3044 3053 3054 3045
2567. 11304 3045 3054 3539 3538; 11305 3045 3054 4459 4460
2568. 11306 3050 3059 3060 3051; 11307 3051 3060 3061 3052
2569. 11308 3052 3061 3062 3053; 11309 3053 3062 3063 3054
2570. 11310 3054 3063 3540 3539; 11311 3054 3063 4458 4459
2571. 11312 3059 3068 3069 3060; 11313 3060 3069 3070 3061
2572. 11314 3061 3070 3071 3062; 11315 3062 3071 3072 3063
2573. 11316 3063 3072 3541 3540; 11317 3063 3072 4457 4458
2574. 11318 3068 3077 3078 3069; 11319 3069 3078 3079 3070
2575. 11320 3070 3079 3080 3071; 11321 3071 3080 3081 3072
2576. 11322 3072 3081 3542 3541; 11323 3072 3081 4456 4457
2577. 11324 3077 3086 3087 3078; 11325 3078 3087 3088 3079
2578. 11326 3079 3088 3089 3080; 11327 3080 3089 3090 3081
2579. 11328 3081 3090 3543 3542; 11329 3081 3090 4455 4456
2580. 11330 3086 3095 3096 3087; 11331 3087 3096 3097 3088
2581. 11332 3088 3097 3098 3089; 11333 3089 3098 3099 3090
2582. 11334 3090 3099 3544 3543; 11335 3090 3099 4454 4455
2583. 11336 3103 3120 3121 3105; 11337 3104 3106 3283 3282
2584. 11338 3105 3121 3122 3107; 11339 3106 3108 3284 3283
2585. 11340 3107 3122 3123 3109; 11341 3108 3110 3285 3284
2586. 11342 3109 3123 3124 3111; 11343 3110 3112 3286 3285
2587. 11344 3111 3124 3545 3487; 11345 3111 3124 4373 3489
2588. 11346 3120 3129 3130 3121; 11347 3121 3130 3131 3122
2589. 11348 3122 3131 3132 3123; 11349 3123 3132 3133 3124
2590. 11350 3124 3133 3546 3545; 11351 3124 3133 4372 4373
2591. 11352 3129 3138 3139 3130; 11353 3130 3139 3140 3131
2592. 11354 3131 3140 3141 3132; 11355 3132 3141 3142 3133
2593. 11356 3133 3142 3547 3546; 11357 3133 3142 4371 4372
2594. 11358 3138 3147 3148 3139; 11359 3139 3148 3149 3140
2595. 11360 3140 3149 3150 3141; 11361 3141 3150 3151 3142
2596. 11362 3142 3151 3548 3547; 11363 3142 3151 4370 4371
2597. 11364 3147 3156 3157 3148; 11365 3148 3157 3158 3149
2598. 11366 3149 3158 3159 3150; 11367 3150 3159 3160 3151
2599. 11368 3151 3160 3549 3548; 11369 3151 3160 4611 4370
2600. 11370 3156 3165 3166 3157; 11371 3157 3166 3167 3158
2601. 11372 3158 3167 3168 3159; 11373 3159 3168 3169 3160
2602. 11374 3160 3169 3550 3549; 11375 3160 3169 4617 4611
2603. 11376 3165 3174 3175 3166; 11377 3166 3175 3176 3167
2604. 11378 3167 3176 3177 3168; 11379 3168 3177 3178 3169
2605. 11380 3169 3178 3551 3550; 11381 3169 3178 4369 4617
2606. 11382 3174 3183 3184 3175; 11383 3175 3184 3185 3176
2607. 11384 3176 3185 3186 3177; 11385 3177 3186 3187 3178
2608. 11386 3178 3187 3552 3551; 11387 3178 3187 4368 4369
2609. 11388 3183 3192 3193 3184; 11389 3184 3193 3194 3185
2610. 11390 3185 3194 3195 3186; 11391 3186 3195 3196 3187
2611. 11392 3187 3196 3553 3552; 11393 3187 3196 4367 4368
2612. 11394 3192 3201 3202 3193; 11395 3193 3202 3203 3194
2613. 11396 3194 3203 3204 3195; 11397 3195 3204 3205 3196
2614. 11398 3196 3205 3554 3553; 11399 3196 3205 4623 4367

_ STAAD SPACE -- PAGE NO. 48

2615. 11400 3201 3210 3211 3202; 11401 3202 3211 3212 3203
2616. 11402 3203 3212 3213 3204; 11403 3204 3213 3214 3205
2617. 11404 3205 3214 3555 3554; 11405 3205 3214 4366 4623
2618. 11406 3210 3219 3220 3211; 11407 3211 3220 3221 3212
2619. 11408 3212 3221 3222 3213; 11409 3213 3222 3223 3214
2620. 11410 3214 3223 3556 3555; 11411 3214 3223 4365 4366
2621. 11412 3219 3228 3229 3220; 11413 3220 3229 3230 3221
2622. 11414 3221 3230 3231 3222; 11415 3222 3231 3232 3223
2623. 11416 3223 3232 3557 3556; 11417 3223 3232 4364 4365
2624. 11418 3228 3237 3238 3229; 11419 3229 3238 3239 3230
2625. 11420 3230 3239 3240 3231; 11421 3231 3240 3241 3232
2626. 11422 3232 3241 3558 3557; 11423 3232 3241 4363 4364
2627. 11424 3237 3246 3247 3238; 11425 3238 3247 3248 3239
2628. 11426 3239 3248 3249 3240; 11427 3240 3249 3250 3241
2629. 11428 3241 3250 3559 3558; 11429 3241 3250 4362 4363
2630. 11430 3246 3255 3256 3247; 11431 3247 3256 3257 3248
2631. 11432 3248 3257 3258 3249; 11433 3249 3258 3259 3250
2632. 11434 3250 3259 3560 3559; 11435 3250 3259 4361 4362
2633. 11436 3255 3264 3265 3256; 11437 3256 3265 3266 3257
2634. 11438 3257 3266 3267 3258; 11439 3258 3267 3268 3259
2635. 11440 3259 3268 3561 3560; 11441 3259 3268 4360 4361
2636. 11442 3264 3273 3274 3265; 11443 3265 3274 3275 3266
2637. 11444 3266 3275 3276 3267; 11445 3267 3276 3277 3268
2638. 11446 3268 3277 3562 3561; 11447 3268 3277 4359 4360
2639. 11448 3273 3282 3283 3274; 11449 3274 3283 3284 3275
2640. 11450 3275 3284 3285 3276; 11451 3276 3285 3286 3277
2641. 11452 3277 3286 3563 3562; 11453 3277 3286 4358 4359
2642. 11454 3290 3307 3308 3292; 11455 3291 3293 3470 3469
2643. 11456 3292 3308 3309 3294; 11457 3293 3295 3471 3470
2644. 11458 3294 3309 3310 3296; 11459 3295 3297 3472 3471
2645. 11460 3296 3310 3311 3298; 11461 3297 3299 3473 3472
2646. 11462 3298 3311 3564 3479; 11463 3298 3311 4292 3481
2647. 11464 3307 3316 3317 3308; 11465 3308 3317 3318 3309
2648. 11466 3309 3318 3319 3310; 11467 3310 3319 3320 3311
2649. 11468 3311 3320 3565 3564; 11469 3311 3320 4291 4292
2650. 11470 3316 3325 3326 3317; 11471 3317 3326 3327 3318
2651. 11472 3318 3327 3328 3319; 11473 3319 3328 3329 3320
2652. 11474 3320 3329 3566 3565; 11475 3320 3329 4629 4291
2653. 11476 3325 3334 3335 3326; 11477 3326 3335 3336 3327
2654. 11478 3327 3336 3337 3328; 11479 3328 3337 3338 3329
2655. 11480 3329 3338 3567 3566; 11481 3329 3338 4290 4629
2656. 11482 3334 3343 3344 3335; 11483 3335 3344 3345 3336
2657. 11484 3336 3345 3346 3337; 11485 3337 3346 3347 3338
2658. 11486 3338 3347 3568 3567; 11487 3338 3347 4635 4290
2659. 11488 3343 3352 3353 3344; 11489 3344 3353 3354 3345
2660. 11490 3345 3354 3355 3346; 11491 3346 3355 3356 3347
2661. 11492 3347 3356 3569 3568; 11493 3347 3356 4641 4635
2662. 11494 3352 3361 3362 3353; 11495 3353 3362 3363 3354
2663. 11496 3354 3363 3364 3355; 11497 3355 3364 3365 3356
2664. 11498 3356 3365 3570 3569; 11499 3356 3365 4289 4641
2665. 11500 3361 3370 3371 3362; 11501 3362 3371 3372 3363
2666. 11502 3363 3372 3373 3364; 11503 3364 3373 3374 3365
2667. 11504 3365 3374 3571 3570; 11505 3365 3374 4288 4289
2668. 11506 3370 3379 3380 3371; 11507 3371 3380 3381 3372
2669. 11508 3372 3381 3382 3373; 11509 3373 3382 3383 3374
2670. 11510 3374 3383 3572 3571; 11511 3374 3383 4647 4288

_ STAAD SPACE -- PAGE NO. 49

2671. 11512 3379 3388 3389 3380; 11513 3380 3389 3390 3381
2672. 11514 3381 3390 3391 3382; 11515 3382 3391 3392 3383
2673. 11516 3383 3392 3573 3572; 11517 3383 3392 4287 4647
2674. 11518 3388 3397 3398 3389; 11519 3389 3398 3399 3390
2675. 11520 3390 3399 3400 3391; 11521 3391 3400 3401 3392
2676. 11522 3392 3401 3574 3573; 11523 3392 3401 4286 4287
2677. 11524 3397 3406 3407 3398; 11525 3398 3407 3408 3399
2678. 11526 3399 3408 3409 3400; 11527 3400 3409 3410 3401
2679. 11528 3401 3410 3575 3574; 11529 3401 3410 4285 4286
2680. 11530 3406 3415 3416 3407; 11531 3407 3416 3417 3408
2681. 11532 3408 3417 3418 3409; 11533 3409 3418 3419 3410
2682. 11534 3410 3419 3576 3575; 11535 3410 3419 4653 4285
2683. 11536 3415 3424 3425 3416; 11537 3416 3425 3426 3417
2684. 11538 3417 3426 3427 3418; 11539 3418 3427 3428 3419
2685. 11540 3419 3428 3577 3576; 11541 3419 3428 4284 4653
2686. 11542 3424 3433 3434 3425; 11543 3425 3434 3435 3426
2687. 11544 3426 3435 3436 3427; 11545 3427 3436 3437 3428
2688. 11546 3428 3437 3578 3577; 11547 3428 3437 4283 4284
2689. 11548 3433 3442 3443 3434; 11549 3434 3443 3444 3435
2690. 11550 3435 3444 3445 3436; 11551 3436 3445 3446 3437
2691. 11552 3437 3446 3579 3578; 11553 3437 3446 4282 4283
2692. 11554 3442 3451 3452 3443; 11555 3443 3452 3453 3444
2693. 11556 3444 3453 3454 3445; 11557 3445 3454 3455 3446
2694. 11558 3446 3455 3580 3579; 11559 3446 3455 4659 4282
2695. 11560 3451 3460 3461 3452; 11561 3452 3461 3462 3453
2696. 11562 3453 3462 3463 3454; 11563 3454 3463 3464 3455
2697. 11564 3455 3464 3581 3580; 11565 3455 3464 4281 4659
2698. 11566 3460 3469 3470 3461; 11567 3461 3470 3471 3462
2699. 11568 3462 3471 3472 3463; 11569 3463 3472 3473 3464
2700. 11570 3464 3473 3582 3581; 11571 3464 3473 4280 4281
2701. 11572 3481 3482 4305 4292; 11573 3482 3483 4318 4305
2702. 11574 3483 3484 4331 4318; 11575 3484 3485 4344 4331
2703. 11576 3485 3486 4357 4344; 11577 3486 3487 3545 4357
2704. 11578 3489 3490 4389 4373; 11579 3490 3491 4405 4389
2705. 11580 3491 3492 4421 4405; 11581 3492 3493 4437 4421
2706. 11582 3493 3494 4453 4437; 11583 3494 3495 3526 4453
2707. 11584 3497 3498 4483 4468; 11585 3498 3499 4498 4483
2708. 11586 3499 3500 4513 4498; 11587 3500 3501 4528 4513
2709. 11588 3501 3502 4543 4528; 11589 3502 3503 3507 4543
2710. 11590 3505 3506 4568 4569; 11591 3507 3508 4542 4543
2711. 11592 3508 3509 4541 4542; 11593 3509 3510 4540 4541
2712. 11594 3510 3511 4582 4540; 11595 3511 3512 4588 4582
2713. 11596 3512 3513 4539 4588; 11597 3513 3514 4538 4539
2714. 11598 3514 3515 4537 4538; 11599 3515 3516 4594 4537
2715. 11600 3516 3517 4536 4594; 11601 3517 3518 4600 4536
2716. 11602 3518 3519 4535 4600; 11603 3519 3520 4534 4535
2717. 11604 3520 3521 4533 4534; 11605 3521 3522 4532 4533
2718. 11606 3522 3523 4531 4532; 11607 3523 3524 4530 4531
2719. 11608 3524 3525 4529 4530; 11609 3526 3527 4452 4453
2720. 11610 3527 3528 4451 4452; 11611 3528 3529 4450 4451
2721. 11612 3529 3530 4606 4450; 11613 3530 3531 4612 4606
2722. 11614 3531 3532 4449 4612; 11615 3532 3533 4448 4449
2723. 11616 3533 3534 4447 4448; 11617 3534 3535 4618 4447
2724. 11618 3535 3536 4446 4618; 11619 3536 3537 4445 4446
2725. 11620 3537 3538 4444 4445; 11621 3538 3539 4443 4444
2726. 11622 3539 3540 4442 4443; 11623 3540 3541 4441 4442

_ STAAD SPACE -- PAGE NO. 50

2727. 11624 3541 3542 4440 4441; 11625 3542 3543 4439 4440
2728. 11626 3543 3544 4438 4439; 11627 3545 3546 4356 4357
2729. 11628 3546 3547 4624 4356; 11629 3547 3548 4355 4624
2730. 11630 3548 3549 4630 4355; 11631 3549 3550 4636 4630
2731. 11632 3550 3551 4354 4636; 11633 3551 3552 4353 4354
2732. 11634 3552 3553 4642 4353; 11635 3553 3554 4352 4642
2733. 11636 3554 3555 4351 4352; 11637 3555 3556 4350 4351
2734. 11638 3556 3557 4648 4350; 11639 3557 3558 4349 4648
2735. 11640 3558 3559 4348 4349; 11641 3559 3560 4347 4348
2736. 11642 3560 3561 4654 4347; 11643 3561 3562 4346 4654
2737. 11644 3562 3563 4345 4346; 12259 4281 4280 4293 4294
2738. 12260 4282 4659 4658 4295; 12261 4283 4282 4295 4296
2739. 12262 4284 4283 4296 4297; 12263 4285 4653 4652 4298
2740. 12264 4286 4285 4298 4299; 12265 4287 4286 4299 4300
2741. 12266 4288 4647 4646 4301; 12267 4289 4288 4301 4302
2742. 12268 4290 4635 4634 4303; 12269 4291 4629 4628 4304
2743. 12270 4292 4291 4304 4305; 12271 4294 4293 4306 4307
2744. 12272 4295 4658 4657 4308; 12273 4296 4295 4308 4309
2745. 12274 4297 4296 4309 4310; 12275 4298 4652 4651 4311
2746. 12276 4299 4298 4311 4312; 12277 4300 4299 4312 4313
2747. 12278 4301 4646 4645 4314; 12279 4302 4301 4314 4315
2748. 12280 4303 4634 4633 4316; 12281 4304 4628 4627 4317
2749. 12282 4305 4304 4317 4318; 12283 4307 4306 4319 4320
2750. 12284 4308 4657 4656 4321; 12285 4309 4308 4321 4322
2751. 12286 4310 4309 4322 4323; 12287 4311 4651 4650 4324
2752. 12288 4312 4311 4324 4325; 12289 4313 4312 4325 4326
2753. 12290 4314 4645 4644 4327; 12291 4315 4314 4327 4328
2754. 12292 4316 4633 4632 4329; 12293 4317 4627 4626 4330
2755. 12294 4318 4317 4330 4331; 12295 4320 4319 4332 4333
2756. 12296 4321 4656 4655 4334; 12297 4322 4321 4334 4335
2757. 12298 4323 4322 4335 4336; 12299 4324 4650 4649 4337
2758. 12300 4325 4324 4337 4338; 12301 4326 4325 4338 4339
2759. 12302 4327 4644 4643 4340; 12303 4328 4327 4340 4341
2760. 12304 4329 4632 4631 4342; 12305 4330 4626 4625 4343
2761. 12306 4331 4330 4343 4344; 12307 4333 4332 4345 4346
2762. 12308 4334 4655 4654 4347; 12309 4335 4334 4347 4348
2763. 12310 4336 4335 4348 4349; 12311 4337 4649 4648 4350
2764. 12312 4338 4337 4350 4351; 12313 4339 4338 4351 4352
2765. 12314 4340 4643 4642 4353; 12315 4341 4340 4353 4354
2766. 12316 4342 4631 4630 4355; 12317 4343 4625 4624 4356
2767. 12318 4344 4343 4356 4357; 12319 4359 4358 4374 4375
2768. 12320 4360 4359 4375 4376; 12321 4361 4360 4376 4377
2769. 12322 4362 4361 4377 4378; 12323 4363 4362 4378 4379
2770. 12324 4364 4363 4379 4380; 12325 4365 4364 4380 4381
2771. 12326 4366 4365 4381 4382; 12327 4367 4623 4622 4383
2772. 12328 4368 4367 4383 4384; 12329 4369 4368 4384 4385
2773. 12330 4370 4611 4610 4386; 12331 4371 4370 4386 4387
2774. 12332 4372 4371 4387 4388; 12333 4373 4372 4388 4389
2775. 12334 4375 4374 4390 4391; 12335 4376 4375 4391 4392
2776. 12336 4377 4376 4392 4393; 12337 4378 4377 4393 4394
2777. 12338 4379 4378 4394 4395; 12339 4380 4379 4395 4396
2778. 12340 4381 4380 4396 4397; 12341 4382 4381 4397 4398
2779. 12342 4383 4622 4621 4399; 12343 4384 4383 4399 4400
2780. 12344 4385 4384 4400 4401; 12345 4386 4610 4609 4402
2781. 12346 4387 4386 4402 4403; 12347 4388 4387 4403 4404
2782. 12348 4389 4388 4404 4405; 12349 4391 4390 4406 4407

_ STAAD SPACE -- PAGE NO. 51

2783. 12350 4392 4391 4407 4408; 12351 4393 4392 4408 4409
2784. 12352 4394 4393 4409 4410; 12353 4395 4394 4410 4411
2785. 12354 4396 4395 4411 4412; 12355 4397 4396 4412 4413
2786. 12356 4398 4397 4413 4414; 12357 4399 4621 4620 4415
2787. 12358 4400 4399 4415 4416; 12359 4401 4400 4416 4417
2788. 12360 4402 4609 4608 4418; 12361 4403 4402 4418 4419
2789. 12362 4404 4403 4419 4420; 12363 4405 4404 4420 4421
2790. 12364 4407 4406 4422 4423; 12365 4408 4407 4423 4424
2791. 12366 4409 4408 4424 4425; 12367 4410 4409 4425 4426
2792. 12368 4411 4410 4426 4427; 12369 4412 4411 4427 4428
2793. 12370 4413 4412 4428 4429; 12371 4414 4413 4429 4430
2794. 12372 4415 4620 4619 4431; 12373 4416 4415 4431 4432
2795. 12374 4417 4416 4432 4433; 12375 4418 4608 4607 4434
2796. 12376 4419 4418 4434 4435; 12377 4420 4419 4435 4436
2797. 12378 4421 4420 4436 4437; 12379 4423 4422 4438 4439
2798. 12380 4424 4423 4439 4440; 12381 4425 4424 4440 4441
2799. 12382 4426 4425 4441 4442; 12383 4427 4426 4442 4443
2800. 12384 4428 4427 4443 4444; 12385 4429 4428 4444 4445
2801. 12386 4430 4429 4445 4446; 12387 4431 4619 4618 4447
2802. 12388 4432 4431 4447 4448; 12389 4433 4432 4448 4449
2803. 12390 4434 4607 4606 4450; 12391 4435 4434 4450 4451
2804. 12392 4436 4435 4451 4452; 12393 4437 4436 4452 4453
2805. 12394 4455 4454 4469 4470; 12395 4456 4455 4470 4471
2806. 12396 4457 4456 4471 4472; 12397 4458 4457 4472 4473
2807. 12398 4459 4458 4473 4474; 12399 4460 4459 4474 4475
2808. 12400 4461 4605 4604 4476; 12401 4462 4599 4598 4477
2809. 12402 4463 4462 4477 4478; 12403 4464 4463 4478 4479
2810. 12404 4465 4587 4586 4480; 12405 4466 4465 4480 4481
2811. 12406 4467 4466 4481 4482; 12407 4468 4467 4482 4483
2812. 12408 4470 4469 4484 4485; 12409 4471 4470 4485 4486
2813. 12410 4472 4471 4486 4487; 12411 4473 4472 4487 4488
2814. 12412 4474 4473 4488 4489; 12413 4475 4474 4489 4490
2815. 12414 4476 4604 4603 4491; 12415 4477 4598 4597 4492
2816. 12416 4478 4477 4492 4493; 12417 4479 4478 4493 4494
2817. 12418 4480 4586 4585 4495; 12419 4481 4480 4495 4496
2818. 12420 4482 4481 4496 4497; 12421 4483 4482 4497 4498
2819. 12422 4485 4484 4499 4500; 12423 4486 4485 4500 4501
2820. 12424 4487 4486 4501 4502; 12425 4488 4487 4502 4503
2821. 12426 4489 4488 4503 4504; 12427 4490 4489 4504 4505
2822. 12428 4491 4603 4602 4506; 12429 4492 4597 4596 4507
2823. 12430 4493 4492 4507 4508; 12431 4494 4493 4508 4509
2824. 12432 4495 4585 4584 4510; 12433 4496 4495 4510 4511
2825. 12434 4497 4496 4511 4512; 12435 4498 4497 4512 4513
2826. 12436 4500 4499 4514 4515; 12437 4501 4500 4515 4516
2827. 12438 4502 4501 4516 4517; 12439 4503 4502 4517 4518
2828. 12440 4504 4503 4518 4519; 12441 4505 4504 4519 4520
2829. 12442 4506 4602 4601 4521; 12443 4507 4596 4595 4522
2830. 12444 4508 4507 4522 4523; 12445 4509 4508 4523 4524
2831. 12446 4510 4584 4583 4525; 12447 4511 4510 4525 4526
2832. 12448 4512 4511 4526 4527; 12449 4513 4512 4527 4528
2833. 12450 4515 4514 4529 4530; 12451 4516 4515 4530 4531
2834. 12452 4517 4516 4531 4532; 12453 4518 4517 4532 4533
2835. 12454 4519 4518 4533 4534; 12455 4520 4519 4534 4535
2836. 12456 4521 4601 4600 4536; 12457 4522 4595 4594 4537
2837. 12458 4523 4522 4537 4538; 12459 4524 4523 4538 4539
2838. 12460 4525 4583 4582 4540; 12461 4526 4525 4540 4541

_ STAAD SPACE -- PAGE NO. 52

2839. 12462 4527 4526 4541 4542; 12463 4528 4527 4542 4543
2840. 12464 4544 4581 4580 4556; 12465 4545 4579 4578 4557
2841. 12466 4546 4545 4557 4558; 12467 4547 4546 4558 4559
2842. 12468 4548 4547 4559 4560; 12469 4549 4548 4560 4561
2843. 12470 4550 4577 4576 4562; 12471 4551 4550 4562 4563
2844. 12472 4552 4551 4563 4564; 12473 4553 4552 4564 4565
2845. 12474 4554 4573 4572 4566; 12475 4555 4571 4570 4567
2846. 12476 4569 4568 4567 4555; 12477 4571 4570 4566 4554
2847. 12478 4573 4572 4574 4575; 12479 4575 4574 4565 4553
2848. 12480 4577 4576 4561 4549; 12481 4579 4578 4556 4544
2849. 12482 4583 4582 4588 4589; 12483 4584 4583 4589 4590
2850. 12484 4585 4584 4590 4591; 12485 4586 4585 4591 4592
2851. 12486 4587 4586 4592 4593; 12487 4589 4588 4539 4524
2852. 12488 4590 4589 4524 4509; 12489 4591 4590 4509 4494
2853. 12490 4592 4591 4494 4479; 12491 4593 4592 4479 4464
2854. 12492 4595 4594 4536 4521; 12493 4596 4595 4521 4506
2855. 12494 4597 4596 4506 4491; 12495 4598 4597 4491 4476
2856. 12496 4599 4598 4476 4461; 12497 4601 4600 4535 4520
2857. 12498 4602 4601 4520 4505; 12499 4603 4602 4505 4490
2858. 12500 4604 4603 4490 4475; 12501 4605 4604 4475 4460
2859. 12502 4607 4606 4612 4613; 12503 4608 4607 4613 4614
2860. 12504 4609 4608 4614 4615; 12505 4610 4609 4615 4616
2861. 12506 4611 4610 4616 4617; 12507 4613 4612 4449 4433
2862. 12508 4614 4613 4433 4417; 12509 4615 4614 4417 4401
2863. 12510 4616 4615 4401 4385; 12511 4617 4616 4385 4369
2864. 12512 4619 4618 4446 4430; 12513 4620 4619 4430 4414
2865. 12514 4621 4620 4414 4398; 12515 4622 4621 4398 4382
2866. 12516 4623 4622 4382 4366; 12517 4625 4624 4355 4342
2867. 12518 4626 4625 4342 4329; 12519 4627 4626 4329 4316
2868. 12520 4628 4627 4316 4303; 12521 4629 4628 4303 4290
2869. 12522 4631 4630 4636 4637; 12523 4632 4631 4637 4638
2870. 12524 4633 4632 4638 4639; 12525 4634 4633 4639 4640
2871. 12526 4635 4634 4640 4641; 12527 4637 4636 4354 4341
2872. 12528 4638 4637 4341 4328; 12529 4639 4638 4328 4315
2873. 12530 4640 4639 4315 4302; 12531 4641 4640 4302 4289
2874. 12532 4643 4642 4352 4339; 12533 4644 4643 4339 4326
2875. 12534 4645 4644 4326 4313; 12535 4646 4645 4313 4300
2876. 12536 4647 4646 4300 4287; 12537 4649 4648 4349 4336
2877. 12538 4650 4649 4336 4323; 12539 4651 4650 4323 4310
2878. 12540 4652 4651 4310 4297; 12541 4653 4652 4297 4284
2879. 12542 4655 4654 4346 4333; 12543 4656 4655 4333 4320
2880. 12544 4657 4656 4320 4307; 12545 4658 4657 4307 4294
2881. 12546 4659 4658 4294 4281; 750000 936 937 4994 1895; 750001 937 4994 5030 981
2882. 750002 981 5030 5743 1022; 750003 1022 5743 5066 1063
2883. 750004 1063 5066 5742 1104; 750005 1104 5742 5102 1145
2884. 750006 1145 5102 5138 1186; 750007 1186 5138 5741 1227
2885. 750008 1227 5741 5740 1268; 750009 1268 5740 5739 1309
2886. 750010 1309 5739 5738 1350; 750011 1350 5738 5737 1391
2887. 750012 1391 5737 5736 1432; 750013 1432 5736 5735 1473
2888. 750014 1473 5735 5174 1514; 750015 1514 5174 5734 1555
2889. 750016 1555 5734 5733 1596; 750017 1596 5733 5732 1637
2890. 750018 1637 5732 5210 1678; 750019 1678 5210 1896 1719
2891. 750020 1895 1897 4993 4994; 750021 1897 1899 4992 4993
2892. 750022 1899 1901 4991 4992; 750023 1901 1903 4990 4991
2893. 750024 1903 1905 4989 4990; 750025 1905 1907 4988 4989
2894. 750026 1907 1909 4987 4988; 750027 1909 1911 4986 4987

_ STAAD SPACE -- PAGE NO. 53

2895. 750028 1911 1913 4985 4986; 750029 1913 1915 4984 4985
2896. 750030 1915 1917 4983 4984; 750031 1917 1919 4982 4983
2897. 750032 1919 1921 4981 4982; 750033 1921 1923 4980 4981
2898. 750034 1923 1925 4979 4980; 750035 1925 1927 4978 4979
2899. 750036 1927 1929 5217 4978; 750037 1929 1931 4977 5217
2900. 750038 1931 1933 4976 4977; 750039 1933 1935 4975 4976
2901. 750040 1935 1937 4974 4975; 750041 1937 1939 5224 4974
2902. 750042 1939 1941 5231 5224; 750043 1941 1943 4973 5231
2903. 750044 1943 1945 4972 4973; 750045 1945 1947 4971 4972
2904. 750046 1947 1949 4970 4971; 750047 1949 1951 4969 4970
2905. 750048 1951 1953 5238 4969; 750049 1953 1955 4968 5238
2906. 750050 1955 1957 4967 4968; 750051 1957 1959 4966 4967
2907. 750052 1959 1961 4965 4966; 750053 1961 1963 4964 4965
2908. 750054 1963 1965 4963 4964; 750055 1965 1967 4962 4963
2909. 750056 1967 1969 4961 4962; 750057 1969 1971 5244 4961
2910. 750058 1971 1973 5250 5244; 750059 1973 1975 4960 5250
2911. 750060 1975 1977 5257 4960; 750061 1977 1979 4959 5257; 750062 1979 75 76 4959
2912. 750063 817 858 1980 5175; 750064 202 243 6201 5031; 750065 76 120 4995 4959
2913. 750066 284 325 5103 5067; 750067 243 284 5067 6201; 750068 4960 5257 5256 4996
2914. 750069 4961 5244 5243 4997; 750070 4962 4961 4997 4998
2915. 750071 4963 4962 4998 4999; 750072 4964 4963 4999 5000
2916. 750073 4965 4964 5000 5001; 750074 4966 4965 5001 5002
2917. 750075 4967 4966 5002 5003; 750076 4968 4967 5003 5004
2918. 750077 4969 5238 5237 5005; 750078 4970 4969 5005 5006
2919. 750079 4971 4970 5006 5007; 750080 4972 4971 5007 5008
2920. 750081 4973 4972 5008 5009; 750082 4974 5224 5223 5010
2921. 750083 4975 4974 5010 5011; 750084 4976 4975 5011 5012
2922. 750085 4977 4976 5012 5013; 750086 4978 5217 5216 5014
2923. 750087 4979 4978 5014 5015; 750088 4980 4979 5015 5016
2924. 750089 4981 4980 5016 5017; 750090 4982 4981 5017 5018
2925. 750091 4983 4982 5018 5019; 750092 4984 4983 5019 5020
2926. 750093 4985 4984 5020 5021; 750094 4986 4985 5021 5022
2927. 750095 4987 4986 5022 5023; 750096 4988 4987 5023 5024
2928. 750097 4989 4988 5024 5025; 750098 4990 4989 5025 5026
2929. 750099 4991 4990 5026 5027; 750100 4992 4991 5027 5028
2930. 750101 4993 4992 5028 5029; 750102 4994 4993 5029 5030
2931. 750103 4996 5256 6200 6196; 750104 4997 5243 6173 6172
2932. 750105 4998 4997 6172 6160; 750106 4999 4998 6160 6148
2933. 750107 5000 4999 6148 6140; 750108 5001 5000 6140 6128
2934. 750109 5002 5001 6128 6116; 750110 5003 5002 6116 6104
2935. 750111 5004 5003 6104 6092; 750112 5005 5237 6080 6068
2936. 750113 5006 5005 6068 6056; 750114 5007 5006 6056 6055
2937. 750115 5008 5007 6055 6043; 750116 5009 5008 6043 6031
2938. 750117 5010 5223 6007 5995; 750118 5011 5010 5995 5983
2939. 750119 5012 5011 5983 5971; 750120 5013 5012 5971 5959
2940. 750121 5014 5216 5947 5935; 750122 5015 5014 5935 5923
2941. 750123 5016 5015 5923 5911; 750124 5017 5016 5911 5899
2942. 750125 5018 5017 5899 5887; 750126 5019 5018 5887 5875
2943. 750127 5020 5019 5875 5863; 750128 5021 5020 5863 5851
2944. 750129 5022 5021 5851 5839; 750130 5023 5022 5839 5827
2945. 750131 5024 5023 5827 5815; 750132 5025 5024 5815 5803
2946. 750133 5026 5025 5803 5791; 750134 5027 5026 5791 5779
2947. 750135 5028 5027 5779 5767; 750136 5029 5028 5767 5755
2948. 750137 5030 5029 5755 5743; 750138 5032 5255 6200 6196
2949. 750139 5033 5242 6173 6172; 750140 5034 5033 6171 6159
2950. 750141 5034 5033 6172 6160; 750143 5035 5034 6160 6148

_ STAAD SPACE -- PAGE NO. 54

2951. 750144 5036 5035 6148 6140; 750145 5037 5036 6139 6127
2952. 750146 5037 5036 6140 6128; 750147 5038 5037 6127 6115
2953. 750148 5038 5037 6128 6116; 750149 5039 5038 6115 6103
2954. 750150 5039 5038 6116 6104; 750151 5040 5039 6103 6091
2955. 750152 5040 5039 6104 6092; 750153 5041 5236 6079 6067
2956. 750154 5041 5236 6080 6068; 750155 5042 5041 6068 6056
2957. 750156 5043 5042 6056 6055; 750157 5044 5043 6054 6042
2958. 750158 5044 5043 6055 6043; 750159 5045 5044 6042 6030
2959. 750160 5045 5044 6043 6031; 750161 5046 5222 6006 5994
2960. 750162 5046 5222 6007 5995; 750163 5047 5046 5994 5982
2961. 750164 5047 5046 5995 5983; 750165 5048 5047 5982 5970
2962. 750166 5048 5047 5983 5971; 750167 5049 5048 5970 5958
2963. 750168 5049 5048 5971 5959; 750169 5050 5215 5946 5934
2964. 750170 5050 5215 5947 5935; 750171 5051 5050 5934 5922
2965. 750172 5051 5050 5935 5923; 750173 5052 5051 5922 5910
2966. 750174 5052 5051 5923 5911; 750175 5053 5052 5910 5898
2967. 750176 5053 5052 5911 5899; 750177 5054 5053 5898 5886
2968. 750178 5054 5053 5899 5887; 750179 5055 5054 5886 5874
2969. 750180 5055 5054 5887 5875; 750181 5056 5055 5874 5862
2970. 750182 5056 5055 5875 5863; 750183 5057 5056 5862 5850
2971. 750184 5057 5056 5863 5851; 750185 5058 5057 5850 5838
2972. 750186 5058 5057 5851 5839; 750187 5059 5058 5838 5826
2973. 750188 5059 5058 5839 5827; 750189 5060 5059 5826 5814
2974. 750190 5060 5059 5827 5815; 750191 5061 5060 5814 5802
2975. 750192 5061 5060 5815 5803; 750193 5062 5061 5802 5790
2976. 750194 5062 5061 5803 5791; 750195 5063 5062 5790 5778
2977. 750196 5063 5062 5791 5779; 750197 5064 5063 5778 5766
2978. 750198 5064 5063 5779 5767; 750199 5065 5064 5766 5754
2979. 750200 5065 5064 5767 5755; 750201 5066 5065 5754 5742
2980. 750202 5066 5065 5755 5743; 750203 5068 5254 5253 5104
2981. 750204 5069 5731 5241 5105; 750205 5070 5069 5105 5106
2982. 750206 5070 5069 6171 6159; 750207 5071 5070 5106 5107
2983. 750209 5072 5071 5107 5108; 750210 5073 5072 5108 5109
2984. 750211 5073 5072 6139 6127; 750212 5074 5073 5109 5110
2985. 750213 5074 5073 6127 6115; 750214 5075 5074 5110 5111
2986. 750215 5075 5074 6115 6103; 750216 5076 5075 5111 5112
2987. 750217 5076 5075 6103 6091; 750218 5077 5235 5234 5113
2988. 750219 5077 5235 6079 6067; 750220 5078 5077 5113 5114
2989. 750221 5079 5078 5114 5115; 750222 5080 5079 5115 5116
2990. 750223 5080 5079 6054 6042; 750224 5081 5080 5116 5117
2991. 750225 5081 5080 6042 6030; 750226 5082 5221 5220 5118
2992. 750227 5082 5221 6006 5994; 750228 5083 5082 5118 5119
2993. 750229 5083 5082 5994 5982; 750230 5084 5083 5119 5120
2994. 750231 5084 5083 5982 5970; 750232 5085 5084 5120 5121
2995. 750233 5085 5084 5970 5958; 750234 5086 5214 5213 5122
2996. 750235 5086 5214 5946 5934; 750236 5087 5086 5122 5123
2997. 750237 5087 5086 5934 5922; 750238 5088 5087 5123 5124
2998. 750239 5088 5087 5922 5910; 750240 5089 5088 5124 5125
2999. 750241 5089 5088 5910 5898; 750242 5090 5089 5125 5126
3000. 750243 5090 5089 5898 5886; 750244 5091 5090 5126 5127
3001. 750245 5091 5090 5886 5874; 750246 5092 5091 5127 5128
3002. 750247 5092 5091 5874 5862; 750248 5093 5092 5128 5129
3003. 750249 5093 5092 5862 5850; 750250 5094 5093 5129 5130
3004. 750251 5094 5093 5850 5838; 750252 5095 5094 5130 5131
3005. 750253 5095 5094 5838 5826; 750254 5096 5095 5131 5132
3006. 750255 5096 5095 5826 5814; 750256 5097 5096 5132 5133

_ STAAD SPACE -- PAGE NO. 55

3007. 750257 5097 5096 5814 5802; 750258 5098 5097 5133 5134
3008. 750259 5098 5097 5802 5790; 750260 5099 5098 5134 5135
3009. 750261 5099 5098 5790 5778; 750262 5100 5099 5135 5136
3010. 750263 5100 5099 5778 5766; 750264 5101 5100 5136 5137
3011. 750265 5101 5100 5766 5754; 750266 5102 5101 5137 5138
3012. 750267 5102 5101 5754 5742; 750268 5106 5105 6170 6158
3013. 750269 5107 5106 6158 6147; 750270 5108 5107 6147 6138
3014. 750271 5109 5108 6138 6126; 750272 5110 5109 6126 6114
3015. 750273 5111 5110 6114 6102; 750274 5112 5111 6102 6090
3016. 750275 5113 5234 6078 6066; 750277 5116 5115 6053 6041
3017. 750278 5117 5116 6041 6029; 750279 5118 5220 6005 5993
3018. 750280 5119 5118 5993 5981; 750281 5120 5119 5981 5969
3019. 750282 5121 5120 5969 5957; 750283 5122 5213 5945 5933
3020. 750284 5123 5122 5933 5921; 750285 5124 5123 5921 5909
3021. 750286 5125 5124 5909 5897; 750287 5126 5125 5897 5885
3022. 750288 5127 5126 5885 5873; 750289 5128 5127 5873 5861
3023. 750290 5129 5128 5861 5849; 750291 5130 5129 5849 5837
3024. 750292 5131 5130 5837 5825; 750293 5132 5131 5825 5813
3025. 750294 5133 5132 5813 5801; 750295 5134 5133 5801 5789
3026. 750296 5135 5134 5789 5777; 750297 5136 5135 5777 5765
3027. 750298 5137 5136 5765 5753; 750299 5138 5137 5753 5741
3028. 750300 5140 5252 6199 6188; 750301 5142 5141 6163 6151
3029. 750302 5142 5141 6164 6152; 750304 5143 5142 6152 6141
3030. 750305 5144 5143 6141 6132; 750306 5145 5144 6131 6119
3031. 750307 5145 5144 6132 6120; 750308 5146 5145 6119 6107
3032. 750309 5146 5145 6120 6108; 750310 5147 5146 6107 6095
3033. 750311 5147 5146 6108 6096; 750312 5148 5147 6095 6083
3034. 750313 5148 5147 6096 6084; 750314 5149 5233 6071 6059
3035. 750315 5149 5233 6072 6060; 750318 5152 5151 6046 6034
3036. 750319 5152 5151 6047 6035; 750320 5153 5152 6034 6022
3037. 750321 5153 5152 6035 6023; 750322 5154 5219 5998 5986
3038. 750323 5154 5219 5999 5987; 750324 5155 5154 5986 5974
3039. 750325 5155 5154 5987 5975; 750326 5156 5155 5974 5962
3040. 750327 5156 5155 5975 5963; 750328 5157 5156 5962 5950
3041. 750329 5157 5156 5963 5951; 750330 5158 5212 5938 5926
3042. 750331 5158 5212 5939 5927; 750332 5159 5158 5926 5914
3043. 750333 5159 5158 5927 5915; 750334 5160 5159 5914 5902
3044. 750335 5160 5159 5915 5903; 750336 5161 5160 5902 5890
3045. 750337 5161 5160 5903 5891; 750338 5162 5161 5890 5878
3046. 750339 5162 5161 5891 5879; 750340 5163 5162 5878 5866
3047. 750341 5163 5162 5879 5867; 750342 5164 5163 5866 5854
3048. 750343 5164 5163 5867 5855; 750344 5165 5164 5854 5842
3049. 750345 5165 5164 5855 5843; 750346 5166 5165 5842 5830
3050. 750347 5166 5165 5843 5831; 750348 5167 5166 5830 5818
3051. 750349 5167 5166 5831 5819; 750350 5168 5167 5818 5806
3052. 750351 5168 5167 5819 5807; 750352 5169 5168 5806 5794
3053. 750353 5169 5168 5807 5795; 750354 5170 5169 5794 5782
3054. 750355 5170 5169 5795 5783; 750356 5171 5170 5782 5770
3055. 750357 5171 5170 5783 5771; 750358 5172 5171 5770 5758
3056. 750359 5172 5171 5771 5759; 750360 5173 5172 5758 5746
3057. 750361 5173 5172 5759 5747; 750362 5174 5173 5746 5734
3058. 750363 5174 5173 5747 5735; 750364 5176 5251 1978 1976
3059. 750365 5176 5251 6197 6186; 750366 5177 5239 1972 1970
3060. 750367 5178 5177 1970 1968; 750368 5178 5177 6161 6149
3061. 750369 5179 5178 1968 1966; 750371 5180 5179 1966 1964
3062. 750372 5181 5180 1964 1962; 750373 5181 5180 6129 6117

_ STAAD SPACE -- PAGE NO. 56

3063. 750374 5182 5181 1962 1960; 750375 5182 5181 6117 6105
3064. 750376 5183 5182 1960 1958; 750377 5183 5182 6105 6093
3065. 750378 5184 5183 1958 1956; 750379 5184 5183 6093 6081
3066. 750380 5185 5232 1954 1952; 750381 5185 5232 6069 6057
3067. 750382 5186 5185 1952 1950; 750384 5187 5186 1950 1948
3068. 750385 5188 5187 1948 1946; 750386 5188 5187 6044 6032
3069. 750387 5189 5188 1946 1944; 750388 5189 5188 6032 6020
3070. 750389 5190 5218 1940 1938; 750390 5190 5218 5996 5984
3071. 750391 5191 5190 1938 1936; 750392 5191 5190 5984 5972
3072. 750393 5192 5191 1936 1934; 750394 5192 5191 5972 5960
3073. 750395 5193 5192 1934 1932; 750396 5193 5192 5960 5948
3074. 750397 5194 5211 1930 1928; 750398 5194 5211 5936 5924
3075. 750399 5195 5194 1928 1926; 750400 5195 5194 5924 5912
3076. 750401 5196 5195 1926 1924; 750402 5196 5195 5912 5900
3077. 750403 5197 5196 1924 1922; 750404 5197 5196 5900 5888
3078. 750405 5198 5197 1922 1920; 750406 5198 5197 5888 5876
3079. 750407 5199 5198 1920 1918; 750408 5199 5198 5876 5864
3080. 750409 5200 5199 1918 1916; 750410 5200 5199 5864 5852
3081. 750411 5201 5200 1916 1914; 750412 5201 5200 5852 5840
3082. 750413 5202 5201 1914 1912; 750414 5202 5201 5840 5828
3083. 750415 5203 5202 1912 1910; 750416 5203 5202 5828 5816
3084. 750417 5204 5203 1910 1908; 750418 5204 5203 5816 5804
3085. 750419 5205 5204 1908 1906; 750420 5205 5204 5804 5792
3086. 750421 5206 5205 1906 1904; 750422 5206 5205 5792 5780
3087. 750423 5207 5206 1904 1902; 750424 5207 5206 5780 5768
3088. 750425 5208 5207 1902 1900; 750426 5208 5207 5768 5756
3089. 750427 5209 5208 1900 1898; 750428 5209 5208 5756 5744
3090. 750429 5210 5209 1898 1896; 750430 5210 5209 5744 5732
3091. 750431 5211 1930 1932 5193; 750432 5212 5938 5950 5157
3092. 750433 5213 5945 5957 5121; 750434 5214 5213 5121 5085
3093. 750435 5215 5946 5958 5049; 750436 5216 5947 5959 5013
3094. 750437 5217 5216 5013 4977; 750438 5218 1940 1942 5225
3095. 750439 5219 5998 6010 5226; 750440 5220 6005 6017 5227
3096. 750441 5221 5220 5227 5228; 750442 5222 6006 6018 5229
3097. 750443 5223 6007 6019 5230; 750444 5224 5223 5230 5231
3098. 750445 5225 1942 1944 5189; 750446 5226 6010 6022 5153
3099. 750447 5227 6017 6029 5117; 750448 5228 5227 5117 5081
3100. 750449 5229 6018 6030 5045; 750450 5230 6019 6031 5009
3101. 750451 5231 5230 5009 4973; 750452 5232 1954 1956 5184
3102. 750453 5233 6071 6083 5148; 750454 5234 6078 6090 5112
3103. 750455 5235 5234 5112 5076; 750456 5236 6079 6091 5040
3104. 750457 5237 6080 6092 5004; 750458 5238 5237 5004 4968
3105. 750459 5239 1972 1974 5245; 750460 5243 6173 6185 5249
3106. 750461 5244 5243 5249 5250; 750462 5245 1974 1976 5176
3107. 750463 5246 6176 6188 5140; 750464 5247 6183 6195 5104
3108. 750465 5249 6185 6196 4996; 750466 5250 5249 4996 4960
3109. 750467 5068 5104 5247 5730; 750468 5251 1978 1980 5175
3110. 750469 5254 5253 5103 5067; 750470 5257 5256 4995 4959
3111. 750471 5248 5032 6196 6185; 750472 5242 5248 6185 6173
3112. 750473 5236 5040 6092 6080; 750474 5229 5045 6031 6019
3113. 750475 5222 5229 6019 6007; 750476 5215 5049 5959 5947
3114. 750477 5731 5730 5247 5241; 750478 5235 5076 6091 6079
3115. 750479 5228 5081 6030 6018; 750480 5221 5228 6018 6006
3116. 750481 5214 5085 5958 5946; 750483 5246 5140 6189 6177
3117. 750484 5233 5148 6084 6072; 750485 5226 5153 6023 6011
3118. 750486 5219 5226 6011 5999; 750487 5212 5157 5951 5939

_ STAAD SPACE -- PAGE NO. 57

3119. 750488 5245 5176 6186 6174; 750489 5232 5184 6081 6069
3120. 750490 5225 5189 6020 6008; 750491 5218 5225 6008 5996
3121. 750492 5211 5193 5948 5936; 750493 5733 5732 5744 5745
3122. 750494 5734 5733 5745 5746; 750495 5736 5735 5747 5748
3123. 750496 5737 5736 5748 5749; 750497 5738 5737 5749 5750
3124. 750498 5739 5738 5750 5751; 750499 5740 5739 5751 5752
3125. 750500 5741 5740 5752 5753; 750501 5745 5744 5756 5757
3126. 750502 5746 5745 5757 5758; 750503 5748 5747 5759 5760
3127. 750504 5749 5748 5760 5761; 750505 5750 5749 5761 5762
3128. 750506 5751 5750 5762 5763; 750507 5752 5751 5763 5764
3129. 750508 5753 5752 5764 5765; 750509 5757 5756 5768 5769
3130. 750510 5758 5757 5769 5770; 750511 5760 5759 5771 5772
3131. 750512 5761 5760 5772 5773; 750513 5762 5761 5773 5774
3132. 750514 5763 5762 5774 5775; 750515 5764 5763 5775 5776
3133. 750516 5765 5764 5776 5777; 750517 5769 5768 5780 5781
3134. 750518 5770 5769 5781 5782; 750519 5772 5771 5783 5784
3135. 750520 5773 5772 5784 5785; 750521 5774 5773 5785 5786
3136. 750522 5775 5774 5786 5787; 750523 5776 5775 5787 5788
3137. 750524 5777 5776 5788 5789; 750525 5781 5780 5792 5793
3138. 750526 5782 5781 5793 5794; 750527 5784 5783 5795 5796
3139. 750528 5785 5784 5796 5797; 750529 5786 5785 5797 5798
3140. 750530 5787 5786 5798 5799; 750531 5788 5787 5799 5800
3141. 750532 5789 5788 5800 5801; 750533 5793 5792 5804 5805
3142. 750534 5794 5793 5805 5806; 750535 5796 5795 5807 5808
3143. 750536 5797 5796 5808 5809; 750537 5798 5797 5809 5810
3144. 750538 5799 5798 5810 5811; 750539 5800 5799 5811 5812
3145. 750540 5801 5800 5812 5813; 750541 5805 5804 5816 5817
3146. 750542 5806 5805 5817 5818; 750543 5808 5807 5819 5820
3147. 750544 5809 5808 5820 5821; 750545 5810 5809 5821 5822
3148. 750546 5811 5810 5822 5823; 750547 5812 5811 5823 5824
3149. 750548 5813 5812 5824 5825; 750549 5817 5816 5828 5829
3150. 750550 5818 5817 5829 5830; 750551 5820 5819 5831 5832
3151. 750552 5821 5820 5832 5833; 750553 5822 5821 5833 5834
3152. 750554 5823 5822 5834 5835; 750555 5824 5823 5835 5836
3153. 750556 5825 5824 5836 5837; 750557 5829 5828 5840 5841
3154. 750558 5830 5829 5841 5842; 750559 5832 5831 5843 5844
3155. 750560 5833 5832 5844 5845; 750561 5834 5833 5845 5846
3156. 750562 5835 5834 5846 5847; 750563 5836 5835 5847 5848
3157. 750564 5837 5836 5848 5849; 750565 5841 5840 5852 5853
3158. 750566 5842 5841 5853 5854; 750567 5844 5843 5855 5856
3159. 750568 5845 5844 5856 5857; 750569 5846 5845 5857 5858
3160. 750570 5847 5846 5858 5859; 750571 5848 5847 5859 5860
3161. 750572 5849 5848 5860 5861; 750573 5853 5852 5864 5865
3162. 750574 5854 5853 5865 5866; 750575 5856 5855 5867 5868
3163. 750576 5857 5856 5868 5869; 750577 5858 5857 5869 5870
3164. 750578 5859 5858 5870 5871; 750579 5860 5859 5871 5872
3165. 750580 5861 5860 5872 5873; 750581 5865 5864 5876 5877
3166. 750582 5866 5865 5877 5878; 750583 5868 5867 5879 5880
3167. 750584 5869 5868 5880 5881; 750585 5870 5869 5881 5882
3168. 750586 5871 5870 5882 5883; 750587 5872 5871 5883 5884
3169. 750588 5873 5872 5884 5885; 750589 5877 5876 5888 5889
3170. 750590 5878 5877 5889 5890; 750591 5880 5879 5891 5892
3171. 750592 5881 5880 5892 5893; 750593 5882 5881 5893 5894
3172. 750594 5883 5882 5894 5895; 750595 5884 5883 5895 5896
3173. 750596 5885 5884 5896 5897; 750597 5889 5888 5900 5901
3174. 750598 5890 5889 5901 5902; 750599 5892 5891 5903 5904

_ STAAD SPACE -- PAGE NO. 58

3175. 750600 5893 5892 5904 5905; 750601 5894 5893 5905 5906
3176. 750602 5895 5894 5906 5907; 750603 5896 5895 5907 5908
3177. 750604 5897 5896 5908 5909; 750605 5901 5900 5912 5913
3178. 750606 5902 5901 5913 5914; 750607 5904 5903 5915 5916
3179. 750608 5905 5904 5916 5917; 750609 5906 5905 5917 5918
3180. 750610 5907 5906 5918 5919; 750611 5908 5907 5919 5920
3181. 750612 5909 5908 5920 5921; 750613 5913 5912 5924 5925
3182. 750614 5914 5913 5925 5926; 750615 5916 5915 5927 5928
3183. 750616 5917 5916 5928 5929; 750617 5918 5917 5929 5930
3184. 750618 5919 5918 5930 5931; 750619 5920 5919 5931 5932
3185. 750620 5921 5920 5932 5933; 750621 5925 5924 5936 5937
3186. 750622 5926 5925 5937 5938; 750623 5928 5927 5939 5940
3187. 750624 5929 5928 5940 5941; 750625 5930 5929 5941 5942
3188. 750626 5931 5930 5942 5943; 750627 5932 5931 5943 5944
3189. 750628 5933 5932 5944 5945; 750629 5937 5936 5948 5949
3190. 750630 5938 5937 5949 5950; 750631 5940 5939 5951 5952
3191. 750632 5941 5940 5952 5953; 750633 5942 5941 5953 5954
3192. 750634 5943 5942 5954 5955; 750635 5944 5943 5955 5956
3193. 750636 5945 5944 5956 5957; 750637 5949 5948 5960 5961
3194. 750638 5950 5949 5961 5962; 750639 5952 5951 5963 5964
3195. 750640 5953 5952 5964 5965; 750641 5954 5953 5965 5966
3196. 750642 5955 5954 5966 5967; 750643 5956 5955 5967 5968
3197. 750644 5957 5956 5968 5969; 750645 5961 5960 5972 5973
3198. 750646 5962 5961 5973 5974; 750647 5964 5963 5975 5976
3199. 750648 5965 5964 5976 5977; 750649 5966 5965 5977 5978
3200. 750650 5967 5966 5978 5979; 750651 5968 5967 5979 5980
3201. 750652 5969 5968 5980 5981; 750653 5973 5972 5984 5985
3202. 750654 5974 5973 5985 5986; 750655 5976 5975 5987 5988
3203. 750656 5977 5976 5988 5989; 750657 5978 5977 5989 5990
3204. 750658 5979 5978 5990 5991; 750659 5980 5979 5991 5992
3205. 750660 5981 5980 5992 5993; 750661 5985 5984 5996 5997
3206. 750662 5986 5985 5997 5998; 750663 5988 5987 5999 6000
3207. 750664 5989 5988 6000 6001; 750665 5990 5989 6001 6002
3208. 750666 5991 5990 6002 6003; 750667 5992 5991 6003 6004
3209. 750668 5993 5992 6004 6005; 750669 5997 5996 6008 6009
3210. 750670 5998 5997 6009 6010; 750671 6000 5999 6011 6012
3211. 750672 6001 6000 6012 6013; 750673 6002 6001 6013 6014
3212. 750674 6003 6002 6014 6015; 750675 6004 6003 6015 6016
3213. 750676 6005 6004 6016 6017; 750677 6009 6008 6020 6021
3214. 750678 6010 6009 6021 6022; 750679 6012 6011 6023 6024
3215. 750680 6013 6012 6024 6025; 750681 6014 6013 6025 6026
3216. 750682 6015 6014 6026 6027; 750683 6016 6015 6027 6028
3217. 750684 6017 6016 6028 6029; 750685 6021 6020 6032 6033
3218. 750686 6022 6021 6033 6034; 750687 6024 6023 6035 6036
3219. 750688 6025 6024 6036 6037; 750689 6026 6025 6037 6038
3220. 750690 6027 6026 6038 6039; 750691 6028 6027 6039 6040
3221. 750692 6029 6028 6040 6041; 750693 6033 6032 6044 6045
3222. 750694 6034 6033 6045 6046; 750695 6036 6035 6047 6048
3223. 750696 6037 6036 6048 6049; 750697 6038 6037 6049 6050
3224. 750698 6039 6038 6050 6051; 750699 6040 6039 6051 6052
3225. 750700 6041 6040 6052 6053; 750707 6058 6057 6069 6070
3226. 750708 6059 6058 6070 6071; 750709 6061 6060 6072 6073
3227. 750710 6062 6061 6073 6074; 750711 6063 6062 6074 6075
3228. 750712 6064 6063 6075 6076; 750713 6065 6064 6076 6077
3229. 750714 6066 6065 6077 6078; 750716 6070 6069 6081 6082
3230. 750717 6071 6070 6082 6083; 750718 6073 6072 6084 6085

_ STAAD SPACE -- PAGE NO. 59

3231. 750719 6074 6073 6085 6086; 750720 6075 6074 6086 6087
3232. 750721 6076 6075 6087 6088; 750722 6077 6076 6088 6089
3233. 750723 6078 6077 6089 6090; 750724 6082 6081 6093 6094
3234. 750725 6083 6082 6094 6095; 750726 6085 6084 6096 6097
3235. 750727 6086 6085 6097 6098; 750728 6087 6086 6098 6099
3236. 750729 6088 6087 6099 6100; 750730 6089 6088 6100 6101
3237. 750731 6090 6089 6101 6102; 750732 6094 6093 6105 6106
3238. 750733 6095 6094 6106 6107; 750734 6097 6096 6108 6109
3239. 750735 6098 6097 6109 6110; 750736 6099 6098 6110 6111
3240. 750737 6100 6099 6111 6112; 750738 6101 6100 6112 6113
3241. 750739 6102 6101 6113 6114; 750740 6106 6105 6117 6118
3242. 750741 6107 6106 6118 6119; 750742 6109 6108 6120 6121
3243. 750743 6110 6109 6121 6122; 750744 6111 6110 6122 6123
3244. 750745 6112 6111 6123 6124; 750746 6113 6112 6124 6125
3245. 750747 6114 6113 6125 6126; 750748 6118 6117 6129 6130
3246. 750749 6119 6118 6130 6131; 750750 6121 6120 6132 6133
3247. 750751 6122 6121 6133 6134; 750752 6123 6122 6134 6135
3248. 750753 6124 6123 6135 6136; 750754 6125 6124 6136 6137
3249. 750755 6126 6125 6137 6138; 750758 6133 6132 6141 6142
3250. 750759 6134 6133 6142 6143; 750760 6135 6134 6143 6144
3251. 750761 6136 6135 6144 6145; 750762 6137 6136 6145 6146
3252. 750763 6138 6137 6146 6147; 750764 6142 6141 6152 6153
3253. 750765 6143 6142 6153 6154; 750766 6144 6143 6154 6155
3254. 750767 6145 6144 6155 6156; 750768 6146 6145 6156 6157
3255. 750769 6147 6146 6157 6158; 750770 6150 6149 6161 6162
3256. 750771 6151 6150 6162 6163; 750772 6153 6152 6164 6165
3257. 750773 6154 6153 6165 6166; 750774 6155 6154 6166 6167
3258. 750775 6156 6155 6167 6168; 750776 6157 6156 6168 6169
3259. 750777 6158 6157 6169 6170; 750784 6175 6174 6186 6187
3260. 750785 6176 6175 6187 6188; 750786 6178 6177 6189 6190
3261. 750787 6179 6178 6190 6191; 750788 6180 6179 6191 6192
3262. 750789 6181 6180 6192 6193; 750790 6182 6181 6193 6194
3263. 750791 6183 6182 6194 6195; 750794 6187 6186 6197 6198
3264. 750795 6188 6187 6198 6199; 750796 6044 5187 5186 6204
3265. 750797 6045 6044 6204 6205; 750798 6046 6045 6205 6206
3266. 750799 5151 6046 6206 6207; 750800 6047 5151 6207 6208
3267. 750801 6048 6047 6208 6209; 750802 6050 6049 6210 6211
3268. 750803 6052 6051 6212 6213; 750804 6053 6052 6213 6214
3269. 750805 5115 6053 6214 5114; 750806 5043 6054 6215 5042
3270. 750807 6204 5186 5185 6057; 750808 6205 6204 6057 6058
3271. 750809 6206 6205 6058 6059; 750810 6207 6206 6059 5149
3272. 750811 6208 6207 5149 6060; 750812 6209 6208 6060 6061
3273. 750813 6211 6210 6062 6063; 750814 6213 6212 6064 6065
3274. 750815 6214 6213 6065 6066; 750816 5114 6214 6066 5113
3275. 750817 5042 6215 6067 5041; 750818 6129 5180 5179 6216
3276. 750819 6131 6130 6217 6218; 750820 5144 6131 6218 5143
3277. 750821 5036 6139 6219 5035; 750822 6216 5179 5178 6149
3278. 750823 6218 6217 6150 6151; 750824 5143 6218 6151 5142
3279. 750825 5035 6219 6159 5034; 750826 6161 5177 5239 6220
3280. 750827 6163 6162 6221 6222; 750828 5141 6163 6222 6223
3281. 750829 6164 5141 6223 6224; 750830 6165 6164 6224 6225
3282. 750831 6166 6165 6225 6226; 750832 6168 6167 6227 6228
3283. 750833 6169 6168 6228 6229; 750834 6170 6169 6229 6230
3284. 750835 5105 6170 6230 5241; 750836 5033 6171 6231 5242
3285. 750837 6220 5239 5245 6174; 750838 6222 6221 6175 6176
3286. 750839 6223 6222 6176 5246; 750840 6224 6223 5246 6177

_ STAAD SPACE -- PAGE NO. 60

3287. 750841 6225 6224 6177 6178; 750842 6226 6225 6178 6179
3288. 750843 6228 6227 6180 6181; 750844 6229 6228 6181 6182
3289. 750845 6230 6229 6182 6183; 750846 5241 6230 6183 5247
3290. 750847 5242 6231 6184 5248; 750850 6197 5251 5175 6232
3291. 750851 6199 6198 6233 6234; 750852 5252 6199 6234 5139
3292. 750853 6235 5252 5139 6236; 750854 6237 6235 6236 6238
3293. 750855 6239 6237 6238 6240; 750856 6241 6242 6243 6244
3294. 750857 6241 6242 6192 6193; 750858 6245 6241 6244 6246
3295. 750859 6245 6241 6193 6194; 750860 6247 6245 6246 6248
3296. 750861 6247 6245 6194 6195; 750862 5253 6247 6248 5103
3297. 750863 5253 6247 6195 5104; 750864 5255 6249 6201 5031
3298. 750865 5256 6200 6250 4995; 750866 6232 5175 817 776; 750867 6234 6233 735 694
3299. 750868 5139 6234 694 653; 750869 6236 5139 653 612; 750870 6238 6236 612 571
3300. 750871 6240 6238 571 530; 750872 6244 6243 489 448; 750873 6246 6244 448 407
3301. 750874 6248 6246 407 366; 750875 5103 6248 366 325; 750876 4995 6250 161 120
3302. 750877 6250 161 202 5031; 750878 6200 6250 5031 5255
3303. 750879 6249 6201 5067 5254; 750880 6171 6231 5731 5069
3304. 750881 6219 6159 5070 5071; 750882 6139 6219 5071 5072
3305. 750883 6243 489 530 6240; 750884 6242 6243 6240 6239; 750885 6233 735 776 6232
3306. 750886 6198 6233 6232 6197; 750887 6162 6221 6220 6161
3307. 750888 6217 6150 6149 6216; 750889 6130 6217 6216 6129
3308. 750890 6215 6067 5077 5078; 750891 6054 6215 5078 5079
3309. 750892 6212 6064 6063 6211; 750893 6051 6212 6211 6050
3310. 750894 6210 6062 6061 6209; 750895 6049 6210 6209 6048
3311. 750896 6167 6166 6226 6227; 750897 6221 6220 6174 6175
3312. 750898 6227 6226 6179 6180; 750899 6231 5731 5730 6184
3313. 750900 6242 6239 6191 6192; 750905 5248 5032 6251 6184
3314. 750906 5255 6249 6251 5032; 750907 6184 6251 5068 5730
3315. 750908 6249 5254 5068 6251; 750909 6239 6237 6190 6191
3316. 750910 6237 6235 6189 6190; 750911 6235 5252 5140 6189
3317. 750912 912 913 6373 6252; 750913 913 6373 6409 969; 750914 969 6409 6648 1010
3318. 750915 1010 6648 6445 1051; 750916 1051 6445 6647 1092
3319. 750917 1092 6647 6481 1133; 750918 1133 6481 6517 1174
3320. 750919 1174 6517 6646 1215; 750920 1215 6646 6645 1256
3321. 750921 1256 6645 6644 1297; 750922 1297 6644 6643 1338
3322. 750923 1338 6643 6642 1379; 750924 1379 6642 6641 1420
3323. 750925 1420 6641 6640 1461; 750926 1461 6640 6552 1502
3324. 750927 1502 6552 6639 1543; 750928 1543 6639 6638 1584
3325. 750929 1584 6638 6637 1625; 750930 1625 6637 6588 1666
3326. 750931 1666 6588 6253 1707; 750932 6252 6254 6372 6373
3327. 750933 6254 6256 6371 6372; 750934 6256 6258 6370 6371
3328. 750935 6258 6260 6369 6370; 750936 6260 6262 6368 6369
3329. 750937 6262 6264 6367 6368; 750938 6264 6266 6366 6367
3330. 750939 6266 6268 6365 6366; 750940 6268 6270 6364 6365
3331. 750941 6270 6272 6363 6364; 750942 6272 6274 6362 6363
3332. 750943 6274 6276 6361 6362; 750944 6276 6278 6360 6361
3333. 750945 6278 6280 6359 6360; 750946 6280 6282 6358 6359
3334. 750947 6282 6284 6357 6358; 750948 6284 6286 6595 6357
3335. 750949 6286 6288 6356 6595; 750950 6288 6290 6355 6356
3336. 750951 6290 6292 6354 6355; 750952 6292 6294 6353 6354
3337. 750953 6294 6296 6602 6353; 750954 6296 6298 6609 6602
3338. 750955 6298 6300 6352 6609; 750956 6300 6302 6351 6352
3339. 750957 6302 6304 6350 6351; 750958 6304 6306 6349 6350
3340. 750959 6306 6308 6348 6349; 750960 6308 6310 6616 6348
3341. 750961 6310 6312 6347 6616; 750962 6312 6314 6346 6347
3342. 750963 6314 6316 6345 6346; 750964 6316 6318 6344 6345

_ STAAD SPACE -- PAGE NO. 61

3343. 750965 6318 6320 6343 6344; 750966 6320 6322 6342 6343
3344. 750967 6322 6324 6341 6342; 750968 6324 6326 6340 6341
3345. 750969 6326 6328 6621 6340; 750970 6328 6330 6627 6621
3346. 750971 6330 6332 6339 6627; 750972 6332 6334 6634 6339
3347. 750973 6334 6336 6338 6634; 750974 6336 51 52 6338; 750975 805 846 6337 6553
3348. 750976 190 231 7106 6410; 750977 52 108 6374 6338; 750978 272 313 6482 6446
3349. 750979 231 272 6446 7106; 750980 6339 6634 6633 6375
3350. 750981 6340 6621 6620 6376; 750982 6341 6340 6376 6377
3351. 750983 6342 6341 6377 6378; 750984 6343 6342 6378 6379
3352. 750985 6344 6343 6379 6380; 750986 6345 6344 6380 6381
3353. 750987 6346 6345 6381 6382; 750988 6347 6346 6382 6383
3354. 750989 6348 6616 6615 6384; 750990 6349 6348 6384 6385
3355. 750991 6350 6349 6385 6386; 750992 6351 6350 6386 6387
3356. 750993 6352 6351 6387 6388; 750994 6353 6602 6601 6389
3357. 750995 6354 6353 6389 6390; 750996 6355 6354 6390 6391
3358. 750997 6356 6355 6391 6392; 750998 6357 6595 6594 6393
3359. 750999 6358 6357 6393 6394; 751000 6359 6358 6394 6395
3360. 751001 6360 6359 6395 6396; 751002 6361 6360 6396 6397
3361. 751003 6362 6361 6397 6398; 751004 6363 6362 6398 6399
3362. 751005 6364 6363 6399 6400; 751006 6365 6364 6400 6401
3363. 751007 6366 6365 6401 6402; 751008 6367 6366 6402 6403
3364. 751009 6368 6367 6403 6404; 751010 6369 6368 6404 6405
3365. 751011 6370 6369 6405 6406; 751012 6371 6370 6406 6407
3366. 751013 6372 6371 6407 6408; 751014 6373 6372 6408 6409
3367. 751015 6375 6633 7105 7101; 751016 6376 6620 7078 7077
3368. 751017 6377 6376 7077 7065; 751018 6378 6377 7065 7053
3369. 751019 6379 6378 7053 7045; 751020 6380 6379 7045 7033
3370. 751021 6381 6380 7033 7021; 751022 6382 6381 7021 7009
3371. 751023 6383 6382 7009 6997; 751024 6384 6615 6985 6973
3372. 751025 6385 6384 6973 6961; 751026 6386 6385 6961 6960
3373. 751027 6387 6386 6960 6948; 751028 6388 6387 6948 6936
3374. 751029 6389 6601 6912 6900; 751030 6390 6389 6900 6888
3375. 751031 6391 6390 6888 6876; 751032 6392 6391 6876 6864
3376. 751033 6393 6594 6852 6840; 751034 6394 6393 6840 6828
3377. 751035 6395 6394 6828 6816; 751036 6396 6395 6816 6804
3378. 751037 6397 6396 6804 6792; 751038 6398 6397 6792 6780
3379. 751039 6399 6398 6780 6768; 751040 6400 6399 6768 6756
3380. 751041 6401 6400 6756 6744; 751042 6402 6401 6744 6732
3381. 751043 6403 6402 6732 6720; 751044 6404 6403 6720 6708
3382. 751045 6405 6404 6708 6696; 751046 6406 6405 6696 6684
3383. 751047 6407 6406 6684 6672; 751048 6408 6407 6672 6660
3384. 751049 6409 6408 6660 6648; 751050 6411 6632 7105 7101
3385. 751051 6412 6619 7078 7077; 751052 6413 6412 7076 7064
3386. 751053 6413 6412 7077 7065; 751054 6414 6413 7065 7053
3387. 751055 6415 6414 7053 7045; 751056 6416 6415 7044 7032
3388. 751057 6416 6415 7045 7033; 751058 6417 6416 7032 7020
3389. 751059 6417 6416 7033 7021; 751060 6418 6417 7020 7008
3390. 751061 6418 6417 7021 7009; 751062 6419 6418 7008 6996
3391. 751063 6419 6418 7009 6997; 751064 6420 6614 6984 6972
3392. 751065 6420 6614 6985 6973; 751066 6421 6420 6973 6961
3393. 751067 6422 6421 6961 6960; 751068 6423 6422 6959 6947
3394. 751069 6423 6422 6960 6948; 751070 6424 6423 6947 6935
3395. 751071 6424 6423 6948 6936; 751072 6425 6600 6911 6899
3396. 751073 6425 6600 6912 6900; 751074 6426 6425 6899 6887
3397. 751075 6426 6425 6900 6888; 751076 6427 6426 6887 6875
3398. 751077 6427 6426 6888 6876; 751078 6428 6427 6875 6863

_ STAAD SPACE -- PAGE NO. 62

3399. 751079 6428 6427 6876 6864; 751080 6429 6593 6851 6839
3400. 751081 6429 6593 6852 6840; 751082 6430 6429 6839 6827
3401. 751083 6430 6429 6840 6828; 751084 6431 6430 6827 6815
3402. 751085 6431 6430 6828 6816; 751086 6432 6431 6815 6803
3403. 751087 6432 6431 6816 6804; 751088 6433 6432 6803 6791
3404. 751089 6433 6432 6804 6792; 751090 6434 6433 6791 6779
3405. 751091 6434 6433 6792 6780; 751092 6435 6434 6779 6767
3406. 751093 6435 6434 6780 6768; 751094 6436 6435 6767 6755
3407. 751095 6436 6435 6768 6756; 751096 6437 6436 6755 6743
3408. 751097 6437 6436 6756 6744; 751098 6438 6437 6743 6731
3409. 751099 6438 6437 6744 6732; 751100 6439 6438 6731 6719
3410. 751101 6439 6438 6732 6720; 751102 6440 6439 6719 6707
3411. 751103 6440 6439 6720 6708; 751104 6441 6440 6707 6695
3412. 751105 6441 6440 6708 6696; 751106 6442 6441 6695 6683
3413. 751107 6442 6441 6696 6684; 751108 6443 6442 6683 6671
3414. 751109 6443 6442 6684 6672; 751110 6444 6443 6671 6659
3415. 751111 6444 6443 6672 6660; 751112 6445 6444 6659 6647
3416. 751113 6445 6444 6660 6648; 751114 6447 6631 6630 6483
3417. 751115 6448 6636 6618 6484; 751116 6449 6448 6484 6485
3418. 751117 6449 6448 7076 7064; 751118 6450 6449 6485 6486
3419. 751119 6451 6450 6486 6487; 751120 6452 6451 6487 6488
3420. 751121 6452 6451 7044 7032; 751122 6453 6452 6488 6489
3421. 751123 6453 6452 7032 7020; 751124 6454 6453 6489 6490
3422. 751125 6454 6453 7020 7008; 751126 6455 6454 6490 6491
3423. 751127 6455 6454 7008 6996; 751128 6456 6613 6612 6492
3424. 751129 6456 6613 6984 6972; 751130 6457 6456 6492 6493
3425. 751131 6458 6457 6493 6494; 751132 6459 6458 6494 6495
3426. 751133 6459 6458 6959 6947; 751134 6460 6459 6495 6496
3427. 751135 6460 6459 6947 6935; 751136 6461 6599 6598 6497
3428. 751137 6461 6599 6911 6899; 751138 6462 6461 6497 6498
3429. 751139 6462 6461 6899 6887; 751140 6463 6462 6498 6499
3430. 751141 6463 6462 6887 6875; 751142 6464 6463 6499 6500
3431. 751143 6464 6463 6875 6863; 751144 6465 6592 6591 6501
3432. 751145 6465 6592 6851 6839; 751146 6466 6465 6501 6502
3433. 751147 6466 6465 6839 6827; 751148 6467 6466 6502 6503
3434. 751149 6467 6466 6827 6815; 751150 6468 6467 6503 6504
3435. 751151 6468 6467 6815 6803; 751152 6469 6468 6504 6505
3436. 751153 6469 6468 6803 6791; 751154 6470 6469 6505 6506
3437. 751155 6470 6469 6791 6779; 751156 6471 6470 6506 6507
3438. 751157 6471 6470 6779 6767; 751158 6472 6471 6507 6508
3439. 751159 6472 6471 6767 6755; 751160 6473 6472 6508 6509
3440. 751161 6473 6472 6755 6743; 751162 6474 6473 6509 6510
3441. 751163 6474 6473 6743 6731; 751164 6475 6474 6510 6511
3442. 751165 6475 6474 6731 6719; 751166 6476 6475 6511 6512
3443. 751167 6476 6475 6719 6707; 751168 6477 6476 6512 6513
3444. 751169 6477 6476 6707 6695; 751170 6478 6477 6513 6514
3445. 751171 6478 6477 6695 6683; 751172 6479 6478 6514 6515
3446. 751173 6479 6478 6683 6671; 751174 6480 6479 6515 6516
3447. 751175 6480 6479 6671 6659; 751176 6481 6480 6516 6517
3448. 751177 6481 6480 6659 6647; 751178 6485 6484 7075 7063
3449. 751179 6486 6485 7063 7052; 751180 6487 6486 7052 7043
3450. 751181 6488 6487 7043 7031; 751182 6489 6488 7031 7019
3451. 751183 6490 6489 7019 7007; 751184 6491 6490 7007 6995
3452. 751185 6492 6612 6983 6971; 751186 6495 6494 6958 6946
3453. 751187 6496 6495 6946 6934; 751188 6497 6598 6910 6898
3454. 751189 6498 6497 6898 6886; 751190 6499 6498 6886 6874

_ STAAD SPACE -- PAGE NO. 63

3455. 751191 6500 6499 6874 6862; 751192 6501 6591 6850 6838
3456. 751193 6502 6501 6838 6826; 751194 6503 6502 6826 6814
3457. 751195 6504 6503 6814 6802; 751196 6505 6504 6802 6790
3458. 751197 6506 6505 6790 6778; 751198 6507 6506 6778 6766
3459. 751199 6508 6507 6766 6754; 751200 6509 6508 6754 6742
3460. 751201 6510 6509 6742 6730; 751202 6511 6510 6730 6718
3461. 751203 6512 6511 6718 6706; 751204 6513 6512 6706 6694
3462. 751205 6514 6513 6694 6682; 751206 6515 6514 6682 6670
3463. 751207 6516 6515 6670 6658; 751208 6517 6516 6658 6646
3464. 751209 6519 6629 7104 7093; 751210 6521 6520 7068 7056
3465. 751211 6521 6520 7069 7057; 751212 6522 6521 7057 7046
3466. 751213 6523 6522 7046 7037; 751214 6524 6523 7036 7024
3467. 751215 6524 6523 7037 7025; 751216 6525 6524 7024 7012
3468. 751217 6525 6524 7025 7013; 751218 6526 6525 7012 7000
3469. 751219 6526 6525 7013 7001; 751220 6527 6526 7000 6988
3470. 751221 6527 6526 7001 6989; 751222 6528 6611 6976 6964
3471. 751223 6528 6611 6977 6965; 751224 6530 6529 6951 6939
3472. 751225 6530 6529 6952 6940; 751226 6531 6530 6939 6927
3473. 751227 6531 6530 6940 6928; 751228 6532 6597 6903 6891
3474. 751229 6532 6597 6904 6892; 751230 6533 6532 6891 6879
3475. 751231 6533 6532 6892 6880; 751232 6534 6533 6879 6867
3476. 751233 6534 6533 6880 6868; 751234 6535 6534 6867 6855
3477. 751235 6535 6534 6868 6856; 751236 6536 6590 6843 6831
3478. 751237 6536 6590 6844 6832; 751238 6537 6536 6831 6819
3479. 751239 6537 6536 6832 6820; 751240 6538 6537 6819 6807
3480. 751241 6538 6537 6820 6808; 751242 6539 6538 6807 6795
3481. 751243 6539 6538 6808 6796; 751244 6540 6539 6795 6783
3482. 751245 6540 6539 6796 6784; 751246 6541 6540 6783 6771
3483. 751247 6541 6540 6784 6772; 751248 6542 6541 6771 6759
3484. 751249 6542 6541 6772 6760; 751250 6543 6542 6759 6747
3485. 751251 6543 6542 6760 6748; 751252 6544 6543 6747 6735
3486. 751253 6544 6543 6748 6736; 751254 6545 6544 6735 6723
3487. 751255 6545 6544 6736 6724; 751256 6546 6545 6723 6711
3488. 751257 6546 6545 6724 6712; 751258 6547 6546 6711 6699
3489. 751259 6547 6546 6712 6700; 751260 6548 6547 6699 6687
3490. 751261 6548 6547 6700 6688; 751262 6549 6548 6687 6675
3491. 751263 6549 6548 6688 6676; 751264 6550 6549 6675 6663
3492. 751265 6550 6549 6676 6664; 751266 6551 6550 6663 6651
3493. 751267 6551 6550 6664 6652; 751268 6552 6551 6651 6639
3494. 751269 6552 6551 6652 6640; 751270 6554 6628 6335 6333
3495. 751271 6554 6628 7102 7091; 751272 6555 6617 6329 6327
3496. 751273 6556 6555 6327 6325; 751274 6556 6555 7066 7054
3497. 751275 6557 6556 6325 6323; 751276 6558 6557 6323 6321
3498. 751277 6559 6558 6321 6319; 751278 6559 6558 7034 7022
3499. 751279 6560 6559 6319 6317; 751280 6560 6559 7022 7010
3500. 751281 6561 6560 6317 6315; 751282 6561 6560 7010 6998
3501. 751283 6562 6561 6315 6313; 751284 6562 6561 6998 6986
3502. 751285 6563 6610 6311 6309; 751286 6563 6610 6974 6962
3503. 751287 6564 6563 6309 6307; 751288 6565 6564 6307 6305
3504. 751289 6566 6565 6305 6303; 751290 6566 6565 6949 6937
3505. 751291 6567 6566 6303 6301; 751292 6567 6566 6937 6925
3506. 751293 6568 6596 6297 6295; 751294 6568 6596 6901 6889
3507. 751295 6569 6568 6295 6293; 751296 6569 6568 6889 6877
3508. 751297 6570 6569 6293 6291; 751298 6570 6569 6877 6865
3509. 751299 6571 6570 6291 6289; 751300 6571 6570 6865 6853
3510. 751301 6572 6589 6287 6285; 751302 6572 6589 6841 6829

_ STAAD SPACE -- PAGE NO. 64

3511. 751303 6573 6572 6285 6283; 751304 6573 6572 6829 6817
3512. 751305 6574 6573 6283 6281; 751306 6574 6573 6817 6805
3513. 751307 6575 6574 6281 6279; 751308 6575 6574 6805 6793
3514. 751309 6576 6575 6279 6277; 751310 6576 6575 6793 6781
3515. 751311 6577 6576 6277 6275; 751312 6577 6576 6781 6769
3516. 751313 6578 6577 6275 6273; 751314 6578 6577 6769 6757
3517. 751315 6579 6578 6273 6271; 751316 6579 6578 6757 6745
3518. 751317 6580 6579 6271 6269; 751318 6580 6579 6745 6733
3519. 751319 6581 6580 6269 6267; 751320 6581 6580 6733 6721
3520. 751321 6582 6581 6267 6265; 751322 6582 6581 6721 6709
3521. 751323 6583 6582 6265 6263; 751324 6583 6582 6709 6697
3522. 751325 6584 6583 6263 6261; 751326 6584 6583 6697 6685
3523. 751327 6585 6584 6261 6259; 751328 6585 6584 6685 6673
3524. 751329 6586 6585 6259 6257; 751330 6586 6585 6673 6661
3525. 751331 6587 6586 6257 6255; 751332 6587 6586 6661 6649
3526. 751333 6588 6587 6255 6253; 751334 6588 6587 6649 6637
3527. 751335 6589 6287 6289 6571; 751336 6590 6843 6855 6535
3528. 751337 6591 6850 6862 6500; 751338 6592 6591 6500 6464
3529. 751339 6593 6851 6863 6428; 751340 6594 6852 6864 6392
3530. 751341 6595 6594 6392 6356; 751342 6596 6297 6299 6603
3531. 751343 6597 6903 6915 6604; 751344 6598 6910 6922 6605
3532. 751345 6599 6598 6605 6606; 751346 6600 6911 6923 6607
3533. 751347 6601 6912 6924 6608; 751348 6602 6601 6608 6609
3534. 751349 6603 6299 6301 6567; 751350 6604 6915 6927 6531
3535. 751351 6605 6922 6934 6496; 751352 6606 6605 6496 6460
3536. 751353 6607 6923 6935 6424; 751354 6608 6924 6936 6388
3537. 751355 6609 6608 6388 6352; 751356 6610 6311 6313 6562
3538. 751357 6611 6976 6988 6527; 751358 6612 6983 6995 6491
3539. 751359 6613 6612 6491 6455; 751360 6614 6984 6996 6419
3540. 751361 6615 6985 6997 6383; 751362 6616 6615 6383 6347
3541. 751363 6617 6329 6331 6622; 751364 6620 7078 7090 6626
3542. 751365 6621 6620 6626 6627; 751366 6622 6331 6333 6554
3543. 751367 6623 7081 7093 6519; 751368 6624 7088 7100 6483
3544. 751369 6626 7090 7101 6375; 751370 6627 6626 6375 6339
3545. 751371 6447 6483 6624 6635; 751372 6628 6335 6337 6553
3546. 751373 6631 6630 6482 6446; 751374 6634 6633 6374 6338
3547. 751375 6625 6411 7101 7090; 751376 6619 6625 7090 7078
3548. 751377 6614 6419 6997 6985; 751378 6607 6424 6936 6924
3549. 751379 6600 6607 6924 6912; 751380 6593 6428 6864 6852
3550. 751381 6636 6635 6624 6618; 751382 6613 6455 6996 6984
3551. 751383 6606 6460 6935 6923; 751384 6599 6606 6923 6911
3552. 751385 6592 6464 6863 6851; 751386 6623 6519 7094 7082
3553. 751387 6611 6527 6989 6977; 751388 6604 6531 6928 6916
3554. 751389 6597 6604 6916 6904; 751390 6590 6535 6856 6844
3555. 751391 6622 6554 7091 7079; 751392 6610 6562 6986 6974
3556. 751393 6603 6567 6925 6913; 751394 6596 6603 6913 6901
3557. 751395 6589 6571 6853 6841; 751396 6638 6637 6649 6650
3558. 751397 6639 6638 6650 6651; 751398 6641 6640 6652 6653
3559. 751399 6642 6641 6653 6654; 751400 6643 6642 6654 6655
3560. 751401 6644 6643 6655 6656; 751402 6645 6644 6656 6657
3561. 751403 6646 6645 6657 6658; 751404 6650 6649 6661 6662
3562. 751405 6651 6650 6662 6663; 751406 6653 6652 6664 6665
3563. 751407 6654 6653 6665 6666; 751408 6655 6654 6666 6667
3564. 751409 6656 6655 6667 6668; 751410 6657 6656 6668 6669
3565. 751411 6658 6657 6669 6670; 751412 6662 6661 6673 6674
3566. 751413 6663 6662 6674 6675; 751414 6665 6664 6676 6677

_ STAAD SPACE -- PAGE NO. 65

3567. 751415 6666 6665 6677 6678; 751416 6667 6666 6678 6679
3568. 751417 6668 6667 6679 6680; 751418 6669 6668 6680 6681
3569. 751419 6670 6669 6681 6682; 751420 6674 6673 6685 6686
3570. 751421 6675 6674 6686 6687; 751422 6677 6676 6688 6689
3571. 751423 6678 6677 6689 6690; 751424 6679 6678 6690 6691
3572. 751425 6680 6679 6691 6692; 751426 6681 6680 6692 6693
3573. 751427 6682 6681 6693 6694; 751428 6686 6685 6697 6698
3574. 751429 6687 6686 6698 6699; 751430 6689 6688 6700 6701
3575. 751431 6690 6689 6701 6702; 751432 6691 6690 6702 6703
3576. 751433 6692 6691 6703 6704; 751434 6693 6692 6704 6705
3577. 751435 6694 6693 6705 6706; 751436 6698 6697 6709 6710
3578. 751437 6699 6698 6710 6711; 751438 6701 6700 6712 6713
3579. 751439 6702 6701 6713 6714; 751440 6703 6702 6714 6715
3580. 751441 6704 6703 6715 6716; 751442 6705 6704 6716 6717
3581. 751443 6706 6705 6717 6718; 751444 6710 6709 6721 6722
3582. 751445 6711 6710 6722 6723; 751446 6713 6712 6724 6725
3583. 751447 6714 6713 6725 6726; 751448 6715 6714 6726 6727
3584. 751449 6716 6715 6727 6728; 751450 6717 6716 6728 6729
3585. 751451 6718 6717 6729 6730; 751452 6722 6721 6733 6734
3586. 751453 6723 6722 6734 6735; 751454 6725 6724 6736 6737
3587. 751455 6726 6725 6737 6738; 751456 6727 6726 6738 6739
3588. 751457 6728 6727 6739 6740; 751458 6729 6728 6740 6741
3589. 751459 6730 6729 6741 6742; 751460 6734 6733 6745 6746
3590. 751461 6735 6734 6746 6747; 751462 6737 6736 6748 6749
3591. 751463 6738 6737 6749 6750; 751464 6739 6738 6750 6751
3592. 751465 6740 6739 6751 6752; 751466 6741 6740 6752 6753
3593. 751467 6742 6741 6753 6754; 751468 6746 6745 6757 6758
3594. 751469 6747 6746 6758 6759; 751470 6749 6748 6760 6761
3595. 751471 6750 6749 6761 6762; 751472 6751 6750 6762 6763
3596. 751473 6752 6751 6763 6764; 751474 6753 6752 6764 6765
3597. 751475 6754 6753 6765 6766; 751476 6758 6757 6769 6770
3598. 751477 6759 6758 6770 6771; 751478 6761 6760 6772 6773
3599. 751479 6762 6761 6773 6774; 751480 6763 6762 6774 6775
3600. 751481 6764 6763 6775 6776; 751482 6765 6764 6776 6777
3601. 751483 6766 6765 6777 6778; 751484 6770 6769 6781 6782
3602. 751485 6771 6770 6782 6783; 751486 6773 6772 6784 6785
3603. 751487 6774 6773 6785 6786; 751488 6775 6774 6786 6787
3604. 751489 6776 6775 6787 6788; 751490 6777 6776 6788 6789
3605. 751491 6778 6777 6789 6790; 751492 6782 6781 6793 6794
3606. 751493 6783 6782 6794 6795; 751494 6785 6784 6796 6797
3607. 751495 6786 6785 6797 6798; 751496 6787 6786 6798 6799
3608. 751497 6788 6787 6799 6800; 751498 6789 6788 6800 6801
3609. 751499 6790 6789 6801 6802; 751500 6794 6793 6805 6806
3610. 751501 6795 6794 6806 6807; 751502 6797 6796 6808 6809
3611. 751503 6798 6797 6809 6810; 751504 6799 6798 6810 6811
3612. 751505 6800 6799 6811 6812; 751506 6801 6800 6812 6813
3613. 751507 6802 6801 6813 6814; 751508 6806 6805 6817 6818
3614. 751509 6807 6806 6818 6819; 751510 6809 6808 6820 6821
3615. 751511 6810 6809 6821 6822; 751512 6811 6810 6822 6823
3616. 751513 6812 6811 6823 6824; 751514 6813 6812 6824 6825
3617. 751515 6814 6813 6825 6826; 751516 6818 6817 6829 6830
3618. 751517 6819 6818 6830 6831; 751518 6821 6820 6832 6833
3619. 751519 6822 6821 6833 6834; 751520 6823 6822 6834 6835
3620. 751521 6824 6823 6835 6836; 751522 6825 6824 6836 6837
3621. 751523 6826 6825 6837 6838; 751524 6830 6829 6841 6842
3622. 751525 6831 6830 6842 6843; 751526 6833 6832 6844 6845

_ STAAD SPACE -- PAGE NO. 66

3623. 751527 6834 6833 6845 6846; 751528 6835 6834 6846 6847
3624. 751529 6836 6835 6847 6848; 751530 6837 6836 6848 6849
3625. 751531 6838 6837 6849 6850; 751532 6842 6841 6853 6854
3626. 751533 6843 6842 6854 6855; 751534 6845 6844 6856 6857
3627. 751535 6846 6845 6857 6858; 751536 6847 6846 6858 6859
3628. 751537 6848 6847 6859 6860; 751538 6849 6848 6860 6861
3629. 751539 6850 6849 6861 6862; 751540 6854 6853 6865 6866
3630. 751541 6855 6854 6866 6867; 751542 6857 6856 6868 6869
3631. 751543 6858 6857 6869 6870; 751544 6859 6858 6870 6871
3632. 751545 6860 6859 6871 6872; 751546 6861 6860 6872 6873
3633. 751547 6862 6861 6873 6874; 751548 6866 6865 6877 6878
3634. 751549 6867 6866 6878 6879; 751550 6869 6868 6880 6881
3635. 751551 6870 6869 6881 6882; 751552 6871 6870 6882 6883
3636. 751553 6872 6871 6883 6884; 751554 6873 6872 6884 6885
3637. 751555 6874 6873 6885 6886; 751556 6878 6877 6889 6890
3638. 751557 6879 6878 6890 6891; 751558 6881 6880 6892 6893
3639. 751559 6882 6881 6893 6894; 751560 6883 6882 6894 6895
3640. 751561 6884 6883 6895 6896; 751562 6885 6884 6896 6897
3641. 751563 6886 6885 6897 6898; 751564 6890 6889 6901 6902
3642. 751565 6891 6890 6902 6903; 751566 6893 6892 6904 6905
3643. 751567 6894 6893 6905 6906; 751568 6895 6894 6906 6907
3644. 751569 6896 6895 6907 6908; 751570 6897 6896 6908 6909
3645. 751571 6898 6897 6909 6910; 751572 6902 6901 6913 6914
3646. 751573 6903 6902 6914 6915; 751574 6905 6904 6916 6917
3647. 751575 6906 6905 6917 6918; 751576 6907 6906 6918 6919
3648. 751577 6908 6907 6919 6920; 751578 6909 6908 6920 6921
3649. 751579 6910 6909 6921 6922; 751580 6914 6913 6925 6926
3650. 751581 6915 6914 6926 6927; 751582 6917 6916 6928 6929
3651. 751583 6918 6917 6929 6930; 751584 6919 6918 6930 6931
3652. 751585 6920 6919 6931 6932; 751586 6921 6920 6932 6933
3653. 751587 6922 6921 6933 6934; 751588 6926 6925 6937 6938
3654. 751589 6927 6926 6938 6939; 751590 6929 6928 6940 6941
3655. 751591 6930 6929 6941 6942; 751592 6931 6930 6942 6943
3656. 751593 6932 6931 6943 6944; 751594 6933 6932 6944 6945
3657. 751595 6934 6933 6945 6946; 751596 6938 6937 6949 6950
3658. 751597 6939 6938 6950 6951; 751598 6941 6940 6952 6953
3659. 751599 6942 6941 6953 6954; 751600 6943 6942 6954 6955
3660. 751601 6944 6943 6955 6956; 751602 6945 6944 6956 6957
3661. 751603 6946 6945 6957 6958; 751604 6963 6962 6974 6975
3662. 751605 6964 6963 6975 6976; 751606 6966 6965 6977 6978
3663. 751607 6967 6966 6978 6979; 751608 6968 6967 6979 6980
3664. 751609 6969 6968 6980 6981; 751610 6970 6969 6981 6982
3665. 751611 6971 6970 6982 6983; 751612 6975 6974 6986 6987
3666. 751613 6976 6975 6987 6988; 751614 6978 6977 6989 6990
3667. 751615 6979 6978 6990 6991; 751616 6980 6979 6991 6992
3668. 751617 6981 6980 6992 6993; 751618 6982 6981 6993 6994
3669. 751619 6983 6982 6994 6995; 751620 6987 6986 6998 6999
3670. 751621 6988 6987 6999 7000; 751622 6990 6989 7001 7002
3671. 751623 6991 6990 7002 7003; 751624 6992 6991 7003 7004
3672. 751625 6993 6992 7004 7005; 751626 6994 6993 7005 7006
3673. 751627 6995 6994 7006 7007; 751628 6999 6998 7010 7011
3674. 751629 7000 6999 7011 7012; 751630 7002 7001 7013 7014
3675. 751631 7003 7002 7014 7015; 751632 7004 7003 7015 7016
3676. 751633 7005 7004 7016 7017; 751634 7006 7005 7017 7018
3677. 751635 7007 7006 7018 7019; 751636 7011 7010 7022 7023
3678. 751637 7012 7011 7023 7024; 751638 7014 7013 7025 7026

_ STAAD SPACE -- PAGE NO. 67

3679. 751639 7015 7014 7026 7027; 751640 7016 7015 7027 7028
3680. 751641 7017 7016 7028 7029; 751642 7018 7017 7029 7030
3681. 751643 7019 7018 7030 7031; 751644 7023 7022 7034 7035
3682. 751645 7024 7023 7035 7036; 751646 7026 7025 7037 7038
3683. 751647 7027 7026 7038 7039; 751648 7028 7027 7039 7040
3684. 751649 7029 7028 7040 7041; 751650 7030 7029 7041 7042
3685. 751651 7031 7030 7042 7043; 751652 7038 7037 7046 7047
3686. 751653 7039 7038 7047 7048; 751654 7040 7039 7048 7049
3687. 751655 7041 7040 7049 7050; 751656 7042 7041 7050 7051
3688. 751657 7043 7042 7051 7052; 751658 7047 7046 7057 7058
3689. 751659 7048 7047 7058 7059; 751660 7049 7048 7059 7060
3690. 751661 7050 7049 7060 7061; 751662 7051 7050 7061 7062
3691. 751663 7052 7051 7062 7063; 751664 7055 7054 7066 7067
3692. 751665 7056 7055 7067 7068; 751666 7058 7057 7069 7070
3693. 751667 7059 7058 7070 7071; 751668 7060 7059 7071 7072
3694. 751669 7061 7060 7072 7073; 751670 7062 7061 7073 7074
3695. 751671 7063 7062 7074 7075; 751672 7080 7079 7091 7092
3696. 751673 7081 7080 7092 7093; 751674 7083 7082 7094 7095
3697. 751675 7084 7083 7095 7096; 751676 7085 7084 7096 7097
3698. 751677 7086 7085 7097 7098; 751678 7087 7086 7098 7099
3699. 751679 7088 7087 7099 7100; 751680 7092 7091 7102 7103
3700. 751681 7093 7092 7103 7104; 751682 6949 6565 6564 7107
3701. 751683 6950 6949 7107 7108; 751684 6951 6950 7108 7109
3702. 751685 6529 6951 7109 7110; 751686 6952 6529 7110 7111
3703. 751687 6953 6952 7111 7112; 751688 6955 6954 7113 7114
3704. 751689 6957 6956 7115 7116; 751690 6958 6957 7116 7117
3705. 751691 6494 6958 7117 6493; 751692 6422 6959 7118 6421
3706. 751693 7107 6564 6563 6962; 751694 7108 7107 6962 6963
3707. 751695 7109 7108 6963 6964; 751696 7110 7109 6964 6528
3708. 751697 7111 7110 6528 6965; 751698 7112 7111 6965 6966
3709. 751699 7114 7113 6967 6968; 751700 7116 7115 6969 6970
3710. 751701 7117 7116 6970 6971; 751702 6493 7117 6971 6492
3711. 751703 6421 7118 6972 6420; 751704 7034 6558 6557 7119
3712. 751705 7036 7035 7120 7121; 751706 6523 7036 7121 6522
3713. 751707 6415 7044 7122 6414; 751708 7119 6557 6556 7054
3714. 751709 7121 7120 7055 7056; 751710 6522 7121 7056 6521
3715. 751711 6414 7122 7064 6413; 751712 7066 6555 6617 7123
3716. 751713 7068 7067 7124 7125; 751714 6520 7068 7125 7126
3717. 751715 7069 6520 7126 7127; 751716 7070 7069 7127 7128
3718. 751717 7071 7070 7128 7129; 751718 7073 7072 7130 7131
3719. 751719 7074 7073 7131 7132; 751720 7075 7074 7132 7133
3720. 751721 6484 7075 7133 6618; 751722 6412 7076 7134 6619
3721. 751723 7123 6617 6622 7079; 751724 7125 7124 7080 7081
3722. 751725 7126 7125 7081 6623; 751726 7127 7126 6623 7082
3723. 751727 7128 7127 7082 7083; 751728 7129 7128 7083 7084
3724. 751729 7131 7130 7085 7086; 751730 7132 7131 7086 7087
3725. 751731 7133 7132 7087 7088; 751732 6618 7133 7088 6624
3726. 751733 6619 7134 7089 6625; 751734 7102 6628 6553 7135
3727. 751735 7104 7103 7136 7137; 751736 6629 7104 7137 6518
3728. 751737 7138 6629 6518 7139; 751738 7140 7138 7139 7141
3729. 751739 7142 7140 7141 7143; 751740 7144 7145 7146 7147
3730. 751741 7144 7145 7097 7098; 751742 7148 7144 7147 7149
3731. 751743 7148 7144 7098 7099; 751744 7150 7148 7149 7151
3732. 751745 7150 7148 7099 7100; 751746 6630 7150 7151 6482
3733. 751747 6630 7150 7100 6483; 751748 6632 7152 7106 6410
3734. 751749 6633 7105 7153 6374; 751750 7135 6553 805 764; 751751 7137 7136 723 682

_ STAAD SPACE -- PAGE NO. 68

3735. 751752 6518 7137 682 641; 751753 7139 6518 641 600; 751754 7141 7139 600 559
3736. 751755 7143 7141 559 518; 751756 7147 7146 477 436; 751757 7149 7147 436 395
3737. 751758 7151 7149 395 354; 751759 6482 7151 354 313; 751760 6374 7153 149 108
3738. 751761 7153 149 190 6410; 751762 7105 7153 6410 6632
3739. 751763 7152 7106 6446 6631; 751764 7076 7134 6636 6448
3740. 751765 7122 7064 6449 6450; 751766 7044 7122 6450 6451
3741. 751767 7146 477 518 7143; 751768 7145 7146 7143 7142; 751769 7136 723 764 7135
3742. 751770 7103 7136 7135 7102; 751771 7067 7124 7123 7066
3743. 751772 7120 7055 7054 7119; 751773 7035 7120 7119 7034
3744. 751774 7118 6972 6456 6457; 751775 6959 7118 6457 6458
3745. 751776 7115 6969 6968 7114; 751777 6956 7115 7114 6955
3746. 751778 7113 6967 6966 7112; 751779 6954 7113 7112 6953
3747. 751780 7072 7071 7129 7130; 751781 7124 7123 7079 7080
3748. 751782 7130 7129 7084 7085; 751783 7134 6636 6635 7089
3749. 751784 7145 7142 7096 7097; 751785 6625 6411 7154 7089
3750. 751786 6632 7152 7154 6411; 751787 7089 7154 6447 6635
3751. 751788 7152 6631 6447 7154; 751789 7142 7140 7095 7096
3752. 751790 7140 7138 7094 7095; 751791 7138 6629 6519 7094
3753. 751792 876 877 7265 7155; 751793 877 7265 7298 951; 751794 951 7298 7515 992
3754. 751795 992 7515 7331 1033; 751796 1033 7331 7514 1074
3755. 751797 1074 7514 7364 1115; 751798 1115 7364 7397 1156
3756. 751799 1156 7397 7513 1197; 751800 1197 7513 7512 1238
3757. 751801 1238 7512 7511 1279; 751802 1279 7511 7510 1320
3758. 751803 1320 7510 7509 1361; 751804 1361 7509 7508 1402
3759. 751805 1402 7508 7507 1443; 751806 1443 7507 7429 1484
3760. 751807 1484 7429 7506 1525; 751808 1525 7506 7505 1566
3761. 751809 1566 7505 7504 1607; 751810 1607 7504 7462 1648
3762. 751811 1648 7462 7156 1689; 751812 7155 7157 7264 7265
3763. 751813 7157 7159 7263 7264; 751814 7159 7161 7262 7263
3764. 751815 7161 7163 7261 7262; 751816 7163 7165 7260 7261
3765. 751817 7165 7167 7259 7260; 751818 7167 7169 7258 7259
3766. 751819 7169 7171 7257 7258; 751820 7171 1741 3306 7257
3767. 751821 1741 7173 7256 3306; 751822 7173 7175 7255 7256
3768. 751823 7175 7177 7254 7255; 751824 7177 7179 7253 7254
3769. 751825 7179 7181 7252 7253; 751826 7181 7183 7251 7252
3770. 751827 7183 7185 7250 7251; 751828 7185 1757 3119 7250
3771. 751829 1757 7187 7249 3119; 751830 7187 7189 7248 7249
3772. 751831 7189 7191 7247 7248; 751832 7191 7193 7246 7247
3773. 751833 7193 7195 7469 7246; 751834 7195 7197 7476 7469
3774. 751835 7197 7199 7245 7476; 751836 7199 1773 2932 7245
3775. 751837 1773 7201 7244 2932; 751838 7201 7203 7243 7244
3776. 751839 7203 7205 7242 7243; 751840 7205 7207 7483 7242
3777. 751841 7207 7209 7241 7483; 751842 7209 7211 7240 7241
3778. 751843 7211 7213 7239 7240; 751844 7213 1789 2745 7239
3779. 751845 1789 7215 7238 2745; 751846 7215 7217 7237 7238
3780. 751847 7217 7219 7236 7237; 751848 7219 7221 7235 7236
3781. 751849 7221 7223 7488 7235; 751850 7223 7225 7494 7488
3782. 751851 7225 7227 7234 7494; 751852 7227 7229 7501 7234
3783. 751853 7229 7231 7233 7501; 751854 7231 15 16 7233; 751855 787 828 7232 7430
3784. 751856 172 213 7924 7299; 751857 16 90 7266 7233; 751858 254 295 7365 7332
3785. 751859 213 254 7332 7924; 751860 7234 7501 7500 7267
3786. 751861 7235 7488 7487 7268; 751862 7236 7235 7268 7269
3787. 751863 7237 7236 7269 7270; 751864 7238 7237 7270 7271
3788. 751865 2745 7238 7271 2754; 751866 7239 2745 2754 7272
3789. 751867 7240 7239 7272 7273; 751868 7241 7240 7273 7274
3790. 751869 7242 7483 7482 7275; 751870 7243 7242 7275 7276

_ STAAD SPACE -- PAGE NO. 69

3791. 751871 7244 7243 7276 7277; 751872 2932 7244 7277 2941
3792. 751873 7245 2932 2941 7278; 751874 7246 7469 7468 7279
3793. 751875 7247 7246 7279 7280; 751876 7248 7247 7280 7281
3794. 751877 7249 7248 7281 7282; 751878 7250 3119 3128 7283
3795. 751879 7251 7250 7283 7284; 751880 7252 7251 7284 7285
3796. 751881 7253 7252 7285 7286; 751882 7254 7253 7286 7287
3797. 751883 7255 7254 7287 7288; 751884 7256 7255 7288 7289
3798. 751885 3306 7256 7289 3315; 751886 7257 3306 3315 7290
3799. 751887 7258 7257 7290 7291; 751888 7259 7258 7291 7292
3800. 751889 7260 7259 7292 7293; 751890 7261 7260 7293 7294
3801. 751891 7262 7261 7294 7295; 751892 7263 7262 7295 7296
3802. 751893 7264 7263 7296 7297; 751894 7265 7264 7297 7298
3803. 751895 7267 7500 7923 7919; 751896 7268 7487 7897 7896
3804. 751897 7269 7268 7896 7884; 751898 7270 7269 7884 7872
3805. 751899 7271 7270 7872 7864; 751900 2754 7271 7864 2763
3806. 751901 7272 2754 2763 7852; 751902 7273 7272 7852 7840
3807. 751903 7274 7273 7840 7828; 751904 7275 7482 7816 7804
3808. 751905 7276 7275 7804 7792; 751906 7277 7276 7792 7791
3809. 751907 2941 7277 7791 2950; 751908 7278 2941 2950 7779
3810. 751909 7279 7468 7755 7743; 751910 7280 7279 7743 7731
3811. 751911 7281 7280 7731 7719; 751912 7282 7281 7719 7707
3812. 751913 7283 3128 3137 7695; 751914 7284 7283 7695 7683
3813. 751915 7285 7284 7683 7671; 751916 7286 7285 7671 7659
3814. 751917 7287 7286 7659 7647; 751918 7288 7287 7647 7635
3815. 751919 7289 7288 7635 7623; 751920 3315 7289 7623 3324
3816. 751921 7290 3315 3324 7611; 751922 7291 7290 7611 7599
3817. 751923 7292 7291 7599 7587; 751924 7293 7292 7587 7575
3818. 751925 7294 7293 7575 7563; 751926 7295 7294 7563 7551
3819. 751927 7296 7295 7551 7539; 751928 7297 7296 7539 7527
3820. 751929 7298 7297 7527 7515; 751930 7300 7499 7923 7919
3821. 751931 7301 7486 7897 7896; 751932 7302 7301 7895 7883
3822. 751933 7302 7301 7896 7884; 751934 7303 7302 7884 7872
3823. 751935 7304 7303 7872 7864; 751936 2772 7304 7863 2781
3824. 751937 2772 7304 7864 2763; 751938 7305 2772 2781 7851
3825. 751939 7305 2772 2763 7852; 751940 7306 7305 7851 7839
3826. 751941 7306 7305 7852 7840; 751942 7307 7306 7839 7827
3827. 751943 7307 7306 7840 7828; 751944 7308 7481 7815 7803
3828. 751945 7308 7481 7816 7804; 751946 7309 7308 7804 7792
3829. 751947 7310 7309 7792 7791; 751948 2959 7310 7790 2968
3830. 751949 2959 7310 7791 2950; 751950 7311 2959 2968 7778
3831. 751951 7311 2959 2950 7779; 751952 7312 7467 7754 7742
3832. 751953 7312 7467 7755 7743; 751954 7313 7312 7742 7730
3833. 751955 7313 7312 7743 7731; 751956 7314 7313 7730 7718
3834. 751957 7314 7313 7731 7719; 751958 7315 7314 7718 7706
3835. 751959 7315 7314 7719 7707; 751960 7316 3146 3155 7694
3836. 751961 7316 3146 3137 7695; 751962 7317 7316 7694 7682
3837. 751963 7317 7316 7695 7683; 751964 7318 7317 7682 7670
3838. 751965 7318 7317 7683 7671; 751966 7319 7318 7670 7658
3839. 751967 7319 7318 7671 7659; 751968 7320 7319 7658 7646
3840. 751969 7320 7319 7659 7647; 751970 7321 7320 7646 7634
3841. 751971 7321 7320 7647 7635; 751972 7322 7321 7634 7622
3842. 751973 7322 7321 7635 7623; 751974 3333 7322 7622 3342
3843. 751975 3333 7322 7623 3324; 751976 7323 3333 3342 7610
3844. 751977 7323 3333 3324 7611; 751978 7324 7323 7610 7598
3845. 751979 7324 7323 7611 7599; 751980 7325 7324 7598 7586
3846. 751981 7325 7324 7599 7587; 751982 7326 7325 7586 7574

_ STAAD SPACE -- PAGE NO. 70

3847. 751983 7326 7325 7587 7575; 751984 7327 7326 7574 7562
3848. 751985 7327 7326 7575 7563; 751986 7328 7327 7562 7550
3849. 751987 7328 7327 7563 7551; 751988 7329 7328 7550 7538
3850. 751989 7329 7328 7551 7539; 751990 7330 7329 7538 7526
3851. 751991 7330 7329 7539 7527; 751992 7331 7330 7526 7514
3852. 751993 7331 7330 7527 7515; 751994 7333 7498 7497 7366
3853. 751995 7334 7503 7485 7367; 751996 7335 7334 7367 7368
3854. 751997 7335 7334 7895 7883; 751998 7336 7335 7368 7369
3855. 751999 7337 7336 7369 7370; 752000 2790 7337 7370 2799
3856. 752001 2790 7337 7863 2781; 752002 7338 2790 2799 7371
3857. 752003 7338 2790 2781 7851; 752004 7339 7338 7371 7372
3858. 752005 7339 7338 7851 7839; 752006 7340 7339 7372 7373
3859. 752007 7340 7339 7839 7827; 752008 7341 7480 7479 7374
3860. 752009 7341 7480 7815 7803; 752010 7342 7341 7374 7375
3861. 752011 7343 7342 7375 7376; 752012 2977 7343 7376 2986
3862. 752013 2977 7343 7790 2968; 752014 7344 2977 2986 7377
3863. 752015 7344 2977 2968 7778; 752016 7345 7466 7465 7378
3864. 752017 7345 7466 7754 7742; 752018 7346 7345 7378 7379
3865. 752019 7346 7345 7742 7730; 752020 7347 7346 7379 7380
3866. 752021 7347 7346 7730 7718; 752022 7348 7347 7380 7381
3867. 752023 7348 7347 7718 7706; 752024 7349 3164 3173 7382
3868. 752025 7349 3164 3155 7694; 752026 7350 7349 7382 7383
3869. 752027 7350 7349 7694 7682; 752028 7351 7350 7383 7384
3870. 752029 7351 7350 7682 7670; 752030 7352 7351 7384 7385
3871. 752031 7352 7351 7670 7658; 752032 7353 7352 7385 7386
3872. 752033 7353 7352 7658 7646; 752034 7354 7353 7386 7387
3873. 752035 7354 7353 7646 7634; 752036 7355 7354 7387 7388
3874. 752037 7355 7354 7634 7622; 752038 3351 7355 7388 3360
3875. 752039 3351 7355 7622 3342; 752040 7356 3351 3360 7389
3876. 752041 7356 3351 3342 7610; 752042 7357 7356 7389 7390
3877. 752043 7357 7356 7610 7598; 752044 7358 7357 7390 7391
3878. 752045 7358 7357 7598 7586; 752046 7359 7358 7391 7392
3879. 752047 7359 7358 7586 7574; 752048 7360 7359 7392 7393
3880. 752049 7360 7359 7574 7562; 752050 7361 7360 7393 7394
3881. 752051 7361 7360 7562 7550; 752052 7362 7361 7394 7395
3882. 752053 7362 7361 7550 7538; 752054 7363 7362 7395 7396
3883. 752055 7363 7362 7538 7526; 752056 7364 7363 7396 7397
3884. 752057 7364 7363 7526 7514; 752058 7368 7367 7894 7882
3885. 752059 7369 7368 7882 7871; 752060 7370 7369 7871 7862
3886. 752061 2799 7370 7862 2808; 752062 7371 2799 2808 7850
3887. 752063 7372 7371 7850 7838; 752064 7373 7372 7838 7826
3888. 752065 7374 7479 7814 7802; 752066 2986 7376 7789 2995
3889. 752067 7377 2986 2995 7777; 752068 7378 7465 7753 7741
3890. 752069 7379 7378 7741 7729; 752070 7380 7379 7729 7717
3891. 752071 7381 7380 7717 7705; 752072 7382 3173 3182 7693
3892. 752073 7383 7382 7693 7681; 752074 7384 7383 7681 7669
3893. 752075 7385 7384 7669 7657; 752076 7386 7385 7657 7645
3894. 752077 7387 7386 7645 7633; 752078 7388 7387 7633 7621
3895. 752079 3360 7388 7621 3369; 752080 7389 3360 3369 7609
3896. 752081 7390 7389 7609 7597; 752082 7391 7390 7597 7585
3897. 752083 7392 7391 7585 7573; 752084 7393 7392 7573 7561
3898. 752085 7394 7393 7561 7549; 752086 7395 7394 7549 7537
3899. 752087 7396 7395 7537 7525; 752088 7397 7396 7525 7513
3900. 752089 7399 7496 7922 7912; 752090 7401 7400 7887 7875
3901. 752091 7401 7400 7888 7876; 752092 7402 7401 7876 7865
3902. 752093 7403 7402 7865 7856; 752094 2871 7403 7855 2880

_ STAAD SPACE -- PAGE NO. 71

3903. 752095 2871 7403 7856 2862; 752096 7404 2871 2880 7843
3904. 752097 7404 2871 2862 7844; 752098 7405 7404 7843 7831
3905. 752099 7405 7404 7844 7832; 752100 7406 7405 7831 7819
3906. 752101 7406 7405 7832 7820; 752102 7407 7478 7807 7795
3907. 752103 7407 7478 7808 7796; 752104 3058 7408 7782 3067
3908. 752105 3058 7408 7783 3049; 752106 7409 3058 3067 7770
3909. 752107 7409 3058 3049 7771; 752108 7410 7464 7746 7734
3910. 752109 7410 7464 7747 7735; 752110 7411 7410 7734 7722
3911. 752111 7411 7410 7735 7723; 752112 7412 7411 7722 7710
3912. 752113 7412 7411 7723 7711; 752114 7413 7412 7710 7698
3913. 752115 7413 7412 7711 7699; 752116 7414 3245 3254 7686
3914. 752117 7414 3245 3236 7687; 752118 7415 7414 7686 7674
3915. 752119 7415 7414 7687 7675; 752120 7416 7415 7674 7662
3916. 752121 7416 7415 7675 7663; 752122 7417 7416 7662 7650
3917. 752123 7417 7416 7663 7651; 752124 7418 7417 7650 7638
3918. 752125 7418 7417 7651 7639; 752126 7419 7418 7638 7626
3919. 752127 7419 7418 7639 7627; 752128 7420 7419 7626 7614
3920. 752129 7420 7419 7627 7615; 752130 3432 7420 7614 3441
3921. 752131 3432 7420 7615 3423; 752132 7421 3432 3441 7602
3922. 752133 7421 3432 3423 7603; 752134 7422 7421 7602 7590
3923. 752135 7422 7421 7603 7591; 752136 7423 7422 7590 7578
3924. 752137 7423 7422 7591 7579; 752138 7424 7423 7578 7566
3925. 752139 7424 7423 7579 7567; 752140 7425 7424 7566 7554
3926. 752141 7425 7424 7567 7555; 752142 7426 7425 7554 7542
3927. 752143 7426 7425 7555 7543; 752144 7427 7426 7542 7530
3928. 752145 7427 7426 7543 7531; 752146 7428 7427 7530 7518
3929. 752147 7428 7427 7531 7519; 752148 7429 7428 7518 7506
3930. 752149 7429 7428 7519 7507; 752150 7431 7495 7230 7228
3931. 752151 7431 7495 7920 7910; 752152 7432 7484 7224 7222
3932. 752153 7433 7432 7222 7220; 752154 7433 7432 7885 7873
3933. 752155 7434 7433 7220 7218; 752156 7435 7434 7218 7216
3934. 752157 2907 7435 7216 1790; 752158 2907 7435 7853 2898
3935. 752159 7436 2907 1790 7214; 752160 7436 2907 2898 7841
3936. 752161 7437 7436 7214 7212; 752162 7437 7436 7841 7829
3937. 752163 7438 7437 7212 7210; 752164 7438 7437 7829 7817
3938. 752165 7439 7477 7208 7206; 752166 7439 7477 7805 7793
3939. 752167 7440 7439 7206 7204; 752168 7441 7440 7204 7202
3940. 752169 3094 7441 7202 1774; 752170 3094 7441 7780 3085
3941. 752171 7442 3094 1774 7200; 752172 7442 3094 3085 7768
3942. 752173 7443 7463 7196 7194; 752174 7443 7463 7744 7732
3943. 752175 7444 7443 7194 7192; 752176 7444 7443 7732 7720
3944. 752177 7445 7444 7192 7190; 752178 7445 7444 7720 7708
3945. 752179 7446 7445 7190 7188; 752180 7446 7445 7708 7696
3946. 752181 7447 3281 1758 7186; 752182 7447 3281 3272 7684
3947. 752183 7448 7447 7186 7184; 752184 7448 7447 7684 7672
3948. 752185 7449 7448 7184 7182; 752186 7449 7448 7672 7660
3949. 752187 7450 7449 7182 7180; 752188 7450 7449 7660 7648
3950. 752189 7451 7450 7180 7178; 752190 7451 7450 7648 7636
3951. 752191 7452 7451 7178 7176; 752192 7452 7451 7636 7624
3952. 752193 7453 7452 7176 7174; 752194 7453 7452 7624 7612
3953. 752195 3468 7453 7174 1742; 752196 3468 7453 7612 3459
3954. 752197 7454 3468 1742 7172; 752198 7454 3468 3459 7600
3955. 752199 7455 7454 7172 7170; 752200 7455 7454 7600 7588
3956. 752201 7456 7455 7170 7168; 752202 7456 7455 7588 7576
3957. 752203 7457 7456 7168 7166; 752204 7457 7456 7576 7564
3958. 752205 7458 7457 7166 7164; 752206 7458 7457 7564 7552

_ STAAD SPACE -- PAGE NO. 72

3959. 752207 7459 7458 7164 7162; 752208 7459 7458 7552 7540
3960. 752209 7460 7459 7162 7160; 752210 7460 7459 7540 7528
3961. 752211 7461 7460 7160 7158; 752212 7461 7460 7528 7516
3962. 752213 7462 7461 7158 7156; 752214 7462 7461 7516 7504
3963. 752215 3281 1758 7188 7446; 752216 3245 3254 7698 7413
3964. 752217 3173 3182 7705 7381; 752218 3164 3173 7381 7348
3965. 752219 3146 3155 7706 7315; 752220 3128 3137 7707 7282
3966. 752221 3119 3128 7282 7249; 752222 7463 7196 7198 7470
3967. 752223 7464 7746 7758 7471; 752224 7465 7753 7765 7472
3968. 752225 7466 7465 7472 7473; 752226 7467 7754 7766 7474
3969. 752227 7468 7755 7767 7475; 752228 7469 7468 7475 7476
3970. 752229 7470 7198 7200 7442; 752230 7471 7758 7770 7409
3971. 752231 7472 7765 7777 7377; 752232 7473 7472 7377 7344
3972. 752233 7474 7766 7778 7311; 752234 7475 7767 7779 7278
3973. 752235 7476 7475 7278 7245; 752236 7477 7208 7210 7438
3974. 752237 7478 7807 7819 7406; 752238 7479 7814 7826 7373
3975. 752239 7480 7479 7373 7340; 752240 7481 7815 7827 7307
3976. 752241 7482 7816 7828 7274; 752242 7483 7482 7274 7241
3977. 752243 7484 7224 7226 7489; 752244 7487 7897 7909 7493
3978. 752245 7488 7487 7493 7494; 752246 7489 7226 7228 7431
3979. 752247 7490 7900 7912 7399; 752248 7491 7907 7918 7366
3980. 752249 7493 7909 7919 7267; 752250 7494 7493 7267 7234
3981. 752251 7333 7366 7491 7502; 752252 7495 7230 7232 7430
3982. 752253 7498 7497 7365 7332; 752254 7501 7500 7266 7233
3983. 752255 7492 7300 7919 7909; 752256 7486 7492 7909 7897
3984. 752257 7481 7307 7828 7816; 752258 7474 7311 7779 7767
3985. 752259 7467 7474 7767 7755; 752260 3146 7315 7707 3137
3986. 752261 7503 7502 7491 7485; 752262 7480 7340 7827 7815
3987. 752263 7473 7344 7778 7766; 752264 7466 7473 7766 7754
3988. 752265 3164 7348 7706 3155; 752266 7490 7399 4239 7901
3989. 752267 7478 7406 7820 7808; 752268 7471 7409 7771 7759
3990. 752269 7464 7471 7759 7747; 752270 3245 7413 7699 3236
3991. 752271 7489 7431 7910 7898; 752272 7477 7438 7817 7805
3992. 752273 7470 7442 7768 7756; 752274 7463 7470 7756 7744
3993. 752275 3281 7446 7696 3272; 752276 7505 7504 7516 7517
3994. 752277 7506 7505 7517 7518; 752278 7508 7507 7519 7520
3995. 752279 7509 7508 7520 7521; 752280 7510 7509 7521 7522
3996. 752281 7511 7510 7522 7523; 752282 7512 7511 7523 7524
3997. 752283 7513 7512 7524 7525; 752284 7517 7516 7528 7529
3998. 752285 7518 7517 7529 7530; 752286 7520 7519 7531 7532
3999. 752287 7521 7520 7532 7533; 752288 7522 7521 7533 7534
4000. 752289 7523 7522 7534 7535; 752290 7524 7523 7535 7536
4001. 752291 7525 7524 7536 7537; 752292 7529 7528 7540 7541
4002. 752293 7530 7529 7541 7542; 752294 7532 7531 7543 7544
4003. 752295 7533 7532 7544 7545; 752296 7534 7533 7545 7546
4004. 752297 7535 7534 7546 7547; 752298 7536 7535 7547 7548
4005. 752299 7537 7536 7548 7549; 752300 7541 7540 7552 7553
4006. 752301 7542 7541 7553 7554; 752302 7544 7543 7555 7556
4007. 752303 7545 7544 7556 7557; 752304 7546 7545 7557 7558
4008. 752305 7547 7546 7558 7559; 752306 7548 7547 7559 7560
4009. 752307 7549 7548 7560 7561; 752308 7553 7552 7564 7565
4010. 752309 7554 7553 7565 7566; 752310 7556 7555 7567 7568
4011. 752311 7557 7556 7568 7569; 752312 7558 7557 7569 7570
4012. 752313 7559 7558 7570 7571; 752314 7560 7559 7571 7572
4013. 752315 7561 7560 7572 7573; 752316 7565 7564 7576 7577
4014. 752317 7566 7565 7577 7578; 752318 7568 7567 7579 7580

_ STAAD SPACE -- PAGE NO. 73

4015. 752319 7569 7568 7580 7581; 752320 7570 7569 7581 7582
4016. 752321 7571 7570 7582 7583; 752322 7572 7571 7583 7584
4017. 752323 7573 7572 7584 7585; 752324 7577 7576 7588 7589
4018. 752325 7578 7577 7589 7590; 752326 7580 7579 7591 7592
4019. 752327 7581 7580 7592 7593; 752328 7582 7581 7593 7594
4020. 752329 7583 7582 7594 7595; 752330 7584 7583 7595 7596
4021. 752331 7585 7584 7596 7597; 752332 7589 7588 7600 7601
4022. 752333 7590 7589 7601 7602; 752334 7592 7591 7603 7604
4023. 752335 7593 7592 7604 7605; 752336 7594 7593 7605 7606
4024. 752337 7595 7594 7606 7607; 752338 7596 7595 7607 7608
4025. 752339 7597 7596 7608 7609; 752340 7601 7600 3459 3450
4026. 752341 7602 7601 3450 3441; 752342 7604 7603 3423 3414
4027. 752343 7605 7604 3414 3405; 752344 7606 7605 3405 3396
4028. 752345 7607 7606 3396 3387; 752346 7608 7607 3387 3378
4029. 752347 7609 7608 3378 3369; 752348 3450 3459 7612 7613
4030. 752349 3441 3450 7613 7614; 752350 3414 3423 7615 7616
4031. 752351 3405 3414 7616 7617; 752352 3396 3405 7617 7618
4032. 752353 3387 3396 7618 7619; 752354 3378 3387 7619 7620
4033. 752355 3369 3378 7620 7621; 752356 7613 7612 7624 7625
4034. 752357 7614 7613 7625 7626; 752358 7616 7615 7627 7628
4035. 752359 7617 7616 7628 7629; 752360 7618 7617 7629 7630
4036. 752361 7619 7618 7630 7631; 752362 7620 7619 7631 7632
4037. 752363 7621 7620 7632 7633; 752364 7625 7624 7636 7637
4038. 752365 7626 7625 7637 7638; 752366 7628 7627 7639 7640
4039. 752367 7629 7628 7640 7641; 752368 7630 7629 7641 7642
4040. 752369 7631 7630 7642 7643; 752370 7632 7631 7643 7644
4041. 752371 7633 7632 7644 7645; 752372 7637 7636 7648 7649
4042. 752373 7638 7637 7649 7650; 752374 7640 7639 7651 7652
4043. 752375 7641 7640 7652 7653; 752376 7642 7641 7653 7654
4044. 752377 7643 7642 7654 7655; 752378 7644 7643 7655 7656
4045. 752379 7645 7644 7656 7657; 752380 7649 7648 7660 7661
4046. 752381 7650 7649 7661 7662; 752382 7652 7651 7663 7664
4047. 752383 7653 7652 7664 7665; 752384 7654 7653 7665 7666
4048. 752385 7655 7654 7666 7667; 752386 7656 7655 7667 7668
4049. 752387 7657 7656 7668 7669; 752388 7661 7660 7672 7673
4050. 752389 7662 7661 7673 7674; 752390 7664 7663 7675 7676
4051. 752391 7665 7664 7676 7677; 752392 7666 7665 7677 7678
4052. 752393 7667 7666 7678 7679; 752394 7668 7667 7679 7680
4053. 752395 7669 7668 7680 7681; 752396 7673 7672 7684 7685
4054. 752397 7674 7673 7685 7686; 752398 7676 7675 7687 7688
4055. 752399 7677 7676 7688 7689; 752400 7678 7677 7689 7690
4056. 752401 7679 7678 7690 7691; 752402 7680 7679 7691 7692
4057. 752403 7681 7680 7692 7693; 752404 7685 7684 3272 3263
4058. 752405 7686 7685 3263 3254; 752406 7688 7687 3236 3227
4059. 752407 7689 7688 3227 3218; 752408 7690 7689 3218 3209
4060. 752409 7691 7690 3209 3200; 752410 7692 7691 3200 3191
4061. 752411 7693 7692 3191 3182; 752412 3263 3272 7696 7697
4062. 752413 3254 3263 7697 7698; 752414 3227 3236 7699 7700
4063. 752415 3218 3227 7700 7701; 752416 3209 3218 7701 7702
4064. 752417 3200 3209 7702 7703; 752418 3191 3200 7703 7704
4065. 752419 3182 3191 7704 7705; 752420 7697 7696 7708 7709
4066. 752421 7698 7697 7709 7710; 752422 7700 7699 7711 7712
4067. 752423 7701 7700 7712 7713; 752424 7702 7701 7713 7714
4068. 752425 7703 7702 7714 7715; 752426 7704 7703 7715 7716
4069. 752427 7705 7704 7716 7717; 752428 7709 7708 7720 7721
4070. 752429 7710 7709 7721 7722; 752430 7712 7711 7723 7724

_ STAAD SPACE -- PAGE NO. 74

4071. 752431 7713 7712 7724 7725; 752432 7714 7713 7725 7726
4072. 752433 7715 7714 7726 7727; 752434 7716 7715 7727 7728
4073. 752435 7717 7716 7728 7729; 752436 7721 7720 7732 7733
4074. 752437 7722 7721 7733 7734; 752438 7724 7723 7735 7736
4075. 752439 7725 7724 7736 7737; 752440 7726 7725 7737 7738
4076. 752441 7727 7726 7738 7739; 752442 7728 7727 7739 7740
4077. 752443 7729 7728 7740 7741; 752444 7733 7732 7744 7745
4078. 752445 7734 7733 7745 7746; 752446 7736 7735 7747 7748
4079. 752447 7737 7736 7748 7749; 752448 7738 7737 7749 7750
4080. 752449 7739 7738 7750 7751; 752450 7740 7739 7751 7752
4081. 752451 7741 7740 7752 7753; 752452 7745 7744 7756 7757
4082. 752453 7746 7745 7757 7758; 752454 7748 7747 7759 7760
4083. 752455 7749 7748 7760 7761; 752456 7750 7749 7761 7762
4084. 752457 7751 7750 7762 7763; 752458 7752 7751 7763 7764
4085. 752459 7753 7752 7764 7765; 752460 7757 7756 7768 7769
4086. 752461 7758 7757 7769 7770; 752462 7760 7759 7771 7772
4087. 752463 7761 7760 7772 7773; 752464 7762 7761 7773 7774
4088. 752465 7763 7762 7774 7775; 752466 7764 7763 7775 7776
4089. 752467 7765 7764 7776 7777; 752468 7769 7768 3085 3076
4090. 752469 7770 7769 3076 3067; 752470 7772 7771 3049 3040
4091. 752471 7773 7772 3040 3031; 752472 7774 7773 3031 3022
4092. 752473 7775 7774 3022 3013; 752474 7776 7775 3013 3004
4093. 752475 7777 7776 3004 2995; 752476 3076 3085 7780 7781
4094. 752477 3067 3076 7781 7782; 752478 3040 3049 7783 7784
4095. 752479 3031 3040 7784 7785; 752480 3022 3031 7785 7786
4096. 752481 3013 3022 7786 7787; 752482 3004 3013 7787 7788
4097. 752483 2995 3004 7788 7789; 752484 7794 7793 7805 7806
4098. 752485 7795 7794 7806 7807; 752486 7797 7796 7808 7809
4099. 752487 7798 7797 7809 7810; 752488 7799 7798 7810 7811
4100. 752489 7800 7799 7811 7812; 752490 7801 7800 7812 7813
4101. 752491 7802 7801 7813 7814; 752492 7806 7805 7817 7818
4102. 752493 7807 7806 7818 7819; 752494 7809 7808 7820 7821
4103. 752495 7810 7809 7821 7822; 752496 7811 7810 7822 7823
4104. 752497 7812 7811 7823 7824; 752498 7813 7812 7824 7825
4105. 752499 7814 7813 7825 7826; 752500 7818 7817 7829 7830
4106. 752501 7819 7818 7830 7831; 752502 7821 7820 7832 7833
4107. 752503 7822 7821 7833 7834; 752504 7823 7822 7834 7835
4108. 752505 7824 7823 7835 7836; 752506 7825 7824 7836 7837
4109. 752507 7826 7825 7837 7838; 752508 7830 7829 7841 7842
4110. 752509 7831 7830 7842 7843; 752510 7833 7832 7844 7845
4111. 752511 7834 7833 7845 7846; 752512 7835 7834 7846 7847
4112. 752513 7836 7835 7847 7848; 752514 7837 7836 7848 7849
4113. 752515 7838 7837 7849 7850; 752516 7842 7841 2898 2889
4114. 752517 7843 7842 2889 2880; 752518 7845 7844 2862 2853
4115. 752519 7846 7845 2853 2844; 752520 7847 7846 2844 2835
4116. 752521 7848 7847 2835 2826; 752522 7849 7848 2826 2817
4117. 752523 7850 7849 2817 2808; 752524 2889 2898 7853 7854
4118. 752525 2880 2889 7854 7855; 752526 2853 2862 7856 7857
4119. 752527 2844 2853 7857 7858; 752528 2835 2844 7858 7859
4120. 752529 2826 2835 7859 7860; 752530 2817 2826 7860 7861
4121. 752531 2808 2817 7861 7862; 752532 7857 7856 7865 7866
4122. 752533 7858 7857 7866 7867; 752534 7859 7858 7867 7868
4123. 752535 7860 7859 7868 7869; 752536 7861 7860 7869 7870
4124. 752537 7862 7861 7870 7871; 752538 7866 7865 7876 7877
4125. 752539 7867 7866 7877 7878; 752540 7868 7867 7878 7879
4126. 752541 7869 7868 7879 7880; 752542 7870 7869 7880 7881

_ STAAD SPACE -- PAGE NO. 75

4127. 752543 7871 7870 7881 7882; 752544 7874 7873 7885 7886
4128. 752545 7875 7874 7886 7887; 752546 7877 7876 7888 7889
4129. 752547 7878 7877 7889 7890; 752548 7879 7878 7890 7891
4130. 752549 7880 7879 7891 7892; 752550 7881 7880 7892 7893
4131. 752551 7882 7881 7893 7894; 752552 7899 7898 7910 7911
4132. 752553 7900 7899 7911 7912; 752554 7902 7901 4239 7913
4133. 752555 7903 7902 7913 7914; 752556 7904 7903 7914 7915
4134. 752557 7905 7904 7915 7916; 752558 7906 7905 7916 7917
4135. 752559 7907 7906 7917 7918; 752560 7911 7910 7920 7921
4136. 752561 7912 7911 7921 7922; 752562 7780 7441 7440 7925
4137. 752563 7781 7780 7925 7926; 752564 7782 7781 7926 7927
4138. 752565 7408 7782 7927 7928; 752566 7783 7408 7928 7929
4139. 752567 7784 7783 7929 7930; 752568 7786 7785 7931 7932
4140. 752569 7788 7787 7933 7934; 752570 7789 7788 7934 7935
4141. 752571 7376 7789 7935 7375; 752572 7310 7790 7936 7309
4142. 752573 7925 7440 7439 7793; 752574 7926 7925 7793 7794
4143. 752575 7927 7926 7794 7795; 752576 7928 7927 7795 7407
4144. 752577 7929 7928 7407 7796; 752578 7930 7929 7796 7797
4145. 752579 7932 7931 7798 7799; 752580 7934 7933 7800 7801
4146. 752581 7935 7934 7801 7802; 752582 7375 7935 7802 7374
4147. 752583 7309 7936 7803 7308; 752584 7853 7435 7434 7937
4148. 752585 7855 7854 7938 7939; 752586 7403 7855 7939 7402
4149. 752587 7304 7863 7940 7303; 752588 7937 7434 7433 7873
4150. 752589 7939 7938 7874 7875; 752590 7402 7939 7875 7401
4151. 752591 7303 7940 7883 7302; 752592 7885 7432 7484 7941
4152. 752593 7887 7886 7942 7943; 752594 7400 7887 7943 7944
4153. 752595 7888 7400 7944 7945; 752596 7889 7888 7945 7946
4154. 752597 7890 7889 7946 7947; 752598 7892 7891 7948 7949
4155. 752599 7893 7892 7949 7950; 752600 7894 7893 7950 7951
4156. 752601 7367 7894 7951 7485; 752602 7301 7895 7952 7486
4157. 752603 7941 7484 7489 7898; 752604 7943 7942 7899 7900
4158. 752605 7944 7943 7900 7490; 752606 7945 7944 7490 7901
4159. 752607 7946 7945 7901 7902; 752608 7947 7946 7902 7903
4160. 752609 7949 7948 7904 7905; 752610 7950 7949 7905 7906
4161. 752611 7951 7950 7906 7907; 752612 7485 7951 7907 7491
4162. 752613 7486 7952 7908 7492; 752614 7920 7495 7430 7953
4163. 752615 7922 7921 7954 7955; 752616 7496 7922 7955 7398
4164. 752617 7956 7496 7398 7957; 752618 7958 7956 7957 7959
4165. 752619 7960 7958 7959 7961; 752620 7962 7963 7964 7965
4166. 752621 7962 7963 7915 7916; 752622 7966 7962 7965 7967
4167. 752623 7966 7962 7916 7917; 752624 7968 7966 7967 7969
4168. 752625 7968 7966 7917 7918; 752626 7497 7968 7969 7365
4169. 752627 7497 7968 7918 7366; 752628 7499 7970 7924 7299
4170. 752629 7500 7923 7971 7266; 752630 7953 7430 787 746; 752631 7955 7954 705 664
4171. 752632 7398 7955 664 623; 752633 7957 7398 623 582; 752634 7959 7957 582 541
4172. 752635 7961 7959 541 500; 752636 7965 7964 459 418; 752637 7967 7965 418 377
4173. 752638 7969 7967 377 336; 752639 7365 7969 336 295; 752640 7266 7971 131 90
4174. 752641 7971 131 172 7299; 752642 7923 7971 7299 7499
4175. 752643 7970 7924 7332 7498; 752644 7895 7952 7503 7334
4176. 752645 7940 7883 7335 7336; 752646 7863 7940 7336 7337
4177. 752647 7964 459 500 7961; 752648 7963 7964 7961 7960; 752649 7954 705 746 7953
4178. 752650 7921 7954 7953 7920; 752651 7886 7942 7941 7885
4179. 752652 7938 7874 7873 7937; 752653 7854 7938 7937 7853
4180. 752654 7936 7803 7341 7342; 752655 7790 7936 7342 7343
4181. 752656 7933 7800 7799 7932; 752657 7787 7933 7932 7786
4182. 752658 7931 7798 7797 7930; 752659 7785 7931 7930 7784

_ STAAD SPACE -- PAGE NO. 76

4183. 752660 7891 7890 7947 7948; 752661 7942 7941 7898 7899
4184. 752662 7948 7947 7903 7904; 752663 7952 7503 7502 7908
4185. 752664 7963 7960 7914 7915; 752665 7492 7300 7972 7908
4186. 752666 7499 7970 7972 7300; 752667 7908 7972 7333 7502
4187. 752668 7970 7498 7333 7972; 752669 7960 7958 7913 7914
4188. 752670 7958 7956 4239 7913; 752671 7956 7496 7399 4239
4189. ELEMENT PROPERTY
4190. 1 TO 1600 THICKNESS 0.75
4191. 750000 TO 750141 750143 TO 750207 750209 TO 750275 750277 TO 750302 750304 -
4192. 750305 TO 750315 750318 TO 750369 750371 TO 750382 750384 TO 750481 750483 -
4193. 750484 TO 750700 750707 TO 750714 750716 TO 750755 750758 TO 750777 750784 -
4194. 750785 TO 750791 750794 TO 750847 750850 TO 750900 750905 TO 750910 -
4195. 750911 THICKNESS 1
4196. 751792 TO 752671 THICKNESS 2
4197. 750912 TO 751791 THICKNESS 1.2
4198. 11108 11109 11114 11115 11120 11121 11126 11127 11132 11133 11138 11139 11144 -
4199. 11145 11150 11151 11156 11157 11162 11163 11168 11169 11174 11175 11180 -
4200. 11181 11186 11187 11192 11193 11198 11199 11204 11205 11210 11211 11216 -
4201. 11217 11226 11227 11232 11233 11238 11239 11244 11245 11250 11251 11256 -
4202. 11257 11262 11263 11268 11269 11274 11275 11280 11281 11286 11287 11292 -
4203. 11293 11298 11299 11304 11305 11310 11311 11316 11317 11322 11323 11328 -
4204. 11329 11334 11335 11344 11345 11350 11351 11356 11357 11362 11363 11368 -
4205. 11369 11374 11375 11380 11381 11386 11387 11392 11393 11398 11399 11404 -
4206. 11405 11410 11411 11416 11417 11422 11423 11428 11429 11434 11435 11440 -
4207. 11441 11446 11447 11452 11453 11462 11463 11468 11469 11474 11475 11480 -
4208. 11481 11486 11487 11492 11493 11498 11499 11504 11505 11510 11511 11516 -
4209. 11517 11522 11523 11528 11529 11534 11535 11540 11541 11546 11547 11552 -
4210. 11553 11558 11559 11564 11565 11570 TO 11644 12259 TO 12546 THICKNESS 0.7
4211. 10573 10583 10593 10603 10949 10951 10953 10955 10957 10959 10961 10963 10965 -
4212. 10967 10969 10971 10973 10975 10977 10979 10981 10983 10985 10987 10989 -
4213. 10991 10993 10995 10997 10999 11001 11003 11005 11007 11009 11011 11013 -
4214. 11015 11017 11019 11021 11023 11025 11027 11029 11031 11033 11035 11037 -
4215. 11039 11041 11043 11045 11047 11049 11051 11053 11055 11057 11059 11061 -
4216. 11063 11065 11067 11069 11071 11073 11075 11077 11079 11081 11083 11085 -
4217. 11087 11089 11091 11093 11095 11097 11099 TO 11107 11110 TO 11113 -
4218. 11116 TO 11119 11122 TO 11125 11128 TO 11131 11134 TO 11137 11140 TO 11143 -
4219. 11146 TO 11149 11152 TO 11155 11158 TO 11161 11164 TO 11167 11170 TO 11173 -
4220. 11176 TO 11179 11182 TO 11185 11188 TO 11191 11194 TO 11197 11200 TO 11203 -
4221. 11206 TO 11209 11212 TO 11215 11218 TO 11225 11228 TO 11231 11234 TO 11237 -
4222. 11240 TO 11243 11246 TO 11249 11252 TO 11255 11258 TO 11261 11264 TO 11267 -
4223. 11270 TO 11273 11276 TO 11279 11282 TO 11285 11288 TO 11291 11294 TO 11297 -
4224. 11300 TO 11303 11306 TO 11309 11312 TO 11315 11318 TO 11321 11324 TO 11327 -
4225. 11330 TO 11333 11336 TO 11343 11346 TO 11349 11352 TO 11355 11358 TO 11361 -
4226. 11364 TO 11367 11370 TO 11373 11376 TO 11379 11382 TO 11385 11388 TO 11391 -
4227. 11394 TO 11397 11400 TO 11403 11406 TO 11409 11412 TO 11415 11418 TO 11421 -
4228. 11424 TO 11427 11430 TO 11433 11436 TO 11439 11442 TO 11445 11448 TO 11451 -
4229. 11454 TO 11461 11464 TO 11467 11470 TO 11473 11476 TO 11479 11482 TO 11485 -
4230. 11488 TO 11491 11494 TO 11497 11500 TO 11503 11506 TO 11509 11512 TO 11515 -
4231. 11518 THICKNESS 0.6
4232. 11519 TO 11521 11524 TO 11527 11530 TO 11533 11536 TO 11539 11542 TO 11545 -
4233. 11548 TO 11551 11554 TO 11557 11560 TO 11563 11566 TO 11569 THICKNESS 0.6
4234. DEFINE MATERIAL START
4235. ISOTROPIC CONCRETE
4236. E 2.17184E+07
4237. POISSON 0.17
4238. DENSITY 23.6158

_ STAAD SPACE -- PAGE NO. 77

4239. ALPHA 5E-06
4240. DAMP 0.05
4241. TYPE CONCRETE
4242. STRENGTH FCU 27578.9
4243. END DEFINE MATERIAL
4244. MEMBER PROPERTY AMERICAN
4245. 752672 TO 752711 PRIS YD 2 ZD 0.75
4246. CONSTANTS
4247. MATERIAL CONCRETE ALL
4248. SUPPORTS
4249. 1 3 83 124 165 206 247 288 329 370 411 452 493 534 575 616 657 698 739 780 -
4250. 821 862 864 944 985 1026 1067 1108 1149 1190 1231 1272 1313 1354 1395 1436 -
4251. 1477 1518 1559 1600 1641 1682 FIXED
4252. DEFINE MOVING LOAD
4253. TYPE 1 LOAD 85 85 85 85
4254. DIST 2.2 12.4 2.2 WID 1.8
4255. DEFINE IS1893 2016 LOAD
4256. ZONE 0.16 RF 5 I 1.5 SS 2 ST 1 DM 0.05
4257. SELFWEIGHT 1
4258. LOAD 1 LOADTYPE WIND TITLE SEISMIC +X
4259. 1893 LOAD X 1
4260. LOAD 2 LOADTYPE SEISMIC-H TITLE SEISMIC +Z
4261. 1893 LOAD Z 1
4262. LOAD 3 LOADTYPE SEISMIC-V TITLE SEISMIC Y
4263. 1893 LOAD Y 1
4264. LOAD 101 LOADTYPE NONE TITLE DL
4265. SELFWEIGHT Y -1
4266. LOAD 201 LOADTYPE LIVE TITLE LL - METRO RAIL LANE 1
4267. LOAD GENERATION 40 ADD LOAD 201
4268. TYPE 1 2.4 3.5 10 XINC 1
4269. LOAD 301 LOADTYPE LIVE TITLE LL- METRO RAIL LANE 2

**WARNING-A MOVING LOAD THAT WOULD HAVE BEEN APPLIED BEYOND THE X AND Z RANGES

OF THE STRUCTURE HAS BEEN IGNORED. CASE= 203 WHEEL 7 OF 8

**WARNING-A MOVING LOAD THAT WOULD HAVE BEEN APPLIED BEYOND THE X AND Z RANGES

OF THE STRUCTURE HAS BEEN IGNORED. CASE= 203 WHEEL 8 OF 8

**WARNING-A MOVING LOAD THAT WOULD HAVE BEEN APPLIED BEYOND THE X AND Z RANGES

OF THE STRUCTURE HAS BEEN IGNORED. CASE= 204 WHEEL 7 OF 8

**WARNING-A MOVING LOAD THAT WOULD HAVE BEEN APPLIED BEYOND THE X AND Z RANGES

OF THE STRUCTURE HAS BEEN IGNORED. CASE= 204 WHEEL 8 OF 8

**WARNING-A MOVING LOAD THAT WOULD HAVE BEEN APPLIED BEYOND THE X AND Z RANGES

OF THE STRUCTURE HAS BEEN IGNORED. CASE= 205 WHEEL 5 OF 8

**WARNING-A MOVING LOAD THAT WOULD HAVE BEEN APPLIED BEYOND THE X AND Z RANGES

OF THE STRUCTURE HAS BEEN IGNORED. CASE= 205 WHEEL 6 OF 8

**WARNING-A MOVING LOAD THAT WOULD HAVE BEEN APPLIED BEYOND THE X AND Z RANGES

OF THE STRUCTURE HAS BEEN IGNORED. CASE= 205 WHEEL 7 OF 8

**WARNING-A MOVING LOAD THAT WOULD HAVE BEEN APPLIED BEYOND THE X AND Z RANGES

OF THE STRUCTURE HAS BEEN IGNORED. CASE= 205 WHEEL 8 OF 8

_ STAAD SPACE -- PAGE NO. 78

**WARNING-A MOVING LOAD THAT WOULD HAVE BEEN APPLIED BEYOND THE X AND Z RANGES

OF THE STRUCTURE HAS BEEN IGNORED. CASE= 206 WHEEL 5 OF 8

**WARNING-A MOVING LOAD THAT WOULD HAVE BEEN APPLIED BEYOND THE X AND Z RANGES

OF THE STRUCTURE HAS BEEN IGNORED. CASE= 206 WHEEL 6 OF 8

*ADDITIONAL MOVING LOAD MESSAGES SUPPRESSED

*ADDITIONAL MOVING LOAD MESSAGES SUPPRESSED

4270. LOAD GENERATION 40 ADD LOAD 301
4271. TYPE 1 19.5 3.5 10 XINC -1.
4272. LOAD 401 LOADTYPE LIVE TITLE EP ACTIVE
4273. ELEMENT LOAD
4274. 801 TRAP JT 34.65 37.8 37.8 34.65
4275. 802 TRAP JT 31.5 34.65 34.65 31.5
4276. 803 TRAP JT 28.35 31.5 31.5 28.35
4277. 804 TRAP JT 25.2 28.35 28.35 25.2
4278. 805 TRAP JT 22.05 25.2 25.2 22.05
4279. 806 TRAP JT 18.9 22.05 22.05 18.9
4280. 807 TRAP JT 15.75 18.9 18.9 15.75
4281. 808 TRAP JT 12.6 15.75 15.75 12.6
4282. 809 TRAP JT 9.44999 12.6 12.6 9.44999
4283. 810 TRAP JT 6.29999 9.44999 9.44999 6.29999
4284. 811 TRAP JT 3.14999 6.29999 6.29999 3.14999
4285. 812 TRAP JT 0 3.14999 3.14999 0
4286. 841 TRAP JT 34.65 37.8 37.8 34.65
4287. 842 TRAP JT 31.5 34.65 34.65 31.5
4288. 843 TRAP JT 28.35 31.5 31.5 28.35
4289. 844 TRAP JT 25.2 28.35 28.35 25.2
4290. 845 TRAP JT 22.05 25.2 25.2 22.05
4291. 846 TRAP JT 18.9 22.05 22.05 18.9
4292. 847 TRAP JT 15.75 18.9 18.9 15.75
4293. 848 TRAP JT 12.6 15.75 15.75 12.6
4294. 849 TRAP JT 9.44999 12.6 12.6 9.44999
4295. 850 TRAP JT 6.29999 9.44999 9.44999 6.29999
4296. 851 TRAP JT 3.14999 6.29999 6.29999 3.14999
4297. 852 TRAP JT 0 3.14999 3.14999 0
4298. 881 TRAP JT 34.65 37.8 37.8 34.65
4299. 882 TRAP JT 31.5 34.65 34.65 31.5
4300. 883 TRAP JT 28.35 31.5 31.5 28.35
4301. 884 TRAP JT 25.2 28.35 28.35 25.2
4302. 885 TRAP JT 22.05 25.2 25.2 22.05
4303. 886 TRAP JT 18.9 22.05 22.05 18.9
4304. 887 TRAP JT 15.75 18.9 18.9 15.75
4305. 888 TRAP JT 12.6 15.75 15.75 12.6
4306. 889 TRAP JT 9.44999 12.6 12.6 9.44999
4307. 890 TRAP JT 6.29999 9.44999 9.44999 6.29999
4308. 891 TRAP JT 3.14999 6.29999 6.29999 3.14999
4309. 892 TRAP JT 0 3.14999 3.14999 0
4310. 921 TRAP JT 34.65 37.8 37.8 34.65
4311. 922 TRAP JT 31.5 34.65 34.65 31.5
4312. 923 TRAP JT 28.35 31.5 31.5 28.35
4313. 924 TRAP JT 25.2 28.35 28.35 25.2
4314. 925 TRAP JT 22.05 25.2 25.2 22.05
4315. 926 TRAP JT 18.9 22.05 22.05 18.9
4316. 927 TRAP JT 15.75 18.9 18.9 15.75
4317. 928 TRAP JT 12.6 15.75 15.75 12.6
4318. 929 TRAP JT 9.44999 12.6 12.6 9.44999
4319. 930 TRAP JT 6.29999 9.44999 9.44999 6.29999

_ STAAD SPACE -- PAGE NO. 79

4320. 931 TRAP JT 3.14999 6.29999 6.29999 3.14999
4321. 932 TRAP JT 0 3.14999 3.14999 0
4322. 961 TRAP JT 34.65 37.8 37.8 34.65
4323. 962 TRAP JT 31.5 34.65 34.65 31.5
4324. 963 TRAP JT 28.35 31.5 31.5 28.35
4325. 964 TRAP JT 25.2 28.35 28.35 25.2
4326. 965 TRAP JT 22.05 25.2 25.2 22.05
4327. 966 TRAP JT 18.9 22.05 22.05 18.9
4328. 967 TRAP JT 15.75 18.9 18.9 15.75
4329. 968 TRAP JT 12.6 15.75 15.75 12.6
4330. 969 TRAP JT 9.44999 12.6 12.6 9.44999
4331. 970 TRAP JT 6.29999 9.44999 9.44999 6.29999
4332. 971 TRAP JT 3.14999 6.29999 6.29999 3.14999
4333. 972 TRAP JT 0 3.14999 3.14999 0
4334. 1001 TRAP JT 34.65 37.8 37.8 34.65
4335. 1002 TRAP JT 31.5 34.65 34.65 31.5
4336. 1003 TRAP JT 28.35 31.5 31.5 28.35
4337. 1004 TRAP JT 25.2 28.35 28.35 25.2
4338. 1005 TRAP JT 22.05 25.2 25.2 22.05
4339. 1006 TRAP JT 18.9 22.05 22.05 18.9
4340. 1007 TRAP JT 15.75 18.9 18.9 15.75
4341. 1008 TRAP JT 12.6 15.75 15.75 12.6
4342. 1009 TRAP JT 9.44999 12.6 12.6 9.44999
4343. 1010 TRAP JT 6.29999 9.44999 9.44999 6.29999
4344. 1011 TRAP JT 3.14999 6.29999 6.29999 3.14999
4345. 1012 TRAP JT 0 3.14999 3.14999 0
4346. 1041 TRAP JT 34.65 37.8 37.8 34.65
4347. 1042 TRAP JT 31.5 34.65 34.65 31.5
4348. 1043 TRAP JT 28.35 31.5 31.5 28.35
4349. 1044 TRAP JT 25.2 28.35 28.35 25.2
4350. 1045 TRAP JT 22.05 25.2 25.2 22.05
4351. 1046 TRAP JT 18.9 22.05 22.05 18.9
4352. 1047 TRAP JT 15.75 18.9 18.9 15.75
4353. 1048 TRAP JT 12.6 15.75 15.75 12.6
4354. 1049 TRAP JT 9.44999 12.6 12.6 9.44999
4355. 1050 TRAP JT 6.29999 9.44999 9.44999 6.29999
4356. 1051 TRAP JT 3.14999 6.29999 6.29999 3.14999
4357. 1052 TRAP JT 0 3.14999 3.14999 0
4358. 1081 TRAP JT 34.65 37.8 37.8 34.65
4359. 1082 TRAP JT 31.5 34.65 34.65 31.5
4360. 1083 TRAP JT 28.35 31.5 31.5 28.35
4361. 1084 TRAP JT 25.2 28.35 28.35 25.2
4362. 1085 TRAP JT 22.05 25.2 25.2 22.05
4363. 1086 TRAP JT 18.9 22.05 22.05 18.9
4364. 1087 TRAP JT 15.75 18.9 18.9 15.75
4365. 1088 TRAP JT 12.6 15.75 15.75 12.6
4366. 1089 TRAP JT 9.44999 12.6 12.6 9.44999
4367. 1090 TRAP JT 6.29999 9.44999 9.44999 6.29999
4368. 1091 TRAP JT 3.14999 6.29999 6.29999 3.14999
4369. 1092 TRAP JT 0 3.14999 3.14999 0
4370. 1121 TRAP JT 34.65 37.8 37.8 34.65
4371. 1122 TRAP JT 31.5 34.65 34.65 31.5
4372. 1123 TRAP JT 28.35 31.5 31.5 28.35
4373. 1124 TRAP JT 25.2 28.35 28.35 25.2
4374. 1125 TRAP JT 22.05 25.2 25.2 22.05
4375. 1126 TRAP JT 18.9 22.05 22.05 18.9

_ STAAD SPACE -- PAGE NO. 80

4376. 1127 TRAP JT 15.75 18.9 18.9 15.75
4377. 1128 TRAP JT 12.6 15.75 15.75 12.6
4378. 1129 TRAP JT 9.44999 12.6 12.6 9.44999
4379. 1130 TRAP JT 6.29999 9.44999 9.44999 6.29999
4380. 1131 TRAP JT 3.14999 6.29999 6.29999 3.14999
4381. 1132 TRAP JT 0 3.14999 3.14999 0
4382. 1161 TRAP JT 34.65 37.8 37.8 34.65
4383. 1162 TRAP JT 31.5 34.65 34.65 31.5
4384. 1163 TRAP JT 28.35 31.5 31.5 28.35
4385. 1164 TRAP JT 25.2 28.35 28.35 25.2
4386. 1165 TRAP JT 22.05 25.2 25.2 22.05
4387. 1166 TRAP JT 18.9 22.05 22.05 18.9
4388. 1167 TRAP JT 15.75 18.9 18.9 15.75
4389. 1168 TRAP JT 12.6 15.75 15.75 12.6
4390. 1169 TRAP JT 9.44999 12.6 12.6 9.44999
4391. 1170 TRAP JT 6.29999 9.44999 9.44999 6.29999
4392. 1171 TRAP JT 3.14999 6.29999 6.29999 3.14999
4393. 1172 TRAP JT 0 3.14999 3.14999 0
4394. 1201 TRAP JT 34.65 37.8 37.8 34.65
4395. 1202 TRAP JT 31.5 34.65 34.65 31.5
4396. 1203 TRAP JT 28.35 31.5 31.5 28.35
4397. 1204 TRAP JT 25.2 28.35 28.35 25.2
4398. 1205 TRAP JT 22.05 25.2 25.2 22.05
4399. 1206 TRAP JT 18.9 22.05 22.05 18.9
4400. 1207 TRAP JT 15.75 18.9 18.9 15.75
4401. 1208 TRAP JT 12.6 15.75 15.75 12.6
4402. 1209 TRAP JT 9.44999 12.6 12.6 9.44999
4403. 1210 TRAP JT 6.29999 9.44999 9.44999 6.29999
4404. 1211 TRAP JT 3.14999 6.29999 6.29999 3.14999
4405. 1212 TRAP JT 0 3.14999 3.14999 0
4406. 1241 TRAP JT 34.65 37.8 37.8 34.65
4407. 1242 TRAP JT 31.5 34.65 34.65 31.5
4408. 1243 TRAP JT 28.35 31.5 31.5 28.35
4409. 1244 TRAP JT 25.2 28.35 28.35 25.2
4410. 1245 TRAP JT 22.05 25.2 25.2 22.05
4411. 1246 TRAP JT 18.9 22.05 22.05 18.9
4412. 1247 TRAP JT 15.75 18.9 18.9 15.75
4413. 1248 TRAP JT 12.6 15.75 15.75 12.6
4414. 1249 TRAP JT 9.44999 12.6 12.6 9.44999
4415. 1250 TRAP JT 6.29999 9.44999 9.44999 6.29999
4416. 1251 TRAP JT 3.14999 6.29999 6.29999 3.14999
4417. 1252 TRAP JT 0 3.14999 3.14999 0
4418. 1281 TRAP JT 34.65 37.8 37.8 34.65
4419. 1282 TRAP JT 31.5 34.65 34.65 31.5
4420. 1283 TRAP JT 28.35 31.5 31.5 28.35
4421. 1284 TRAP JT 25.2 28.35 28.35 25.2
4422. 1285 TRAP JT 22.05 25.2 25.2 22.05
4423. 1286 TRAP JT 18.9 22.05 22.05 18.9
4424. 1287 TRAP JT 15.75 18.9 18.9 15.75
4425. 1288 TRAP JT 12.6 15.75 15.75 12.6
4426. 1289 TRAP JT 9.44999 12.6 12.6 9.44999
4427. 1290 TRAP JT 6.29999 9.44999 9.44999 6.29999
4428. 1291 TRAP JT 3.14999 6.29999 6.29999 3.14999
4429. 1292 TRAP JT 0 3.14999 3.14999 0
4430. 1321 TRAP JT 34.65 37.8 37.8 34.65
4431. 1322 TRAP JT 31.5 34.65 34.65 31.5

_ STAAD SPACE -- PAGE NO. 81

4432. 1323 TRAP JT 28.35 31.5 31.5 28.35
4433. 1324 TRAP JT 25.2 28.35 28.35 25.2
4434. 1325 TRAP JT 22.05 25.2 25.2 22.05
4435. 1326 TRAP JT 18.9 22.05 22.05 18.9
4436. 1327 TRAP JT 15.75 18.9 18.9 15.75
4437. 1328 TRAP JT 12.6 15.75 15.75 12.6
4438. 1329 TRAP JT 9.44999 12.6 12.6 9.44999
4439. 1330 TRAP JT 6.29999 9.44999 9.44999 6.29999
4440. 1331 TRAP JT 3.14999 6.29999 6.29999 3.14999
4441. 1332 TRAP JT 0 3.14999 3.14999 0
4442. 1361 TRAP JT 34.65 37.8 37.8 34.65
4443. 1362 TRAP JT 31.5 34.65 34.65 31.5
4444. 1363 TRAP JT 28.35 31.5 31.5 28.35
4445. 1364 TRAP JT 25.2 28.35 28.35 25.2
4446. 1365 TRAP JT 22.05 25.2 25.2 22.05
4447. 1366 TRAP JT 18.9 22.05 22.05 18.9
4448. 1367 TRAP JT 15.75 18.9 18.9 15.75
4449. 1368 TRAP JT 12.6 15.75 15.75 12.6
4450. 1369 TRAP JT 9.44999 12.6 12.6 9.44999
4451. 1370 TRAP JT 6.29999 9.44999 9.44999 6.29999
4452. 1371 TRAP JT 3.14999 6.29999 6.29999 3.14999
4453. 1372 TRAP JT 0 3.14999 3.14999 0
4454. 1401 TRAP JT 34.65 37.8 37.8 34.65
4455. 1402 TRAP JT 31.5 34.65 34.65 31.5
4456. 1403 TRAP JT 28.35 31.5 31.5 28.35
4457. 1404 TRAP JT 25.2 28.35 28.35 25.2
4458. 1405 TRAP JT 22.05 25.2 25.2 22.05
4459. 1406 TRAP JT 18.9 22.05 22.05 18.9
4460. 1407 TRAP JT 15.75 18.9 18.9 15.75
4461. 1408 TRAP JT 12.6 15.75 15.75 12.6
4462. 1409 TRAP JT 9.44999 12.6 12.6 9.44999
4463. 1410 TRAP JT 6.29999 9.44999 9.44999 6.29999
4464. 1411 TRAP JT 3.14999 6.29999 6.29999 3.14999
4465. 1412 TRAP JT 0 3.14999 3.14999 0
4466. 1441 TRAP JT 34.65 37.8 37.8 34.65
4467. 1442 TRAP JT 31.5 34.65 34.65 31.5
4468. 1443 TRAP JT 28.35 31.5 31.5 28.35
4469. 1444 TRAP JT 25.2 28.35 28.35 25.2
4470. 1445 TRAP JT 22.05 25.2 25.2 22.05
4471. 1446 TRAP JT 18.9 22.05 22.05 18.9
4472. 1447 TRAP JT 15.75 18.9 18.9 15.75
4473. 1448 TRAP JT 12.6 15.75 15.75 12.6
4474. 1449 TRAP JT 9.44999 12.6 12.6 9.44999
4475. 1450 TRAP JT 6.29999 9.44999 9.44999 6.29999
4476. 1451 TRAP JT 3.14999 6.29999 6.29999 3.14999
4477. 1452 TRAP JT 0 3.14999 3.14999 0
4478. 1481 TRAP JT 34.65 37.8 37.8 34.65
4479. 1482 TRAP JT 31.5 34.65 34.65 31.5
4480. 1483 TRAP JT 28.35 31.5 31.5 28.35
4481. 1484 TRAP JT 25.2 28.35 28.35 25.2
4482. 1485 TRAP JT 22.05 25.2 25.2 22.05
4483. 1486 TRAP JT 18.9 22.05 22.05 18.9
4484. 1487 TRAP JT 15.75 18.9 18.9 15.75
4485. 1488 TRAP JT 12.6 15.75 15.75 12.6
4486. 1489 TRAP JT 9.44999 12.6 12.6 9.44999
4487. 1490 TRAP JT 6.29999 9.44999 9.44999 6.29999

_ STAAD SPACE -- PAGE NO. 82

4488. 1491 TRAP JT 3.14999 6.29999 6.29999 3.14999
4489. 1492 TRAP JT 0 3.14999 3.14999 0
4490. 1521 TRAP JT 34.65 37.8 37.8 34.65
4491. 1522 TRAP JT 31.5 34.65 34.65 31.5
4492. 1523 TRAP JT 28.35 31.5 31.5 28.35
4493. 1524 TRAP JT 25.2 28.35 28.35 25.2
4494. 1525 TRAP JT 22.05 25.2 25.2 22.05
4495. 1526 TRAP JT 18.9 22.05 22.05 18.9
4496. 1527 TRAP JT 15.75 18.9 18.9 15.75
4497. 1528 TRAP JT 12.6 15.75 15.75 12.6
4498. 1529 TRAP JT 9.44999 12.6 12.6 9.44999
4499. 1530 TRAP JT 6.29999 9.44999 9.44999 6.29999
4500. 1531 TRAP JT 3.14999 6.29999 6.29999 3.14999
4501. 1532 TRAP JT 0 3.14999 3.14999 0
4502. 1561 TRAP JT 34.65 37.8 37.8 34.65
4503. 1562 TRAP JT 31.5 34.65 34.65 31.5
4504. 1563 TRAP JT 28.35 31.5 31.5 28.35
4505. 1564 TRAP JT 25.2 28.35 28.35 25.2
4506. 1565 TRAP JT 22.05 25.2 25.2 22.05
4507. 1566 TRAP JT 18.9 22.05 22.05 18.9
4508. 1567 TRAP JT 15.75 18.9 18.9 15.75
4509. 1568 TRAP JT 12.6 15.75 15.75 12.6
4510. 1569 TRAP JT 9.44999 12.6 12.6 9.44999
4511. 1570 TRAP JT 6.29999 9.44999 9.44999 6.29999
4512. 1571 TRAP JT 3.14999 6.29999 6.29999 3.14999
4513. 1572 TRAP JT 0 3.14999 3.14999 0
4514. 801 TRAP JT -18.9 -22.05 -22.05 -18.9
4515. 802 TRAP JT -15.75 -18.9 -18.9 -15.75
4516. 803 TRAP JT -12.6 -15.75 -15.75 -12.6
4517. 804 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4518. 805 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4519. 806 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4520. 807 TRAP JT 0 -3.14999 -3.14999 0
4521. 841 TRAP JT -18.9 -22.05 -22.05 -18.9
4522. 842 TRAP JT -15.75 -18.9 -18.9 -15.75
4523. 843 TRAP JT -12.6 -15.75 -15.75 -12.6
4524. 844 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4525. 845 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4526. 846 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4527. 847 TRAP JT 0 -3.14999 -3.14999 0
4528. 881 TRAP JT -18.9 -22.05 -22.05 -18.9
4529. 882 TRAP JT -15.75 -18.9 -18.9 -15.75
4530. 883 TRAP JT -12.6 -15.75 -15.75 -12.6
4531. 884 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4532. 885 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4533. 886 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4534. 887 TRAP JT 0 -3.14999 -3.14999 0
4535. 921 TRAP JT -18.9 -22.05 -22.05 -18.9
4536. 922 TRAP JT -15.75 -18.9 -18.9 -15.75
4537. 923 TRAP JT -12.6 -15.75 -15.75 -12.6
4538. 924 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4539. 925 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4540. 926 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4541. 927 TRAP JT 0 -3.14999 -3.14999 0
4542. 961 TRAP JT -18.9 -22.05 -22.05 -18.9
4543. 962 TRAP JT -15.75 -18.9 -18.9 -15.75

_ STAAD SPACE -- PAGE NO. 83

4544. 963 TRAP JT -12.6 -15.75 -15.75 -12.6
4545. 964 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4546. 965 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4547. 966 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4548. 967 TRAP JT 0 -3.14999 -3.14999 0
4549. 1001 TRAP JT -18.9 -22.05 -22.05 -18.9
4550. 1002 TRAP JT -15.75 -18.9 -18.9 -15.75
4551. 1003 TRAP JT -12.6 -15.75 -15.75 -12.6
4552. 1004 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4553. 1005 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4554. 1006 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4555. 1007 TRAP JT 0 -3.14999 -3.14999 0
4556. 1041 TRAP JT -18.9 -22.05 -22.05 -18.9
4557. 1042 TRAP JT -15.75 -18.9 -18.9 -15.75
4558. 1043 TRAP JT -12.6 -15.75 -15.75 -12.6
4559. 1044 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4560. 1045 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4561. 1046 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4562. 1047 TRAP JT 0 -3.14999 -3.14999 0
4563. 1081 TRAP JT -18.9 -22.05 -22.05 -18.9
4564. 1082 TRAP JT -15.75 -18.9 -18.9 -15.75
4565. 1083 TRAP JT -12.6 -15.75 -15.75 -12.6
4566. 1084 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4567. 1085 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4568. 1086 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4569. 1087 TRAP JT 0 -3.14999 -3.14999 0
4570. 1121 TRAP JT -18.9 -22.05 -22.05 -18.9
4571. 1122 TRAP JT -15.75 -18.9 -18.9 -15.75
4572. 1123 TRAP JT -12.6 -15.75 -15.75 -12.6
4573. 1124 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4574. 1125 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4575. 1126 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4576. 1127 TRAP JT 0 -3.14999 -3.14999 0
4577. 1161 TRAP JT -18.9 -22.05 -22.05 -18.9
4578. 1162 TRAP JT -15.75 -18.9 -18.9 -15.75
4579. 1163 TRAP JT -12.6 -15.75 -15.75 -12.6
4580. 1164 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4581. 1165 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4582. 1166 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4583. 1167 TRAP JT 0 -3.14999 -3.14999 0
4584. 1201 TRAP JT -18.9 -22.05 -22.05 -18.9
4585. 1202 TRAP JT -15.75 -18.9 -18.9 -15.75
4586. 1203 TRAP JT -12.6 -15.75 -15.75 -12.6
4587. 1204 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4588. 1205 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4589. 1206 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4590. 1207 TRAP JT 0 -3.14999 -3.14999 0
4591. 1241 TRAP JT -18.9 -22.05 -22.05 -18.9
4592. 1242 TRAP JT -15.75 -18.9 -18.9 -15.75
4593. 1243 TRAP JT -12.6 -15.75 -15.75 -12.6
4594. 1244 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4595. 1245 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4596. 1246 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4597. 1247 TRAP JT 0 -3.14999 -3.14999 0
4598. 1281 TRAP JT -18.9 -22.05 -22.05 -18.9
4599. 1282 TRAP JT -15.75 -18.9 -18.9 -15.75

_ STAAD SPACE -- PAGE NO. 84

4600. 1283 TRAP JT -12.6 -15.75 -15.75 -12.6
4601. 1284 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4602. 1285 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4603. 1286 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4604. 1287 TRAP JT 0 -3.14999 -3.14999 0
4605. 1321 TRAP JT -18.9 -22.05 -22.05 -18.9
4606. 1322 TRAP JT -15.75 -18.9 -18.9 -15.75
4607. 1323 TRAP JT -12.6 -15.75 -15.75 -12.6
4608. 1324 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4609. 1325 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4610. 1326 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4611. 1327 TRAP JT 0 -3.14999 -3.14999 0
4612. 1361 TRAP JT -18.9 -22.05 -22.05 -18.9
4613. 1362 TRAP JT -15.75 -18.9 -18.9 -15.75
4614. 1363 TRAP JT -12.6 -15.75 -15.75 -12.6
4615. 1364 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4616. 1365 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4617. 1366 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4618. 1367 TRAP JT 0 -3.14999 -3.14999 0
4619. 1401 TRAP JT -18.9 -22.05 -22.05 -18.9
4620. 1402 TRAP JT -15.75 -18.9 -18.9 -15.75
4621. 1403 TRAP JT -12.6 -15.75 -15.75 -12.6
4622. 1404 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4623. 1405 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4624. 1406 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4625. 1407 TRAP JT 0 -3.14999 -3.14999 0
4626. 1441 TRAP JT -18.9 -22.05 -22.05 -18.9
4627. 1442 TRAP JT -15.75 -18.9 -18.9 -15.75
4628. 1443 TRAP JT -12.6 -15.75 -15.75 -12.6
4629. 1444 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4630. 1445 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4631. 1446 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4632. 1447 TRAP JT 0 -3.14999 -3.14999 0
4633. 1481 TRAP JT -18.9 -22.05 -22.05 -18.9
4634. 1482 TRAP JT -15.75 -18.9 -18.9 -15.75
4635. 1483 TRAP JT -12.6 -15.75 -15.75 -12.6
4636. 1484 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4637. 1485 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4638. 1486 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4639. 1487 TRAP JT 0 -3.14999 -3.14999 0
4640. 1521 TRAP JT -18.9 -22.05 -22.05 -18.9
4641. 1522 TRAP JT -15.75 -18.9 -18.9 -15.75
4642. 1523 TRAP JT -12.6 -15.75 -15.75 -12.6
4643. 1524 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4644. 1525 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4645. 1526 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4646. 1527 TRAP JT 0 -3.14999 -3.14999 0
4647. 1561 TRAP JT -18.9 -22.05 -22.05 -18.9
4648. 1562 TRAP JT -15.75 -18.9 -18.9 -15.75
4649. 1563 TRAP JT -12.6 -15.75 -15.75 -12.6
4650. 1564 TRAP JT -9.45004 -12.6 -12.6 -9.45004
4651. 1565 TRAP JT -6.29998 -9.45004 -9.45004 -6.29998
4652. 1566 TRAP JT -3.14999 -6.29998 -6.29998 -3.14999
4653. 1567 TRAP JT 0 -3.14999 -3.14999 0
4654. 1 TRAP JT 18.9 22.05 22.05 18.9
4655. 2 TRAP JT 15.75 18.9 18.9 15.75

_ STAAD SPACE -- PAGE NO. 85

4656. 3 TRAP JT 12.6 15.75 15.75 12.6
4657. 4 TRAP JT 9.45004 12.6 12.6 9.45004
4658. 5 TRAP JT 6.29998 9.45004 9.45004 6.29998
4659. 6 TRAP JT 3.14999 6.29998 6.29998 3.14999
4660. 7 TRAP JT 0 3.14999 3.14999 0
4661. 41 TRAP JT 18.9 22.05 22.05 18.9
4662. 42 TRAP JT 15.75 18.9 18.9 15.75
4663. 43 TRAP JT 12.6 15.75 15.75 12.6
4664. 44 TRAP JT 9.45004 12.6 12.6 9.45004
4665. 45 TRAP JT 6.29998 9.45004 9.45004 6.29998
4666. 46 TRAP JT 3.14999 6.29998 6.29998 3.14999
4667. 47 TRAP JT 0 3.14999 3.14999 0
4668. 81 TRAP JT 18.9 22.05 22.05 18.9
4669. 82 TRAP JT 15.75 18.9 18.9 15.75
4670. 83 TRAP JT 12.6 15.75 15.75 12.6
4671. 84 TRAP JT 9.45004 12.6 12.6 9.45004
4672. 85 TRAP JT 6.29998 9.45004 9.45004 6.29998
4673. 86 TRAP JT 3.14999 6.29998 6.29998 3.14999
4674. 87 TRAP JT 0 3.14999 3.14999 0
4675. 121 TRAP JT 18.9 22.05 22.05 18.9
4676. 122 TRAP JT 15.75 18.9 18.9 15.75
4677. 123 TRAP JT 12.6 15.75 15.75 12.6
4678. 124 TRAP JT 9.45004 12.6 12.6 9.45004
4679. 125 TRAP JT 6.29998 9.45004 9.45004 6.29998
4680. 126 TRAP JT 3.14999 6.29998 6.29998 3.14999
4681. 127 TRAP JT 0 3.14999 3.14999 0
4682. 161 TRAP JT 18.9 22.05 22.05 18.9
4683. 162 TRAP JT 15.75 18.9 18.9 15.75
4684. 163 TRAP JT 12.6 15.75 15.75 12.6
4685. 164 TRAP JT 9.45004 12.6 12.6 9.45004
4686. 165 TRAP JT 6.29998 9.45004 9.45004 6.29998
4687. 166 TRAP JT 3.14999 6.29998 6.29998 3.14999
4688. 167 TRAP JT 0 3.14999 3.14999 0
4689. 201 TRAP JT 18.9 22.05 22.05 18.9
4690. 202 TRAP JT 15.75 18.9 18.9 15.75
4691. 203 TRAP JT 12.6 15.75 15.75 12.6
4692. 204 TRAP JT 9.45004 12.6 12.6 9.45004
4693. 205 TRAP JT 6.29998 9.45004 9.45004 6.29998
4694. 206 TRAP JT 3.14999 6.29998 6.29998 3.14999
4695. 207 TRAP JT 0 3.14999 3.14999 0
4696. 241 TRAP JT 18.9 22.05 22.05 18.9
4697. 242 TRAP JT 15.75 18.9 18.9 15.75
4698. 243 TRAP JT 12.6 15.75 15.75 12.6
4699. 244 TRAP JT 9.45004 12.6 12.6 9.45004
4700. 245 TRAP JT 6.29998 9.45004 9.45004 6.29998
4701. 246 TRAP JT 3.14999 6.29998 6.29998 3.14999
4702. 247 TRAP JT 0 3.14999 3.14999 0
4703. 281 TRAP JT 18.9 22.05 22.05 18.9
4704. 282 TRAP JT 15.75 18.9 18.9 15.75
4705. 283 TRAP JT 12.6 15.75 15.75 12.6
4706. 284 TRAP JT 9.45004 12.6 12.6 9.45004
4707. 285 TRAP JT 6.29998 9.45004 9.45004 6.29998
4708. 286 TRAP JT 3.14999 6.29998 6.29998 3.14999
4709. 287 TRAP JT 0 3.14999 3.14999 0
4710. 321 TRAP JT 18.9 22.05 22.05 18.9
4711. 322 TRAP JT 15.75 18.9 18.9 15.75

_ STAAD SPACE -- PAGE NO. 86

4712. 323 TRAP JT 12.6 15.75 15.75 12.6
4713. 324 TRAP JT 9.45004 12.6 12.6 9.45004
4714. 325 TRAP JT 6.29998 9.45004 9.45004 6.29998
4715. 326 TRAP JT 3.14999 6.29998 6.29998 3.14999
4716. 327 TRAP JT 0 3.14999 3.14999 0
4717. 361 TRAP JT 18.9 22.05 22.05 18.9
4718. 362 TRAP JT 15.75 18.9 18.9 15.75
4719. 363 TRAP JT 12.6 15.75 15.75 12.6
4720. 364 TRAP JT 9.45004 12.6 12.6 9.45004
4721. 365 TRAP JT 6.29998 9.45004 9.45004 6.29998
4722. 366 TRAP JT 3.14999 6.29998 6.29998 3.14999
4723. 367 TRAP JT 0 3.14999 3.14999 0
4724. 401 TRAP JT 18.9 22.05 22.05 18.9
4725. 402 TRAP JT 15.75 18.9 18.9 15.75
4726. 403 TRAP JT 12.6 15.75 15.75 12.6
4727. 404 TRAP JT 9.45004 12.6 12.6 9.45004
4728. 405 TRAP JT 6.29998 9.45004 9.45004 6.29998
4729. 406 TRAP JT 3.14999 6.29998 6.29998 3.14999
4730. 407 TRAP JT 0 3.14999 3.14999 0
4731. 441 TRAP JT 18.9 22.05 22.05 18.9
4732. 442 TRAP JT 15.75 18.9 18.9 15.75
4733. 443 TRAP JT 12.6 15.75 15.75 12.6
4734. 444 TRAP JT 9.45004 12.6 12.6 9.45004
4735. 445 TRAP JT 6.29998 9.45004 9.45004 6.29998
4736. 446 TRAP JT 3.14999 6.29998 6.29998 3.14999
4737. 447 TRAP JT 0 3.14999 3.14999 0
4738. 481 TRAP JT 18.9 22.05 22.05 18.9
4739. 482 TRAP JT 15.75 18.9 18.9 15.75
4740. 483 TRAP JT 12.6 15.75 15.75 12.6
4741. 484 TRAP JT 9.45004 12.6 12.6 9.45004
4742. 485 TRAP JT 6.29998 9.45004 9.45004 6.29998
4743. 486 TRAP JT 3.14999 6.29998 6.29998 3.14999
4744. 487 TRAP JT 0 3.14999 3.14999 0
4745. 521 TRAP JT 18.9 22.05 22.05 18.9
4746. 522 TRAP JT 15.75 18.9 18.9 15.75
4747. 523 TRAP JT 12.6 15.75 15.75 12.6
4748. 524 TRAP JT 9.45004 12.6 12.6 9.45004
4749. 525 TRAP JT 6.29998 9.45004 9.45004 6.29998
4750. 526 TRAP JT 3.14999 6.29998 6.29998 3.14999
4751. 527 TRAP JT 0 3.14999 3.14999 0
4752. 561 TRAP JT 18.9 22.05 22.05 18.9
4753. 562 TRAP JT 15.75 18.9 18.9 15.75
4754. 563 TRAP JT 12.6 15.75 15.75 12.6
4755. 564 TRAP JT 9.45004 12.6 12.6 9.45004
4756. 565 TRAP JT 6.29998 9.45004 9.45004 6.29998
4757. 566 TRAP JT 3.14999 6.29998 6.29998 3.14999
4758. 567 TRAP JT 0 3.14999 3.14999 0
4759. 601 TRAP JT 18.9 22.05 22.05 18.9
4760. 602 TRAP JT 15.75 18.9 18.9 15.75
4761. 603 TRAP JT 12.6 15.75 15.75 12.6
4762. 604 TRAP JT 9.45004 12.6 12.6 9.45004
4763. 605 TRAP JT 6.29998 9.45004 9.45004 6.29998
4764. 606 TRAP JT 3.14999 6.29998 6.29998 3.14999
4765. 607 TRAP JT 0 3.14999 3.14999 0
4766. 641 TRAP JT 18.9 22.05 22.05 18.9
4767. 642 TRAP JT 15.75 18.9 18.9 15.75

_ STAAD SPACE -- PAGE NO. 87

4768. 643 TRAP JT 12.6 15.75 15.75 12.6
4769. 644 TRAP JT 9.45004 12.6 12.6 9.45004
4770. 645 TRAP JT 6.29998 9.45004 9.45004 6.29998
4771. 646 TRAP JT 3.14999 6.29998 6.29998 3.14999
4772. 647 TRAP JT 0 3.14999 3.14999 0
4773. 681 TRAP JT 18.9 22.05 22.05 18.9
4774. 682 TRAP JT 15.75 18.9 18.9 15.75
4775. 683 TRAP JT 12.6 15.75 15.75 12.6
4776. 684 TRAP JT 9.45004 12.6 12.6 9.45004
4777. 685 TRAP JT 6.29998 9.45004 9.45004 6.29998
4778. 686 TRAP JT 3.14999 6.29998 6.29998 3.14999
4779. 687 TRAP JT 0 3.14999 3.14999 0
4780. 721 TRAP JT 18.9 22.05 22.05 18.9
4781. 722 TRAP JT 15.75 18.9 18.9 15.75
4782. 723 TRAP JT 12.6 15.75 15.75 12.6
4783. 724 TRAP JT 9.45004 12.6 12.6 9.45004
4784. 725 TRAP JT 6.29998 9.45004 9.45004 6.29998
4785. 726 TRAP JT 3.14999 6.29998 6.29998 3.14999
4786. 727 TRAP JT 0 3.14999 3.14999 0
4787. 761 TRAP JT 18.9 22.05 22.05 18.9
4788. 762 TRAP JT 15.75 18.9 18.9 15.75
4789. 763 TRAP JT 12.6 15.75 15.75 12.6
4790. 764 TRAP JT 9.45004 12.6 12.6 9.45004
4791. 765 TRAP JT 6.29998 9.45004 9.45004 6.29998
4792. 766 TRAP JT 3.14999 6.29998 6.29998 3.14999
4793. 767 TRAP JT 0 3.14999 3.14999 0
4794. 1 TRAP JT -34.65 -37.8 -37.8 -34.65
4795. 2 TRAP JT -31.5 -34.65 -34.65 -31.5
4796. 3 TRAP JT -28.35 -31.5 -31.5 -28.35
4797. 4 TRAP JT -25.2 -28.35 -28.35 -25.2
4798. 5 TRAP JT -22.05 -25.2 -25.2 -22.05
4799. 6 TRAP JT -18.9 -22.05 -22.05 -18.9
4800. 7 TRAP JT -15.75 -18.9 -18.9 -15.75
4801. 8 TRAP JT -12.6 -15.75 -15.75 -12.6
4802. 9 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4803. 10 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4804. 11 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4805. 12 TRAP JT 0 -3.14999 -3.14999 0
4806. 41 TRAP JT -34.65 -37.8 -37.8 -34.65
4807. 42 TRAP JT -31.5 -34.65 -34.65 -31.5
4808. 43 TRAP JT -28.35 -31.5 -31.5 -28.35
4809. 44 TRAP JT -25.2 -28.35 -28.35 -25.2
4810. 45 TRAP JT -22.05 -25.2 -25.2 -22.05
4811. 46 TRAP JT -18.9 -22.05 -22.05 -18.9
4812. 47 TRAP JT -15.75 -18.9 -18.9 -15.75
4813. 48 TRAP JT -12.6 -15.75 -15.75 -12.6
4814. 49 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4815. 50 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4816. 51 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4817. 52 TRAP JT 0 -3.14999 -3.14999 0
4818. 81 TRAP JT -34.65 -37.8 -37.8 -34.65
4819. 82 TRAP JT -31.5 -34.65 -34.65 -31.5
4820. 83 TRAP JT -28.35 -31.5 -31.5 -28.35
4821. 84 TRAP JT -25.2 -28.35 -28.35 -25.2
4822. 85 TRAP JT -22.05 -25.2 -25.2 -22.05
4823. 86 TRAP JT -18.9 -22.05 -22.05 -18.9

_ STAAD SPACE -- PAGE NO. 88

4824. 87 TRAP JT -15.75 -18.9 -18.9 -15.75
4825. 88 TRAP JT -12.6 -15.75 -15.75 -12.6
4826. 89 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4827. 90 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4828. 91 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4829. 92 TRAP JT 0 -3.14999 -3.14999 0
4830. 121 TRAP JT -34.65 -37.8 -37.8 -34.65
4831. 122 TRAP JT -31.5 -34.65 -34.65 -31.5
4832. 123 TRAP JT -28.35 -31.5 -31.5 -28.35
4833. 124 TRAP JT -25.2 -28.35 -28.35 -25.2
4834. 125 TRAP JT -22.05 -25.2 -25.2 -22.05
4835. 126 TRAP JT -18.9 -22.05 -22.05 -18.9
4836. 127 TRAP JT -15.75 -18.9 -18.9 -15.75
4837. 128 TRAP JT -12.6 -15.75 -15.75 -12.6
4838. 129 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4839. 130 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4840. 131 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4841. 132 TRAP JT 0 -3.14999 -3.14999 0
4842. 161 TRAP JT -34.65 -37.8 -37.8 -34.65
4843. 162 TRAP JT -31.5 -34.65 -34.65 -31.5
4844. 163 TRAP JT -28.35 -31.5 -31.5 -28.35
4845. 164 TRAP JT -25.2 -28.35 -28.35 -25.2
4846. 165 TRAP JT -22.05 -25.2 -25.2 -22.05
4847. 166 TRAP JT -18.9 -22.05 -22.05 -18.9
4848. 167 TRAP JT -15.75 -18.9 -18.9 -15.75
4849. 168 TRAP JT -12.6 -15.75 -15.75 -12.6
4850. 169 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4851. 170 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4852. 171 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4853. 172 TRAP JT 0 -3.14999 -3.14999 0
4854. 201 TRAP JT -34.65 -37.8 -37.8 -34.65
4855. 202 TRAP JT -31.5 -34.65 -34.65 -31.5
4856. 203 TRAP JT -28.35 -31.5 -31.5 -28.35
4857. 204 TRAP JT -25.2 -28.35 -28.35 -25.2
4858. 205 TRAP JT -22.05 -25.2 -25.2 -22.05
4859. 206 TRAP JT -18.9 -22.05 -22.05 -18.9
4860. 207 TRAP JT -15.75 -18.9 -18.9 -15.75
4861. 208 TRAP JT -12.6 -15.75 -15.75 -12.6
4862. 209 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4863. 210 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4864. 211 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4865. 212 TRAP JT 0 -3.14999 -3.14999 0
4866. 241 TRAP JT -34.65 -37.8 -37.8 -34.65
4867. 242 TRAP JT -31.5 -34.65 -34.65 -31.5
4868. 243 TRAP JT -28.35 -31.5 -31.5 -28.35
4869. 244 TRAP JT -25.2 -28.35 -28.35 -25.2
4870. 245 TRAP JT -22.05 -25.2 -25.2 -22.05
4871. 246 TRAP JT -18.9 -22.05 -22.05 -18.9
4872. 247 TRAP JT -15.75 -18.9 -18.9 -15.75
4873. 248 TRAP JT -12.6 -15.75 -15.75 -12.6
4874. 249 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4875. 250 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4876. 251 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4877. 252 TRAP JT 0 -3.14999 -3.14999 0
4878. 281 TRAP JT -34.65 -37.8 -37.8 -34.65
4879. 282 TRAP JT -31.5 -34.65 -34.65 -31.5

_ STAAD SPACE -- PAGE NO. 89

4880. 283 TRAP JT -28.35 -31.5 -31.5 -28.35
4881. 284 TRAP JT -25.2 -28.35 -28.35 -25.2
4882. 285 TRAP JT -22.05 -25.2 -25.2 -22.05
4883. 286 TRAP JT -18.9 -22.05 -22.05 -18.9
4884. 287 TRAP JT -15.75 -18.9 -18.9 -15.75
4885. 288 TRAP JT -12.6 -15.75 -15.75 -12.6
4886. 289 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4887. 290 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4888. 291 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4889. 292 TRAP JT 0 -3.14999 -3.14999 0
4890. 321 TRAP JT -34.65 -37.8 -37.8 -34.65
4891. 322 TRAP JT -31.5 -34.65 -34.65 -31.5
4892. 323 TRAP JT -28.35 -31.5 -31.5 -28.35
4893. 324 TRAP JT -25.2 -28.35 -28.35 -25.2
4894. 325 TRAP JT -22.05 -25.2 -25.2 -22.05
4895. 326 TRAP JT -18.9 -22.05 -22.05 -18.9
4896. 327 TRAP JT -15.75 -18.9 -18.9 -15.75
4897. 328 TRAP JT -12.6 -15.75 -15.75 -12.6
4898. 329 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4899. 330 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4900. 331 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4901. 332 TRAP JT 0 -3.14999 -3.14999 0
4902. 361 TRAP JT -34.65 -37.8 -37.8 -34.65
4903. 362 TRAP JT -31.5 -34.65 -34.65 -31.5
4904. 363 TRAP JT -28.35 -31.5 -31.5 -28.35
4905. 364 TRAP JT -25.2 -28.35 -28.35 -25.2
4906. 365 TRAP JT -22.05 -25.2 -25.2 -22.05
4907. 366 TRAP JT -18.9 -22.05 -22.05 -18.9
4908. 367 TRAP JT -15.75 -18.9 -18.9 -15.75
4909. 368 TRAP JT -12.6 -15.75 -15.75 -12.6
4910. 369 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4911. 370 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4912. 371 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4913. 372 TRAP JT 0 -3.14999 -3.14999 0
4914. 401 TRAP JT -34.65 -37.8 -37.8 -34.65
4915. 402 TRAP JT -31.5 -34.65 -34.65 -31.5
4916. 403 TRAP JT -28.35 -31.5 -31.5 -28.35
4917. 404 TRAP JT -25.2 -28.35 -28.35 -25.2
4918. 405 TRAP JT -22.05 -25.2 -25.2 -22.05
4919. 406 TRAP JT -18.9 -22.05 -22.05 -18.9
4920. 407 TRAP JT -15.75 -18.9 -18.9 -15.75
4921. 408 TRAP JT -12.6 -15.75 -15.75 -12.6
4922. 409 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4923. 410 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4924. 411 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4925. 412 TRAP JT 0 -3.14999 -3.14999 0
4926. 441 TRAP JT -34.65 -37.8 -37.8 -34.65
4927. 442 TRAP JT -31.5 -34.65 -34.65 -31.5
4928. 443 TRAP JT -28.35 -31.5 -31.5 -28.35
4929. 444 TRAP JT -25.2 -28.35 -28.35 -25.2
4930. 445 TRAP JT -22.05 -25.2 -25.2 -22.05
4931. 446 TRAP JT -18.9 -22.05 -22.05 -18.9
4932. 447 TRAP JT -15.75 -18.9 -18.9 -15.75
4933. 448 TRAP JT -12.6 -15.75 -15.75 -12.6
4934. 449 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4935. 450 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999

_ STAAD SPACE -- PAGE NO. 90

4936. 451 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4937. 452 TRAP JT 0 -3.14999 -3.14999 0
4938. 481 TRAP JT -34.65 -37.8 -37.8 -34.65
4939. 482 TRAP JT -31.5 -34.65 -34.65 -31.5
4940. 483 TRAP JT -28.35 -31.5 -31.5 -28.35
4941. 484 TRAP JT -25.2 -28.35 -28.35 -25.2
4942. 485 TRAP JT -22.05 -25.2 -25.2 -22.05
4943. 486 TRAP JT -18.9 -22.05 -22.05 -18.9
4944. 487 TRAP JT -15.75 -18.9 -18.9 -15.75
4945. 488 TRAP JT -12.6 -15.75 -15.75 -12.6
4946. 489 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4947. 490 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4948. 491 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4949. 492 TRAP JT 0 -3.14999 -3.14999 0
4950. 521 TRAP JT -34.65 -37.8 -37.8 -34.65
4951. 522 TRAP JT -31.5 -34.65 -34.65 -31.5
4952. 523 TRAP JT -28.35 -31.5 -31.5 -28.35
4953. 524 TRAP JT -25.2 -28.35 -28.35 -25.2
4954. 525 TRAP JT -22.05 -25.2 -25.2 -22.05
4955. 526 TRAP JT -18.9 -22.05 -22.05 -18.9
4956. 527 TRAP JT -15.75 -18.9 -18.9 -15.75
4957. 528 TRAP JT -12.6 -15.75 -15.75 -12.6
4958. 529 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4959. 530 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4960. 531 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4961. 532 TRAP JT 0 -3.14999 -3.14999 0
4962. 561 TRAP JT -34.65 -37.8 -37.8 -34.65
4963. 562 TRAP JT -31.5 -34.65 -34.65 -31.5
4964. 563 TRAP JT -28.35 -31.5 -31.5 -28.35
4965. 564 TRAP JT -25.2 -28.35 -28.35 -25.2
4966. 565 TRAP JT -22.05 -25.2 -25.2 -22.05
4967. 566 TRAP JT -18.9 -22.05 -22.05 -18.9
4968. 567 TRAP JT -15.75 -18.9 -18.9 -15.75
4969. 568 TRAP JT -12.6 -15.75 -15.75 -12.6
4970. 569 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4971. 570 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4972. 571 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4973. 572 TRAP JT 0 -3.14999 -3.14999 0
4974. 601 TRAP JT -34.65 -37.8 -37.8 -34.65
4975. 602 TRAP JT -31.5 -34.65 -34.65 -31.5
4976. 603 TRAP JT -28.35 -31.5 -31.5 -28.35
4977. 604 TRAP JT -25.2 -28.35 -28.35 -25.2
4978. 605 TRAP JT -22.05 -25.2 -25.2 -22.05
4979. 606 TRAP JT -18.9 -22.05 -22.05 -18.9
4980. 607 TRAP JT -15.75 -18.9 -18.9 -15.75
4981. 608 TRAP JT -12.6 -15.75 -15.75 -12.6
4982. 609 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4983. 610 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4984. 611 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4985. 612 TRAP JT 0 -3.14999 -3.14999 0
4986. 641 TRAP JT -34.65 -37.8 -37.8 -34.65
4987. 642 TRAP JT -31.5 -34.65 -34.65 -31.5
4988. 643 TRAP JT -28.35 -31.5 -31.5 -28.35
4989. 644 TRAP JT -25.2 -28.35 -28.35 -25.2
4990. 645 TRAP JT -22.05 -25.2 -25.2 -22.05
4991. 646 TRAP JT -18.9 -22.05 -22.05 -18.9

_ STAAD SPACE -- PAGE NO. 91

4992. 647 TRAP JT -15.75 -18.9 -18.9 -15.75
4993. 648 TRAP JT -12.6 -15.75 -15.75 -12.6
4994. 649 TRAP JT -9.44999 -12.6 -12.6 -9.44999
4995. 650 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
4996. 651 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
4997. 652 TRAP JT 0 -3.14999 -3.14999 0
4998. 681 TRAP JT -34.65 -37.8 -37.8 -34.65
4999. 682 TRAP JT -31.5 -34.65 -34.65 -31.5
5000. 683 TRAP JT -28.35 -31.5 -31.5 -28.35
5001. 684 TRAP JT -25.2 -28.35 -28.35 -25.2
5002. 685 TRAP JT -22.05 -25.2 -25.2 -22.05
5003. 686 TRAP JT -18.9 -22.05 -22.05 -18.9
5004. 687 TRAP JT -15.75 -18.9 -18.9 -15.75
5005. 688 TRAP JT -12.6 -15.75 -15.75 -12.6
5006. 689 TRAP JT -9.44999 -12.6 -12.6 -9.44999
5007. 690 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
5008. 691 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
5009. 692 TRAP JT 0 -3.14999 -3.14999 0
5010. 721 TRAP JT -34.65 -37.8 -37.8 -34.65
5011. 722 TRAP JT -31.5 -34.65 -34.65 -31.5
5012. 723 TRAP JT -28.35 -31.5 -31.5 -28.35
5013. 724 TRAP JT -25.2 -28.35 -28.35 -25.2
5014. 725 TRAP JT -22.05 -25.2 -25.2 -22.05
5015. 726 TRAP JT -18.9 -22.05 -22.05 -18.9
5016. 727 TRAP JT -15.75 -18.9 -18.9 -15.75
5017. 728 TRAP JT -12.6 -15.75 -15.75 -12.6
5018. 729 TRAP JT -9.44999 -12.6 -12.6 -9.44999
5019. 730 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
5020. 731 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
5021. 732 TRAP JT 0 -3.14999 -3.14999 0
5022. 761 TRAP JT -34.65 -37.8 -37.8 -34.65
5023. 762 TRAP JT -31.5 -34.65 -34.65 -31.5
5024. 763 TRAP JT -28.35 -31.5 -31.5 -28.35
5025. 764 TRAP JT -25.2 -28.35 -28.35 -25.2
5026. 765 TRAP JT -22.05 -25.2 -25.2 -22.05
5027. 766 TRAP JT -18.9 -22.05 -22.05 -18.9
5028. 767 TRAP JT -15.75 -18.9 -18.9 -15.75
5029. 768 TRAP JT -12.6 -15.75 -15.75 -12.6
5030. 769 TRAP JT -9.44999 -12.6 -12.6 -9.44999
5031. 770 TRAP JT -6.29999 -9.44999 -9.44999 -6.29999
5032. 771 TRAP JT -3.14999 -6.29999 -6.29999 -3.14999
5033. 772 TRAP JT 0 -3.14999 -3.14999 0
5034. LOAD 501 LOADTYPE LIVE TITLE EP AT REST
5035. ELEMENT LOAD
5036. 802 TRAP JT 45 49.5 49.5 45
5037. 803 TRAP JT 40.5 45 45 40.5
5038. 804 TRAP JT 36 40.5 40.5 36
5039. 805 TRAP JT 31.4999 36 36 31.4999
5040. 806 TRAP JT 27 31.4999 31.4999 27
5041. 807 TRAP JT 22.5 27 27 22.5
5042. 808 TRAP JT 18 22.5 22.5 18
5043. 809 TRAP JT 13.5 18 18 13.5
5044. 810 TRAP JT 8.99999 13.5 13.5 8.99999
5045. 811 TRAP JT 4.49999 8.99999 8.99999 4.49999
5046. 812 TRAP JT 0 4.49999 4.49999 0
5047. 841 TRAP JT 49.5 54 54 49.5

_ STAAD SPACE -- PAGE NO. 92

5048. 842 TRAP JT 45 49.5 49.5 45
5049. 843 TRAP JT 40.5 45 45 40.5
5050. 844 TRAP JT 36 40.5 40.5 36
5051. 845 TRAP JT 31.4999 36 36 31.4999
5052. 846 TRAP JT 27 31.4999 31.4999 27
5053. 847 TRAP JT 22.5 27 27 22.5
5054. 848 TRAP JT 18 22.5 22.5 18
5055. 849 TRAP JT 13.5 18 18 13.5
5056. 850 TRAP JT 8.99999 13.5 13.5 8.99999
5057. 851 TRAP JT 4.49999 8.99999 8.99999 4.49999
5058. 852 TRAP JT 0 4.49999 4.49999 0
5059. 881 TRAP JT 49.5 54 54 49.5
5060. 882 TRAP JT 45 49.5 49.5 45
5061. 883 TRAP JT 40.5 45 45 40.5
5062. 884 TRAP JT 36 40.5 40.5 36
5063. 885 TRAP JT 31.4999 36 36 31.4999
5064. 886 TRAP JT 27 31.4999 31.4999 27
5065. 887 TRAP JT 22.5 27 27 22.5
5066. 888 TRAP JT 18 22.5 22.5 18
5067. 889 TRAP JT 13.5 18 18 13.5
5068. 890 TRAP JT 8.99999 13.5 13.5 8.99999
5069. 891 TRAP JT 4.49999 8.99999 8.99999 4.49999
5070. 892 TRAP JT 0 4.49999 4.49999 0
5071. 921 TRAP JT 49.5 54 54 49.5
5072. 922 TRAP JT 45 49.5 49.5 45
5073. 923 TRAP JT 40.5 45 45 40.5
5074. 924 TRAP JT 36 40.5 40.5 36
5075. 925 TRAP JT 31.4999 36 36 31.4999
5076. 926 TRAP JT 27 31.4999 31.4999 27
5077. 927 TRAP JT 22.5 27 27 22.5
5078. 928 TRAP JT 18 22.5 22.5 18
5079. 929 TRAP JT 13.5 18 18 13.5
5080. 930 TRAP JT 8.99999 13.5 13.5 8.99999
5081. 931 TRAP JT 4.49999 8.99999 8.99999 4.49999
5082. 932 TRAP JT 0 4.49999 4.49999 0
5083. 961 TRAP JT 49.5 54 54 49.5
5084. 962 TRAP JT 45 49.5 49.5 45
5085. 963 TRAP JT 40.5 45 45 40.5
5086. 964 TRAP JT 36 40.5 40.5 36
5087. 965 TRAP JT 31.4999 36 36 31.4999
5088. 966 TRAP JT 27 31.4999 31.4999 27
5089. 967 TRAP JT 22.5 27 27 22.5
5090. 968 TRAP JT 18 22.5 22.5 18
5091. 969 TRAP JT 13.5 18 18 13.5
5092. 970 TRAP JT 8.99999 13.5 13.5 8.99999
5093. 971 TRAP JT 4.49999 8.99999 8.99999 4.49999
5094. 972 TRAP JT 0 4.49999 4.49999 0
5095. 1001 TRAP JT 49.5 54 54 49.5
5096. 1002 TRAP JT 45 49.5 49.5 45
5097. 1003 TRAP JT 40.5 45 45 40.5
5098. 1004 TRAP JT 36 40.5 40.5 36
5099. 1005 TRAP JT 31.4999 36 36 31.4999
5100. 1006 TRAP JT 27 31.4999 31.4999 27
5101. 1007 TRAP JT 22.5 27 27 22.5
5102. 1008 TRAP JT 18 22.5 22.5 18
5103. 1009 TRAP JT 13.5 18 18 13.5

_ STAAD SPACE -- PAGE NO. 93

5104. 1010 TRAP JT 8.99999 13.5 13.5 8.99999
5105. 1011 TRAP JT 4.49999 8.99999 8.99999 4.49999
5106. 1012 TRAP JT 0 4.49999 4.49999 0
5107. 1041 TRAP JT 49.5 54 54 49.5
5108. 1042 TRAP JT 45 49.5 49.5 45
5109. 1043 TRAP JT 40.5 45 45 40.5
5110. 1044 TRAP JT 36 40.5 40.5 36
5111. 1045 TRAP JT 31.4999 36 36 31.4999
5112. 1046 TRAP JT 27 31.4999 31.4999 27
5113. 1047 TRAP JT 22.5 27 27 22.5
5114. 1048 TRAP JT 18 22.5 22.5 18
5115. 1049 TRAP JT 13.5 18 18 13.5
5116. 1050 TRAP JT 8.99999 13.5 13.5 8.99999
5117. 1051 TRAP JT 4.49999 8.99999 8.99999 4.49999
5118. 1052 TRAP JT 0 4.49999 4.49999 0
5119. 1081 TRAP JT 49.5 54 54 49.5
5120. 1082 TRAP JT 45 49.5 49.5 45
5121. 1083 TRAP JT 40.5 45 45 40.5
5122. 1084 TRAP JT 36 40.5 40.5 36
5123. 1085 TRAP JT 31.4999 36 36 31.4999
5124. 1086 TRAP JT 27 31.4999 31.4999 27
5125. 1087 TRAP JT 22.5 27 27 22.5
5126. 1088 TRAP JT 18 22.5 22.5 18
5127. 1089 TRAP JT 13.5 18 18 13.5
5128. 1090 TRAP JT 8.99999 13.5 13.5 8.99999
5129. 1091 TRAP JT 4.49999 8.99999 8.99999 4.49999
5130. 1092 TRAP JT 0 4.49999 4.49999 0
5131. 1121 TRAP JT 49.5 54 54 49.5
5132. 1122 TRAP JT 45 49.5 49.5 45
5133. 1123 TRAP JT 40.5 45 45 40.5
5134. 1124 TRAP JT 36 40.5 40.5 36
5135. 1125 TRAP JT 31.4999 36 36 31.4999
5136. 1126 TRAP JT 27 31.4999 31.4999 27
5137. 1127 TRAP JT 22.5 27 27 22.5
5138. 1128 TRAP JT 18 22.5 22.5 18
5139. 1129 TRAP JT 13.5 18 18 13.5
5140. 1130 TRAP JT 8.99999 13.5 13.5 8.99999
5141. 1131 TRAP JT 4.49999 8.99999 8.99999 4.49999
5142. 1132 TRAP JT 0 4.49999 4.49999 0
5143. 1161 TRAP JT 49.5 54 54 49.5
5144. 1162 TRAP JT 45 49.5 49.5 45
5145. 1163 TRAP JT 40.5 45 45 40.5
5146. 1164 TRAP JT 36 40.5 40.5 36
5147. 1165 TRAP JT 31.4999 36 36 31.4999
5148. 1166 TRAP JT 27 31.4999 31.4999 27
5149. 1167 TRAP JT 22.5 27 27 22.5
5150. 1168 TRAP JT 18 22.5 22.5 18
5151. 1169 TRAP JT 13.5 18 18 13.5
5152. 1170 TRAP JT 8.99999 13.5 13.5 8.99999
5153. 1171 TRAP JT 4.49999 8.99999 8.99999 4.49999
5154. 1172 TRAP JT 0 4.49999 4.49999 0
5155. 1201 TRAP JT 49.5 54 54 49.5
5156. 1202 TRAP JT 45 49.5 49.5 45
5157. 1203 TRAP JT 40.5 45 45 40.5
5158. 1204 TRAP JT 36 40.5 40.5 36
5159. 1205 TRAP JT 31.4999 36 36 31.4999

_ STAAD SPACE -- PAGE NO. 94

5160. 1206 TRAP JT 27 31.4999 31.4999 27
5161. 1207 TRAP JT 22.5 27 27 22.5
5162. 1208 TRAP JT 18 22.5 22.5 18
5163. 1209 TRAP JT 13.5 18 18 13.5
5164. 1210 TRAP JT 8.99999 13.5 13.5 8.99999
5165. 1211 TRAP JT 4.49999 8.99999 8.99999 4.49999
5166. 1212 TRAP JT 0 4.49999 4.49999 0
5167. 1241 TRAP JT 49.5 54 54 49.5
5168. 1242 TRAP JT 45 49.5 49.5 45
5169. 1243 TRAP JT 40.5 45 45 40.5
5170. 1244 TRAP JT 36 40.5 40.5 36
5171. 1245 TRAP JT 31.4999 36 36 31.4999
5172. 1246 TRAP JT 27 31.4999 31.4999 27
5173. 1247 TRAP JT 22.5 27 27 22.5
5174. 1248 TRAP JT 18 22.5 22.5 18
5175. 1249 TRAP JT 13.5 18 18 13.5
5176. 1250 TRAP JT 8.99999 13.5 13.5 8.99999
5177. 1251 TRAP JT 4.49999 8.99999 8.99999 4.49999
5178. 1252 TRAP JT 0 4.49999 4.49999 0
5179. 1281 TRAP JT 49.5 54 54 49.5
5180. 1282 TRAP JT 45 49.5 49.5 45
5181. 1283 TRAP JT 40.5 45 45 40.5
5182. 1284 TRAP JT 36 40.5 40.5 36
5183. 1285 TRAP JT 31.4999 36 36 31.4999
5184. 1286 TRAP JT 27 31.4999 31.4999 27
5185. 1287 TRAP JT 22.5 27 27 22.5
5186. 1288 TRAP JT 18 22.5 22.5 18
5187. 1289 TRAP JT 13.5 18 18 13.5
5188. 1290 TRAP JT 8.99999 13.5 13.5 8.99999
5189. 1291 TRAP JT 4.49999 8.99999 8.99999 4.49999
5190. 1292 TRAP JT 0 4.49999 4.49999 0
5191. 1321 TRAP JT 49.5 54 54 49.5
5192. 1322 TRAP JT 45 49.5 49.5 45
5193. 1323 TRAP JT 40.5 45 45 40.5
5194. 1324 TRAP JT 36 40.5 40.5 36
5195. 1325 TRAP JT 31.4999 36 36 31.4999
5196. 1326 TRAP JT 27 31.4999 31.4999 27
5197. 1327 TRAP JT 22.5 27 27 22.5
5198. 1328 TRAP JT 18 22.5 22.5 18
5199. 1329 TRAP JT 13.5 18 18 13.5
5200. 1330 TRAP JT 8.99999 13.5 13.5 8.99999
5201. 1331 TRAP JT 4.49999 8.99999 8.99999 4.49999
5202. 1332 TRAP JT 0 4.49999 4.49999 0
5203. 1361 TRAP JT 49.5 54 54 49.5
5204. 1362 TRAP JT 45 49.5 49.5 45
5205. 1363 TRAP JT 40.5 45 45 40.5
5206. 1364 TRAP JT 36 40.5 40.5 36
5207. 1365 TRAP JT 31.4999 36 36 31.4999
5208. 1366 TRAP JT 27 31.4999 31.4999 27
5209. 1367 TRAP JT 22.5 27 27 22.5
5210. 1368 TRAP JT 18 22.5 22.5 18
5211. 1369 TRAP JT 13.5 18 18 13.5
5212. 1370 TRAP JT 8.99999 13.5 13.5 8.99999
5213. 1371 TRAP JT 4.49999 8.99999 8.99999 4.49999
5214. 1372 TRAP JT 0 4.49999 4.49999 0
5215. 1401 TRAP JT 49.5 54 54 49.5

_ STAAD SPACE -- PAGE NO. 95

5216. 1402 TRAP JT 45 49.5 49.5 45
5217. 1403 TRAP JT 40.5 45 45 40.5
5218. 1404 TRAP JT 36 40.5 40.5 36
5219. 1405 TRAP JT 31.4999 36 36 31.4999
5220. 1406 TRAP JT 27 31.4999 31.4999 27
5221. 1407 TRAP JT 22.5 27 27 22.5
5222. 1408 TRAP JT 18 22.5 22.5 18
5223. 1409 TRAP JT 13.5 18 18 13.5
5224. 1410 TRAP JT 8.99999 13.5 13.5 8.99999
5225. 1411 TRAP JT 4.49999 8.99999 8.99999 4.49999
5226. 1412 TRAP JT 0 4.49999 4.49999 0
5227. 1441 TRAP JT 49.5 54 54 49.5
5228. 1442 TRAP JT 45 49.5 49.5 45
5229. 1443 TRAP JT 40.5 45 45 40.5
5230. 1444 TRAP JT 36 40.5 40.5 36
5231. 1445 TRAP JT 31.4999 36 36 31.4999
5232. 1446 TRAP JT 27 31.4999 31.4999 27
5233. 1447 TRAP JT 22.5 27 27 22.5
5234. 1448 TRAP JT 18 22.5 22.5 18
5235. 1449 TRAP JT 13.5 18 18 13.5
5236. 1450 TRAP JT 8.99999 13.5 13.5 8.99999
5237. 1451 TRAP JT 4.49999 8.99999 8.99999 4.49999
5238. 1452 TRAP JT 0 4.49999 4.49999 0
5239. 1481 TRAP JT 49.5 54 54 49.5
5240. 1482 TRAP JT 45 49.5 49.5 45
5241. 1483 TRAP JT 40.5 45 45 40.5
5242. 1484 TRAP JT 36 40.5 40.5 36
5243. 1485 TRAP JT 31.4999 36 36 31.4999
5244. 1486 TRAP JT 27 31.4999 31.4999 27
5245. 1487 TRAP JT 22.5 27 27 22.5
5246. 1488 TRAP JT 18 22.5 22.5 18
5247. 1489 TRAP JT 13.5 18 18 13.5
5248. 1490 TRAP JT 8.99999 13.5 13.5 8.99999
5249. 1491 TRAP JT 4.49999 8.99999 8.99999 4.49999
5250. 1492 TRAP JT 0 4.49999 4.49999 0
5251. 1521 TRAP JT 49.5 54 54 49.5
5252. 1522 TRAP JT 45 49.5 49.5 45
5253. 1523 TRAP JT 40.5 45 45 40.5
5254. 1524 TRAP JT 36 40.5 40.5 36
5255. 1525 TRAP JT 31.4999 36 36 31.4999
5256. 1526 TRAP JT 27 31.4999 31.4999 27
5257. 1527 TRAP JT 22.5 27 27 22.5
5258. 1528 TRAP JT 18 22.5 22.5 18
5259. 1529 TRAP JT 13.5 18 18 13.5
5260. 1530 TRAP JT 8.99999 13.5 13.5 8.99999
5261. 1531 TRAP JT 4.49999 8.99999 8.99999 4.49999
5262. 1532 TRAP JT 0 4.49999 4.49999 0
5263. 1561 TRAP JT 49.5 54 54 49.5
5264. 1562 TRAP JT 45 49.5 49.5 45
5265. 1563 TRAP JT 40.5 45 45 40.5
5266. 1564 TRAP JT 36 40.5 40.5 36
5267. 1565 TRAP JT 31.4999 36 36 31.4999
5268. 1566 TRAP JT 27 31.4999 31.4999 27
5269. 1567 TRAP JT 22.5 27 27 22.5
5270. 1568 TRAP JT 18 22.5 22.5 18
5271. 1569 TRAP JT 13.5 18 18 13.5

_ STAAD SPACE -- PAGE NO. 96

5272. 1570 TRAP JT 8.99999 13.5 13.5 8.99999
5273. 1571 TRAP JT 4.49999 8.99999 8.99999 4.49999
5274. 1572 TRAP JT 0 4.49999 4.49999 0
5275. 801 TRAP JT 49.5 54 54 49.5
5276. 801 TRAP JT -27 -31.5 -31.5 -27
5277. 802 TRAP JT -22.5 -27 -27 -22.5
5278. 803 TRAP JT -18 -22.5 -22.5 -18
5279. 804 TRAP JT -13.5001 -18 -18 -13.5001
5280. 805 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5281. 806 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5282. 807 TRAP JT 0 -4.49999 -4.49999 0
5283. 841 TRAP JT -27 -31.5 -31.5 -27
5284. 842 TRAP JT -22.5 -27 -27 -22.5
5285. 843 TRAP JT -18 -22.5 -22.5 -18
5286. 844 TRAP JT -13.5001 -18 -18 -13.5001
5287. 845 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5288. 846 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5289. 847 TRAP JT 0 -4.49999 -4.49999 0
5290. 881 TRAP JT -27 -31.5 -31.5 -27
5291. 882 TRAP JT -22.5 -27 -27 -22.5
5292. 883 TRAP JT -18 -22.5 -22.5 -18
5293. 884 TRAP JT -13.5001 -18 -18 -13.5001
5294. 885 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5295. 886 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5296. 887 TRAP JT 0 -4.49999 -4.49999 0
5297. 921 TRAP JT -27 -31.5 -31.5 -27
5298. 922 TRAP JT -22.5 -27 -27 -22.5
5299. 923 TRAP JT -18 -22.5 -22.5 -18
5300. 924 TRAP JT -13.5001 -18 -18 -13.5001
5301. 925 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5302. 926 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5303. 927 TRAP JT 0 -4.49999 -4.49999 0
5304. 961 TRAP JT -27 -31.5 -31.5 -27
5305. 962 TRAP JT -22.5 -27 -27 -22.5
5306. 963 TRAP JT -18 -22.5 -22.5 -18
5307. 964 TRAP JT -13.5001 -18 -18 -13.5001
5308. 965 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5309. 966 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5310. 967 TRAP JT 0 -4.49999 -4.49999 0
5311. 1001 TRAP JT -27 -31.5 -31.5 -27
5312. 1002 TRAP JT -22.5 -27 -27 -22.5
5313. 1003 TRAP JT -18 -22.5 -22.5 -18
5314. 1004 TRAP JT -13.5001 -18 -18 -13.5001
5315. 1005 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5316. 1006 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5317. 1007 TRAP JT 0 -4.49999 -4.49999 0
5318. 1041 TRAP JT -27 -31.5 -31.5 -27
5319. 1042 TRAP JT -22.5 -27 -27 -22.5
5320. 1043 TRAP JT -18 -22.5 -22.5 -18
5321. 1044 TRAP JT -13.5001 -18 -18 -13.5001
5322. 1045 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5323. 1046 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5324. 1047 TRAP JT 0 -4.49999 -4.49999 0
5325. 1081 TRAP JT -27 -31.5 -31.5 -27
5326. 1082 TRAP JT -22.5 -27 -27 -22.5
5327. 1083 TRAP JT -18 -22.5 -22.5 -18

_ STAAD SPACE -- PAGE NO. 97

5328. 1084 TRAP JT -13.5001 -18 -18 -13.5001
5329. 1085 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5330. 1086 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5331. 1087 TRAP JT 0 -4.49999 -4.49999 0
5332. 1121 TRAP JT -27 -31.5 -31.5 -27
5333. 1122 TRAP JT -22.5 -27 -27 -22.5
5334. 1123 TRAP JT -18 -22.5 -22.5 -18
5335. 1124 TRAP JT -13.5001 -18 -18 -13.5001
5336. 1125 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5337. 1126 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5338. 1127 TRAP JT 0 -4.49999 -4.49999 0
5339. 1161 TRAP JT -27 -31.5 -31.5 -27
5340. 1162 TRAP JT -22.5 -27 -27 -22.5
5341. 1163 TRAP JT -18 -22.5 -22.5 -18
5342. 1164 TRAP JT -13.5001 -18 -18 -13.5001
5343. 1165 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5344. 1166 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5345. 1167 TRAP JT 0 -4.49999 -4.49999 0
5346. 1201 TRAP JT -27 -31.5 -31.5 -27
5347. 1202 TRAP JT -22.5 -27 -27 -22.5
5348. 1203 TRAP JT -18 -22.5 -22.5 -18
5349. 1204 TRAP JT -13.5001 -18 -18 -13.5001
5350. 1205 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5351. 1206 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5352. 1207 TRAP JT 0 -4.49999 -4.49999 0
5353. 1241 TRAP JT -27 -31.5 -31.5 -27
5354. 1242 TRAP JT -22.5 -27 -27 -22.5
5355. 1243 TRAP JT -18 -22.5 -22.5 -18
5356. 1244 TRAP JT -13.5001 -18 -18 -13.5001
5357. 1245 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5358. 1246 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5359. 1247 TRAP JT 0 -4.49999 -4.49999 0
5360. 1281 TRAP JT -27 -31.5 -31.5 -27
5361. 1282 TRAP JT -22.5 -27 -27 -22.5
5362. 1283 TRAP JT -18 -22.5 -22.5 -18
5363. 1284 TRAP JT -13.5001 -18 -18 -13.5001
5364. 1285 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5365. 1286 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5366. 1287 TRAP JT 0 -4.49999 -4.49999 0
5367. 1321 TRAP JT -27 -31.5 -31.5 -27
5368. 1322 TRAP JT -22.5 -27 -27 -22.5
5369. 1323 TRAP JT -18 -22.5 -22.5 -18
5370. 1324 TRAP JT -13.5001 -18 -18 -13.5001
5371. 1325 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5372. 1326 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5373. 1327 TRAP JT 0 -4.49999 -4.49999 0
5374. 1361 TRAP JT -27 -31.5 -31.5 -27
5375. 1362 TRAP JT -22.5 -27 -27 -22.5
5376. 1363 TRAP JT -18 -22.5 -22.5 -18
5377. 1364 TRAP JT -13.5001 -18 -18 -13.5001
5378. 1365 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5379. 1366 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5380. 1367 TRAP JT 0 -4.49999 -4.49999 0
5381. 1401 TRAP JT -27 -31.5 -31.5 -27
5382. 1402 TRAP JT -22.5 -27 -27 -22.5
5383. 1403 TRAP JT -18 -22.5 -22.5 -18

_ STAAD SPACE -- PAGE NO. 98

5384. 1404 TRAP JT -13.5001 -18 -18 -13.5001
5385. 1405 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5386. 1406 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5387. 1407 TRAP JT 0 -4.49999 -4.49999 0
5388. 1441 TRAP JT -27 -31.5 -31.5 -27
5389. 1442 TRAP JT -22.5 -27 -27 -22.5
5390. 1443 TRAP JT -18 -22.5 -22.5 -18
5391. 1444 TRAP JT -13.5001 -18 -18 -13.5001
5392. 1445 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5393. 1446 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5394. 1447 TRAP JT 0 -4.49999 -4.49999 0
5395. 1481 TRAP JT -27 -31.5 -31.5 -27
5396. 1482 TRAP JT -22.5 -27 -27 -22.5
5397. 1483 TRAP JT -18 -22.5 -22.5 -18
5398. 1484 TRAP JT -13.5001 -18 -18 -13.5001
5399. 1485 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5400. 1486 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5401. 1487 TRAP JT 0 -4.49999 -4.49999 0
5402. 1521 TRAP JT -27 -31.5 -31.5 -27
5403. 1522 TRAP JT -22.5 -27 -27 -22.5
5404. 1523 TRAP JT -18 -22.5 -22.5 -18
5405. 1524 TRAP JT -13.5001 -18 -18 -13.5001
5406. 1525 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5407. 1526 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5408. 1527 TRAP JT 0 -4.49999 -4.49999 0
5409. 1561 TRAP JT -27 -31.5 -31.5 -27
5410. 1562 TRAP JT -22.5 -27 -27 -22.5
5411. 1563 TRAP JT -18 -22.5 -22.5 -18
5412. 1564 TRAP JT -13.5001 -18 -18 -13.5001
5413. 1565 TRAP JT -8.99997 -13.5001 -13.5001 -8.99997
5414. 1566 TRAP JT -4.49999 -8.99997 -8.99997 -4.49999
5415. 1567 TRAP JT 0 -4.49999 -4.49999 0
5416. 1 TRAP JT 27 31.5 31.5 27
5417. 2 TRAP JT 22.5 27 27 22.5
5418. 3 TRAP JT 18 22.5 22.5 18
5419. 4 TRAP JT 13.5001 18 18 13.5001
5420. 5 TRAP JT 8.99997 13.5001 13.5001 8.99997
5421. 6 TRAP JT 4.49999 8.99997 8.99997 4.49999
5422. 7 TRAP JT 0 4.49999 4.49999 0
5423. 41 TRAP JT 27 31.5 31.5 27
5424. 42 TRAP JT 22.5 27 27 22.5
5425. 43 TRAP JT 18 22.5 22.5 18
5426. 44 TRAP JT 13.5001 18 18 13.5001
5427. 45 TRAP JT 8.99997 13.5001 13.5001 8.99997
5428. 46 TRAP JT 4.49999 8.99997 8.99997 4.49999
5429. 47 TRAP JT 0 4.49999 4.49999 0
5430. 81 TRAP JT 27 31.5 31.5 27
5431. 82 TRAP JT 22.5 27 27 22.5
5432. 83 TRAP JT 18 22.5 22.5 18
5433. 84 TRAP JT 13.5001 18 18 13.5001
5434. 85 TRAP JT 8.99997 13.5001 13.5001 8.99997
5435. 86 TRAP JT 4.49999 8.99997 8.99997 4.49999
5436. 87 TRAP JT 0 4.49999 4.49999 0
5437. 121 TRAP JT 27 31.5 31.5 27
5438. 122 TRAP JT 22.5 27 27 22.5
5439. 123 TRAP JT 18 22.5 22.5 18

_ STAAD SPACE -- PAGE NO. 99

5440. 124 TRAP JT 13.5001 18 18 13.5001
5441. 125 TRAP JT 8.99997 13.5001 13.5001 8.99997
5442. 126 TRAP JT 4.49999 8.99997 8.99997 4.49999
5443. 127 TRAP JT 0 4.49999 4.49999 0
5444. 161 TRAP JT 27 31.5 31.5 27
5445. 162 TRAP JT 22.5 27 27 22.5
5446. 163 TRAP JT 18 22.5 22.5 18
5447. 164 TRAP JT 13.5001 18 18 13.5001
5448. 165 TRAP JT 8.99997 13.5001 13.5001 8.99997
5449. 166 TRAP JT 4.49999 8.99997 8.99997 4.49999
5450. 167 TRAP JT 0 4.49999 4.49999 0
5451. 201 TRAP JT 27 31.5 31.5 27
5452. 202 TRAP JT 22.5 27 27 22.5
5453. 203 TRAP JT 18 22.5 22.5 18
5454. 204 TRAP JT 13.5001 18 18 13.5001
5455. 205 TRAP JT 8.99997 13.5001 13.5001 8.99997
5456. 206 TRAP JT 4.49999 8.99997 8.99997 4.49999
5457. 207 TRAP JT 0 4.49999 4.49999 0
5458. 241 TRAP JT 27 31.5 31.5 27
5459. 242 TRAP JT 22.5 27 27 22.5
5460. 243 TRAP JT 18 22.5 22.5 18
5461. 244 TRAP JT 13.5001 18 18 13.5001
5462. 245 TRAP JT 8.99997 13.5001 13.5001 8.99997
5463. 246 TRAP JT 4.49999 8.99997 8.99997 4.49999
5464. 247 TRAP JT 0 4.49999 4.49999 0
5465. 281 TRAP JT 27 31.5 31.5 27
5466. 282 TRAP JT 22.5 27 27 22.5
5467. 283 TRAP JT 18 22.5 22.5 18
5468. 284 TRAP JT 13.5001 18 18 13.5001
5469. 285 TRAP JT 8.99997 13.5001 13.5001 8.99997
5470. 286 TRAP JT 4.49999 8.99997 8.99997 4.49999
5471. 287 TRAP JT 0 4.49999 4.49999 0
5472. 321 TRAP JT 27 31.5 31.5 27
5473. 322 TRAP JT 22.5 27 27 22.5
5474. 323 TRAP JT 18 22.5 22.5 18
5475. 324 TRAP JT 13.5001 18 18 13.5001
5476. 325 TRAP JT 8.99997 13.5001 13.5001 8.99997
5477. 326 TRAP JT 4.49999 8.99997 8.99997 4.49999
5478. 327 TRAP JT 0 4.49999 4.49999 0
5479. 361 TRAP JT 27 31.5 31.5 27
5480. 362 TRAP JT 22.5 27 27 22.5
5481. 363 TRAP JT 18 22.5 22.5 18
5482. 364 TRAP JT 13.5001 18 18 13.5001
5483. 365 TRAP JT 8.99997 13.5001 13.5001 8.99997
5484. 366 TRAP JT 4.49999 8.99997 8.99997 4.49999
5485. 367 TRAP JT 0 4.49999 4.49999 0
5486. 401 TRAP JT 27 31.5 31.5 27
5487. 402 TRAP JT 22.5 27 27 22.5
5488. 403 TRAP JT 18 22.5 22.5 18
5489. 404 TRAP JT 13.5001 18 18 13.5001
5490. 405 TRAP JT 8.99997 13.5001 13.5001 8.99997
5491. 406 TRAP JT 4.49999 8.99997 8.99997 4.49999
5492. 407 TRAP JT 0 4.49999 4.49999 0
5493. 441 TRAP JT 27 31.5 31.5 27
5494. 442 TRAP JT 22.5 27 27 22.5
5495. 443 TRAP JT 18 22.5 22.5 18

_ STAAD SPACE -- PAGE NO. 100

5496. 444 TRAP JT 13.5001 18 18 13.5001
5497. 445 TRAP JT 8.99997 13.5001 13.5001 8.99997
5498. 446 TRAP JT 4.49999 8.99997 8.99997 4.49999
5499. 447 TRAP JT 0 4.49999 4.49999 0
5500. 481 TRAP JT 27 31.5 31.5 27
5501. 482 TRAP JT 22.5 27 27 22.5
5502. 483 TRAP JT 18 22.5 22.5 18
5503. 484 TRAP JT 13.5001 18 18 13.5001
5504. 485 TRAP JT 8.99997 13.5001 13.5001 8.99997
5505. 486 TRAP JT 4.49999 8.99997 8.99997 4.49999
5506. 487 TRAP JT 0 4.49999 4.49999 0
5507. 521 TRAP JT 27 31.5 31.5 27
5508. 522 TRAP JT 22.5 27 27 22.5
5509. 523 TRAP JT 18 22.5 22.5 18
5510. 524 TRAP JT 13.5001 18 18 13.5001
5511. 525 TRAP JT 8.99997 13.5001 13.5001 8.99997
5512. 526 TRAP JT 4.49999 8.99997 8.99997 4.49999
5513. 527 TRAP JT 0 4.49999 4.49999 0
5514. 561 TRAP JT 27 31.5 31.5 27
5515. 562 TRAP JT 22.5 27 27 22.5
5516. 563 TRAP JT 18 22.5 22.5 18
5517. 564 TRAP JT 13.5001 18 18 13.5001
5518. 565 TRAP JT 8.99997 13.5001 13.5001 8.99997
5519. 566 TRAP JT 4.49999 8.99997 8.99997 4.49999
5520. 567 TRAP JT 0 4.49999 4.49999 0
5521. 601 TRAP JT 27 31.5 31.5 27
5522. 602 TRAP JT 22.5 27 27 22.5
5523. 603 TRAP JT 18 22.5 22.5 18
5524. 604 TRAP JT 13.5001 18 18 13.5001
5525. 605 TRAP JT 8.99997 13.5001 13.5001 8.99997
5526. 606 TRAP JT 4.49999 8.99997 8.99997 4.49999
5527. 607 TRAP JT 0 4.49999 4.49999 0
5528. 641 TRAP JT 27 31.5 31.5 27
5529. 642 TRAP JT 22.5 27 27 22.5
5530. 643 TRAP JT 18 22.5 22.5 18
5531. 644 TRAP JT 13.5001 18 18 13.5001
5532. 645 TRAP JT 8.99997 13.5001 13.5001 8.99997
5533. 646 TRAP JT 4.49999 8.99997 8.99997 4.49999
5534. 647 TRAP JT 0 4.49999 4.49999 0
5535. 681 TRAP JT 27 31.5 31.5 27
5536. 682 TRAP JT 22.5 27 27 22.5
5537. 683 TRAP JT 18 22.5 22.5 18
5538. 684 TRAP JT 13.5001 18 18 13.5001
5539. 685 TRAP JT 8.99997 13.5001 13.5001 8.99997
5540. 686 TRAP JT 4.49999 8.99997 8.99997 4.49999
5541. 687 TRAP JT 0 4.49999 4.49999 0
5542. 721 TRAP JT 27 31.5 31.5 27
5543. 722 TRAP JT 22.5 27 27 22.5
5544. 723 TRAP JT 18 22.5 22.5 18
5545. 724 TRAP JT 13.5001 18 18 13.5001
5546. 725 TRAP JT 8.99997 13.5001 13.5001 8.99997
5547. 726 TRAP JT 4.49999 8.99997 8.99997 4.49999
5548. 727 TRAP JT 0 4.49999 4.49999 0
5549. 761 TRAP JT 27 31.5 31.5 27
5550. 762 TRAP JT 22.5 27 27 22.5
5551. 763 TRAP JT 18 22.5 22.5 18

_ STAAD SPACE -- PAGE NO. 101

5552. 764 TRAP JT 13.5001 18 18 13.5001
5553. 765 TRAP JT 8.99997 13.5001 13.5001 8.99997
5554. 766 TRAP JT 4.49999 8.99997 8.99997 4.49999
5555. 767 TRAP JT 0 4.49999 4.49999 0
5556. 1 TRAP JT -49.5 -54 -54 -49.5
5557. 2 TRAP JT -45 -49.5 -49.5 -45
5558. 3 TRAP JT -40.5 -45 -45 -40.5
5559. 4 TRAP JT -36 -40.5 -40.5 -36
5560. 5 TRAP JT -31.4999 -36 -36 -31.4999
5561. 6 TRAP JT -27 -31.4999 -31.4999 -27
5562. 7 TRAP JT -22.5 -27 -27 -22.5
5563. 8 TRAP JT -18 -22.5 -22.5 -18
5564. 9 TRAP JT -13.5 -18 -18 -13.5
5565. 10 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5566. 11 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5567. 12 TRAP JT 0 -4.49999 -4.49999 0
5568. 41 TRAP JT -49.5 -54 -54 -49.5
5569. 42 TRAP JT -45 -49.5 -49.5 -45
5570. 43 TRAP JT -40.5 -45 -45 -40.5
5571. 44 TRAP JT -36 -40.5 -40.5 -36
5572. 45 TRAP JT -31.4999 -36 -36 -31.4999
5573. 46 TRAP JT -27 -31.4999 -31.4999 -27
5574. 47 TRAP JT -22.5 -27 -27 -22.5
5575. 48 TRAP JT -18 -22.5 -22.5 -18
5576. 49 TRAP JT -13.5 -18 -18 -13.5
5577. 50 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5578. 51 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5579. 52 TRAP JT 0 -4.49999 -4.49999 0
5580. 81 TRAP JT -49.5 -54 -54 -49.5
5581. 82 TRAP JT -45 -49.5 -49.5 -45
5582. 83 TRAP JT -40.5 -45 -45 -40.5
5583. 84 TRAP JT -36 -40.5 -40.5 -36
5584. 85 TRAP JT -31.4999 -36 -36 -31.4999
5585. 86 TRAP JT -27 -31.4999 -31.4999 -27
5586. 87 TRAP JT -22.5 -27 -27 -22.5
5587. 88 TRAP JT -18 -22.5 -22.5 -18
5588. 89 TRAP JT -13.5 -18 -18 -13.5
5589. 90 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5590. 91 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5591. 92 TRAP JT 0 -4.49999 -4.49999 0
5592. 121 TRAP JT -49.5 -54 -54 -49.5
5593. 122 TRAP JT -45 -49.5 -49.5 -45
5594. 123 TRAP JT -40.5 -45 -45 -40.5
5595. 124 TRAP JT -36 -40.5 -40.5 -36
5596. 125 TRAP JT -31.4999 -36 -36 -31.4999
5597. 126 TRAP JT -27 -31.4999 -31.4999 -27
5598. 127 TRAP JT -22.5 -27 -27 -22.5
5599. 128 TRAP JT -18 -22.5 -22.5 -18
5600. 129 TRAP JT -13.5 -18 -18 -13.5
5601. 130 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5602. 131 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5603. 132 TRAP JT 0 -4.49999 -4.49999 0
5604. 161 TRAP JT -49.5 -54 -54 -49.5
5605. 162 TRAP JT -45 -49.5 -49.5 -45
5606. 163 TRAP JT -40.5 -45 -45 -40.5
5607. 164 TRAP JT -36 -40.5 -40.5 -36

_ STAAD SPACE -- PAGE NO. 102

5608. 165 TRAP JT -31.4999 -36 -36 -31.4999
5609. 166 TRAP JT -27 -31.4999 -31.4999 -27
5610. 167 TRAP JT -22.5 -27 -27 -22.5
5611. 168 TRAP JT -18 -22.5 -22.5 -18
5612. 169 TRAP JT -13.5 -18 -18 -13.5
5613. 170 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5614. 171 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5615. 172 TRAP JT 0 -4.49999 -4.49999 0
5616. 201 TRAP JT -49.5 -54 -54 -49.5
5617. 202 TRAP JT -45 -49.5 -49.5 -45
5618. 203 TRAP JT -40.5 -45 -45 -40.5
5619. 204 TRAP JT -36 -40.5 -40.5 -36
5620. 205 TRAP JT -31.4999 -36 -36 -31.4999
5621. 206 TRAP JT -27 -31.4999 -31.4999 -27
5622. 207 TRAP JT -22.5 -27 -27 -22.5
5623. 208 TRAP JT -18 -22.5 -22.5 -18
5624. 209 TRAP JT -13.5 -18 -18 -13.5
5625. 210 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5626. 211 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5627. 212 TRAP JT 0 -4.49999 -4.49999 0
5628. 241 TRAP JT -49.5 -54 -54 -49.5
5629. 242 TRAP JT -45 -49.5 -49.5 -45
5630. 243 TRAP JT -40.5 -45 -45 -40.5
5631. 244 TRAP JT -36 -40.5 -40.5 -36
5632. 245 TRAP JT -31.4999 -36 -36 -31.4999
5633. 246 TRAP JT -27 -31.4999 -31.4999 -27
5634. 247 TRAP JT -22.5 -27 -27 -22.5
5635. 248 TRAP JT -18 -22.5 -22.5 -18
5636. 249 TRAP JT -13.5 -18 -18 -13.5
5637. 250 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5638. 251 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5639. 252 TRAP JT 0 -4.49999 -4.49999 0
5640. 281 TRAP JT -49.5 -54 -54 -49.5
5641. 282 TRAP JT -45 -49.5 -49.5 -45
5642. 283 TRAP JT -40.5 -45 -45 -40.5
5643. 284 TRAP JT -36 -40.5 -40.5 -36
5644. 285 TRAP JT -31.4999 -36 -36 -31.4999
5645. 286 TRAP JT -27 -31.4999 -31.4999 -27
5646. 287 TRAP JT -22.5 -27 -27 -22.5
5647. 288 TRAP JT -18 -22.5 -22.5 -18
5648. 289 TRAP JT -13.5 -18 -18 -13.5
5649. 290 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5650. 291 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5651. 292 TRAP JT 0 -4.49999 -4.49999 0
5652. 321 TRAP JT -49.5 -54 -54 -49.5
5653. 322 TRAP JT -45 -49.5 -49.5 -45
5654. 323 TRAP JT -40.5 -45 -45 -40.5
5655. 324 TRAP JT -36 -40.5 -40.5 -36
5656. 325 TRAP JT -31.4999 -36 -36 -31.4999
5657. 326 TRAP JT -27 -31.4999 -31.4999 -27
5658. 327 TRAP JT -22.5 -27 -27 -22.5
5659. 328 TRAP JT -18 -22.5 -22.5 -18
5660. 329 TRAP JT -13.5 -18 -18 -13.5
5661. 330 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5662. 331 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5663. 332 TRAP JT 0 -4.49999 -4.49999 0

_ STAAD SPACE -- PAGE NO. 103

5664. 361 TRAP JT -49.5 -54 -54 -49.5
5665. 362 TRAP JT -45 -49.5 -49.5 -45
5666. 363 TRAP JT -40.5 -45 -45 -40.5
5667. 364 TRAP JT -36 -40.5 -40.5 -36
5668. 365 TRAP JT -31.4999 -36 -36 -31.4999
5669. 366 TRAP JT -27 -31.4999 -31.4999 -27
5670. 367 TRAP JT -22.5 -27 -27 -22.5
5671. 368 TRAP JT -18 -22.5 -22.5 -18
5672. 369 TRAP JT -13.5 -18 -18 -13.5
5673. 370 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5674. 371 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5675. 372 TRAP JT 0 -4.49999 -4.49999 0
5676. 401 TRAP JT -49.5 -54 -54 -49.5
5677. 402 TRAP JT -45 -49.5 -49.5 -45
5678. 403 TRAP JT -40.5 -45 -45 -40.5
5679. 404 TRAP JT -36 -40.5 -40.5 -36
5680. 405 TRAP JT -31.4999 -36 -36 -31.4999
5681. 406 TRAP JT -27 -31.4999 -31.4999 -27
5682. 407 TRAP JT -22.5 -27 -27 -22.5
5683. 408 TRAP JT -18 -22.5 -22.5 -18
5684. 409 TRAP JT -13.5 -18 -18 -13.5
5685. 410 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5686. 411 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5687. 412 TRAP JT 0 -4.49999 -4.49999 0
5688. 441 TRAP JT -49.5 -54 -54 -49.5
5689. 442 TRAP JT -45 -49.5 -49.5 -45
5690. 443 TRAP JT -40.5 -45 -45 -40.5
5691. 444 TRAP JT -36 -40.5 -40.5 -36
5692. 445 TRAP JT -31.4999 -36 -36 -31.4999
5693. 446 TRAP JT -27 -31.4999 -31.4999 -27
5694. 447 TRAP JT -22.5 -27 -27 -22.5
5695. 448 TRAP JT -18 -22.5 -22.5 -18
5696. 449 TRAP JT -13.5 -18 -18 -13.5
5697. 450 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5698. 451 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5699. 452 TRAP JT 0 -4.49999 -4.49999 0
5700. 481 TRAP JT -49.5 -54 -54 -49.5
5701. 482 TRAP JT -45 -49.5 -49.5 -45
5702. 483 TRAP JT -40.5 -45 -45 -40.5
5703. 484 TRAP JT -36 -40.5 -40.5 -36
5704. 485 TRAP JT -31.4999 -36 -36 -31.4999
5705. 486 TRAP JT -27 -31.4999 -31.4999 -27
5706. 487 TRAP JT -22.5 -27 -27 -22.5
5707. 488 TRAP JT -18 -22.5 -22.5 -18
5708. 489 TRAP JT -13.5 -18 -18 -13.5
5709. 490 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5710. 491 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5711. 492 TRAP JT 0 -4.49999 -4.49999 0
5712. 521 TRAP JT -49.5 -54 -54 -49.5
5713. 522 TRAP JT -45 -49.5 -49.5 -45
5714. 523 TRAP JT -40.5 -45 -45 -40.5
5715. 524 TRAP JT -36 -40.5 -40.5 -36
5716. 525 TRAP JT -31.4999 -36 -36 -31.4999
5717. 526 TRAP JT -27 -31.4999 -31.4999 -27
5718. 527 TRAP JT -22.5 -27 -27 -22.5
5719. 528 TRAP JT -18 -22.5 -22.5 -18

_ STAAD SPACE -- PAGE NO. 104

5720. 529 TRAP JT -13.5 -18 -18 -13.5
5721. 530 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5722. 531 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5723. 532 TRAP JT 0 -4.49999 -4.49999 0
5724. 561 TRAP JT -49.5 -54 -54 -49.5
5725. 562 TRAP JT -45 -49.5 -49.5 -45
5726. 563 TRAP JT -40.5 -45 -45 -40.5
5727. 564 TRAP JT -36 -40.5 -40.5 -36
5728. 565 TRAP JT -31.4999 -36 -36 -31.4999
5729. 566 TRAP JT -27 -31.4999 -31.4999 -27
5730. 567 TRAP JT -22.5 -27 -27 -22.5
5731. 568 TRAP JT -18 -22.5 -22.5 -18
5732. 569 TRAP JT -13.5 -18 -18 -13.5
5733. 570 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5734. 571 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5735. 572 TRAP JT 0 -4.49999 -4.49999 0
5736. 601 TRAP JT -49.5 -54 -54 -49.5
5737. 602 TRAP JT -45 -49.5 -49.5 -45
5738. 603 TRAP JT -40.5 -45 -45 -40.5
5739. 604 TRAP JT -36 -40.5 -40.5 -36
5740. 605 TRAP JT -31.4999 -36 -36 -31.4999
5741. 606 TRAP JT -27 -31.4999 -31.4999 -27
5742. 607 TRAP JT -22.5 -27 -27 -22.5
5743. 608 TRAP JT -18 -22.5 -22.5 -18
5744. 609 TRAP JT -13.5 -18 -18 -13.5
5745. 610 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5746. 611 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5747. 612 TRAP JT 0 -4.49999 -4.49999 0
5748. 641 TRAP JT -49.5 -54 -54 -49.5
5749. 642 TRAP JT -45 -49.5 -49.5 -45
5750. 643 TRAP JT -40.5 -45 -45 -40.5
5751. 644 TRAP JT -36 -40.5 -40.5 -36
5752. 645 TRAP JT -31.4999 -36 -36 -31.4999
5753. 646 TRAP JT -27 -31.4999 -31.4999 -27
5754. 647 TRAP JT -22.5 -27 -27 -22.5
5755. 648 TRAP JT -18 -22.5 -22.5 -18
5756. 649 TRAP JT -13.5 -18 -18 -13.5
5757. 650 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5758. 651 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5759. 652 TRAP JT 0 -4.49999 -4.49999 0
5760. 681 TRAP JT -49.5 -54 -54 -49.5
5761. 682 TRAP JT -45 -49.5 -49.5 -45
5762. 683 TRAP JT -40.5 -45 -45 -40.5
5763. 684 TRAP JT -36 -40.5 -40.5 -36
5764. 685 TRAP JT -31.4999 -36 -36 -31.4999
5765. 686 TRAP JT -27 -31.4999 -31.4999 -27
5766. 687 TRAP JT -22.5 -27 -27 -22.5
5767. 688 TRAP JT -18 -22.5 -22.5 -18
5768. 689 TRAP JT -13.5 -18 -18 -13.5
5769. 690 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5770. 691 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5771. 692 TRAP JT 0 -4.49999 -4.49999 0
5772. 721 TRAP JT -49.5 -54 -54 -49.5
5773. 722 TRAP JT -45 -49.5 -49.5 -45
5774. 723 TRAP JT -40.5 -45 -45 -40.5
5775. 724 TRAP JT -36 -40.5 -40.5 -36

_ STAAD SPACE -- PAGE NO. 105

5776. 725 TRAP JT -31.4999 -36 -36 -31.4999
5777. 726 TRAP JT -27 -31.4999 -31.4999 -27
5778. 727 TRAP JT -22.5 -27 -27 -22.5
5779. 728 TRAP JT -18 -22.5 -22.5 -18
5780. 729 TRAP JT -13.5 -18 -18 -13.5
5781. 730 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5782. 731 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5783. 732 TRAP JT 0 -4.49999 -4.49999 0
5784. 761 TRAP JT -49.5 -54 -54 -49.5
5785. 762 TRAP JT -45 -49.5 -49.5 -45
5786. 763 TRAP JT -40.5 -45 -45 -40.5
5787. 764 TRAP JT -36 -40.5 -40.5 -36
5788. 765 TRAP JT -31.4999 -36 -36 -31.4999
5789. 766 TRAP JT -27 -31.4999 -31.4999 -27
5790. 767 TRAP JT -22.5 -27 -27 -22.5
5791. 768 TRAP JT -18 -22.5 -22.5 -18
5792. 769 TRAP JT -13.5 -18 -18 -13.5
5793. 770 TRAP JT -8.99999 -13.5 -13.5 -8.99999
5794. 771 TRAP JT -4.49999 -8.99999 -8.99999 -4.49999
5795. 772 TRAP JT 0 -4.49999 -4.49999 0
5796. LOAD 601 LOADTYPE WIND TITLE WIND +X
5797. ELEMENT LOAD
5798. 13 TO 40 53 TO 80 93 TO 120 133 TO 160 173 TO 200 213 TO 240 253 TO 280 293 -
5799. 294 TO 320 333 TO 360 373 TO 400 413 TO 440 453 TO 480 493 TO 520 533 TO 560 -
5800. 573 TO 600 613 TO 640 653 TO 680 693 TO 720 733 TO 760 773 TO 799 -
5801. 800 PR GX 0.765
5802. LOAD 701 LOADTYPE WIND TITLE WIND -X
5803. ELEMENT LOAD
5804. 813 TO 840 853 TO 880 893 TO 920 933 TO 960 973 TO 1000 1013 TO 1040 1053 -
5805. 1054 TO 1080 1093 TO 1120 1133 TO 1160 1173 TO 1200 1213 TO 1240 1253 TO 1280 -
5806. 1293 TO 1320 1333 TO 1360 1373 TO 1400 1413 TO 1440 1453 TO 1480 -
5807. 1493 TO 1520 1533 TO 1560 1573 TO 1600 PR GX -0.765
5808. LOAD 801 LOADTYPE WIND TITLE WIND +Y
5809. ELEMENT LOAD
5810. 750000 TO 750141 750143 TO 750207 750209 TO 750275 750277 TO 750302 750304 -
5811. 750305 TO 750315 750318 TO 750369 750371 TO 750382 750384 TO 750481 750483 -
5812. 750484 TO 750700 750707 TO 750714 750716 TO 750755 750758 TO 750777 750784 -
5813. 750785 TO 750791 750794 TO 750847 750850 TO 750900 750905 TO 750910 -
5814. 750911 PR GY -0.765
5815. LOAD 1001 LOADTYPE WIND TITLE WIND +Z
5816. ELEMENT LOAD
5817. 13 TO 40 813 TO 840 11108 11109 11226 11227 11344 11345 11462 11463 11572 -
5818. 11573 TO 11590 750000 750020 TO 750062 750912 750932 TO 750974 PR GZ 0.765
5819. LOAD 1101 LOADTYPE WIND TITLE WIND -Z
5820. ELEMENT LOAD
5821. 773 TO 800 1573 TO 1600 750019 750063 750364 750366 750367 750369 750371 -
5822. 750372 750374 750376 750378 750380 750382 750384 750385 750387 750389 750391 -
5823. 750393 750395 750397 750399 750401 750403 750405 750407 750409 750411 750413 -
5824. 750415 750417 750419 750421 750423 750425 750427 750429 750431 750438 750445 -
5825. 750452 750459 750462 750468 750931 750975 751270 751272 751273 -
5826. 751275 TO 751277 751279 751281 751283 751285 751287 TO 751289 751291 751293 -
5827. 751295 751297 751299 751301 751303 751305 751307 751309 751311 751313 751315 -
5828. 751317 751319 751321 751323 751325 751327 751329 751331 751333 751335 751342 -
5829. 751349 751356 751363 751366 751372 PR GZ -0.765
5830. PERFORM ANALYSIS

_ STAAD SPACE -- PAGE NO. 106

_

P R O B L E M S T A T I S T I C S

-----------------------------------

NUMBER OF JOINTS 5331 NUMBER OF MEMBERS 40

NUMBER OF PLATES 5153 NUMBER OF SOLIDS 0

NUMBER OF SURFACES 0 NUMBER OF SUPPORTS 42

Using 64-bit analysis engine.

SOLVER USED IS THE OUT-OF-CORE ADVANCED MATH SOLVER

TOTAL PRIMARY LOAD CASES = 93, TOTAL DEGREES OF FREEDOM = 31734

TOTAL LOAD COMBINATION CASES = 0 SO FAR.

_

**WARNING: IF THIS UBC/IBC ANALYSIS HAS TENSION/COMPRESSION

OR REPEAT LOAD OR RE-ANALYSIS OR SELECT OPTIMIZE, THEN EACH

UBC/IBC CASE SHOULD BE FOLLOWED BY PERFORM ANALYSIS & CHANGE.

***NOTE: Equivalent Static Analysis should preferably be performed for regular

structures with approximate natural time period less than 0.4s and regular

structures with height less than 15m in Seismic Zone II. Ref Cl.6.4.3 and 7.6

_BASE SHEAR AND TIME PERIOD IN X _

*********************************************************

* UNITS - KN METE *

* TIME PERIOD FOR X 1893 LOADING = 0.70931 SEC *

* SA/G PER 1893= 1.917, LOAD FACTOR= 1.000 *

* VB PER 1893= 0.0460 X 33151.36= 1525.52 KN *

* VB Act Based on Clause 7.2.1 = 1525.52 KN *

* VB Min based on Clause 7.2.2 = 364.66 KN *

* *

*********************************************************

***NOTE: Equivalent Static Analysis should preferably be performed for regular

structures with approximate natural time period less than 0.4s and regular

structures with height less than 15m in Seismic Zone II. Ref Cl.6.4.3 and 7.6

_BASE SHEAR AND TIME PERIOD IN Z _

*********************************************************

* UNITS - KN METE *

* TIME PERIOD FOR Z 1893 LOADING = 0.70931 SEC *

* SA/G PER 1893= 1.917, LOAD FACTOR= 1.000 *

* VB PER 1893= 0.0460 X 33151.36= 1525.52 KN *

* VB Act Based on Clause 7.2.1 = 1525.52 KN *

* VB Min based on Clause 7.2.2 = 364.66 KN *

* *

*********************************************************

***NOTE: Equivalent Static Analysis should preferably be performed for regular

structures with approximate natural time period less than 0.4s and regular

structures with height less than 15m in Seismic Zone II. Ref Cl.6.4.3 and 7.6

_ STAAD SPACE -- PAGE NO. 107

_BASE SHEAR AND TIME PERIOD IN Y _

*********************************************************

* UNITS - KN METE *

* Calculation of SA/G for Y based on Clause 6.4.6 *

* SA/G PER 1893= 2.500, LOAD FACTOR= 1.000 *

* VB PER 1893= 0.0400 X 33151.36= 1326.05 KN *

* *

*********************************************************

5831. FINISH
