Project 1

REPORT WRITING.

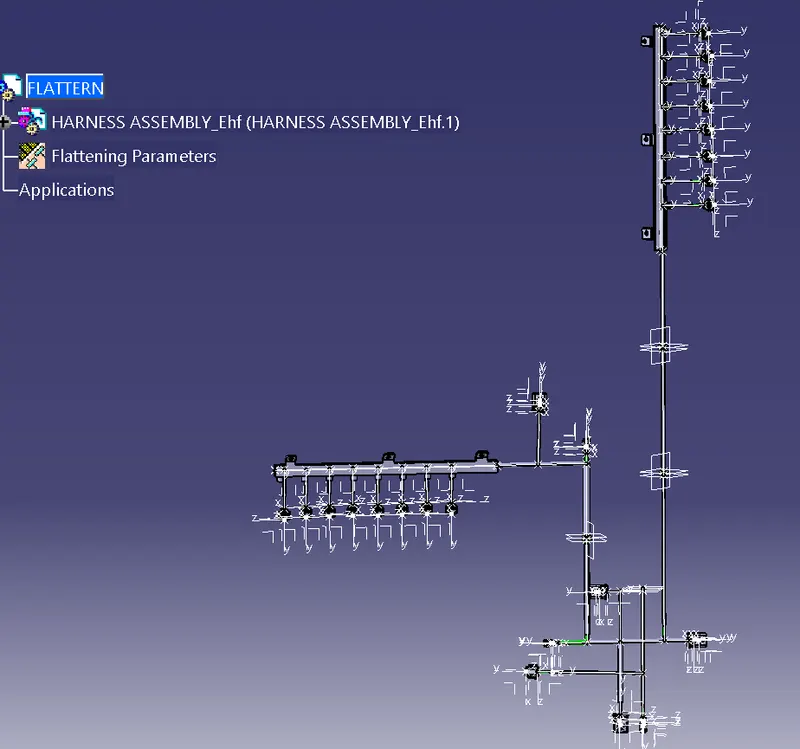

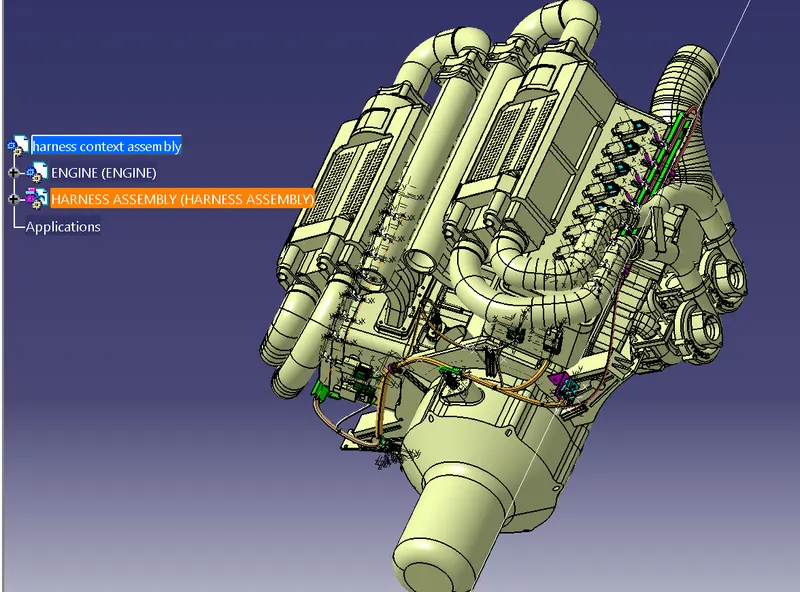

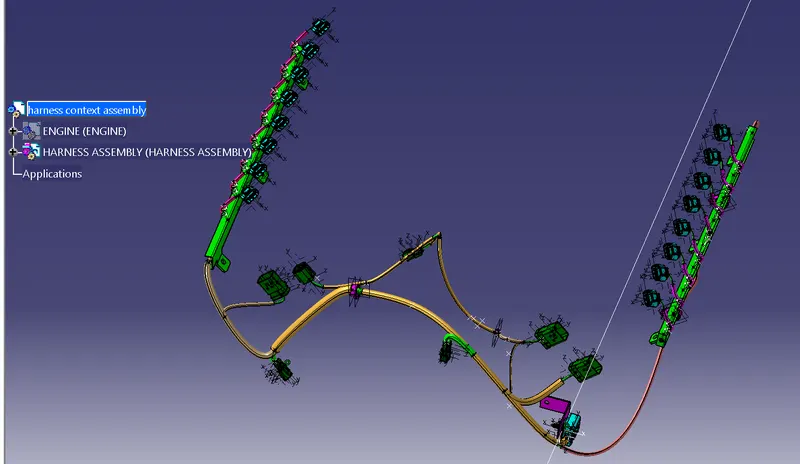

THE ABOVE FOUR IMAGES ARE REPRESENT THE FLATTERN VIEW,THREE DIMENSIONAL VIEW OF THE HARNESS ROUTING OF THE ENGINE AND FINALLY THE 2D REPRESENTATION OF THE GIVEN ENGINE ROUTING.

ENGINE ROUTING CONTAIS OF THE GIVEN CONNECTORS AND THE SUPPORTS OF PCLAMP FIRR TREE CLIP, GUIDING CHANNEL . THE CONNECTORS ARE FITTED IN THE FUEL CENSOR, SPEED SENSOR,NEUTRAL SENSOR AND VARIOS SENSORS IN THE ENGINE ARE CONNECTED WITH THE CONNECTORS. THE TWO PHASE CONNECTOR ,THREE PHASE CONNECTOR, 8,12 PHASE CONNECTORS ARE ROUTED IN THE ENGINE.

THE ENGINE IS 16 CYLINDER ENGINE.THE INTERCONNECTION OF THE HARNESS ROUTING IS 12 POLE CONNECTOR.THE12 POLE CONNECTOR TO CONNECTION ARE GIVENED IN THE VARIOUS CONNECTOR IN THE ENGINE HARNESS ROUTING. THE ENGINE HARNESS ROUTING TO ALL THE CONNECTOR AND THE SUPPORT SYSTEMS ARE PCLAMP AND FIRR TREE CLIP TO CONNECTIONS ARE GIVENED.

THE ENGINE HAVE TWO GUIDING CHANNELS. THE CHANNEL HAVE 16 CONNECTORS IN THE ENGINE. THE ENGINES ARE CONNECTED WITH THE INTERCONNECTED WITH THE 12 POLE CONNECTOR.

PRODUCTION APPLICATION:

ALL THE HARNESS HAVE PROTECTIVE COVERING LIKE HEAT ZONE HAVE NYLON TAPES AND COTT TUBES ARE GIVENED IN THE HARNESS ROUTING.ALL THE HARNESS HAVE PACKAGING RULES . ALL THE BRANCH POINT HAVE 50MM DISTANCE. AND PROTECTIVR COVERING OF CONNECTOR HAS 35MM DISTANCE.AND THE SLACK VALUE ARE GIVENED.ALL THE HARNESS HAVE THE PROTECTIVE COVERING OF THE ROUTING.

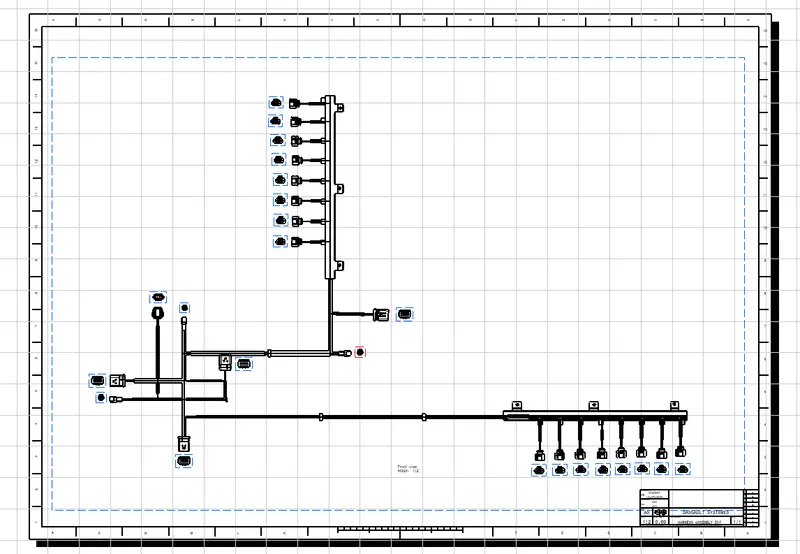

AND FINALLY THE DRAWING ALSO CREATED. THE DRAWING SHEET HAS FLATTERN VIEW AND ISOMETRIC VIEW AND BILL OF MATERIAL .
