Project 1

HOOD DESIGN-  Introduction:- Hood is main component of a car at the front portion. It is used to decorate the car & add luxurious look.    Hood design consideration:- The hood of a car is considered as the frontal BIW enclosure component. Bonnets are designed to reduce air resistance as the air…

Aim :-To develop the car backdoor by using given surface method by automotive sheet design. BACKDOOR :-At the car's back end, there is a backdoor that leads to the luggage storage space in the boot.spare wheel, etc.These doors can be manually operated or powered by electricity.The majority of luxurious automobiles…

AIM:Create the necessary flanges and reinforcement for the aforementioned car roof styling, including the ditch area, frontal roof rail, rear roof rail, center roof rail, and bow roofs.Perform a roof curvature study and calculate the heat distortion and snow load criterion in order to establish and justify the position…

allow the given Master section to create the Drip Area     For the Sill, Bumper, Baffle(Splash), and A-Pillar mount create your own design according to the Engineering standard that you learned. Prepare a report with all the relevant images included for the mounting points created.   Note: All the challenge help…

    Aim: Calculate the Wheel Arc area of Europe standard and prove whether the car will pass the standards or Not.   Wheel arch:   The second function is to shield the vehicle from sticky substances like mud…

Section Modulus Challenge Assignment help video using CATIA  Your Answers AIM- To increase the section modulus of a given hood by necessary changes TOOL USED- CATIA V5 MATERIAL USED- STAINLESS STEEL AISI 302 INTRODUCTION- Section modulus is a geometric property for a given cross-section used in the design of beams or flexural members.…

1.AIM Using MATLAB, to simulate the life cycle performance of a 10 cell series lithium ion battery model at various temperatures, charge, and discharge rates. 2.Objective 10 cell series battery pack temperature life cycle parameters analysisConnect the series analyze of 10 cells to the source of cyclic charge and discharge.Alter…

Battery pack capacity: 18 kWh Cell: ANR26650M1-B Prepare a detailed battery pack  its enclosure. State your assumptions. ans - Cell: ANR26650M1-B specifications calculations with some assumptions   https://a123batteries.com/anr26650m1-b-lithiumwerks-nanophosphate-3-3v-2-5ah-lithium-iron-phosphate-battery/   ANR26650M1-B…

Battery pack capacity: 18 kWh Cell: ANR26650M1-B Prepare a detailed battery pack  its enclosure. State your assumptions. ans - Cell: ANR26650M1-B specifications calculations with some assumptions   https://a123batteries.com/anr26650m1-b-lithiumwerks-nanophosphate-3-3v-2-5ah-lithium-iron-phosphate-battery/   ANR26650M1-B…

Battery pack capacity: 18 kWh Cell: ANR26650M1-B Prepare a detailed battery pack  its enclosure. State your assumptions. ans - Cell: ANR26650M1-B specifications calculations with some assumptions   https://a123batteries.com/anr26650m1-b-lithiumwerks-nanophosphate-3-3v-2-5ah-lithium-iron-phosphate-battery/  …

    Aims: Simulate the 3 test cases from harness dashboard and write a detailed report on the results. What is coulomb counting? Refer to the above model and explain how BMS implements coulomb counting for SOC estimation?   Theory: here given in question Matlab model to simulate the 3 test conditions from…

Aim: To make a study and understand about the electrochemistry of different types of lithium ion cells Questions: Prepare a table which includes materials & chemical reactions occurring at the anode and cathode of LCO, IMO, NCA, NMC, LFP and LTO type of lithium ion cells. Battery: • A Battery is a gadget comprising…

Problem Articulation:To foster one explicit necessity of Roadway Collaborator - Path Changing Colleague calculation. If it's not too much trouble, note that the entire Interstate Colleague - Path Changing Collaborator is an exceptionally immense calculation and just a single little piece of the rationale is carried out…

                                                                 …

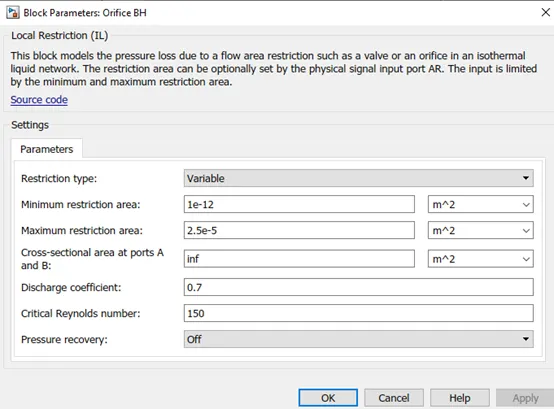

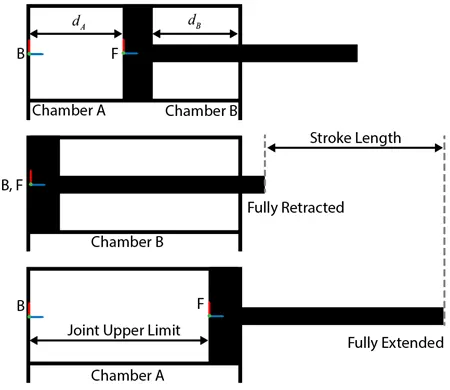

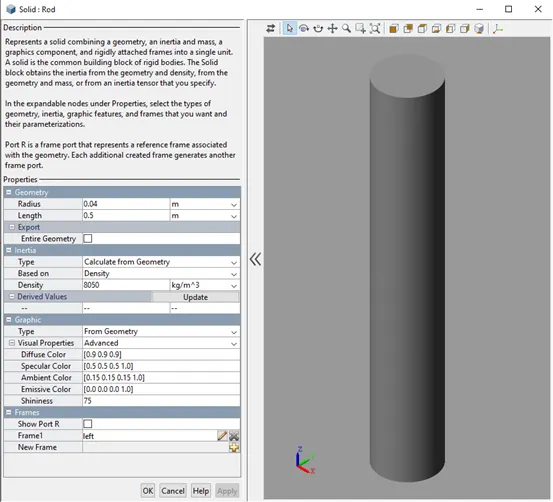

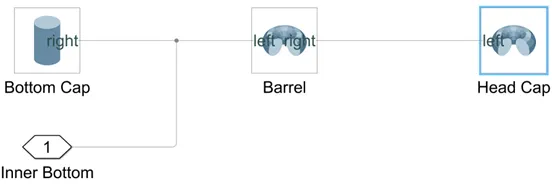

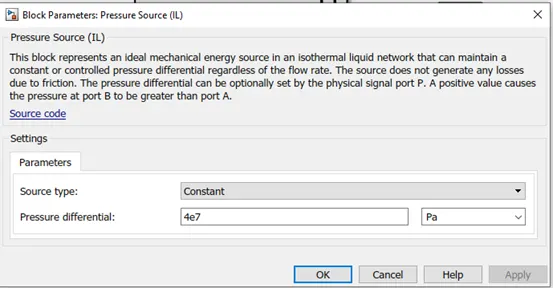

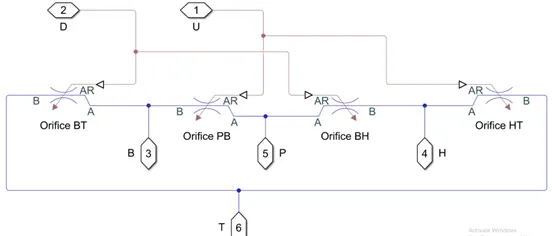

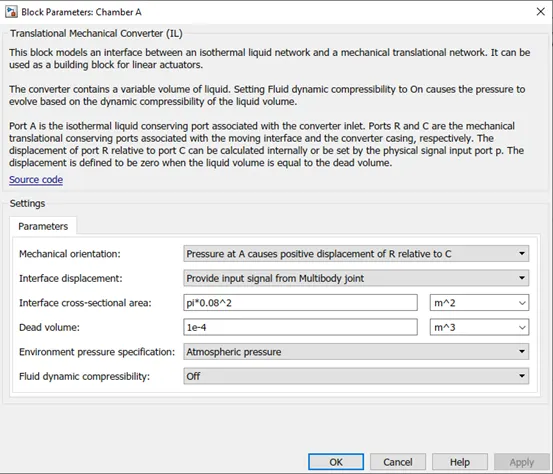

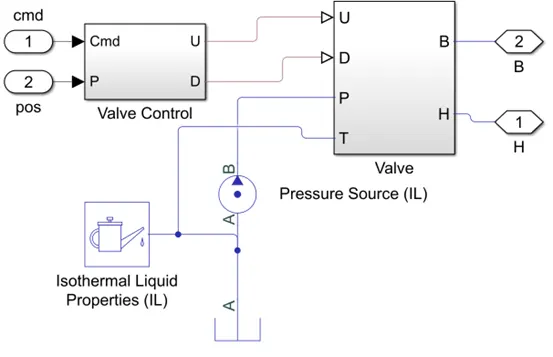

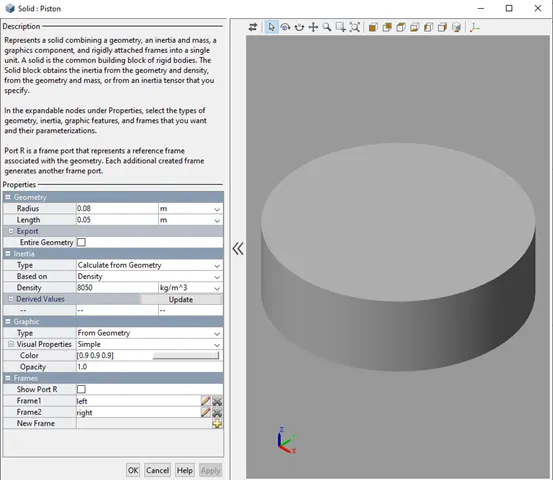

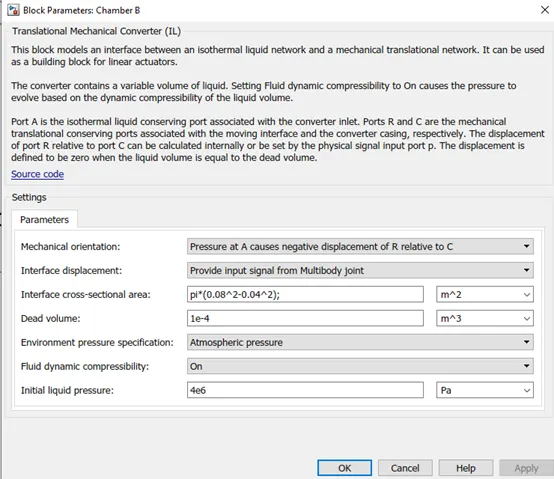

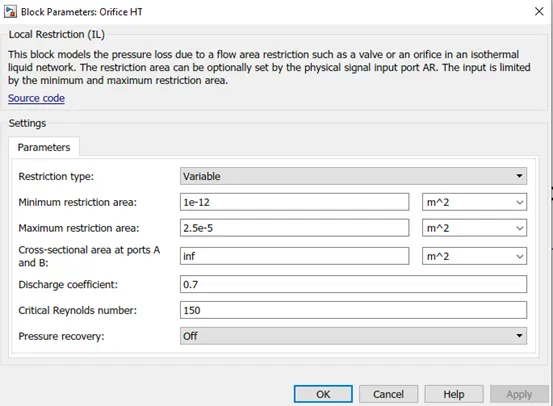

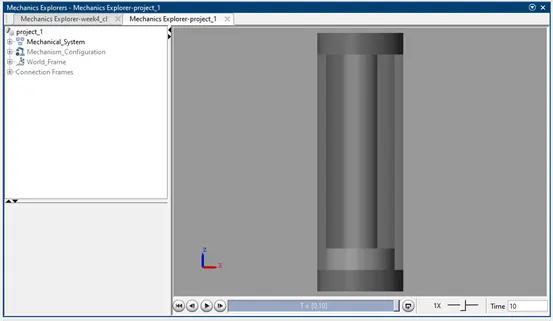

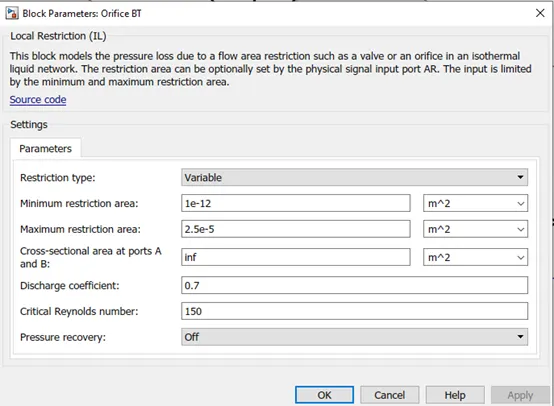

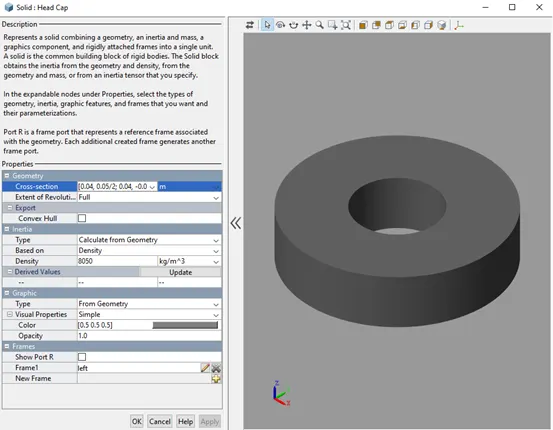

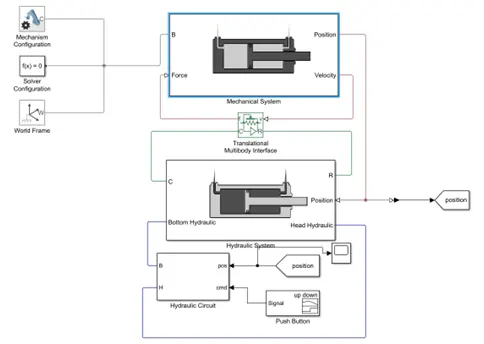

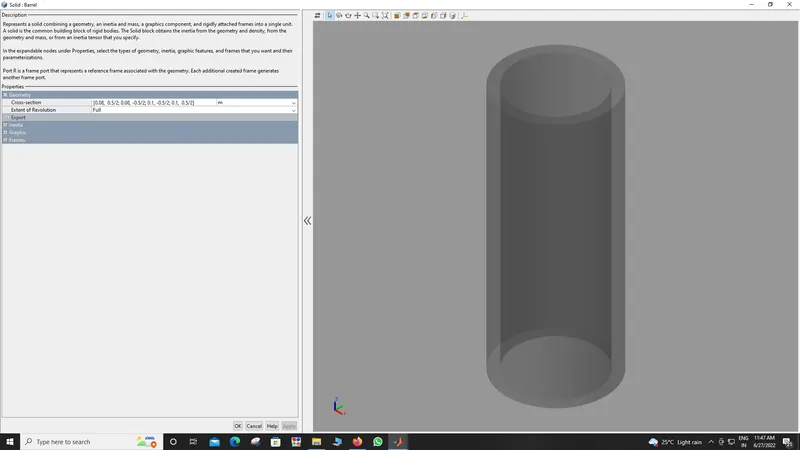

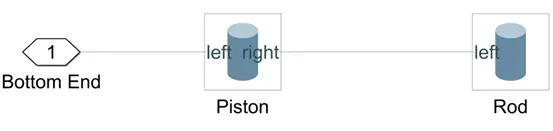

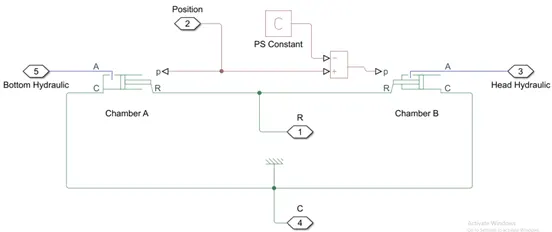

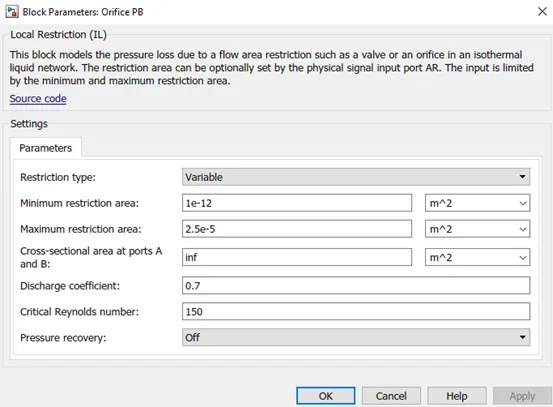

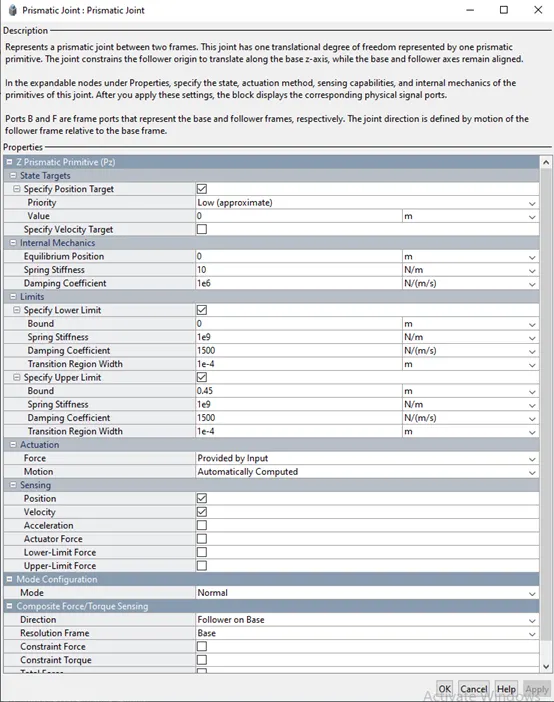

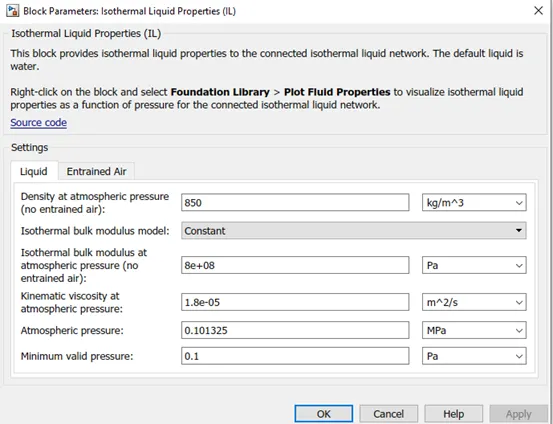

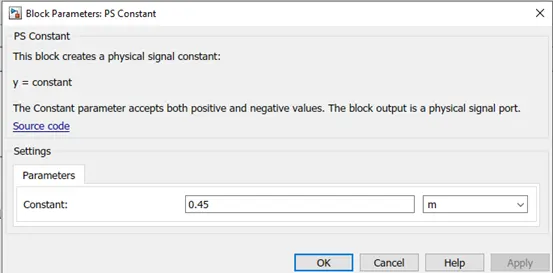

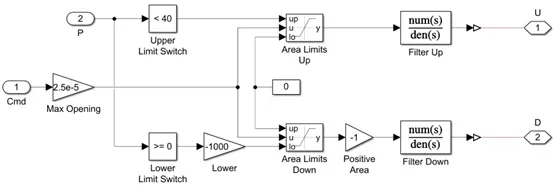

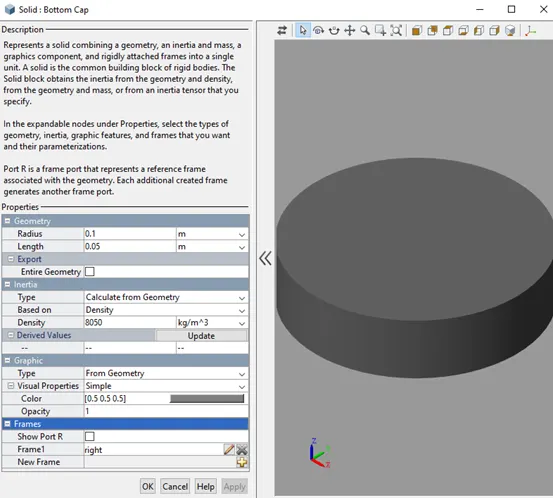

Develop a double-acting actuator model using Simscape Multibody and Simscape components. The mechanical system of the cylinder needs to be built using Simscape Multibody library components/blocks, and the hydraulic system needs to be modeled using Simscape library physical components. Ans:- You can model the mechanical…

  Aim:- Development of a MATLAB Simulink Model for Adaptive Cruise Control feature as per the requirement document following Model-Based Development (MBD) related processes: SLDD creation, configuration parameter changes, Model advisor check, and code generation using embedded coder tool   Objective:- 1. Creating…

                                                                         Vehicle Direction Detection   Aim: Distinguishing the course…

Description:As discussed in Lecture 11, Project 2 deals with the development of a forward energy-based fuel consumption model of a P1 hybrid vehicle. This model is based on the conventional vehicle model from Project 1. The main goal of this project is to understand the functionality of a P1 hybrid and be able to model…

  The task of this project is to compute the fuel economy numbers for the given vehicle (kmpl) on the urban cycle (UDDS) and highway cycle (HWFET). Also, to analyze and understand the vehicle operatingpoints in terms of engine speed, torque, transmission speeds, pedal positions, gear, distance traveled, etc. To do…

Aim :- Create a 1D element with specified cross section & DOF.   Steps :- Intially open the hpermesh window               The user profile on which we have to work is optistruct.              Next is to extract the geometry on which the…

AIM : To study and investigate the BAJA All-Terrain Vehicle (ATV) utilizing the Simulink model. OBJECTIVE : To Prepare a specialized report making sense of the model properties and remarks on the outcomes. Hypothesis : Off-road Vehicle An off-road vehicle (ATV), otherwise called a quad, as characterized by the ANSI is…

Objective: 1. Execute control great judgment of a "clothes washer" utilizing Stateflow 2. Make a Simulink diagram for the "Stuff shift" rationale. Hypothesis: Case 1-Implement control rationale of a "clothes washer" the utilization of Stateflow   The functioning rule for the washing work area is "Centrifugation".…

INTRODUCTION A car’s underbody is exposed to the most wear and tear caused by muddy water, potholed roads, stones, and other obstacles on the road. Because it’s not in plain sight, we often do not see the damage. In Indian road conditions, a car’s underbody is most prone to corrosion. Underbody coating…

Aim: To suggest Mr. D.S. Pughozhyendhii with options so that he will buy a good car for his family.Conditions:1. He has 5 members in his family.2. He is fond of big cars.3. The car should be suitable to travel in the city as well as on high ways.4. His budget is 8 to 10 lakhs. Project Objective:- In This Project, I am…

AIM To create a door interior part from the inputs of class A surface along with the master section by following the design rules followed in tier 1 and OEM industries in CATIA v5 SOFTWARE USED CATIA V5 OBJECTIVES Create a sketch by using the Positioned sketch All the should be sketches should be Iso-Constrained Ensured…

FOUR BAR QUICK RETURN MECHANISM  FIRST WE HAVE TO CREATE ALL THE PARTS OF THE MECHANISM THEN WE HAVE TO ASSEMBLE THIS ALL  CREATION OF THE FIRST PART. Create the required sketch according to the given dimensions Then pad it VIEWS OF THE FIRST PART Creation of second part: Create the required sketch according…

Aim- Is to design B-Pillar lower using the Master section.Objectives:-Create a closed body of the Given B pillar Lower.Crete tooling axis and follow design rules.Follow the Master section to create a flange.Follow the master section for thickness and to create the Closed volume.Follow the master section to create Attachment…

AIM:Create the Door Applique Plastic component through the given Class-A surface. To begin with, the tooling axis for thegiven Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draftanalysis on the model.Create the Heat Stakes and the locators considering the design…

AIM- Create the screw boss and dog house for the center console coin holder considering the design rules mentioned in the video. General Rules for Screw bosses. Draft of 0.5 degrees on walls of boss Thickness is 40% of the nominal wall at the base.…

Aim- To create an out featured rib on the center console coin holder. Procedure- Firstly open the coin holder using the open command Rib- To create a rib first extract the base surface of the coin holder.…

AIM: Create the Core and cavity blocks for the switch bezel designed in the earlier challenge.   The core is the part that forms the internal shape of the molding. The cavity is the part that forms…

AIM: To create Center Console Coin Holder and add thickness to it and generate the Draft Analysis on a solid surface.   PROCEDURE:   Check for any openings in the given Center Console Coin Holder model by using BOUNDARY. In BOUNDARY > select edges - select…

1). DOOR ARMREST AIM: CREATION OF DOOR ARMREST AND ADD THICKNESS OF 2.5 mm In an automotive context, an armrest (or armrest) is a feature found in many modern vehicles on which occupants can rest their arms.      …

AIM : Create the Core and cavity blocks for the switch bezel designed in the earlier challenge.   The core is the part which forms the internal shape of molding. The cavity is the part which forms external shape of molding.Core is the side of the tool where the plastic part is injected from; also known as the bottom half of the tool. The upper half of the mold is…

1). FIRST WE SHOULD CREATE A POINT  AND THEN ONE DUMMY AXIS AND INTERSECTING LINE OR (BOUNDARY) WITH THE CLASS A SURFACE THEN FROM INTERSECTING LINE, WE CREATED TO TWO LINES WITH POINT TO POINT AXIS AND THEN WE CREATED ONE TOOLING AXIS AFTER CREATING THE TOOLING AXIS WE INSERTED THE BASE BRACKET AND IN-BRACE BRACKET…

ANSWER: Create the tooling axis for the given Fan cover model meeting the requirements of the draft angle and perform the Draft analysis on the model. What is the draft? it is defined as a modeled part to make them easier to remove from molds. there are two of determining the objects to draft either by explicitly selecting…

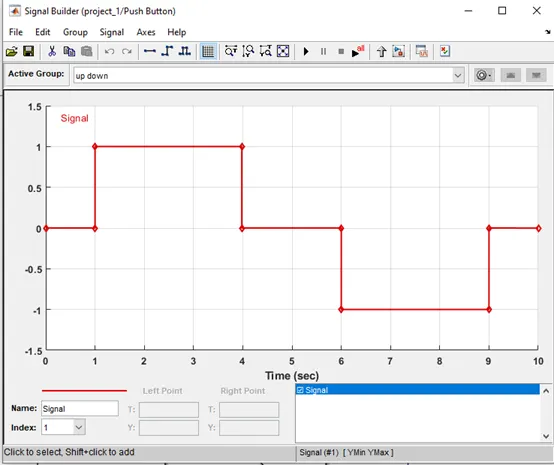

Aim - 1)To make a Simulink model of doorbell using solenoid block.         2) To use a thermistor to sense the temperature of a heater & turn on or turn off the fan. Objective - 1) To create a situation where the switch is closed for 2 seconds and then released, observe the physical movement of…

Aim:- To solve the following objectives based on the above circuit diagram. Objectives:- Identify each of the major elements in the above automotive wiring diagram. Explain the purpose and working of any three elements briefly If the total load is 10A from the battery, what should be the fuse rating? If 500W is the load,…

                                   Pendulum Oscillation with Dampening Effect   Aim :- To find simulation of compound oscillation with dampening effect. Introduction :- The analysis and simulation of mechanical systems with imposed…

                                Basic of Designing a Bracket , Meshing , Extracting surface    Introduction :-                        A bracket is an architectural element…

                           Pendulum Oscillation with Dampening Effect   Aim :- To find simulation of compound oscillationn with dampening effect. Introduction :- The analysis and simulation of mechanical systems with imposed relative motion…

                                                             Rankine Cycle   Aim :-  1. To develop a basic program that calculates the state points.  …

                                                 Rankine Cycle   Aim :- 1.  To develop a basic program thet calculates the state points.            2. …

                                 Parsing NASA thermodynamic data file   Aim :- To write a code in MATLAB to parse the NASA thermodynamic data file and then calculate thermodynamic properties of various species. Introduction :-…

                                                CURVE FITTING   INTRODUCTION :-                               It…

                                                            AIR STANDARD CYCLE AIM:- To simulate a P-V diagram for air standard cycle or otto cycle and finding…

                                                  SECOND ORDER ODEs   Introduction :-                           In mathematics…

                                                GENETIC ALGORITHM   INTRODUCTION :-                               A genetic…

Introduction - flow over bicycle Aim - calculating drag force on a bicycle % A program to calculate drag force on a bicyle clear all close all clc % Inputs % Drag coefficient c_d = 0.8 % Area m^2 A = 0.1 %Density kg/m^3 rho = 1.2 % velocity v = [1:50]; drag_force = rho*A*v.^2*c_d*0.5; figure (1) plot(v,drag_force) xlabel('velocity')…
