Project 1

Car dashboard interface design elements were analyzed and five representative samples were selected. Four aspects were explored, namely dashboard design style, interface layout, information framework, and hierarchical table. Now the dashboard has to meshed.Mesh can be many different types but the basic types are trias and quads;making sure that no two trias should face each others as they might decrease that strength of the mesh.trias should also be avoided on the edges of the structure and last but not least there should not be any transion on constant curvature.

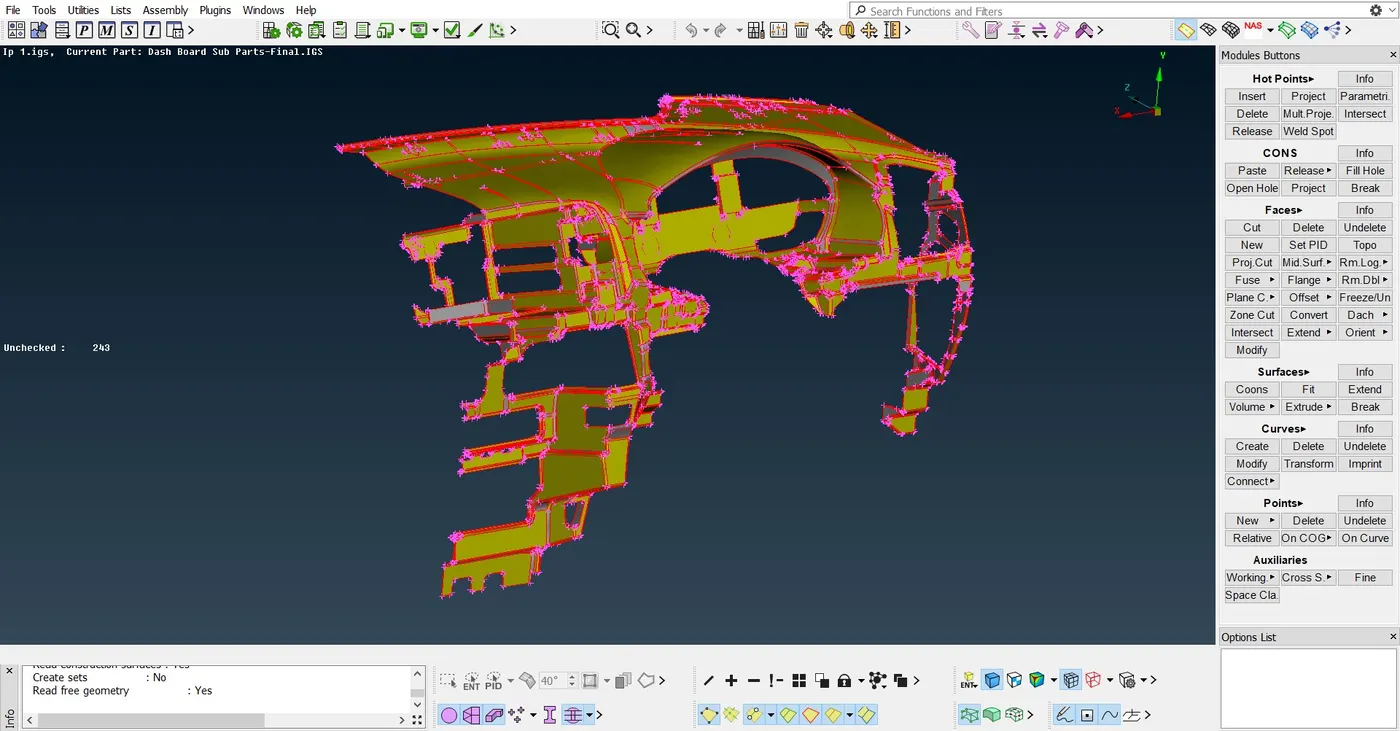

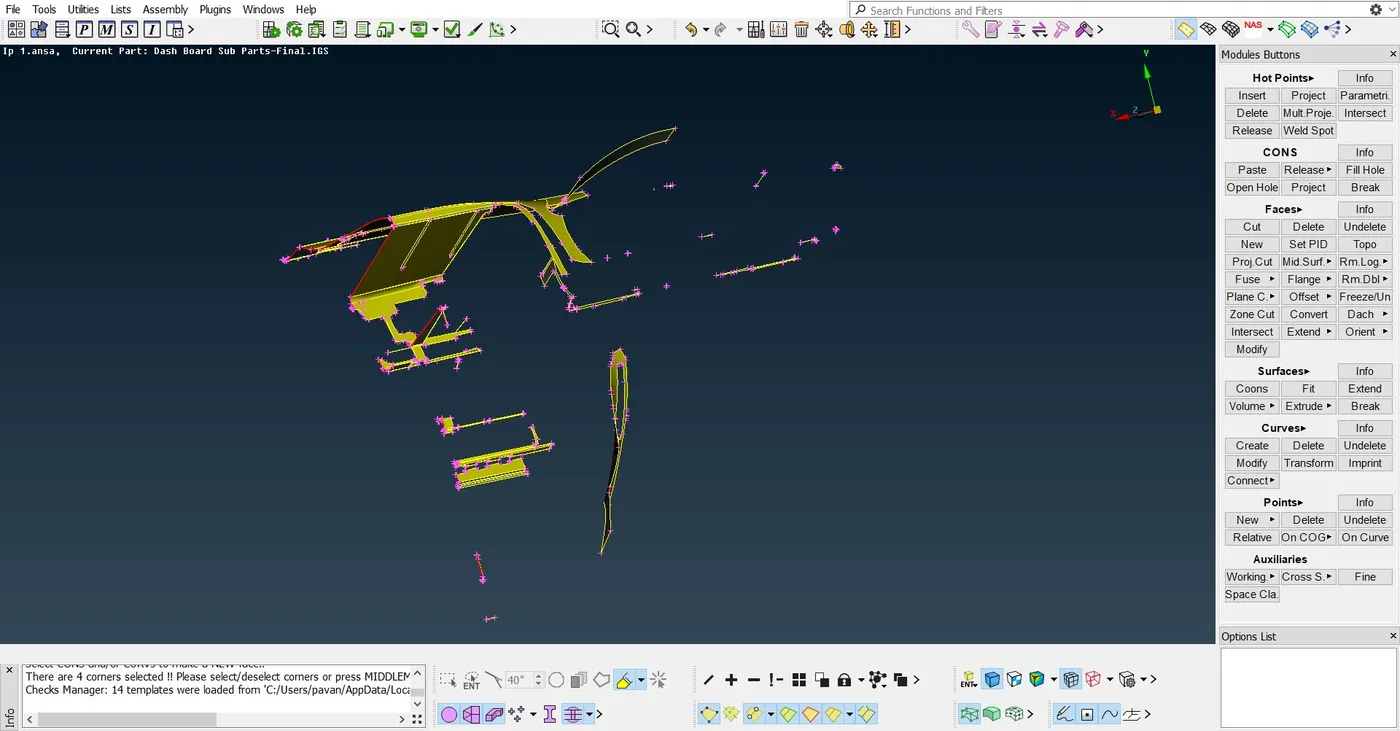

In this model we have to initially import the geometry and Topo it as to create the joins between the parts ,the image shows the impoted model.

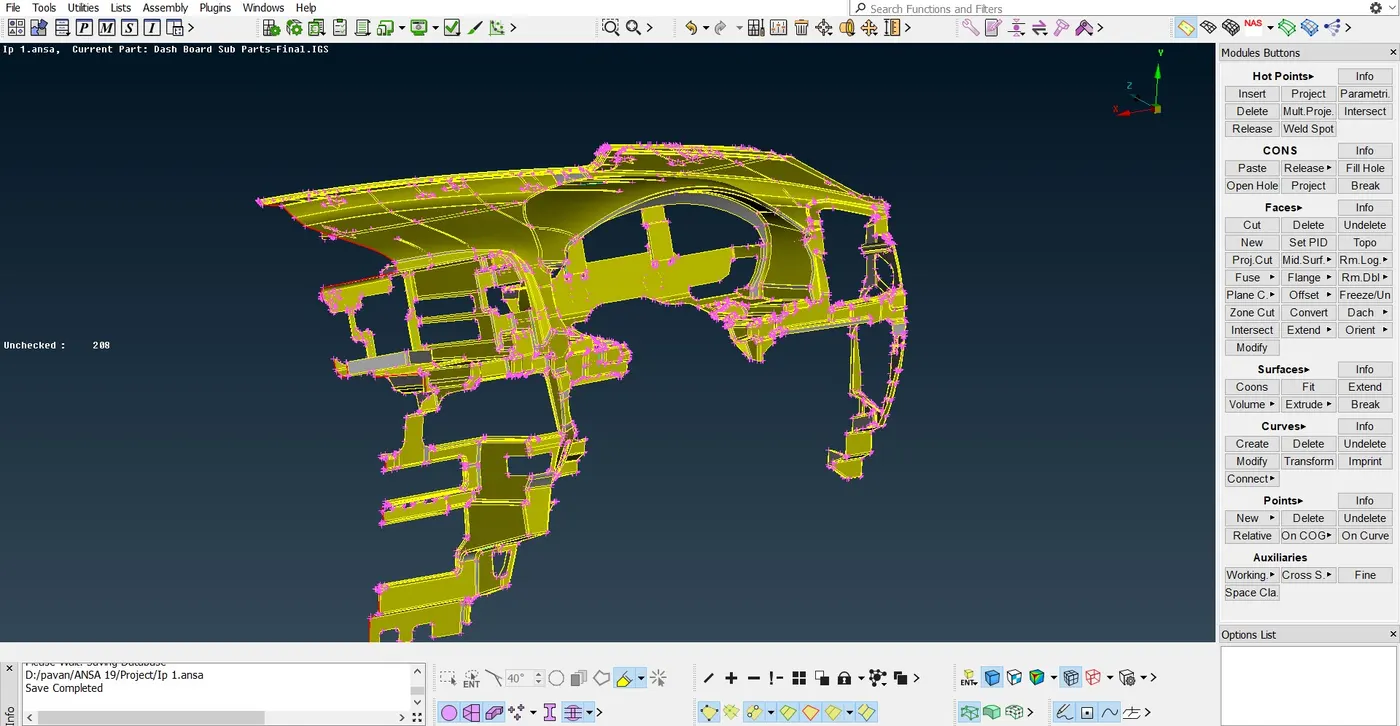

after the Topo we get the following image

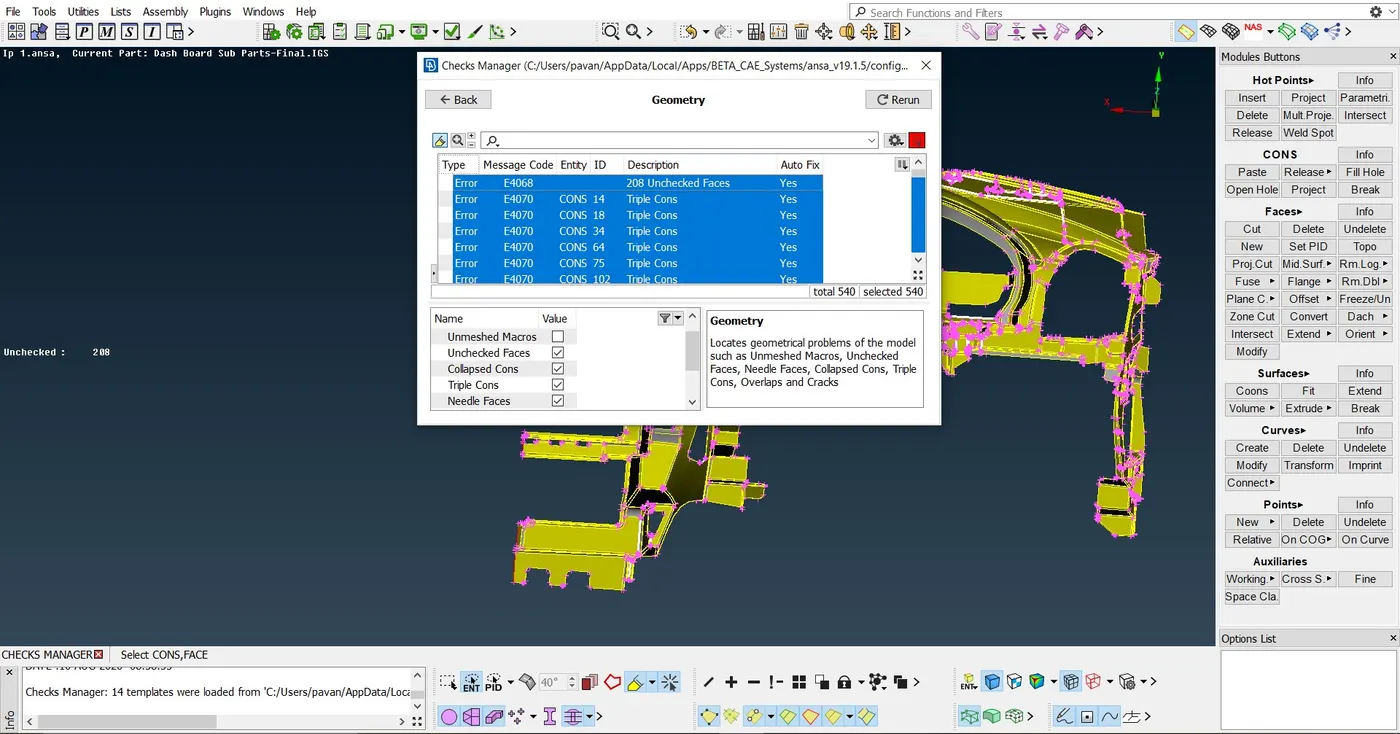

After this we have to do a geometric check as in the figure

then clear the errors.Some of the errors can be auto fixed but soe cannot be they have to fixed manually.

Then PID the parts so that the mid of the parts can be taken then the mesh can be done

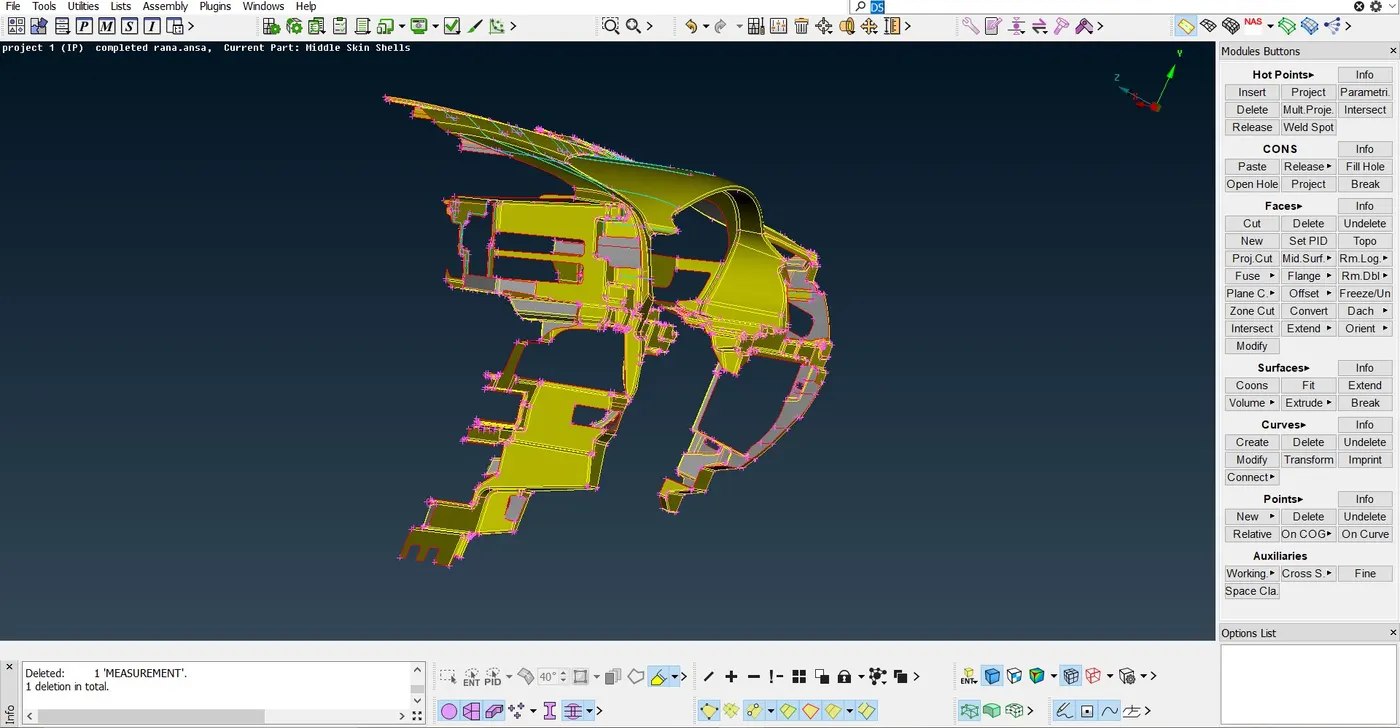

This is the mid surface extract after the errors are fixed and the PId are given so that the mid surface ca be done easily.

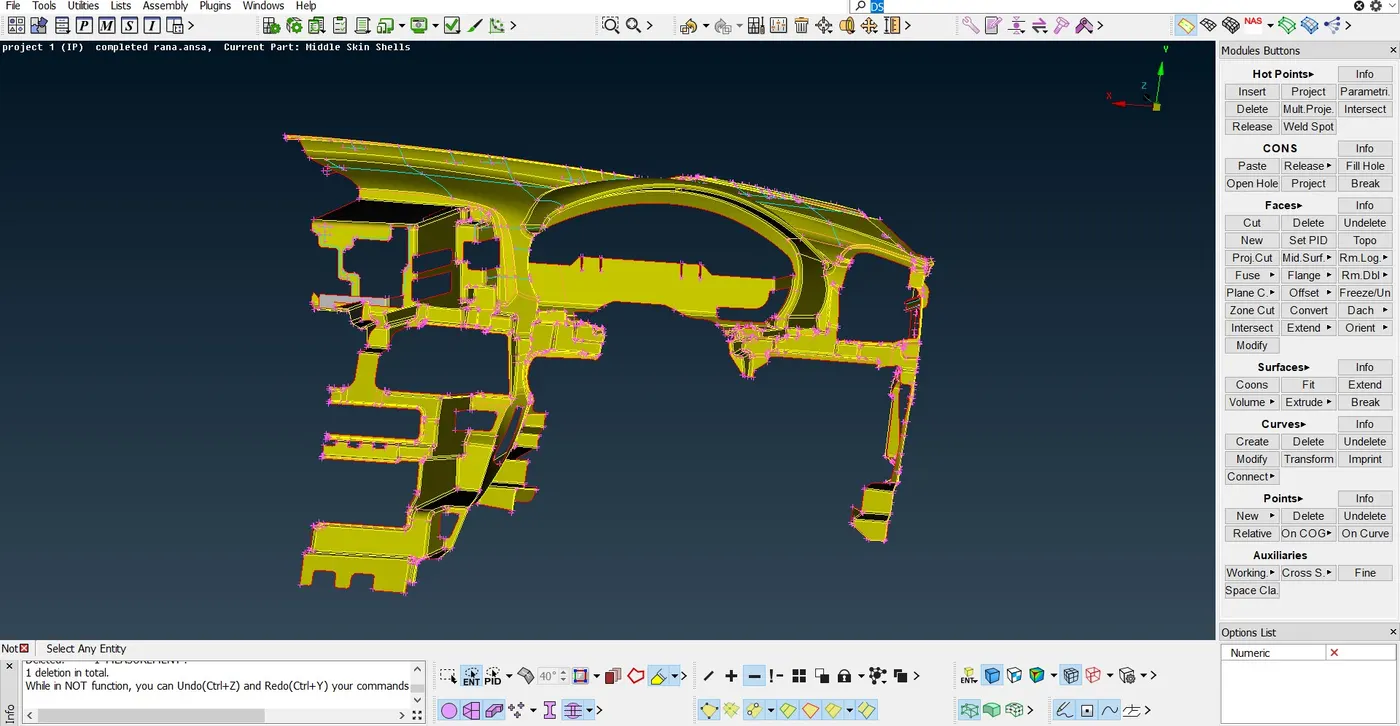

Here is front image of the mid-surface

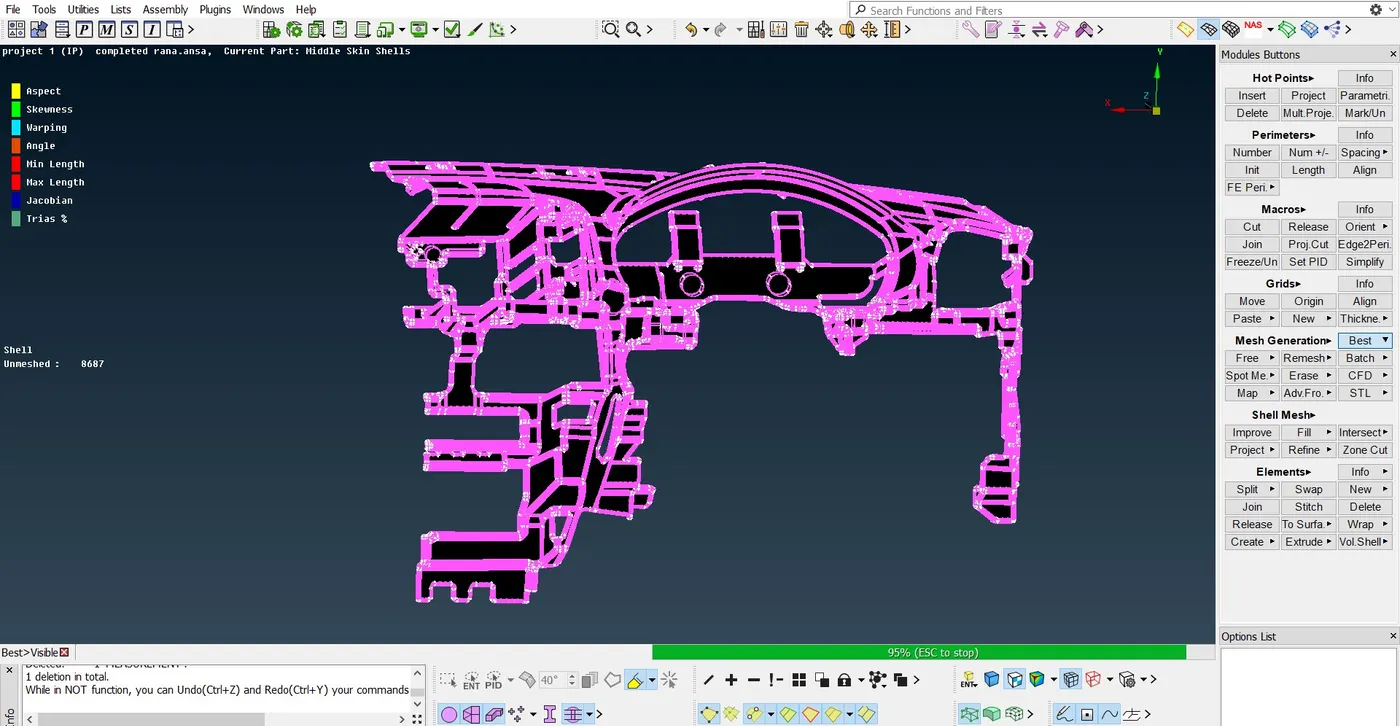

The next image will show the mesh in process

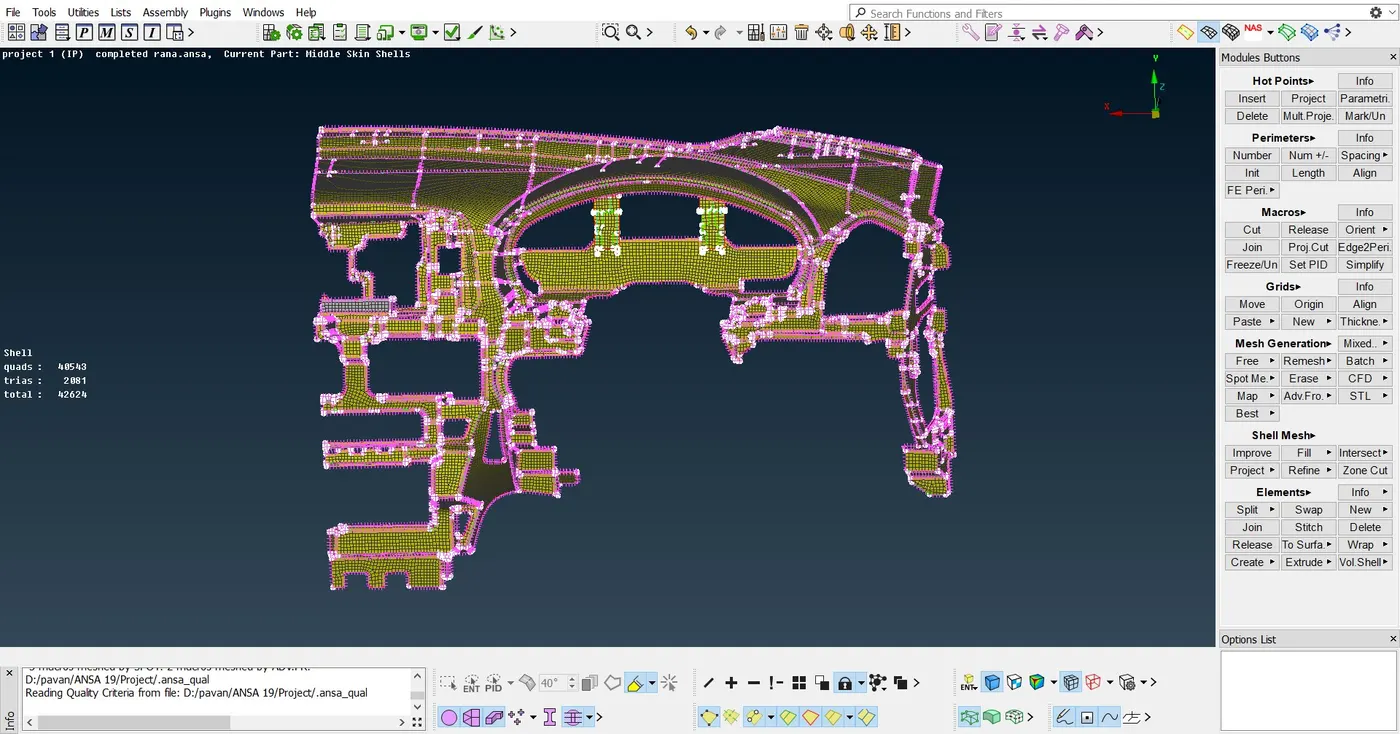

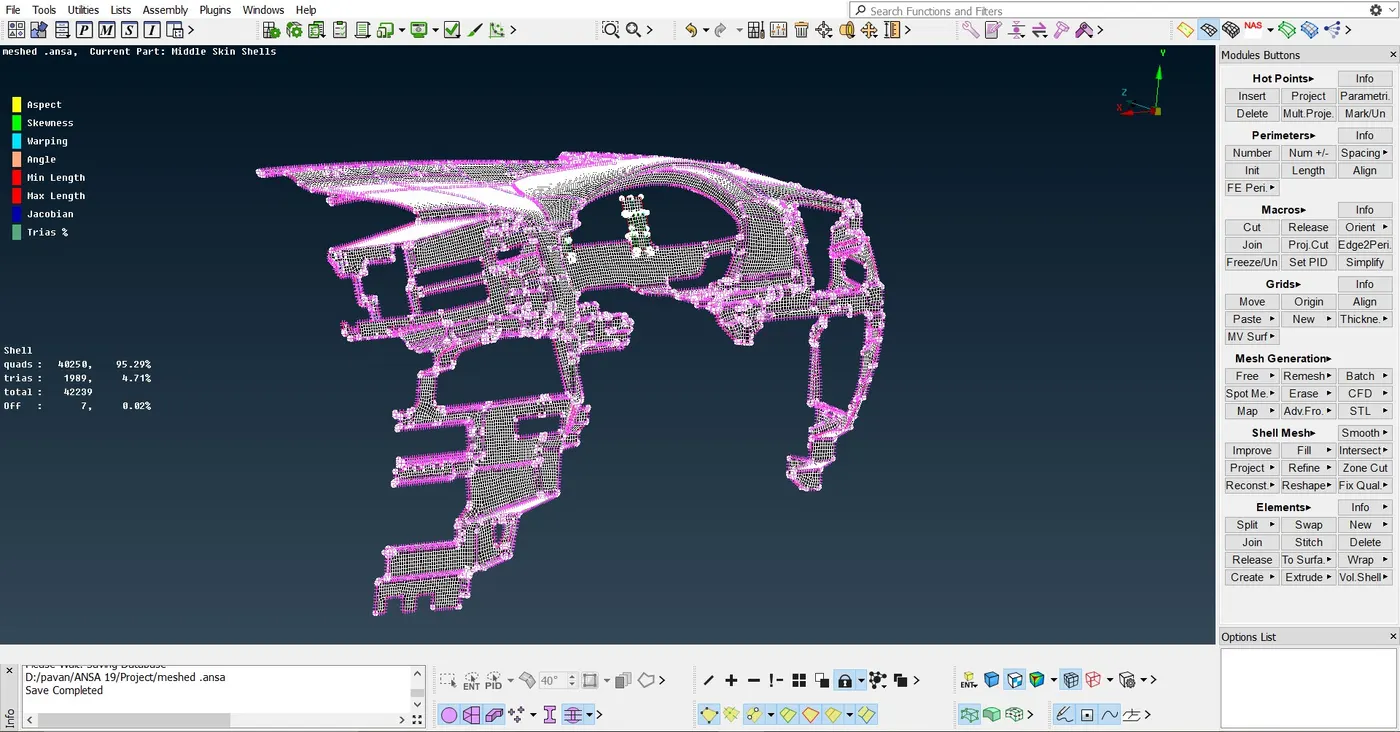

Now the mesh have to created on the model as in the figure

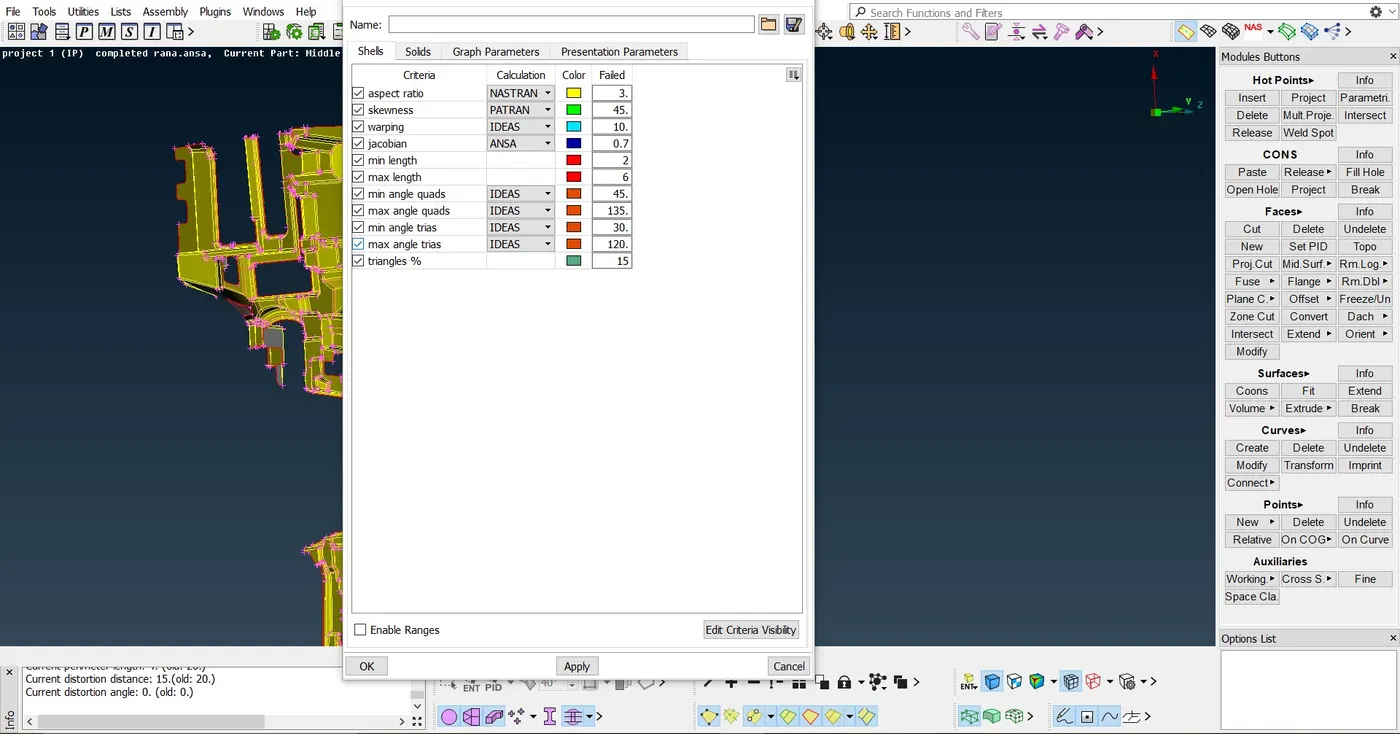

Now insert the criteria given to you

After this we have to correct the mesh errors obatined by the mesh algorithm.

ANSA mesh algorithm is one of the best but it will have some of the errors in the mesh which can be solved manually.Down below image will show the parts which have errors which have to be fixed manually.

You can manually fix the errors using the tools like MV surf,swap,split,reconstruct,reshape and fix quality. example is down below

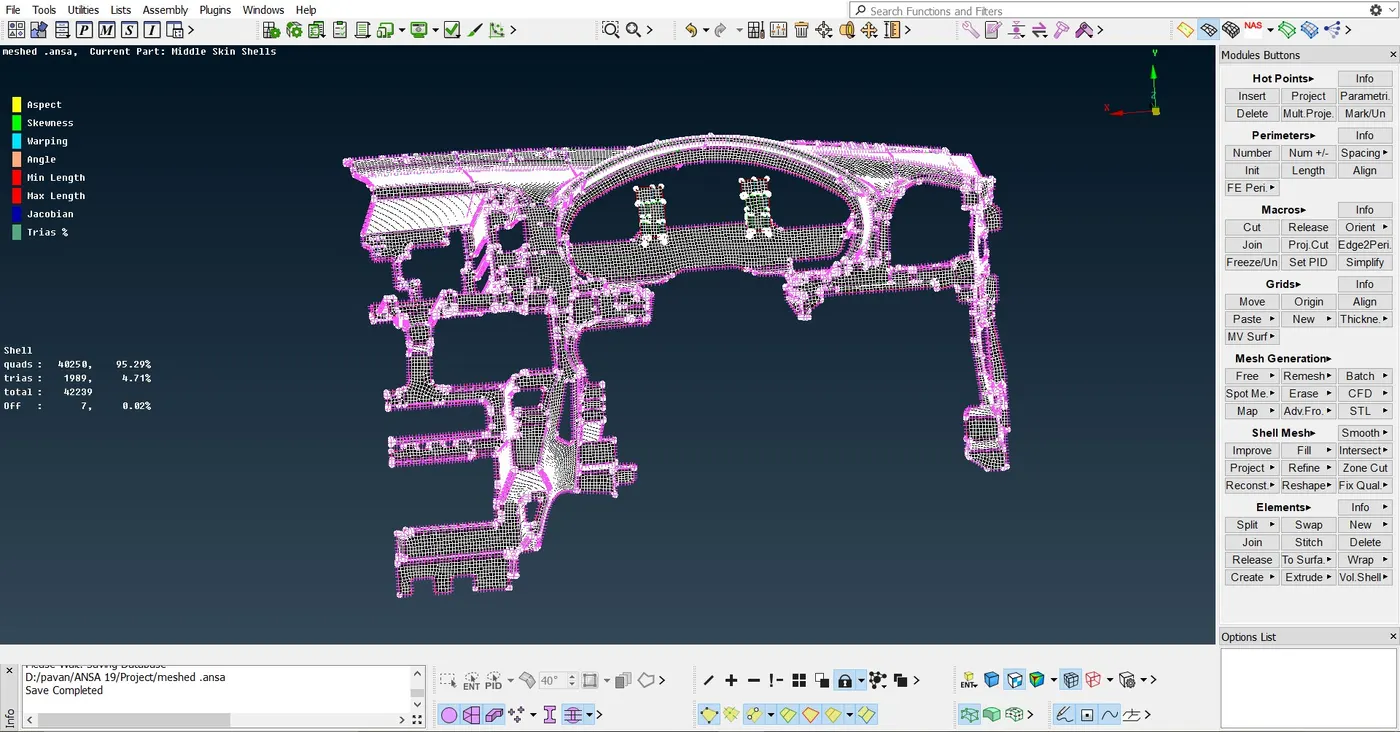

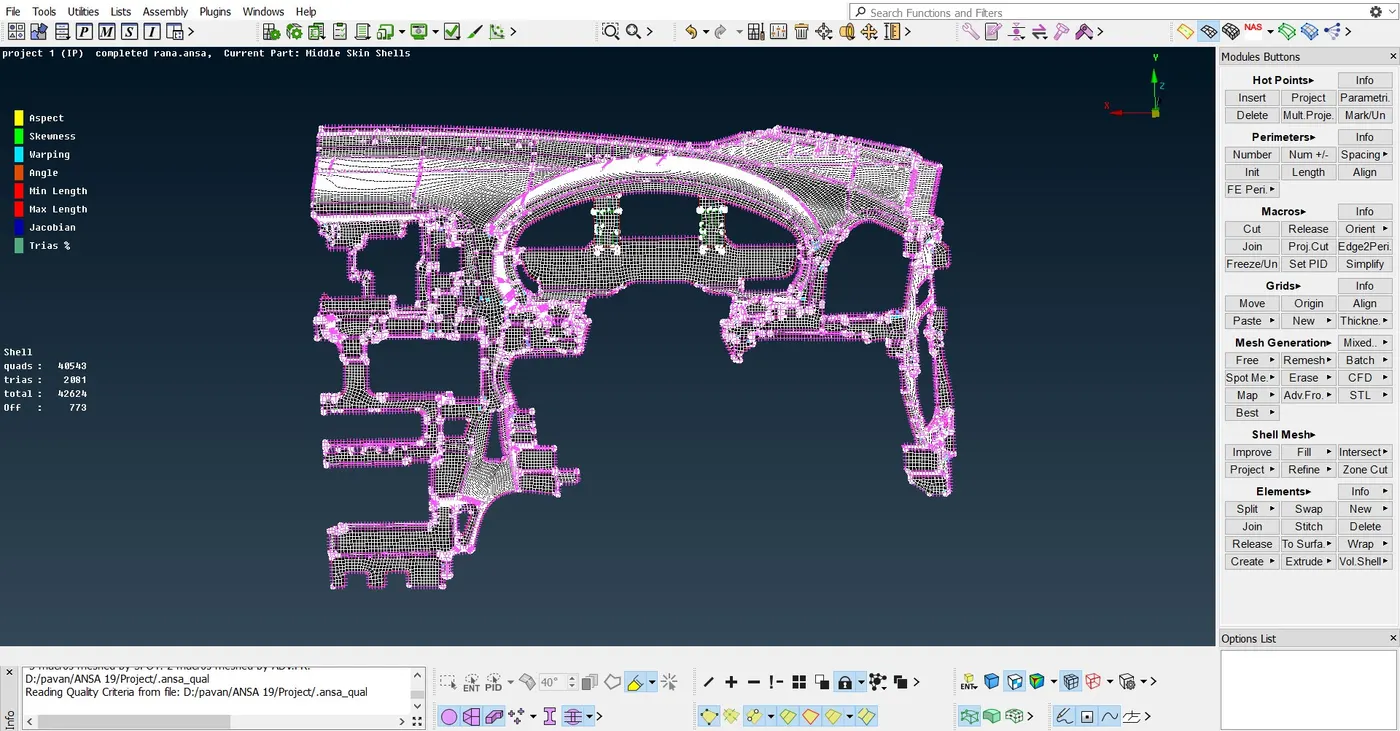

In this model not all errors can fixed as this has close tripple cons and the angles are too acute to resolve and also follow criteria given.Some of the errors can be still seen in the end model.But maximum of errors can be resolved.

Outcome:

In this project we learn mesh of complex parts of a dashboard.

how to mesh part by part and also use the meshing feature in the mesh module.
