Project 1 - 2D meshing on the instrumental Panel

  Aim-For the given component checking the geometrical errors and meshing the model with given quality certeria after                     meshing the thickness.

Procedure :

1.Topo and Geometry check  :

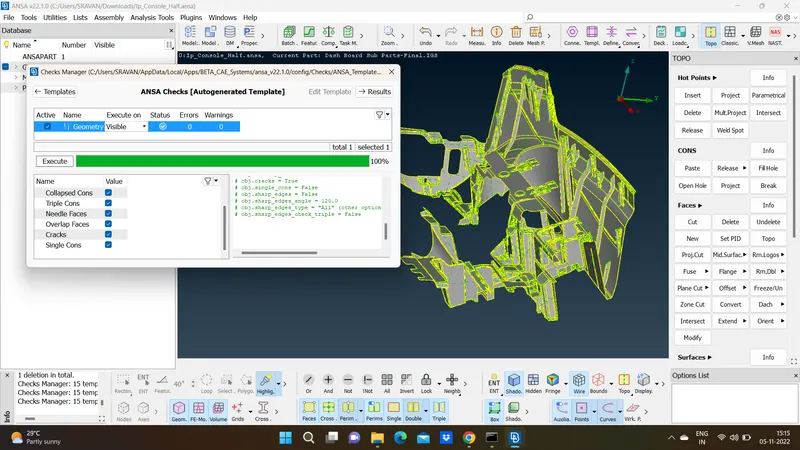

 import the given geometry model in ANSA and do topo. It will stich its all surfaces according to                                            geometry. after topo has been done next step is to ensure the that geometry we get is of  good quality before proceeding further .this can be done by using checks manager to check  weigther any geometrical/topological errors are present in the geometry or not.

On checking the model we have got multiple errors. We can use fix opt. available on right click and can use manual method.

For this model we have to use both.

 2. Using Casting Method :

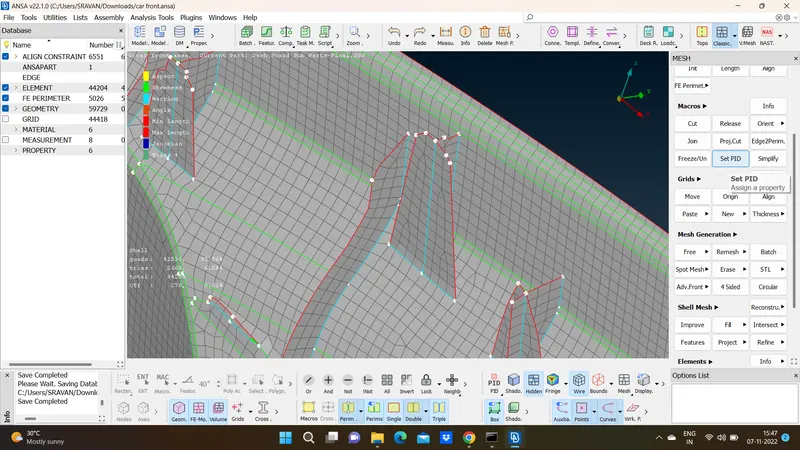

Casting method is more advance method then upper two methods it can take out mid assign PID and thickness to it without measuring the feature  and can do mesh with average mesh length  with lesser time than other methods but the mesh and the mid quality is not that good for this method then we have to do manullay.

3. Align manager :

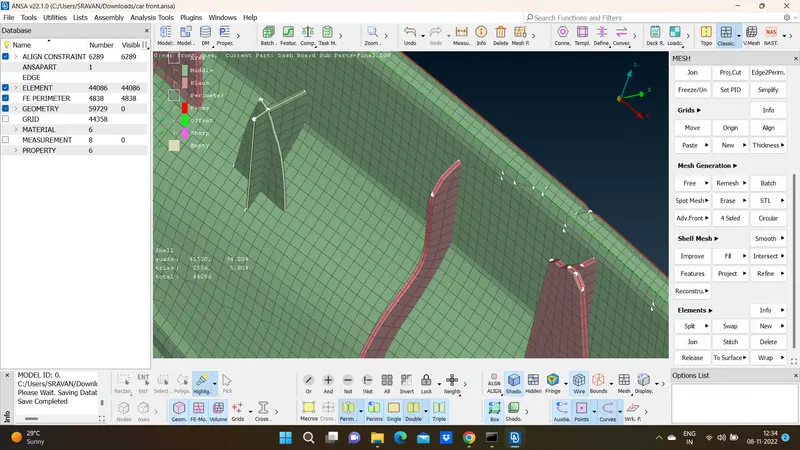

By using the align manager we get the clear and fine elements and good flow mesh pattern. we clear the all empty elemts by using middle and palne options.

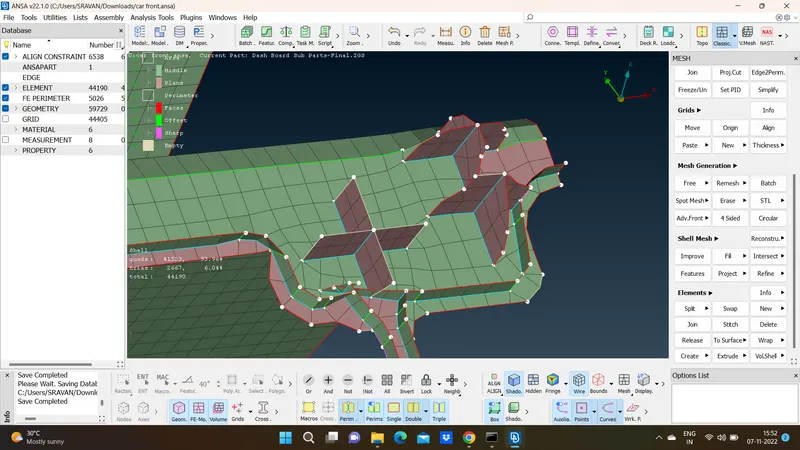

Dog house in this model should be captured as Cross pattern with the help of curves creating.

4. Quality cretiria :

To set up the quality criteria press the F11 key and check the boxes of the parameters of the required quality with required values and apply

we need to give mesh parameters the target element length must given.

Conclusion:

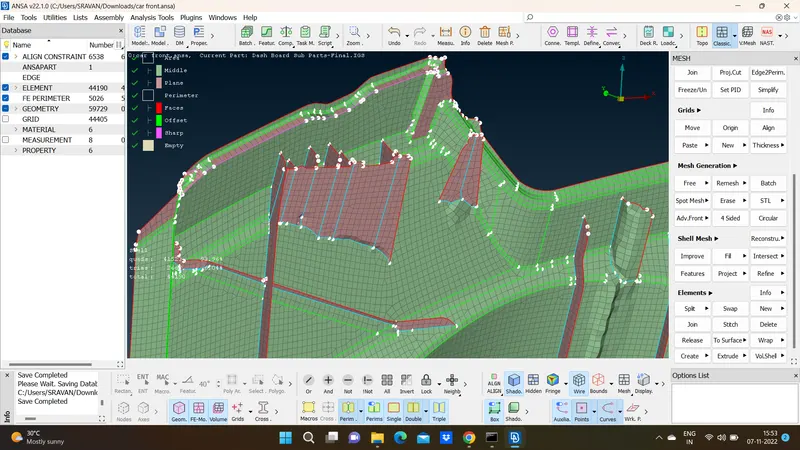

Hence, the Half part of the Ip console is meshed as per the quality criteria given and assigned thickness to it.
