Project 1

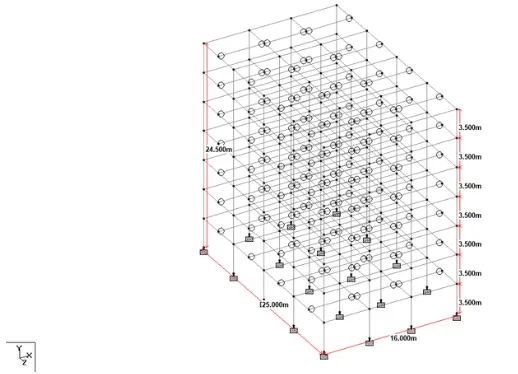

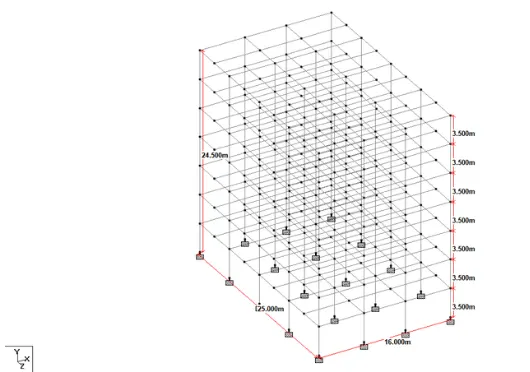

Aim:- To design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition

Procedure:-

Unit weight of the materials

Reinforced Cement Concrete = 2525 kN/m3kN/m3

Plain Cement Concrete = 2424 kN/m3kN/m3

Cement Concrete Screed = 2020 kN/m3kN/m3

Cement Masonry Units = 2222 kN/m3kN/m3

Structural Steel = 78.578.5 kN/m3kN/m3

Soil = 1818 kN/m3kN/m3

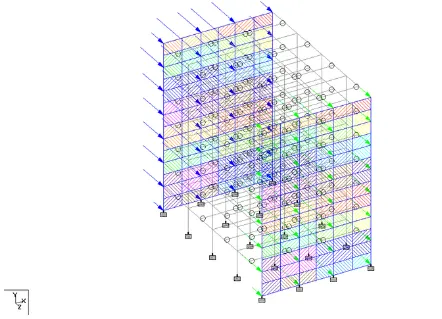

Dead Load

Floor slab

Slab weight = 3.753.75 kN/m2kN/m2 (0.15m×25kN/m3)(0.15m×25kN/m3)

Partitions = 1.51.5 kN/m2kN/m2

Floor Finish = 2.52.5 kN/m2kN/m2

Miscellaneous = 11 kN/m2kN/m2

Total Floor Load = 8.75 kN/m2

Roof slab

Slab weight = 3.753.75 kN/m2kN/m2 (0.15m×25kN/m3)(0.15m×25kN/m3)

Insulaions and Water Proofing = 0.50.5 kN/m2kN/m2

MEP Services = 0.50.5 kN/m2kN/m2

Miscellaneous = 0.50.5 kN/m2kN/m2

Total Roof Load = 5.25 kN/m2kN/m2

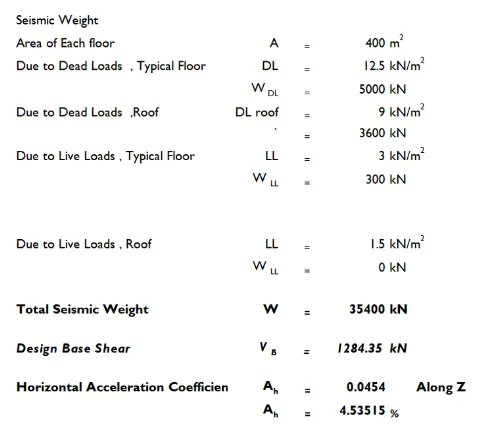

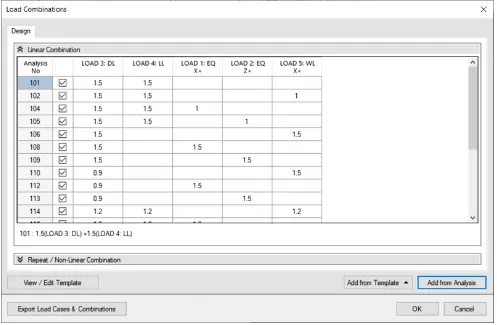

Live Load

Floor slab

Common Corridor = 33 kN/m2kN/m2

Total Floor Load = 3 kN/m2kN/m2

Roof slab

Accessible Roof = 1.51.5 kN/m2kN/m2

Total Roof Load = 1.5 kN/m2

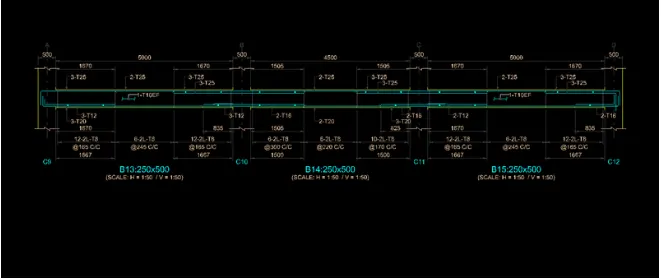

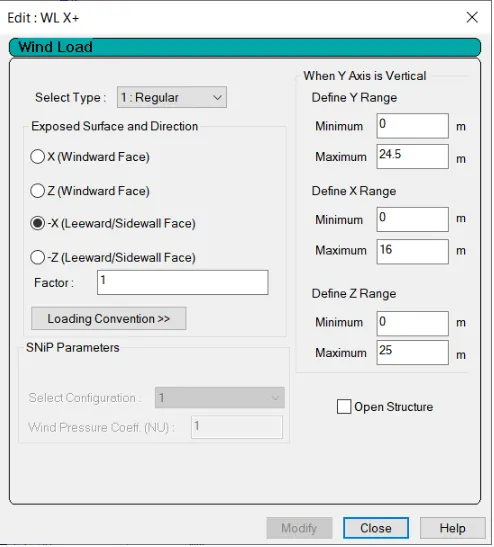

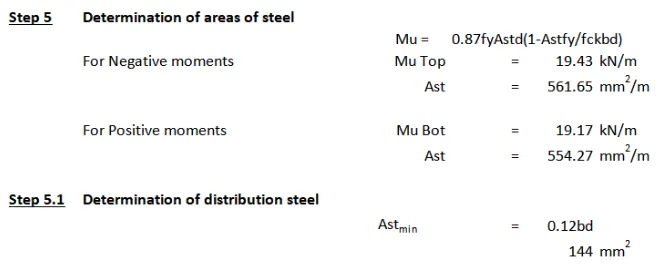

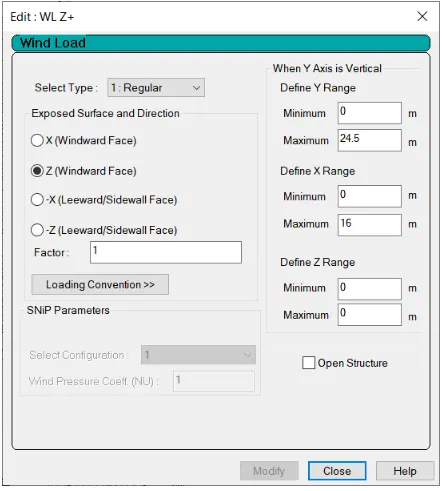

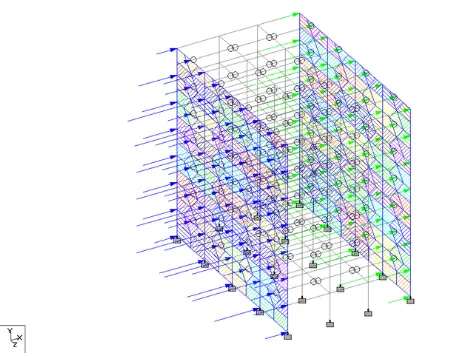

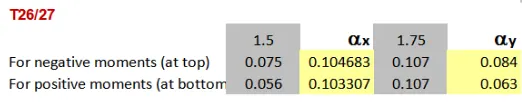

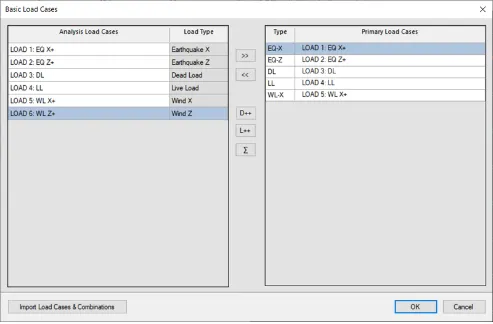

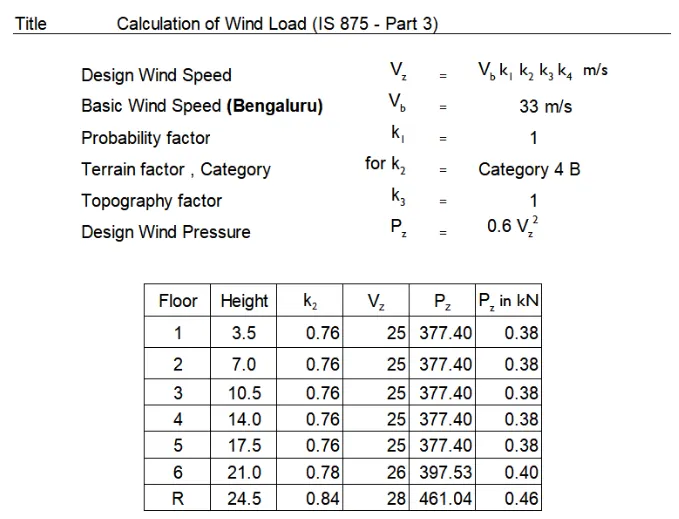

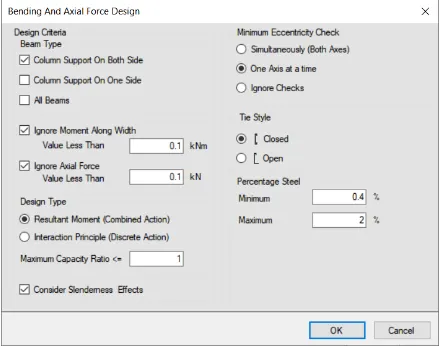

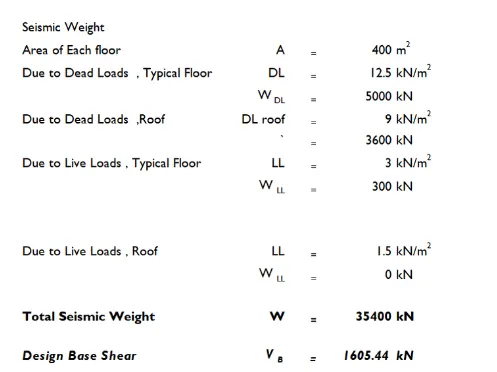

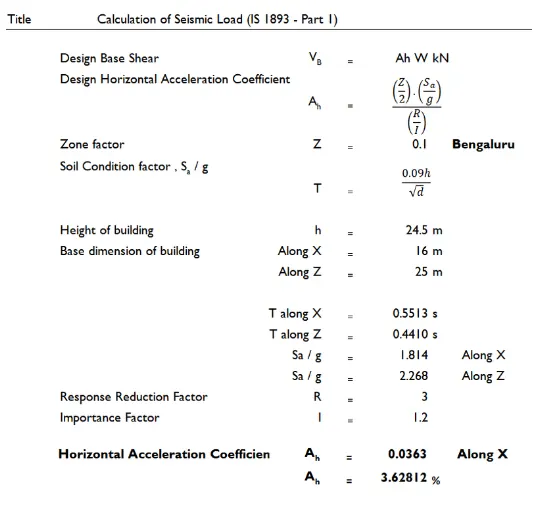

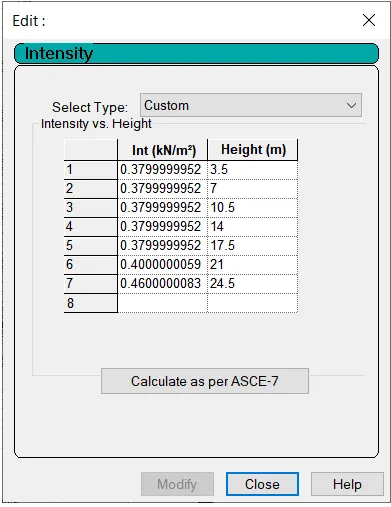

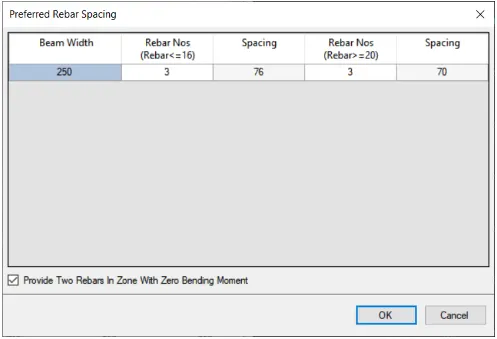

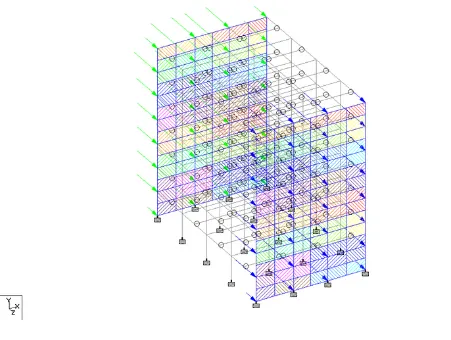

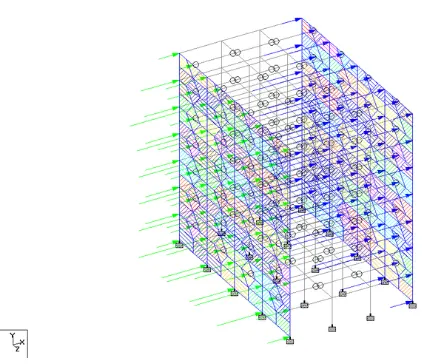

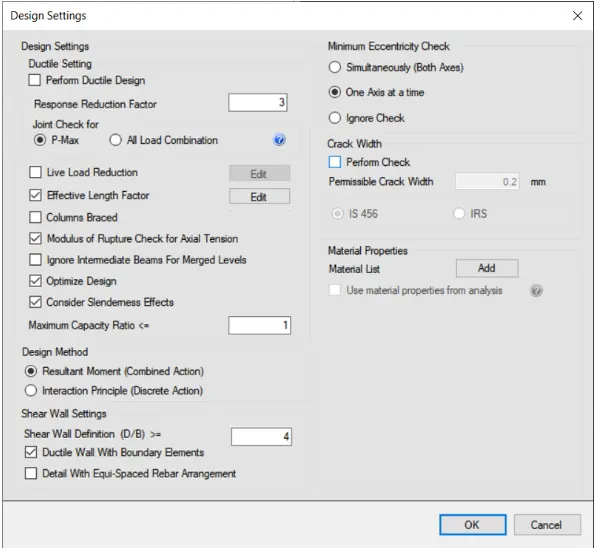

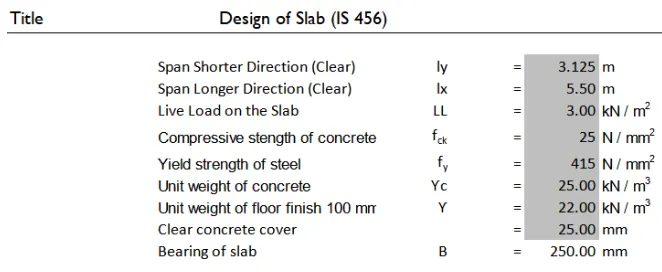

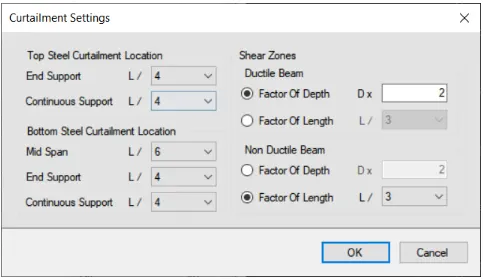

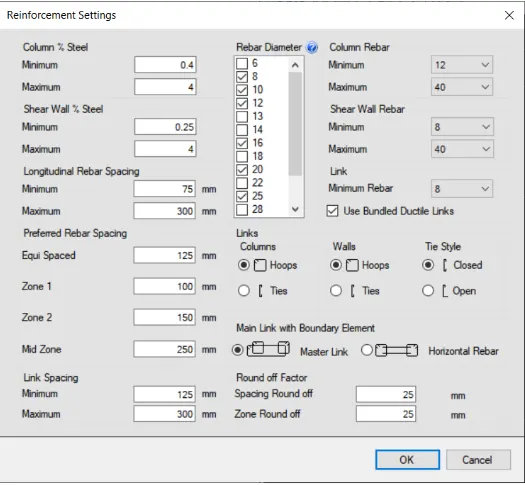

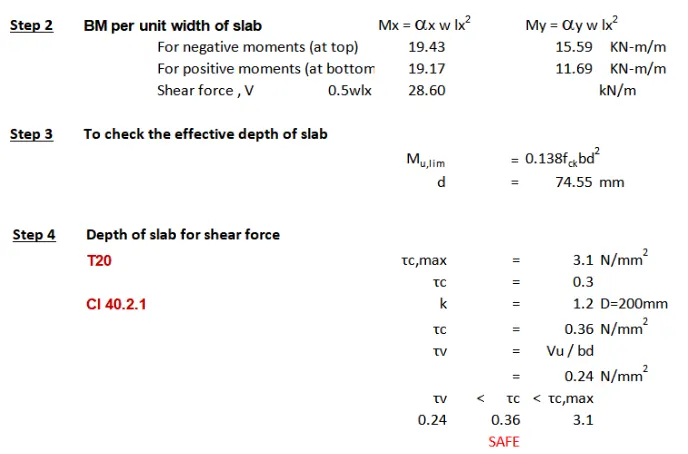

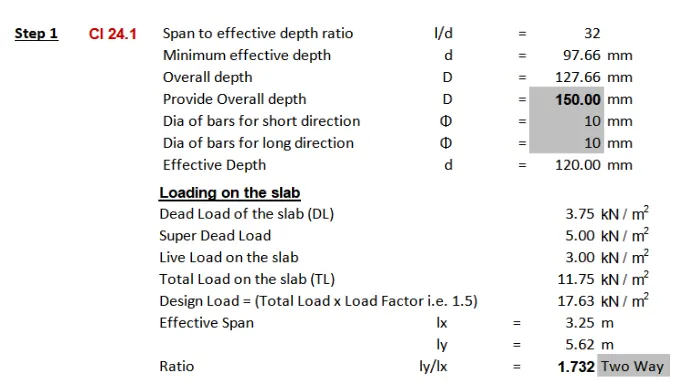

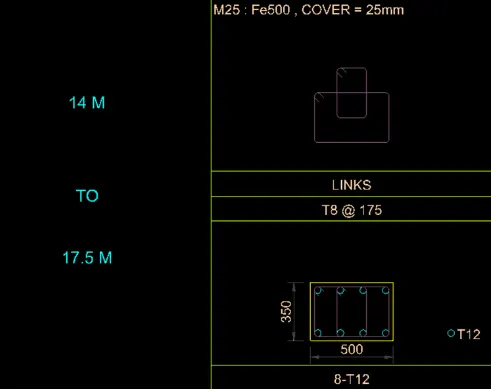

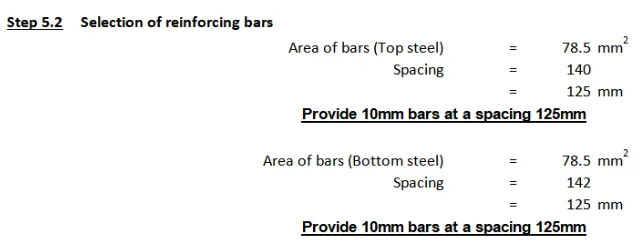

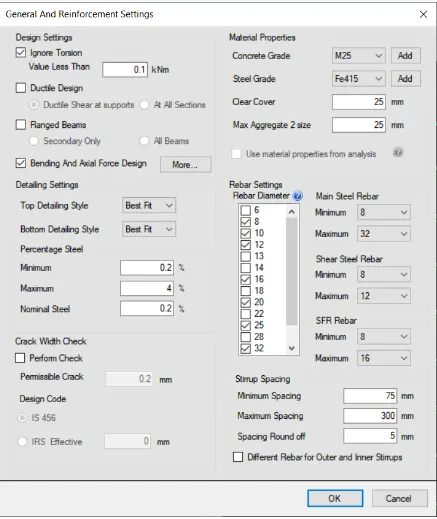

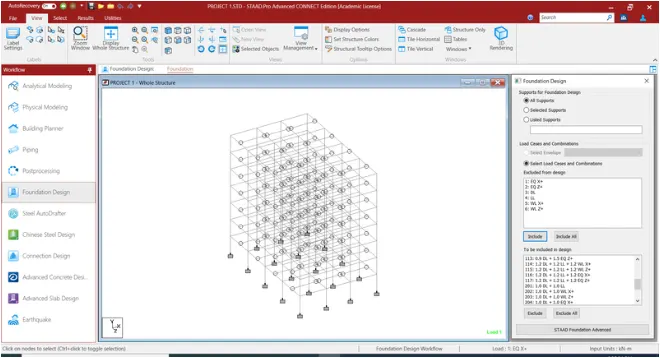

Result:-

Thus, multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition is been designed.
