AIM

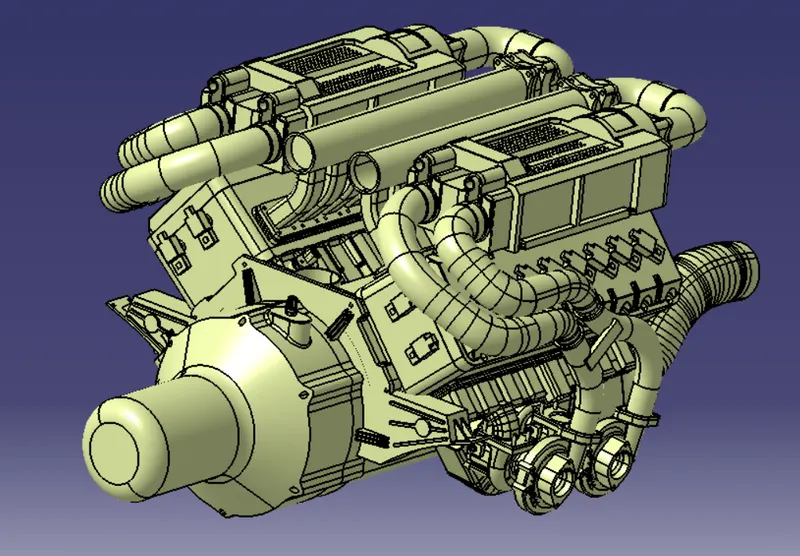

To design and develop the Wiring harness on Given V6 Engine and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design.

INTRODUCTION

A wire harness, also commonly referred to as a wiring harness, is an exterior sheath used to cover some types of electronic wires. Generally, wiring harnesses are made of thermoplastic or thermoset materials that can help protect the cables from the environment.

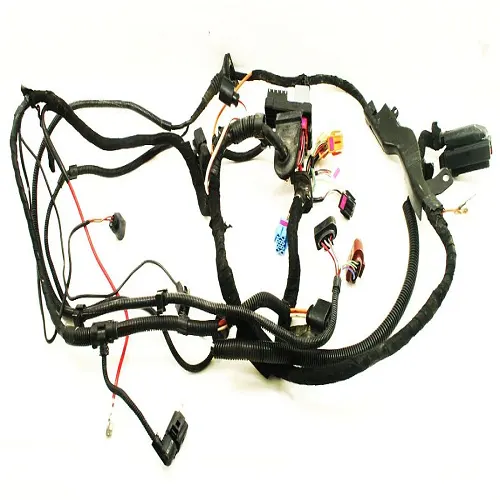

Engine Harness

An engine wiring harness is constricted wires, cables, terminals, and connectors controlling a vehicle’s electrical system. It relays electrical power and control information to components such as batteries, alternators, fuel injectors, fuses, audio systems, blower motors, fuel injectors, and computers. Wire harness companies customize it for every location, application, and design it interconnects. Also known as a cable harness, it is more than just a collection of multiple wires put together.

It manages the key functions around the engine including engine controller, oil controller gate, transmission plug housing, air pipe sensors, pressure sensors, and water temperature sensors.

An engine wiring harness is how each part of your vehicle gets electricity. It is crucial to help the vehicle run and it’s usually made of a heat-resistant rubber to handle the high and low temperatures that vehicles often experience. The vehicle needs more than the engine, and it requires a lot of electricity for certain things to function, like the radio or lights. Beyond that, battery, starter, and even alternator run on power, which is provided by the engine. Without an engine wiring harness, we couldn’t start your vehicle.

Engine Wiring Harness protection

Protecting the wires is crucial to the safety of the vehicle. Wires exposed to high temperatures, erosive chemicals and projectiles will be damaged leading to fires, brake failures and critical malfunctions. To prevent these issues, wires need to be bundled and covered.

install wiring insulation or heat shield sleeve material that can withstand direct contact with high-temperature surfaces and is flameproof. It needs to be a material built specifically for under hood automotive applications and withstand constant temperatures up to 125°C, or 257°F.

There are many options for protecting the wires in a vehicle’s harness. Zip ties securely bundle wire together but offer little protection or insulation. Plastic conduits offer protection from rough surfaces, although they can add weight and are not as flexible as other options. Heat-shrink tubing provides protection from heat, moisture and chemicals. However, the application is time-consuming.

Tape is another option for bundling and protecting wires. Tapes are more flexible and cost-effective than other bundling options because they can be used for protective wrapping, bundling and sealing. With a wide variety of backings and adhesives, tape can offer sound dampening, thermal and electrical insulation and abrasion protection of the same quality of the other methods. Additionally, tapes are more flexible, lighter and easier to apply than tubing or plastic conduit.

DESIGN METHODOLOGY

Step 1- download the engine CAD data and required connectors CAD data from the given source.

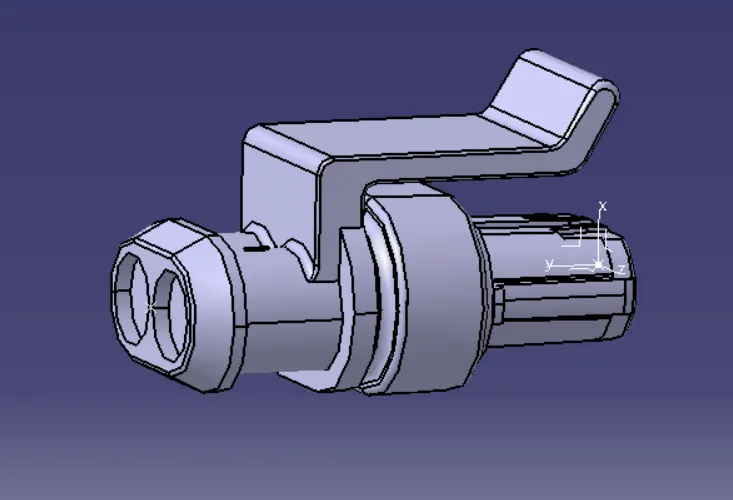

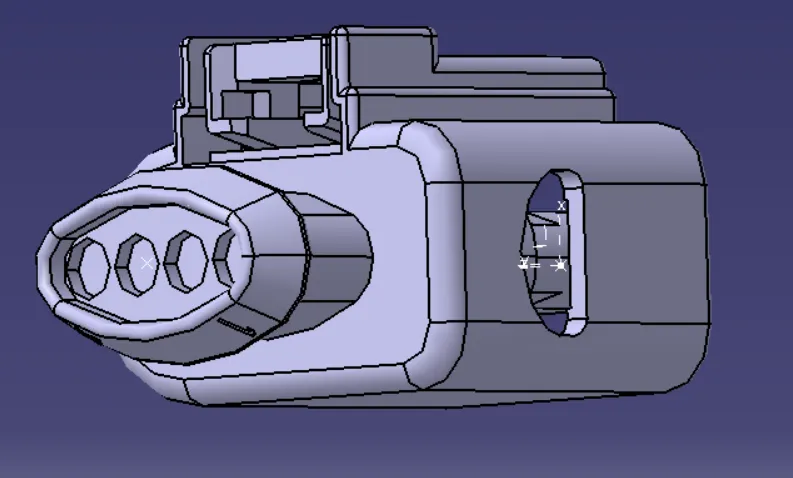

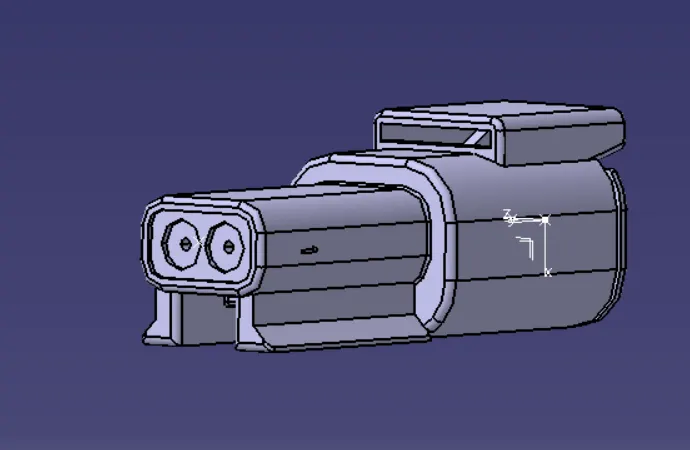

Step 2- Download the required Connectors from the source and convert the mechanical connectors electrically by using the electrical part design work bench by following below steps.

• First download the connectors and mounting clip from the given link source.
• Get into the mechanical part workbench to create required geometrical parameters. Create connector connection point and bundle connection point on the required sides of the CAD part.
• Create axis system on the connector connection point such a way that the Y coordinate facing normal to the connector face, X coordinate facing towards the locking mechanism and Z coordinate facing to the top.
• Create cavity connection point for connectors having the cavity for mounting clips

Using the geometrical parameters created,

• Define part as electrical connector.
• Define bundle connection point.
• Define connector connection point.
• Define cavity connection point.

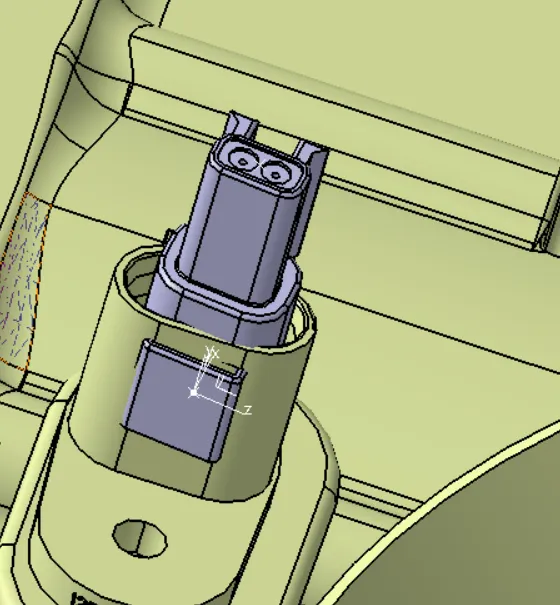

  Step 3- Adding the connectors at the required positions using different commands in the assembly work bench.

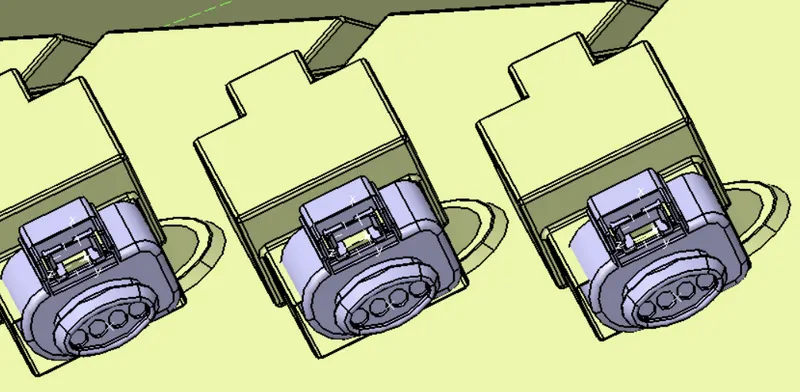

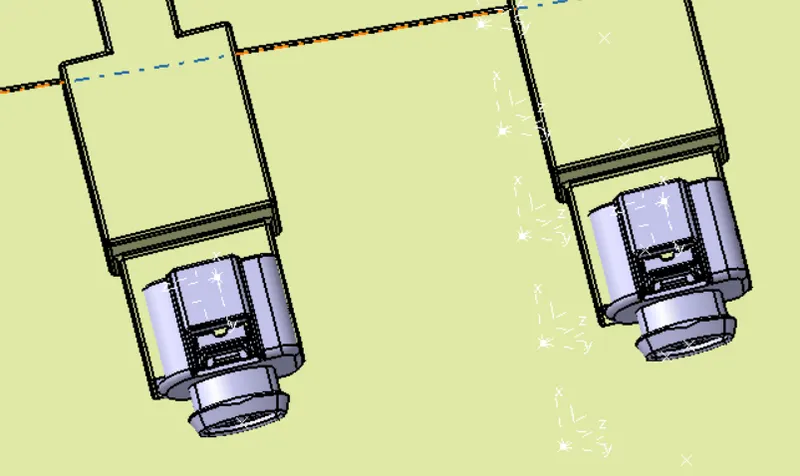

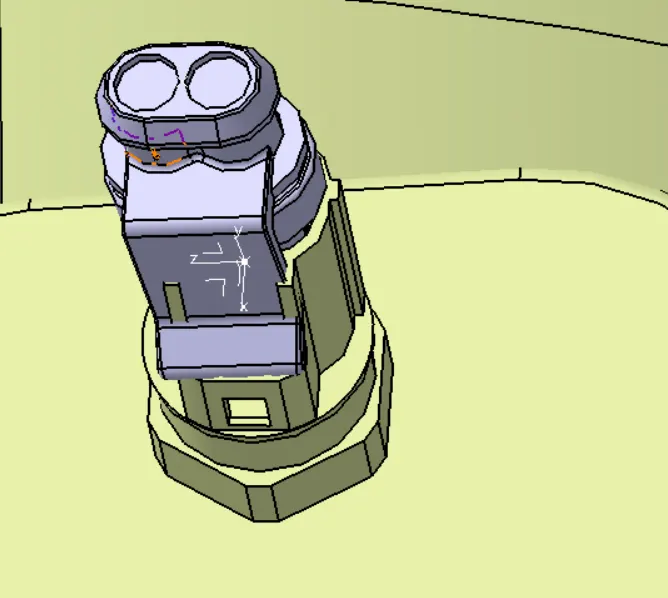

In this step, we are placing connectors to fuel injector sensors and cam-shaft sensors. So we will require total 20 connectors which have to be added in the Engine Harness Geometrical Bundle Assembly. We have to use manipulation tools along with compass, snap and smart move features to locate all the 20 connectors at their desired locations.

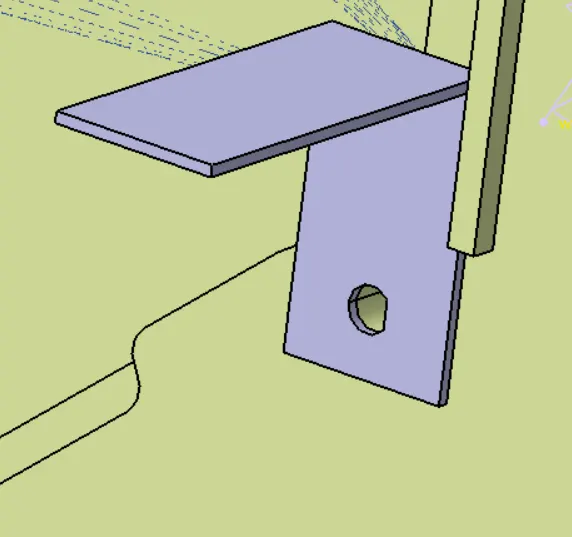

Step 4- Adding the L bracket to the specified point.

Now, we have to add sheet metal bracket in order to provide mounting for the interconnection connector. Also, we have to make sure that the bracket is placed inside the context assembly and outside of engine and geometrical bundle assembly. The bracket should be mounted on the existing bolt as shown below. This bracket should have locking system in clockwise direction so that it can't be move freely. Herein below figure, rib is performing the locking feature for the bracket. All the design ideas should be discussed with the engine designing team so that there won't be any disturbance for the smooth working of engine in real world application.

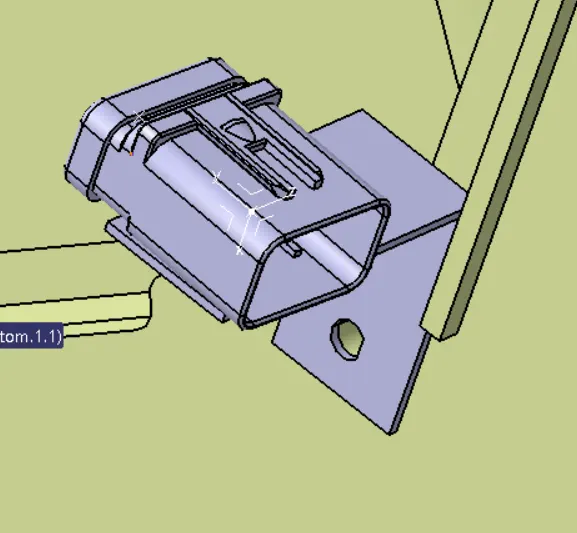

 Step 5- Mounting the interconnection connector on the sheet metal bracket and mounting the p-clamps for wire harness

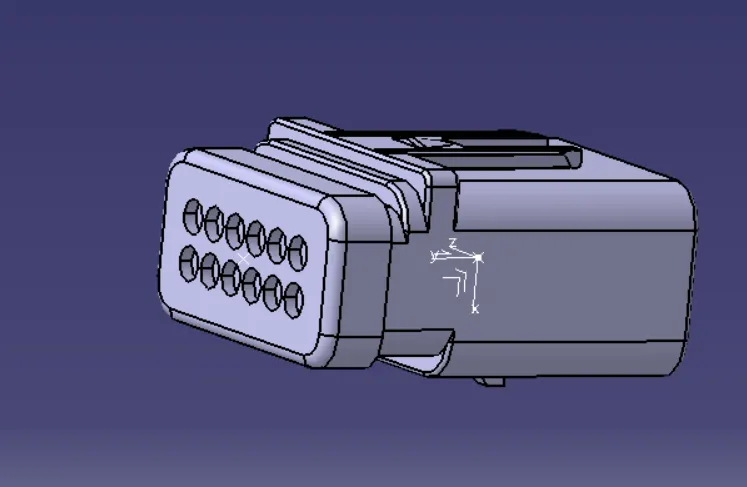

Here, a 12 pole connector "C-776438-4" and mounting cavity "C-1924487-2" is together used as interconnection connector. The required cad data is downloaded from te.com. First, we have to define 12 pole connector and mounting cavity electrically as below.

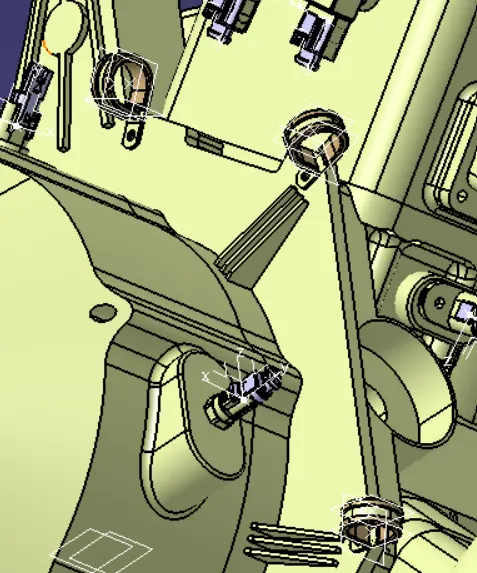

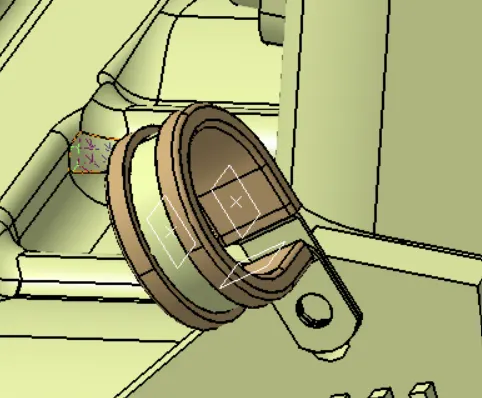

Step 6- Mounting the electricaly defined P clamps in the required positions

In this we are using 3 P clamps and we are positioning it in the required positions in order to make the wiring harness proper. First of all we have to define the P clamp electrically and then place it accordingly.

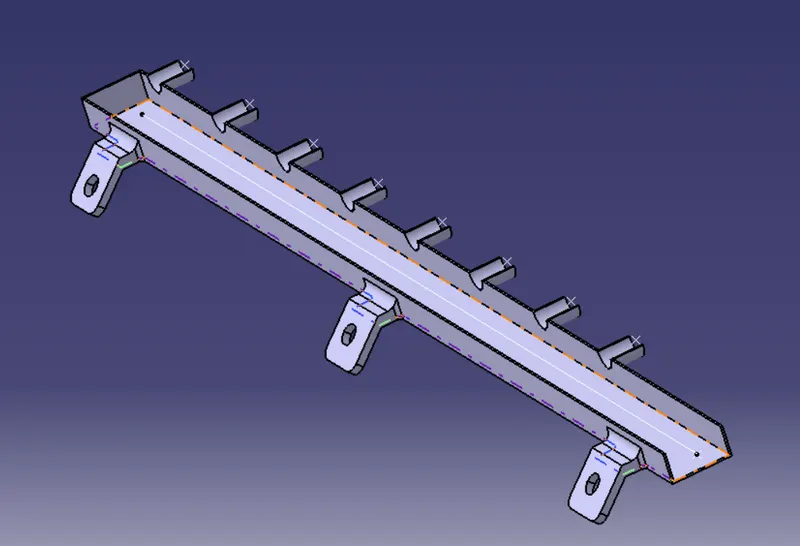

Step 7-  Mounting of a plastic guiding channel

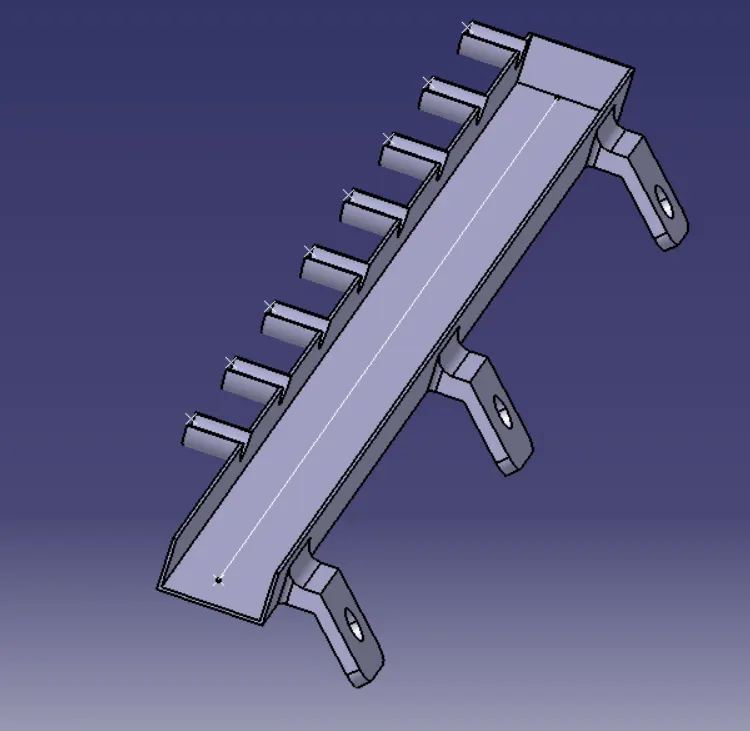

We have to add now plastic guiding channel because Bugatti V16 engine has 8 injectors on right side and 8 injectors on left side which are very close to each other. Hence plastic guiding channel is best option for proper and easy routing of the wiring harness. It will reduce the complex wiring harness routing. We will require two different guiding channel for both right and left side of the engine. Now, before placing guiding channel, we have to define geometrical parameters of guiding channel as below.

We have to make this part electrically define and need to add the bundle entry points at the required positions. The each entry points are situated in 65 mm gap from one another.

Also we have to create a symmetry of this guid channel with respect to Z axis and define it electrically.
