Project 1

1.Design the slab and foundation of the model. Outline the thought process for designing of the elements (column, beam, slab and foundations)Aim - To design the slab and foundation of the model.Tools Used - 1st Order analysis, Analysis all ( static ), Status , check panel ,Properties window etc. Procedure -Open the…

Develop general arrangement for the RC office building. Analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. The building to be designed for dead, live, wind and seismic loading.Report of each member to be generated and extract drawings for structural…

) Generate report for the steel building design from challenges 1 – 6 along with the loading summary AIM : To Generate report for the steel building design from challenges 1 – 6 along with the loading summary INTRODUCTION : Open the model.If needed, number the model. ...On the Drawings & reports…

1. Generate seismic loading based IS codal provisions and zone II. Any other data you can assume and input accordingly. AIM: To generate seismic loading based IS codal provisions and zone II. INTRODUCTION:Seismic load indicates how much seismic energy (waves of energy that travel through the earth) a…

1.Calculate dead load in design report based on IS code and apply dead load on the modelFinishes of 50mmSlab thickness as per the designBrick wall loadRoofing loadfinish load=0.5*24=1.2kN/m2slab load will be generated within the softwarebrickwall+cement plaster thickness 230mm,brickwall loading-GL-1st floor-0.23*20*3.2=14.72kN/m3same…

1. Setup model for RC building design and based on following parameters for coverMEMBERSIN CONTACT WITH GROUNDABOVE GROUNDColumn50mm40mmBeam30mm25mmSlab30mm25mmPilecap75mm Foundation50mm  AIM: To set up model  for RC building design based on the parameters for coverMEMBERSIN CONTACT WITH GROUNDABOVE…

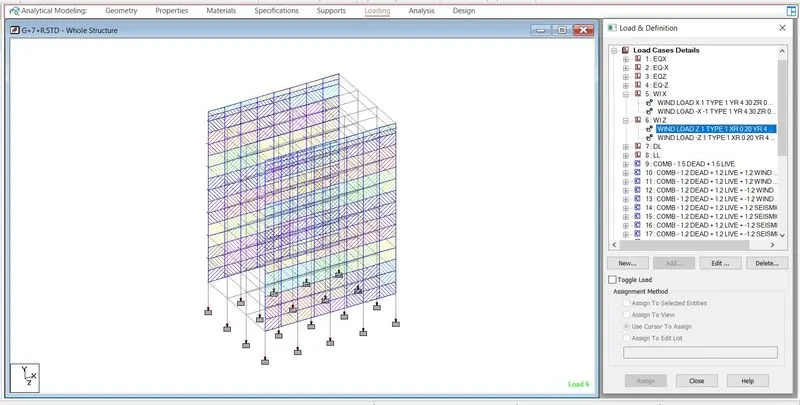

Generate manual wind loading in the design report based IS code as per the following inputBasic wind speed = 39m/sTerrain category 2AIM : To calculate wind load as per IS Code 875-III INTRODUCTION : Wind load is calculated according to IS Code 875-III For Industrial buildingTerrain category is given as 2Vb =…

AIM: Calculate dead load in design report based on IS code and apply dead load on the modelFinishes of 50mmSlab as per designBrickwall 150mm thicknessRoofing load based on purlin sizeCeiling loading 0f 0.3KN per sq mPROCEDURE:Dead load calculations of the the structure as per the structures is given belowDead load…

AIM:-  To explain the answer for each and every question from 1 to 3. INTRODUCTION:-  In this section of question from 1 to 3, I used Tekla structural designer software to answer these question. Besides this, I have used some reference from recorded video session of skill-lync.PROCEDURE:-  Here…

Aim: Create column properties for different types of pedestal members and models in the gridsProcedure:Open TSD and create new model by click on 'new' option.Set construction levels.Select grid lines and draw themSelect manage property and create new property as PDI column size 400x 500 mm and grade of concrete M30.Select…

1.Aim: Summarize the user interface in TSDProcedure:Project WorkspaceOpen the Tekla Software and click on the New option.Now the project workspace will be visibleScene Content– Demonstrate the use of scene contentOpen the Tekla Software and click on the New option.Now the project workspace will be visibleNow click…

1.Summarize your study for the bending moment, shear force, and deflection diagrams for the elements of the modelAIM To analyse the structure and summarize study for bending moment, shear force, and deflection diagrams for the elements of the model and also display these parameters for our model.PROCEDURETo open the…

In this project, participants will get to experience the entire design process from modelling, analysis, design, and preparation of construction drawings. The architectural drawings of a G+3 RCC building is provided. The following information on the building is to be used: Location – Guwahati, AssamFunction –…

AIM: Foundation design using SAFE PROCEDURE: Q1)   1. Define material properties 2. Define slab properties 3.Define Load Pattern 4. Define Soil Subgrade  modulus 5. Assign point load 6.Assign load combinations 7.Check design preferences (min cover 50mm) 8. Run analysis and design   Q2)

Given: Column size = 400x400mm SBC = 150 kN/mm2��2 Compression axial load = 2000 kN fck��� = M25 Steps to design a square footing: 1) Size of Footing 2) Net upward Pressure 3) Bending moment 4) Depth of Footing 5) Reinforcement 6) One way and Two-way shear Step 1: Size of Footing:  Load on column = 2000…

  \

Aim:   To run the analysis and design the RCC shear walls shown in the etabs model. Step 1: 1) Open the ETABS file 2) After the analysis click Concrete frame design Step 2: 1) Need to check there is any failures occurs 2) Click Shear wall design tool 3) select Display info and choose PM failure  Step 3: 1) Click any wall…

Reinforcement Detailing of Columns from ETABS output   QUESTION:- The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two columns at the following grid intersections. 3A 3B Provide details of longitudinal reinforcement…

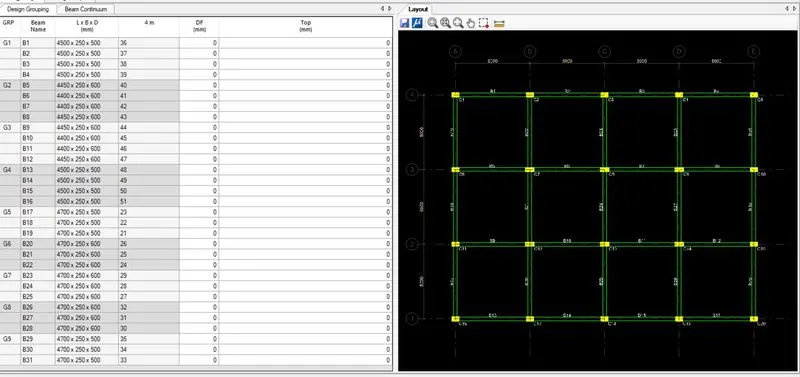

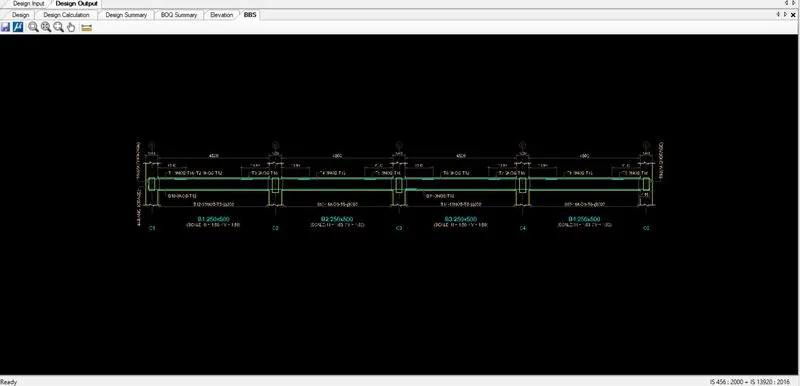

AIM:Detailed design of concrete buildings -1 PROCEDURE:  Detail design of beams in Etabs 2018.The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment ResistingFrame. The following challenge deals specifically with two continuous beams in the 1st floor.         1) 3 span continuous beam…

Project 1_Comparative study of different storey buildings for Seismic forces   AIM : Comparative study of different storey buildings for Seismic forces   INTRODUCTION : There are 10 project of different story building (A, B, C, D, E, F, G, H, J, K).   Factors influencing the dynamic characteristics of a building     Buildings…

AIM: To model a 25 storey building using ETABS with reference of IS 1893 Introduction: ETABS is an engineering software product that caters to multi-story building analysis and design. Modeling tools and templates, code-based load prescriptions, analysis methods and solution techniques, all coordinate with the grid-like…

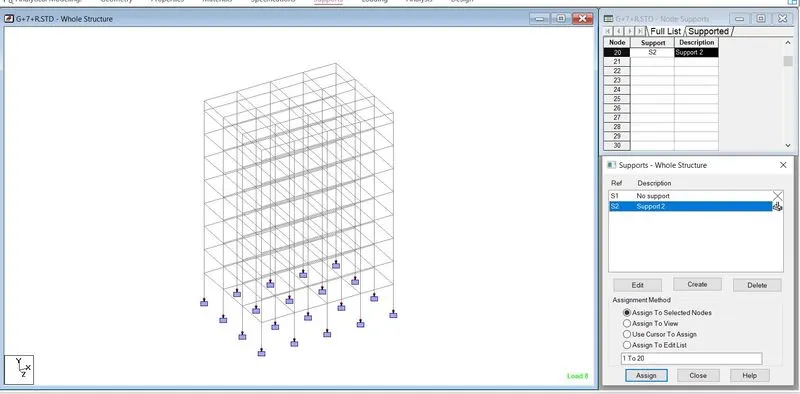

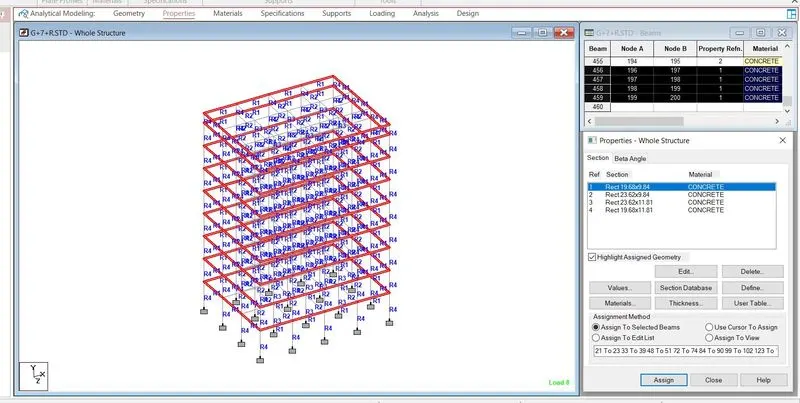

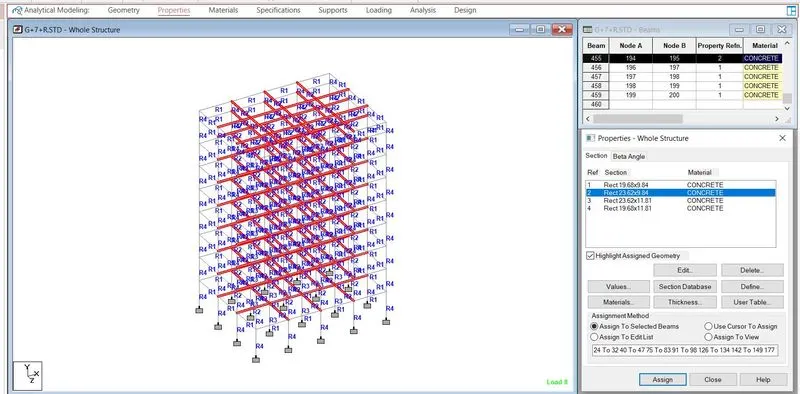

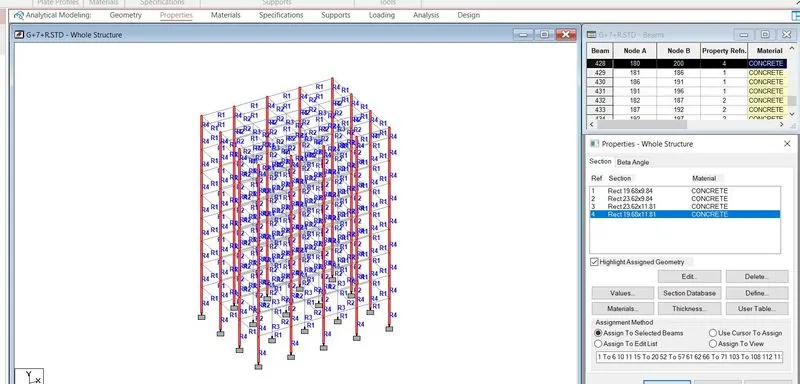

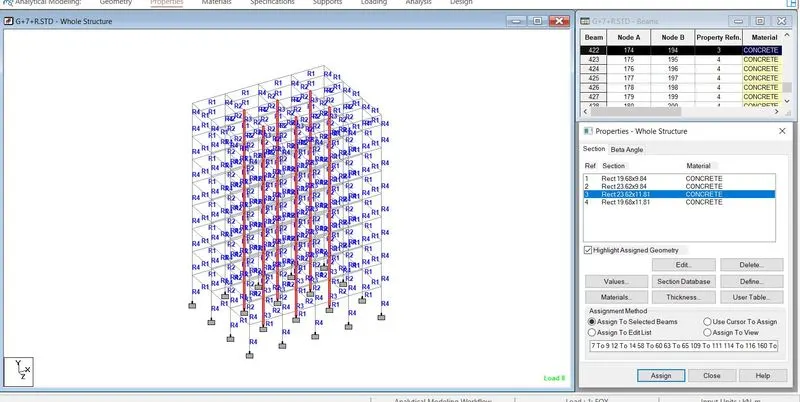

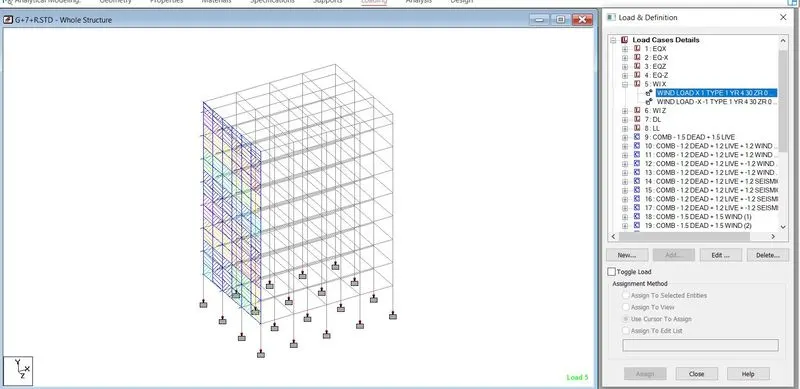

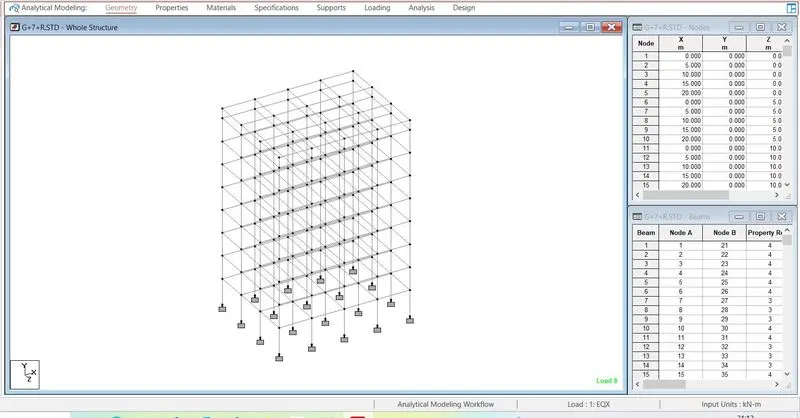

Loading, Analysis and Design Procedure in STAAD Pro 1. Applying Load Exercise For the structure modelled in previous exercise. Apply following loads Form a Load case as DL for Dead Load Apply Self weight Apply member load of 3 kN/m on the rafter Apply member load of 6 kN/m on the secondary beams Apply point load of 20…

CONCEPTUAL DESIGN OF A BUILDING WITH COLUMNS AND SHEAR WALLS   1. The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of…

Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility. Ans :  symmetry The given frame  with respect to symmetry on the…

To calculate Ln,Mn��,�� and ΓnΓ� for each of the five modes To calculate the effective modal mass Mn��* and the modal mass participating ratio for the 5 modes. To find the base shear for each of the 5 modes of vibration and the combined base shear as per the SRSS rule.   Calculations:…

1. Differentiate Static analysis and Dynamic analysis with proper representing pictures . The nature of loading governs the kind of analysis to be performed on the structure. The loads are divided into two basic categories Static Loads are the loads, the variation of load with respective time is very slowly (the…

AIM:    Identification of Cracks INTRODUCTION: There are two types of failure modes in reinforced concrete beams: flexural failure and shear failure. The former occurs when the imposed load exceeds the flexural capacity of the beam's materials, whereas the latter occurs due to a lack of shear resistance…

1. 1. State the primary load cases to be considered for design. ANSWER: Dead Load (IS-875: PART1) Live Load (IS-875: PART2) Wind Load (IS-875: PART3) Snow Load (IS-875: PART4) Seismic Load (IS 1893: 2016)     2. What is a One – Way slab? ANSWER: One way slab is the slab in which the ratio of its longer…

AIM :  How will you assign Circular section to column? Introduction :  Column are the vertical member in the Structure that can be of varing size in dimesions The circular section of column are provided at the upper floor of the building for the better load carrying and access purpose  Procedure :  …

1. a) AIM : Write the steps involved to upload a .std file through web mail? Introduction :  STAAD pro ( Structural Analysis and Deign program is the abbrivation for the STAAD it is the connected version new version used to analize the RCC structure and steel structure by using this software ) It Include the GUI Graphic…

1) Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School Aim : To select type of the structure for modelling in the Revit software. Introduction :…

Introduction Inorder to create the ceiling and roof for a building using revit software following steps can be followed: Ceiling: Open revit software --> Architecture tab --> Ceiling. Roof: Open revit software --> Architecture tab --> Roof. Architecture plan, structural plan, sectional view and elevation…

Aim :- To draw the 3D residential building and to create the rendered view   Introduction :- The general commands used for drawing the building is as follows : Line Polygon Rectangle Circle Erase Copy Trim Offset Extend Move Rotate Dimension Text Fillet Extrude 3D Rotate Etc.   The dimensions: External and Internal wall…

Introduction Isometric drawings: These drawings are not actual 3D drawings, they are made with 2D geometries but they appear like 3D. Isometric drawing in AutoCAD can be made by tilting viewing angle to 30 degrees for all of its sides in the 2D plane. Isometric drawing can now be easily created using the isodraft option…

AIM: To create 3D model and view of: 1. Furniture element 2. Isolated footing 3. AASTHO type girder 4. Drop column with panel 5. A wall   Commands used: 1. Extrude 2. Offset. 3. UCS 4. Box 5. Union. 6. Subtract. 7. Move. 8.3d orbit 9. Loft 10. Sweep. 11. Cone. 12. Region. 13. Boundary.   PROCEDURE: Open the AutoCAD, click…

Aim:      To design and draft the layout of a residential building of plot size 60'x20' (18.3mx6m) facing east. Develop architectural drawings such as floor plan, elevations, sections and develop structural drawings such as column, beam, footing. Introduction:      A residential building of G+1 is sketched in the given…

AIM: To create layout of plan and section, creating viewports, editing attributes and taking a plot. To create a kitchen layout in A4 sheet and take a plot To create Multiview ports for industrial section drawing, scaling it and taking a plot. COMMANDS USED: View Layout. Multiple View. Model Space. Paper Space. Scale.…

Calculate the Concrete Mix Design for M35 grade concrete with fly ash AIM: To calculate the Concrete Mix Design for M35 grade Concrete with fly ash EQUATIONS: Target mean strength : f’ck= fck +1.65 s                                                 …

Creating Kitchen layout, Hatching of                       Architectural elements and sectional view of           an Industrial Building in AutoCad       PROBLEM 1    Aim :- To create the kitchen layout and…

Aim - Creating Bar Bending Schedule, Different Door types, and Creation of Standard drawing templates using AutoCadCreating Bar Bending Schedule, Different Door types, and Creation of Standard drawing templates using AutoCad Introduction 1.…

Residence Plan: Sketch the layout of a residence as shown in the Figure 1. Consider all dimensions as reference to sketch the unit plan. Also, the text in the layout is only for reference. Assume the missing dimensions. Also, refer the schedule for size of the doors. Aim: To sketch the layout of residence using AutoCAD…

DRAWING 1 - DECIMAL AIM :- Drafting the given geometrical figure using Chamfer or fillet or obeject snap options etc. INTRODUCTION :-  PROCEDURE :- STEP 1. Open the AutoCAD software and click on new for a new drawing sheet.  Enter UNITS in command box.  Select DECIMAL in TYPE, 0.00 in…

C1. Cross section of load bearing wall over spread footing Aim: to draw cross section of load bearing wall over spread footing using AutoCAD software. Procedure: Open AutoCAD In the command box type QNEW Click on imperical,advance setup,decimal In the command box type units Select decimal,precision set to 0.00,angle set…

Aim: (A) Create the geometries from P1 to P2 using all the coordinates system methods and also using line tool to find the missing dimension. (B) Civil related problems- Draw the profile and the trusses using any coordinate system methods using given dimensions as reference. Introduction: There is only 3 AutoCAD…

Sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction. Aim of Project :  To sketch G+1 floor residential plan, according to vaastu shastra, and list down the names of the structural drawings required…
