ANSWER 1 and 2 -----:::::::;;::::

GIVEN ,

Nominal voltage of the cell is = 3.6V

Rated capacity of the cell is = 3500 mAh

Maximum voltage of the cell is = 120V

no.of cells in series =rated volt /nominal voltg = 120/3.6 = 33.3=34

no.of cells in parallel =total current/cell cpacity= 1250/3.5 = 358

power = power/voltage = 15000/120 = 1250

_________________________________________________________________________________

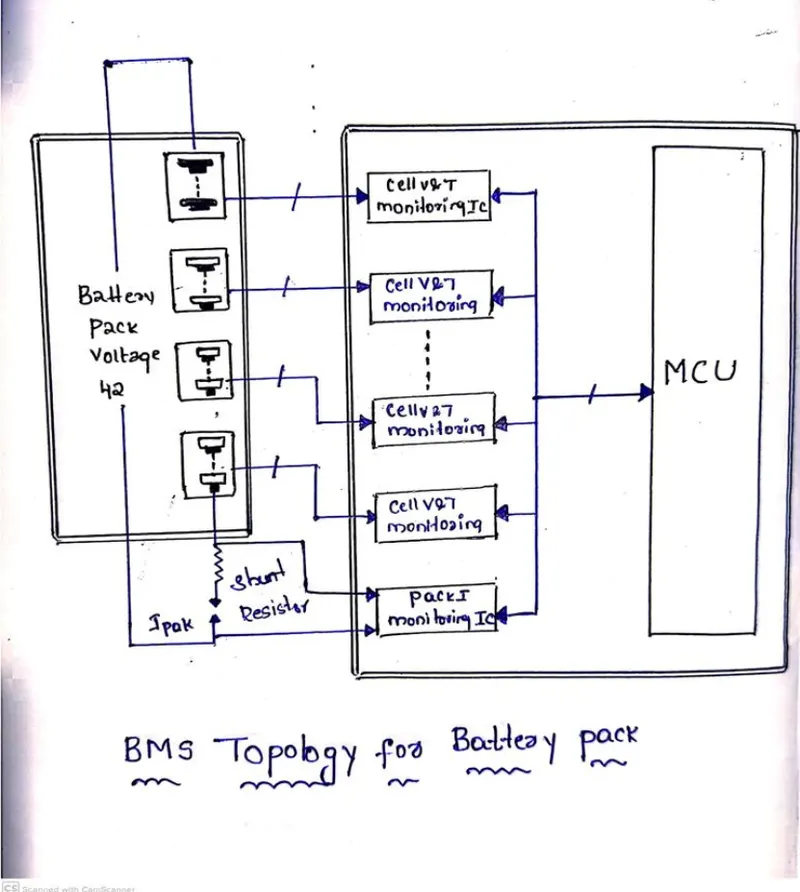

MASTER SLAVE TOPLOGY...

------------------------------------------------------------------------------------------------------------------

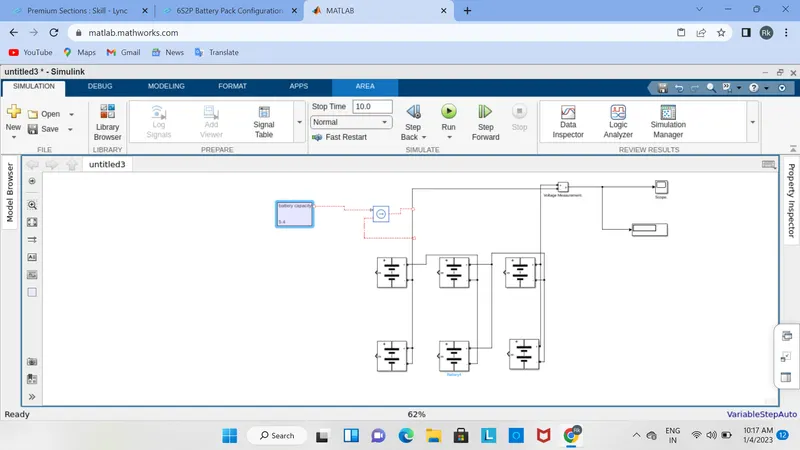

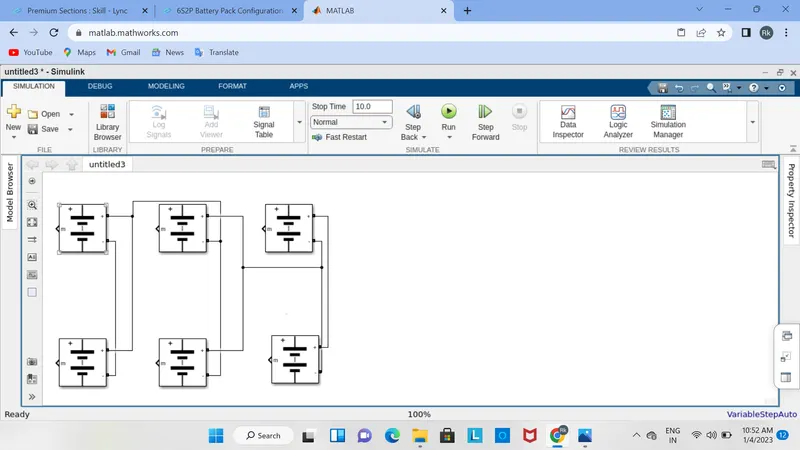

BUILDING A 3S2P BARREY CONFIGURATION WITH GENERIC BATTERY BLOCK USING MATLAB/SIMULINK..

Nominal voltage of the battery pack = No.of cells in series /nominal voltage of the cell

= 34/3.6 = 9.44V

Rated capacity of the battery pack = no.of cells in parallel/rated capacity of a cell = 358/3.5 = 102 Ah

The model is for an 9.44V and 102Ah battery .

Total no.of battery cells = no.of cells in parallel *no.of cells in series

= 3*2 = 6....

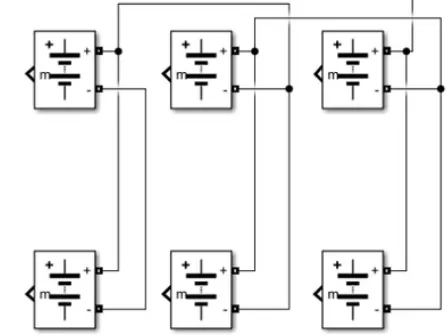

Araangement of 6 cells ,connect the 3 cells in series and 2 cells in parallel

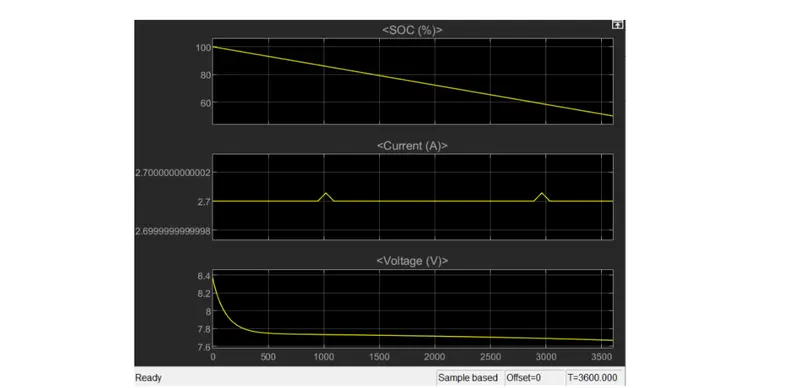

The beloew figure shows the SOC of the battery and current ,for the battery.

ooverall voltage of the battery pack is = maximum voltage of the battery * no.of cells in series =

1120V/34 = 3.52V

.

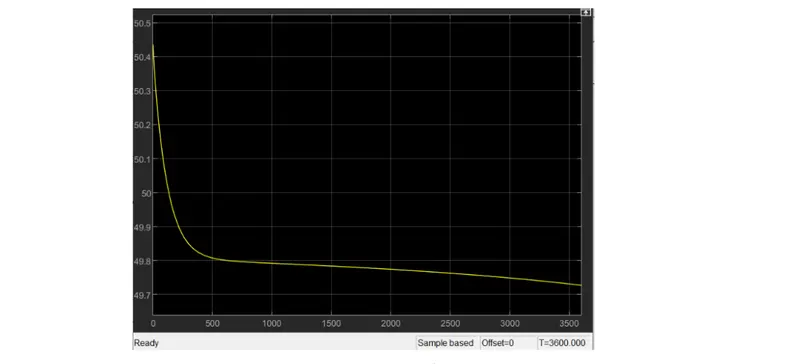

tThe below fig shows overall outout of the battery pack .
