Problem set 3 -week 3 challenge: Anti-roll bar optimization
Aim:- To calculate the parameters for Anti-roll bar optimization.
Objectives:- Calculate the following parameters:
(i) Roll moment (ft-lb/g)
(ii) Roll gradient (deg/g)
(iii) Load transfer due to roll or elastic component (lb/g)
(iv) Front roll stiffness (ft-lb/deg) at wheel center level
(v) Front anti-roll spring rate (lb/in) for one wheel jounce
(vi) Front anti-roll spring rate (lb/in) for roll
( vii) Front anti-roll bar stiffness (ft-lb/deg)
(viii) Auxiliary roll stiffness (%)

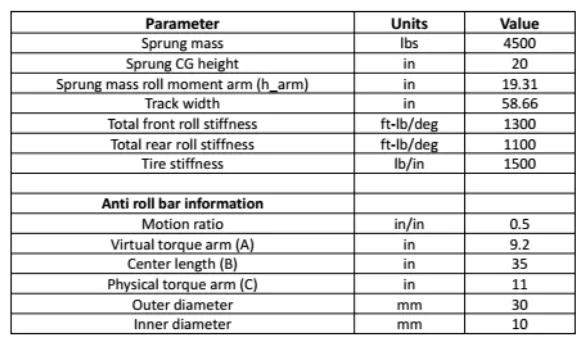

Given Data:-

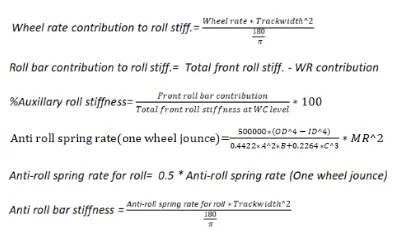

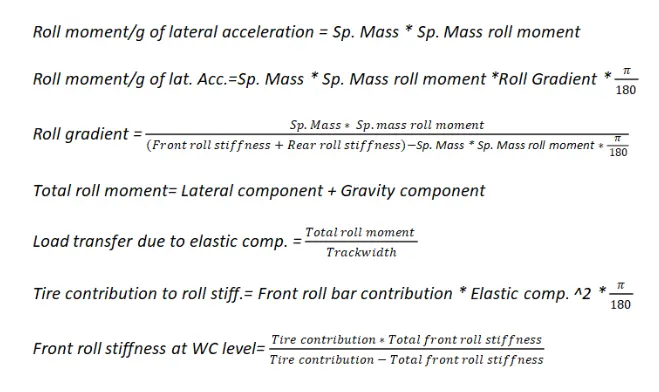

Formulas in Excel:-

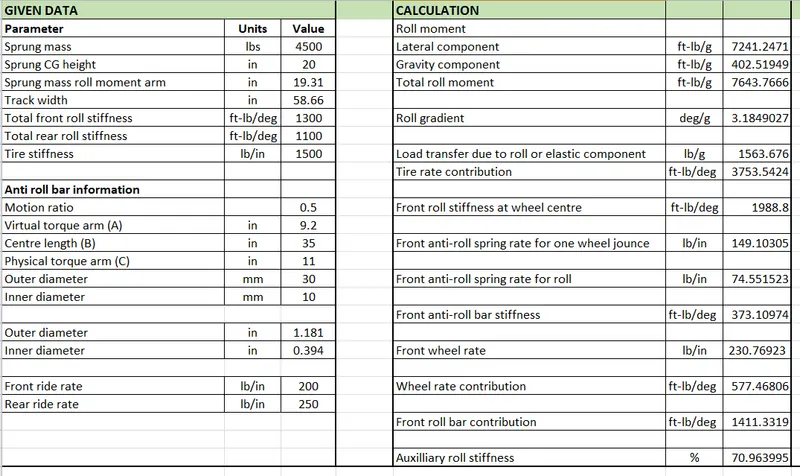

Excel Caculation:-

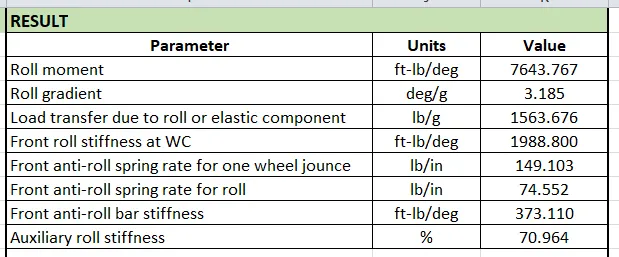

Results:-
