Photo Realistic Rendering

DESIGN AND ASSEMBLY OF AMERICAN CHOPPER

OBJECTIVE

To model different parts of an American chopper and assemble all the parts together to build the bike. Create a photorealistic render of America chopper bike using solid works photo360 and solid works visualize.

PARTS CREATED TO MODEL THE AMERICAN CHOPPER

• Transmission belt

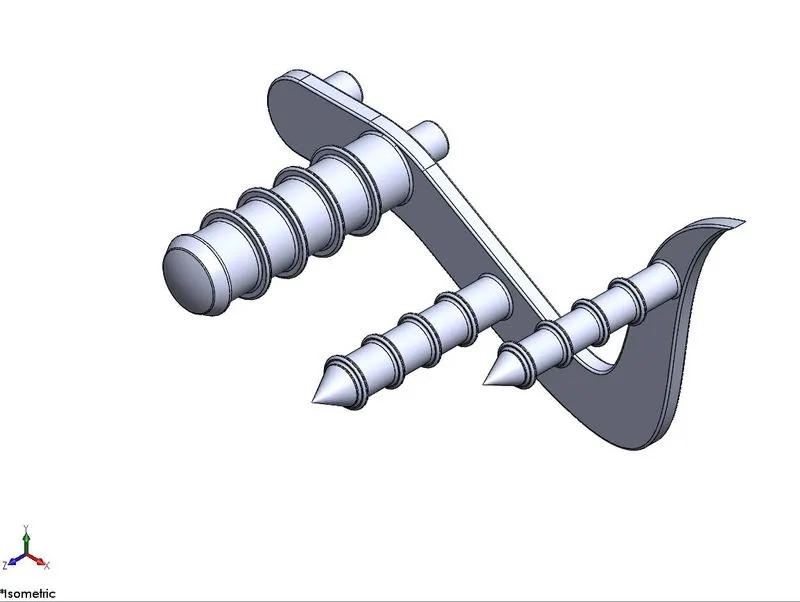

• Kick stand

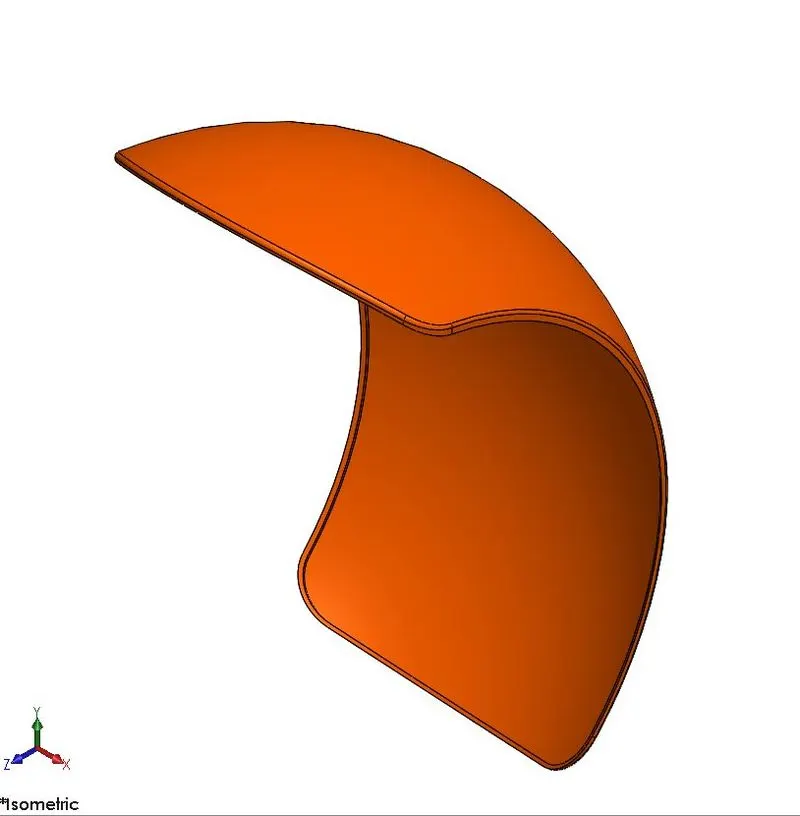

• Front fender
• Rear fender

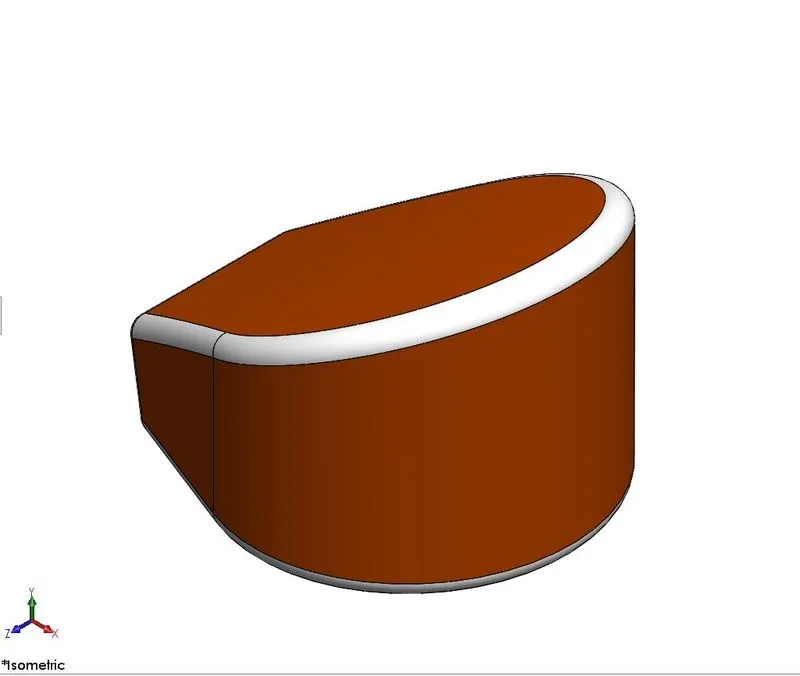

• Oil tank
• Chain
• Pedal

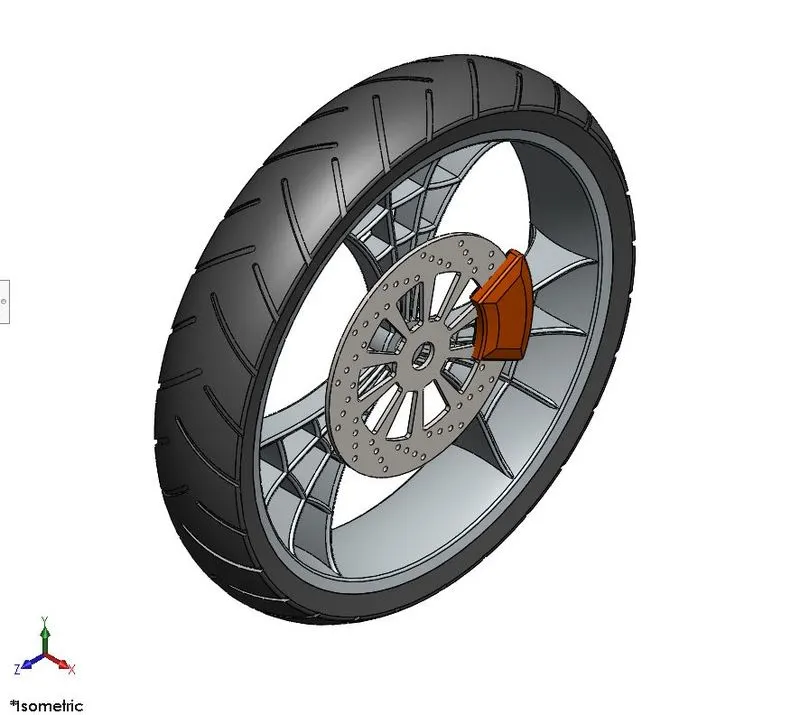

• Front wheel
• Rear wheel

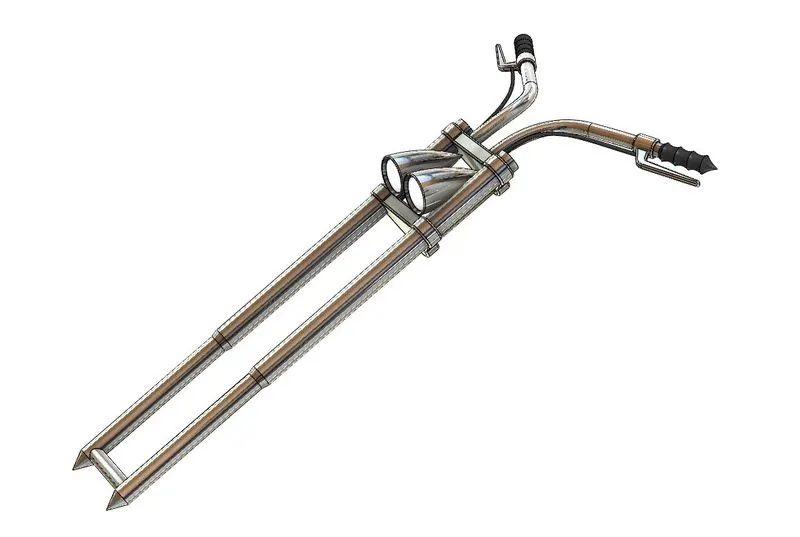

• Front fork

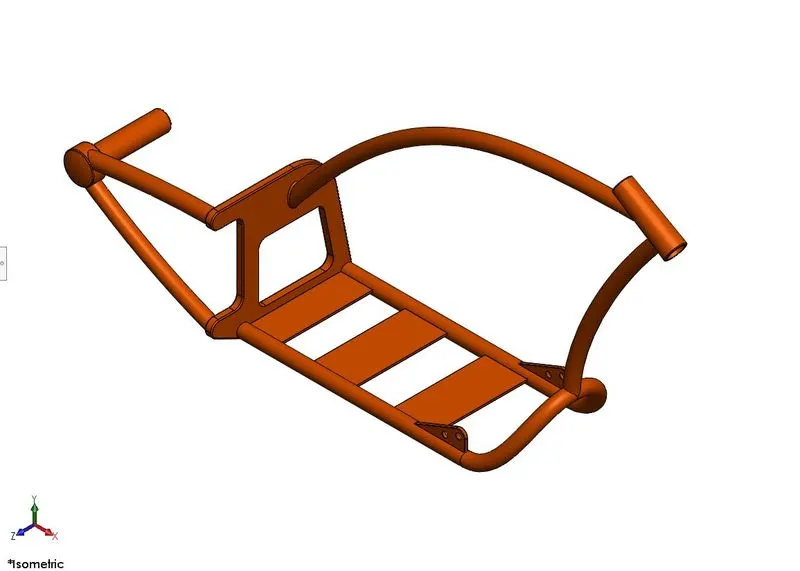

• Chassis
• Engine

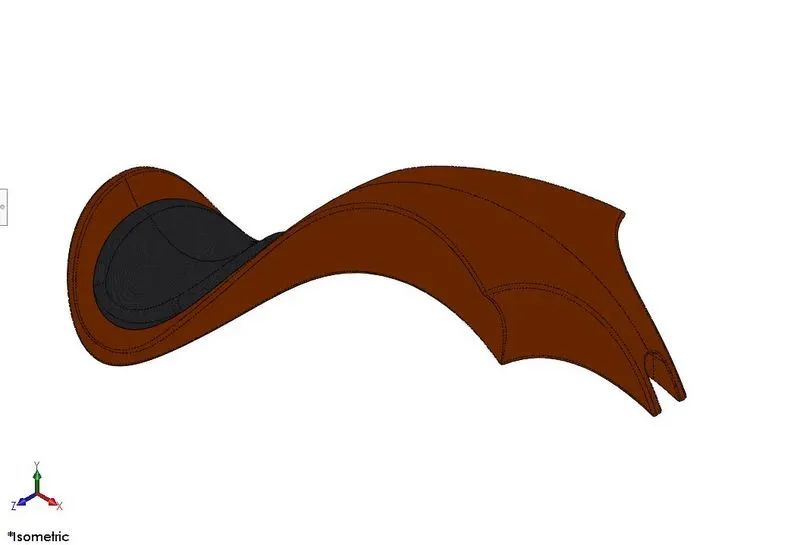

• Gas tank

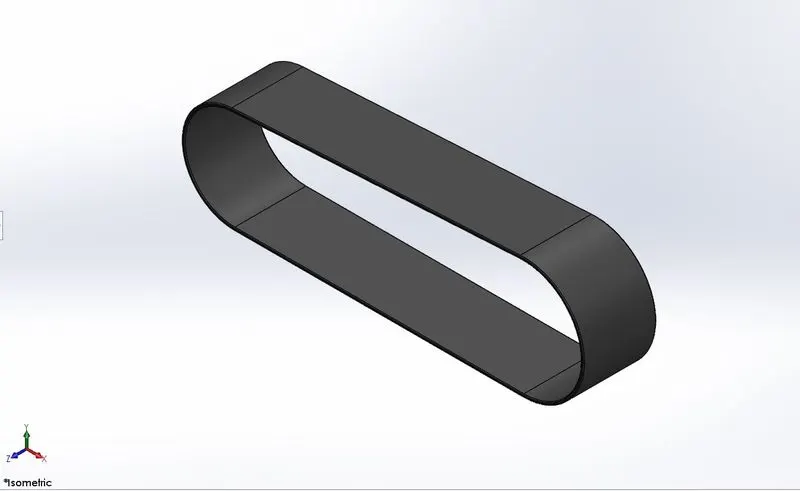

TRANSMISSION BELT

Features used while designing:

1. Sketch
2. Offset
3. Extrude
4. Fillet
5. Appearance

KICK STAND

Features used while designing:

1. Sketch
2. Loft
3. Dome
4. Extrude Boss
5. Extrude Cut
6. Fillet
7. Split
8. Appearance

FRONT FENDER

Features used while designing:

1. Sketch
2. Offset
3. Trim
4. Revolve
5. Dynamic Mirror
6. Spilt
7. Fillet
8. Appearance

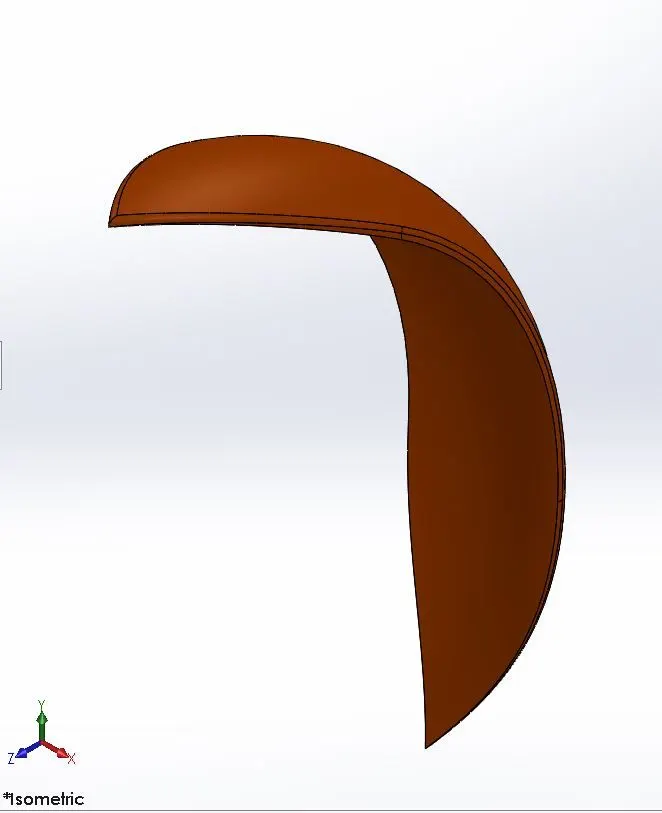

REAR FENDER

Features used while designing:

1. Sketch
2. Offset
3. Trim
4. Revolve
5. Appearance

OIL TANK

Features used while designing:

1. Sketch
2. Extrude Boss
3. Combine
4. Shell
5. Fillet
6. Appearance

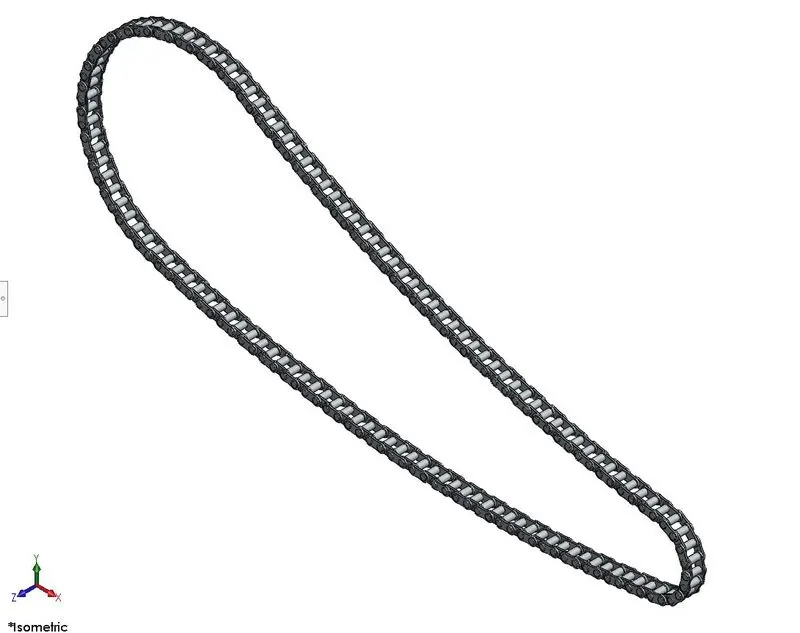

CHAIN

Features used while designing:

1. Sketch
2. Extrude boss
3. Fillet
4. Curve pattern
5. Mirror
6. Appearance

PEDAL

Features used while designing:

1. Sketch
2. Extrude Boss
3. Revolve
4. Dome
5. Fillet
6. Chamfer
7. Linear pattern
8. Appearance

FRONT WHEEL

Features used while designing:

1. Sketch
2. Revolve
3. Extrude Boss
4. Extrude cut
5. Circular pattern
6. Linear pattern
7. Combine
8. Trim
9. Fillet
10. Chamfer
11. Appearance

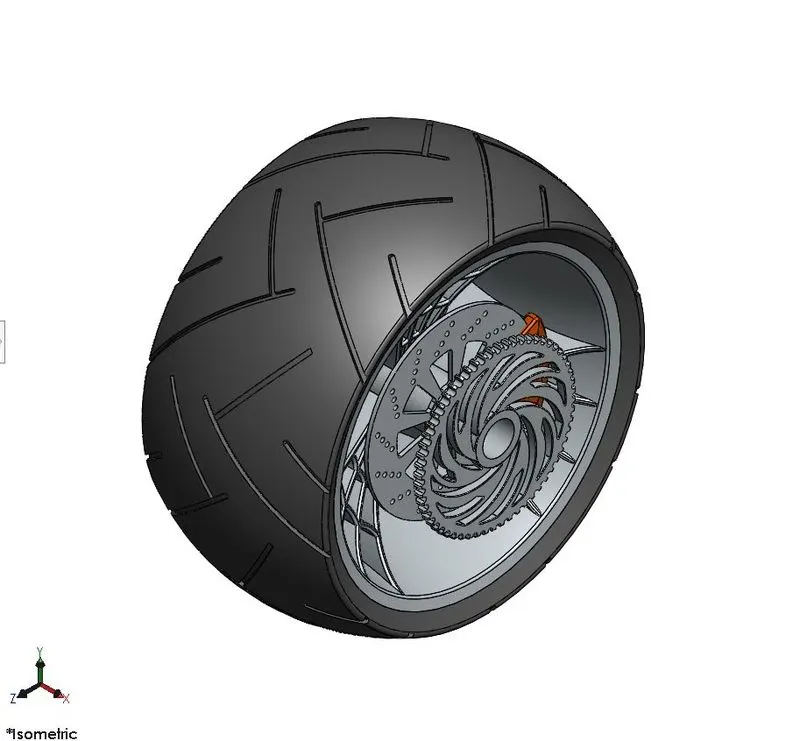

REAR WHEEL

Features used while designing:

1. Sketch
2. Revolve
3. Extrude Boss
4. Extrude cut
5. Circular pattern
6. Linear pattern
7. Combine
8. Trim
9. Fillet
10. Chamfer
11. Appearance

FRONT FORK

Features used while designing:

1. Sketch
2. Revolve
3. Extrude Boss
4. Extrude cut
5. Fillet
6. Linear pattern
7. Dome
8. Revolve Cut
9. Project curve
10. Mirror
11. Combine
12. Swept Boss
13. Split

CHASSIS

Features used while designing:

1. Sketch
2. Offset
3. Trim
4. Extrude cut
5. Convert entities
6. Project curve
7. Swept Boss
8. Revolve
9. Fillet
10. Split
11. Combine
12. Mirror
13. Chamfer
14. Dome

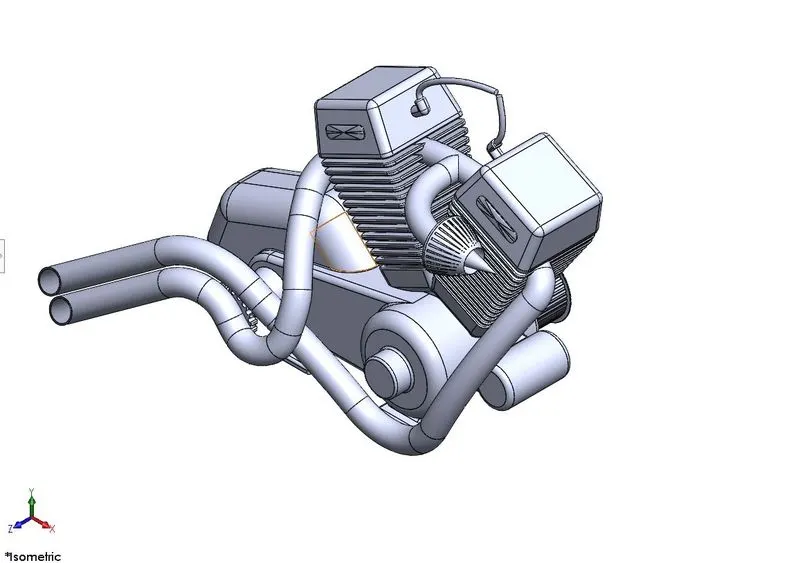

ENGINE

Features used while designing:

1. Sketch
2. Extrude Boss
3. Revolve
4. Fillet
5. Circular pattern
6. Dome
7. Extrude cut
8. Chamfer
9. Linear pattern
10. Mirror
11. Swept boss
12. Project Curve
13. Split

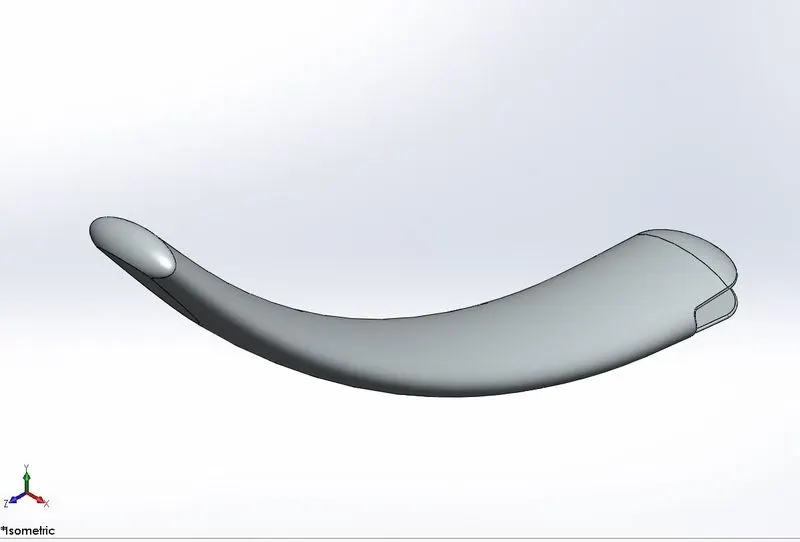

GAS TANK

Features used while designing:

1. Sketch
2. Surface Sweep
3. Surface trim
4. Surface loft
5. Surface Boundary
6. Surface Knit
7. Surface extrude
8. Project curve
9. Split
10. Mirror
11. Fillet
12. Cut sweep
13. Shell

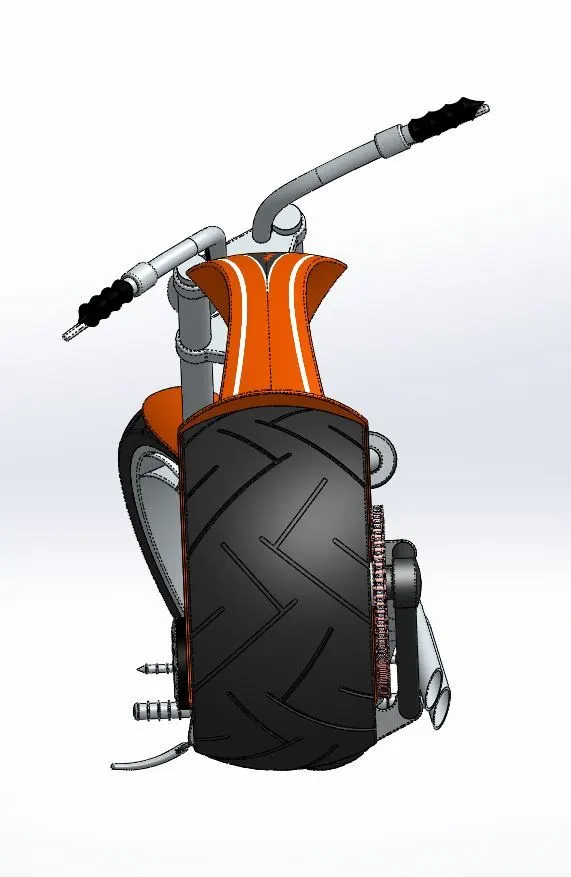

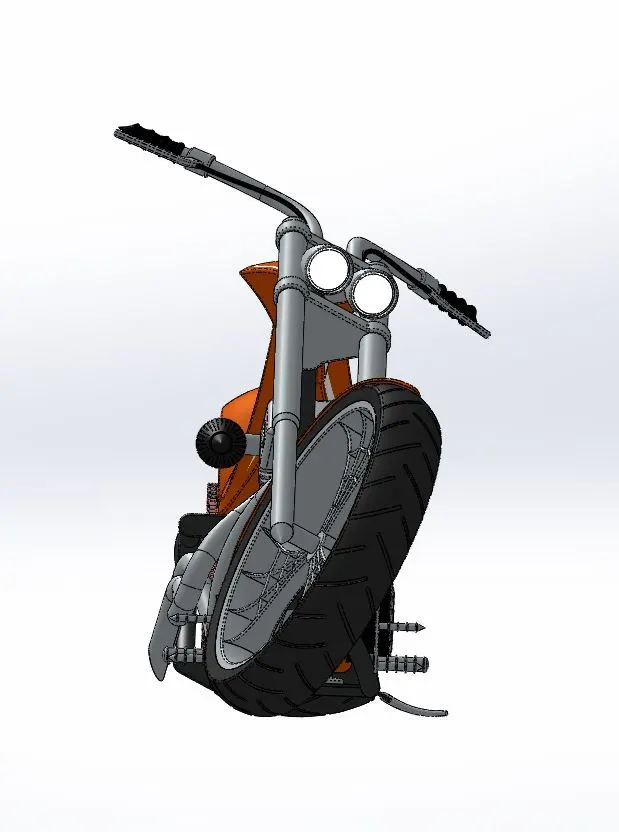

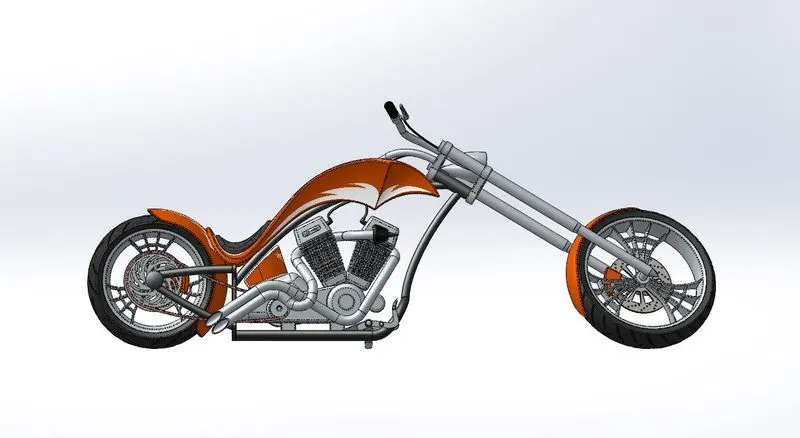

ASSEMBLY OF AMERICAN CHOPPER

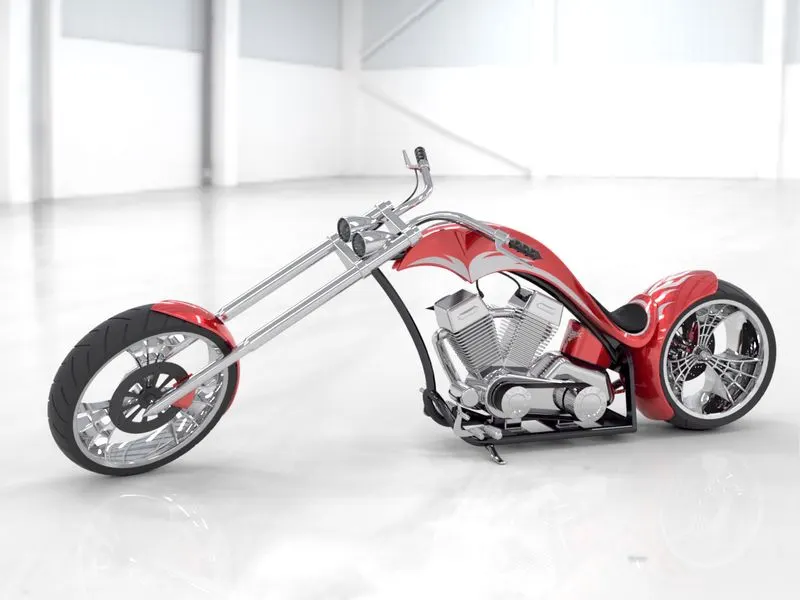

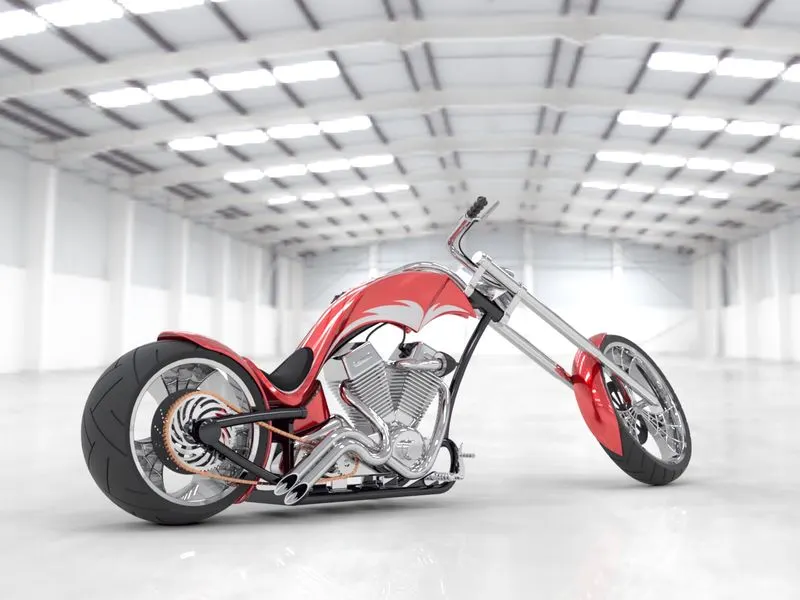

RENDERING OF AMERICAN CHOPPER IN SOLIDWORKS VISUALIZE
