Photo Realistic Rendering
Assembly of the American chopper
Introduction:
This report contained contains a detailed explanation of designing an American chopper starting from part modelling to final rendering of the assembly
Objective:
the main objective of this course modules to learn the basis of part modelling and exploring most of the tools that is used in the design using SolidWorks the following steps were taken while designing the American chopper
- Design of the individual components
- Assembly of the American Chopper
- Application of the decals, setting up the scene lights and cameras
- Final rendering of the American chopper
Methodology:
The American chopper is made of following parts
- Transmission belt
- kickstand
- Chain
- Rear Fender
- Rear wheel
- Pedal
- Front Fender
- Front wheel
- Oil tank
- Front fork
- Chassis
- Engine
- Fuel tank

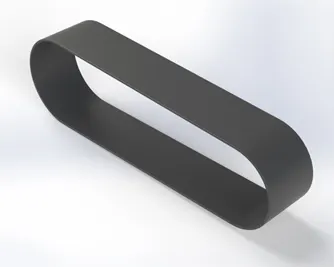

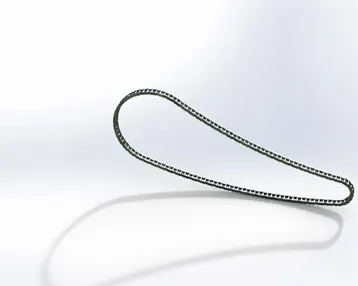

Transmission Belt :
it is used to the transmit power between two shafts
Features
extruded boss base and fillet
the profile of the transmission build is created as per the dimension the front plane, the build is given the thickness of 3.5 MM. One the sketch is completed; the belt is extruded the square edges are given fillet. the transmission belt is made up of mat rubber

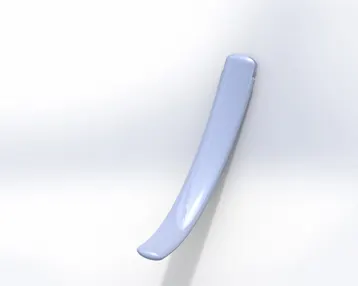

Kickstand:
kickstand supporting structure provide to a bicycle or a motorcycle to help stand in vertical position when stationary
Features used:
Lofted bass, boss, Dome, extruded cut, extruded base/ boss and fillet.
mainly loft feature is used to get the kickstand. 2 ellipses are created on the right plane, one at the top end and one at the bottom of the kickstand. a party sketched on the front plane which joins the centre point of the two-ellipse created before Using Pierce relation between the centre of the ellipse and the path. using loft, the body of the kickstand is created. Elliptical Dome feature is used to create the rounded end of the kickstand. Slot with extruded boss is created at the top end of the stand using which it is connected to chases. At last fillets are provided to sharp edges of the stand Chrome plate appearances is applied to the stand
Chain
chain is a connection used to transmit power from engine to rear wheel. It passes over to the member known as sprocket
features:
extruded boss / base, linear pattern, circular pattern, filet, mirror and combine.
Main profile of the Chain created using 3-point arc and tangent relation between the Arcs Using given dimensions. Create to throw away sketches in which are used to create the inside and outside links Off the chain. the plates of the chains are links Are extruded using throw away sketches and the connecting pins are created using same sketch only one side of the plates of the chain’s links are created. The created changelings are pins are then populated on the main sketch using the linear pattern and circular pattern features. All the chain link plates are then mirrored on the front plane. All the components of the chains are combined as a single part using the combined feature. Chrome steel appearance is applied to the chain

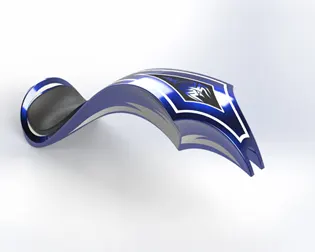

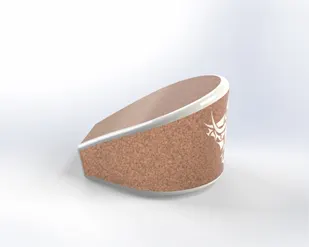

Rear Fender:
it is semi cover of the real veal
features: revolve bass/ bass, fill it and shell.
sketch of created in the front plane using 3 or point and offset it meets that thickness of the Fender. Create an axe of the origin. Using revolve boss the required Fender is created from stop flats are created on the sharp edges of fender Desired appearance is applied to the Fender

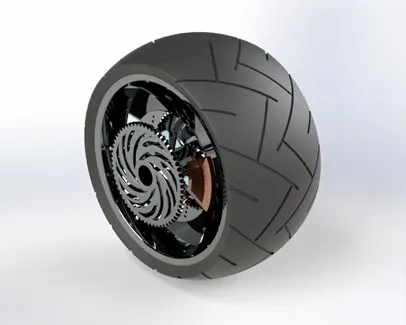

3.Rear wheel:
The circular component of the motorcycle which helps in the motion of the vehicle and it received the power from the engine through the chain drive. Rim, Tyre, rotor, sprocket, calliper are the components of rear wheel
Features
revolve boss / base, extruded boss/ base, extruded cut, revolve cut, circular pattern, mirror combination, chamfer and fillet.
Initially the rim is created by sketching on the front plane and they revolved extruded using an imaginary axis of the origin. Spider web design of the remains created on the front plain and is excluded using mid plane extrude future. By using circular pattern, the spider web design is duplicated to require members free stop the spider web spokes and the rings are coming to form a single body.
For rotor
sketch on the front plane and extrude it two required dimensions. Create the necessary holes using circular pattern.
For calliper
create a profile using lines and circles and remove the unwanted sketch, extrude the calliper profile.
provide necessary fillets and chamfers to complete the calliper
For Sprocket
sketches circle and extrude to required thickness. Apply chamfer to outer edges and created tooth profile on the extrude and cut it. Apply fillets to the Toothed edges and create a sprocket using circular pattern feature Required number of teeth’s
For Tyre
Sketched created by converting and the tire is revolved student profile are created on the surface of the tire to give the grips to the tire
separate appearances are applied to each part of the wheel

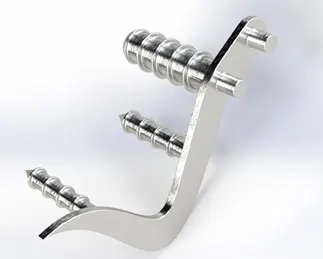

6.Pedal:
The part of the motorcycle where the foot of the rider rest and the place where the gears and brakes are available easy to go rider
Features
extruded boss / base, Revolve boss / base, dome, linear pattern, chamfer and fillet.
It made on the front plane of the form of this support plate Asher in the picture of along with few circles of required dimensions on either side of the profile which are later used to produce the extruded cylinder structures for the footrest an attachment to the chases. provide the requirement fillets and linear pattern produce in structure. appearance is providing to the pedal with Chrome steel

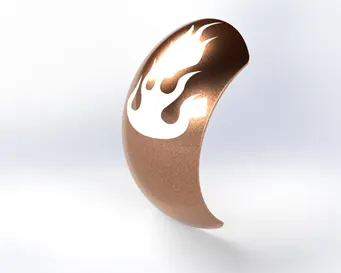

- Front Fender:
It the covering plate of the front wheel.
Features:
revolve base/ boss, split and shell.

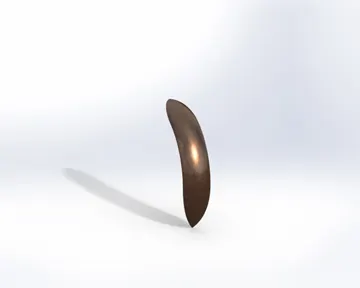

Sketch of created in the front plane using 3-point arc and offset it meet the thickness of the fender. Create an axis at the origin. Using revolve boss the required front Finder is created. two different sketches are created in the top plane and right plane to cut the open front Fender in to required shape. fillets are created on a sharp edge of the fender. Desired appearance is applied to the sender

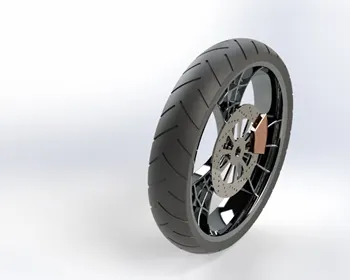

Front wheel:
It is rolling part on the front of the motorcycle. This will help to get the vehicle according to the moment of the front fork as decided by the rider
features:
Revolve base/ boss, extruder boss/ base, extruded cut, revolve cut, circular pattern, mirror, combine, chamfer and fillet.
Initially dermis created by sketching a friend plan on the revolved student using an imaginary axis of stop spider web design of the rim is created on the front plan and is extruded using mid Lane Exeter future. This spider webs circular pattern to the required numbers and the rain is completed stop. Spider hey web spock's and trim is combined to form a single solid body.
For rotor
sketch on the front plane and extrude it two required dimensions. Create the necessary holes using circular pattern.
For calliper
create a profile using lines and circles and remove the unwanted sketch, extrude the calliper profile.
provide necessary fillets and chamfers to complete the calliper
For Tyre
Sketched created by converting and the tire is revolved student profile are created on the surface of the tire to give the grips to the tire, separate appearances are applied to each part of the wheel
9.Oil tank:
engine oil storage unit of the motorcycle which ensures which mud running
Features:
extruded boss/ base, shell and fill it.
On the top plane create a sketch by creating a 3 point out and a few lines and apply it standard relation then extract the profile to obtain structure on the front plane create another sketch and explain it using mid plane extrude now split the bodies and remove the unwanted part to obtain all bank. Now using shell future make the oil tank hallow of required thickness. Apply desired appearance.

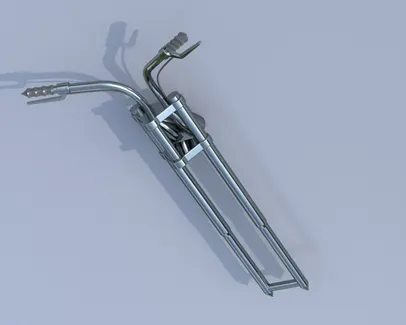

10.Front Folk:
it is used to guide the entire vehicle. It holds front wheel and other control device operated by rider.
it consists of 2 columns along with shock absorber which is held together by triple clamp.
Features
extruded base/ boss, revolve base/ boss, revolve cut, extruded cut, swept boss / base, Dome, combine, mirror, chamfer and fillet.
Create the long tube on the front plane by creating the sketches and with the appropriate dimensions and then revolve extrude it. then create the half of the triple clamp using required dimensions. On the same plane create the headlight by revolve exclusion. On the top plane and draw sketch for creating handle using Spline and sweep patterns. Select all the created bodies and mirror them along the front plane and combine them as single object, select an appropriate appearance to the front fork.

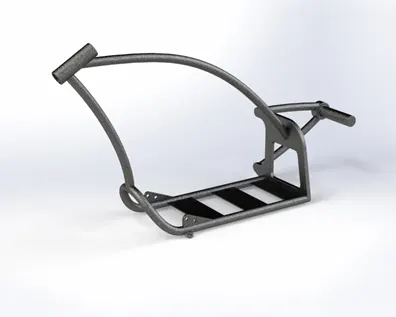

11.Chassis:
This is a skeleton of the vehicle to which all the components of the motorcycle are attached to. It is also providing the required support to the vehicle.
Features
extruded base/ boss, revolve base/ boss, revolve cut, extruded cut, swept boss / base, Dome, combine, mirror, chamfer and fillet.
Blueprint of the motorcycle is imported to the part design by adjusting the location and transparency and the script of the charges is carried on this group blueprint .the chassis is made up of 4mm thickness tube And joined using splints and create projected curves . at the end of all the tubes are connected to the plate and his further discharges extended to the rear wheel hub.

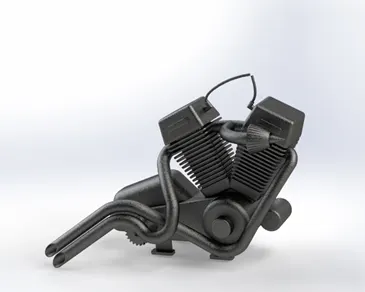

12.Engine:
Engine is the main component of the vehicle where the power is generated by burning fuel and later transmitted to wheel to create required torque.
Features
extruded base/ boss, revolve base/ boss, revolve cut, extruded cut, swept boss / base, Dome, combine, mirror, chamfer and fillet.
using inserted picture and choosing the front plane the base of the engine is created using three-point circle and the lines and extruded to the required dimensions. Using the same sketch extra two circles on the front plane create the twin engines in the V-shape. Create the sketch for pulley using revolve extrusion. Create the cylindrical part in the front of the engine on the front plane. using the curves created and projected curves create the profile of the exhaust pipes and create swift bass feature, then spark plugs are created the Indian end apply appropriate material to the engine.
13.Fuel/ gas tank:
fuel storage component of the American chopper I need supplies up required field to the engine
Features:
extruded base/ boss, revolve base/ boss, revolve cut, extruded cut, swept boss / base, Dome, combine, mirror, chamfer and fillet.
The front plane using the explants, construct lines and projected curves create a surface sweep to create half of the tank. create another surface extrude to create the seat. now mirror the selected part of the tank and Knit the surface together. Now apply materials to the gas tank and this it.

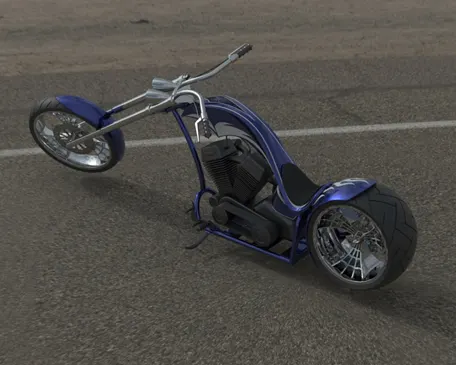

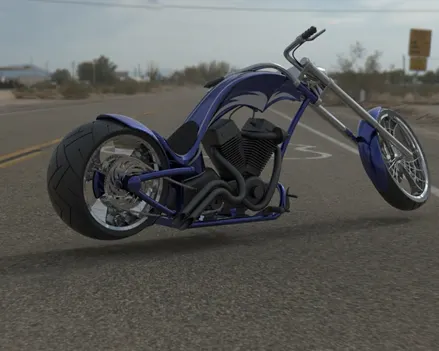

Assembly of the American chopper
all the design components are taken into the assembly section in SolidWorks and using different meeting features such as concentric go inside parallel etcetera the entire assembly of the American chopper is created. After the assembly decals are applied to the chopper in stock on solid box visualize various aspects such as camera external lighting background scenes etc are taken into consideration before creation of the final render stop the final rendered image of the American chopper are derived
