Motor Blower Assembly : Week 4 Challenge

The Motor blower assembly consists of 5 Parts which are first created as part files and later on assembled in an assembly file using different constraints.

LOWER HOUSING:

The lower housing was created using different features like Pad, Pocket and mirror.

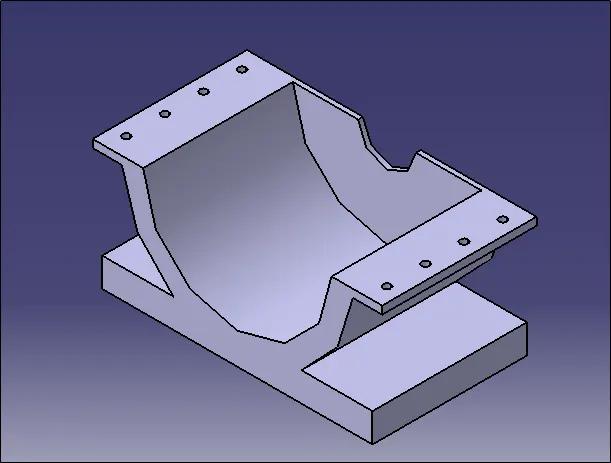

Fig 1. Lower Housing Isometric View

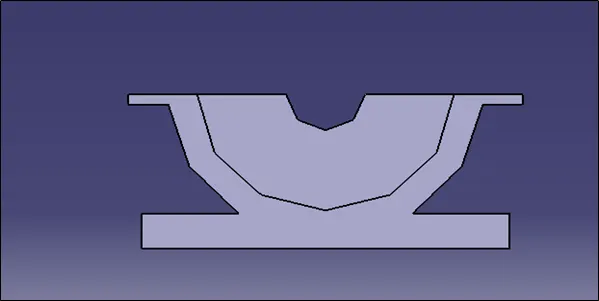

Fig 2. Lower Housing Front View

UPPER HOUSING:

The upper housing was created using features like Pad, Multi Section Solid, Pocket, Shell, mirror and edge fillet.

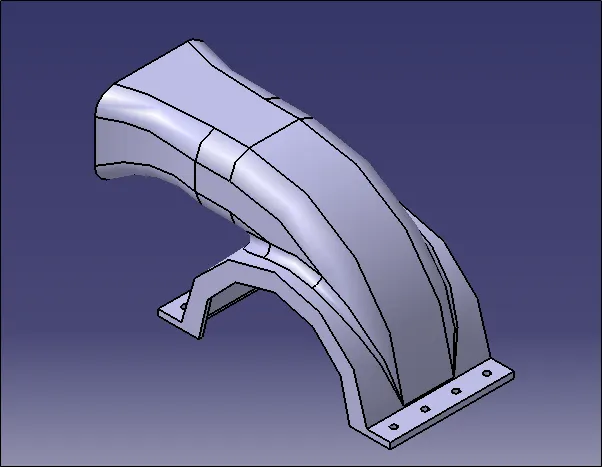

Fig 3. Upper housing isometric view

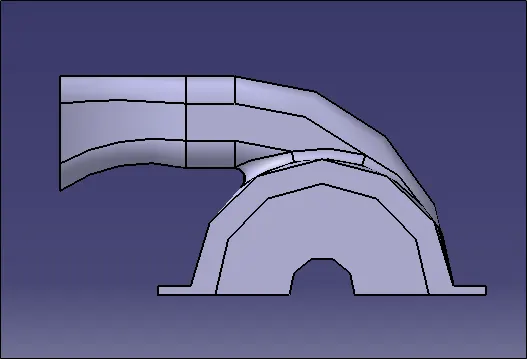

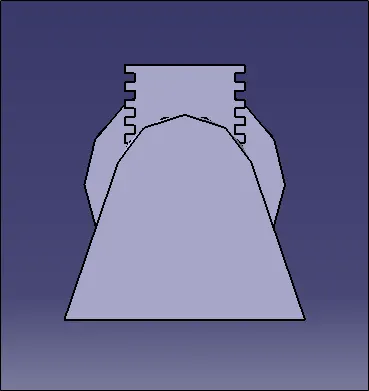

Fig 4. Upper Housing side view

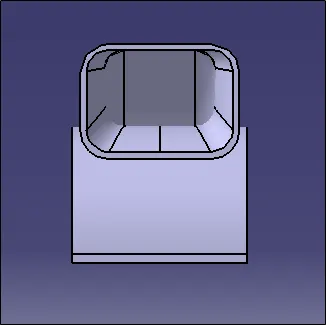

Fig 5. Upper Housing front view

MOTOR:

The motor was created using features like Pad, Pocket, Circular Pattern, Edge Fillet.

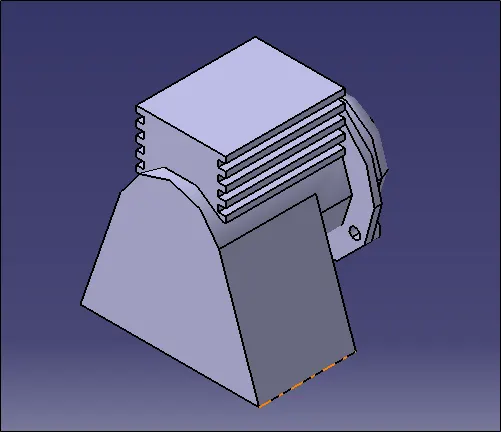

Fig 6. Motor isometric View

Fig 7. Motor Backside view

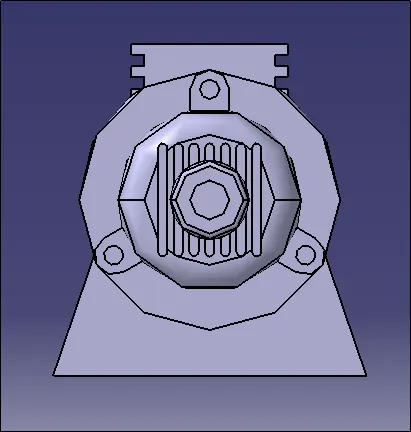

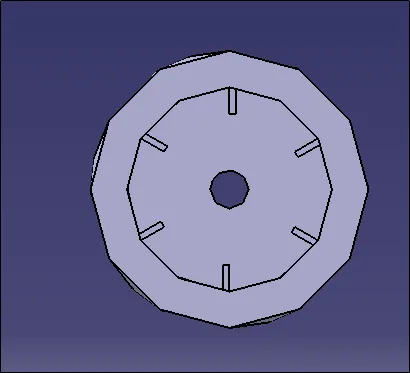

Fig 8. Motor front view

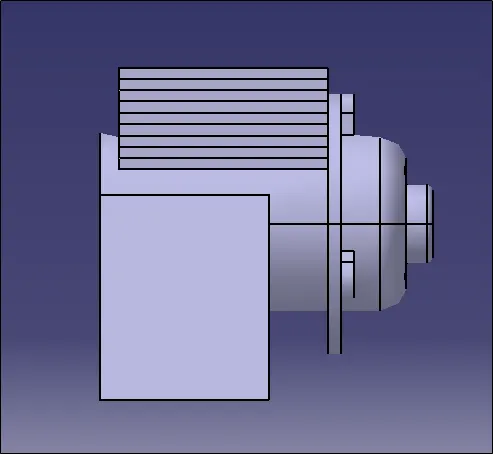

Fig 9. Motor Side view

BLOWER:

The blower was created using features like Pad, Pocket, Circular pattern.

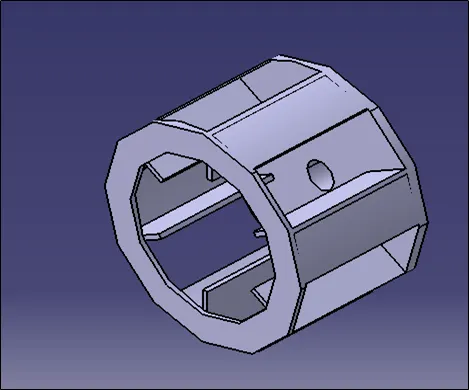

Fig 10. Blower Isometric View

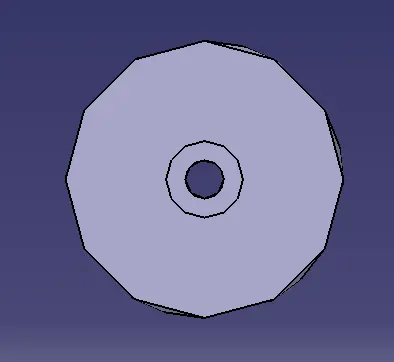

Fig 11. Blower Backside View

Fig 12. Blower Front View

SHAFT:

Shaft was created using Shaft feature.

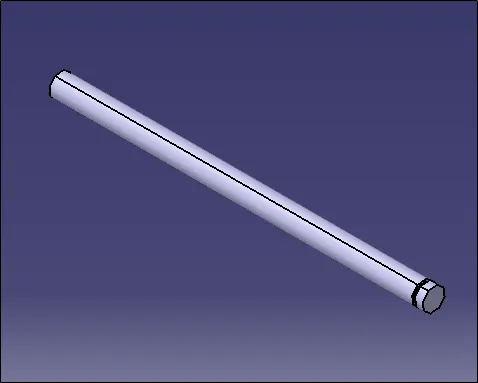

Fig 13. Shaft

ASSEMBLY:

After creating all the different part files they are assembled together in an assembly file by using different constraints like offset constraint, surface contact and coincidence constraint.

The assembly views are:

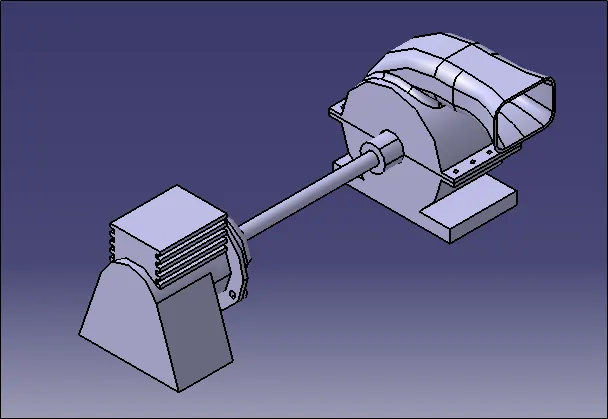

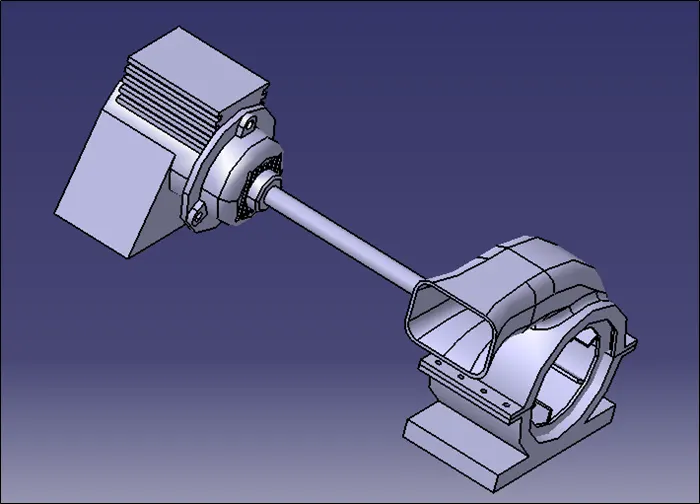

Fig 14. Assembly View 1

Fig 15. Assembly view 2
