Hood design-Week 2

MAKING OF CAR HOOD

1. DESIGNING OF CAR INNER PANEL.

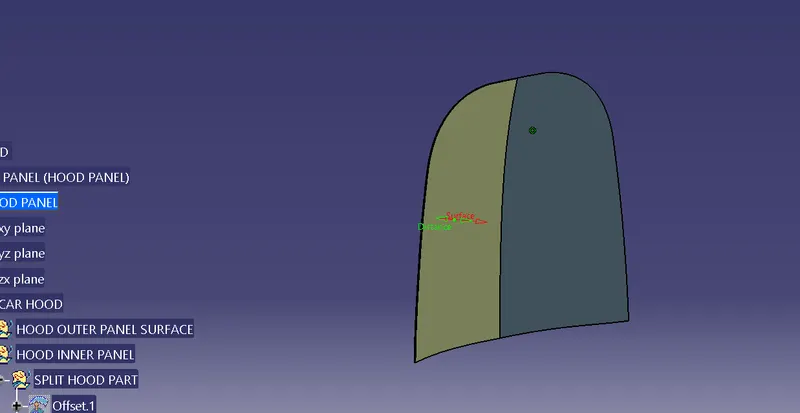

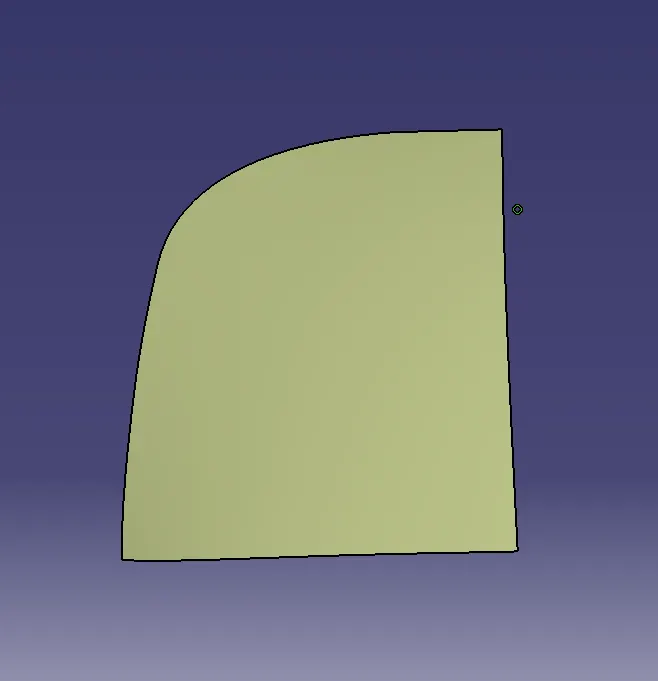

OFFSET THE HOOD SURAFCE AT 0 MM AND THEN SPLIT IT IN THE HALF WITH THE RESPECTIVE PLANE.

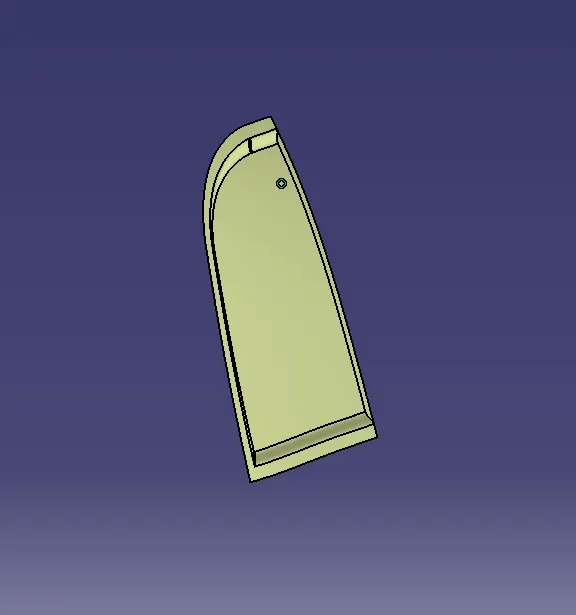

MAKE OFFSET OF 2 MM DOWNAWARD SIDE.

THEN MAKE PARALLEL CURVE OF THE SPLIT PART AND THEN MAKE OFFSET OF 10 MM IN THE DOWNWARD DIRECTION.

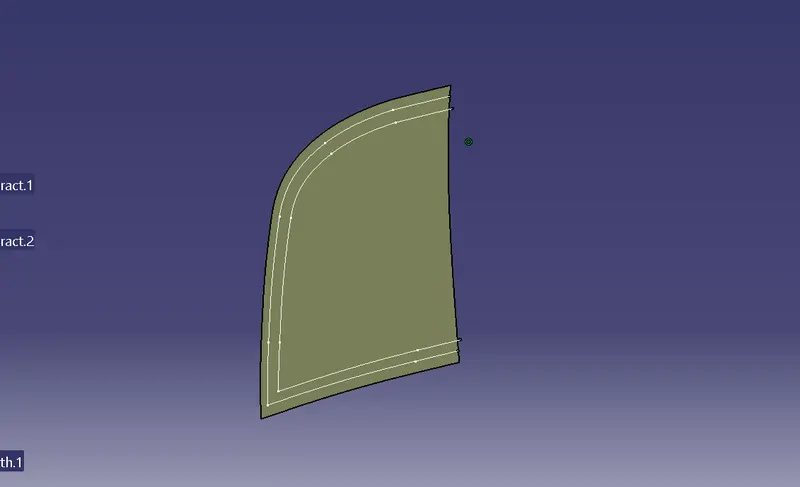

OFFSET THE CURVE FOR 5 MM THEN 10 MM RESPECTIVELY ON THE SPLIT HOOD SURFACE.

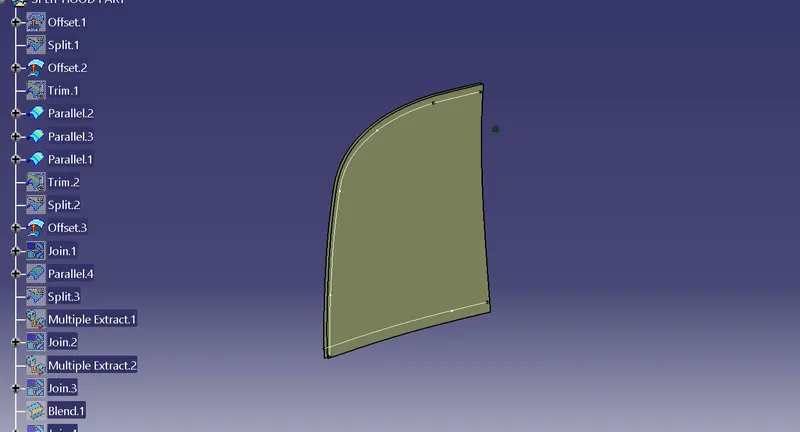

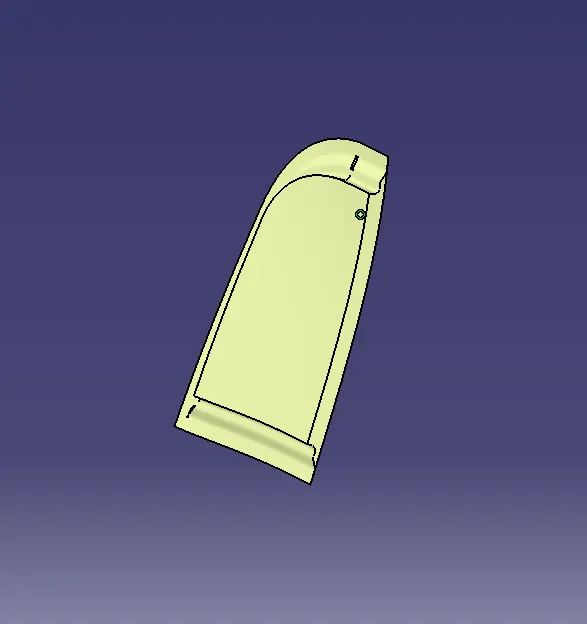

SPLIT THE HOOD WITH THE HELP OF CURVE. AND FOR JOINING THE OFFSETTED PANEL BLEND TOGHETHER.

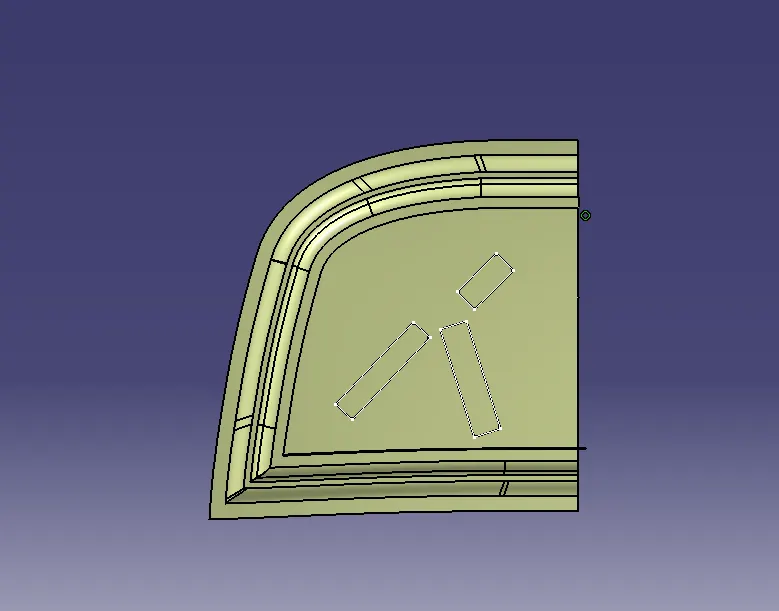

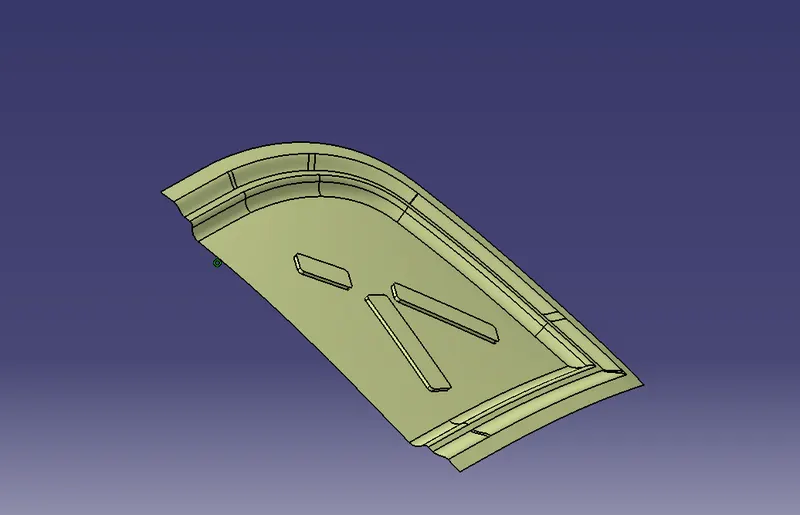

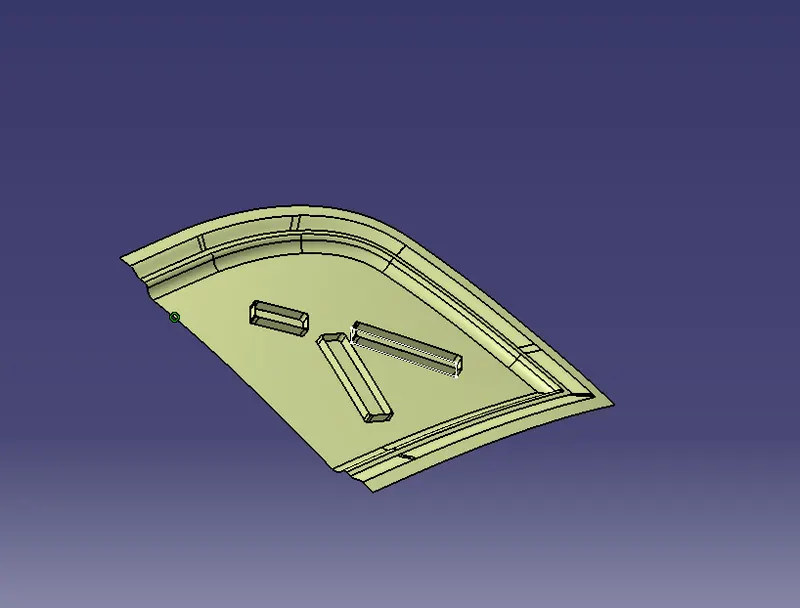

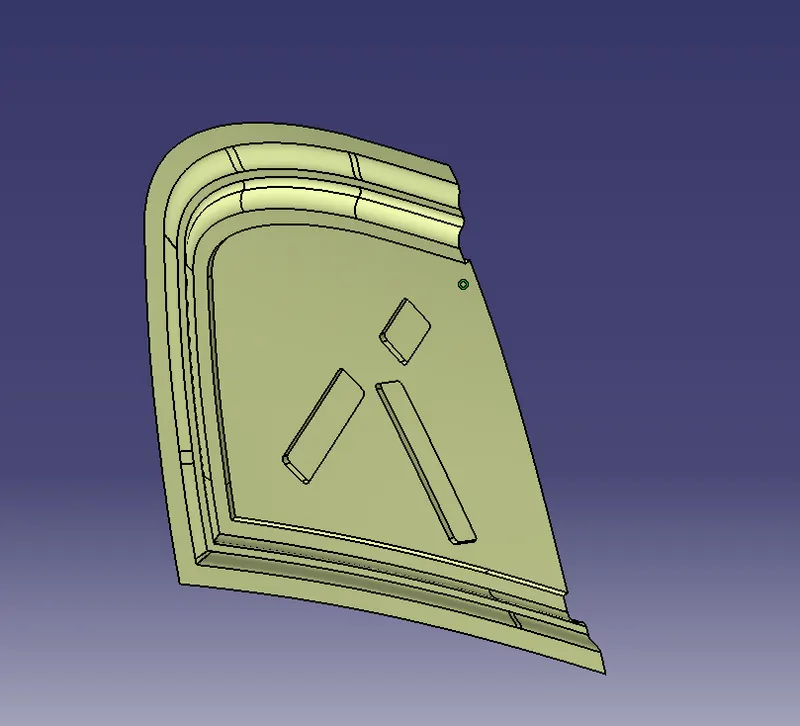

FOR EMBOSSNG OFFSET THE HOOD AT 25MM. MAKE BOUNDARY VISIBLE. THEN OFFSET THAT CURVE AT 25 MM ON THE HOOD SURFACE WITH THE HELP OF PARALLEL CURVE COMMAND. THEN SWEEP IT DOWNWARD AT SUITABLE ANGLE. THEN TRIM IT WITH THE O MM HOOD SURFACE. AND GIVE FILLETS OF 7MM AT EACH EDGE.

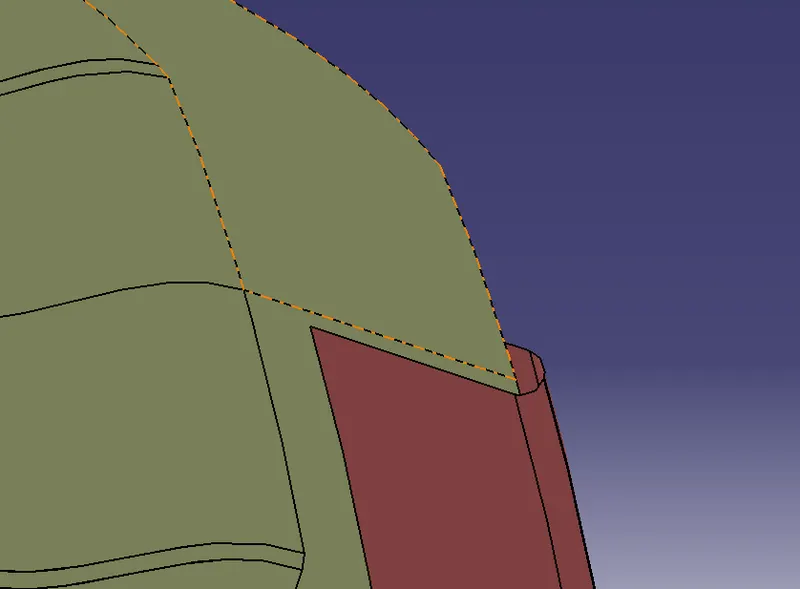

DRAW THE SKETCH IN SUITABLE PLANE ON THE ON THE HOOD. SWEEP WITH THE REFERNCE SURFACE THEN TRIM WITH THE SURFACE AND MAKE CLOSED BODY.

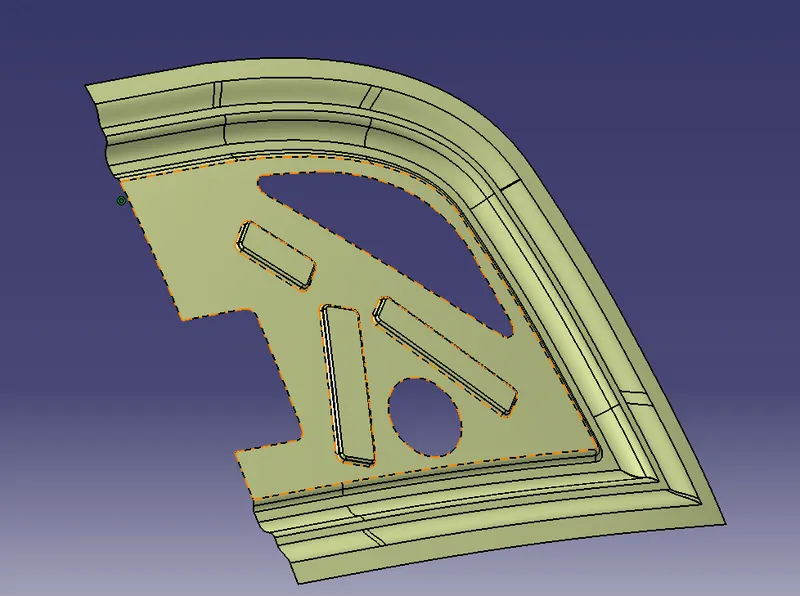

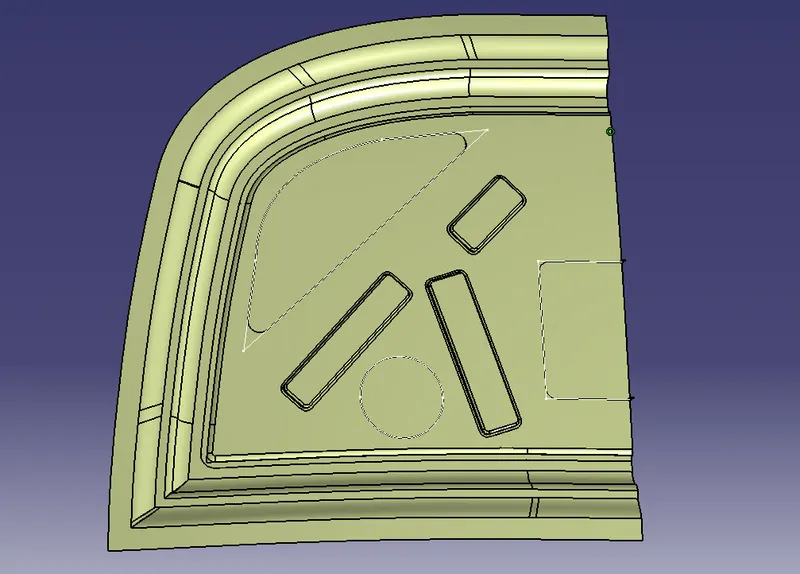

DRAW SKECHES TO CUT THE EXTRA MATERAIL OF THE HOOD SURFACE. IT CAN BE ANY SKETCH. BUT MAKE SURE THAT AT THE CURVATURE PART THE SKETCH SHOULD BE PARALLEL TO THAT CURVE. THEN SWEEP IT WITH REFERENCE OF SURFACE AND THEN SPLIT IT WITH THE HOOD SURFACE AND MAKE HOLE.

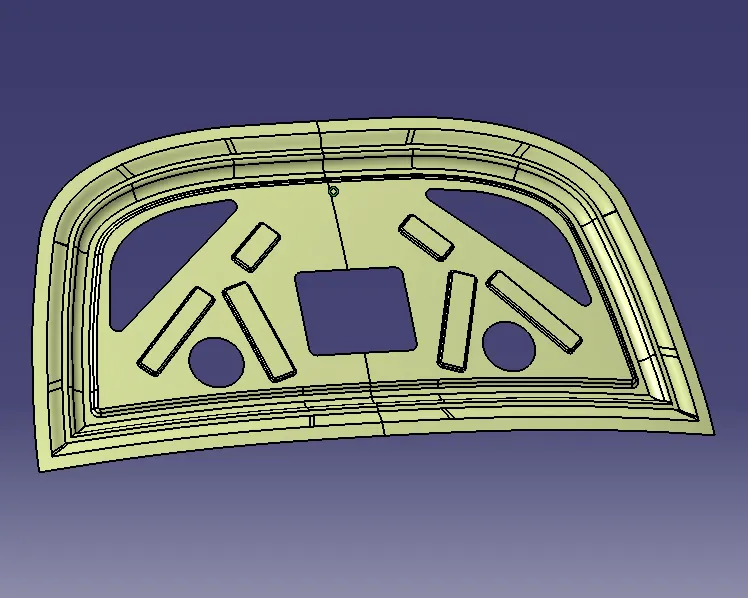

THEN MIRROR IT WITH THE RESPECTIVE PLANE AND JOIN IT WITH THE JOIN COMMAND.

2. CAR OUTER PANEL.

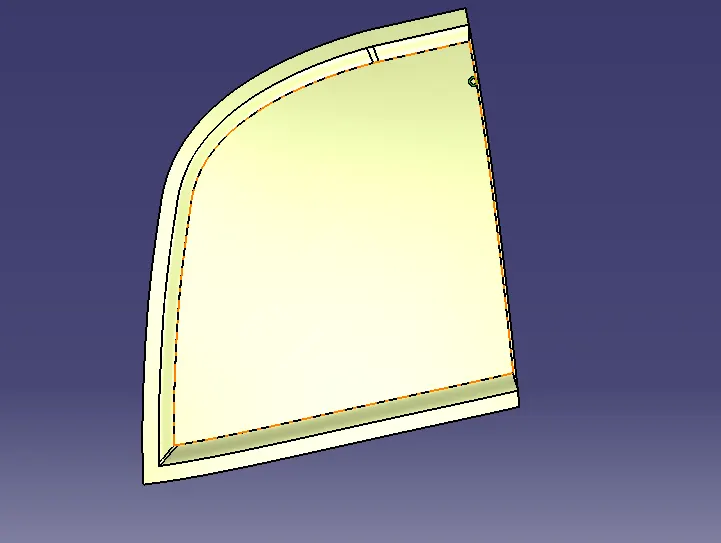

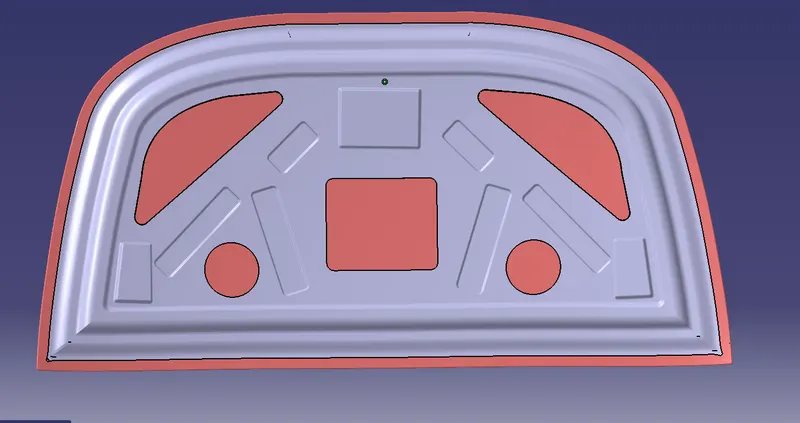

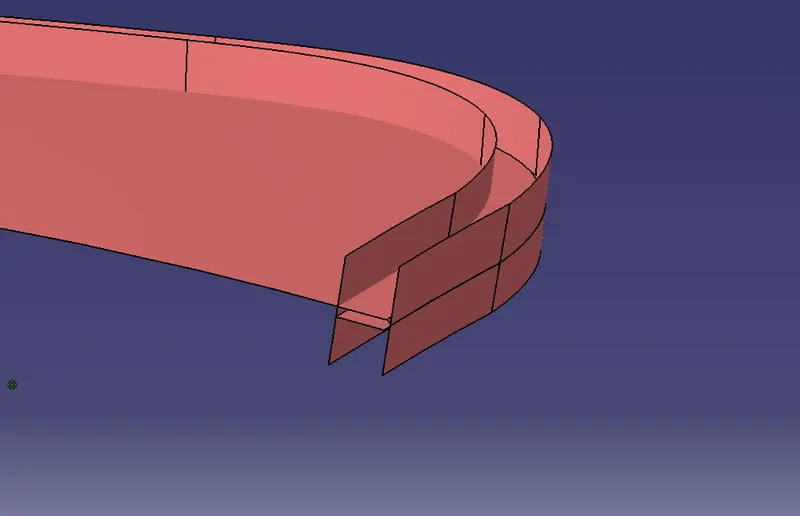

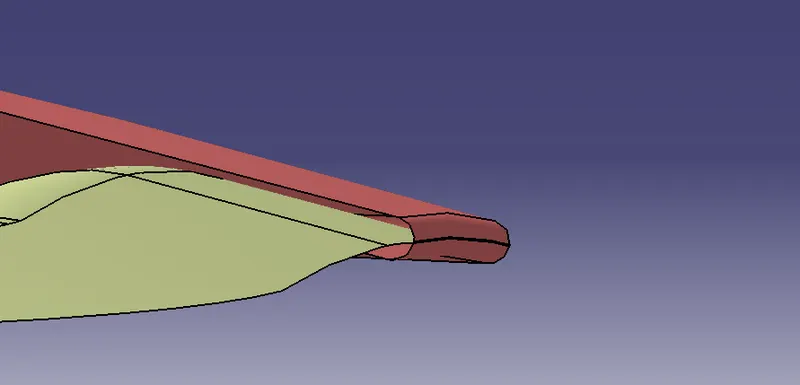

IN WICH WE ARE GOING TO DEVELOPE THE HEMMING FALNGE. JUST OFFSET THE HOOD SURFACE AT 0 MM. THEN MAKE A BOUDARY. THEN OFFSET THAT CURVE OR BOUNDARY AT 15 MM INSDIE ON THE HOOD SURFACE. THEN SWEEP BOTH THE CURVES OR BOUNDARIES AT SUITABLE ANGLE.

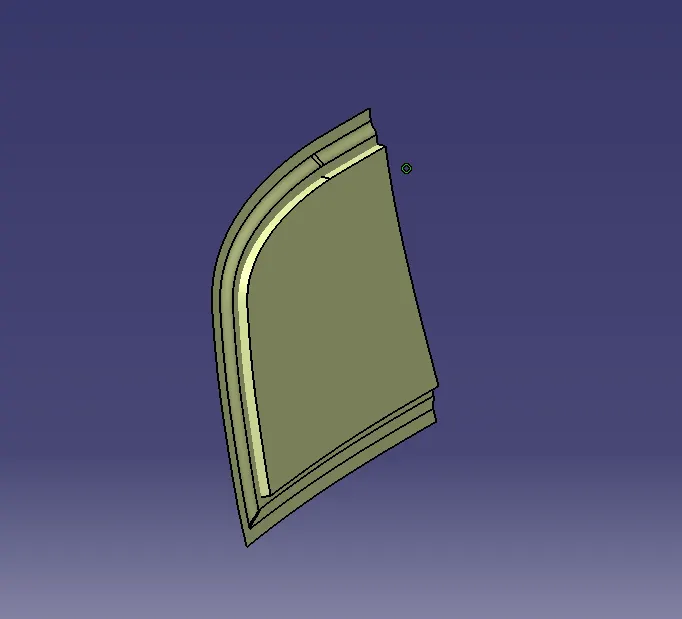

THEN OFFSET THE HOOD SURFACE IN DOWNWARD DIRECTION OF 2.9 MM. THE TRIM THE SURFACE WITH THE INNER PANNEL. GIVE FILLET OF R 1.4 MM.

MIRROR IT AND JOIN IT AND MAKE SOLID WITH THETHICKNESS OF 0.75 MM.

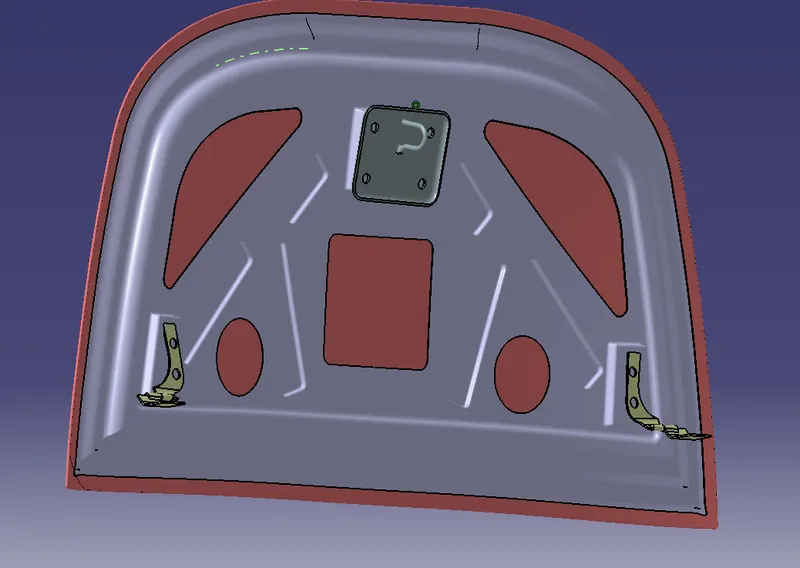

REPEAT THE PROCEDURE FOR MAKING EMBOSSED PART FOR HINGES AND STRIKER. AND MAKE PLACE THEM ON THESE EMBOSSED WITH THE COINDIENCE AUR MAUPILATE IN THE ASSEMBLY WORKBENCH.
