Hood Design in UG NX

Hood:

car's hood is another type of door. It also consists of an inner and an outer panel.The inner panel provides strength. The outer panel is just a metal cover, Styling Surface or"skin" Hood Covers the Front Engine Compartment of vehicle, Engine Compartment stays beneath. The underside of the hood is often covered with a sound-absorbing material using NVH. Some high performance cars have openings in the hood to allow the engine to "breathe" easier.Car hood is a hinged cover that rests over the engine in a front-engine car. A latch is provided under the hood in order to prevent accidental opening during driving. Purpose of hood is to provide access to the engine and battery for repair and maintenance. It also protects these parts from direct sunlight and dust.

it has diffrent component such as

• hood outer panel
• hood inner panel
• hinge
• strike

Hood outer panel :

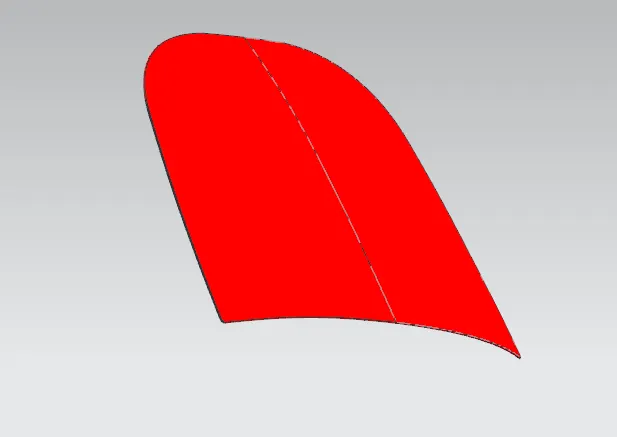

Outer panels provide aesthetic elements of a car. It is the styling team who provides the skin for the outer panel.. So while designing the hood we should give more importance to pedestrian safety. The outer panel is attached to the inner panel by hemming. So, it is necessary to provide required hemming flange and reliefs for the hemming operation. We also provide mastic sealants between outer panel and inner panel to reduce vibration.

Hood inner panel:

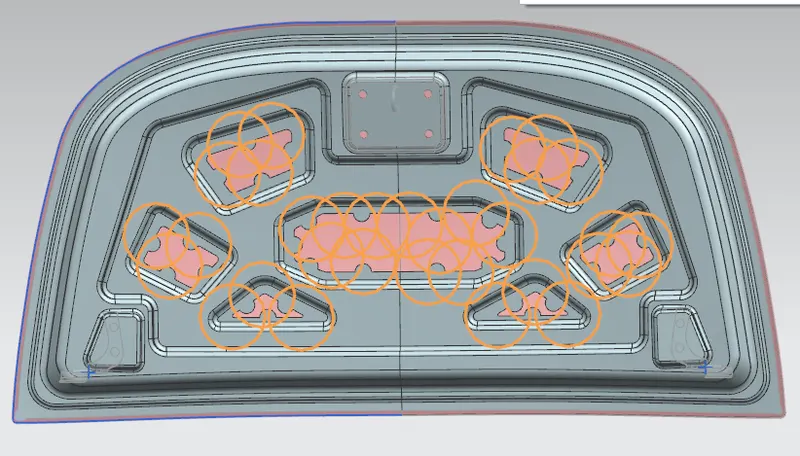

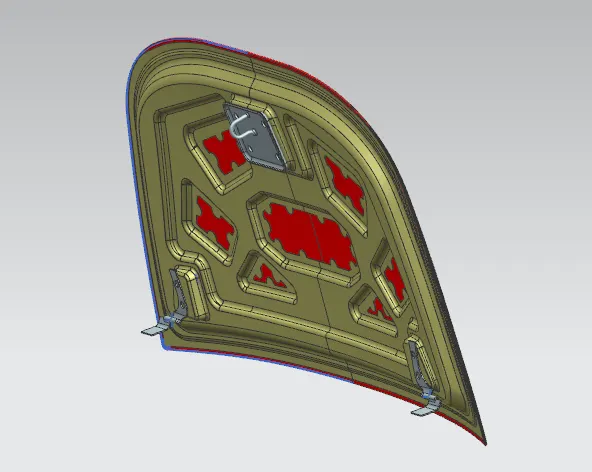

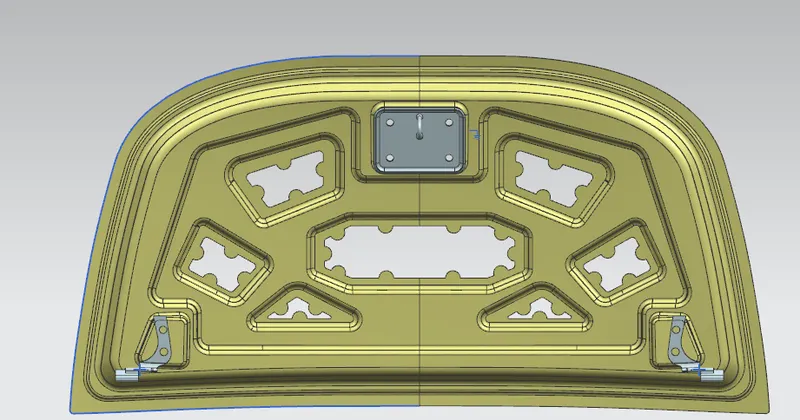

hood inner panel is provide strenth and rigidity to hood . embossing is done on it and provide surface to hinge and striker which help in movement of hood for opening and closing porpose the mastrk is on hood inner panel for sefty of car during colision mastic data place between outer and inner pannel of hood.

Hinges

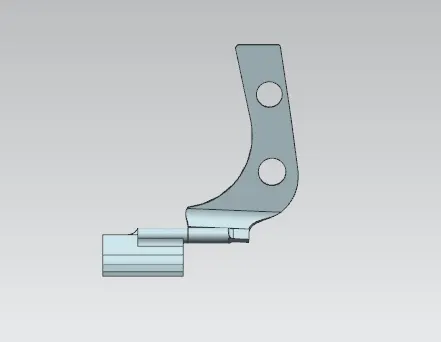

Hinges allow the hood to rotate around a fixed axis for opening and closing movement. One part of the hinge is fixed with the engine compartment, while other part is connected to hood.

Latch and Striker

Latch and striker mechanism is provided to lock the hood, in order to prevent accidental opening of the hood during driving. The latch is present on the engine compartment while the striker is attached to inner part of hood.

Reinforcement

Reinforcements are provided according to the design requirements. Mainly it is provided at the hinge and latch regions to improve the strength locally. Usually thickness of reinforcements will be higher than that of the inner panels and the value varies according to cost and requirement. According to the design requirement here it is given 1.5mm thickness to both hinge and latch reinforcements.

Latch Trajectory:

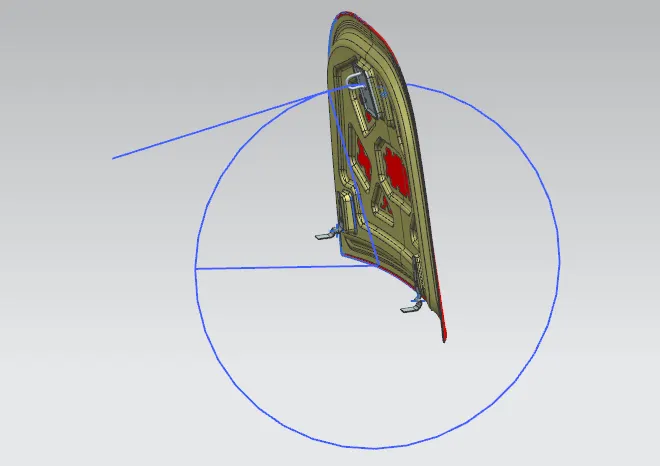

It is the path along which the hood rotates during opening and closing movement. The striker on the hood follows a particular path while opening or closing the hood, which is along circumference of a circle with center at the hinge axis. This path is nothing but latch trajectory. It is a very important aspect in hood design, in order to decide hinge, latch and striker installation points.

Hood Thickness Information

• Outer Panel Thickness = 0.75mm
• Inner Panel Thickness = 0.75mm
• Reinforcement Thickness = 1.5mm

Important Features used in designing:

• Trim Body – It is used to trim one or more bodies using a face or plane. You can also specify the bodies to retain and the bodies to discard.
• Offset Surface – It allows you to offset one or more existing surfaces.
• Offset in Face – This command will allow you to offset particular edges or curves on selected faces.
• Trim Sheet – It is used to trim off a portion of a sheet body using curves, faces, edges or planes.
• Through Curves – It will allow you to create a body Through multiple sections, where it’s shape changes to pass through each section.
• Law Extension – This command extends a curve or edge to create a sheet body at desired angle length by changing the rules under angle law and length law.
• Trim and Extend – It helps you to trim and extend intersecting surfaces and make corner at their intersection.
• Face Blend – It creates fillets between faces.
• Edge Blend – It creates fillets on edges.
• Extend Sheet – It will allow you to extend an existing surface to required distance.
• Emboss – Emboss command creates an embossing by modifying a body with faces created by projecting a curve/section along a direction. You can modify the emboss using options like endcap location and draft angle.
• Projected Curve – It is used to project an existing curve/curves on a selected plane or surface by selecting a direction for projection.
• Mirror Geometry – As name suggests, it allows you to mirror geometries about selected plane or surface.
• Sew – It combines sheet bodies together by sewing their common edges. There shouldn’t be any gaps larger than specified tolerance.
• Thicken – It is used to convert a surface to solid body by providing thickness.
• Extrude – It helps you to create a feature from a sketch. You are also able to create thin feature using a sketch or curve under this command.
• Wave Geometry Linker – With this you can create, associative or linked copies of any entity of a part into other parts. It may be a surface, edge, curve, body, sketch etc. The changes made to the original entity will be reflected in the copy of that entity.
• Deep Drawing Deep drawing is one of the most widely used processes in sheet metal forming. Apart from its use in many other sectors, it is applied in the automotive industry for the manufacturing of car body parts. The deep drawing process is a forming process which occurs under a combination of tensile and compressive conditions.
• Hemming –

Hemming is a forming operation in which the edges of the sheet are folded over other part or simply folded in order to achieve a tight fit. In car part production, hemming is used in assembly as a secondary operation after deep drawing, trimming and flanging operations to join two sheet metal parts (outer and inner) togetherIn car part production, hemming is used in assembly as a secondary operation after deep drawing, trimming and flanging operations to join two sheet metal parts (outer and inner) together. Typical parts for this type of assembly are hoods, doors, trunk lids and fenders.

There are two types of hemming operations,

1. Conventional die hemming

In conventional die hemming, the flange is folded over the entire length with a hemming tool.

2. Roll hemming

It is the roll hemming process that is used for automotive sheet metals. Roll hemming is carried out incrementally with a hemming roller. An industrial robot guides the hemming roller and forms the flange. Roll hemming operation can also be divided into several pre-hemming and final hemming process steps. Roll hemming is very flexible to use and tool costs are significantly lower as compared to those of conventional die hemming. However, the cycle times are much higher since the hemming is realized using a hemming roller
