Hood design-Week 2

Sir,

Hood design .

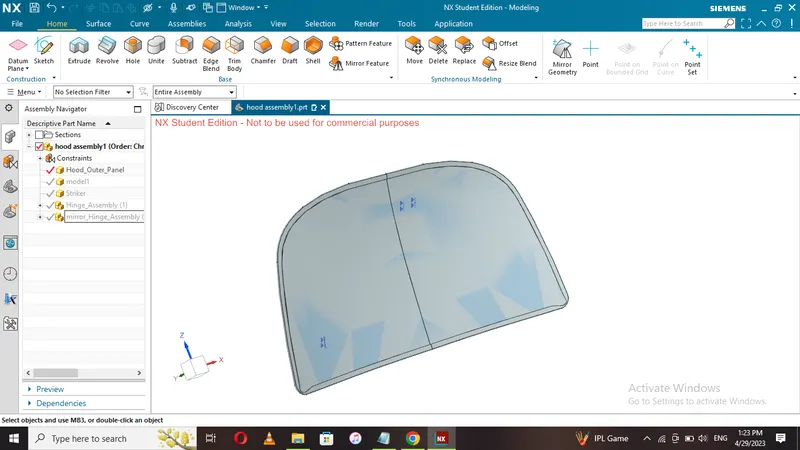

Initially starting with assembly workbench,all files are moved to the assembly worbench,From Class A skin ,Duplicate copy is made,Then by trim command the surface is trimmed by symmetric,Then with the help of part work bench Inner panel is going to be created.

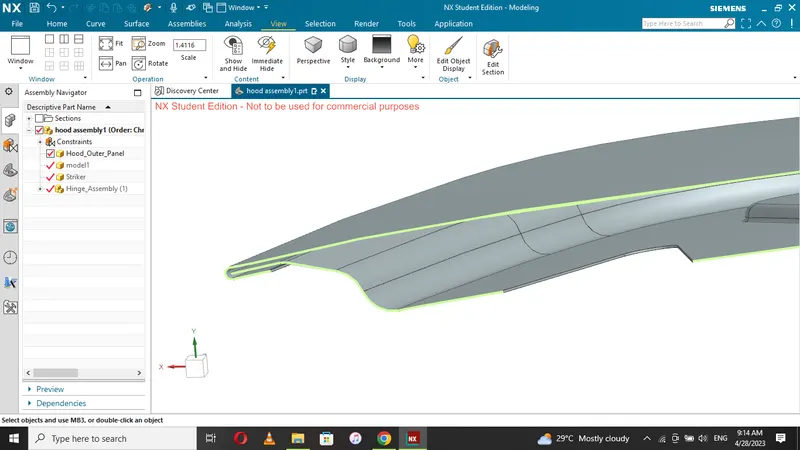

Then inner panel is going to be created,in outer panel Hemming process also done at the outer side

Inner panel is created with workbench the emboss is created.

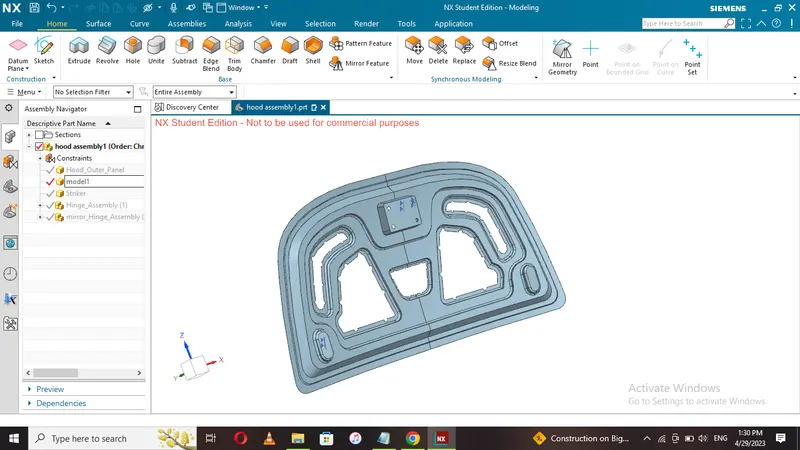

Then various emboss are created with various size,cutt outs also created.

Emboss for hinges also made to provide hinges support

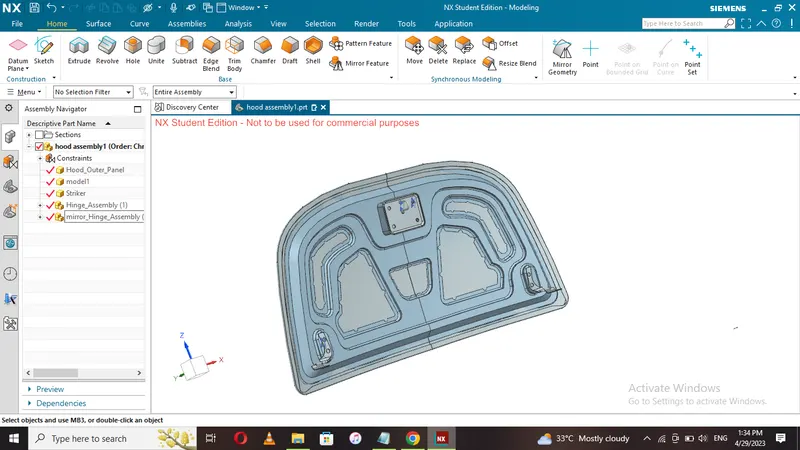

THen emboss for striker is made so a sketch is made as a circular with reference to line between two hinges a point is made then a sketch is made,Emboss for stricker is made then asssembles with the emboss.

Regards

Gowthaman.S
