Hood design-Week 2

                                                                          HOOD

The hood is an opening body panel that covers in a front engine . It is very crtical component because of the frontel crash and the pedestial requireement and it desipte the energy outside than the inner body. It maninly consist of two parts inner pannel and outer pannel.

 DESIGN HOOD

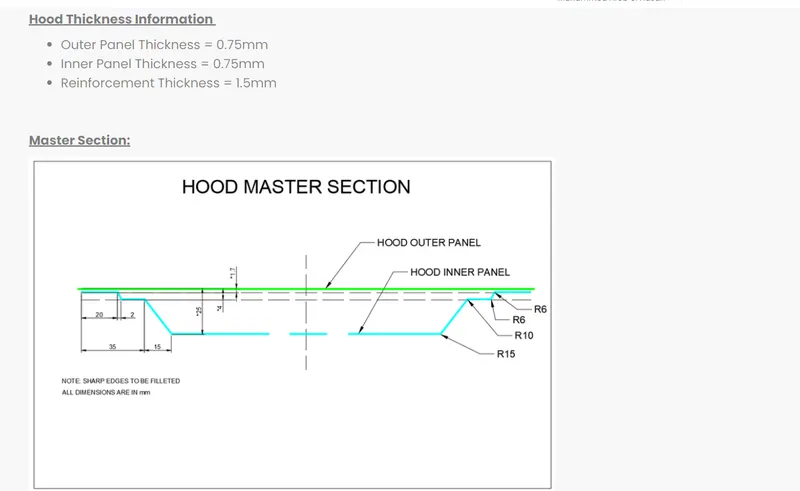

 The given data

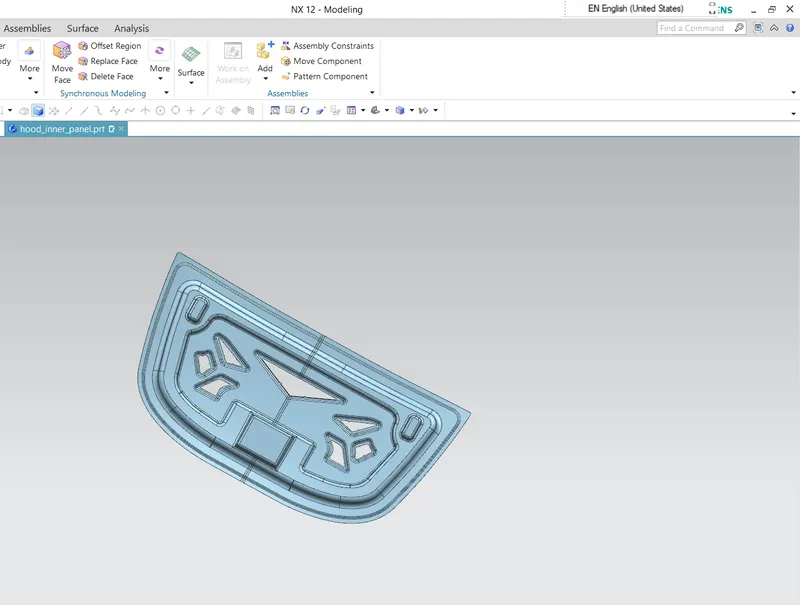

INNER PANNEL

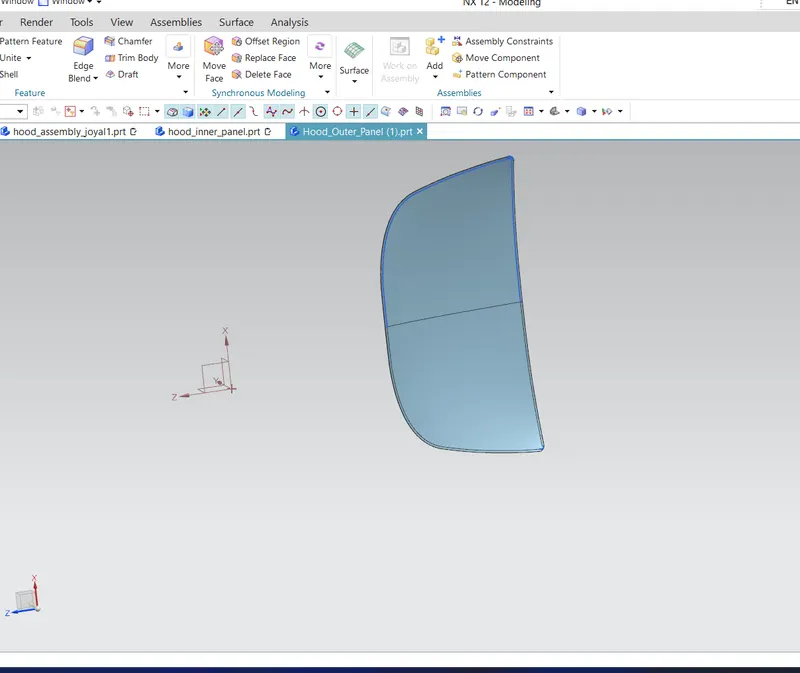

OUTTER PANNEL

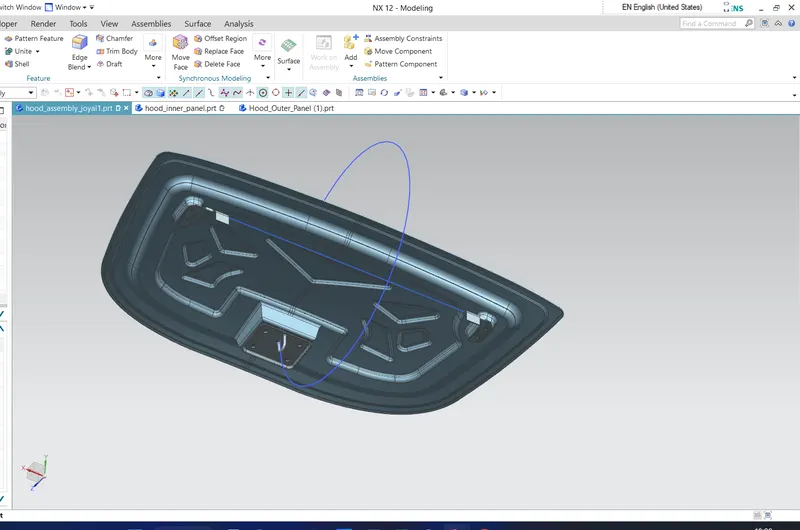

LATCH TRAJECTORY

EMBOSS

It is designed to despit the force toeards outside the car so the energy during the collesion will reduse by that the fore effecting to the passenger can be reduced.
