Hood design-Week 2

A car hood ,also referred to as a "bonnet" in some countries , is the hinged cover that rests over the engine bay of front-engine vehicle. the car hood protects the engine and connected parts from the elements while providing easy avvess for repairs and maintenance.

car hoods are typically constructed from steel and sometimes from aluminum. after market car hoods may be constructed from various other materials,including carbon fiber,fiberlass,or dry carbon.

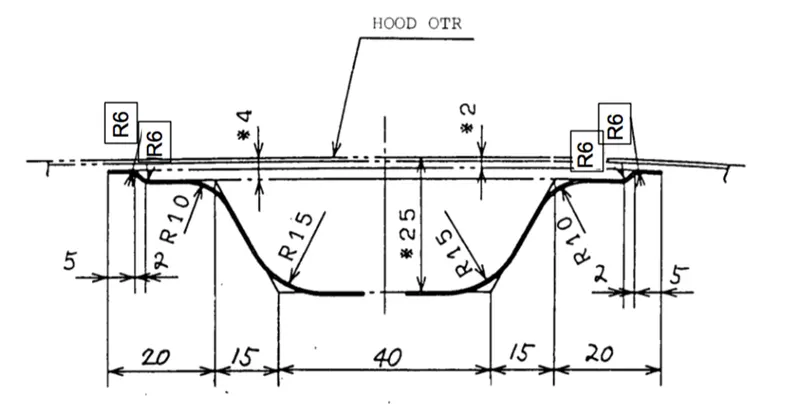

MASTER SECTION:

the master section is already provided by the marketability team and the manufacturing requirements.

MANUFACTURING REQUIREMENT DATA:

• no sharp corners inside the panel. no negative draft. provide appropriate corners.
• outer panel thickness=0.75mm,inner panel thickness=0.75mm reinforcerment thickness=1.5mm.
• minimum filet radius=0.3mm+thickness(example,thickness of outer/inner panel),0.3+0.75=3.75mm.
