Frequency Analysis of a rotating shaft

AIM :

• To model the shafts in Solidworks as per the image provided.
• To conduct a frequency analysis on the shaft.
• To find out 5 mode shapes and list the resonant frequencies.

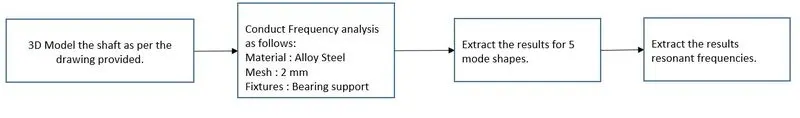

METHODOLOGY:

Modelling :

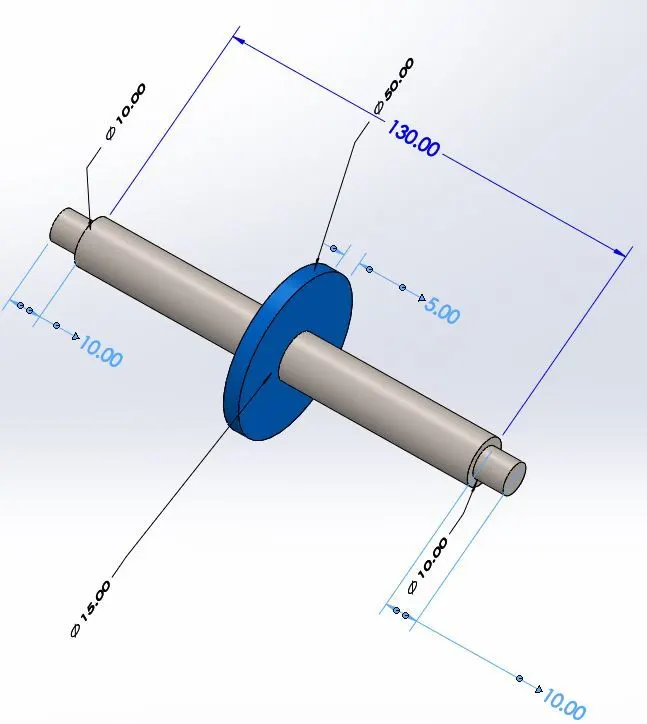

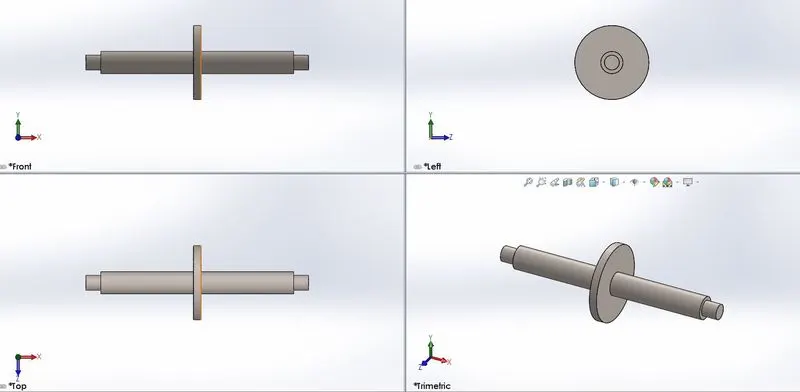

The shaft is modelled as per the drawing provided.

Frequency Analysis :

Fixture : Bearing Support

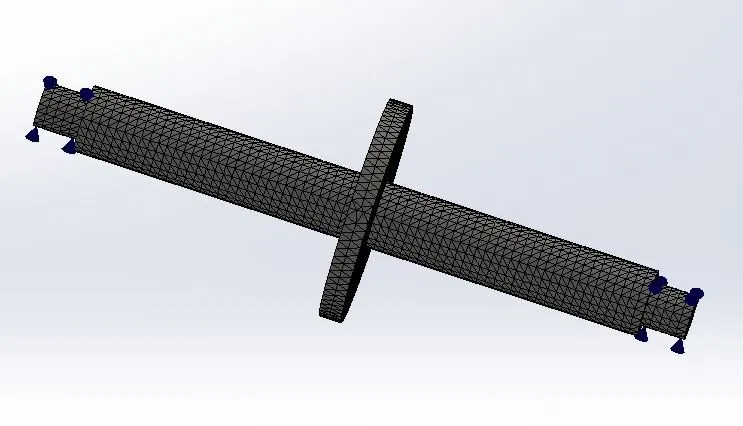

Mesh : 2mm

Result :

Modal shapes

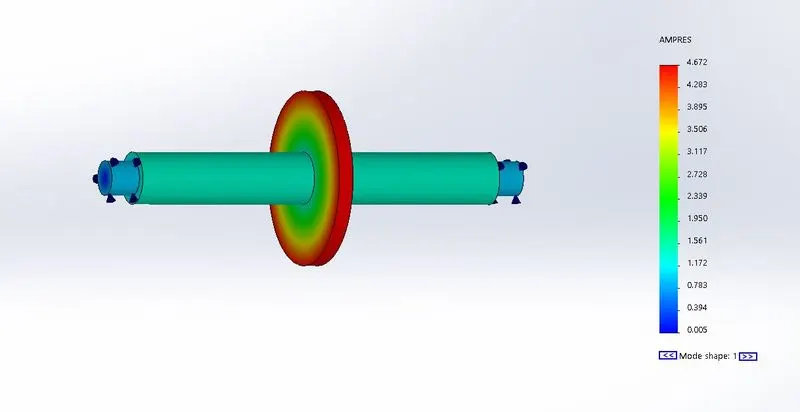

Modal Shape 1:

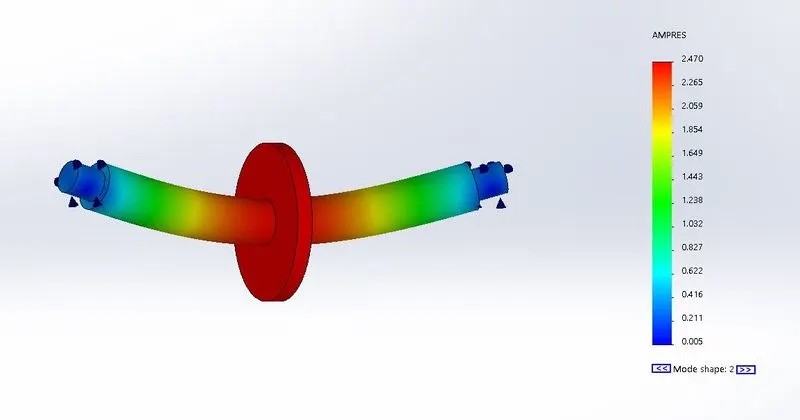

Modal Shape 2:

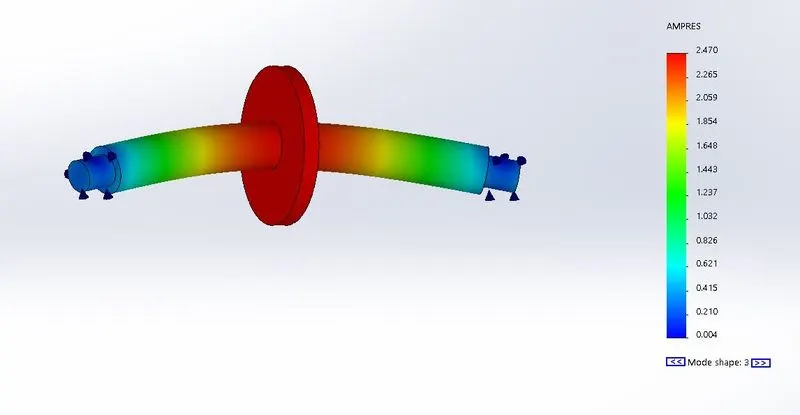

Modal Shape 3:

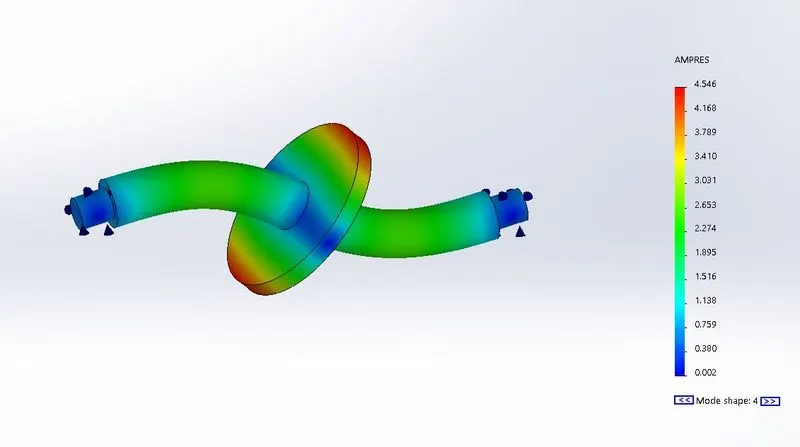

Modal Shape 4:

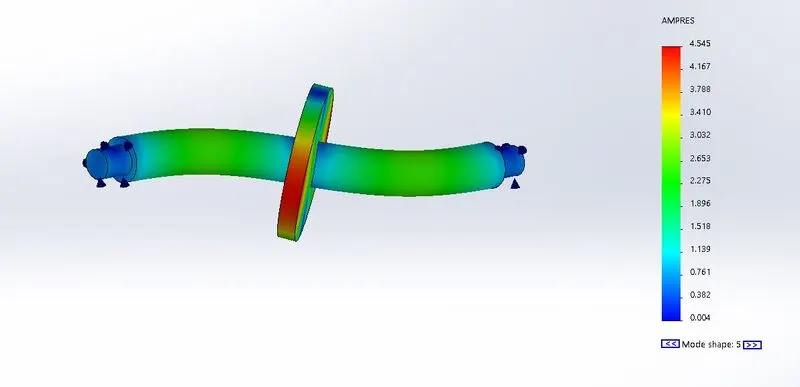

Modal Shape 5:

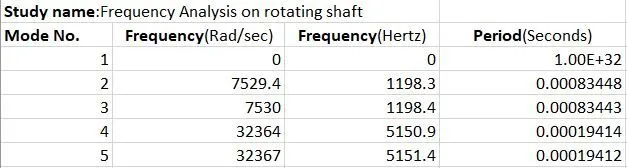

RESONANT FREQUENCIES:

The shaft must be prevented from experiencing the frequencies mentioned above in order to prevent the shaft from failure.
